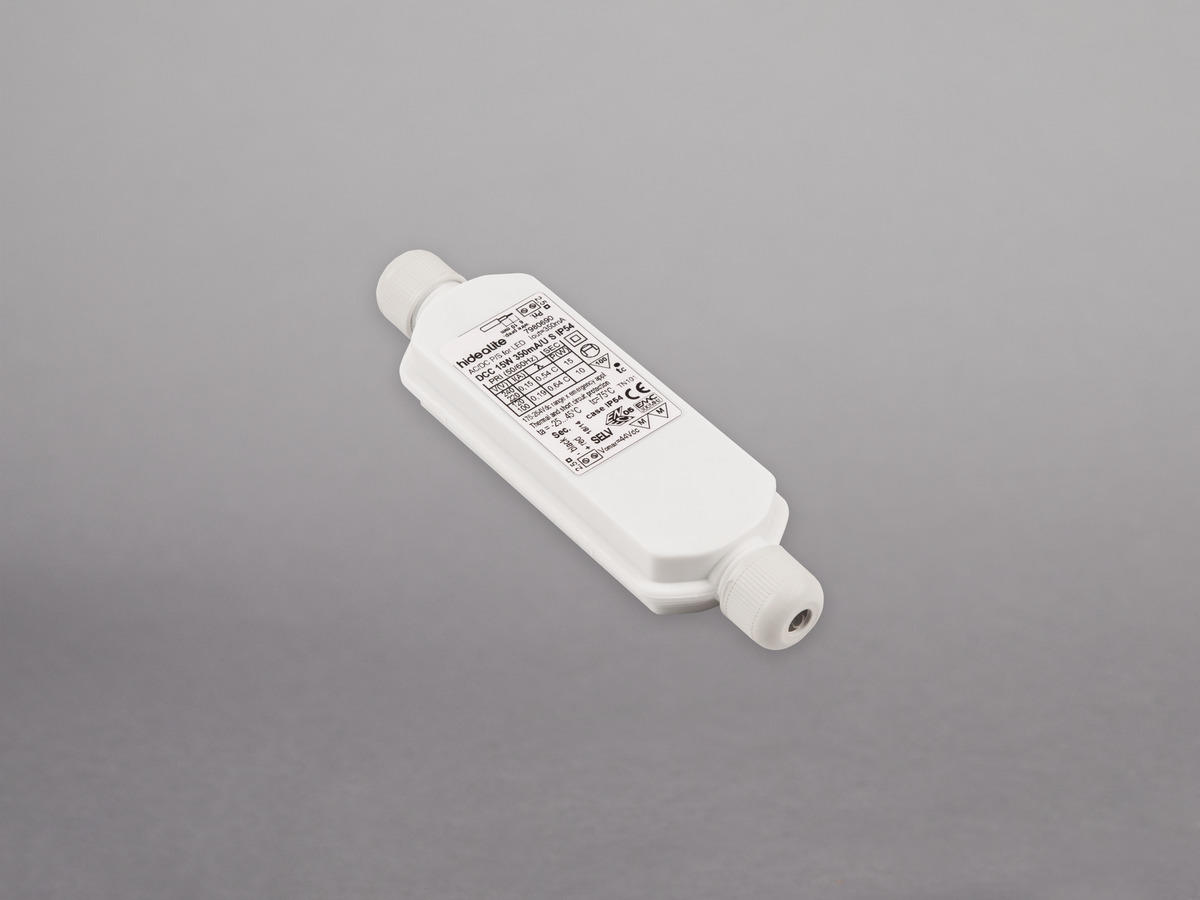

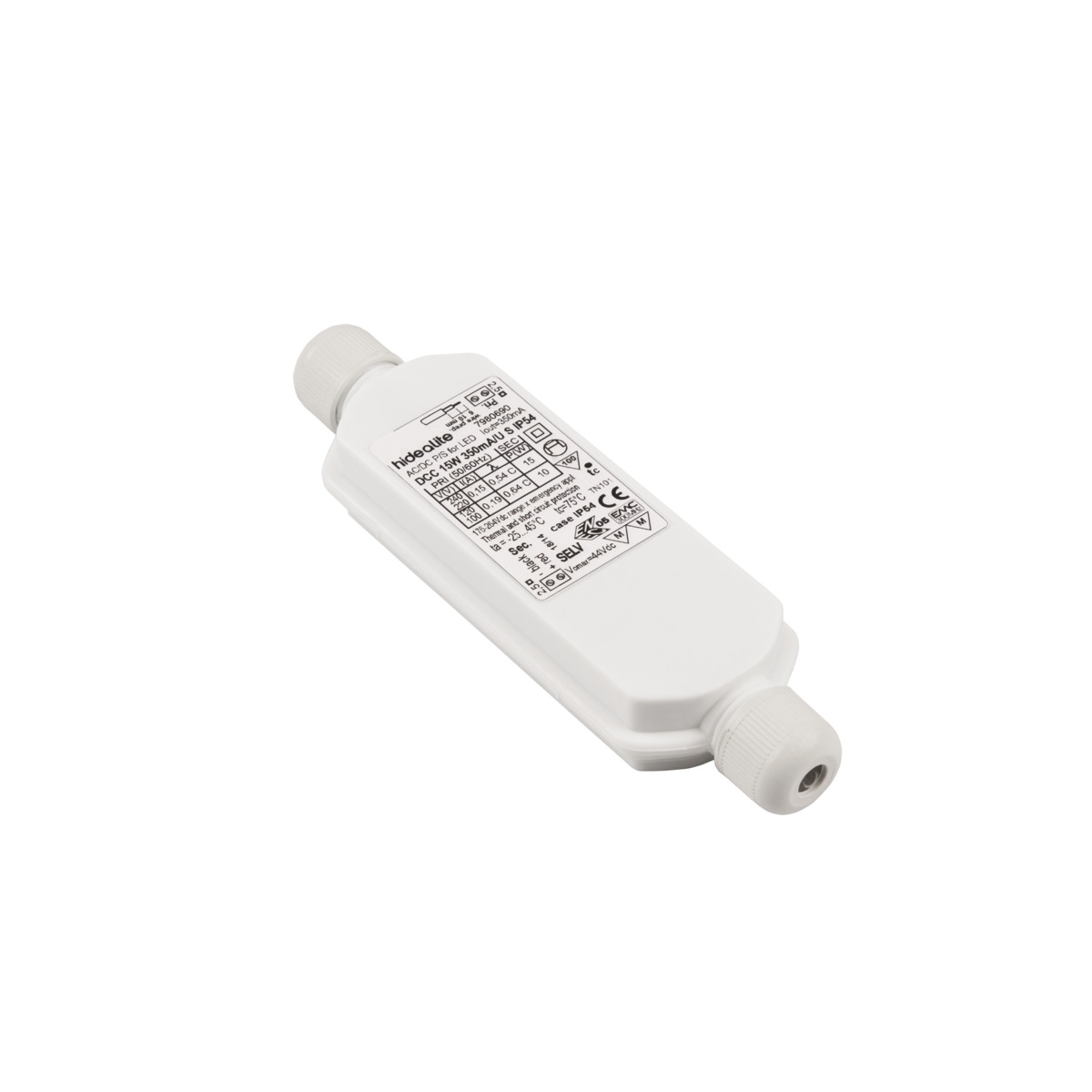

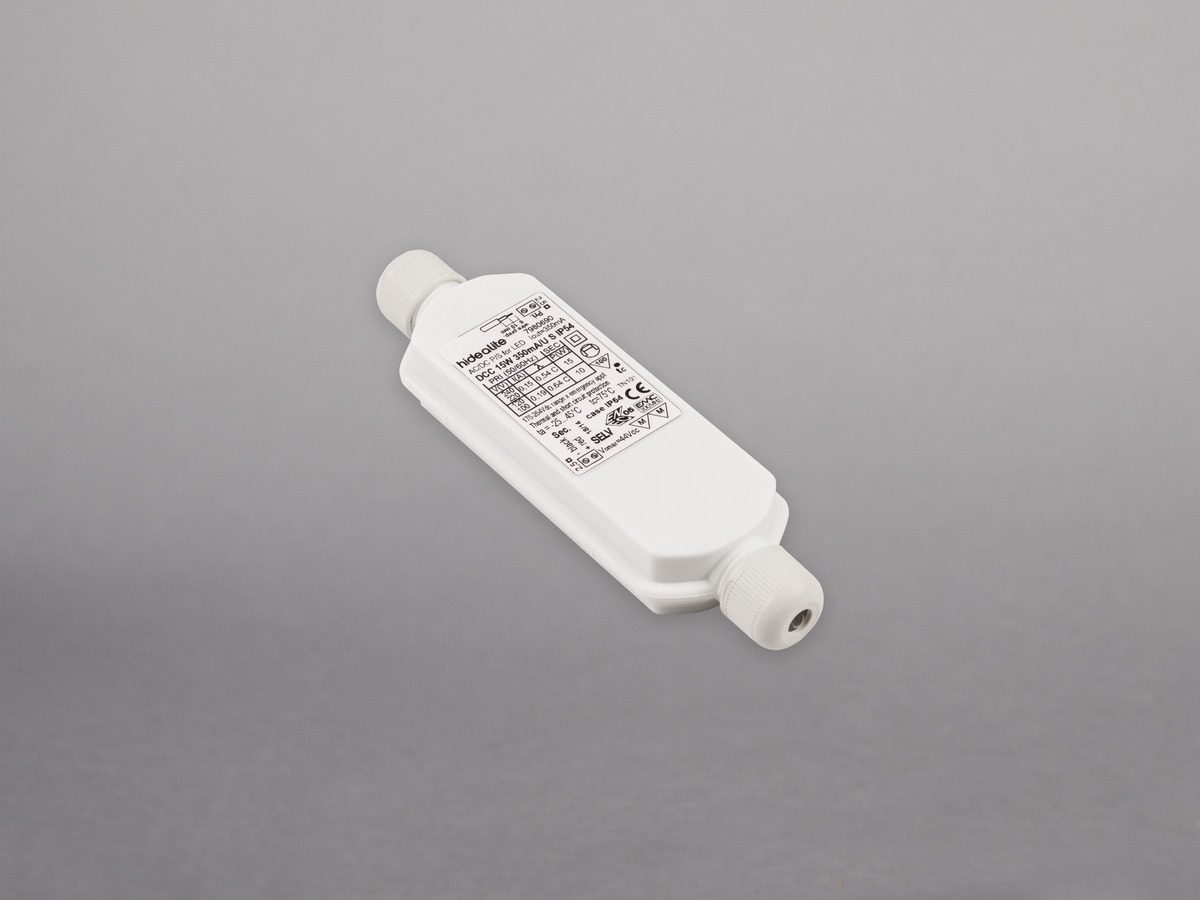

Converter DCC IP54

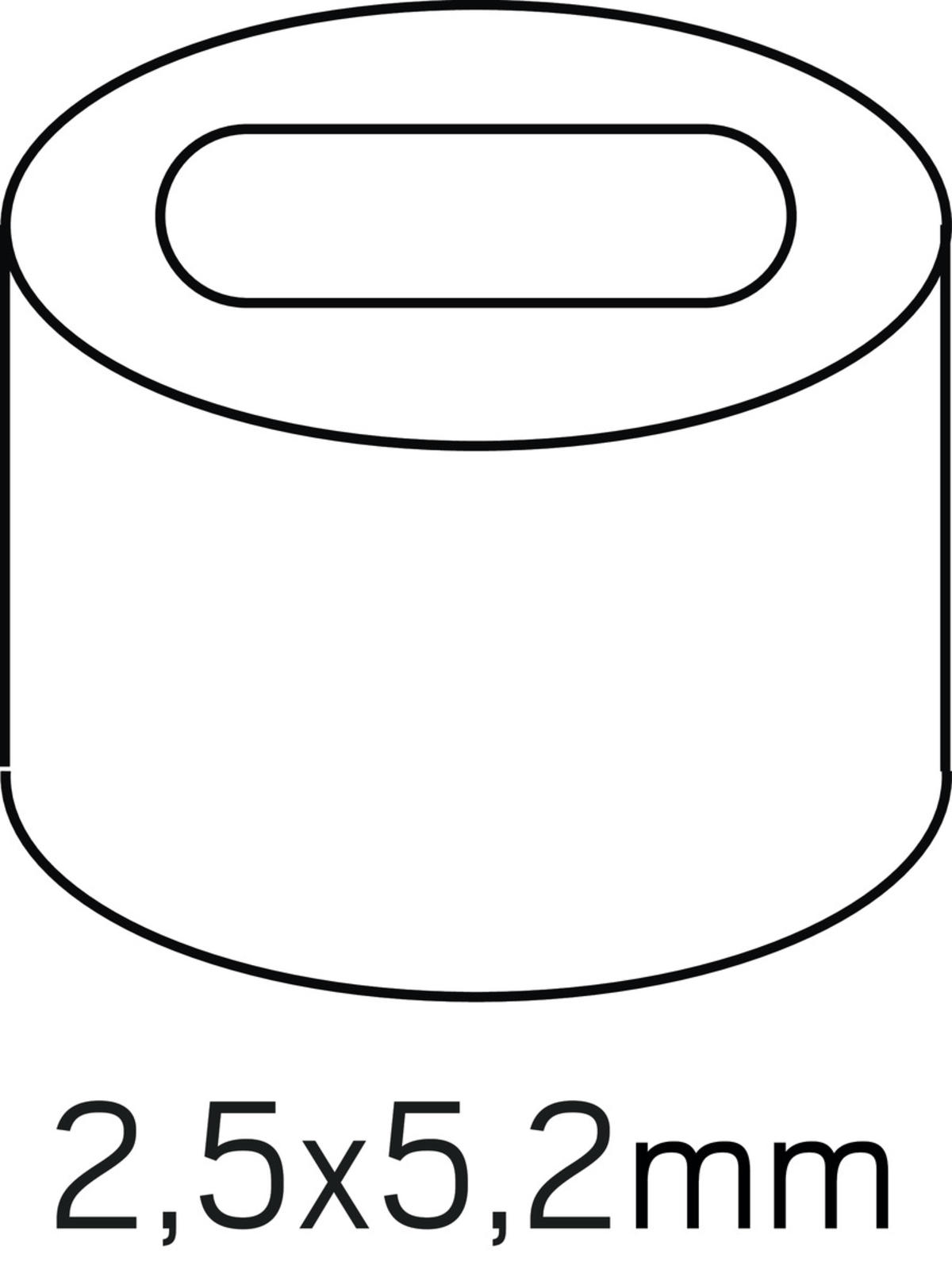

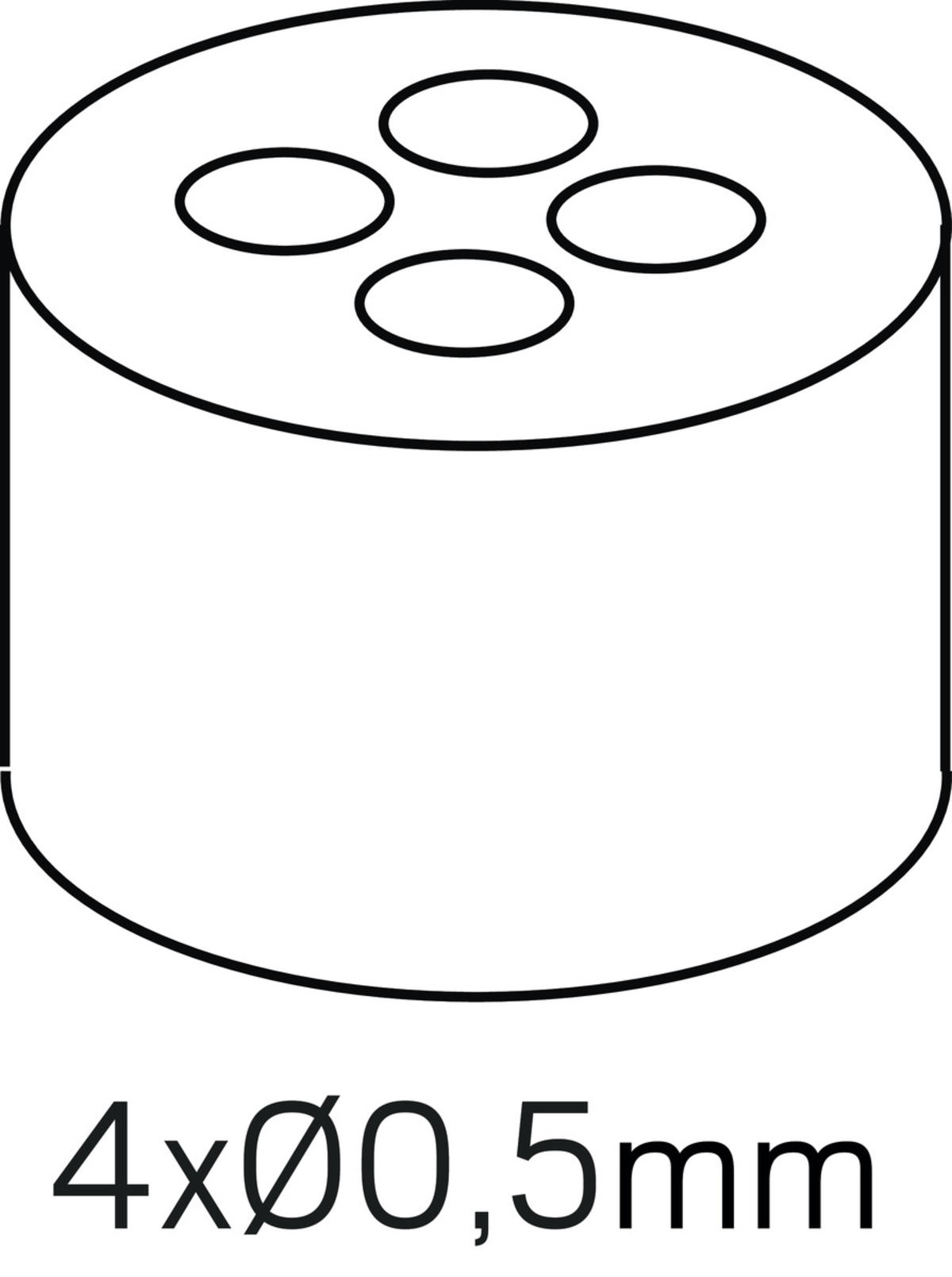

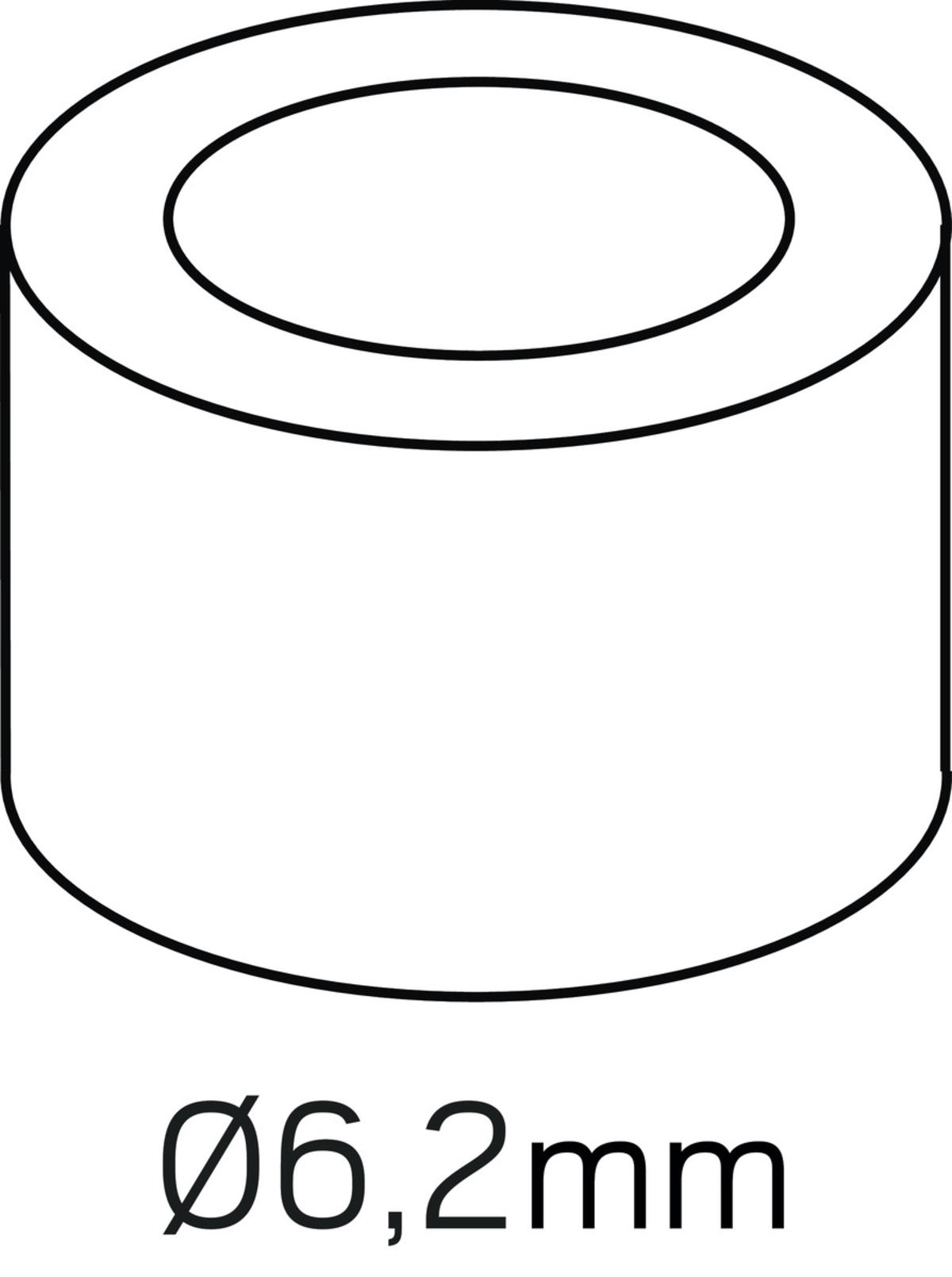

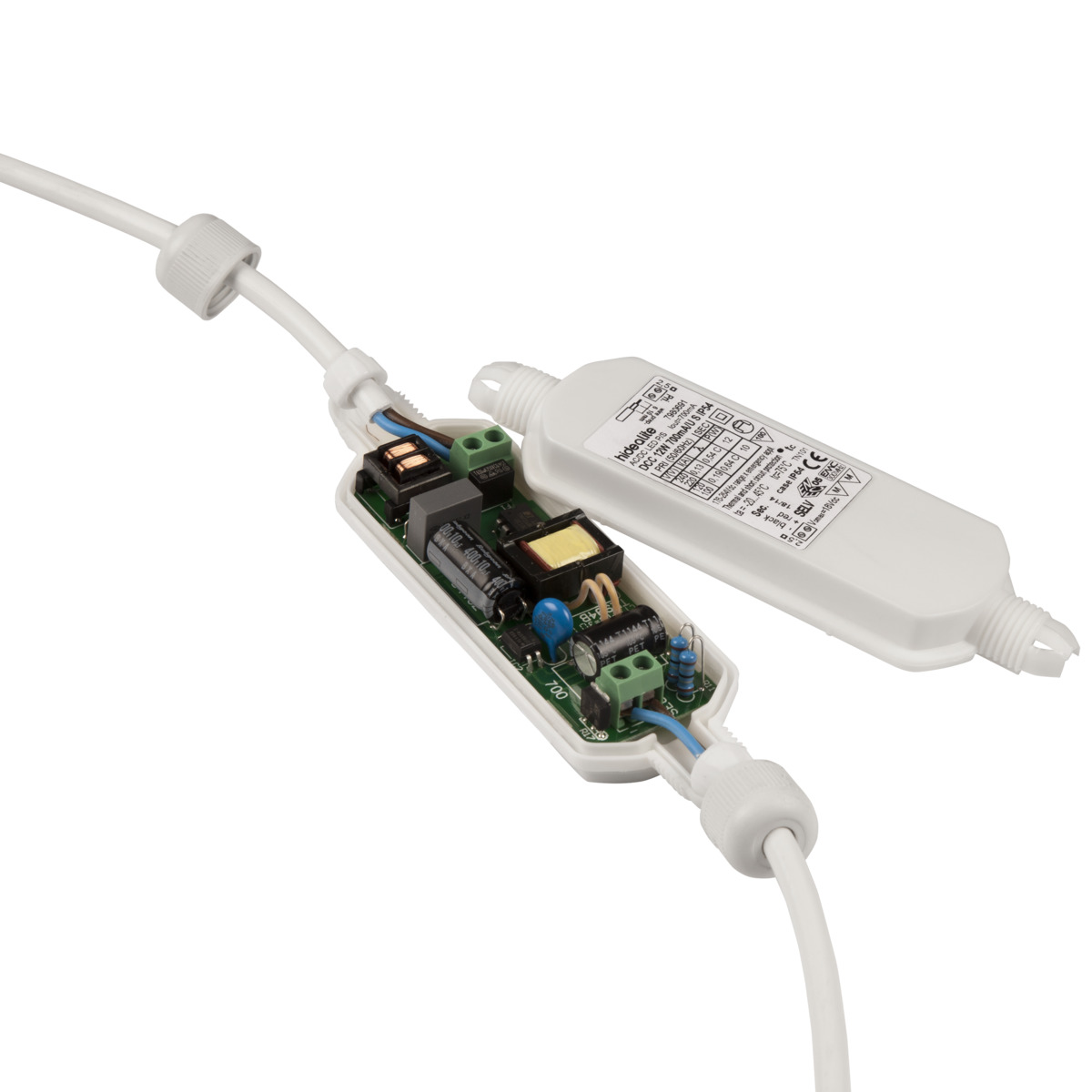

Driver for constant current in sturdy IP54 design for indoor or outdoor use. Despite its high IP degree of protection, it is easy to open the driver for simple installation. Connection to optional cable, see dimension sketches.
GTIN 7392971124858
Item Name DCC IP54 700
Warranty 5 years
Light Technical Data
Nominel Life Time (h) 50000
Life Time Driver 50 000h/5%
Operation and Connection
Driver Model Constant Current
Driver Type Stand Alone
Connection (type) Screw Terminals
Strain Relief Yes
Connection Secondary (type) Screw Terminals
Voltage Output Interval (V) 2-18
Power Interval for Catalogue (W) 0-12
Constant Current (mA) 700
Operating Temperature -20…+45
Dimmable No
Type of Dimming OnOff
Protection Against Short Circuit, Overload, Overheating 100°C
Fuse B10 (pcs) 17
Fuse B16 (pcs) 27
Fuse C10 (pcs) 28
Fuse C16 (pcs) 46
Color and material
Material Plastic
Color White
Measurement and installation
Operating Environment Indoor / wet locations, Outdoor
IP Degree of Protection 54
Protection Class II
Installation Surface mounted
Fire Safety Marks MM-mark
Approval Marks CE, Kema Keur, ENEC 05
Length (mm) 133
Width (mm) 40
Height (mm) 20
Weight (kg) 0,05
Built-in Ø (mm) 45
