LEDstrip 24V RX IP20

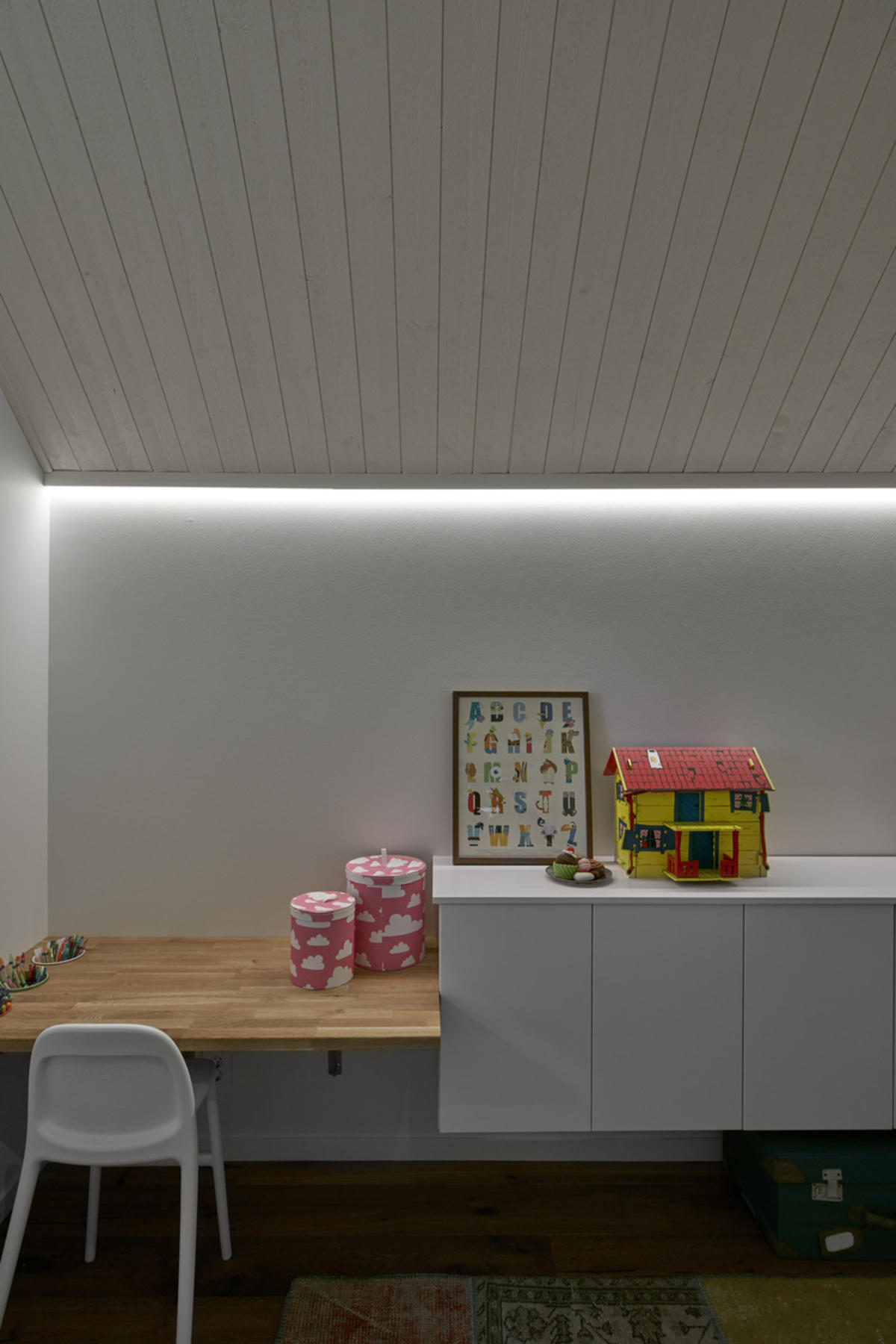

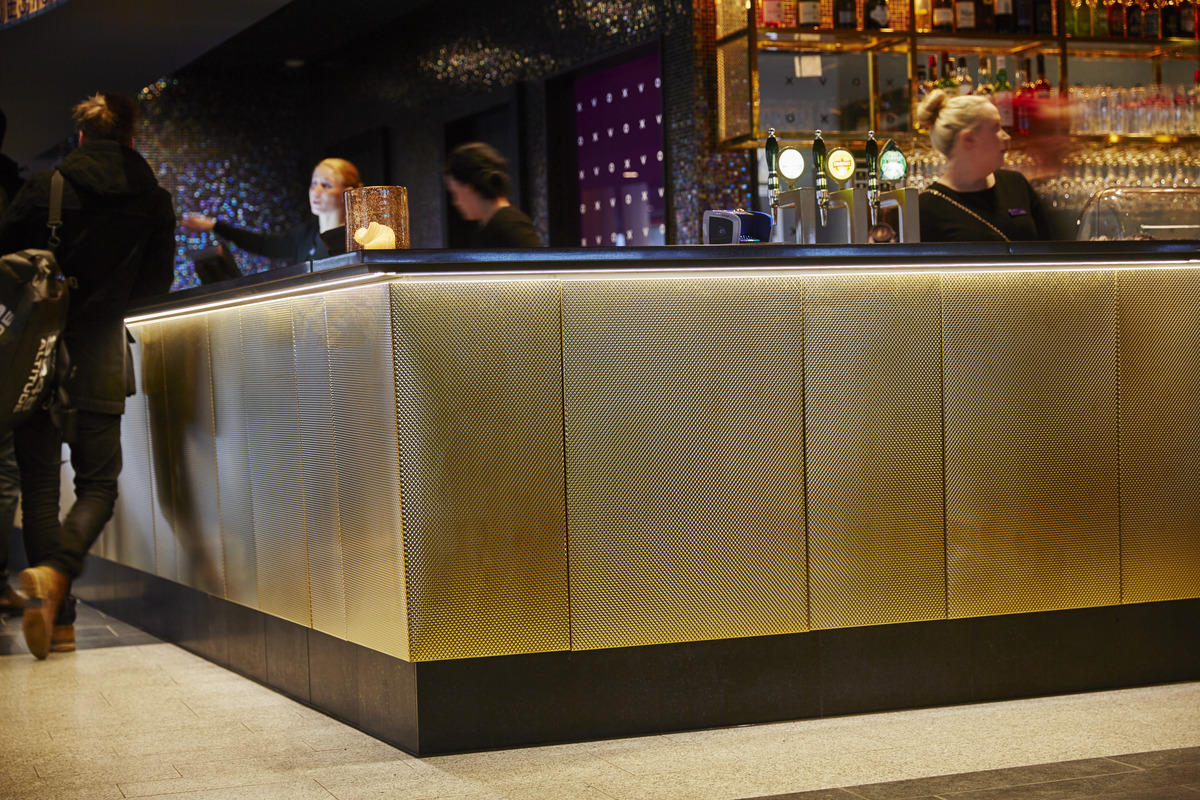

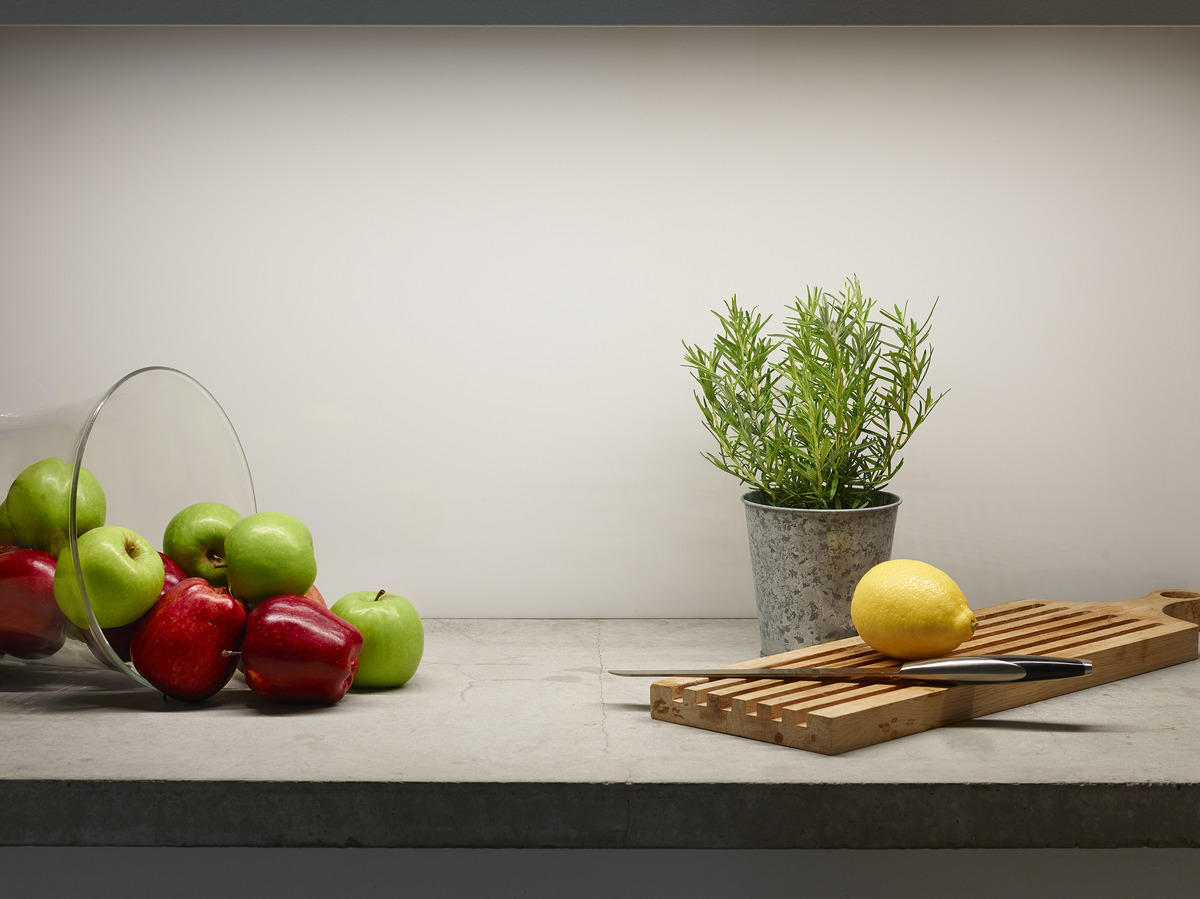

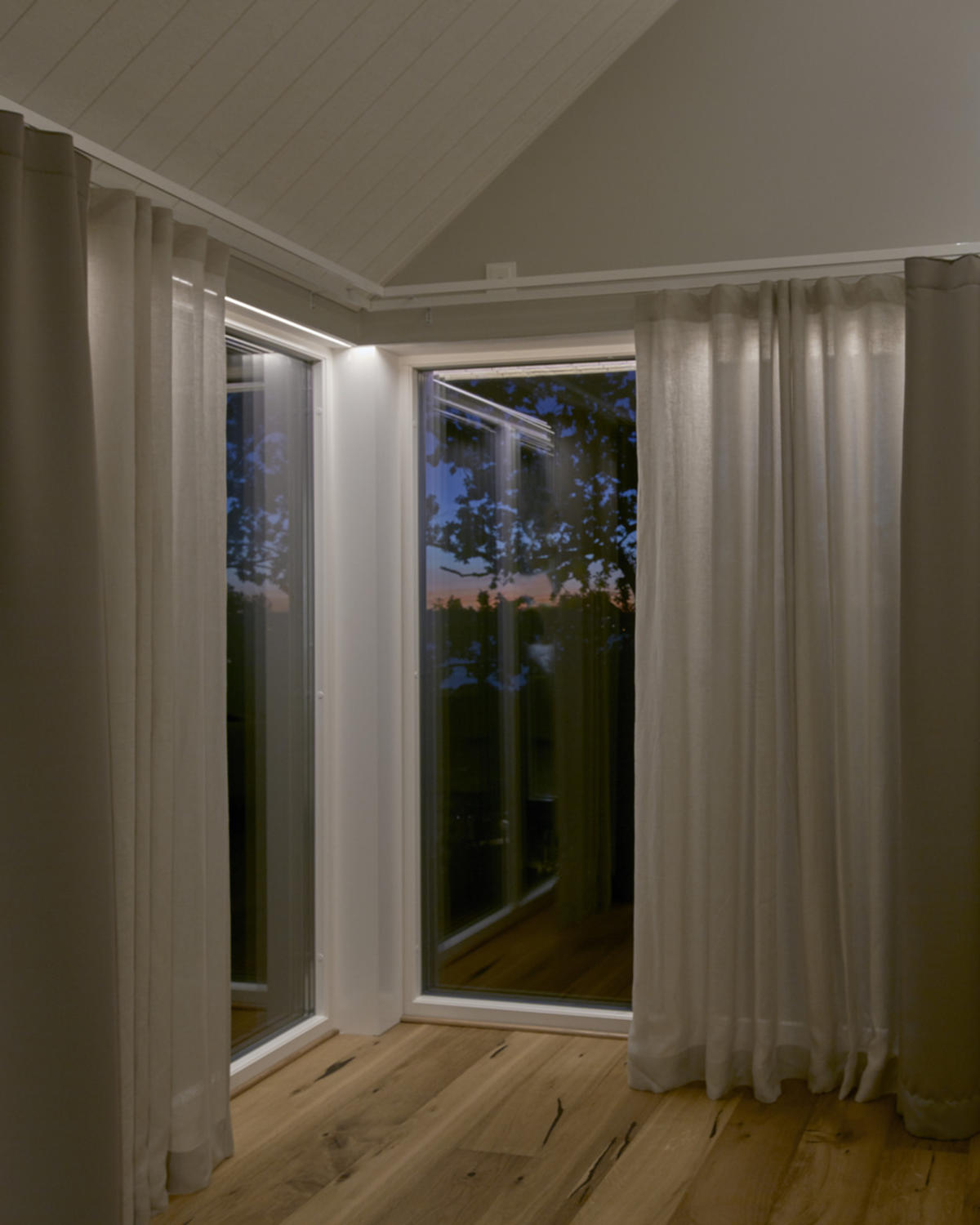

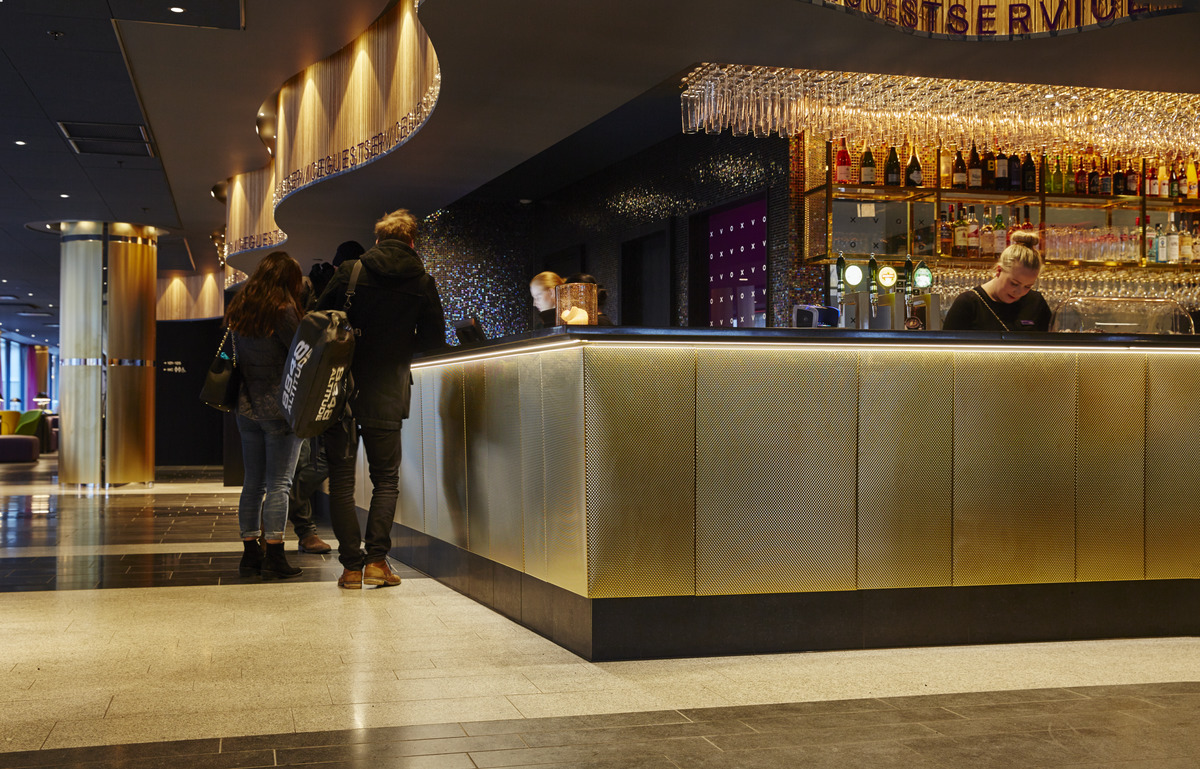

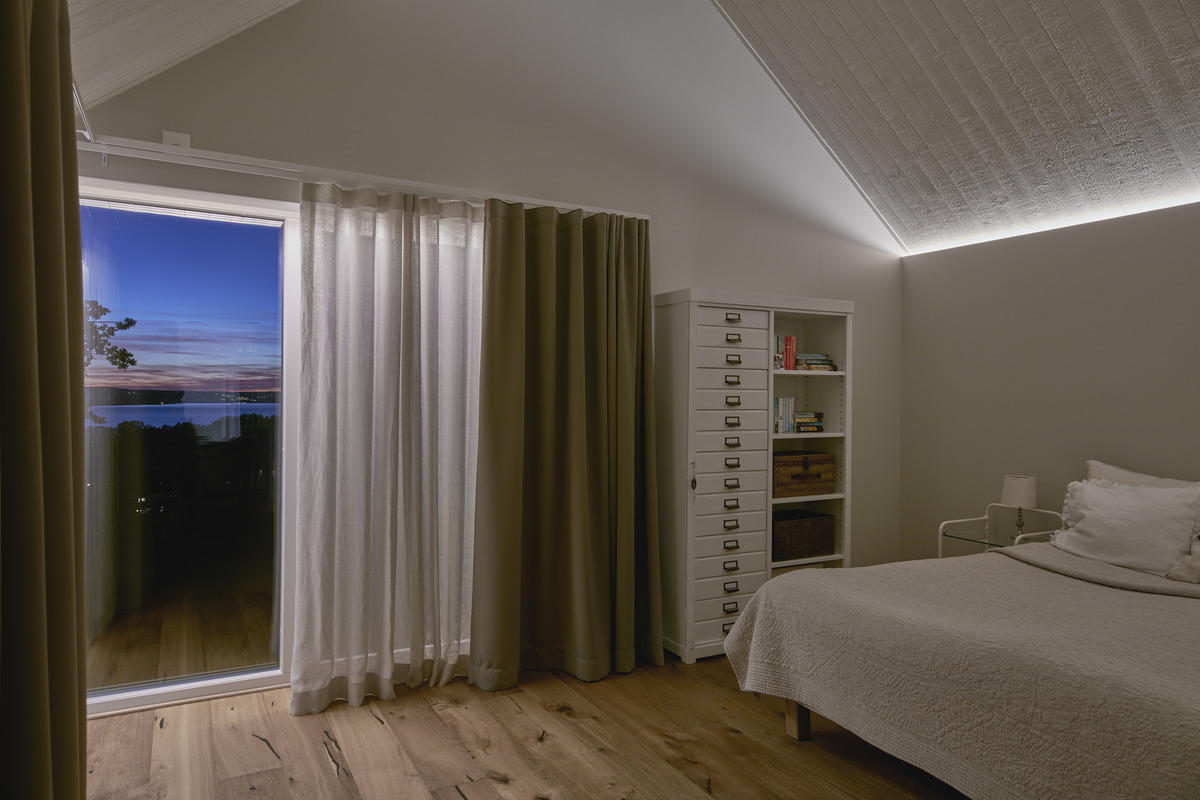

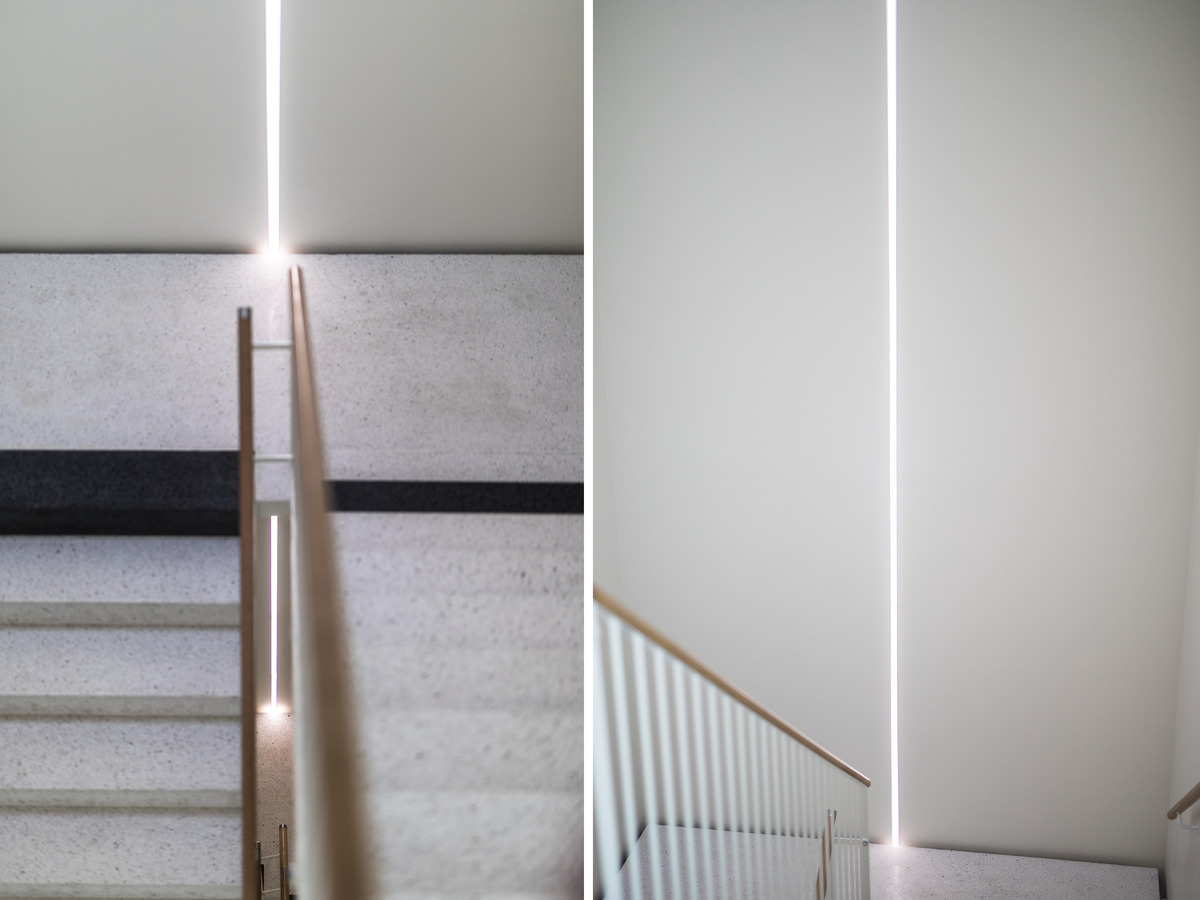

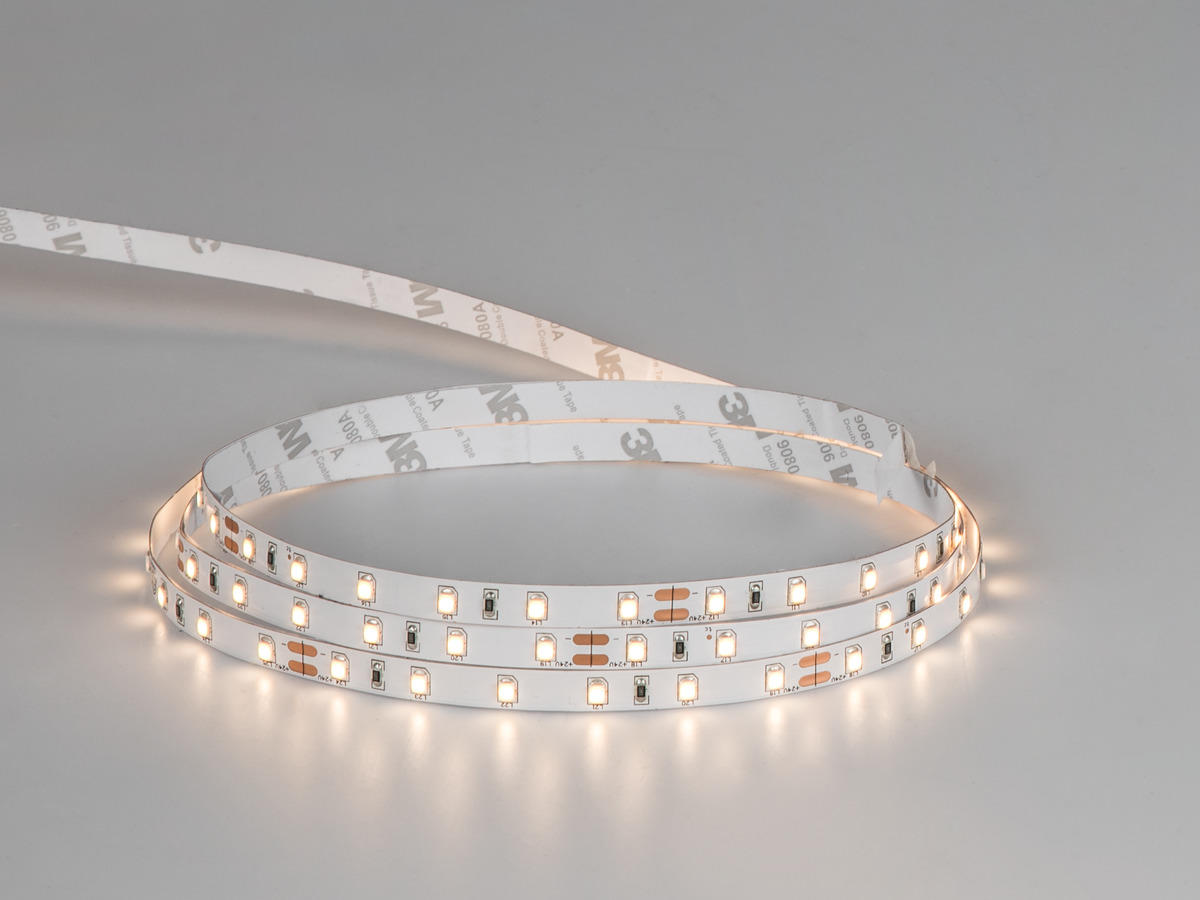

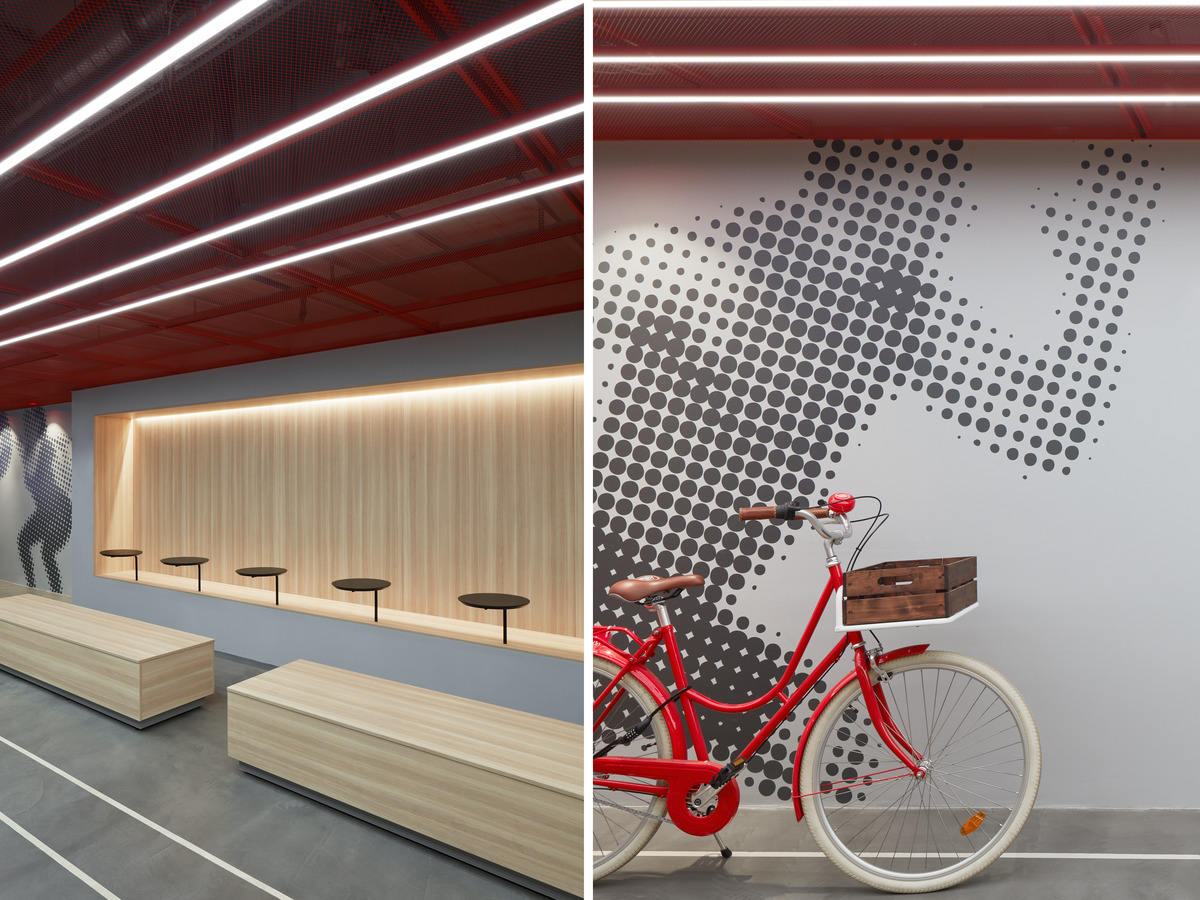

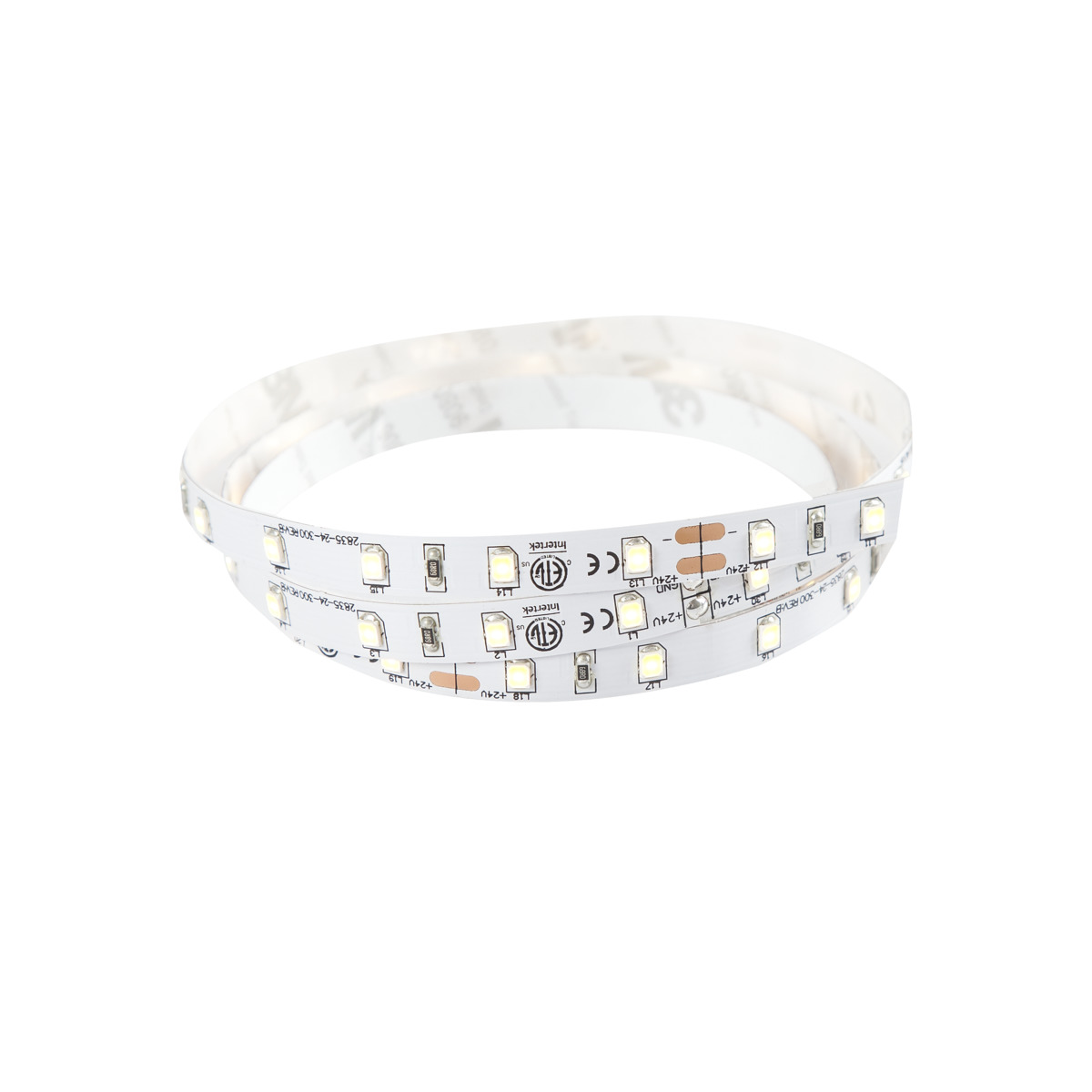

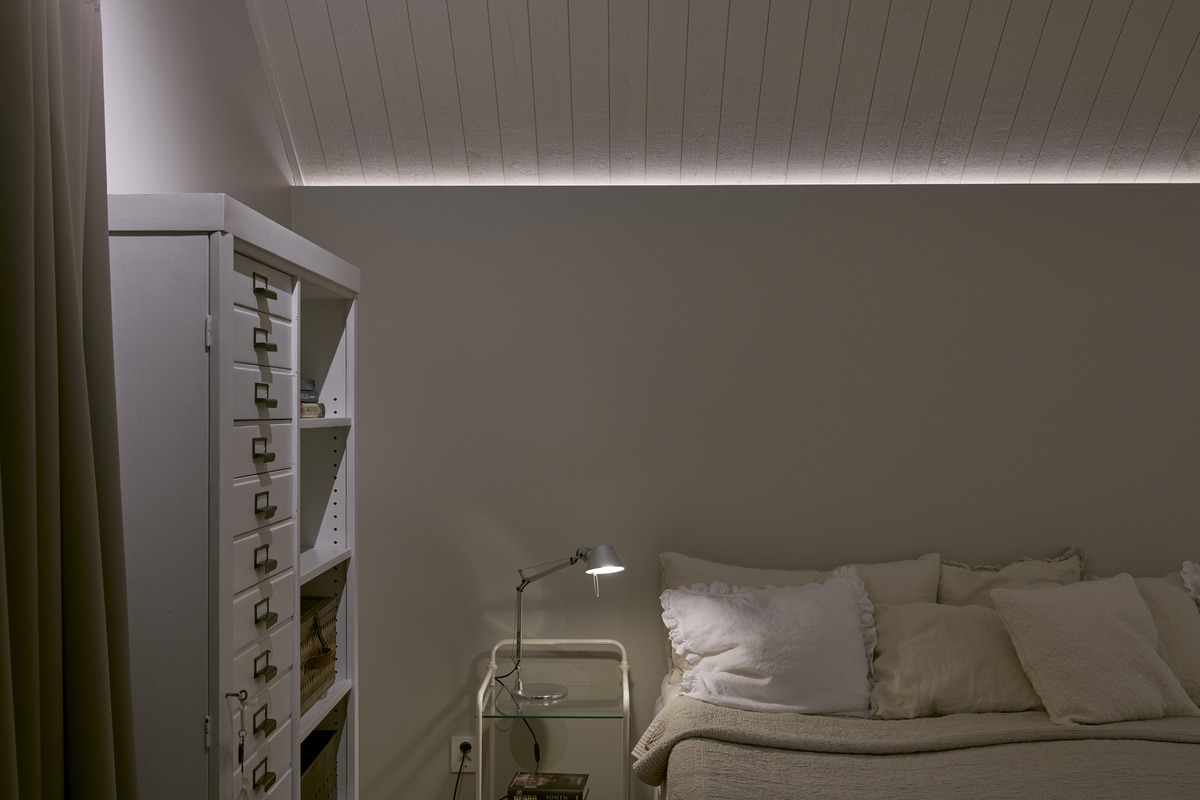

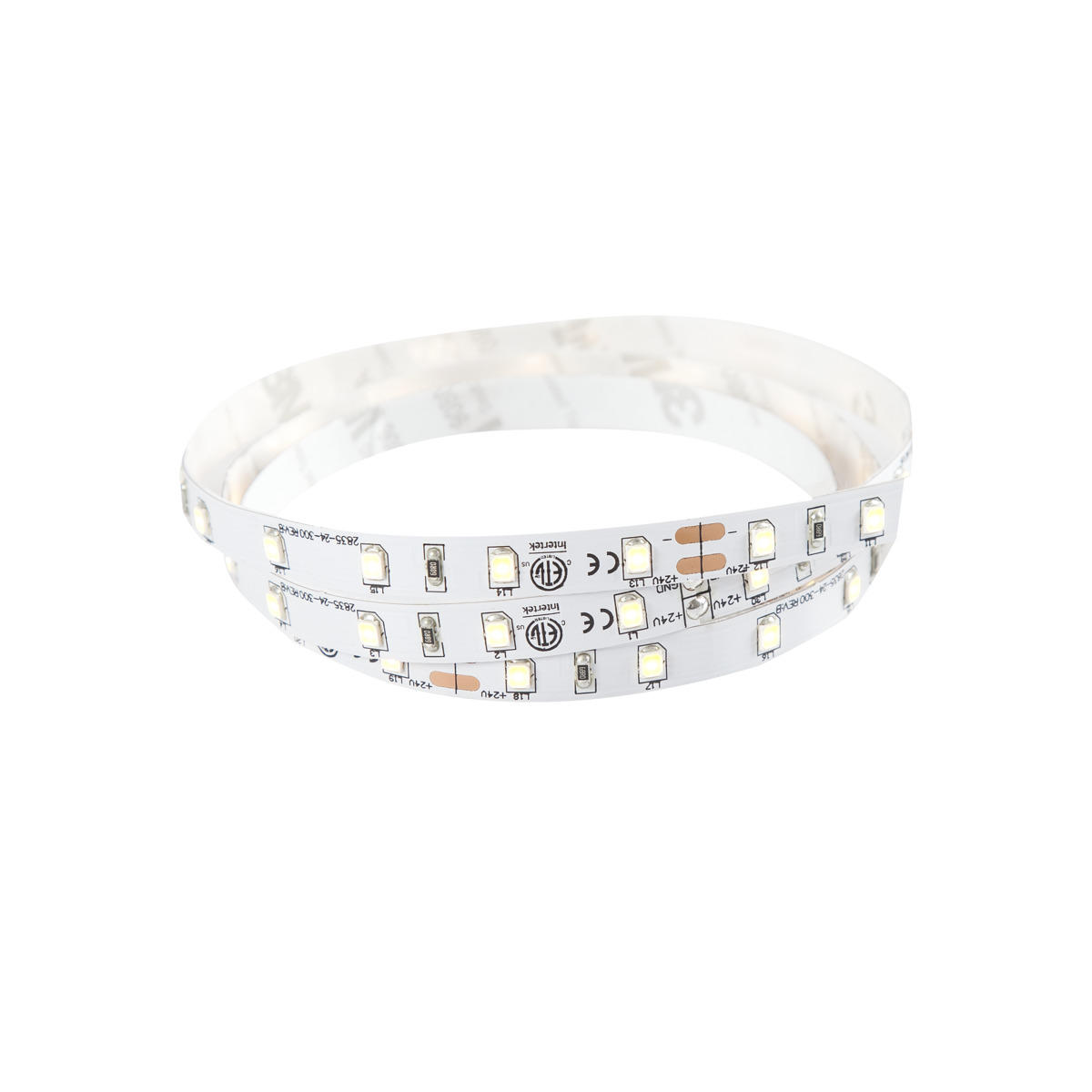

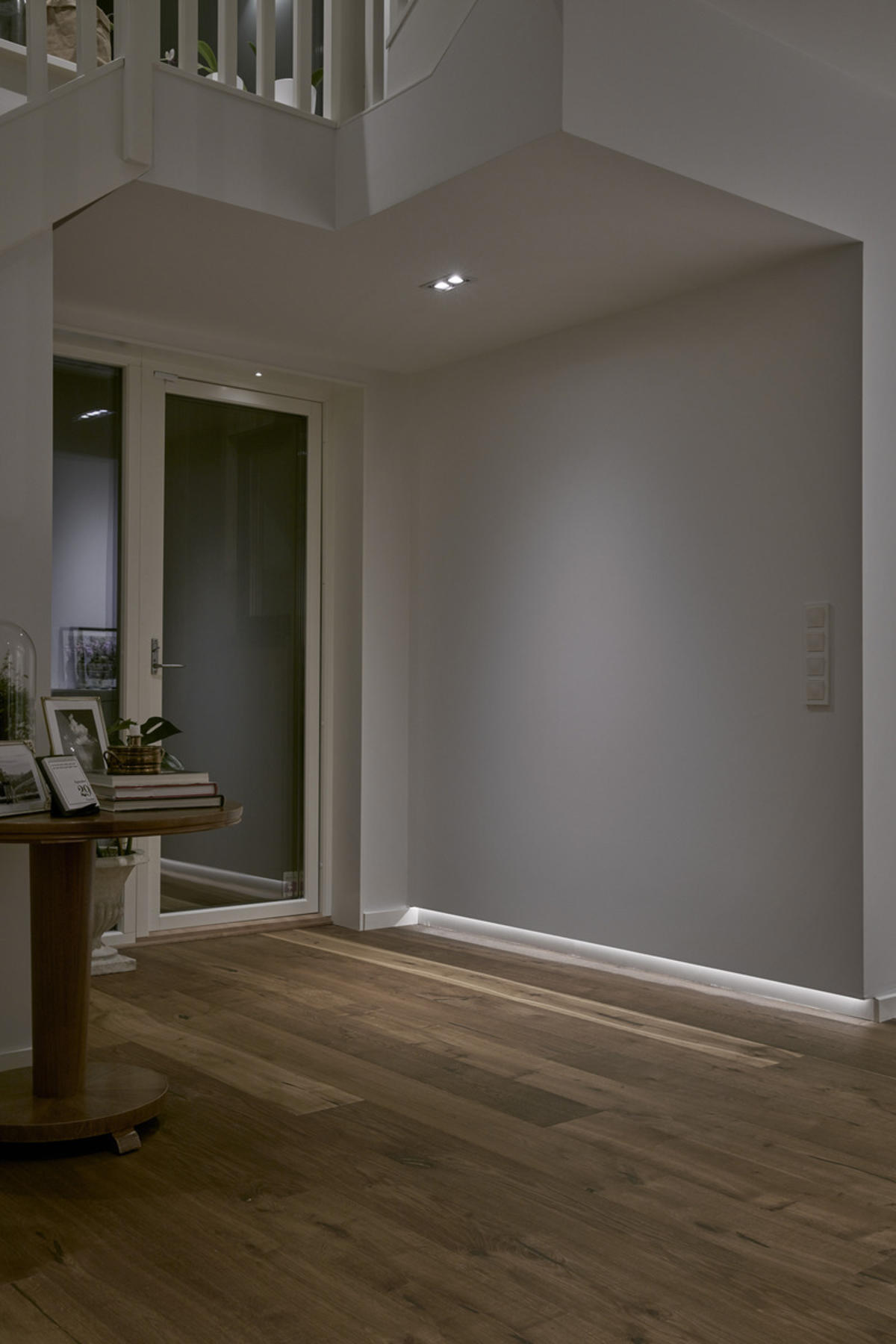

LEDstrip RX is a flexible warm white LEDstrip with very good light quality. Perfectly suited for both home and public environments where the colours of interior fittings can be appreciated in the best manner thanks to the high level of colour rendering, RA>90. All LEDstrips are perfectly suited to our range of aluminium profiles. Supplied with self-adhesive tape for simple installation.
Variants
| GTIN | Item Name | Colour Temperature (K) | Luminaire Lumen (lm) | |
|---|---|---|---|---|
|
7392971125053 | LEDstrip RX IP20 24V 3000K 5m | 3000 | 4700 |
|
|
7392971125060 | LEDstrip RX IP20 24V 3000K lpm | 3000 | 940 |
|
|
7392971125763 | LEDstrip RX IP20 24V RGB 5m | 1500 | |
|
|
7392971125770 | LEDstrip RX IP20 24V RGB lpm | 300 | |
|
|
7392971127583 | LEDstrip RX IP20 24V 4000K 5m | 4000 | 4900 |
|
|
7392971127590 | LEDstrip RX IP20 24V 4000K lpm | 4000 | 980 |
LEDstrip RX IP20 24V 3000K 5m
- Description
-
GTIN
7392971125053
Item Name LEDstrip RX IP20 24V 3000K 5m
Warranty 5 years
- Light Technical Data
-
Light Source
LED
Light Source Included Yes
Replaceability Non-replaceaable LED
LED Colour Warm White
Colour Temperature (K) 3000
Colour Rendering Index (Ra) >90
Colour Consistency (SDCM) 3
Initial Chromaticity (0.4344, 0.4038)
Luminous Intensity (cd) 300
Luminaire Lumen (lm) 4700
Beam Angle (°) 120
Light sharing Symmetric
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 300
LED Pitch (mm) 16
Life Time L70 50 000h Ta 25°C
Nominel Life Time (h) 50000
- Technical data
-
Adjustable
No
Voltage (type) DC
Voltage Interval (V) 24...24
Voltage Nominal (V) 24
Power Luminaire (W) 60
System Power (W) 66
Efficiency Luminaire (lm/W) 78
Efficiency System (lm/W) 71
Energy Efficiency Class (EU) 2019/2015 G
- Operation and Connection
-
Driver Included
No
Driver Model Constant Voltage
Connection (type) Cable
Length Connection (cm) 30
Connection (mm2) 2x0,5
Operating Temperature
Dimmable Yes
- Color and material
-
Material
Copper
Color White
Environmental Assessment SundaHus, Byggvarubedömningen
- Measurement and installation
-
Operating Environment
IP Degree of Protection 20
Protection Class III
Installation Surface mounted
Mounting Installation Self Adhesive Tape
Approval Marks CE

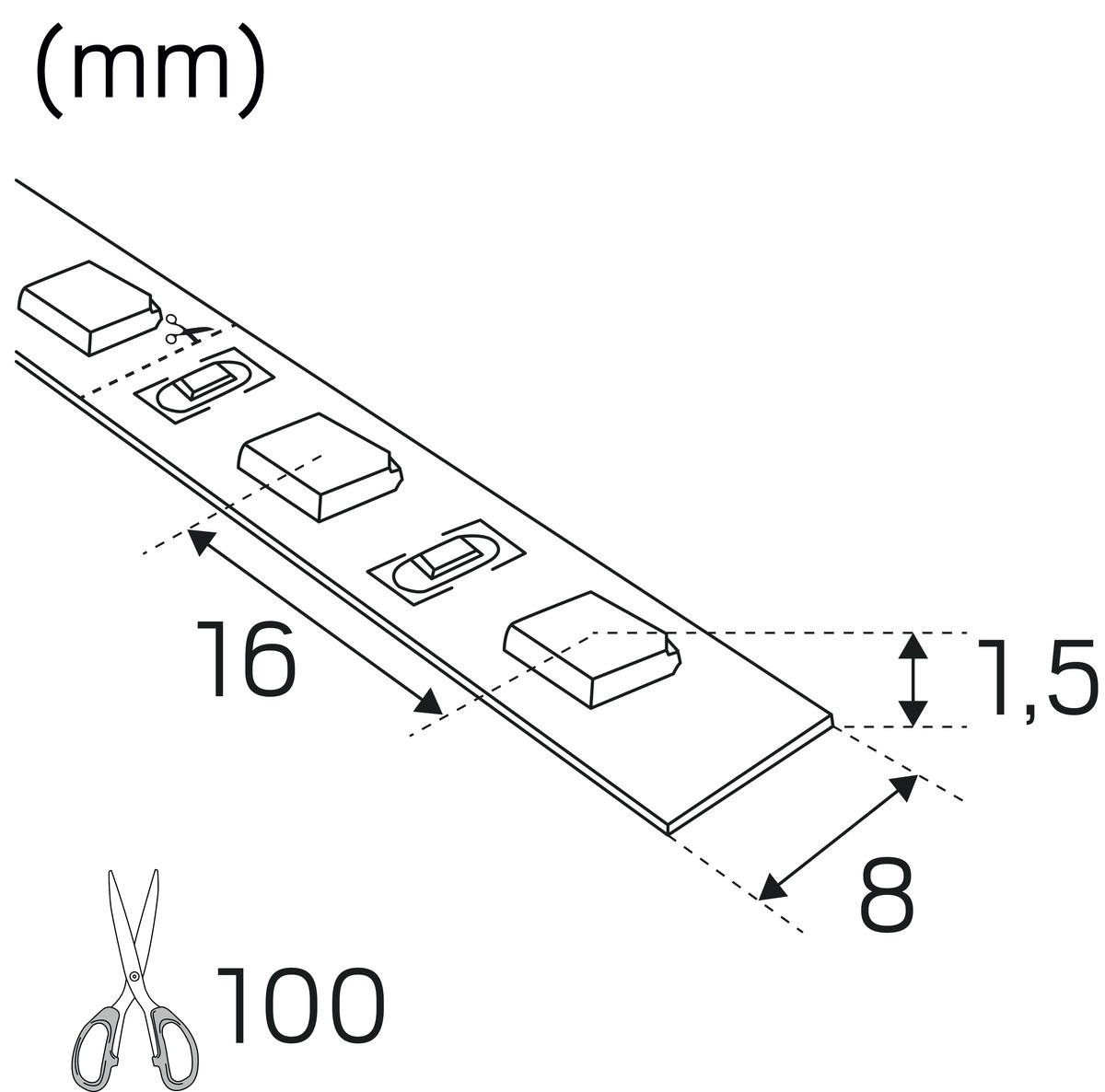

Length (mm) 5000
Width (mm) 8
Height (mm) 2
Weight (kg) 0,1
- Fibres and strips
-
Min. Bend Radius (mm)
60
Min. Length (m) 0,1
Max. Length (m) 10
Cutting Increments (mm) 100
