LED Extend G2

  • Opal cover Homogenous spot-free lighting

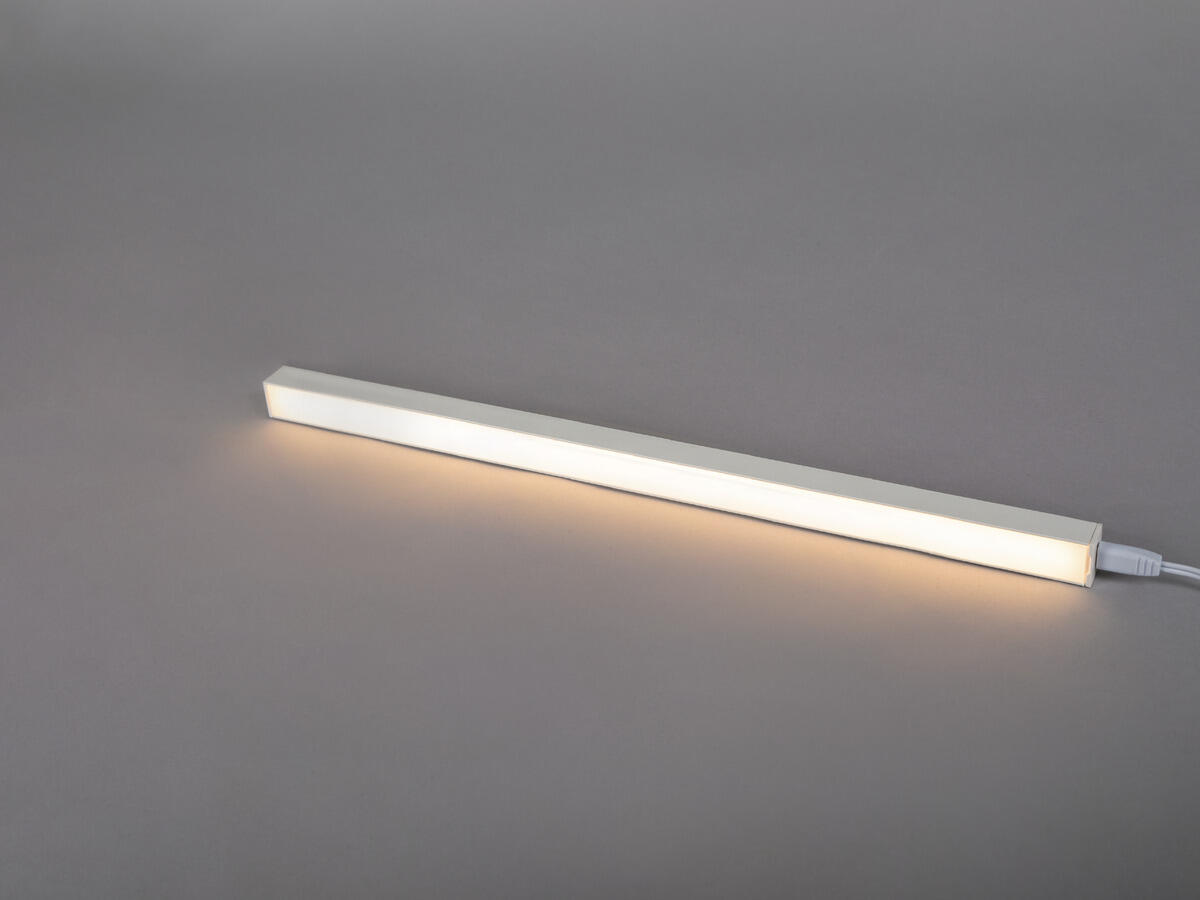

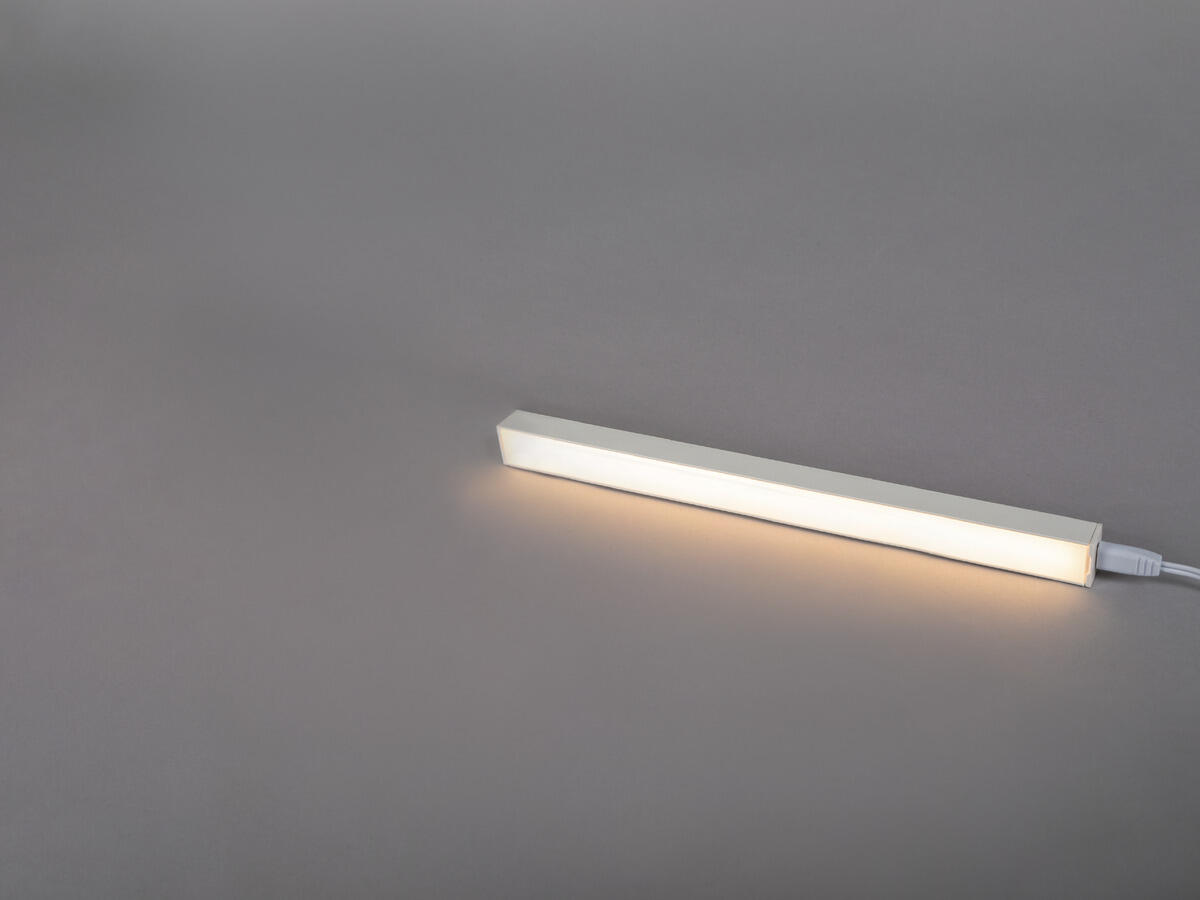

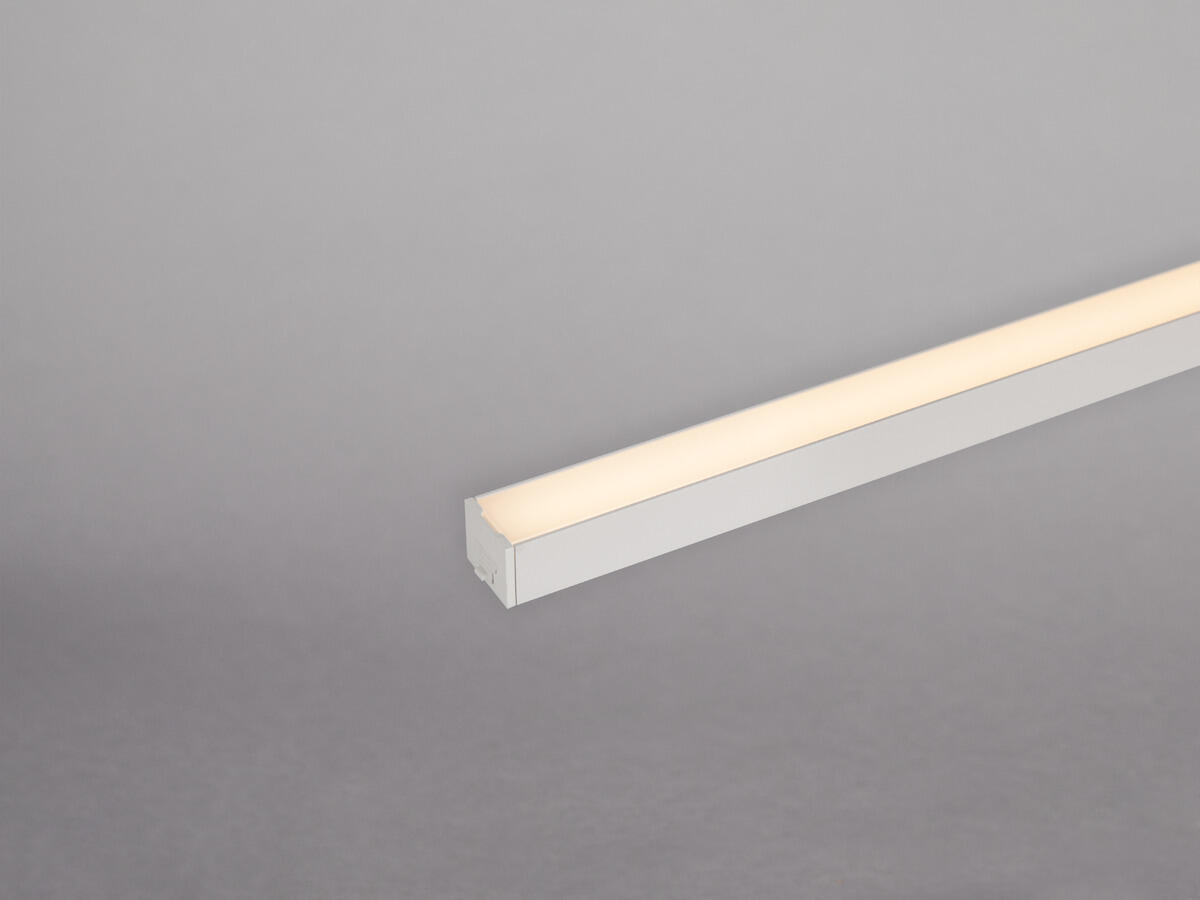

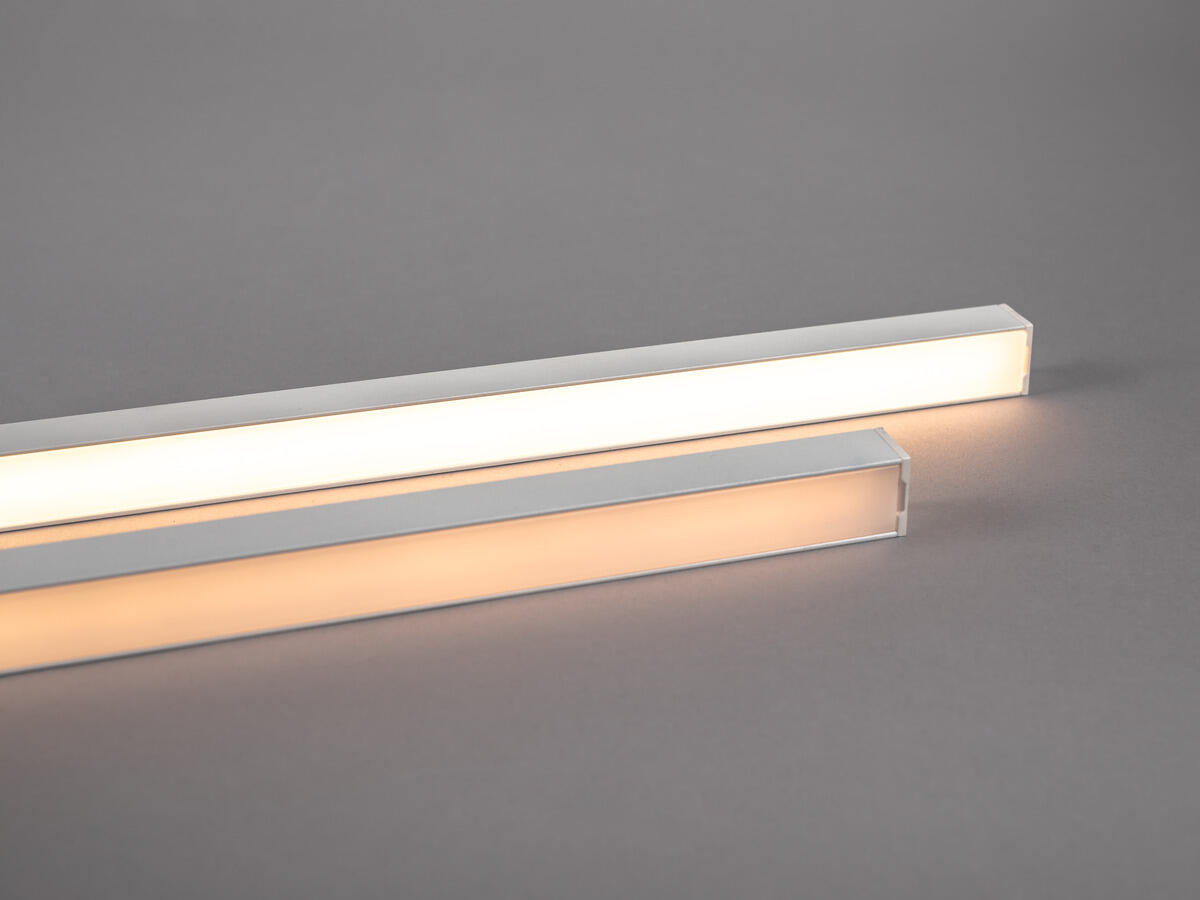

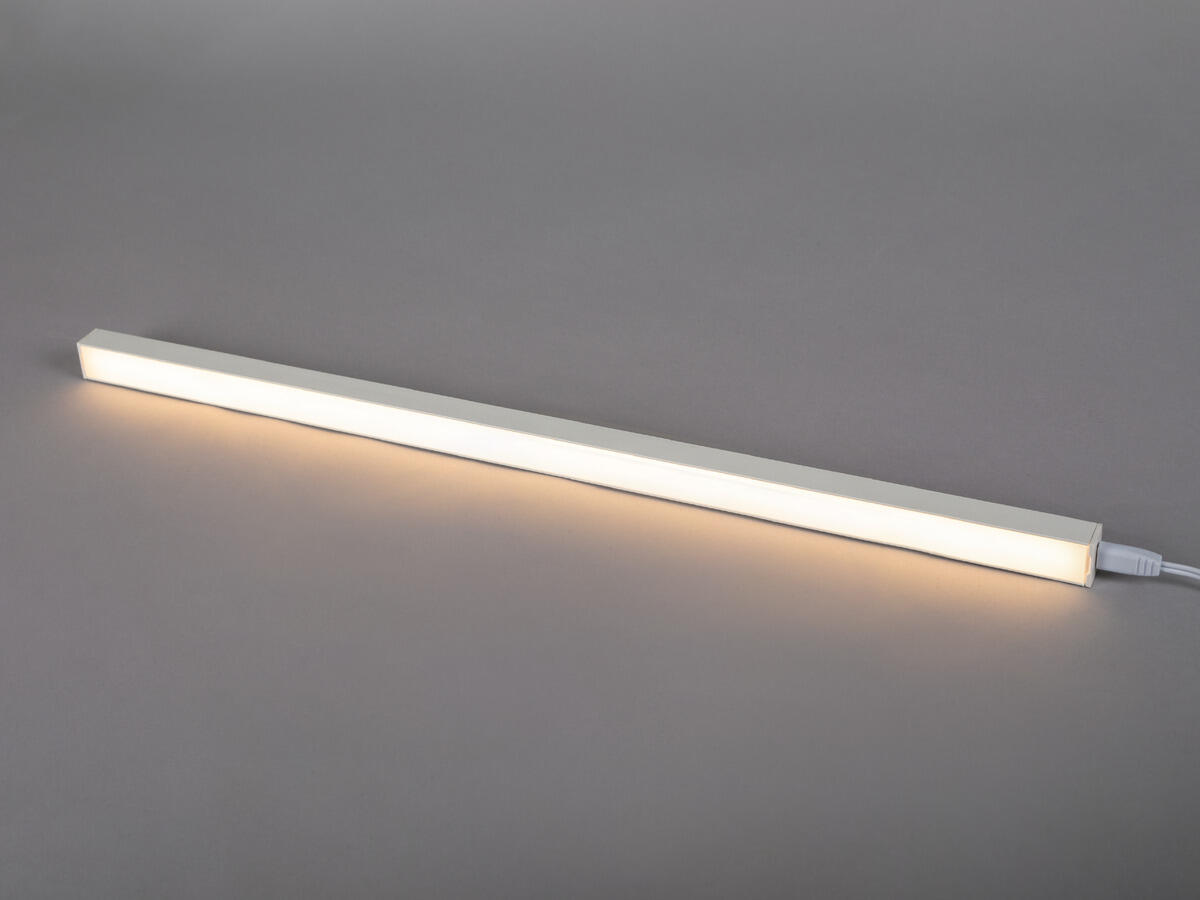

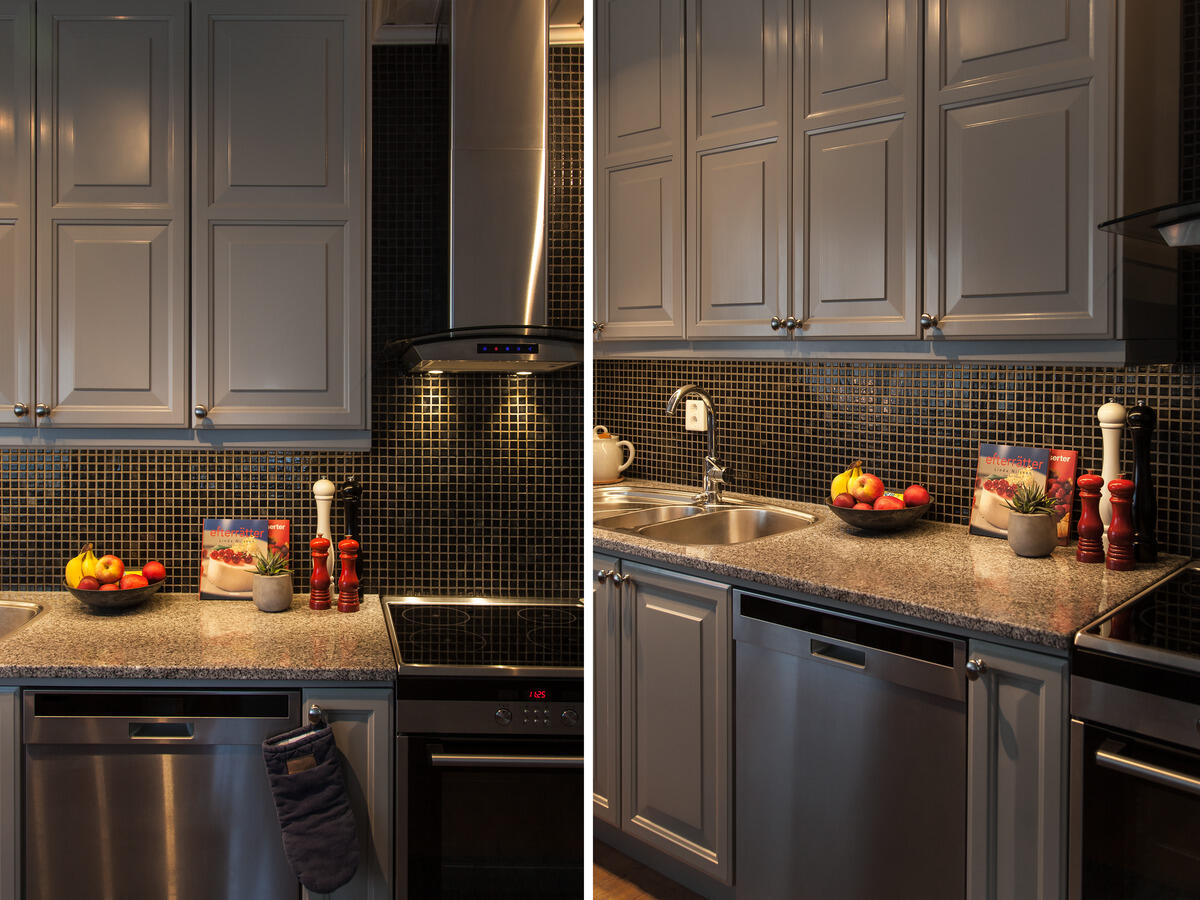

LED strip of white enamelled aluminium with a high lumen output, excellent colour rendering and an even homogenous light. Perfect alternative to fluorescent lights and spotlights for under cabinet lighting. Mounted with double-sided tape and screws, alternatively with concealed clips. Can be linked together up to 4m with link pins or linking cables. Comes with 2m connecting cable, 25cm linking cable, link pins and brackets. Connects to LED-trafo 24VDC. Linkable touch dimmer, connection block and USB charger available as accessory.
Exists in one color
Variants GTIN Item Name Colour Temperature (K) Luminaire Lumen (lm)
LED Extend G2 75 2700K 7392971132563 LED Extend G2 75 2700K 2700 620
LED Extend G2 30 2700K 7392971132501 LED Extend G2 30 2700K 2700 210
LED Extend G2 30 3000K 7392971132518 LED Extend G2 30 3000K 3000 220
LED Extend G2 30 4000K 7392971132525 LED Extend G2 30 4000K 4000 240
LED Extend G2 50 2700K 7392971132532 LED Extend G2 50 2700K 2700 410
LED Extend G2 50 3000K 7392971132549 LED Extend G2 50 3000K 3000 420
LED Extend G2 50 4000K 7392971132556 LED Extend G2 50 4000K 4000 470
LED Extend G2 75 3000K 7392971132570 LED Extend G2 75 3000K 3000 640
LED Extend G2 75 4000K 7392971132587 LED Extend G2 75 4000K 4000 680

LED Extend G2 75 2700K

Save as favourite Save as pdf
Description
GTIN 7392971132563
Item Name LED Extend G2 75 2700K
Warranty 5 years
Type .
Light Technical Data
Technical data
Operation and Connection
Color and material
Measurement and installation

Accessories

7504009p.tif

LED Extend G2 Dimmer

Touch dimmer for LED Extend G2. The dimmer has the same elegant design and finish as the L…
7504743p.tif

LED Extend G2 USB Charger

USB charger that increases range for LED Extend G2, adapted for both mobiles and tablets T…
7504741p.tif

LED Extend G2 PIR Sensor

PIR-sensor that increases range of LED Extend G2 for smart dimming with timer. Perfect for…
7504742p.tif

LED Extend G2 Terminal Block

Accessories for connection of pre-wired cabling. Perfect for installation when not possibl…
7506468p.tif

LED Extend G2 Corner 3000K

LED strip in 90° angle of white enamelled aluminium with a high lumen output and an even h…
7980562p.tif

LED-trafo VST 24VDC 70W

DC voltage transformer for 12/24V LED with improved technology and wide power range. Can b…
