Liteline G2 IP44 1200
Description

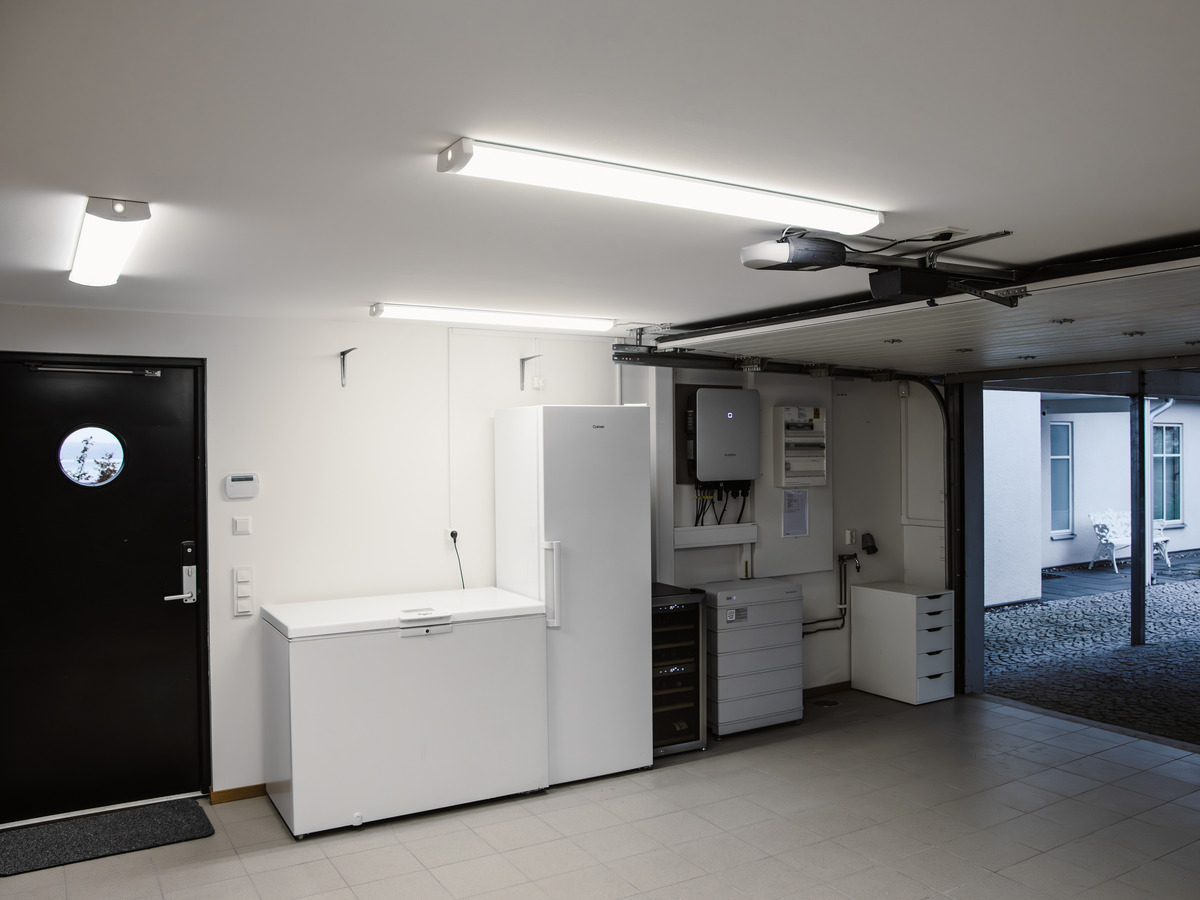

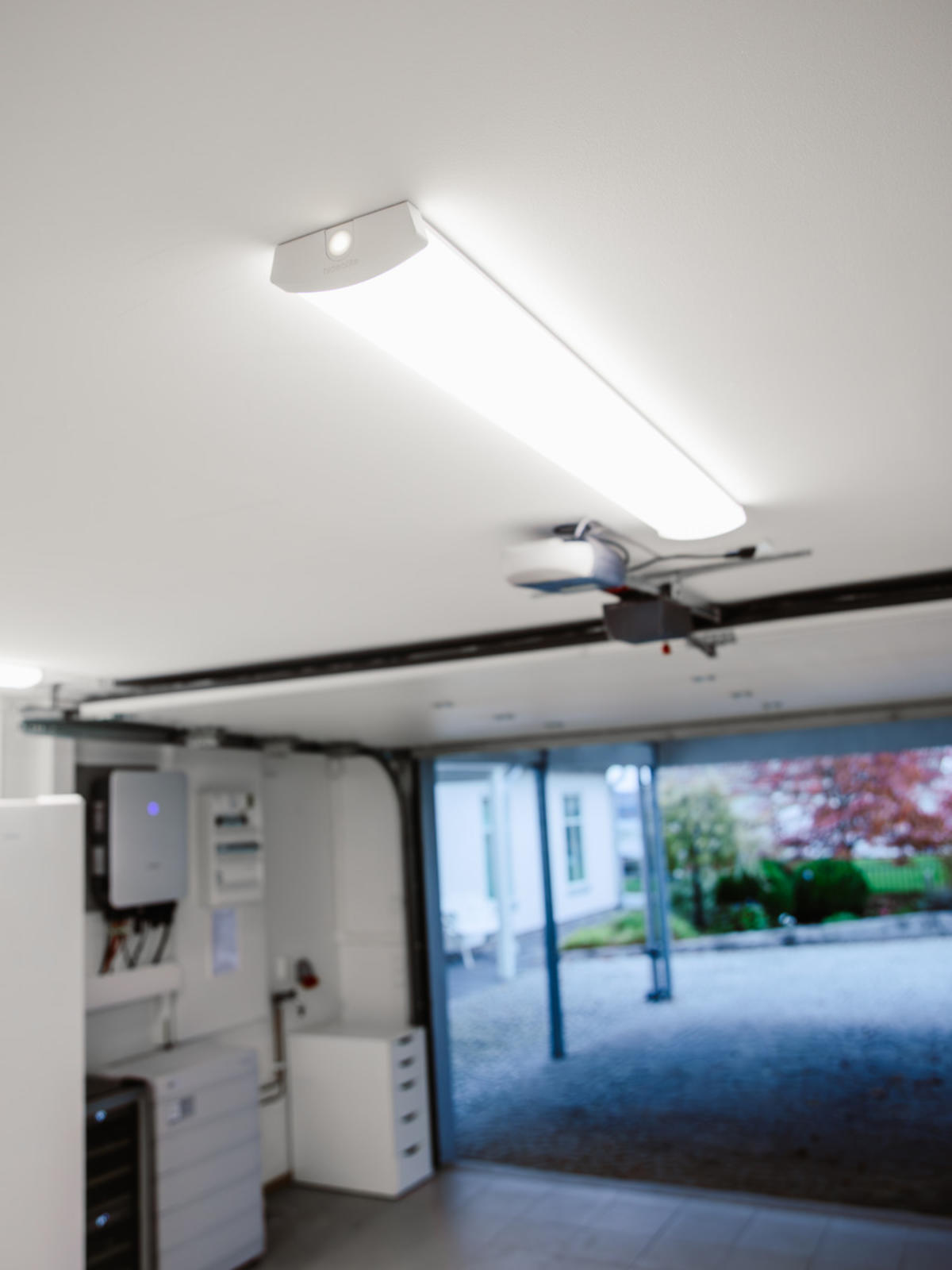

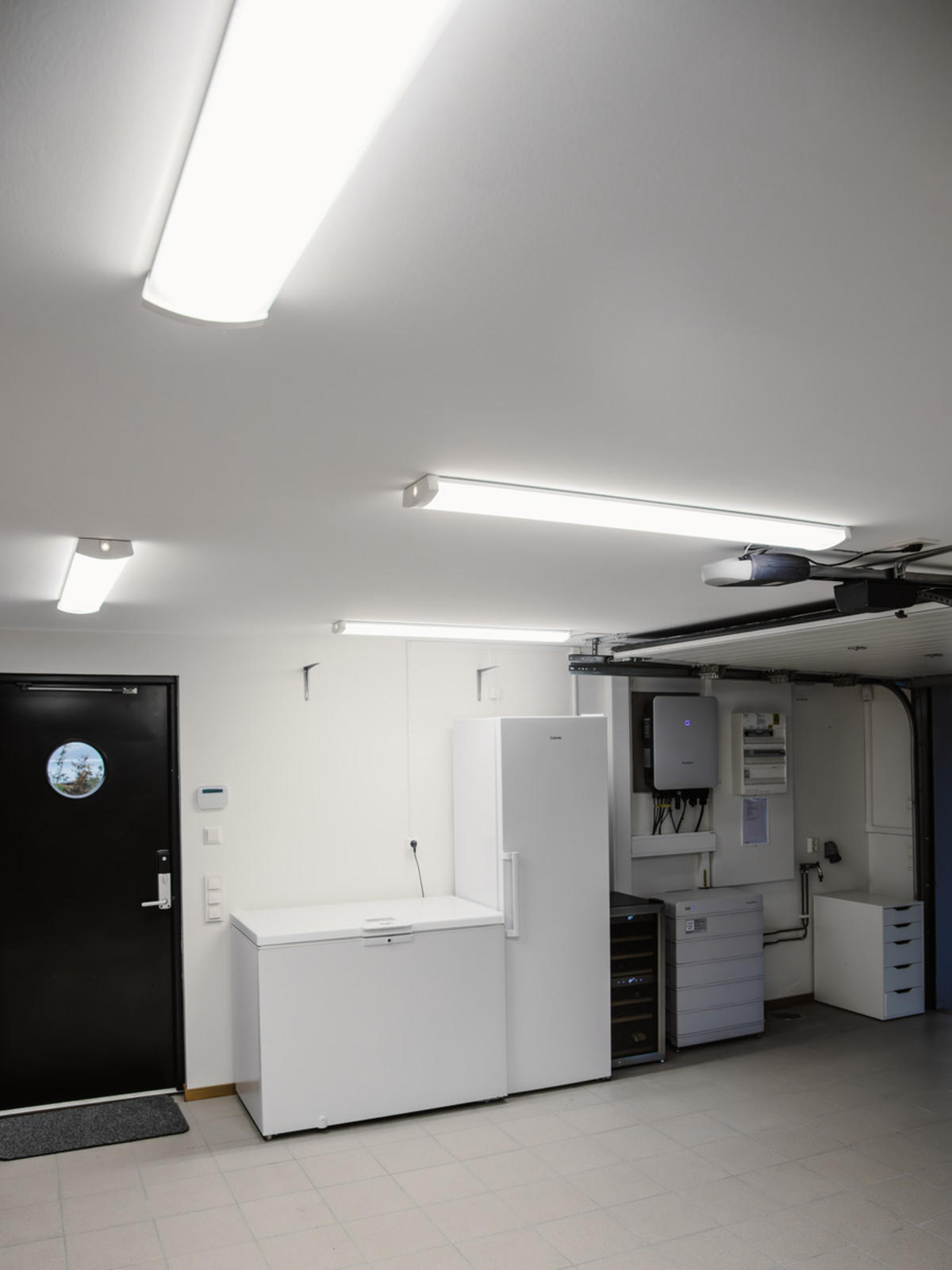

Liteline G2 is a fluorescent tube replacement with multiple control options, designed for environments with high lighting requirements such as industry, garages, production facilities, and utility areas like storage rooms.
Light Technical Data
Built-in DIP switch (3000K/4000K) for easy adjustment of the color temperature. Even light distribution via a prismatic diffuser with a removable opal film for increased luminous flux.
Technical data
Built-in DIP switch for light output adjustment. Replaceable LED and driver. D-marked in accordance with EN 60598-2-24. Lifetime LED & driver: 100,000h Ta25°C.
Color and material
Housing made of white lacquered sheet steel. Prismatic diffuser in recycled plastic with opal film, and end caps in recycled plastic.
Measurement and installation
IP44. Connected to a 5-pole terminal block with 5x2.5 mm² through-wiring. Foldable, patented end caps with cable entries at each end and two in the center for easy installation.
Liteline G2 IP44 1200 DALI CLO
-
GTIN 7392971149806Item Name Liteline G2 IP44 1200 DALI CLOWarranty 5 years
- Light Technical Data
-
Max. Luminaire Lumen (lm) 5650Light Source LEDReplaceability Replaceable LED by professional, Replaceable Control gear by professionalLED Colour Warm WhiteColour Temperature (K) 3000, 4000Colour Rendering Index (Ra) >80Colour Consistency (SDCM) 3Luminous Intensity (cd) 2180Beam Angle (°) 110Light sharing SymmetricLight Outlet DirectNumber of Lamps (pcs) 1Number of LED (pcs) 1Life Time L100 100 000h Ta 25°CNominel Life Time (h) 100000Life Time Driver 100 000h/20%Flicker (PstLM) 0,0099Stroboscopic effect (SVM) 0,0641
- Technical data
-
Voltage (type) ACVoltage Interval (V) 220...240VVoltage Nominal (V) 230Line Frequency (Hz) 50, 60Power LED (W) 33Max. Power Luminaire (W) 48Max. System Power (W) 48Max. Efficiency Luminaire (lm/W) 117,7Max. Efficiency System (lm/W) 117,7Containing light source energy efficiency class (EU) 2019/2015 CEprel registration number 2870313
- Operation and Connection
-
Dimmable YesType of Dimming DALI Part 251, 252, 253Driver Included Yes - replaceableDriver Model Constant CurrentDriver Type Built-inConnection (type) Quick TerminalConnection (mm2) 5x0,5-2,5Through Wiring YesPower Factor ʎ 0,98Efficiency (%) 91Power loss (W) 6Leakage current (mA) (at 230 V, 50 Hz, full load) 0,7THD (%) 6Standby Power 0,15Constant Current (mA) 700Operating TemperatureMax. Tc (°C) 65Dimming secondary side AMSuitable for random switching YesInrush current (max/time) 35A 170μsMains surge protection DM (kV) 1Mains surge protection CM (kV) 2Fuse B10 (pcs) 20Fuse B16 (pcs) 30Fuse C10 (pcs) 30Fuse C16 (pcs) 45
- Color and material
-
Material Recycled, Plastic, Sheet metal, PolycarbonateColor WhiteEnvironmental Assessment Byggvarubedömningen, EPDAvailable in special color No
- Measurement and installation
-

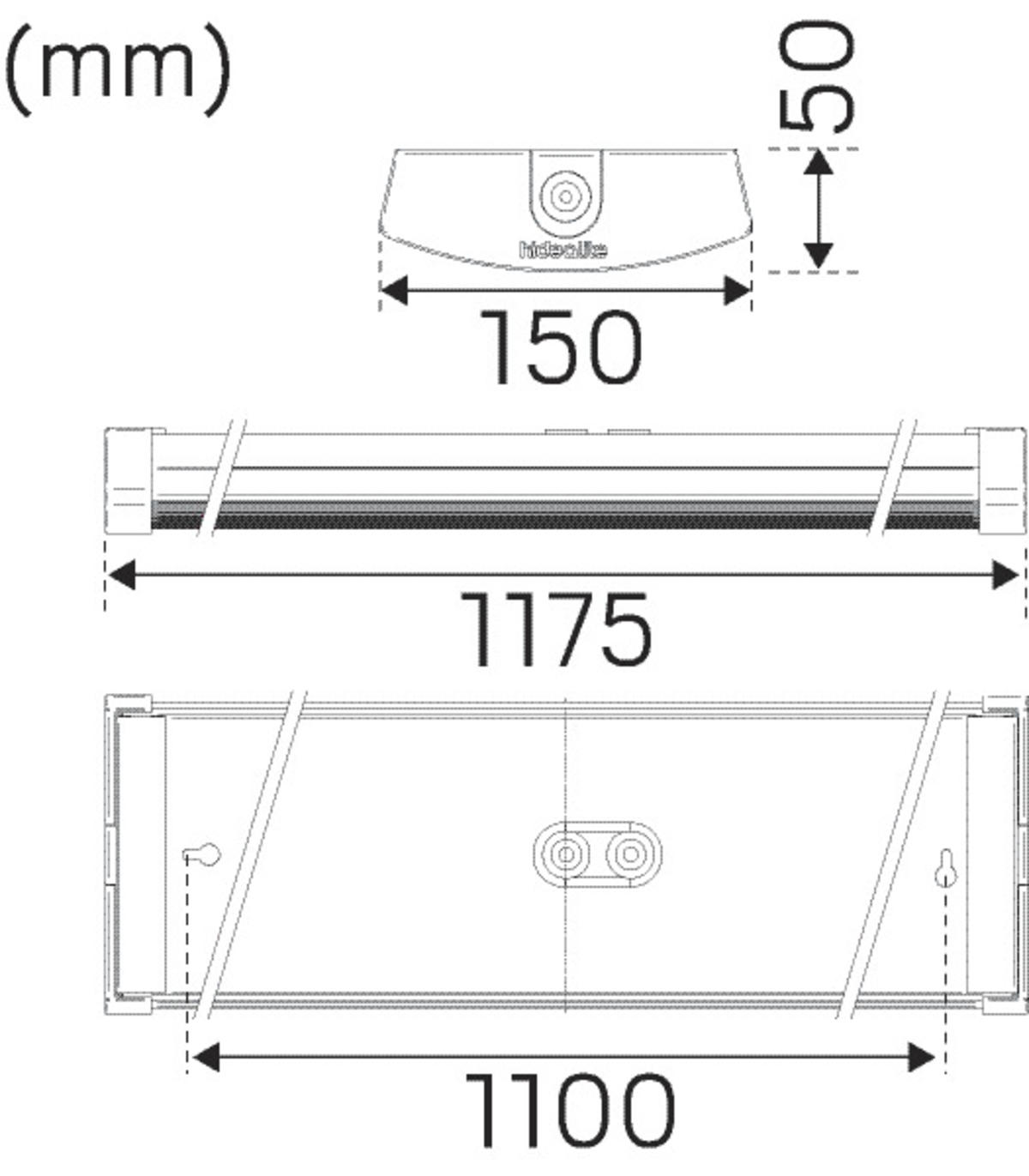

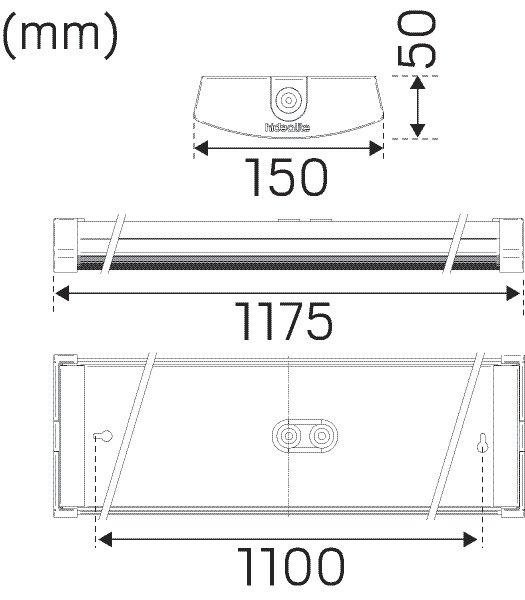

Operating EnvironmentIP Degree of Protection 44Protection Class IInstallation Ceiling, Wall, Surface mountedMounting Installation Screw MountingFire Safety Marks D-markApproval Marks CE, a Hide-a-lite ChoiceImpact Strength IK10Filament Test IEC 695-2-1(°C) 850Length (mm) 1175Width (mm) 150Height (mm) 50Weight (kg) 2,77
DIP-table Luminous flux
| mA | Effect | 3000K | 4000k |
|---|---|---|---|
| 700mA | 35W | 5650lm | 5650lm |
| 700mA | 40W | 5650lm | 5650lm |
| mA | Effect | 3000K | 4000k |
|---|---|---|---|
| 700mA | 35W | 5650lm | 5650lm |
| 700mA | 40W | 5650lm | 5650lm |
Spare parts
If you need spare parts, contact our customer support
- LED-Module Liteline G2 IP44 1200 X301
- Cover Liteline G2 IP44 1200 X293
- Driver Liteline G2 IP44 1200 DALI CLO X298
