ReLine

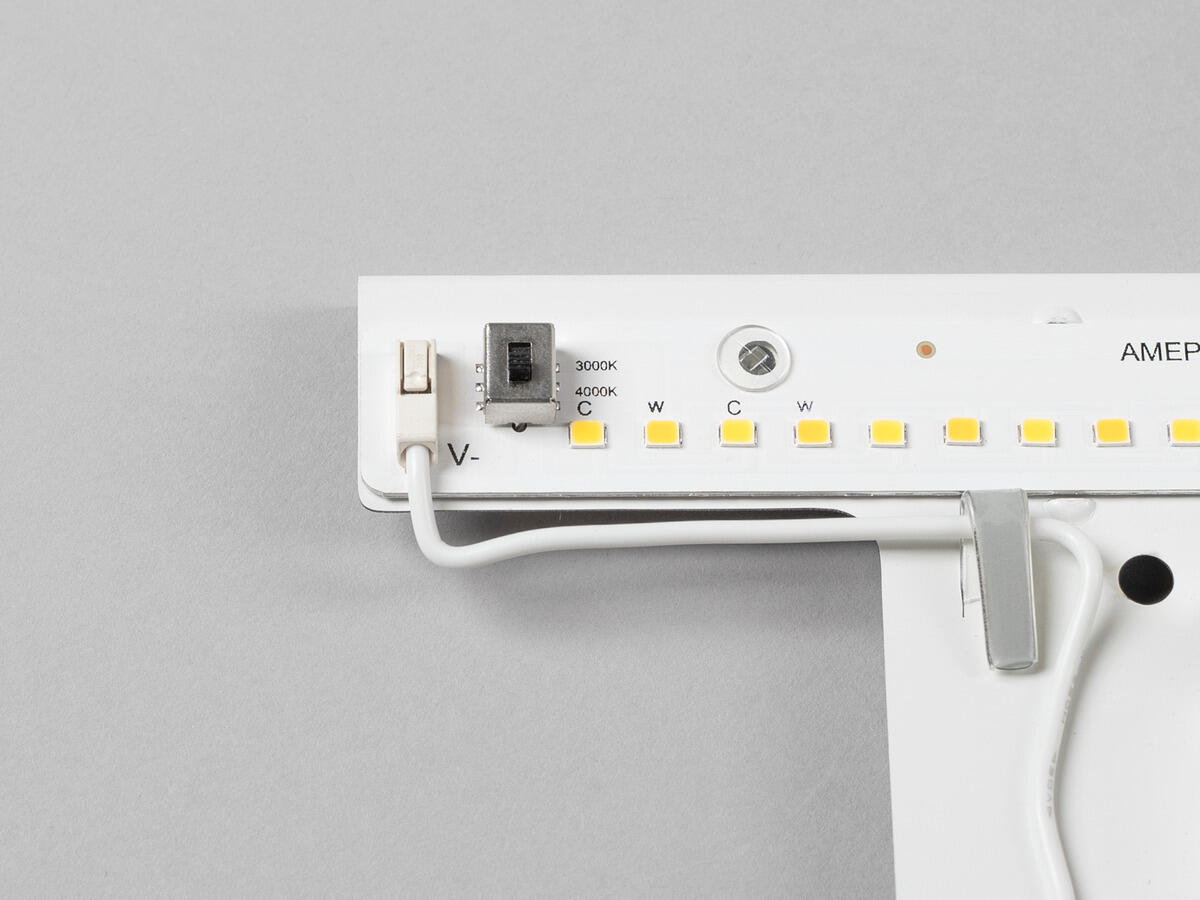

- Selectable colour temperature via DIP-Switch ColourTemp

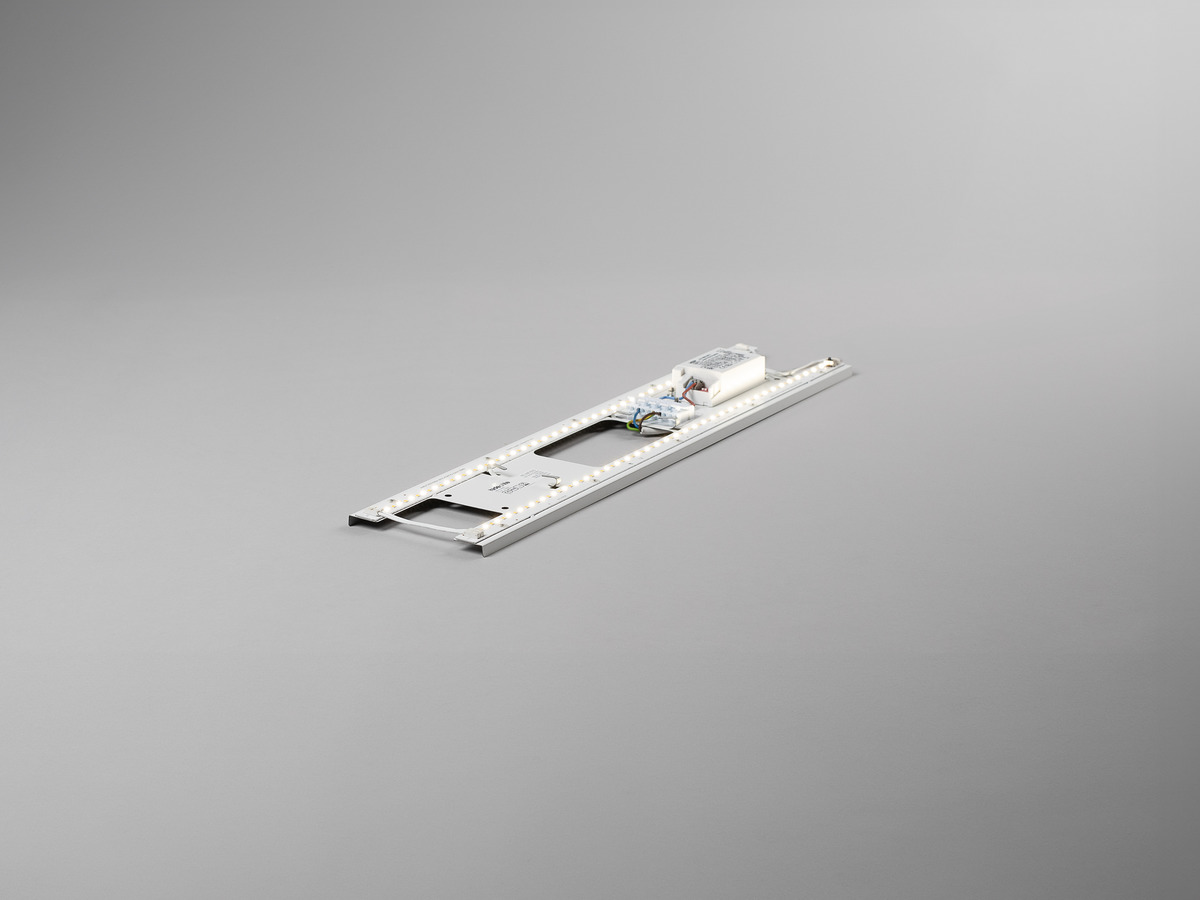

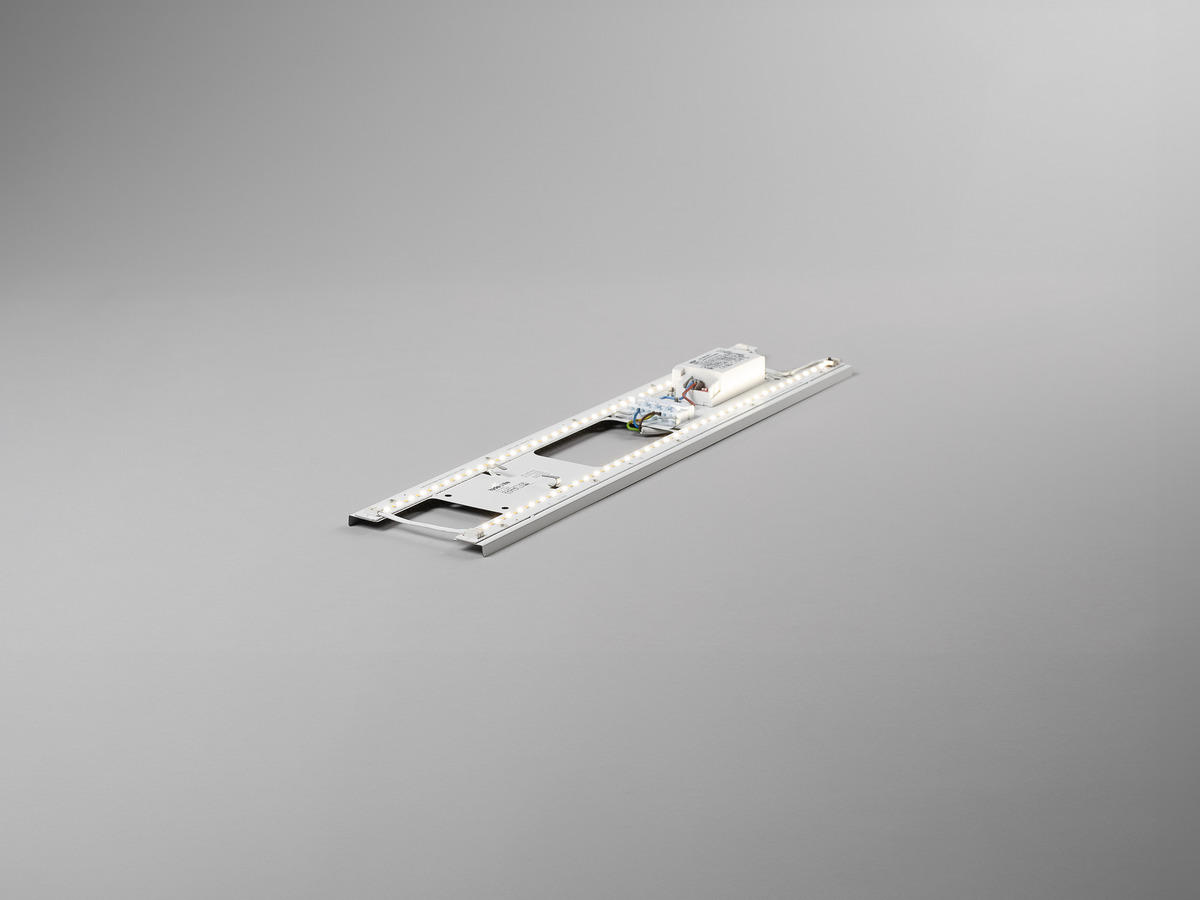

- Universal replacement kit for IP44 luminaires
- Replaceable LED and driver

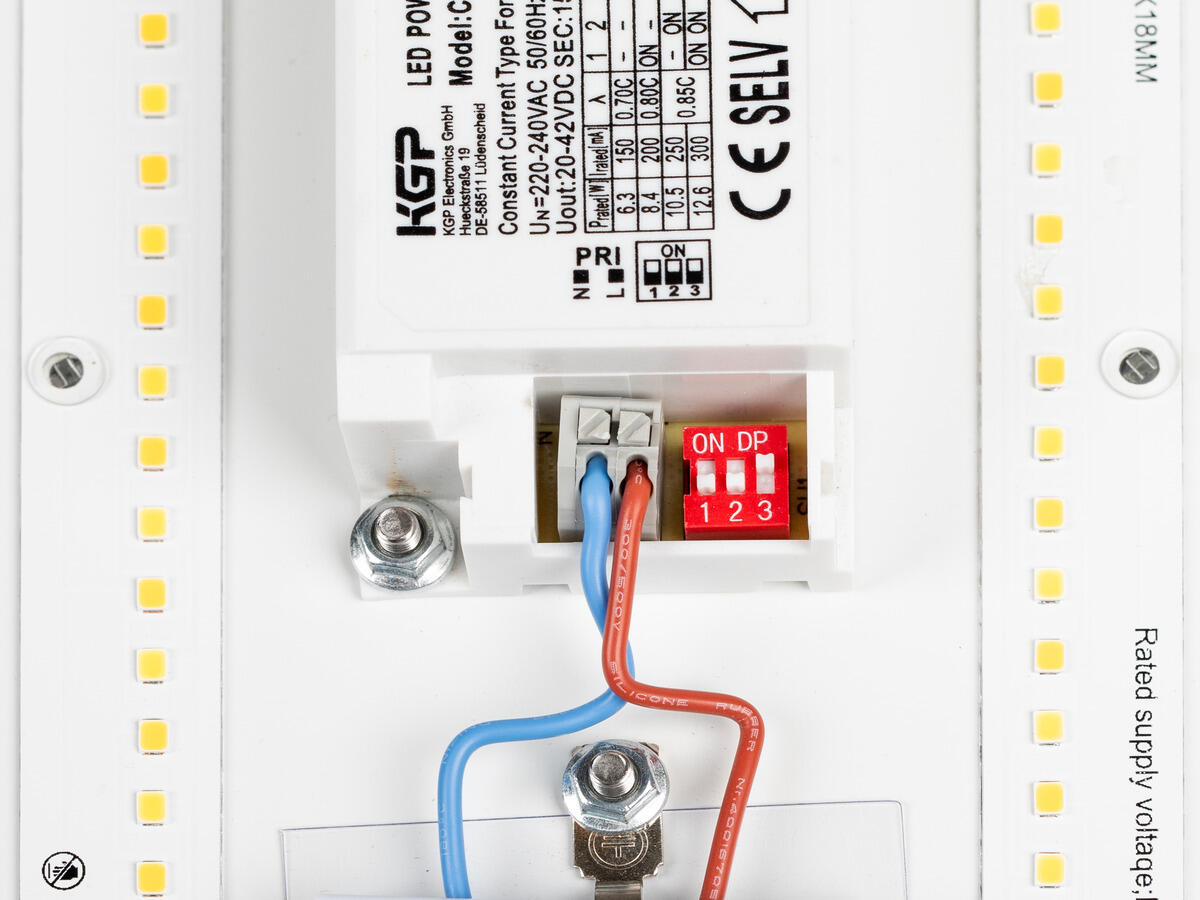

- Adjustable lumen output via DIP-switch Power (1200)

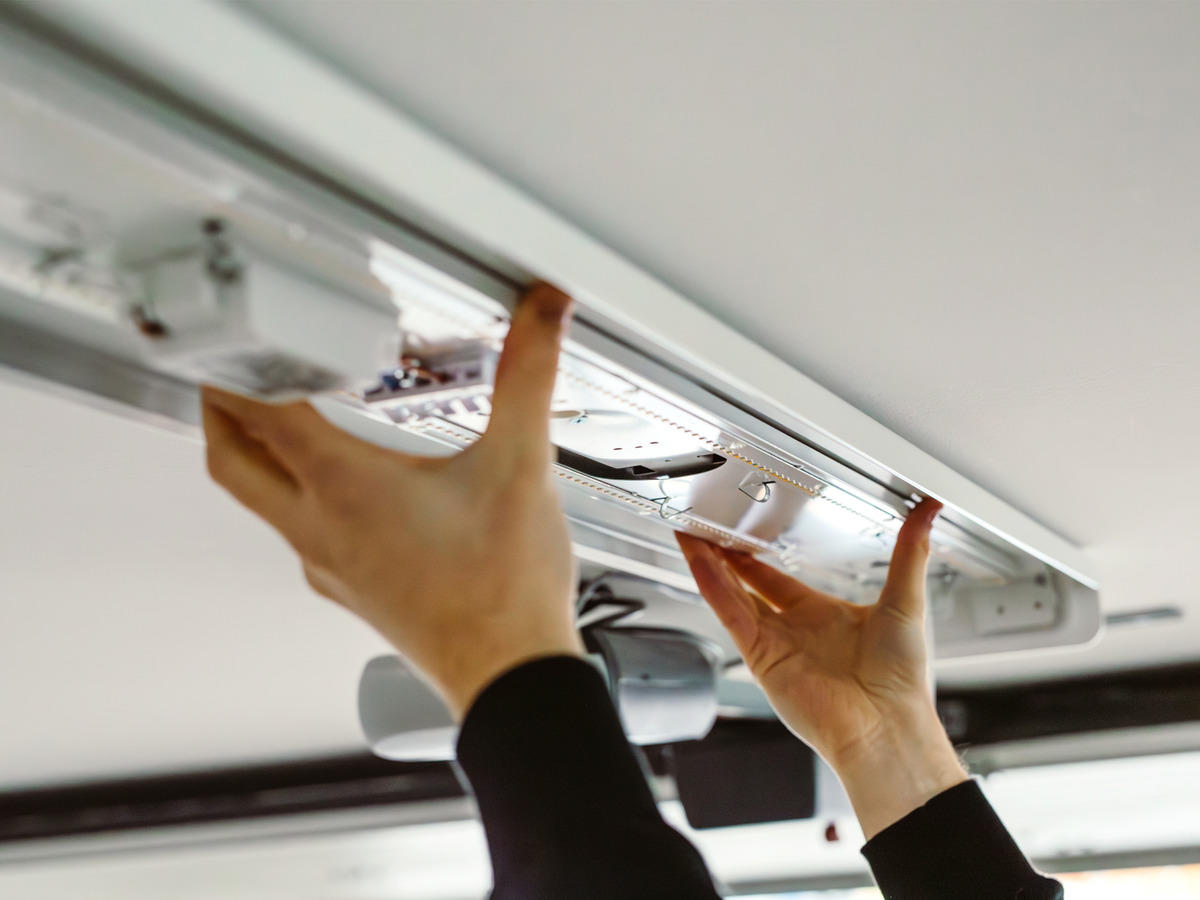

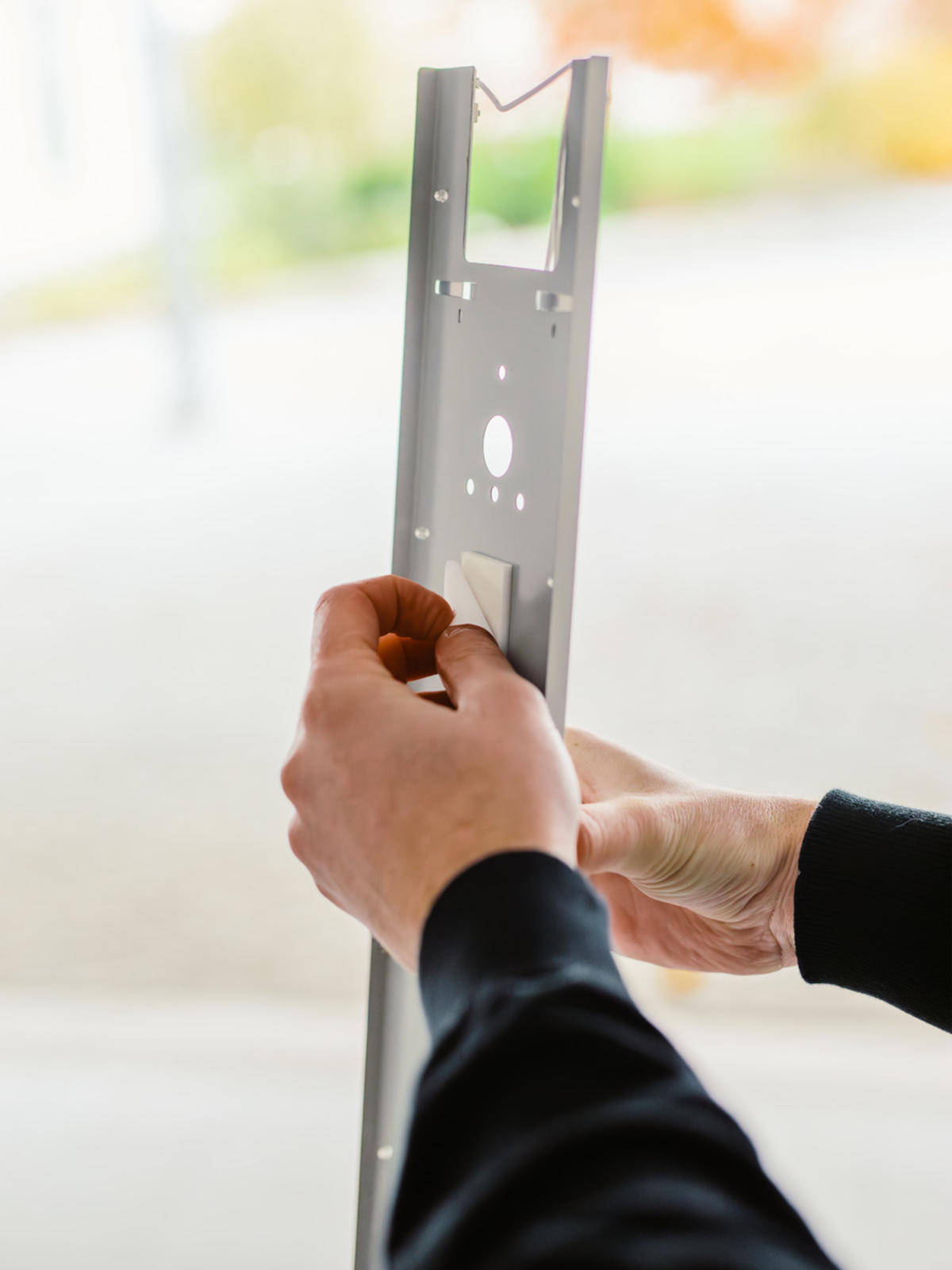

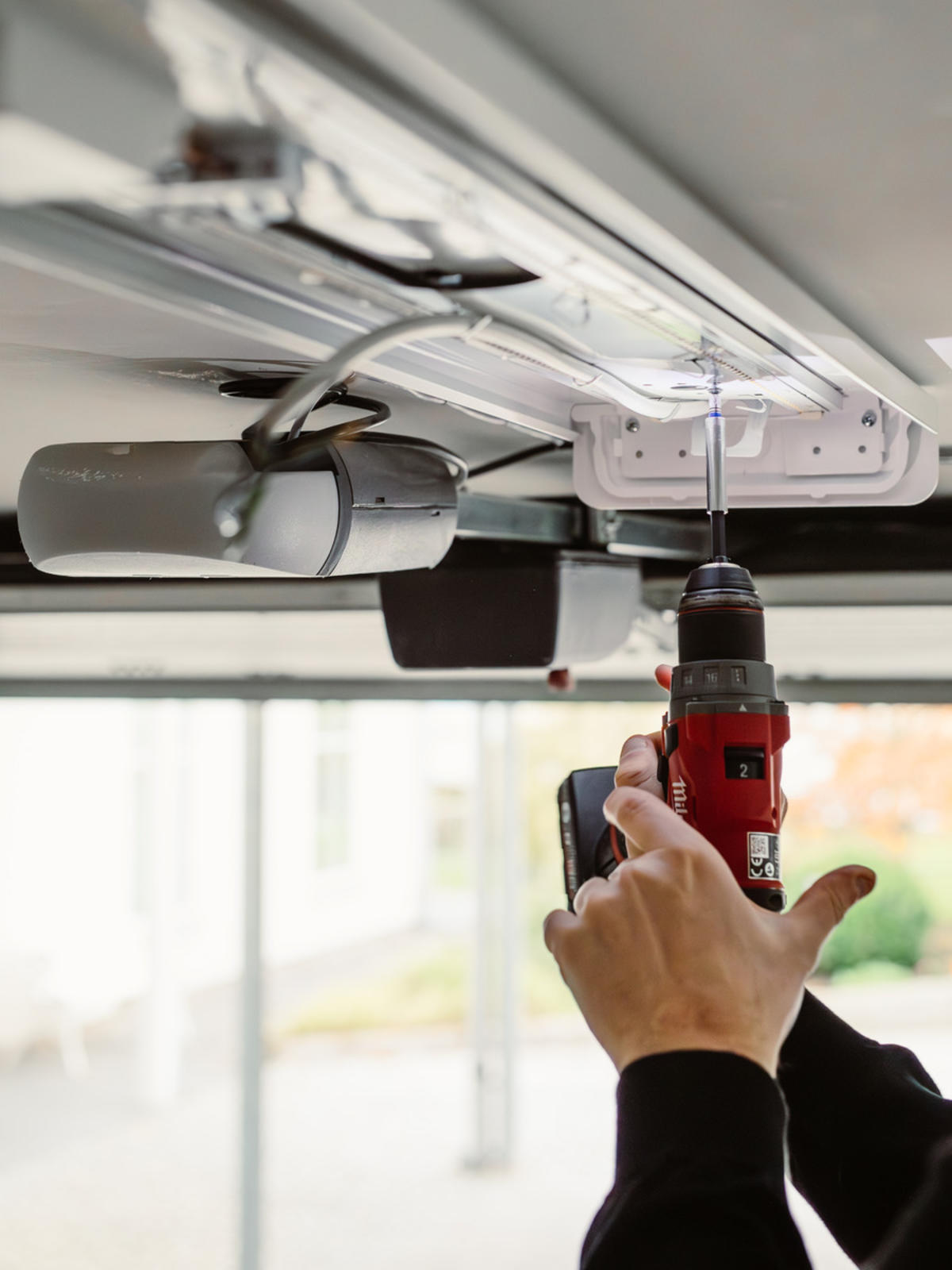

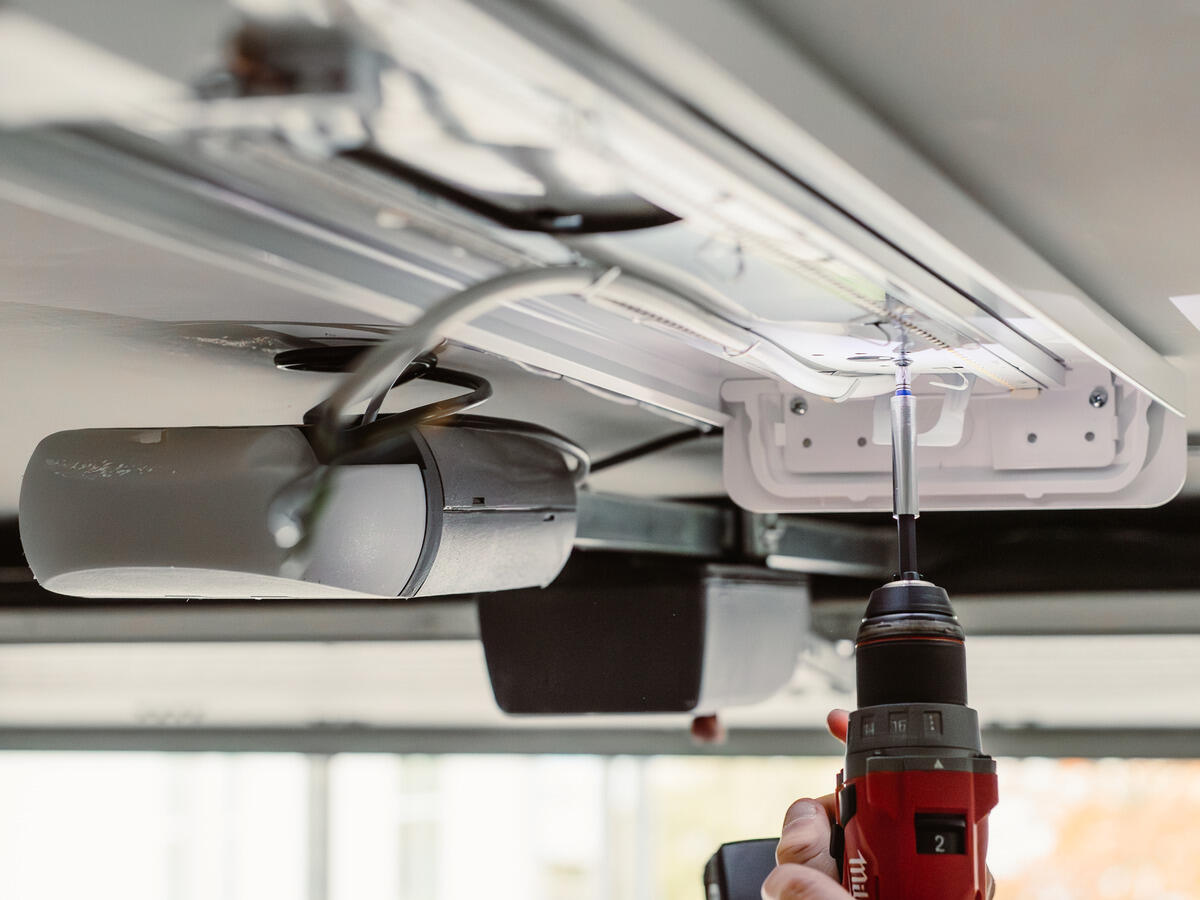

- Simple installation with double sided tape and screws

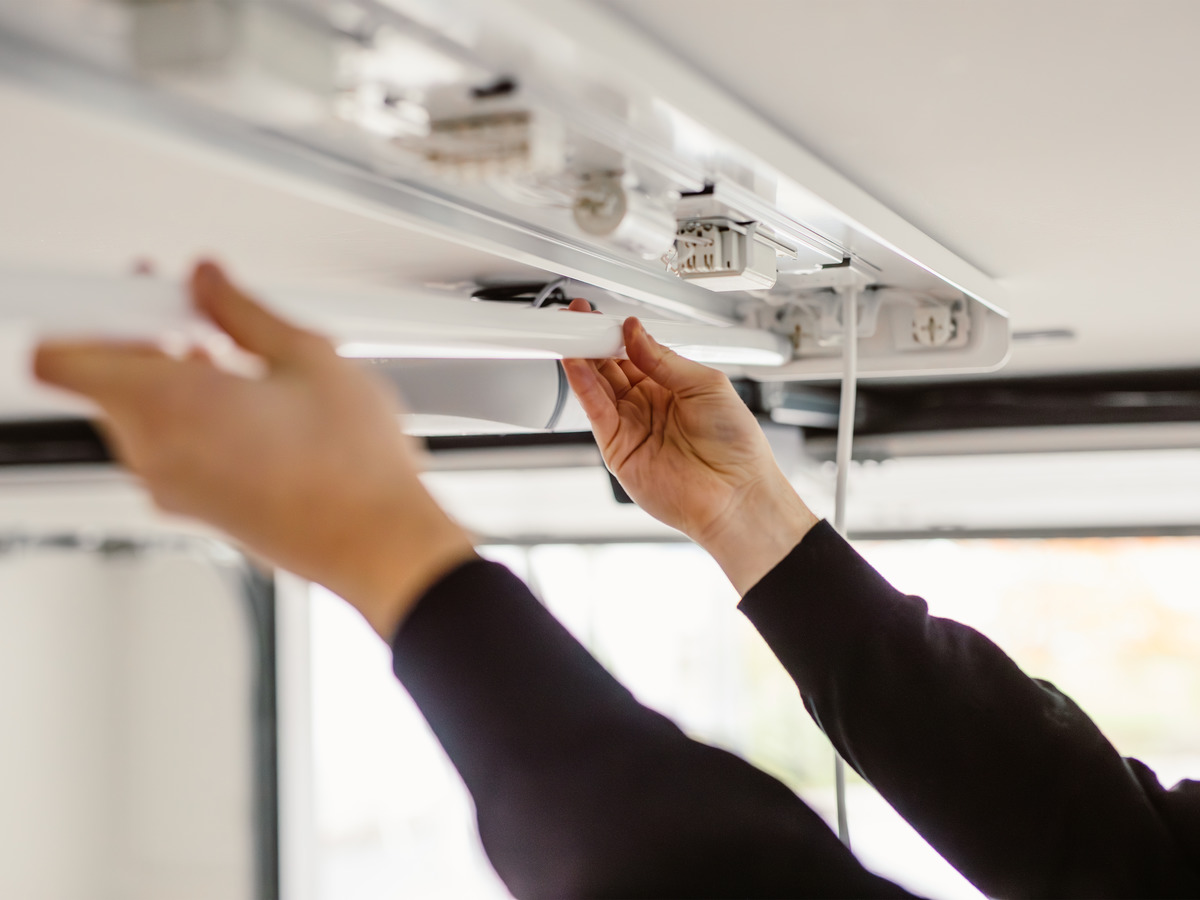

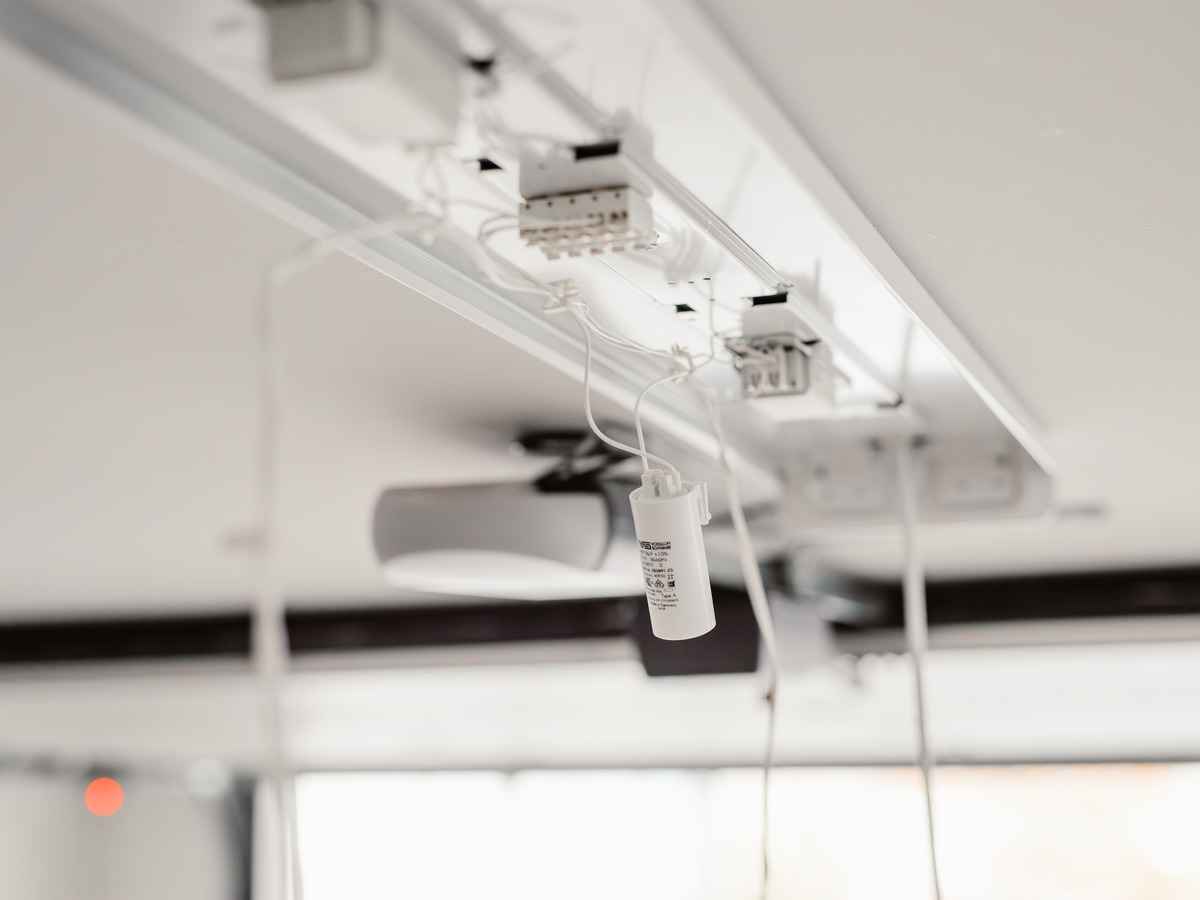

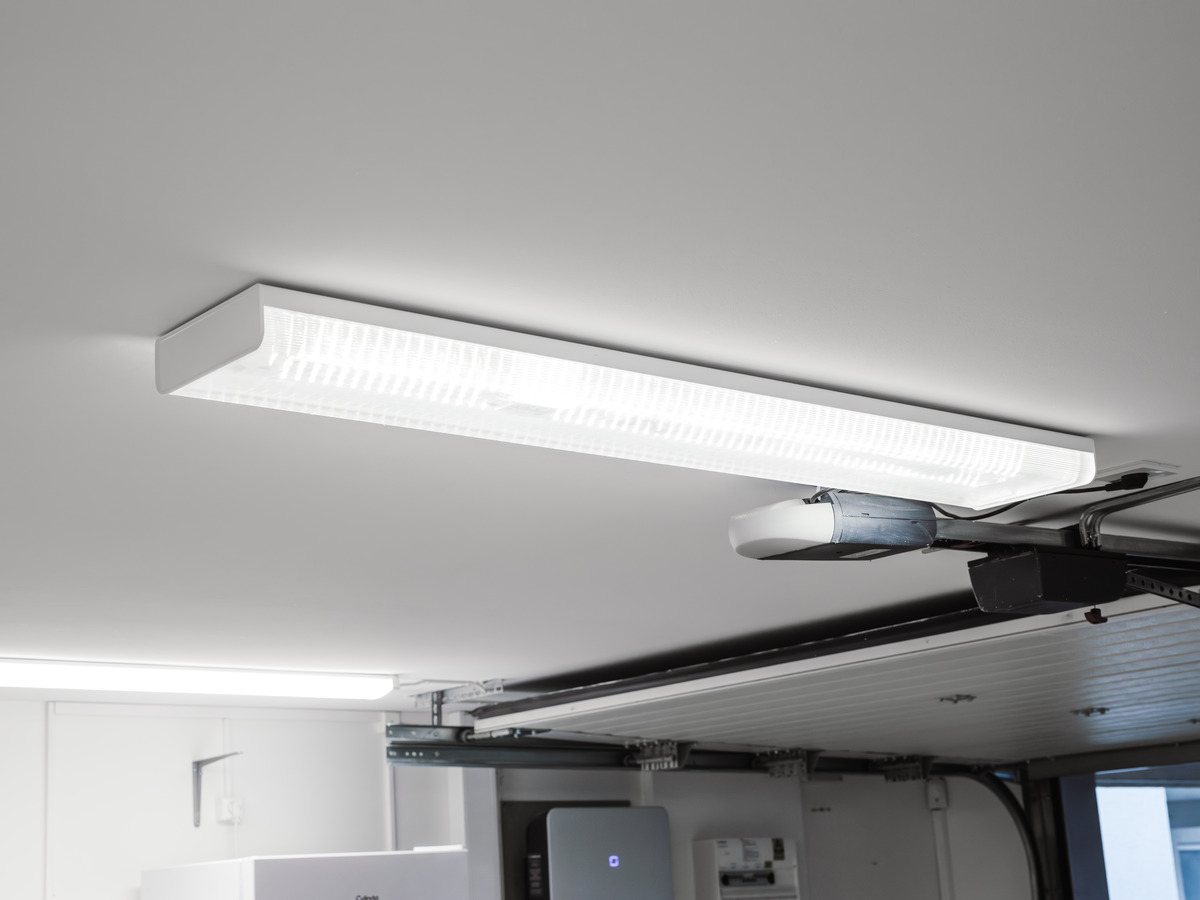

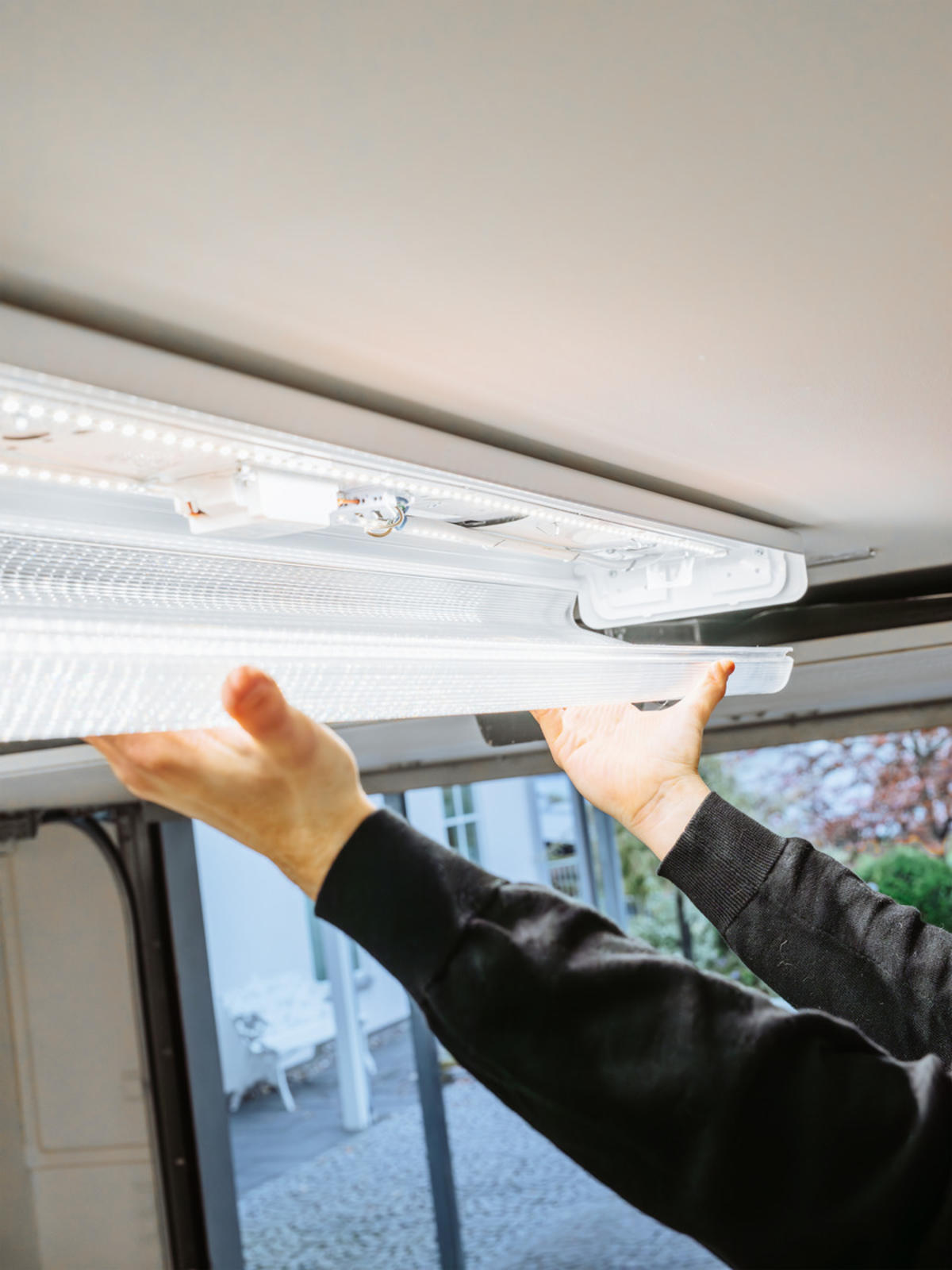

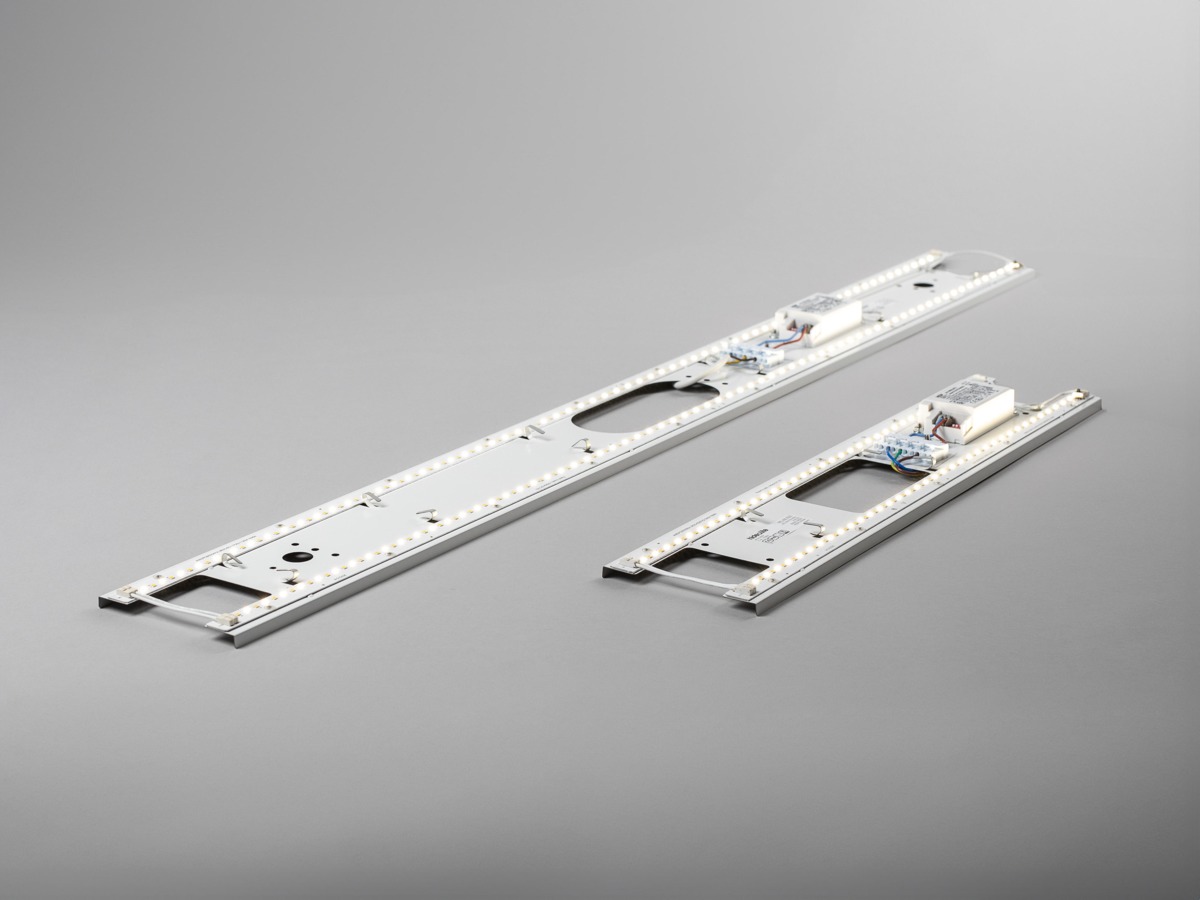

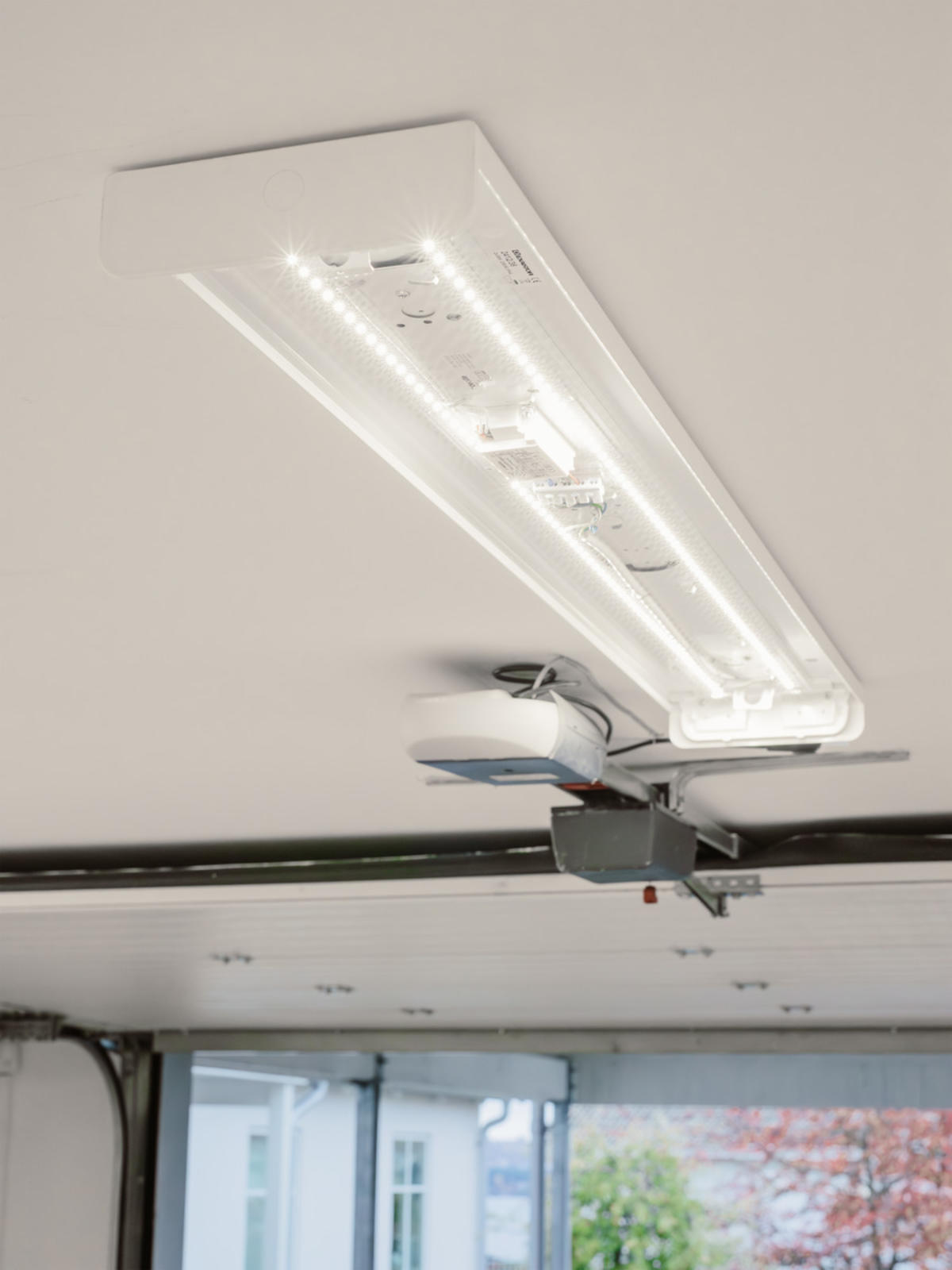

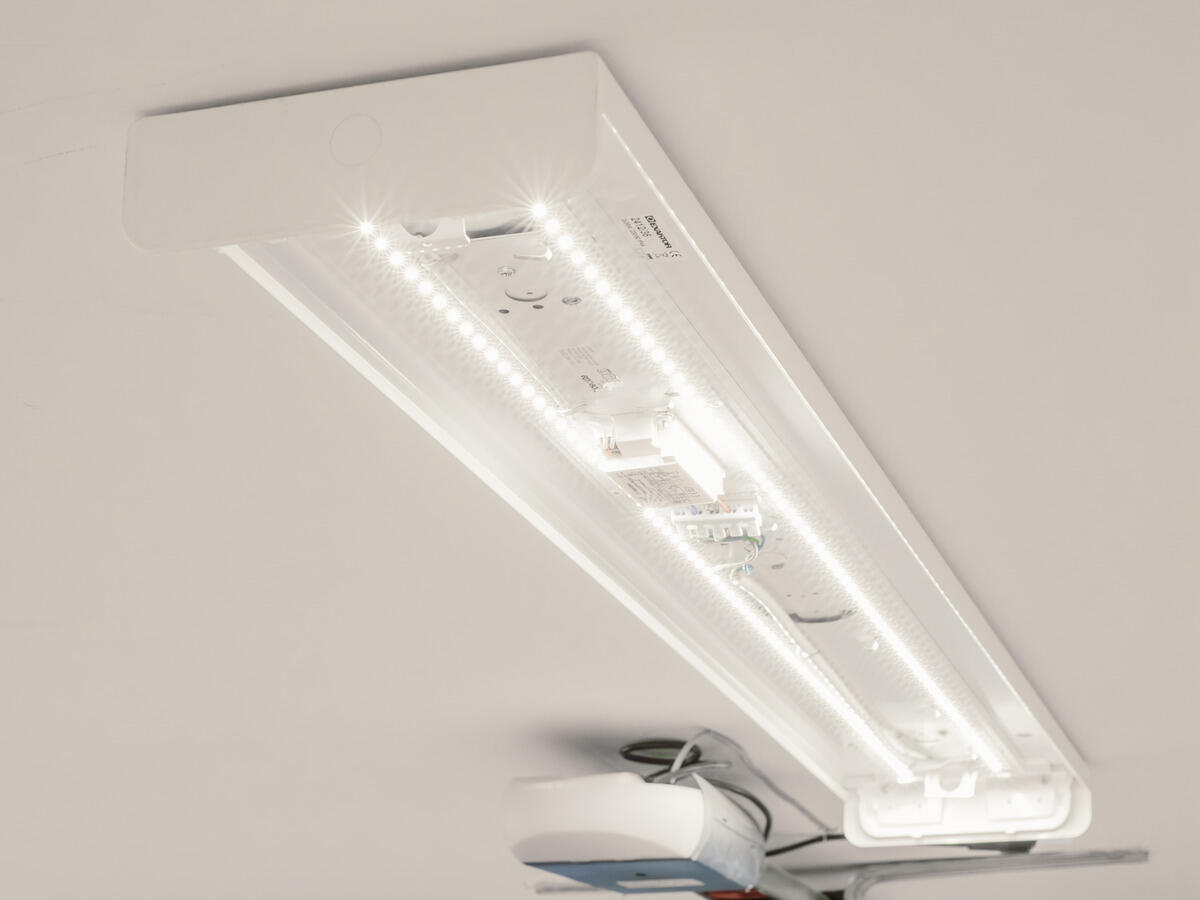

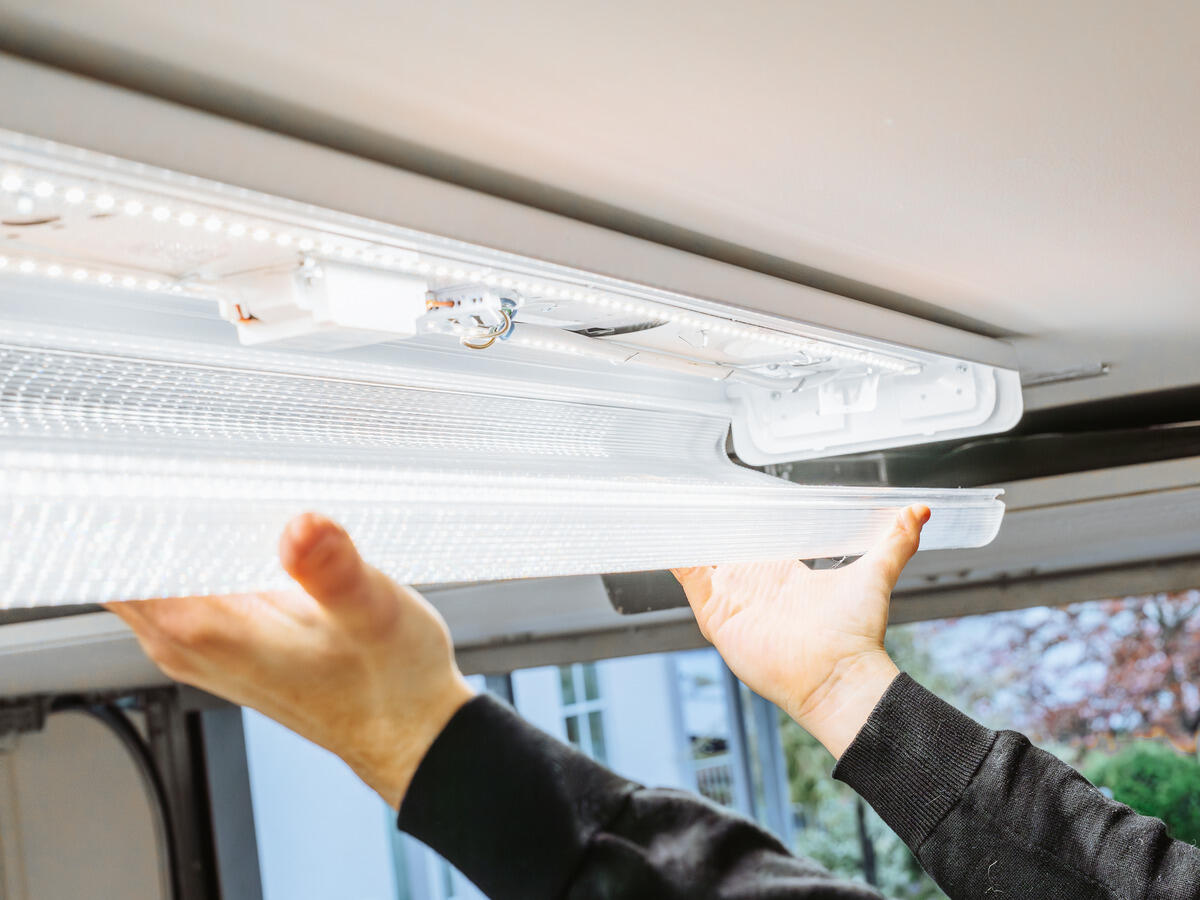

Why throw away a perfectly good cover and body? With ReLine you no longer need to replace the whole luminaire – just open up the existing cover and replace your fluorescent tube with our replacement kit. ReLine is an innovative replacement kit in two different lengths, made to easily upgrade your fluorescent luminaires. The kit gives you a replaceable LED and driver, as well as the possibility to choose colour temperature via DIP-switch Colour Temp. For ReLine 1200 you can also adjust the lumen output with DIP-switch Power. The kit comes with double sided tape and is easily fitted with both screws and tape. Use the label supplied to mark the luminaire after replacement.
| Variants | GTIN | Item Name | Luminaire Lumen (lm) | Type of Dimming | Beam Angle (°) |
|---|---|---|---|---|---|
|
7392971149400 | ReLine 600 | 2000 | OnOff | 112 |
|
7392971149417 | ReLine 1200 | 5200 | OnOff, DIP-Switch Power | 117 |

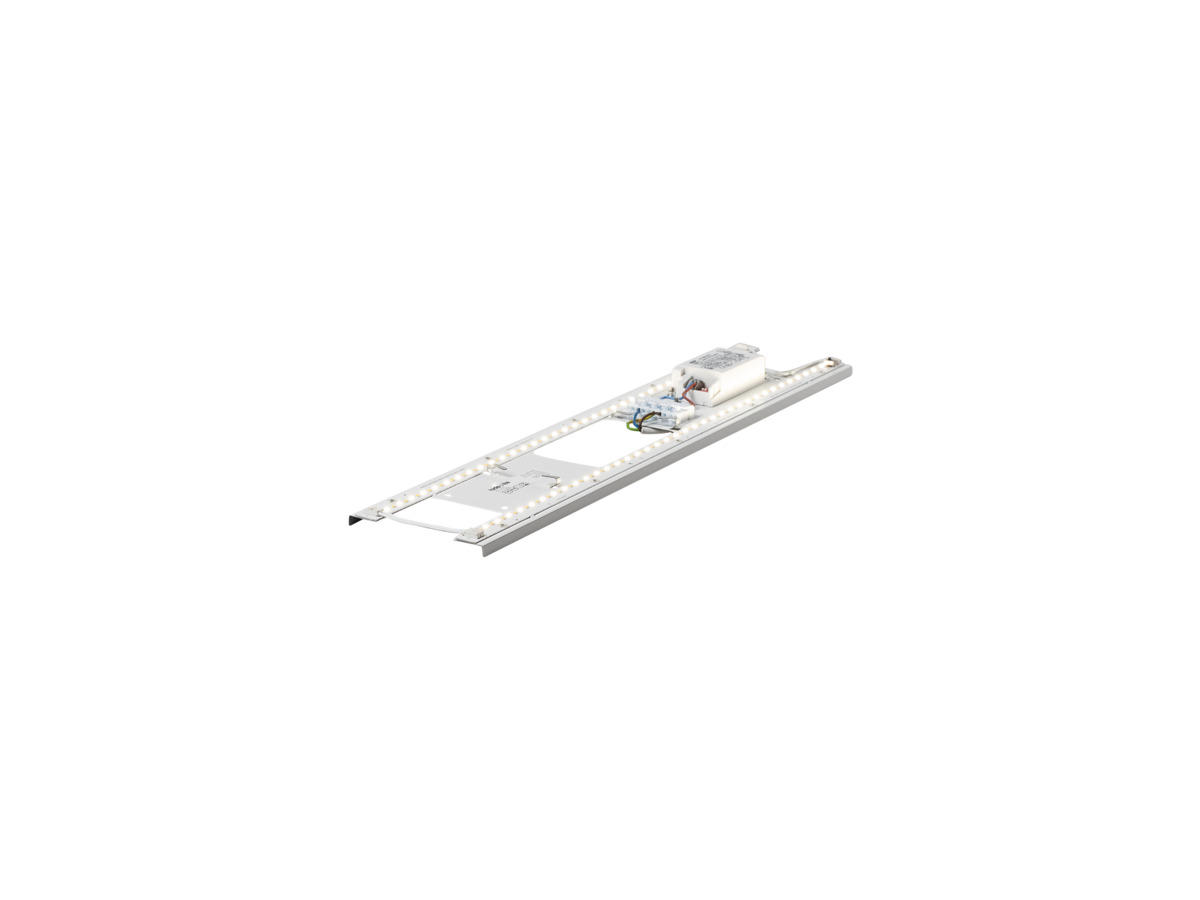

ReLine 600
-
GTIN 7392971149400Item Name ReLine 600Warranty 5 years
- Light Technical Data
-
Luminaire Lumen (lm) 2000Light Source LEDLight Source Included YesReplaceability Replaceable Control gear by professionalLED Colour Warm WhiteColour Temperature (K) 3000, 4000Colour Rendering Index (Ra) >80Colour Consistency (SDCM) 3Luminous Intensity (cd) 645Beam Angle (°) 112Light sharing SymmetricLight Outlet DirectNumber of Lamps (pcs) 1Number of LED (pcs) 144Life Time L80 100 000h Ta 25°CNominel Life Time (h) 100000Lumen maintenance 50 000h L91Lumen maintenance 75 000h L88Lumen maintenance 100 000h L84LLMF @ 50 000h 0,91LLMF @ 100 000h 0,84Life Time Driver 50 000h/10%
- Technical data
-
Adjustable NoVoltage (type) ACVoltage Interval (V) 220...240Voltage Nominal (V) 230Line Frequency (Hz) 50, 60Power LED (W) 15Power Luminaire (W) 15System Power (W) 15Efficiency Luminaire (lm/W) 133Efficiency System (lm/W) 133Containing light source energy efficiency class (EU) 2019/2015 C
- Operation and Connection
-

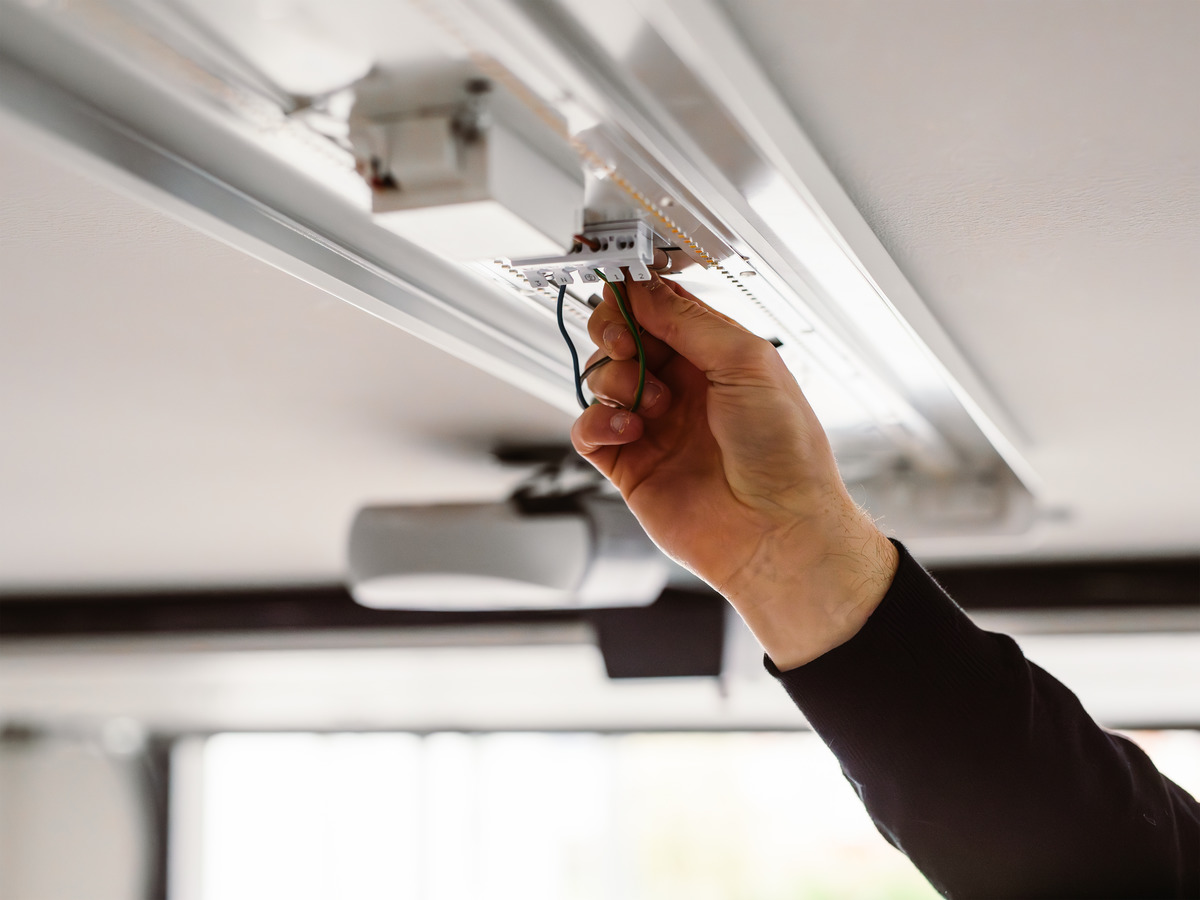

Dimmable NoType of Dimming OnOffDriver Included Yes - replaceableDriver Model Constant CurrentDriver Type Built-inConnection (type) Quick TerminalConnection (mm2) 5x0,5-2,5Through Wiring NoStrain Relief YesPower Factor ʎ 0,85Efficiency (%) 82Power loss (W) 3,36Leakage current (mA) (at 230 V, 50 Hz, full load) 0,5THD (%) 20Standby Power 0,5Constant Current (mA) 300Operating TemperatureMax. Tc (°C) 85Suitable for random switching YesInrush current (max/time) 15A 400µsMains surge protection DM (kV) 2Mains surge protection CM (kV) 2Fuse B10 (pcs) 40Fuse B16 (pcs) 64Fuse C10 (pcs) 64Fuse C16 (pcs) 100
- Color and material
-
Material Sheet metalColor WhiteEnvironmental Assessment ByggvarubedömningenAvailable in special color No
- Measurement and installation
-

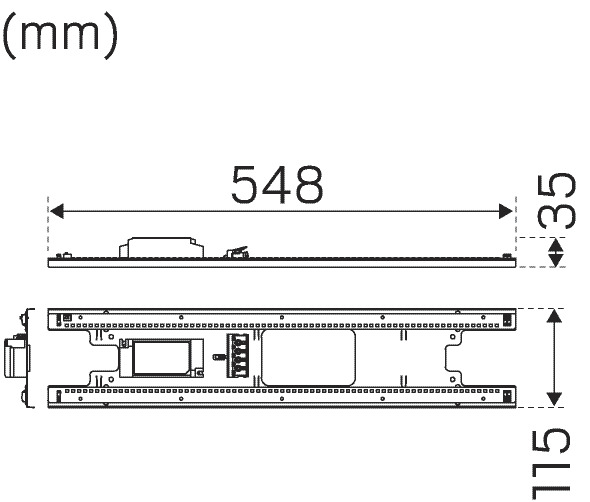

Operating EnvironmentIP Degree of Protection 20Protection Class IInstallation Ceiling, WallMounting Installation Screw Mounting, Self Adhesive TapeApproval Marks CE, a Hide-a-lite ChoiceLength (mm) 548Width (mm) 115Height (mm) 35Weight (kg) 0,34
Spare parts
If you need spare parts, contact our customer support
- Driver ReLine 600 X302
