Ray

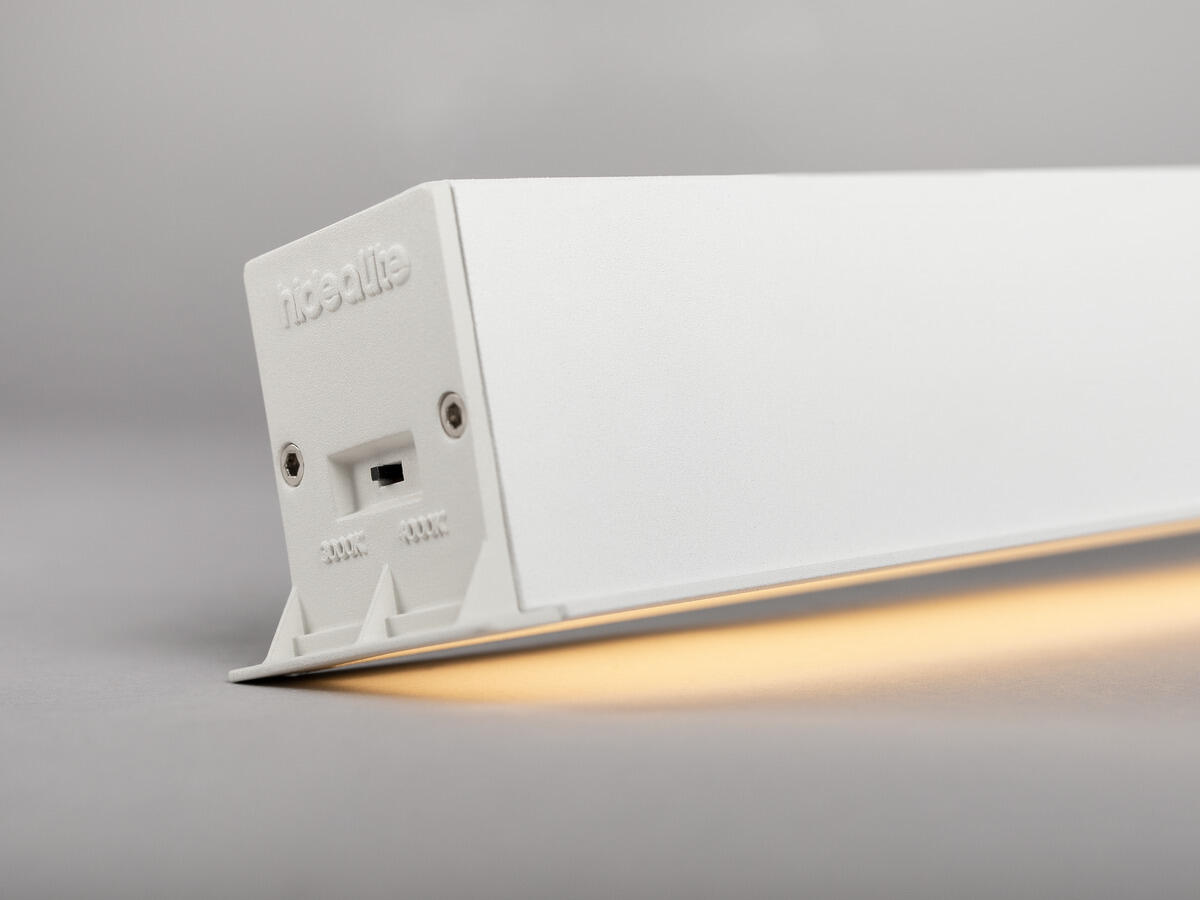

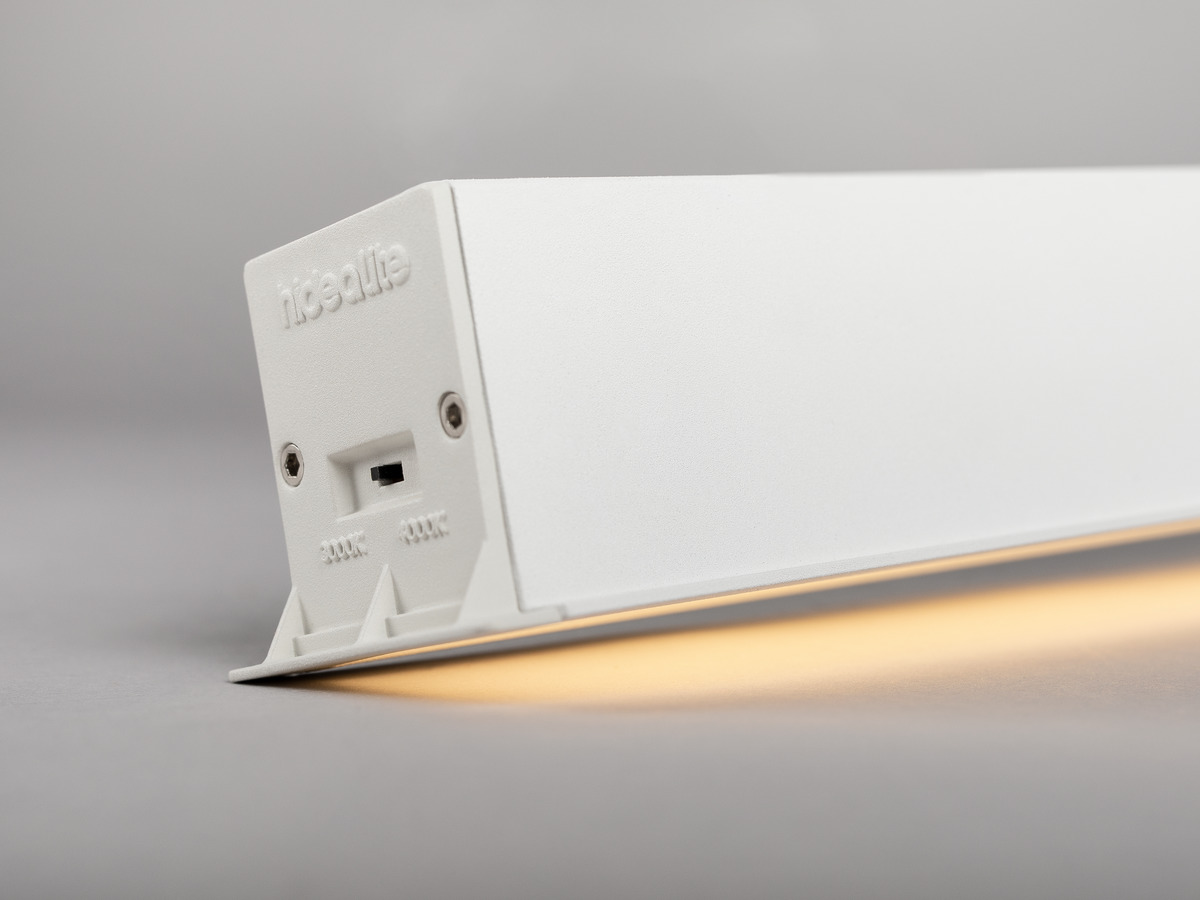

Selectable colour temperature via DIP-Switch ColourTemp

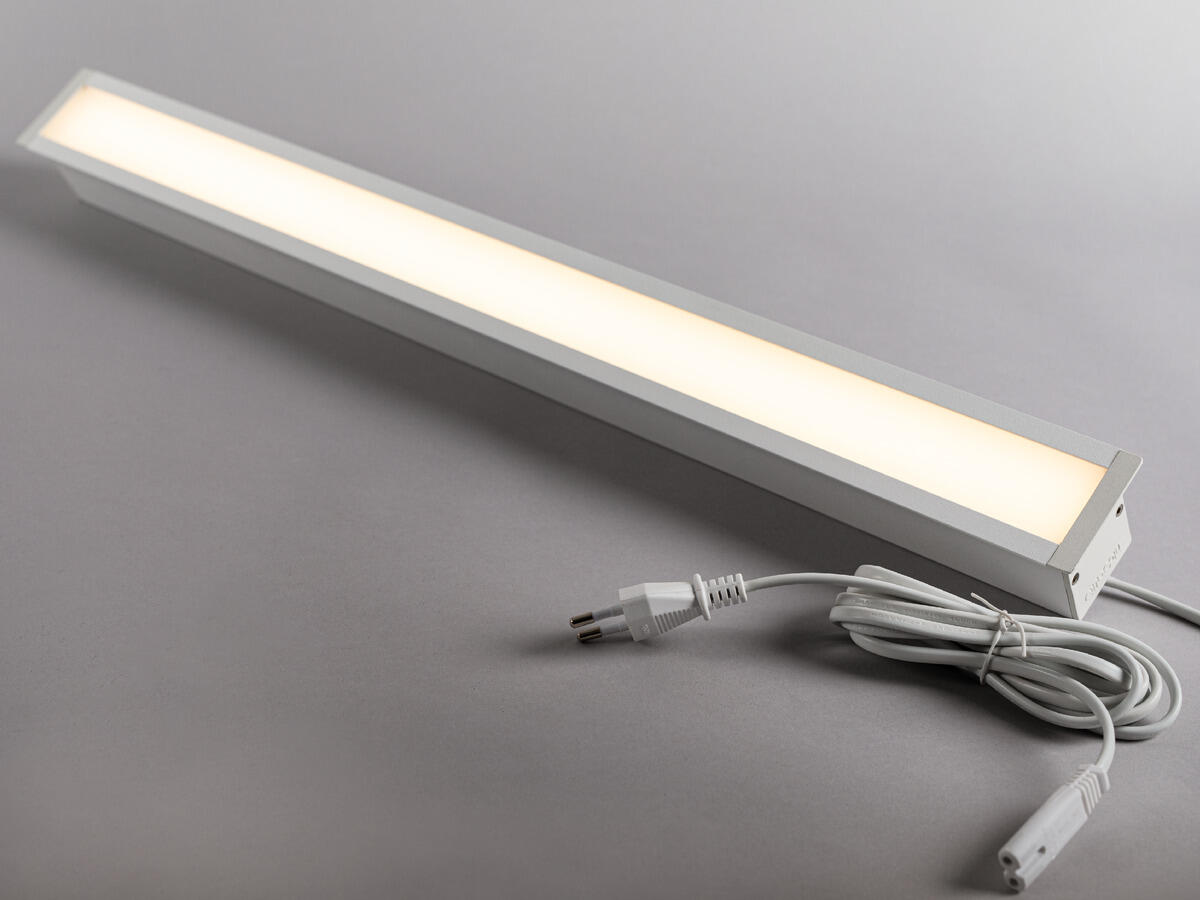

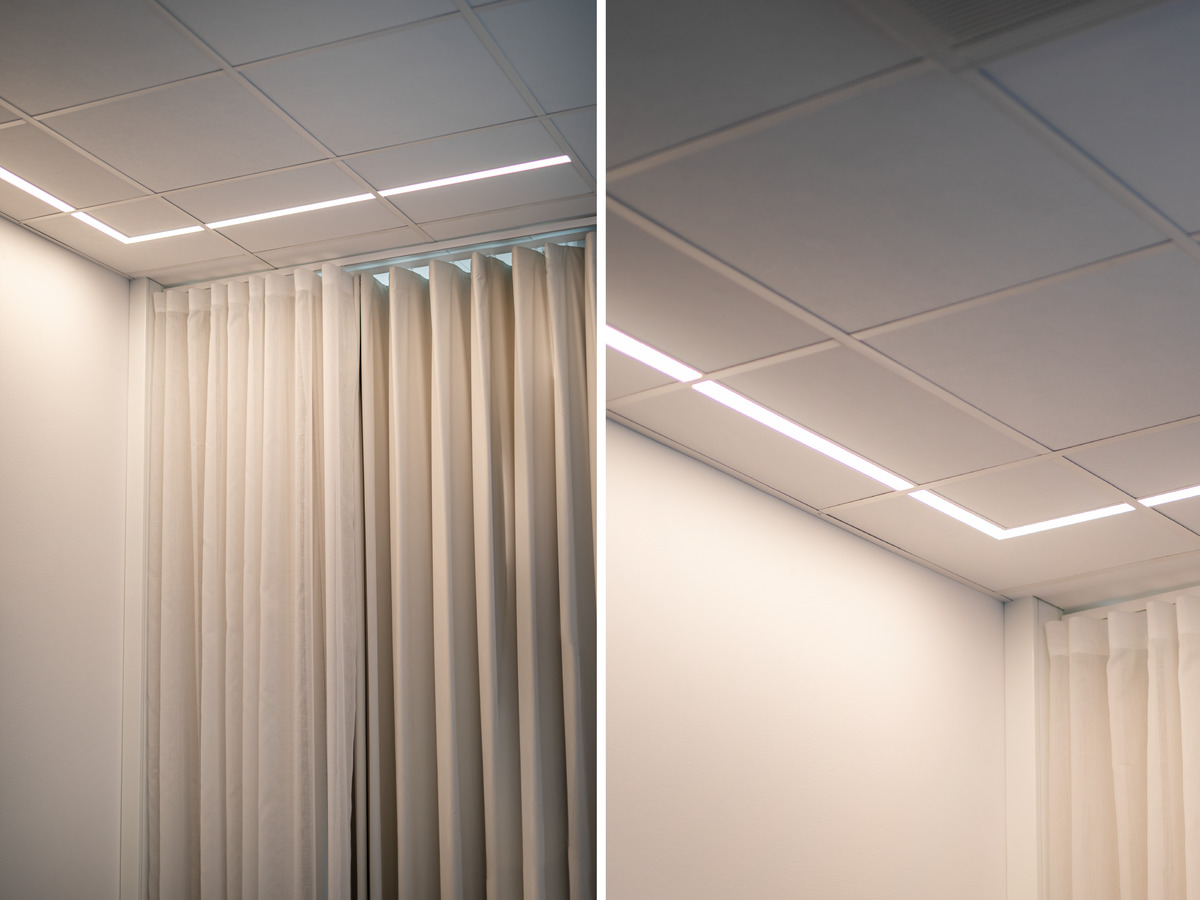

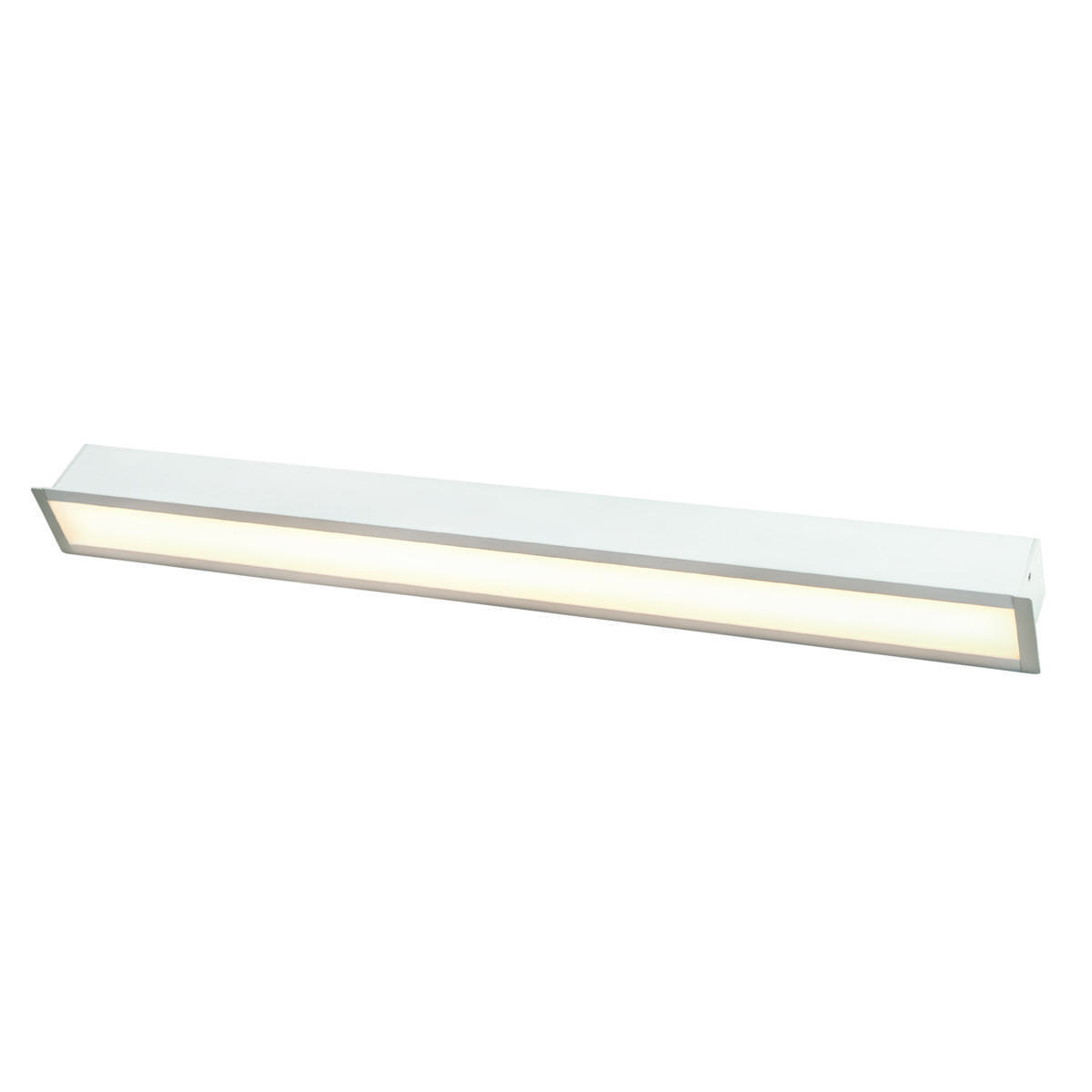

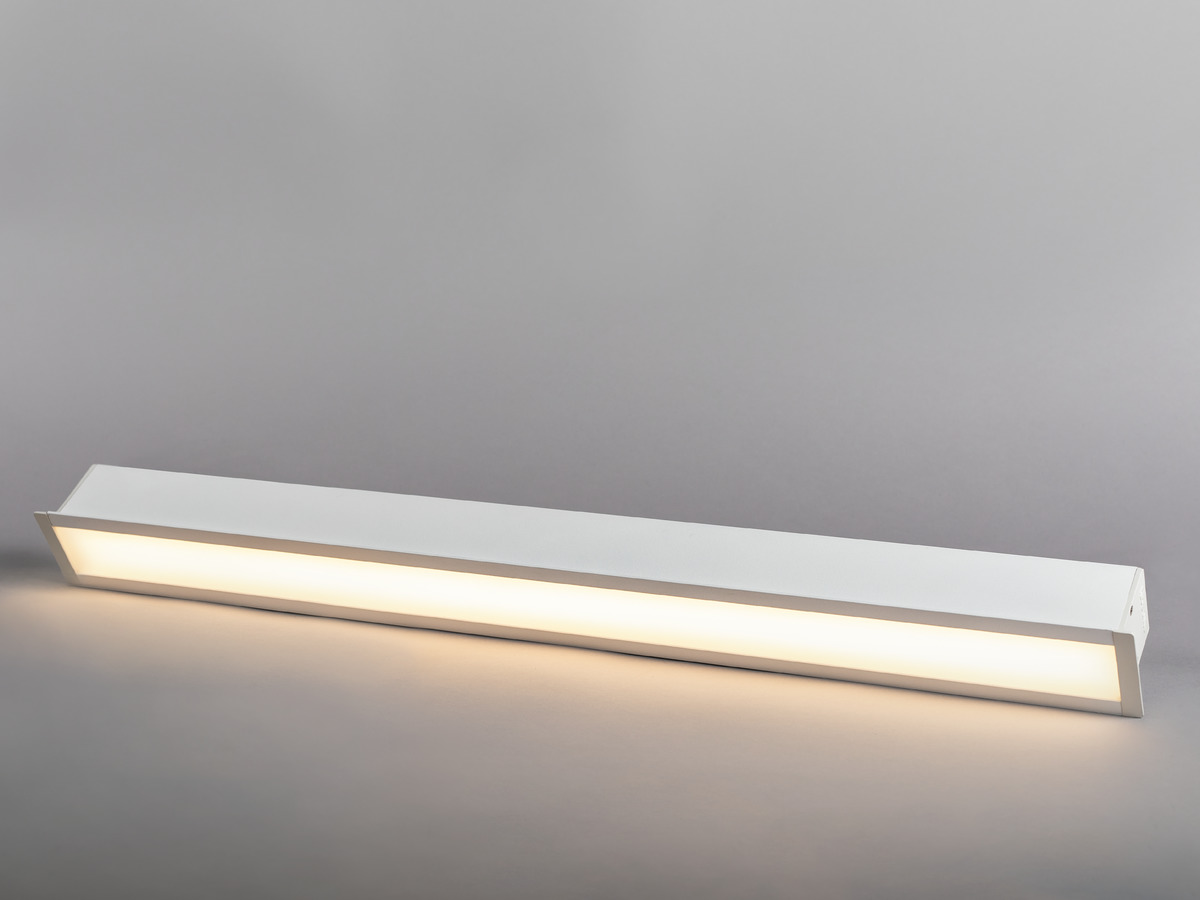

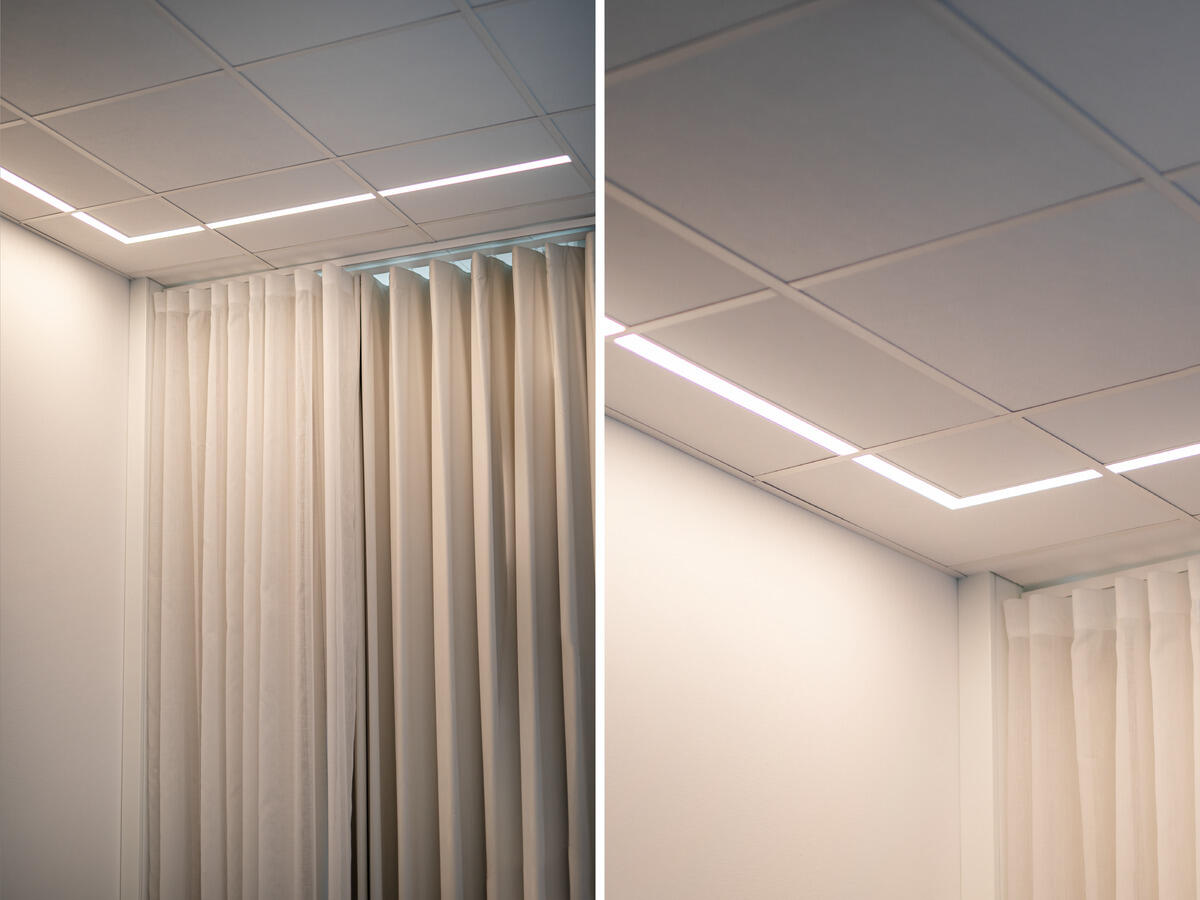

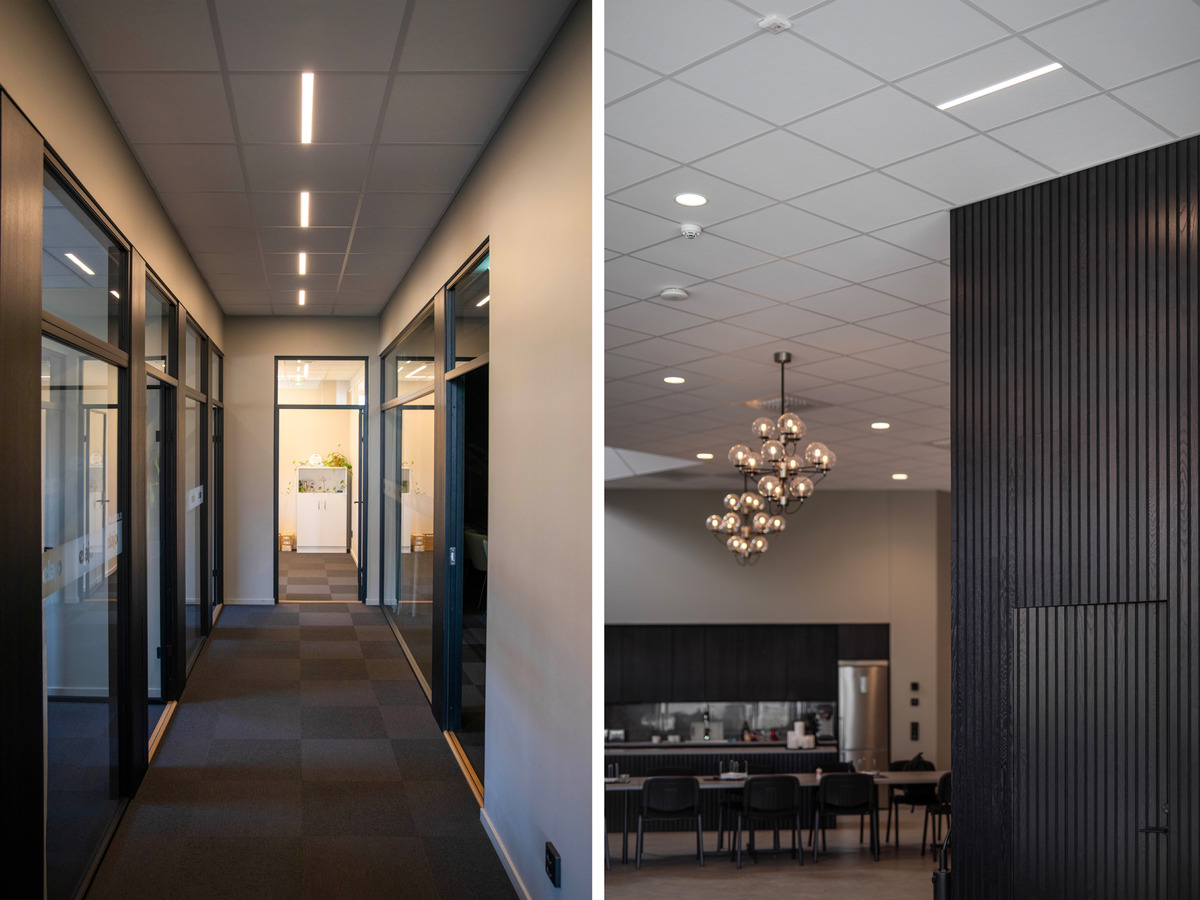

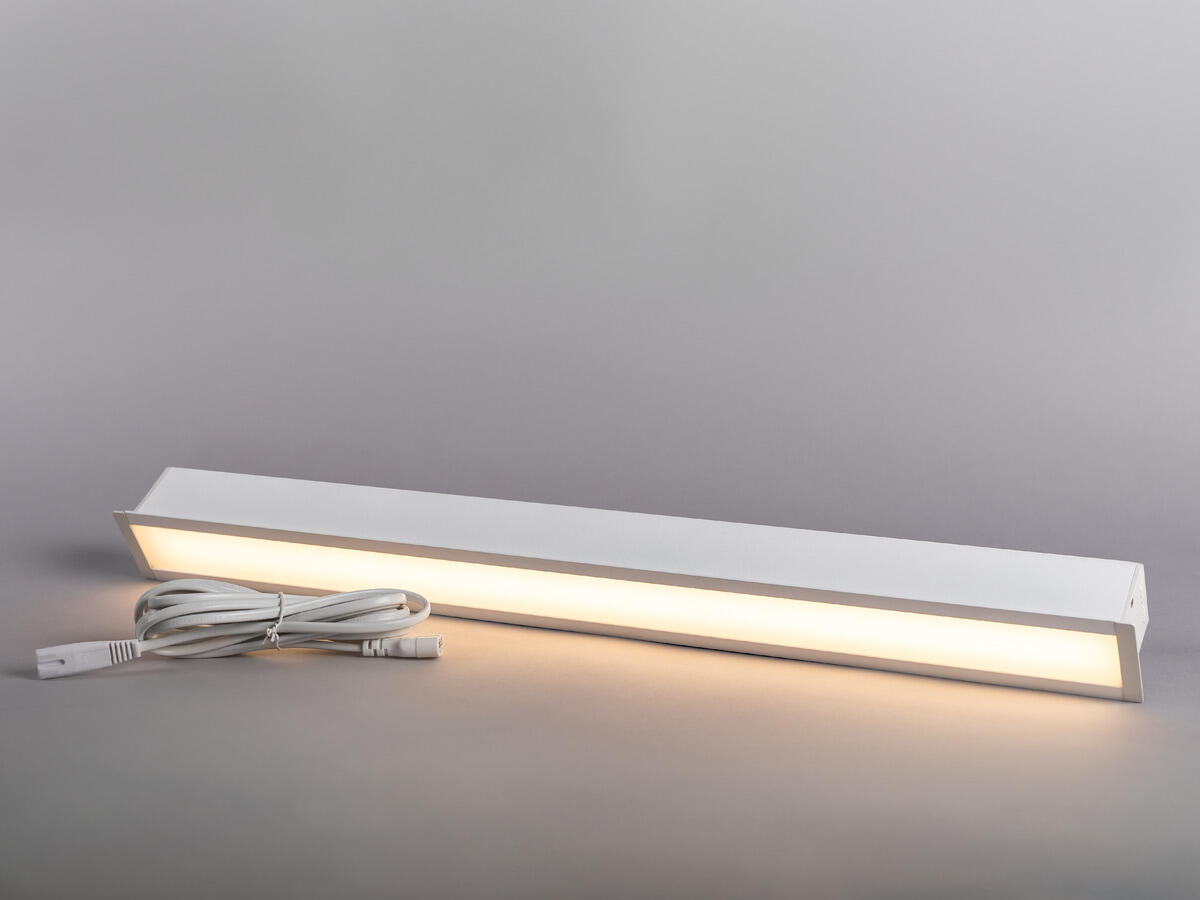

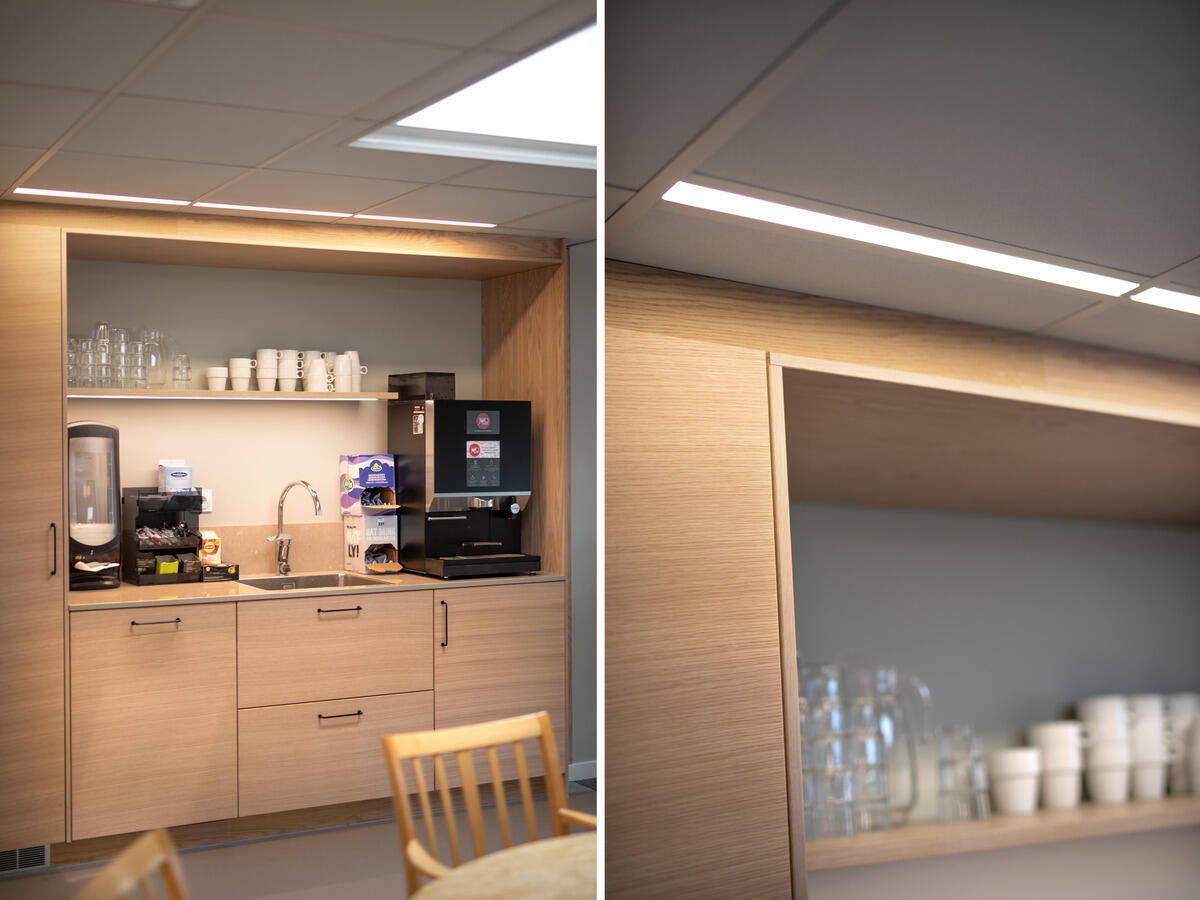

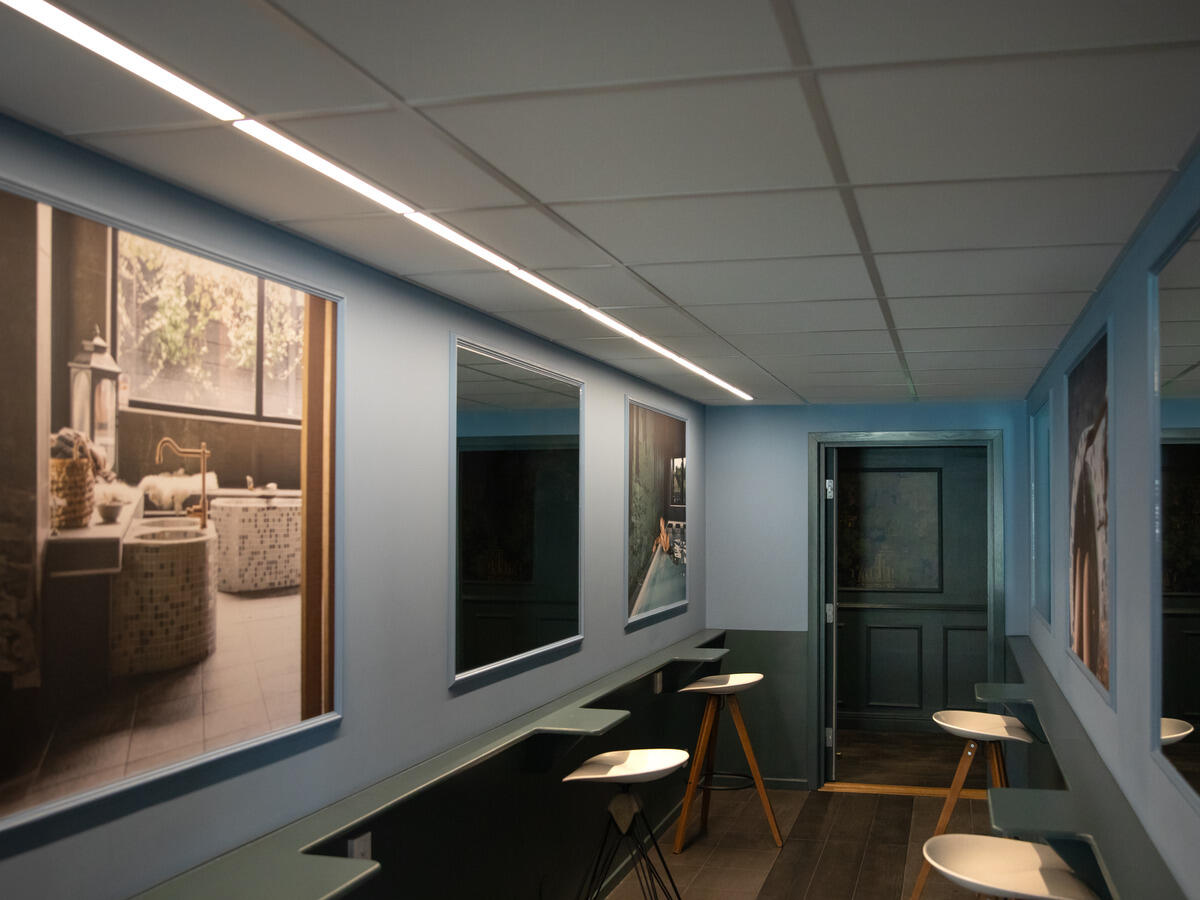

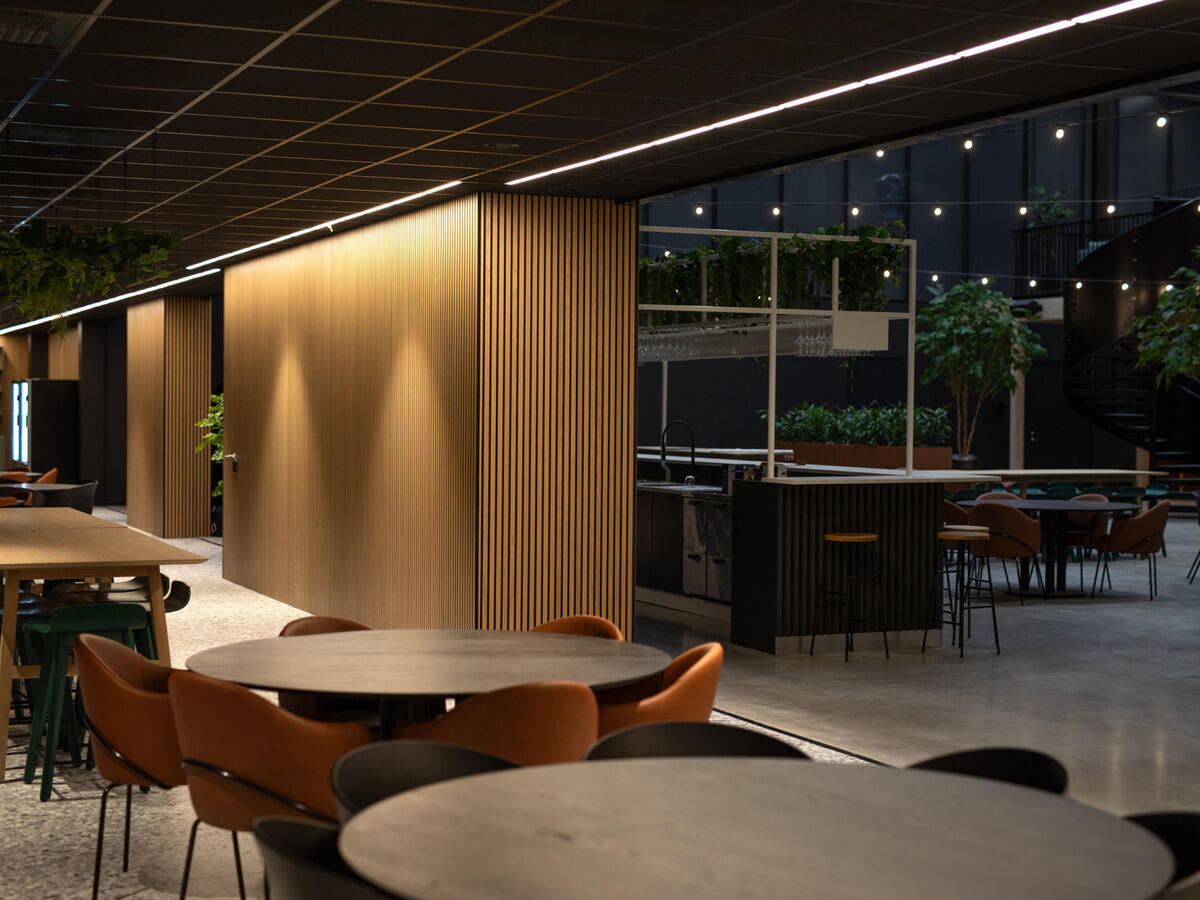

Dimmable 230V luminaire with opal cover. For an even, homogenous light in public environments where striking lines of light are desired. Selectable colour temperature via DIP-Switch ColourTemp. Designed for easy installation in false ceilings with visible support profile. 40cm cable with 230V quick connection at each end to make it easy to illuminate from every other board without accessories. Integrated phase dimmable driver. Comes with 2m cord set and unearthed plug plus hole template. 3m extension cable available as accessory.

Description: GTIN 7392971138909

Item Name Ray 600 OP 830/840

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 715

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Non-replaceable Control gear

LED Colour White

Colour Temperature (K) 3000, 4000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

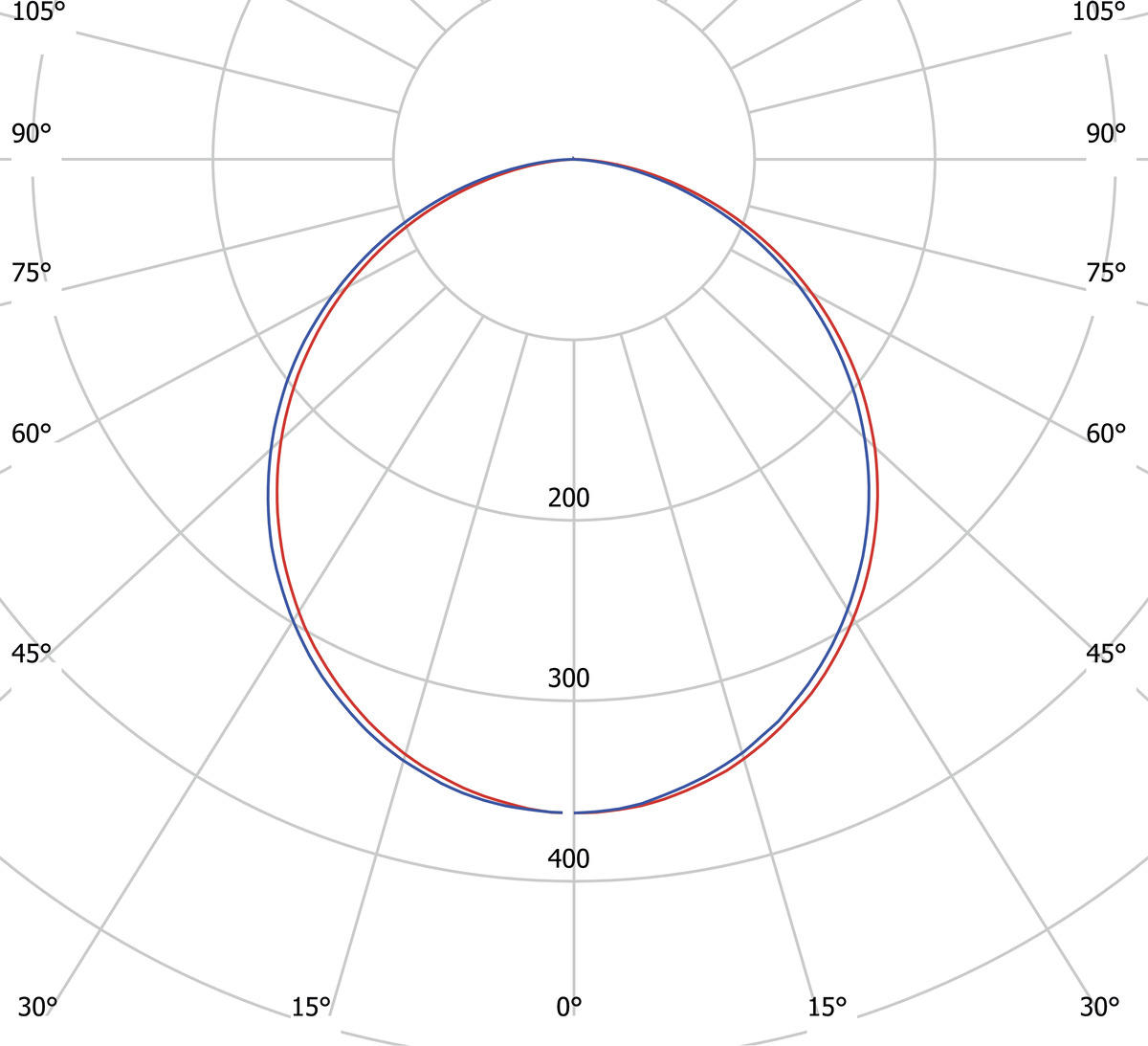

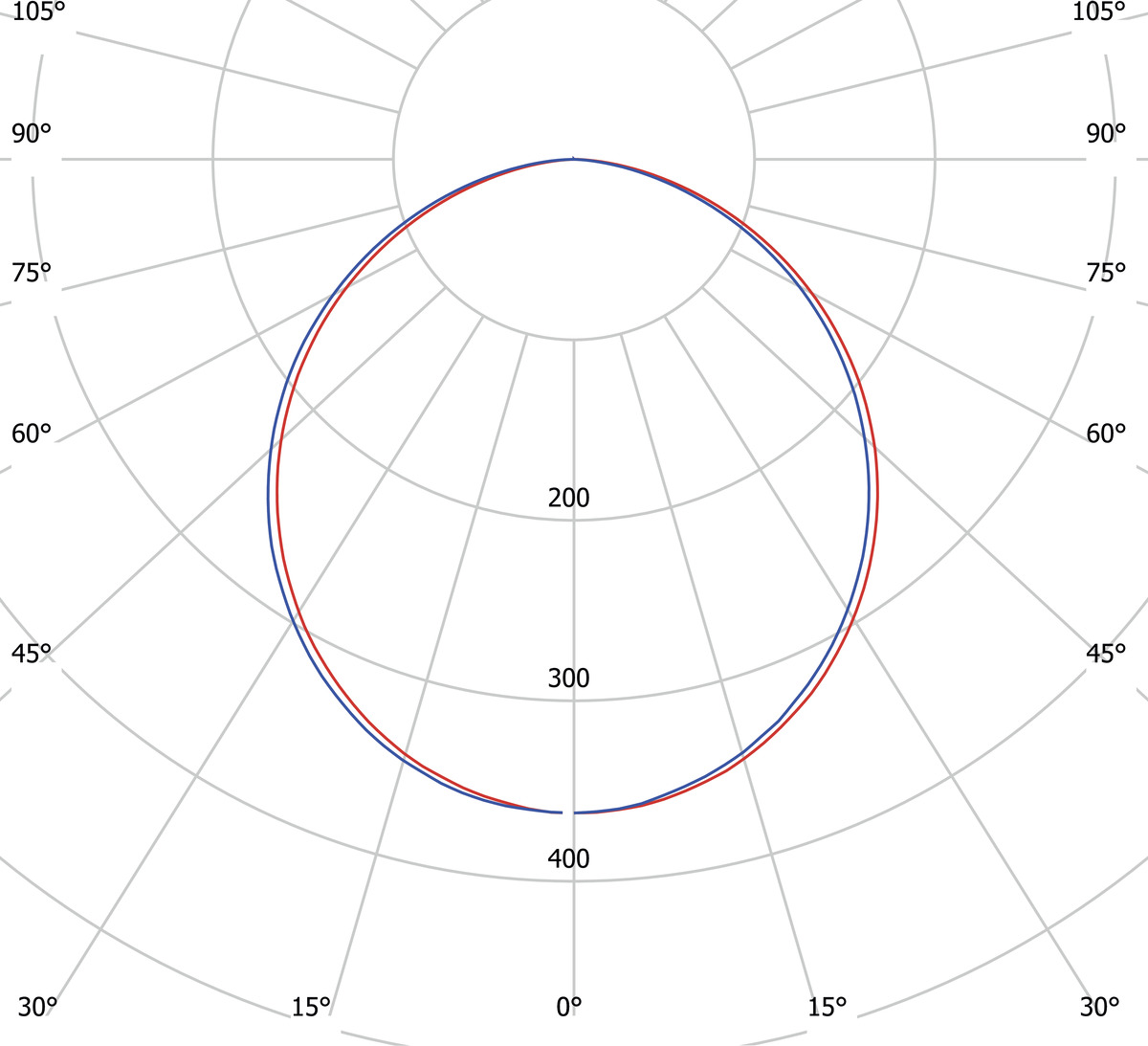

Luminous Intensity (cd) 260

Beam Angle (°) 110

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 200

Life Time L90 50 000h Ta 25°C

Nominel Life Time (h) 50000

Lumen maintenance 50 000h L90

Lumen maintenance 100 000h L81

LLMF @ 50 000h 0,9

LLMF @ 100 000h 0,81

Life Time Driver 50 000h/10%

Flicker (PstLM) 0,365

Stroboscopic effect (SVM) 0,03
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50

Power LED (W) 4,9

Power Luminaire (W) 5,8

System Power (W) 5,8

Efficiency Luminaire (lm/W) 123

Efficiency System (lm/W) 123

Containing light source energy efficiency class (EU) 2019/2015 C
Operation and Connection: Dimmable Yes

Type of Dimming Trailing Edge, Leading Edge

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Connection (type) Cord Set, Plug-in

Length Connection (cm) 200

Connection (mm2) 2x0,75

Through Wiring Yes

Strain Relief Yes

Power Factor ʎ 0,5

Efficiency (%) 80

Constant Current (mA) 180

Operating Temperature -20…+40

Max. Tc (°C) 60

Fuse B10 (pcs) 50

Fuse B16 (pcs) 73

Fuse C10 (pcs) 60

Fuse C16 (pcs) 93
Color and material: Material Extruded, Aluminium, Plastic

Color White
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class II

Installation Built-in

Fire Safety Marks Not in insulation without protection cover

Approval Marks CE

Filament Test IEC 695-2-1(°C) 650

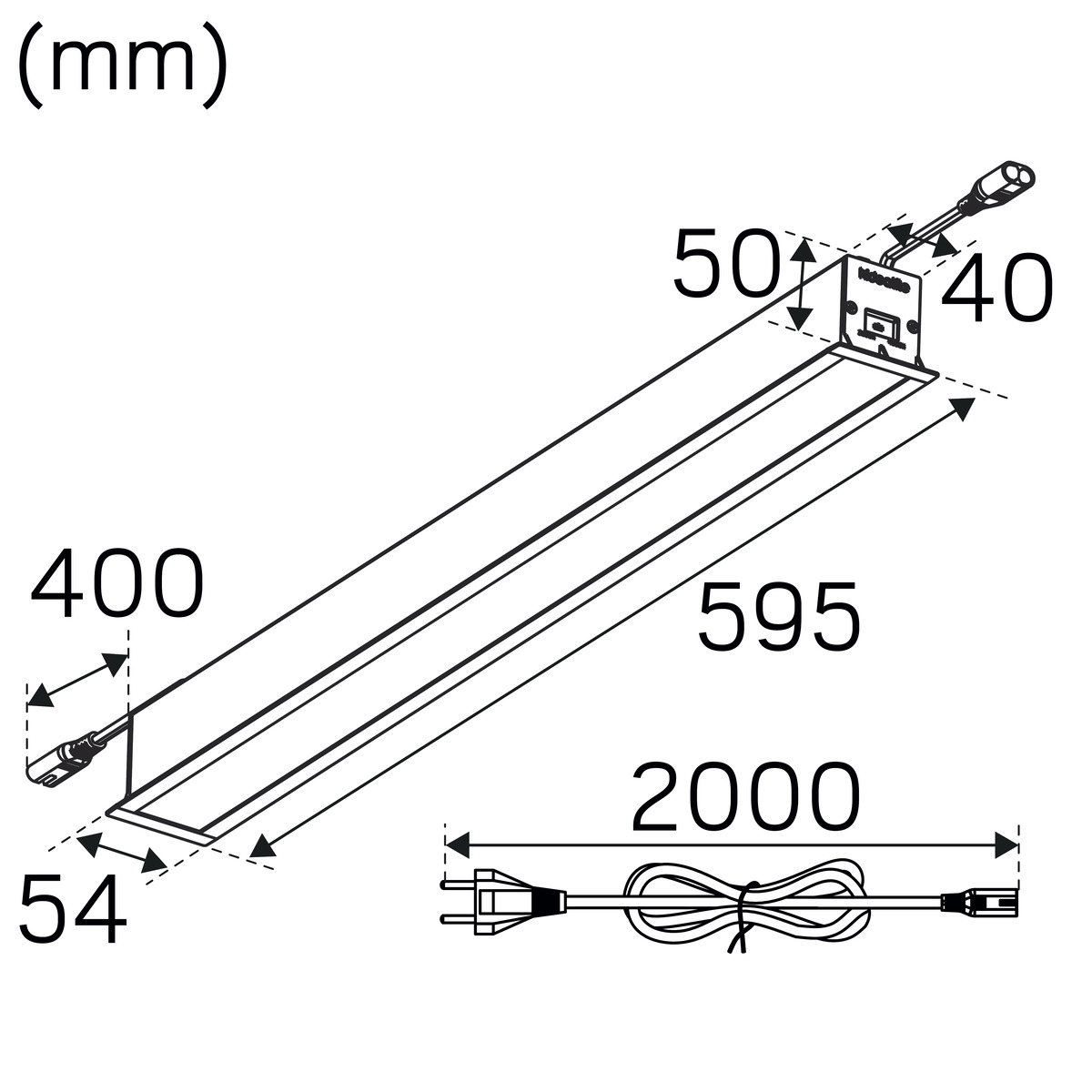

Length (mm) 595

Width (mm) 54

Height (mm) 54

Weight (kg) 0,75

Built-in LxB (mm) Manual

Ray Corner

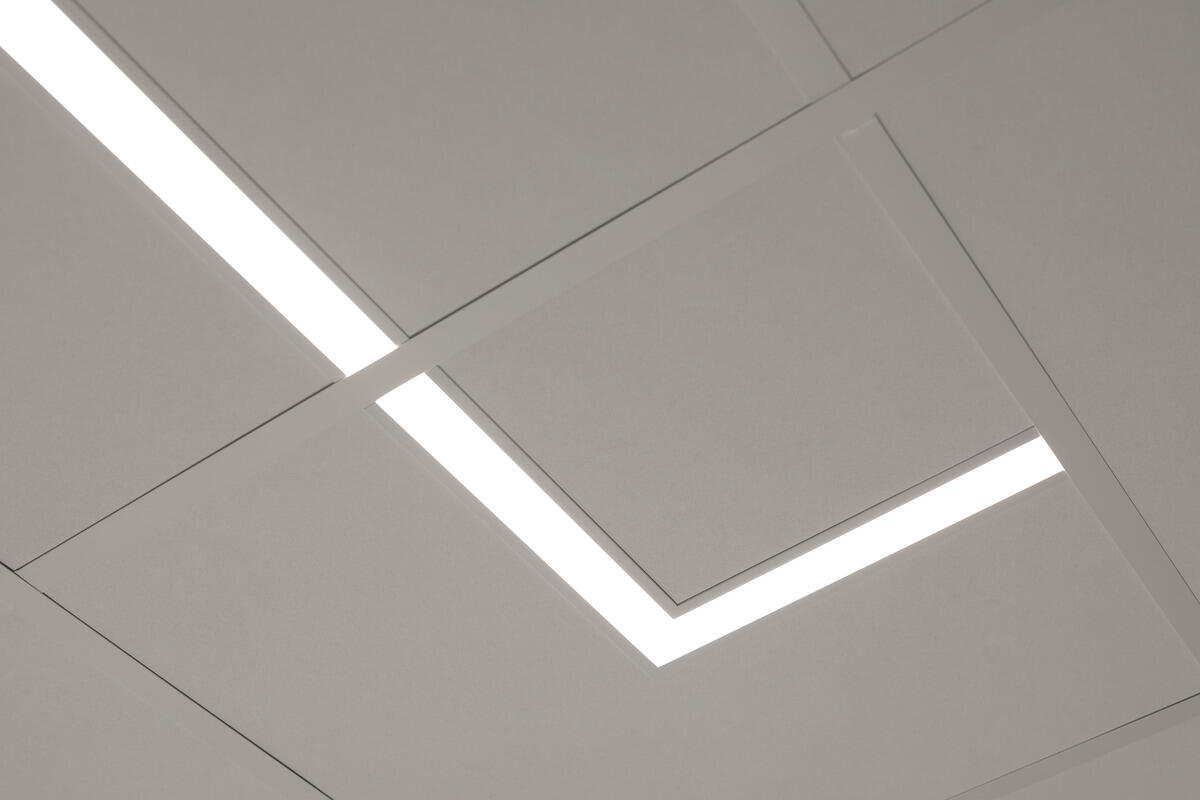

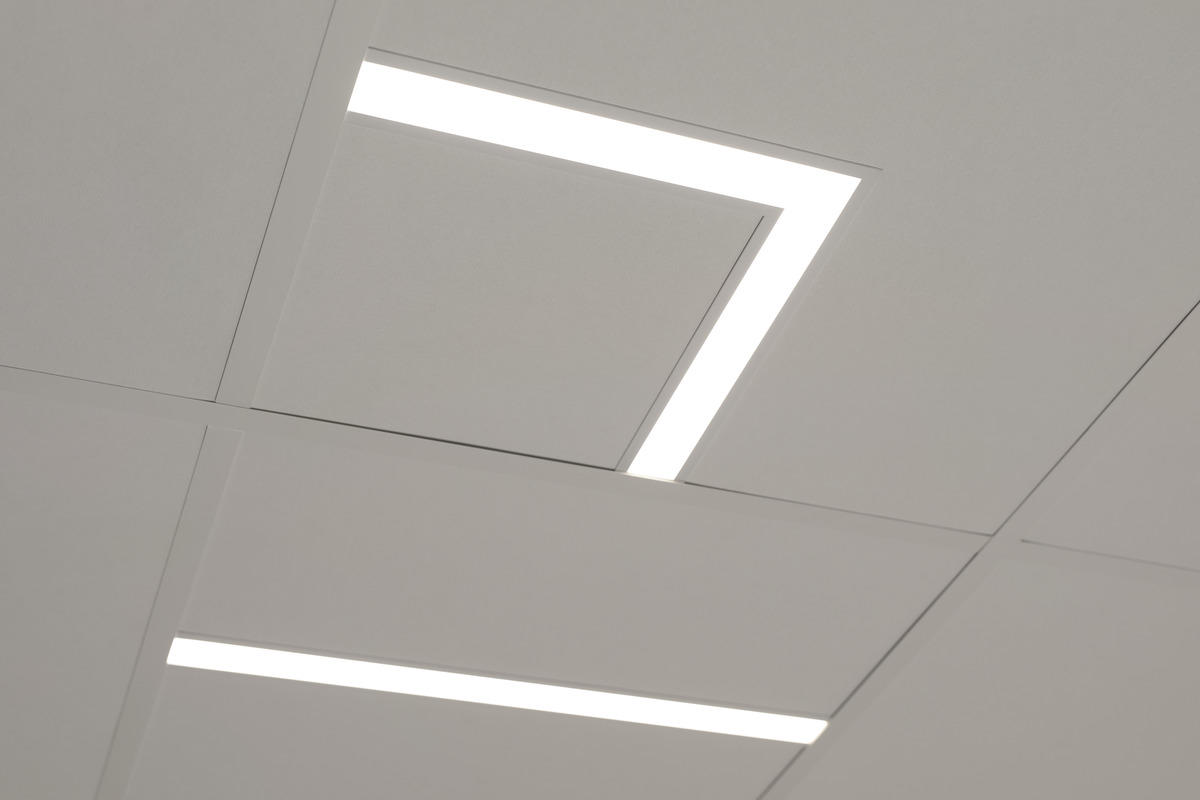

Dimmable 230V luminaire shaped as a 90° corner with opal cover. For an even, homogenous, lighting in public environments. Selectable colour temperature via DIP-Switch ColourTemp. Designed for easy installation in false ceilings with visible support profile. 40cm cable with 230V quick connection at each end to make it easy to illuminate from every other board without accessories. Integrated phase dimmable driver. Comes with 2m cord set and unearthed plug plus hole template. 3m extension cable available as accessory.
