Sky Panel

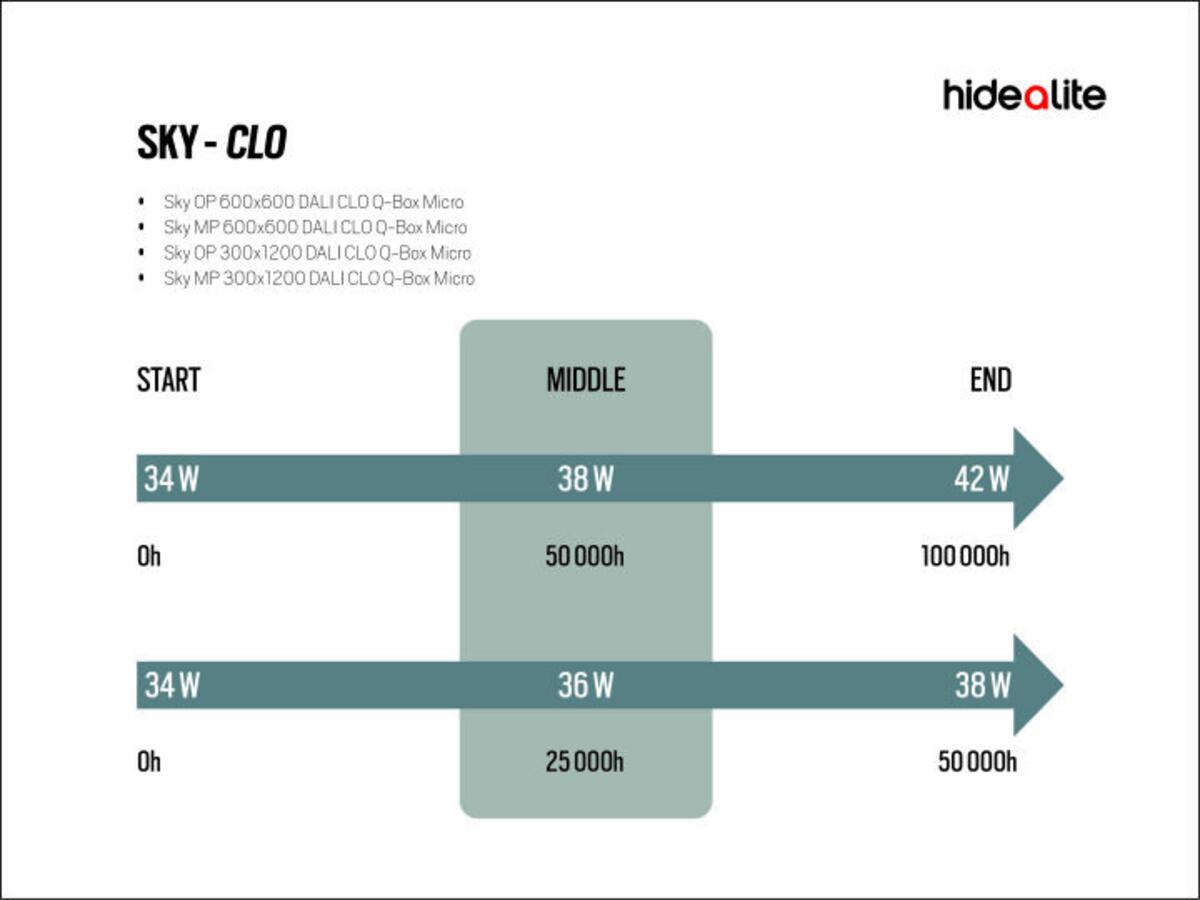

Efficient LED panel available with opal or microprismatic diffuser. Ideal for installation in ceilings with visible T-bars, making it perfect for office environments, schools, and areas where uniform and glare-free lighting is crucial. A surface-mount frame with pre-punched holes for cable routing is available as an accessory. Selectable colour temperature via DIP-switch ColourTemp: 3000K or 4000K. Sky MP meets screen and UGR requirements (UGR<19) in accordance with EN 12464-1 under standard conditions. Dimmable panels come with a 2 m pre-mounted cable set, Linect, or linkable Q-box. DALI-2 with Linect or Q-box and DALI CLO with Q-box—delivered with plug and driver. DIM 600x600 is also available in a 5-pack for efficient installation in larger projects.
Show more articles
Sky OP 600x600 DALI CLO Q-Box Micro
-
GTIN 7392971153612Item Name Sky OP 600x600 DALI CLO Q-Box MicroWarranty 5 years
- Light Technical Data
-
Max. Luminaire Lumen (lm) 4350Light Source LEDReplaceability Non-replaceaable LED, Replaceable Control gear by professionalLED Colour Warm WhiteColour Temperature (K) 3000, 4000Colour Rendering Index (Ra) >80Colour Consistency (SDCM) 3Luminous Intensity (cd) 1510Beam Angle (°) 120Light sharing SymmetricLight Outlet DirectNumber of Lamps (pcs) 1Number of LED (pcs) 138Life Time L100 100 000h Ta 25°CNominel Life Time (h) 100000Lumen maintenance 50 000h L100Lumen maintenance 75 000h L100Lumen maintenance 100 000h L100LLMF @ 50 000h 1LLMF @ 100 000h 1Life Time Driver 100 000h/10%Flicker (PstLM) 0,013Stroboscopic effect (SVM) 0,001
- Technical data
-
Voltage (type) ACVoltage Interval (V) 220...240VVoltage Nominal (V) 230Line Frequency (Hz) 50Power LED (W) 39Max. Power Luminaire (W) 42Max. System Power (W) 42Max. Efficiency Luminaire (lm/W) 103,6Max. Efficiency System (lm/W) 103,6Containing light source energy efficiency class (EU) 2019/2015 E
- Operation and Connection
-
Dimmable YesType of Dimming D4i, DALI Part 251, 252, 253Driver Included YesDriver Model Constant CurrentDriver Type Stand AloneDriver Manufacturer Hide-a-liteConnection (type) Quick TerminalConnection (mm2) 5x0,75-2,5Through Wiring YesStrain Relief YesPower Factor ʎ 0,9Efficiency (%) 86Power loss (W) 5,88Leakage current (mA) (at 230 V, 50 Hz, full load) 0,5THD (%) 10Standby Power 1Constant Current (mA) 840Operating TemperatureMax. Tc (°C) 80Dimming secondary side AMMemory Function Power Failure YesProtection Against Short Circuit, Overheating 120°C, OverloadInrush current (max/time) 26A 86μsMains surge protection DM (kV) 1Fuse B10 (pcs) 11Fuse B16 (pcs) 18Fuse C10 (pcs) 19Fuse C16 (pcs) 31
- Color and material
-
Material AluminiumColor WhiteEnvironmental Assessment EPD, ByggvarubedömningenSCIP 83604676-44a8-4dd6-a6f2-02248f3282e6
- Measurement and installation
-
Operating EnvironmentIP Degree of Protection 50Protection Class IIInstallation Built-inMounting Installation Mounting FrameHeight Surface Mounted (mm) 70Approval Marks CEFilament Test IEC 695-2-1(°C) 650Length (mm) 595Width (mm) 595Height (mm) 25Weight (kg) 1,56Min. Built-in (mm) 600x600x70Built-in LxB (mm) 600x600
Spare parts
If you need spare parts, contact our customer support
- Driver Sky DALI CLO X419
- Hygiene board Panel 600x600 C359
