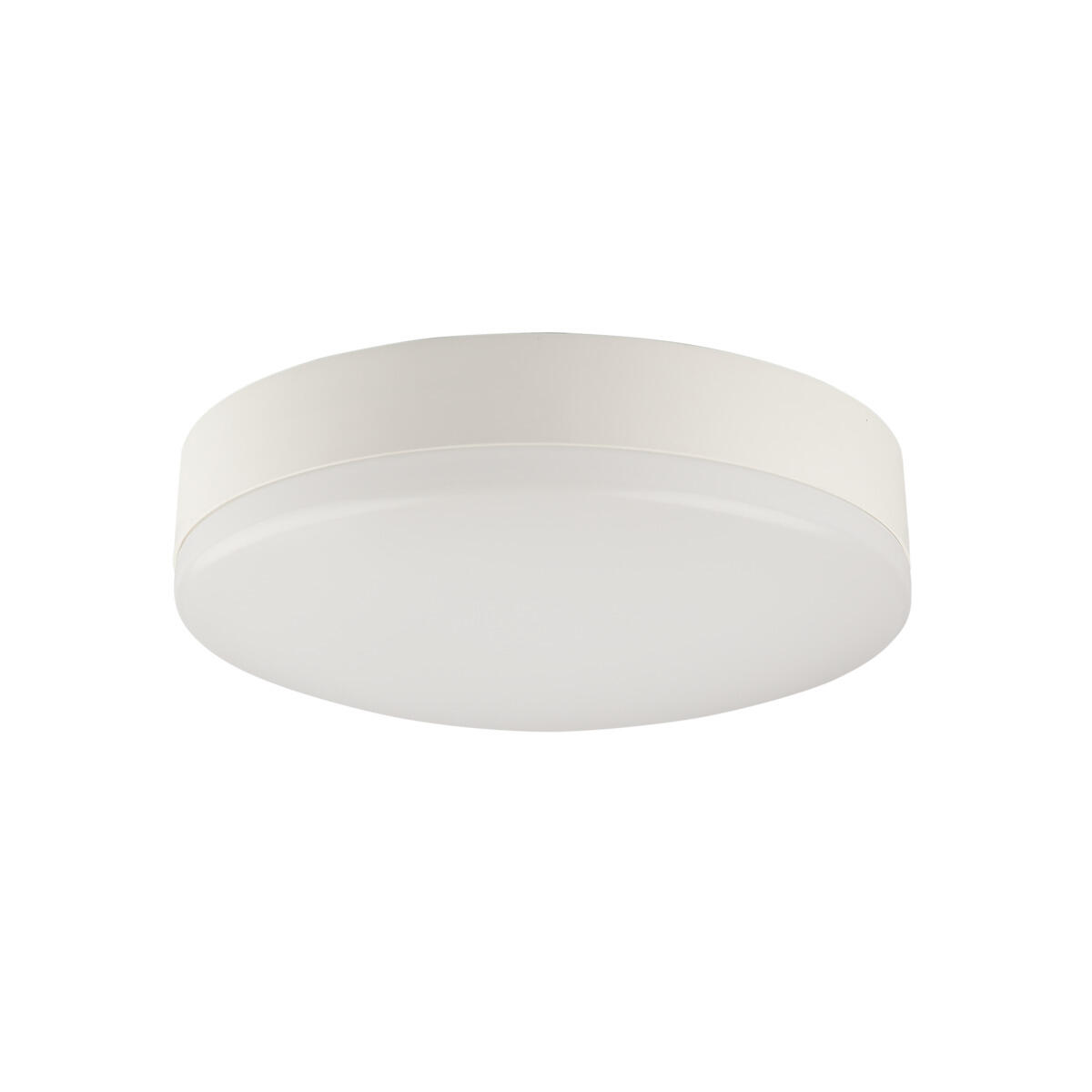

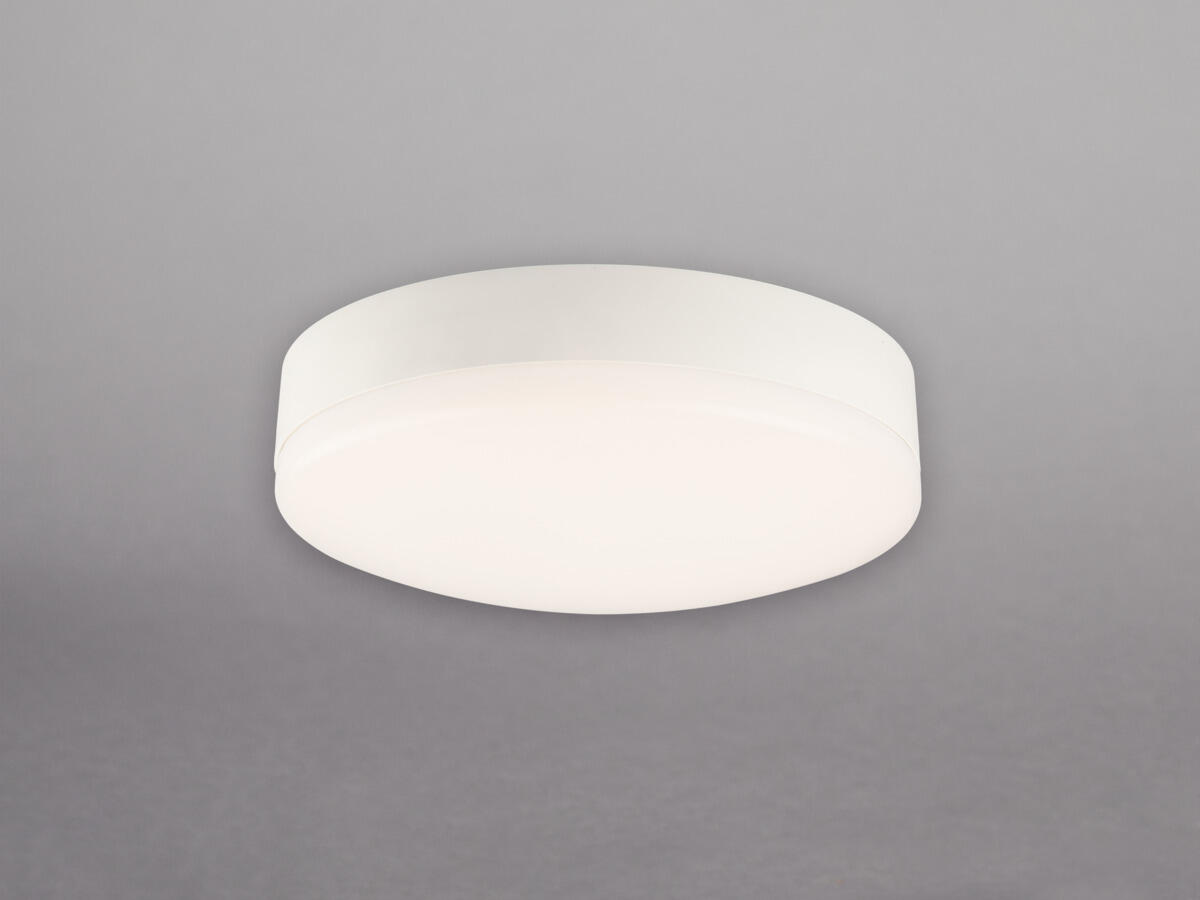

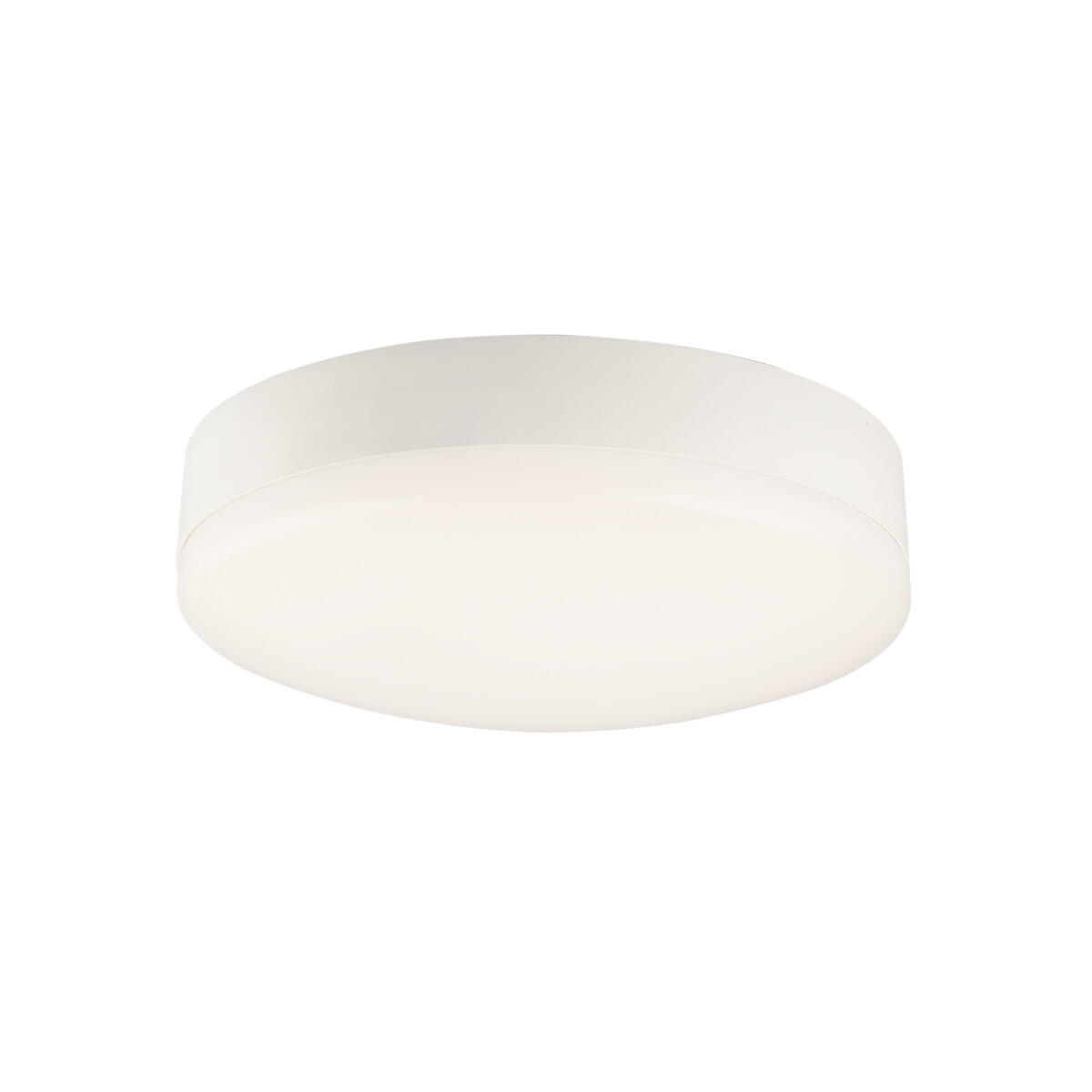

Moon Pro

Adjusted for concealed or surface mounted cable routing

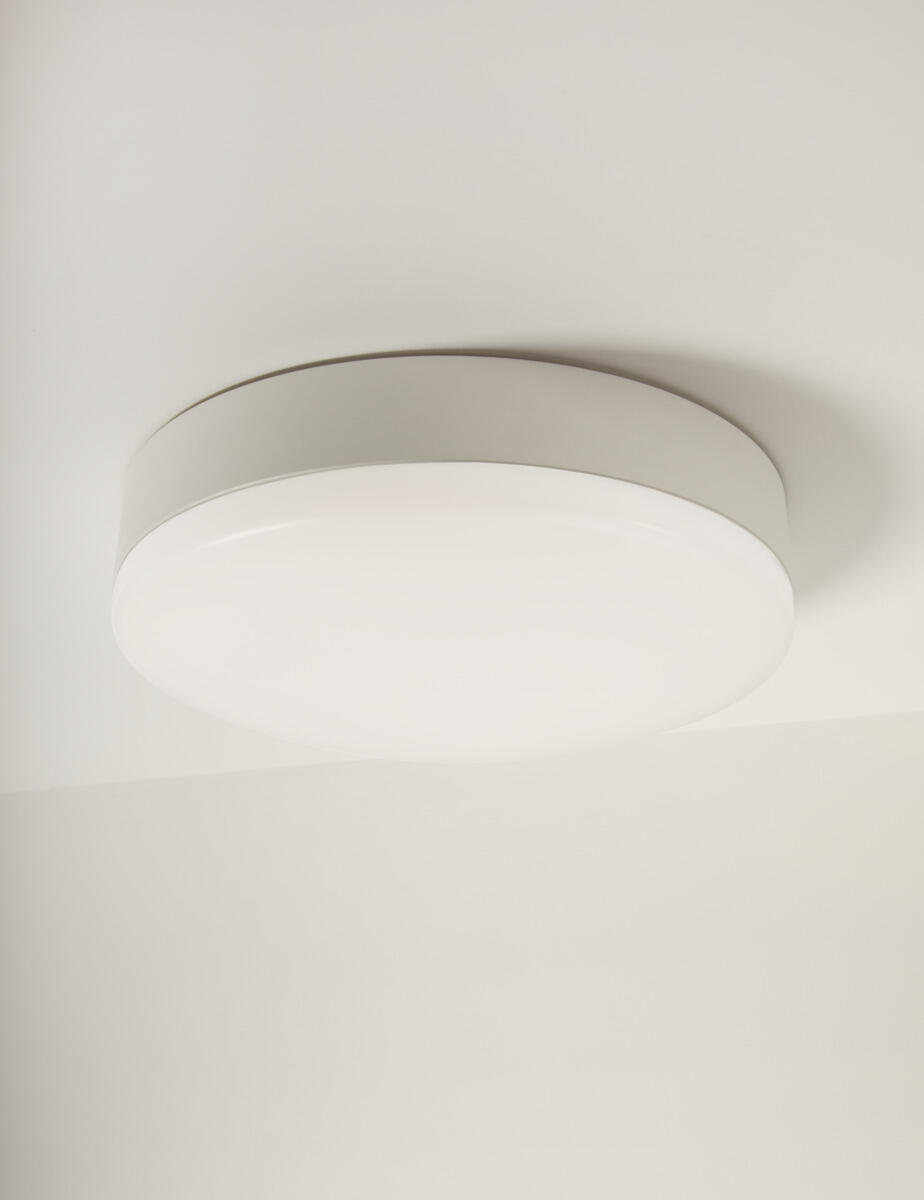

LED luminaire for installation flat on the ceiling or wall. High lumen output and good efficiency that meets with tough market demands and requires fewer luminaires per installation. IP44 and class II to suit many indoor milieus. Easily installed long-life luminaire that comes complete with integrated mains dimmable driver. Possibility of surface mounted cable routing.

Description: GTIN 7392971129846

Item Name Moon Pro 255 3000K

Warranty 5 years
Light Technical Data: Max. Luminaire Lumen (lm) 1000

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Replaceable Control gear by professional

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

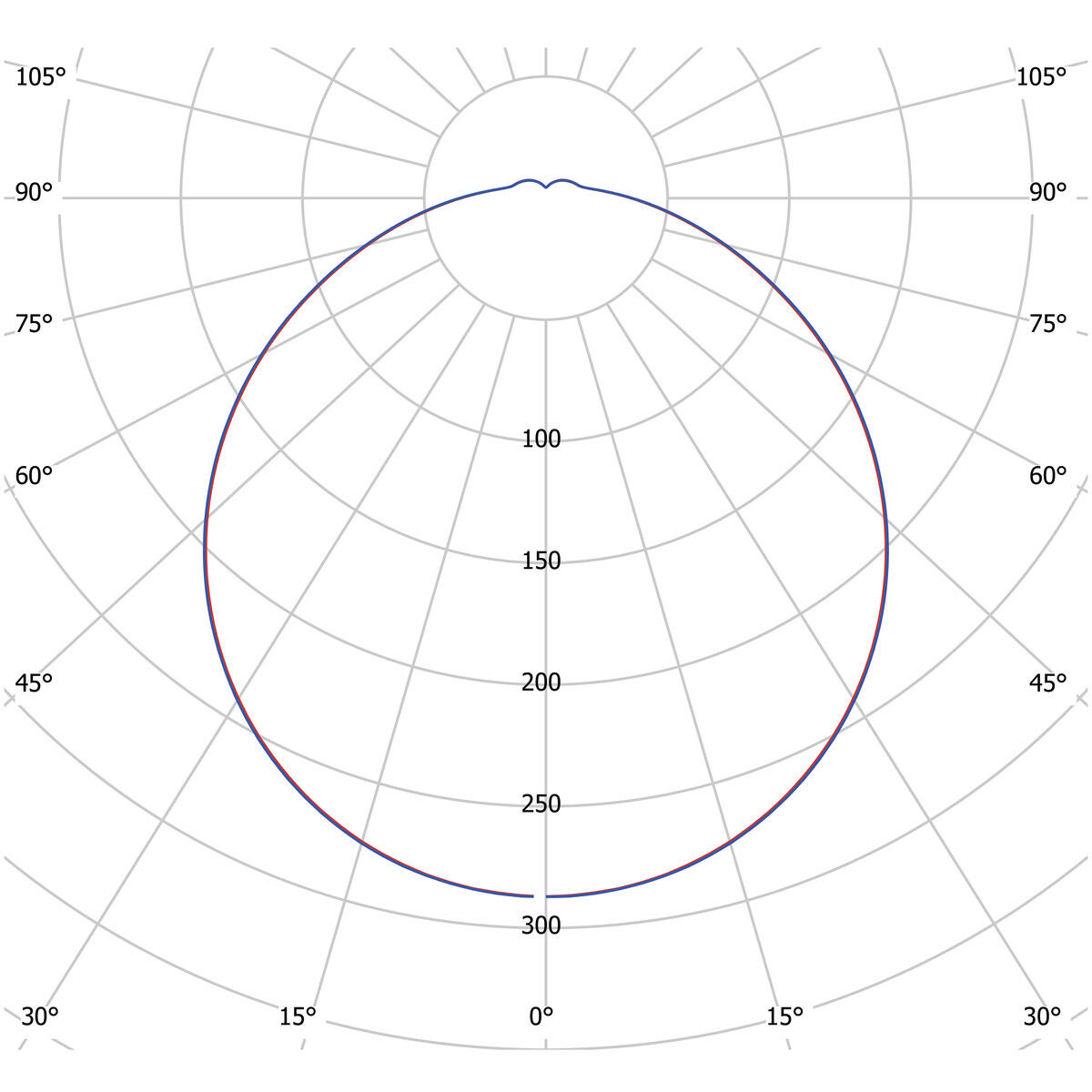

Luminous Intensity (cd) 300

Beam Angle (°) 115

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 63

Life Time L90 100000h Ta 25°C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L96

Lumen maintenance 100 000h L94

LLMF @ 50 000h 0.96

LLMF @ 100 000h 0.94

Life Time Driver 50 000h/5%
Technical data: Voltage (type) AC

Voltage Interval (V) 220...240V

Voltage Nominal (V) 230

Line Frequency (Hz) 50

Max. Power Luminaire (W) 10

Max. System Power (W) 10

Max. Efficiency Luminaire (lm/W) 100

Max. Efficiency System (lm/W) 100

Containing light source energy efficiency class (EU) 2019/2015 D
Operation and Connection: Dimmable Yes

Type of Dimming Trailing Edge, Leading Edge

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

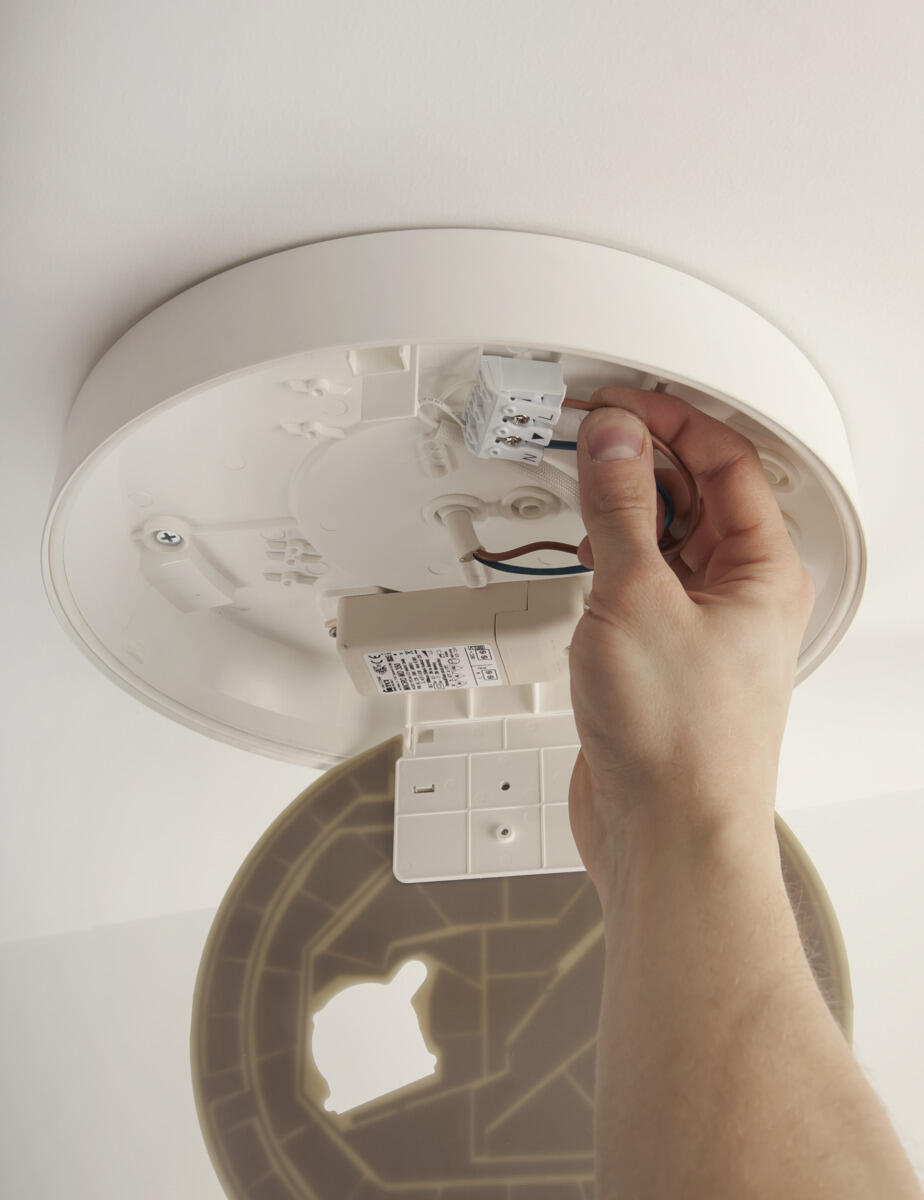

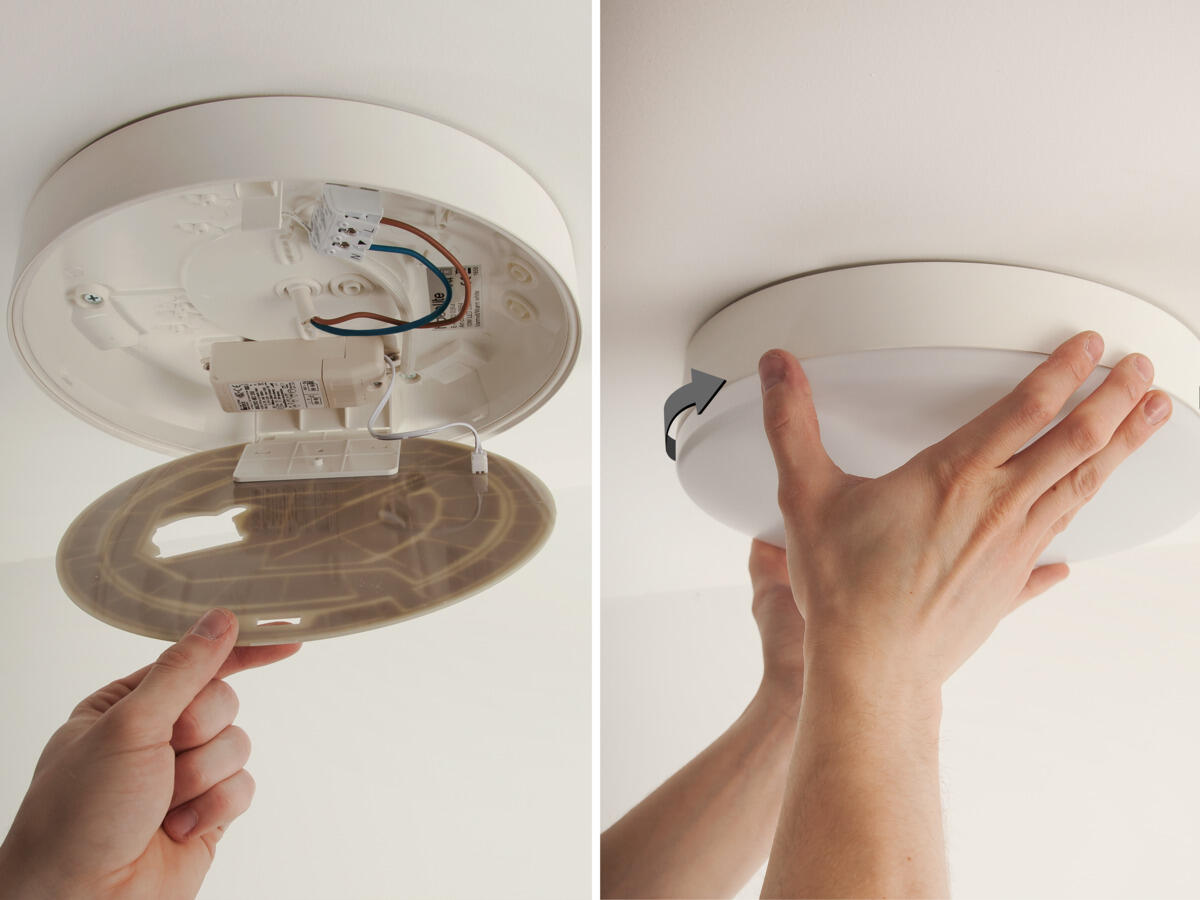

Connection (type) Quick Terminal

Connection (mm2) 3x0,5-2,5

Through Wiring Yes

Strain Relief Yes

Power Factor ʎ 0,96

Efficiency (%) 82

THD (%) 10

Min. Ta (°C) -15

Max. Ta (°C) 40

Dimming secondary side AM

Inrush current (max/time) 2A 50μs

Fuse B10 (pcs) 50

Fuse B16 (pcs) 75

Fuse C10 (pcs) 60

Fuse C16 (pcs) 93
Color and material: Material PMMA, Polycarbonate, ABS plastic

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / wet locations

IP Degree of Protection 44

Protection Class II

Installation Surface mounted

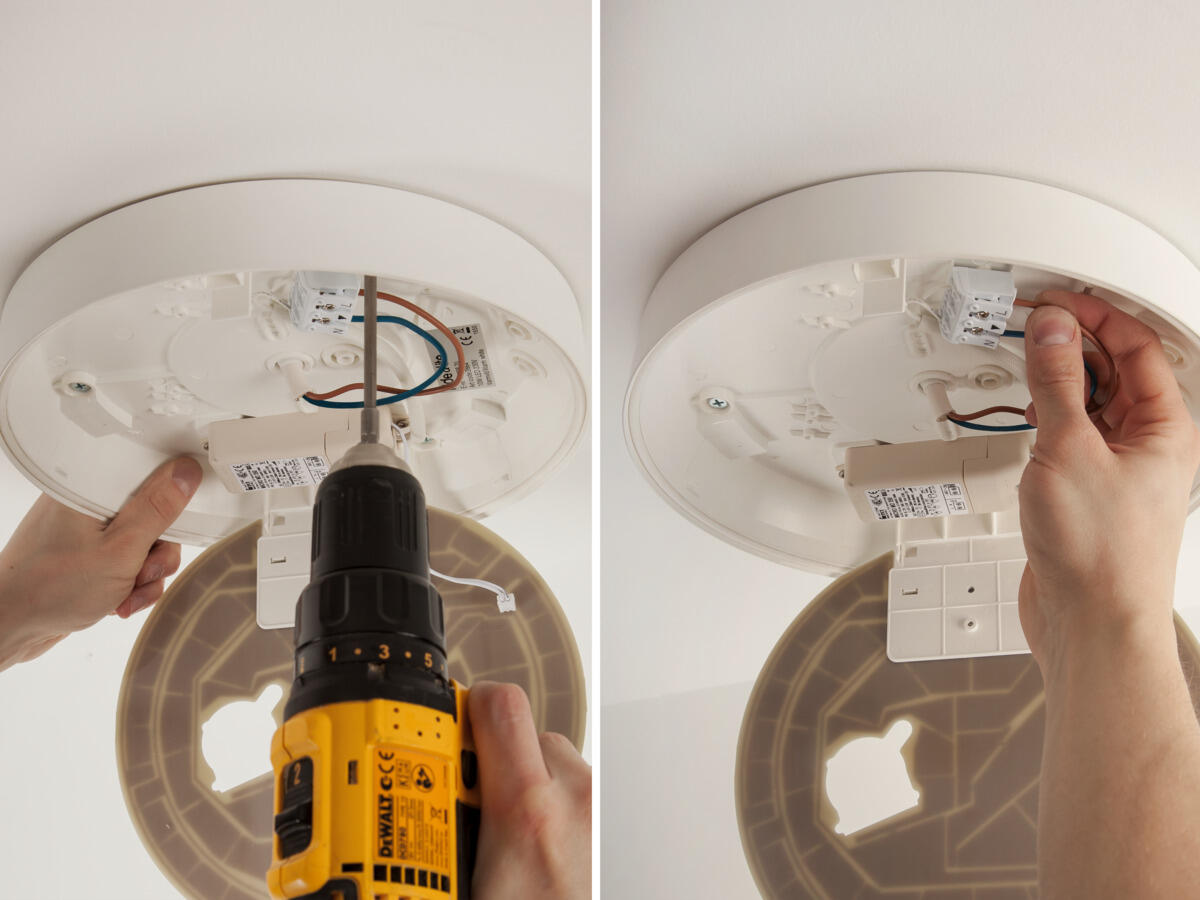

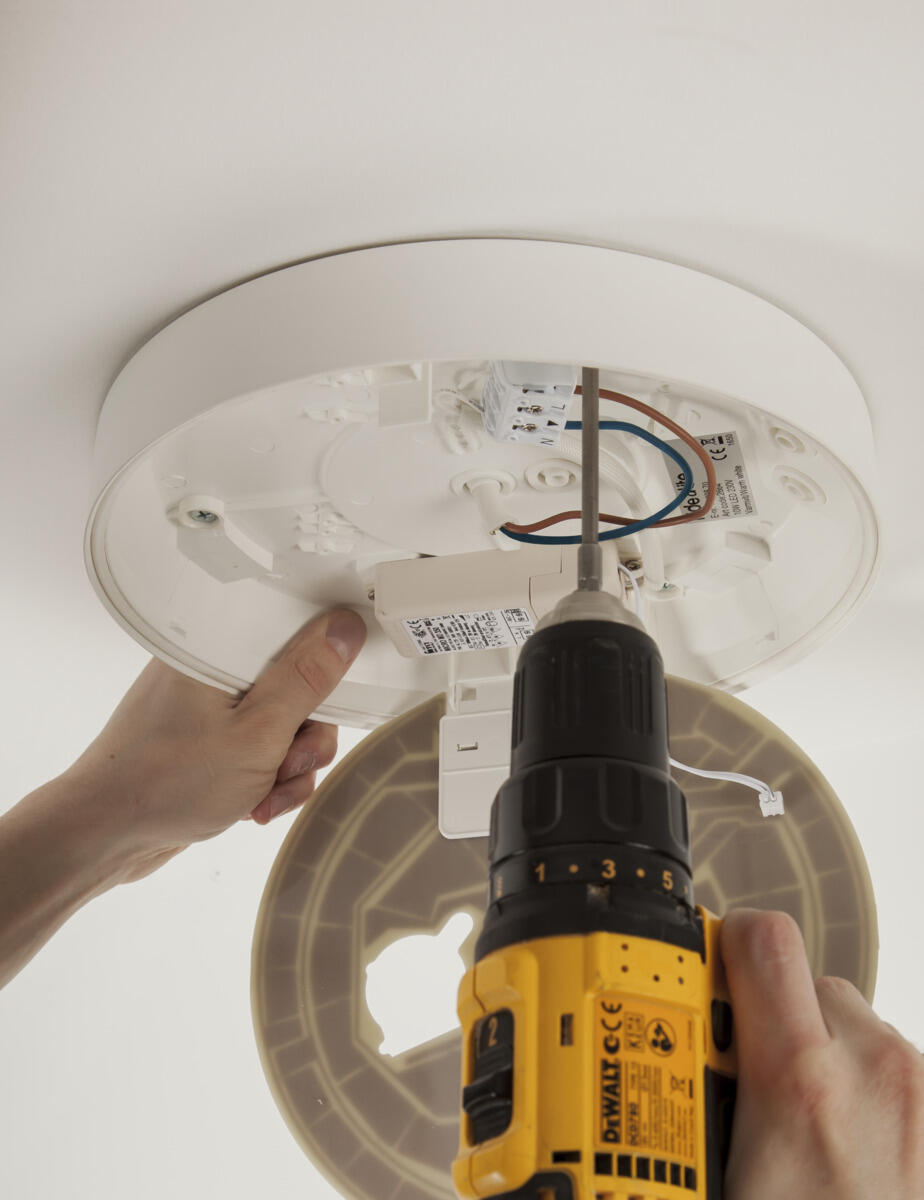

Mounting Installation Screw Mounting

Approval Marks CE

Impact Strength IK06

Filament Test IEC 695-2-1(°C) 650

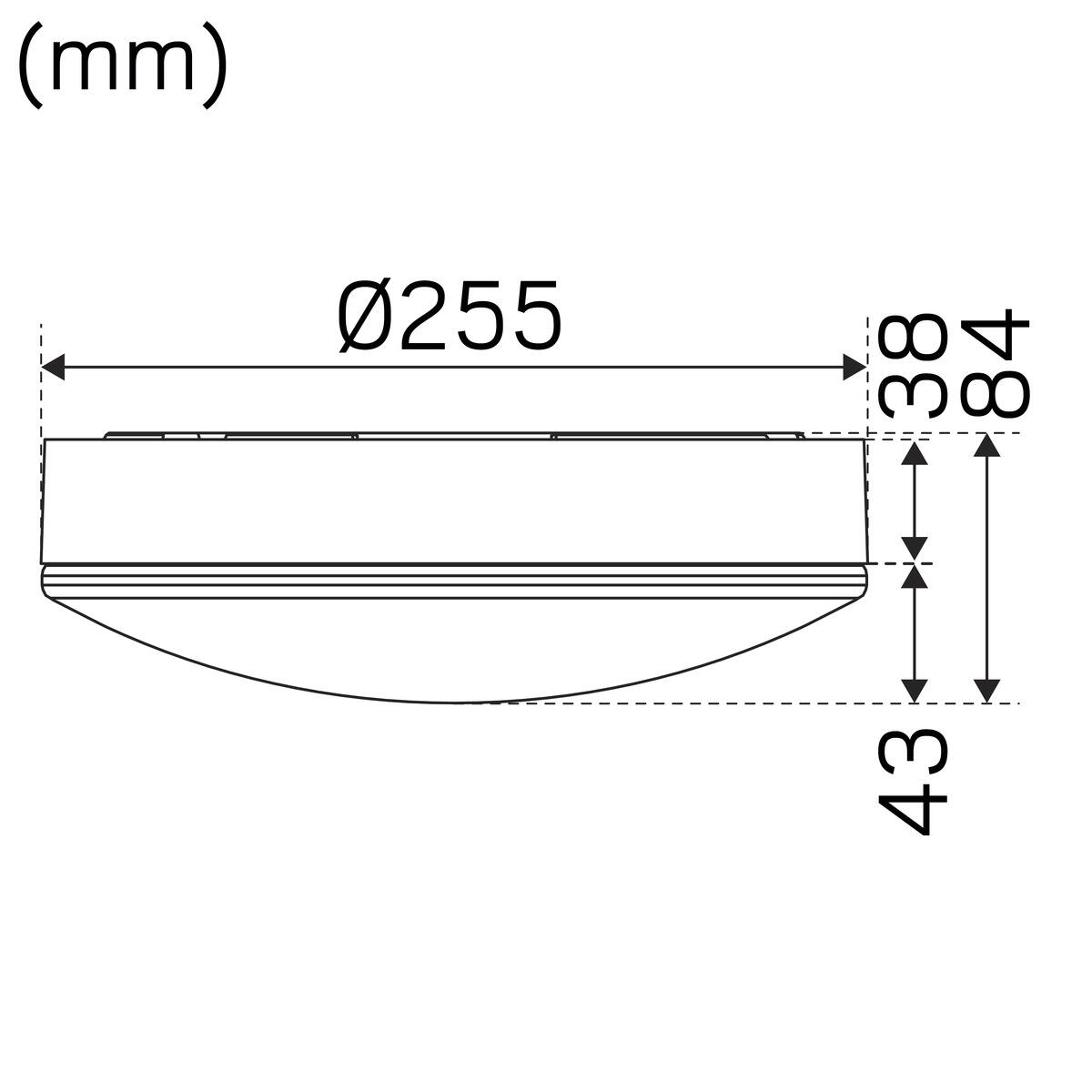

Height (mm) 84

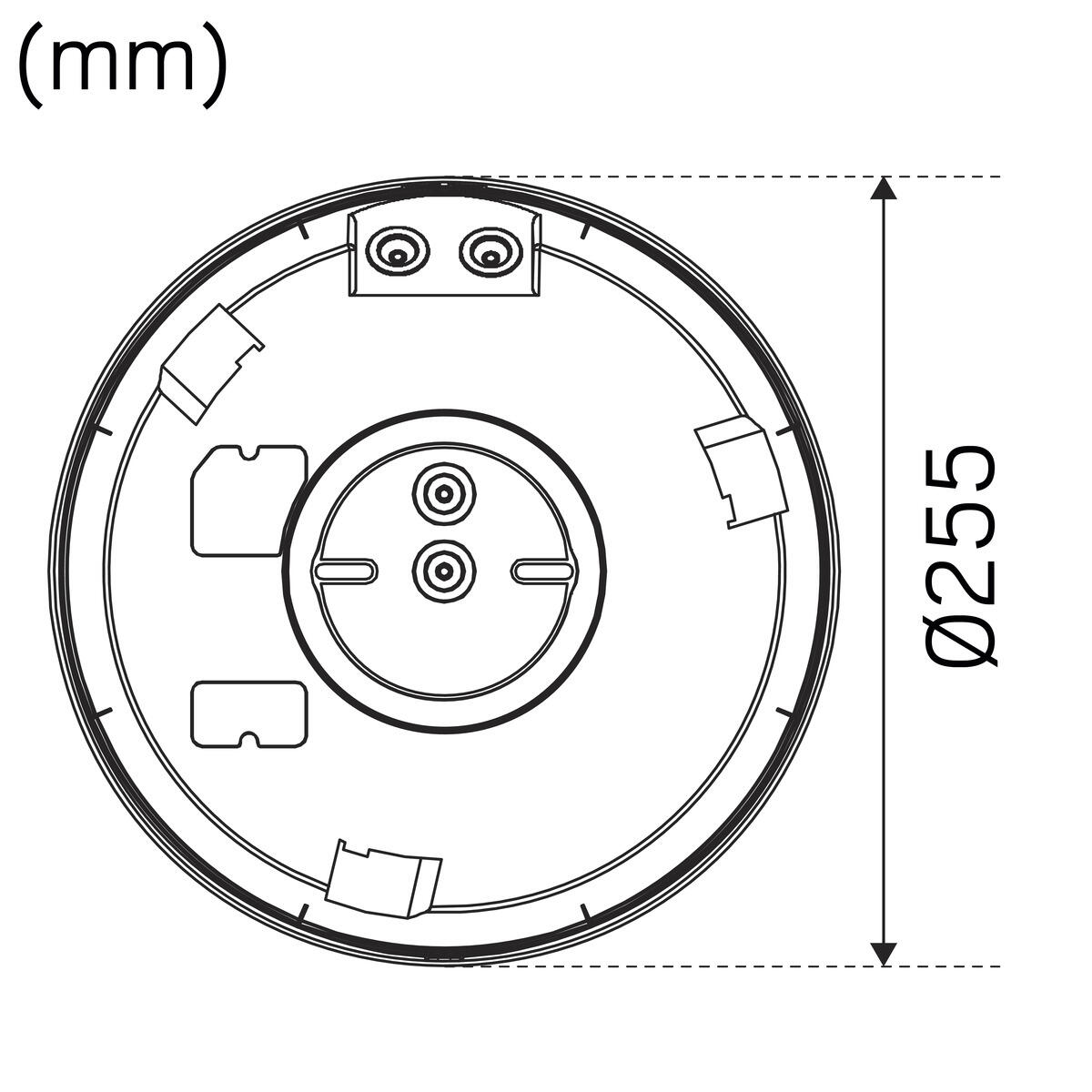

Diameter (mm) 255

Weight (kg) 0,63
