Pixo S I

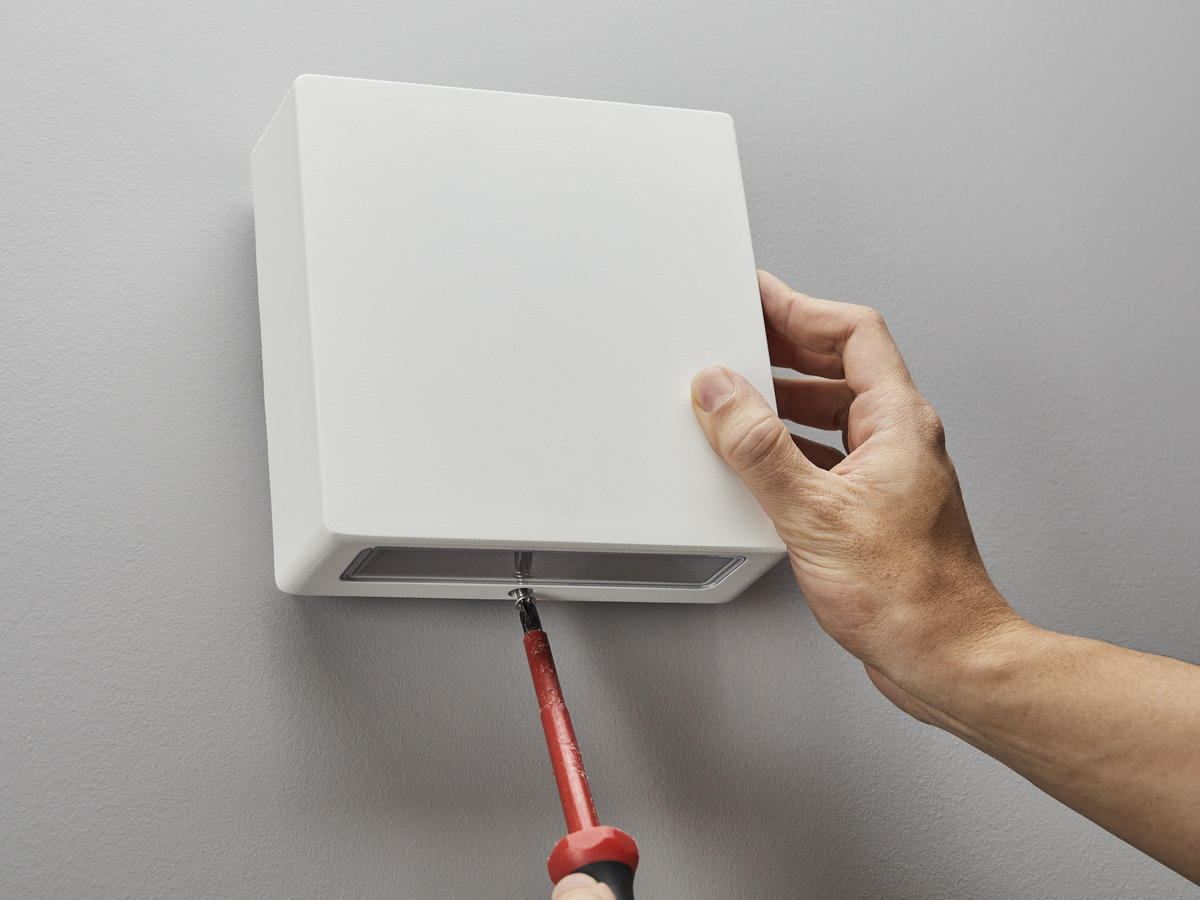

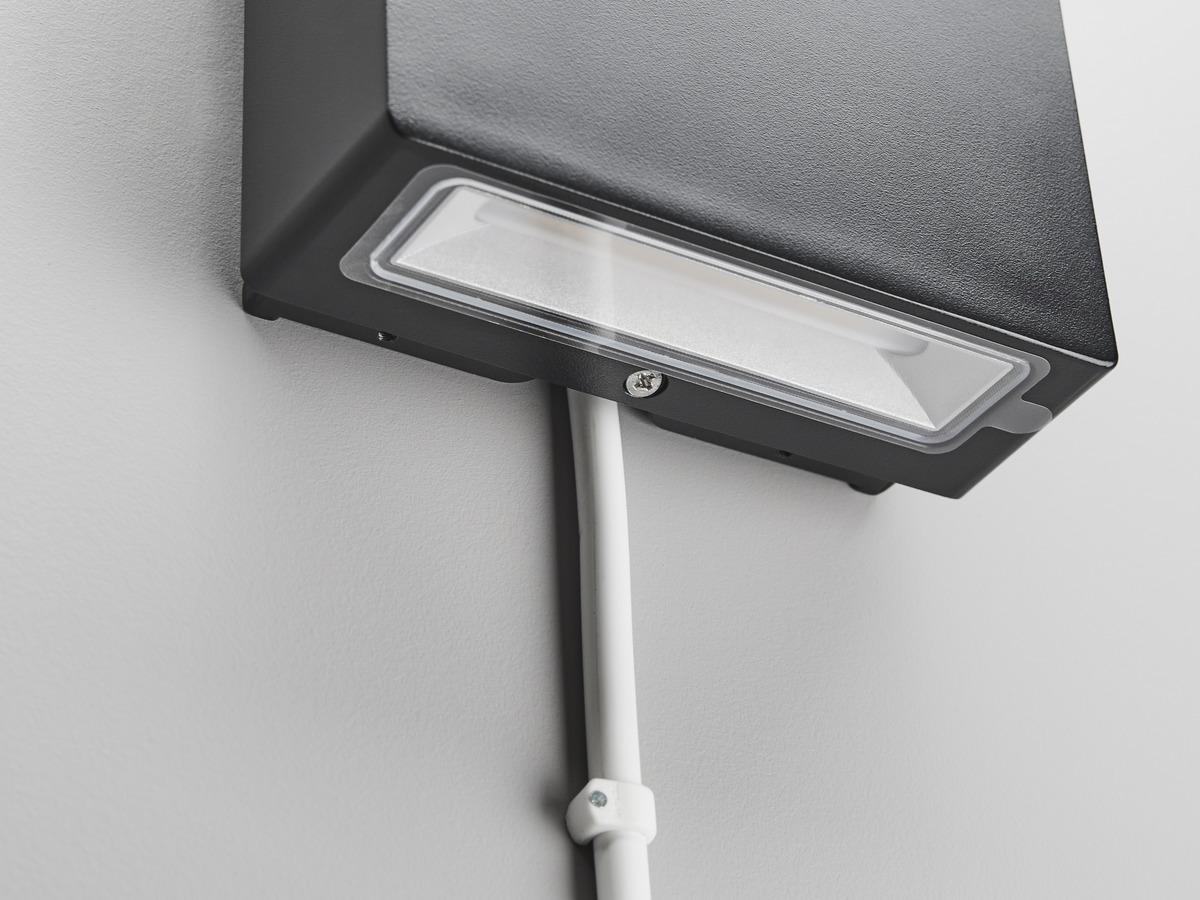

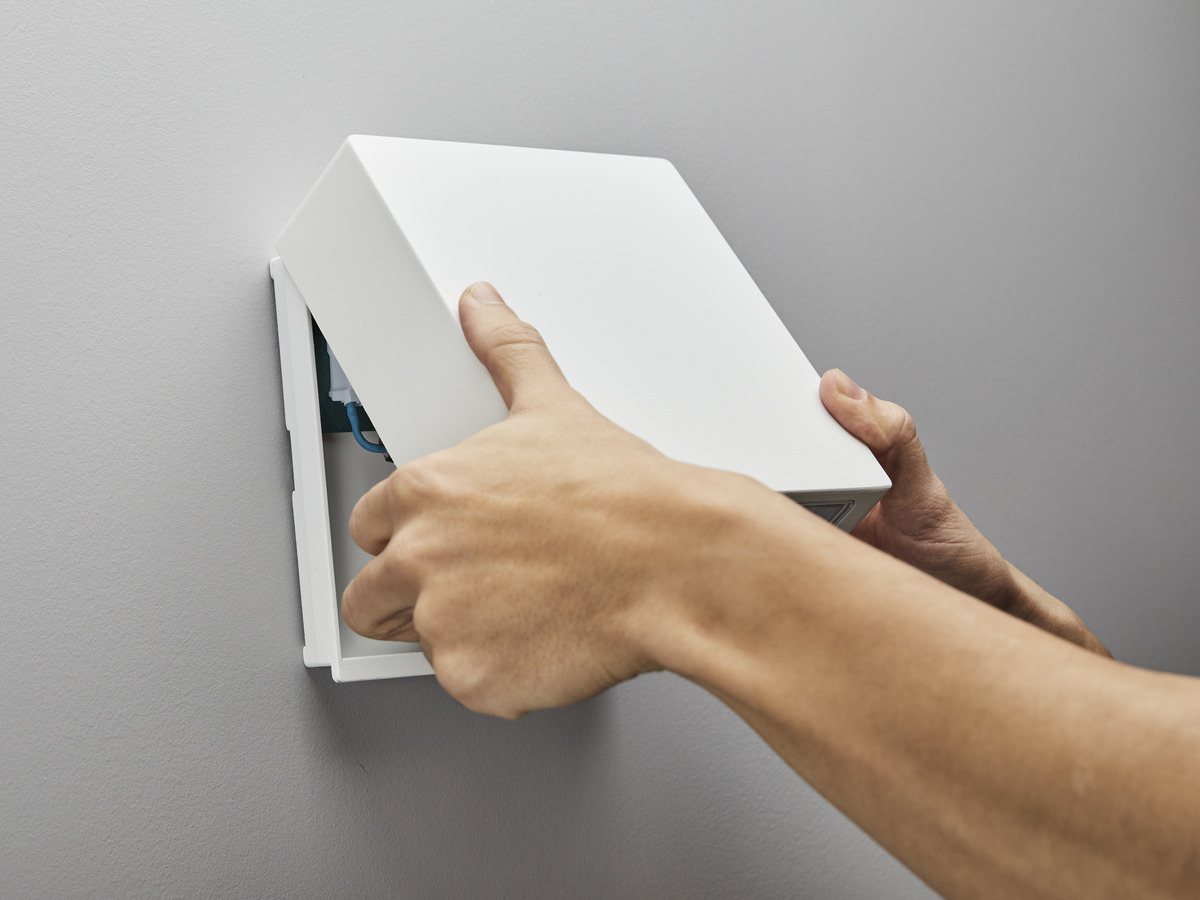

Pixo isn’t just a wall luminaire, it’s a style icon – an ultimate luminaire for indoor or outdoor use in private and public environments. It lights up not only your wall, but also your taste for Nordic design. Easily installed dimmable luminaire in two sizes for direct connection to 230V. Separate rear element and built in spacer frame in which the rear element is equipped with cable inlets to enable surface-mounted cabling. Replaceable LED and driver. Selectable lumen output and adjustable colour temperature via DIP-switch. Pixo is designed for IP65, IK10 and has durable powder coating for tough outdoor environments. With accessories such as decor fronts, you creates a glare-free light distribution and change its appearance to create a unique style that harmonises with your facade’s aesthetics. The decor fronts can be supplied in a choice of colours on request.

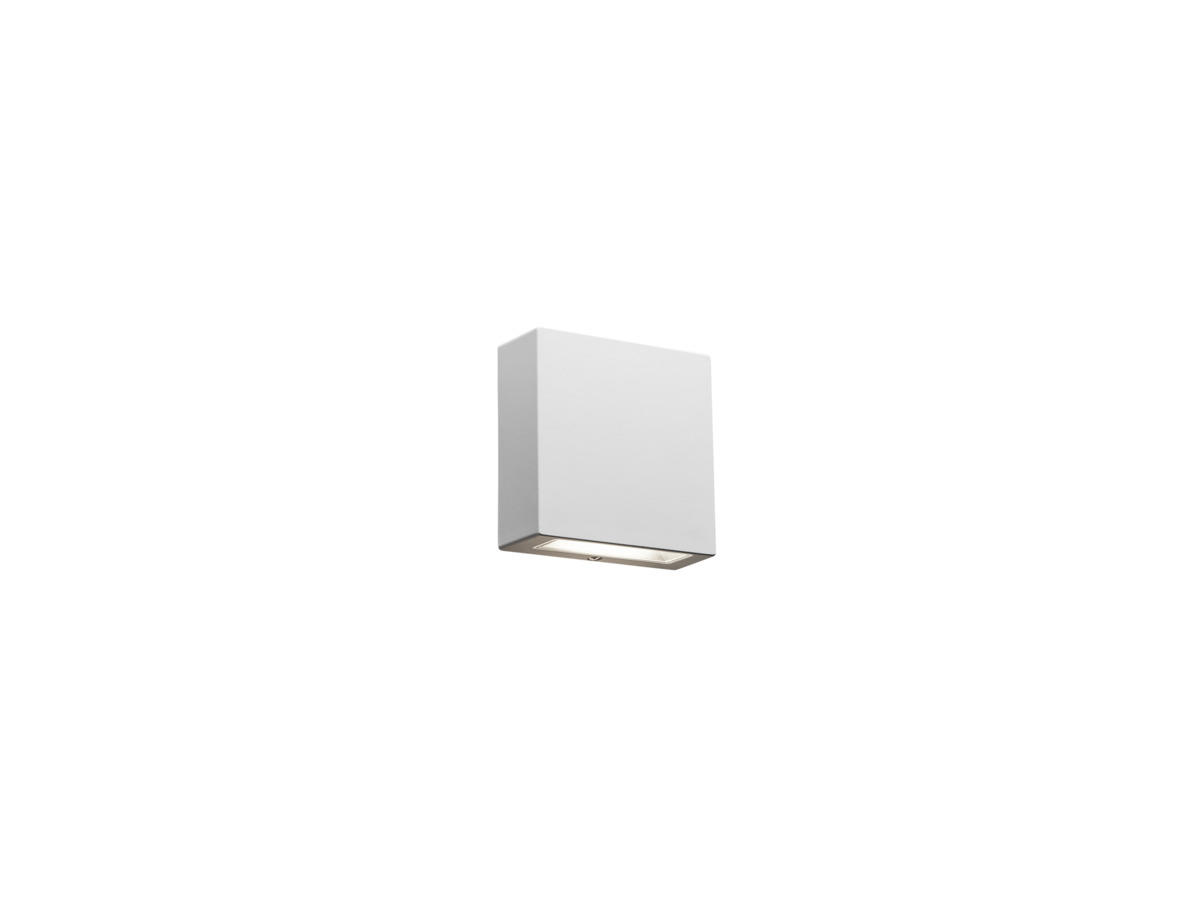

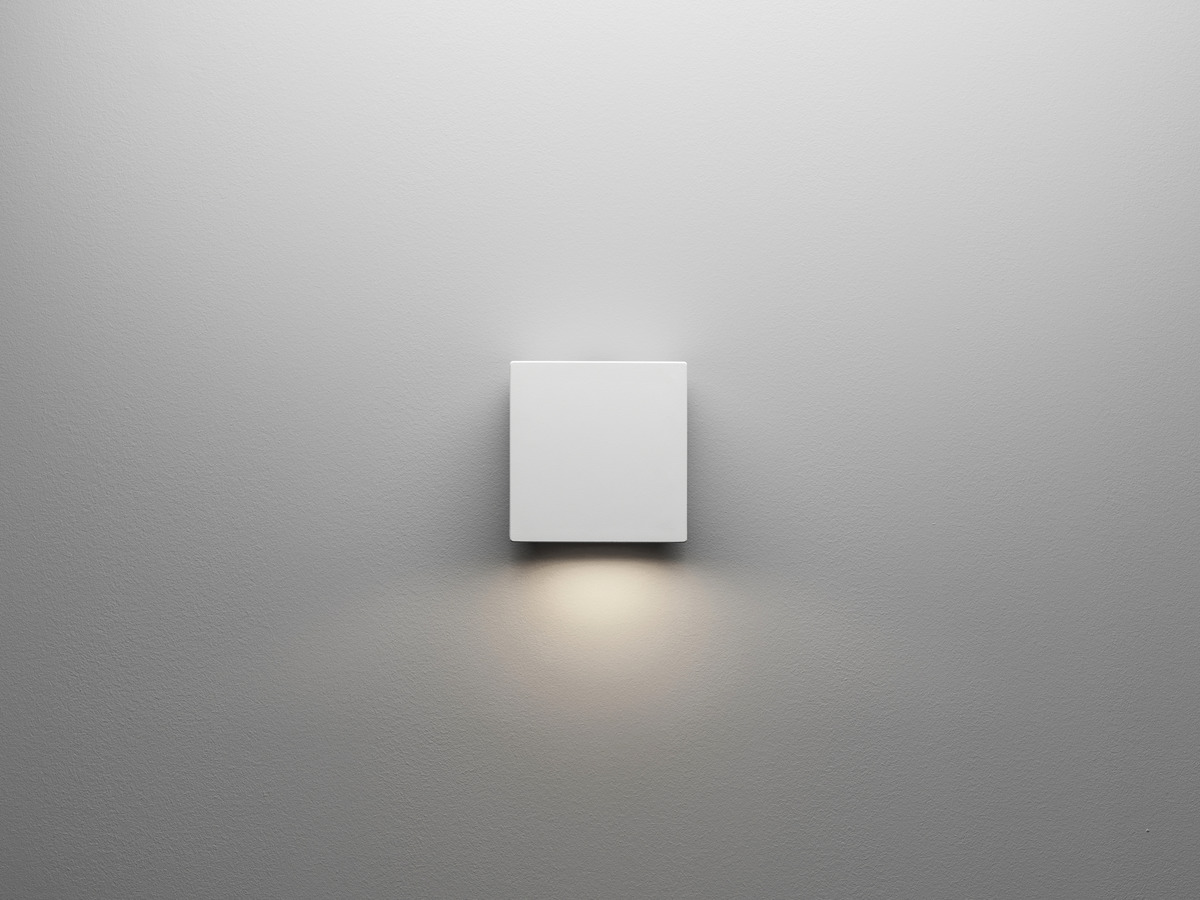

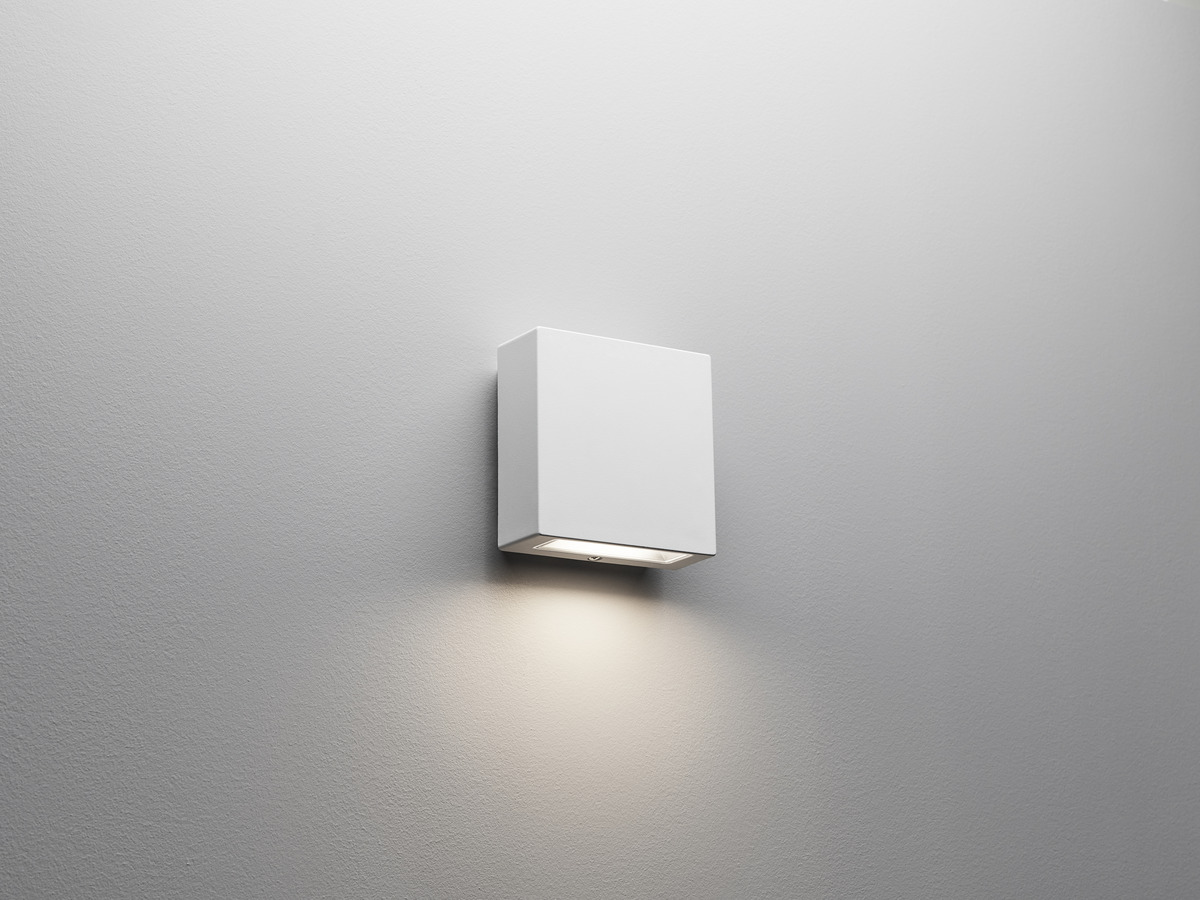

Pixo S I White
-
GTIN 7392971149042Item Name Pixo S I WhiteWarranty 5 years

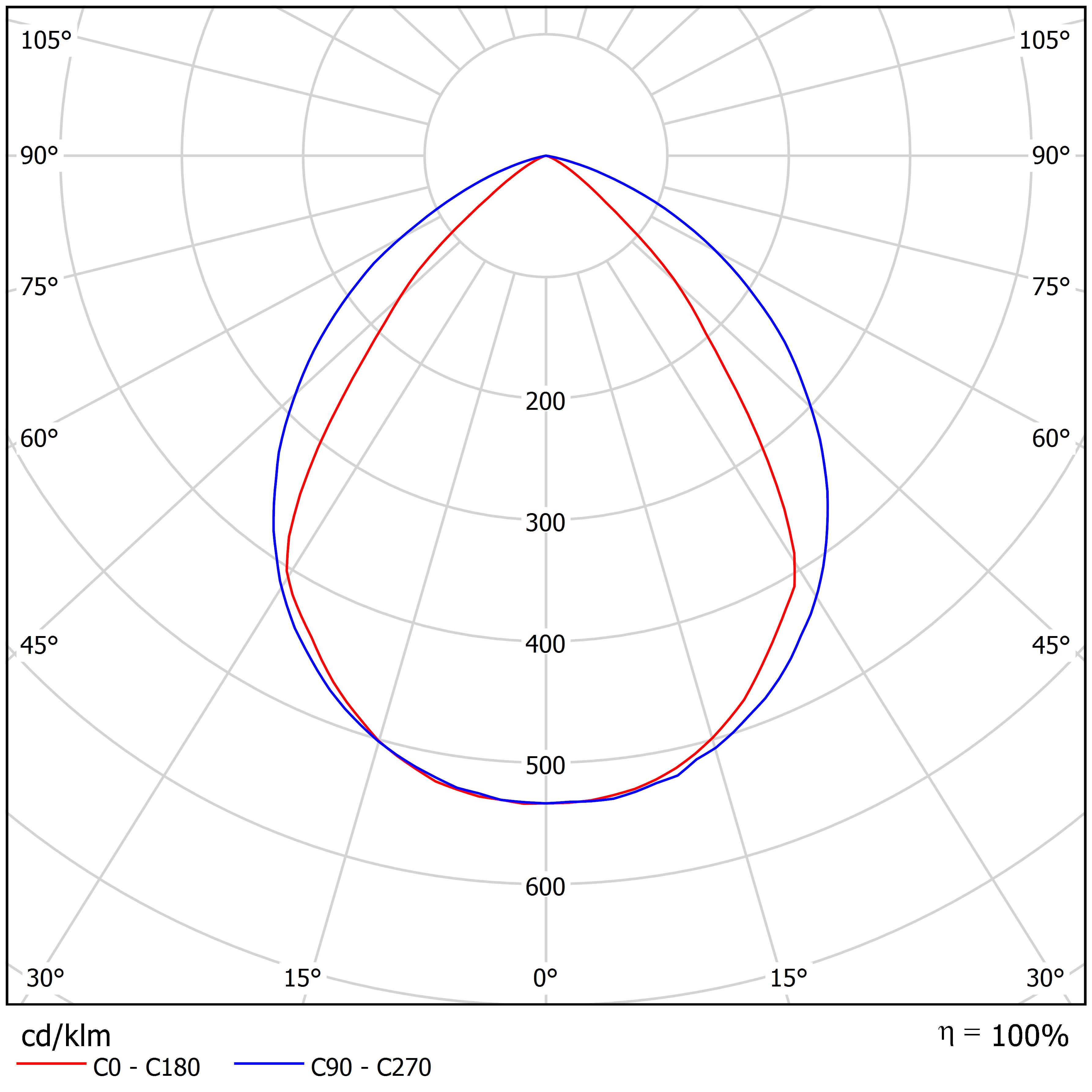

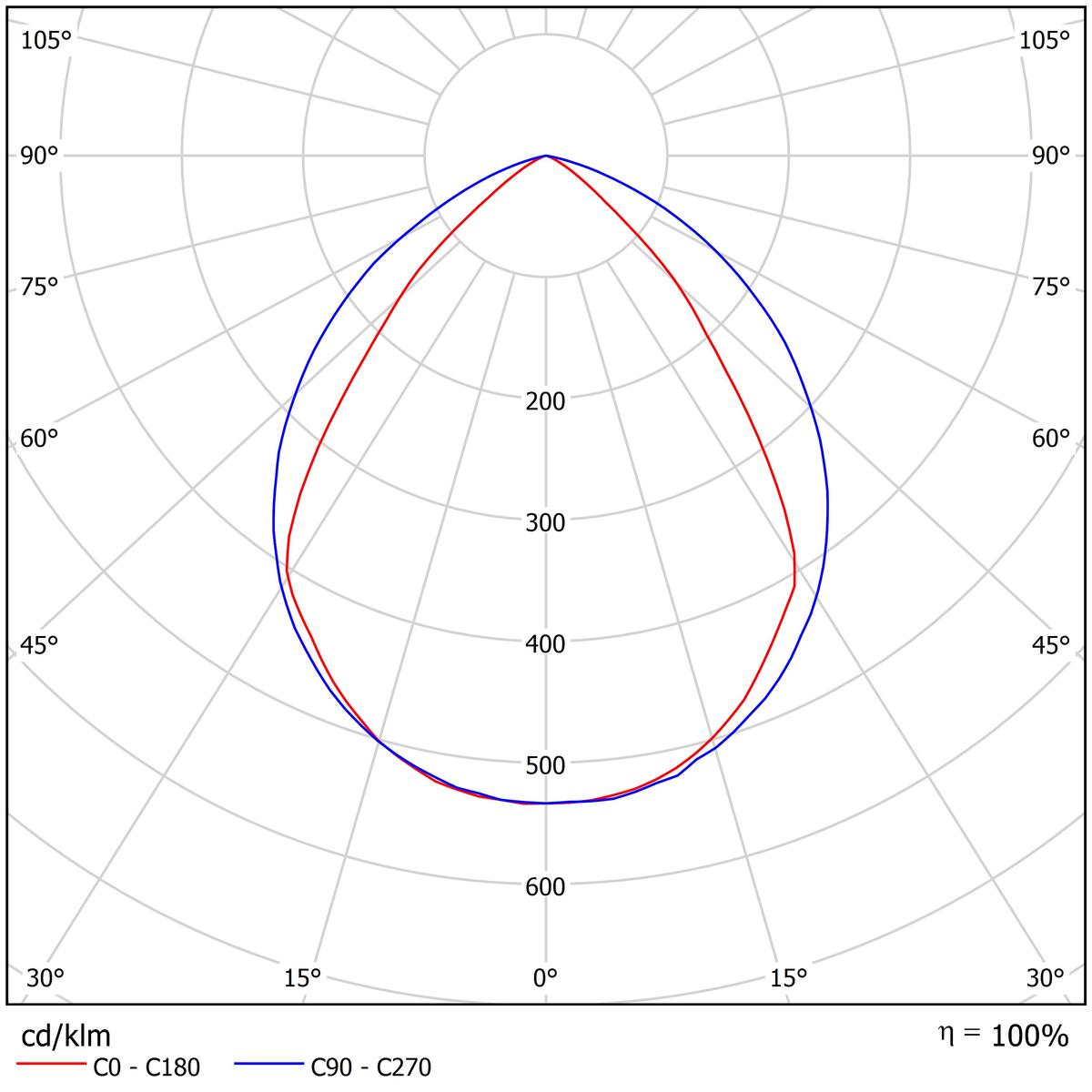

- Light Technical Data
-
Min. Armaturlumen (lm) 210Max. Luminaire Lumen (lm) 940Light Source LEDReplaceability Replaceable LED by professional, Replaceable Control gear by professionalLED Colour Warm WhiteColour Temperature (K) 2700, 3000, 4000Colour Rendering Index (Ra) >90Colour Consistency (SDCM) 3Luminous Intensity (cd) 500Beam Angle (°) 90Light sharing SymmetricLight Outlet DirectNumber of LED (pcs) 1Life Time L80 100 000h Ta 25°CNominel Life Time (h) 100000Lumen maintenance 35 000h L90Lumen maintenance 50 000h L90Lumen maintenance 75 000h L85Lumen maintenance 100 000h L80LLMF @ 50 000h 0.9LLMF @ 100 000h 0.8Life Time Driver 100 000h/20%Flicker (PstLM) 0,016Stroboscopic effect (SVM) 0,019
- Technical data
-
Voltage (type) ACVoltage Interval (V) 220...240VVoltage Nominal (V) 230Line Frequency (Hz) 50Power LED (W) 9,2Max. Power Luminaire (W) 11Max. System Power (W) 11Max. Efficiency Luminaire (lm/W) 85,5Max. Efficiency System (lm/W) 85,5Containing light source energy efficiency class (EU) 2019/2015 EEprel registration number 2258716

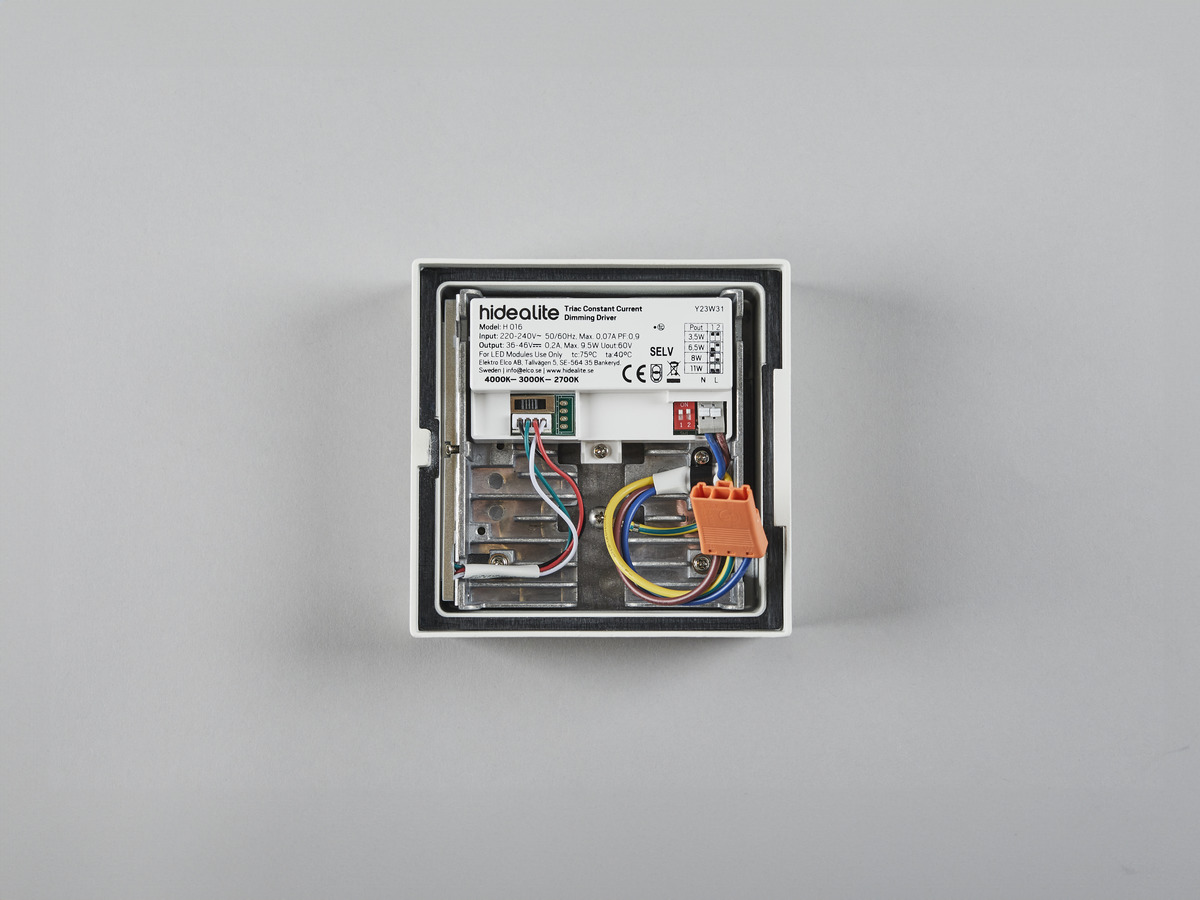

- Operation and Connection
-

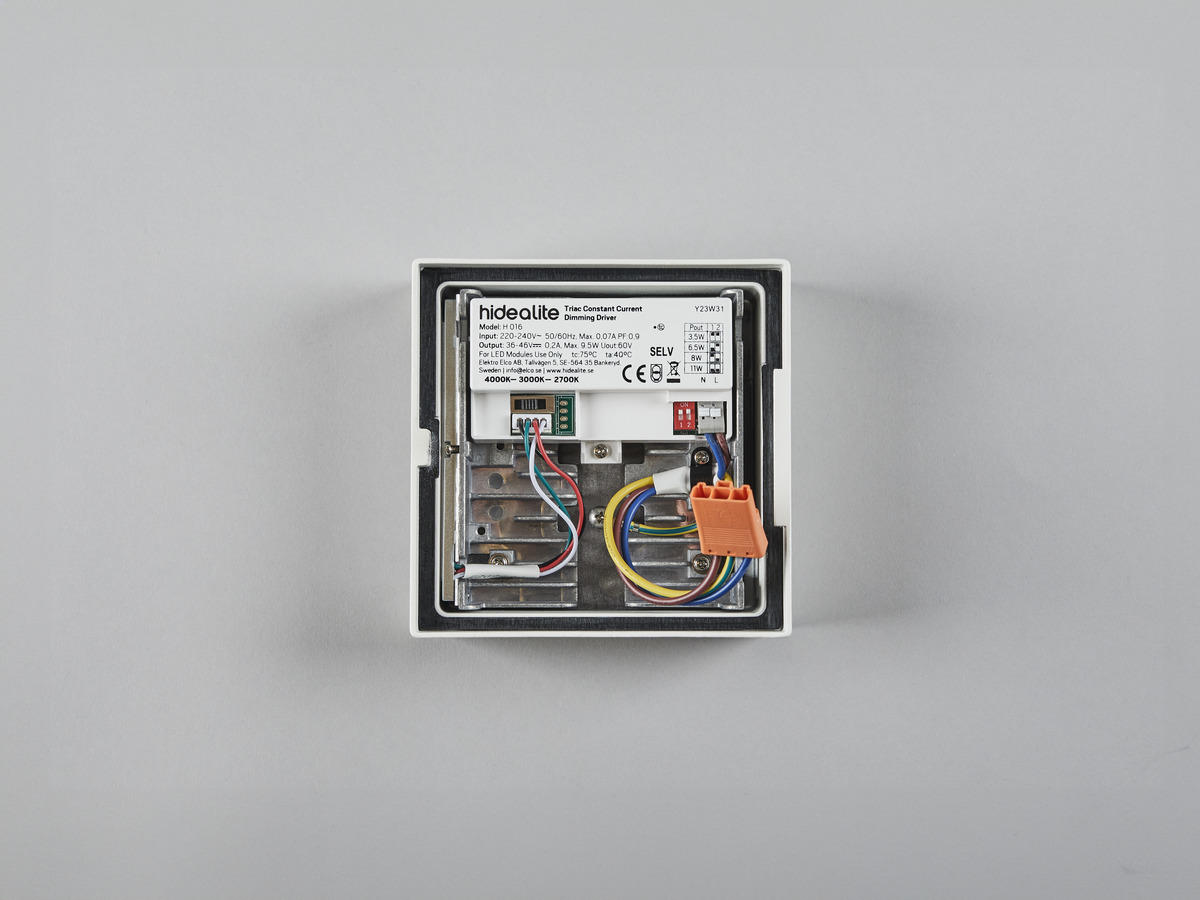

Dimmable YesType of Dimming DIP-Switch Power, Trailing EdgeDriver Included Yes - replaceableDriver Model Constant CurrentDriver Type Built-inDriver Manufacturer Hide-a-liteConnection (type) Quick TerminalConnection (mm2) 5x0,5-2,5Through Wiring YesPower Factor ʎ 0,9Efficiency (%) 81Power loss (W) 2,1Leakage current (mA) (at 230 V, 50 Hz, full load) 0,13THD (%) 30Constant Current (mA) 65, 125, 155, 205Operating TemperatureMax. Tc (°C) 75Dimming secondary side AMProtection Against Short Circuit, OverloadInrush current (max/time) 1A 50μsMains surge protection DM (kV) 2Mains surge protection CM (kV) 2Fuse B10 (pcs) 117Fuse B16 (pcs) 187Fuse C10 (pcs) 117Fuse C16 (pcs) 187
- Color and material
-
Material AluminiumColor WhiteEnvironmental Assessment ByggvarubedömningenAvailable in special color Yes
- Measurement and installation
-

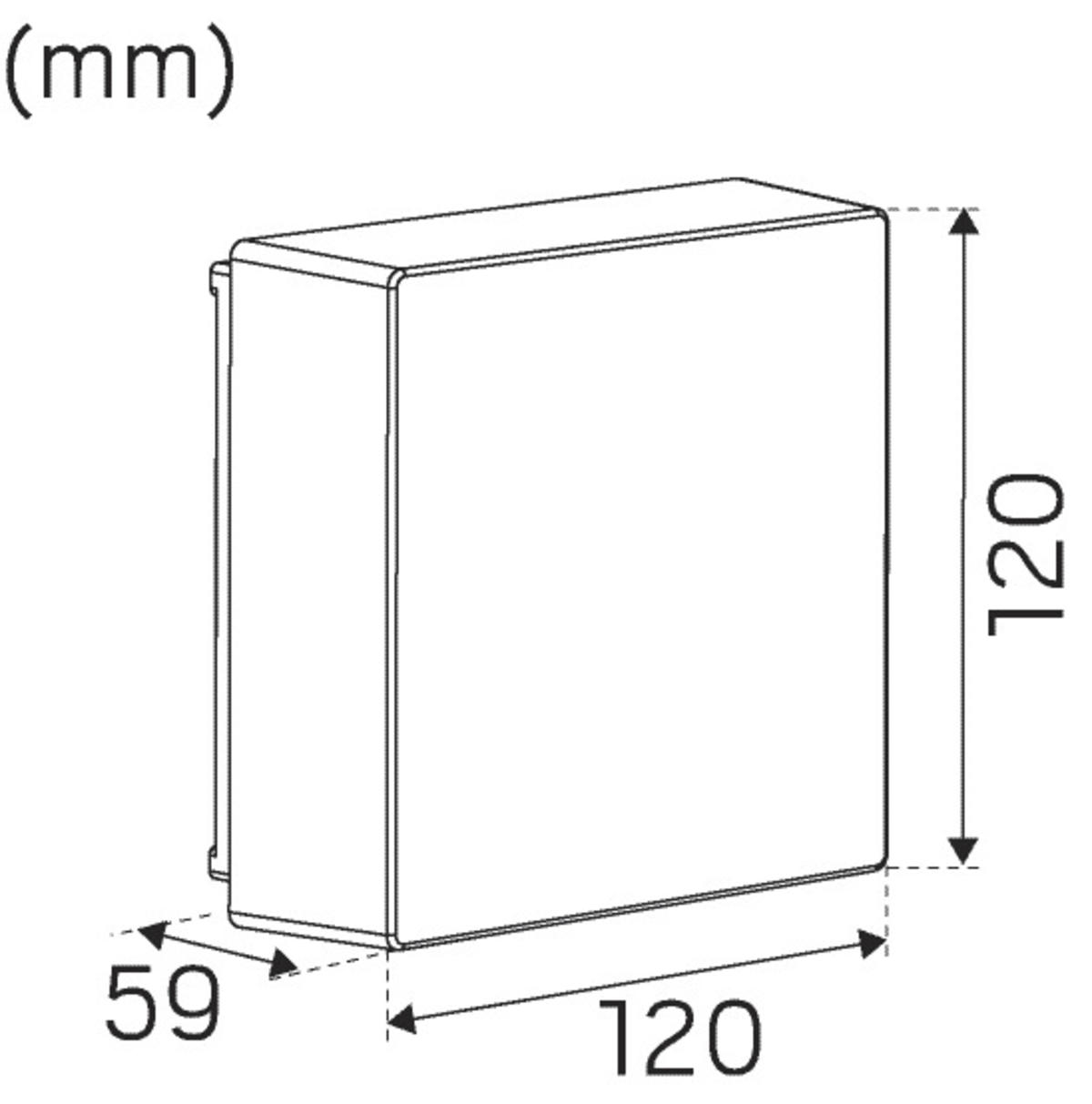

Operating EnvironmentIP Degree of Protection 65Protection Class IInstallation WallMounting Installation Screw MountingApproval Marks CE, a Hide-a-lite ChoiceImpact Strength IK10Filament Test IEC 695-2-1(°C) 650Width (mm) 120Height (mm) 120Depth (mm) 58Weight (kg) 0,8
DIP-table Luminous flux
| mA | Effect | 2700K | 3000K | 4000k |
|---|---|---|---|---|
| 65mA | 3.5W | 280lm | 290lm | 320lm |
| 125mA | 6.5W | 510lm | 540lm | 580lm |
| 155mA | 8W | 630lm | 670lm | 730lm |
| 205mA | 11W | 820lm | 870lm | 940lm |
Show table
Show DIP-table
Pixo S I White
Factory setting: 3000K, 65mA, 3.5W
| mA | Effect | 2700K | 3000K | 4000k |
|---|---|---|---|---|
| 65mA | 3.5W | 280lm | 290lm | 320lm |
| 125mA | 6.5W | 510lm | 540lm | 580lm |
| 155mA | 8W | 630lm | 670lm | 730lm |
| 205mA | 11W | 820lm | 870lm | 940lm |
Spare parts
If you need spare parts, contact our customer support
- LED-Module Pixo S X289
- Driver Pixo S I X338
