Plano Basic

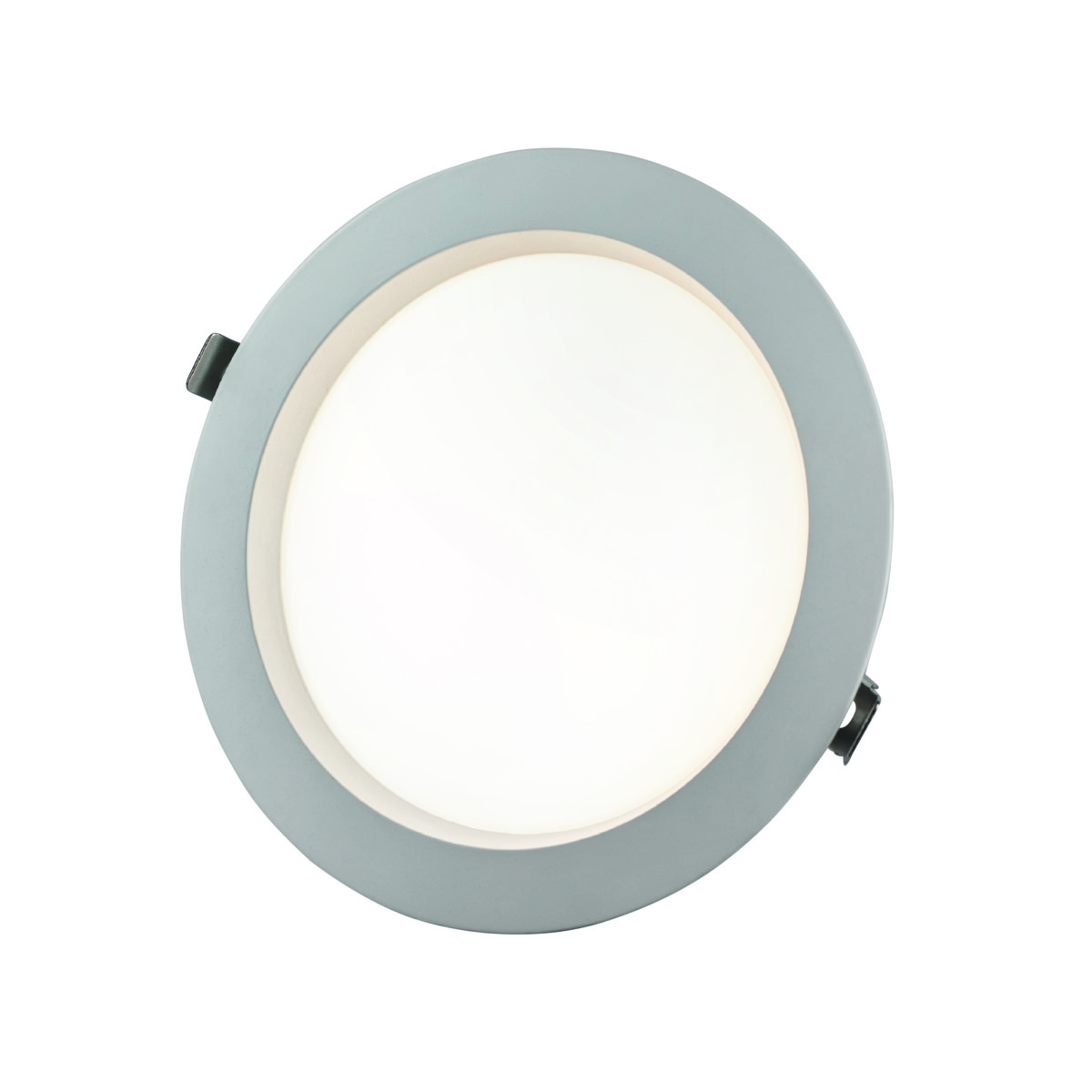

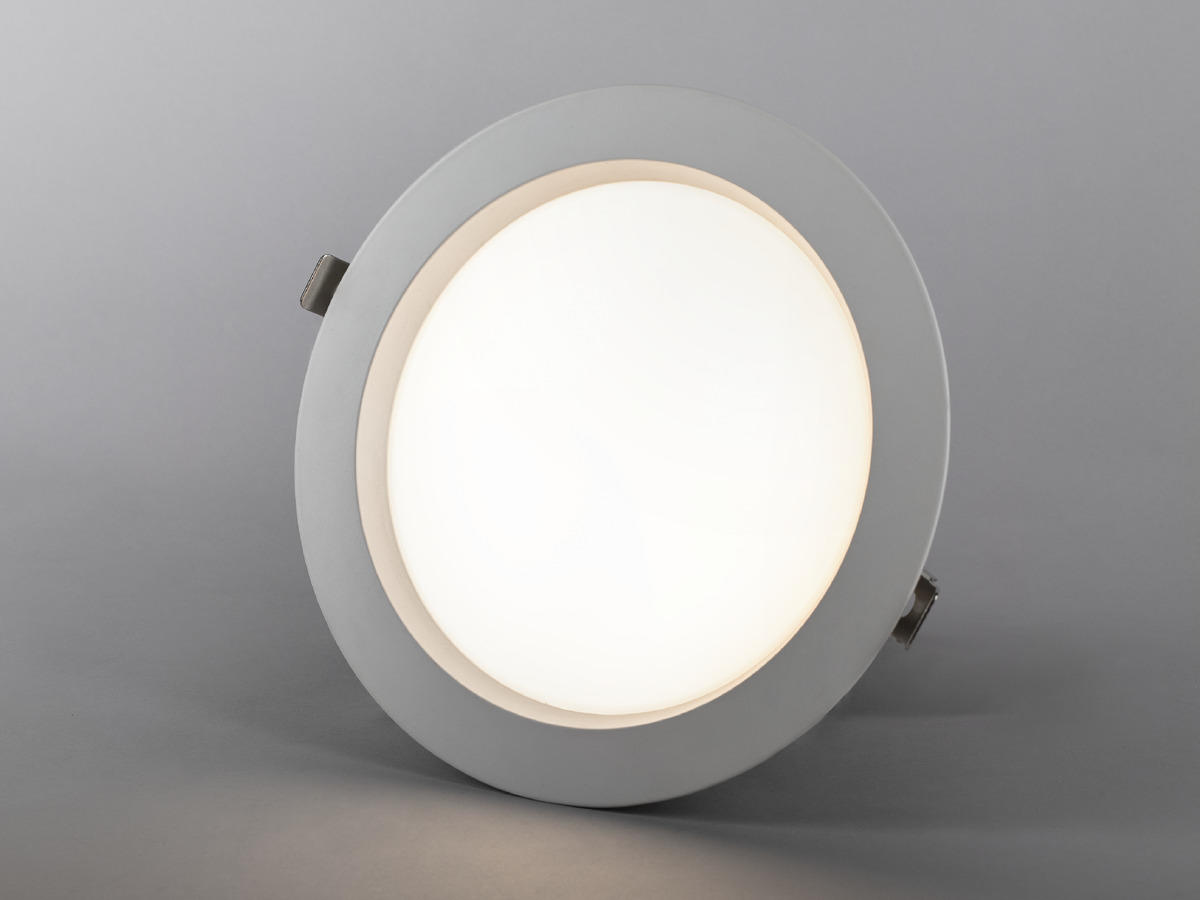

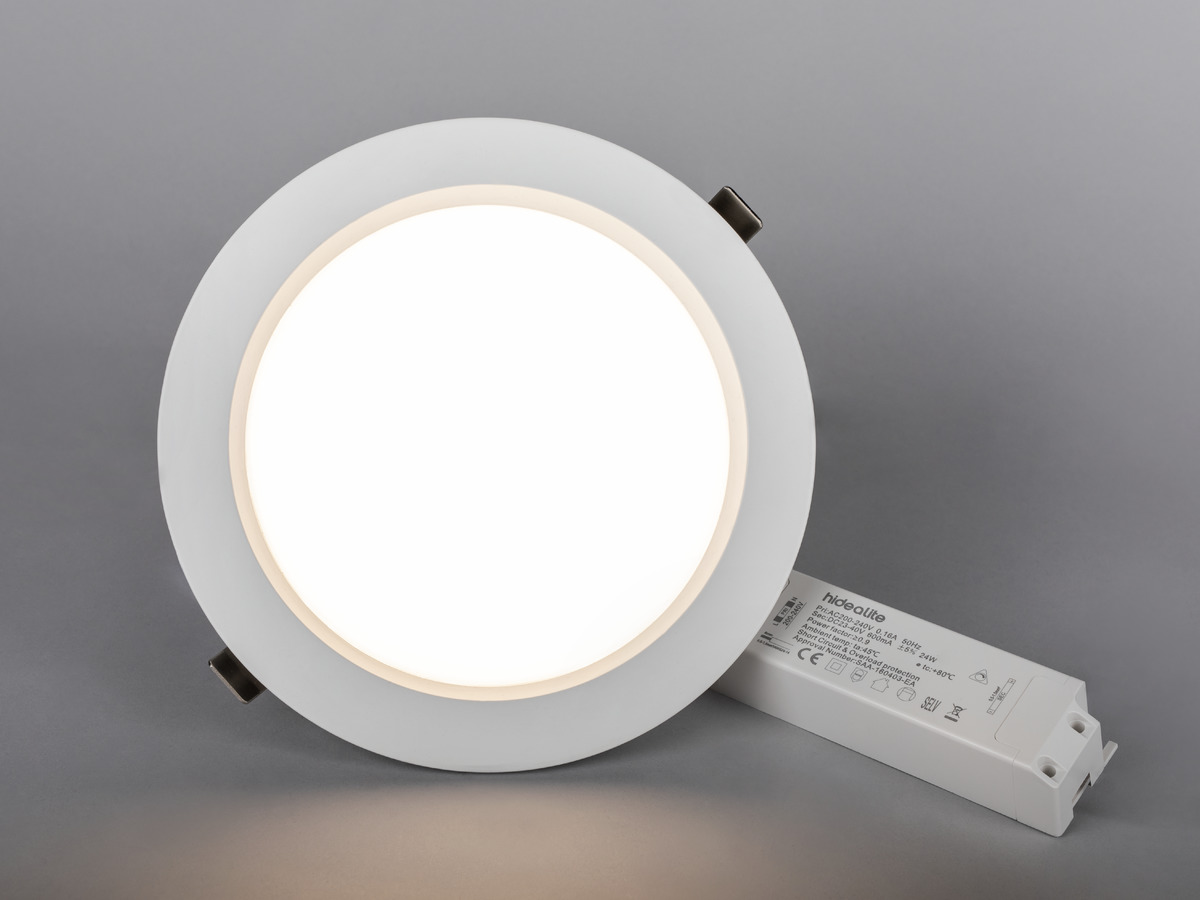

Low-build, energy-saving downlight for general lighting in large premises - perfect replacement for old compact fluorescent luminaires. Selectable colour temperature via DIP switch ColourTemp. Available in three sizes suitable for most cut out dimensions from 140mm to 218mm. Extremely efficient with broad beam angle together with opal diffuser, it creates an even general lighting in corridors, schools, canteens and waiting rooms, etc. Comes complete with phase dimmable driver and 2m cord set with earthed plug. Can be supplied with Q-Box Mini or Linect.
Plano Basic 230 White
-
GTIN 7392971139029Item Name Plano Basic 230 WhiteWarranty 5 years
- Light Technical Data
-

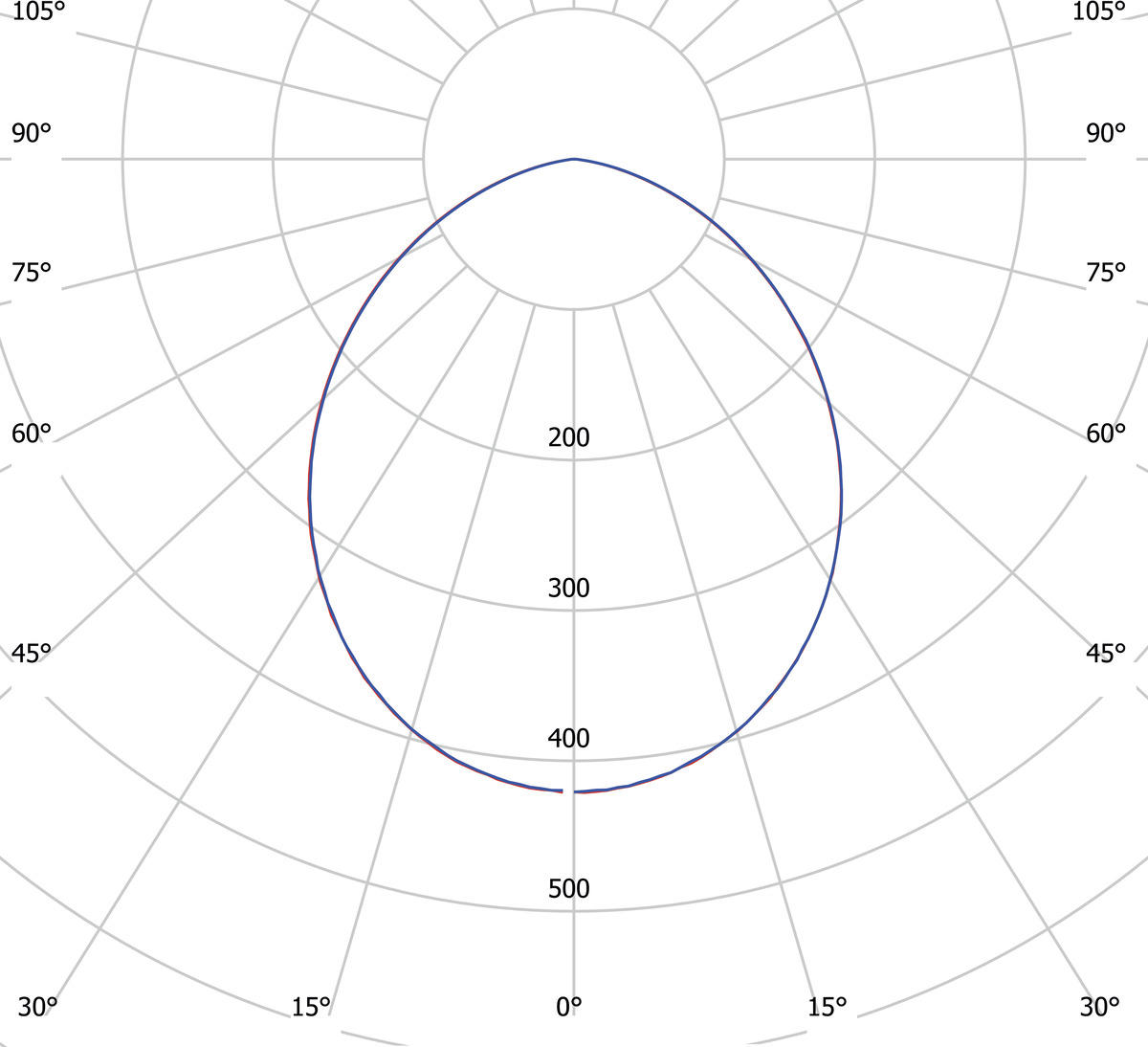

Max. Luminaire Lumen (lm) 3840Light Source LEDReplaceability Non-replaceaable LED, Replaceable Control gear by professionalLED Colour WhiteColour Temperature (K) 3000, 4000, 5700Colour Rendering Index (Ra) >80Colour Consistency (SDCM) 3Luminous Intensity (cd) 1460Beam Angle (°) 100Light sharing SymmetricLight Outlet DirectNumber of Lamps (pcs) 1Number of LED (pcs) 240Life Time L70 50 000h Ta 25°CNominel Life Time (h) 50000Lumen maintenance 50 000h L70LLMF @ 50 000h 0.7Life Time Driver 50 000h/5%Flicker (PstLM) 0,034Stroboscopic effect (SVM) 0,004
- Technical data
-
Voltage (type) ACVoltage Interval (V) 220...240VVoltage Nominal (V) 230Line Frequency (Hz) 50Max. Power Luminaire (W) 35Max. System Power (W) 35Max. Efficiency Luminaire (lm/W) 109,7Max. Efficiency System (lm/W) 109,7Containing light source energy efficiency class (EU) 2019/2015 EEprel registration number 1245218
- Operation and Connection
-

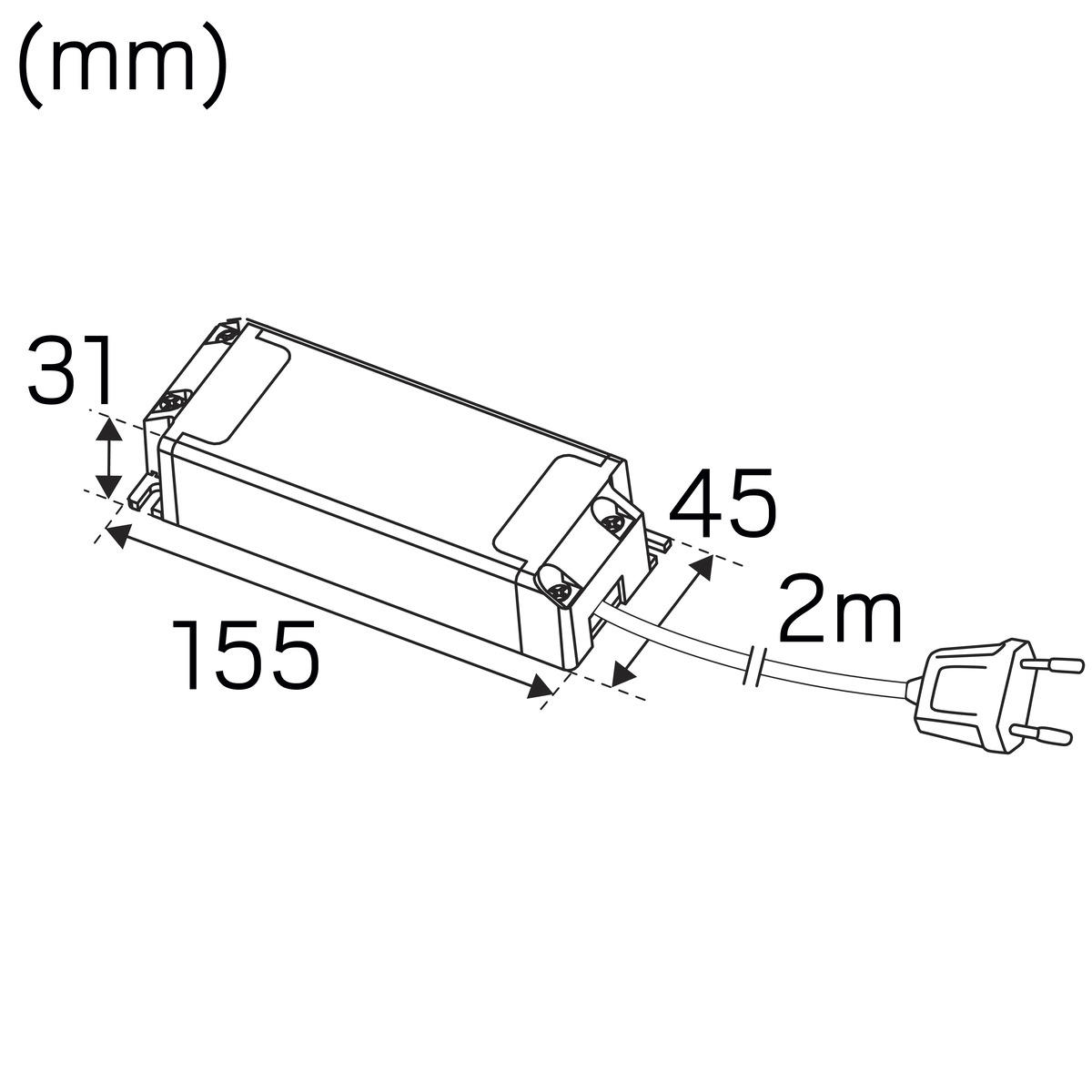

Dimmable YesType of Dimming Trailing Edge, Leading EdgeDriver Included YesDriver Model Constant CurrentDriver Type Stand AloneConnection (type) Cord SetLength Connection (cm) 200Connection (mm2) 2x0,75Strain Relief YesPower Factor ʎ 0,9Efficiency (%) 85Constant Current (mA) 800Operating TemperatureMax. Tc (°C) 80Fuse B10 (pcs) 30Fuse B16 (pcs) 48Fuse C10 (pcs) 30Fuse C16 (pcs) 48
- Color and material
-
Material Aluminium, PlasticColor WhiteEnvironmental Assessment Byggvarubedömningen
- Measurement and installation
-

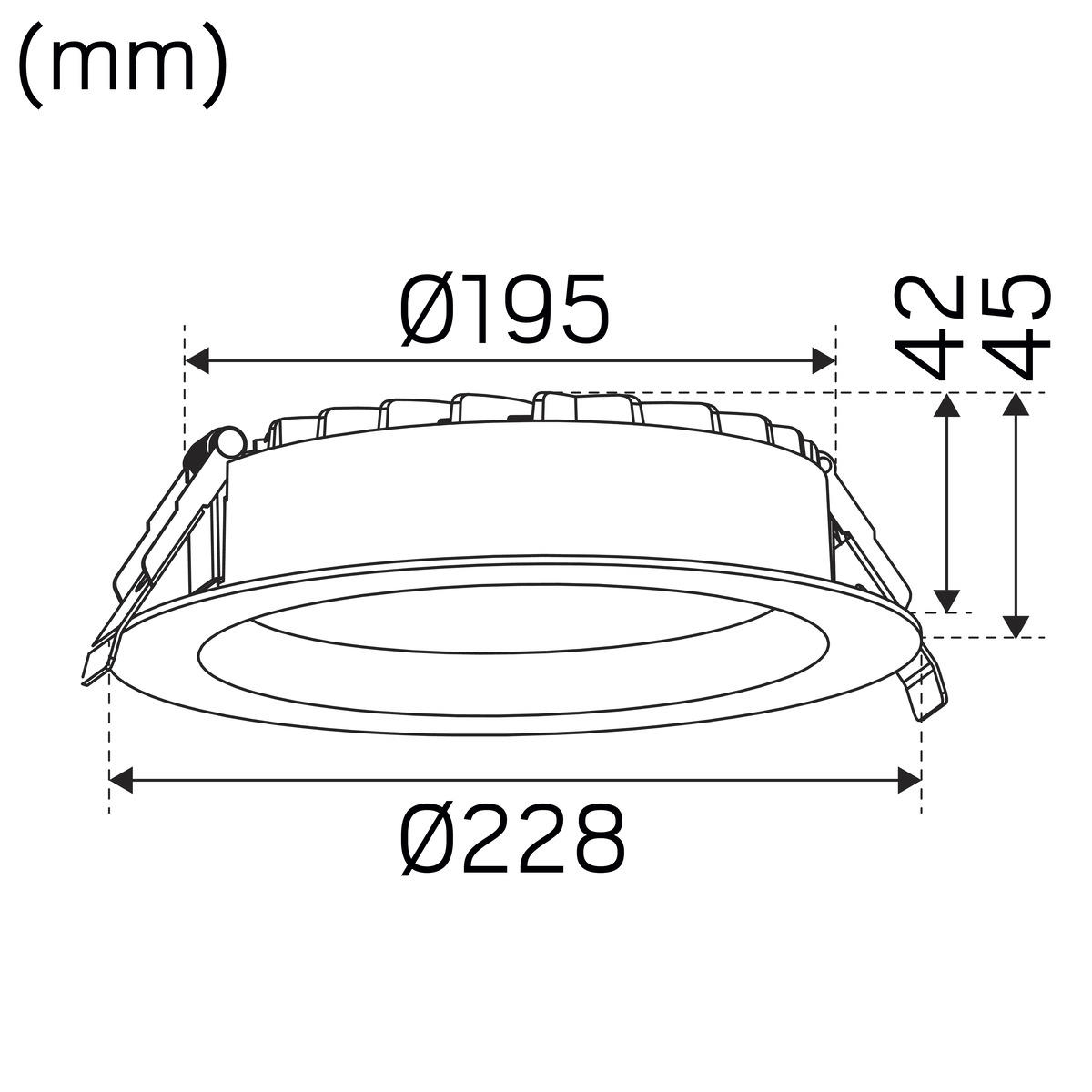

Operating EnvironmentIP Degree of Protection 54Protection Class IIInstallation Built-inMounting Installation Mounting SpringCeiling Thickness Interval (mm) 3-25mmFire Safety Marks Not in insulation without protection coverApproval Marks CEImpact Strength IK06Filament Test IEC 695-2-1(°C) 650Height (mm) 45Diameter (mm) 228Weight (kg) 0,81Height Recessed Part (mm) 42Height Exterior Part (mm) 3Built-in Ø (mm) 200-218mm
