Solo Mini G2

Can be installed both indoors and outdoors
Clear protective glass and IP54 rating for both indoor and outdoor use
Comes complete with driver for mains dimming or DALI, with push-in, loop-in, loop-out terminals and screwless strain relief
List of recommended dimmers, see www.hidealite.se

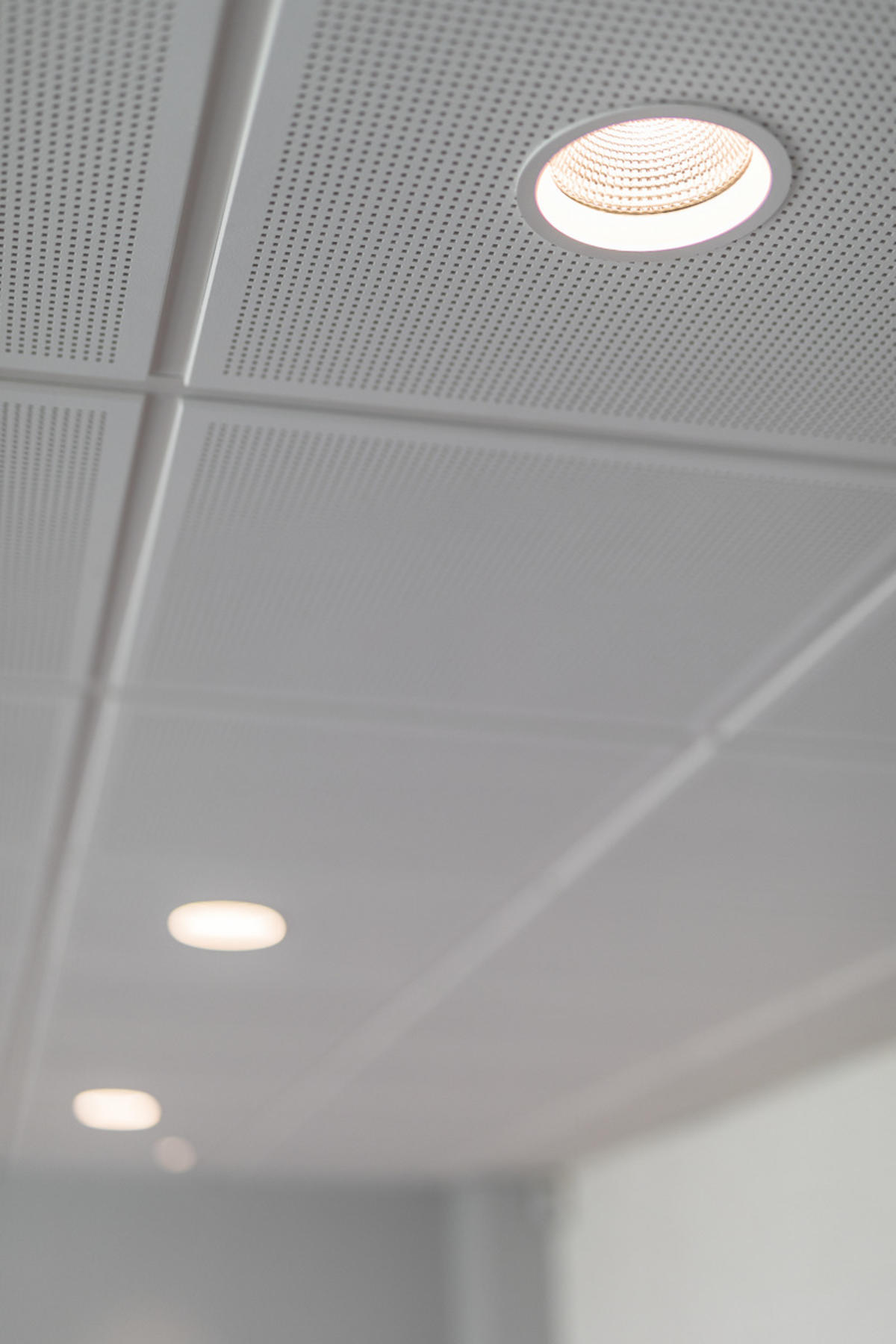

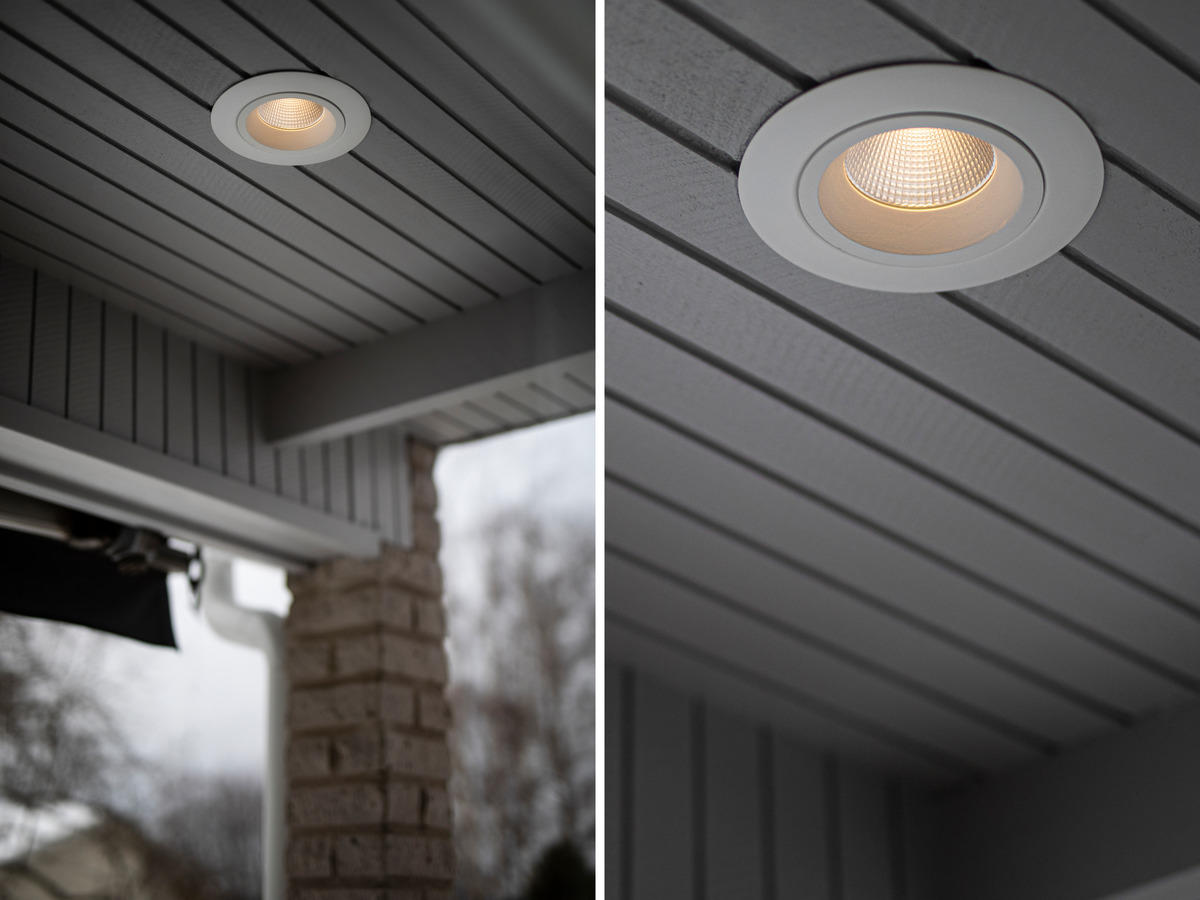

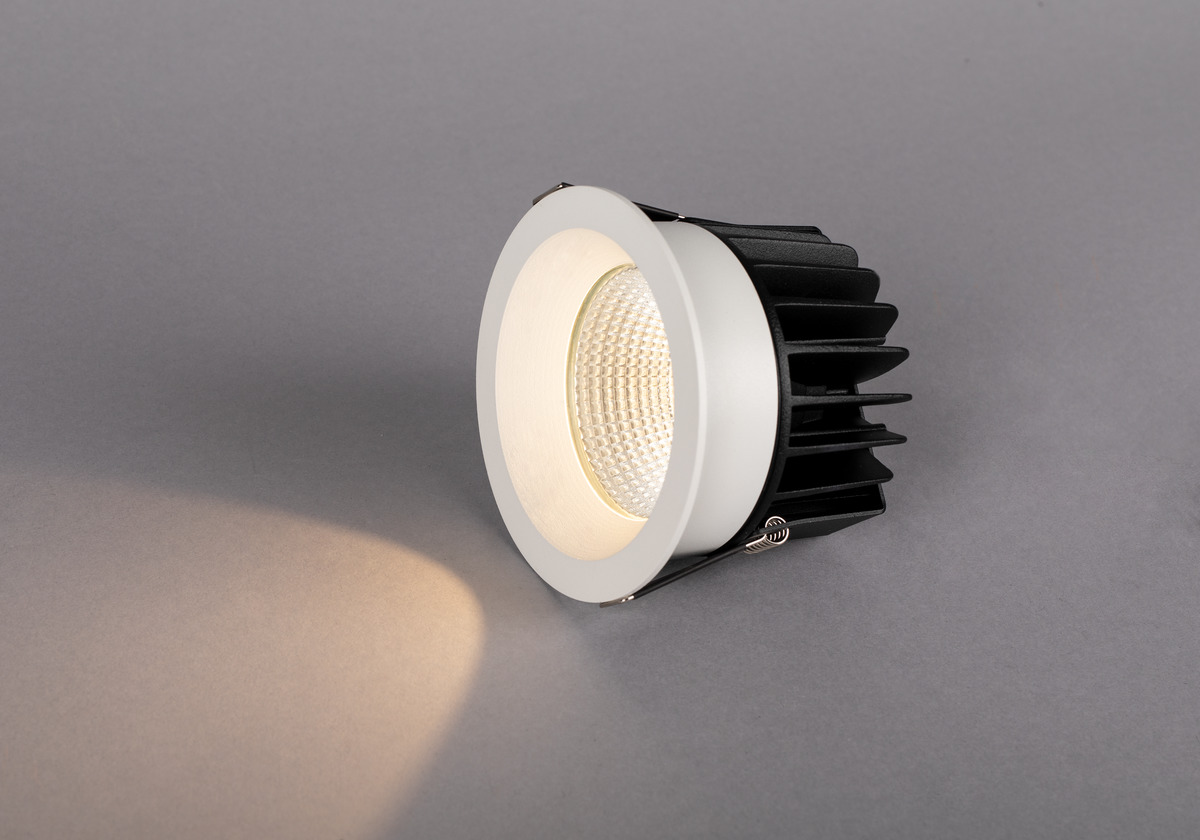

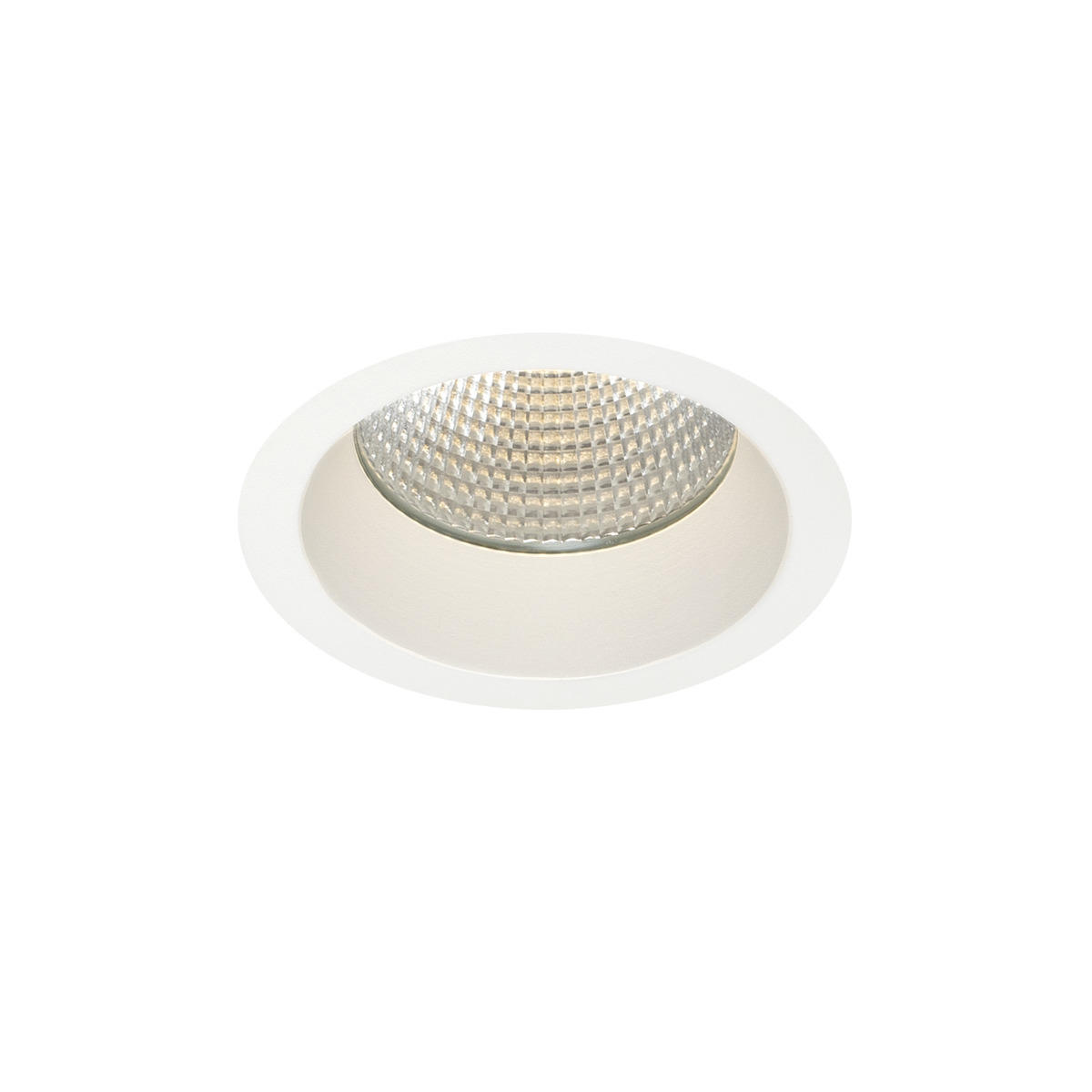

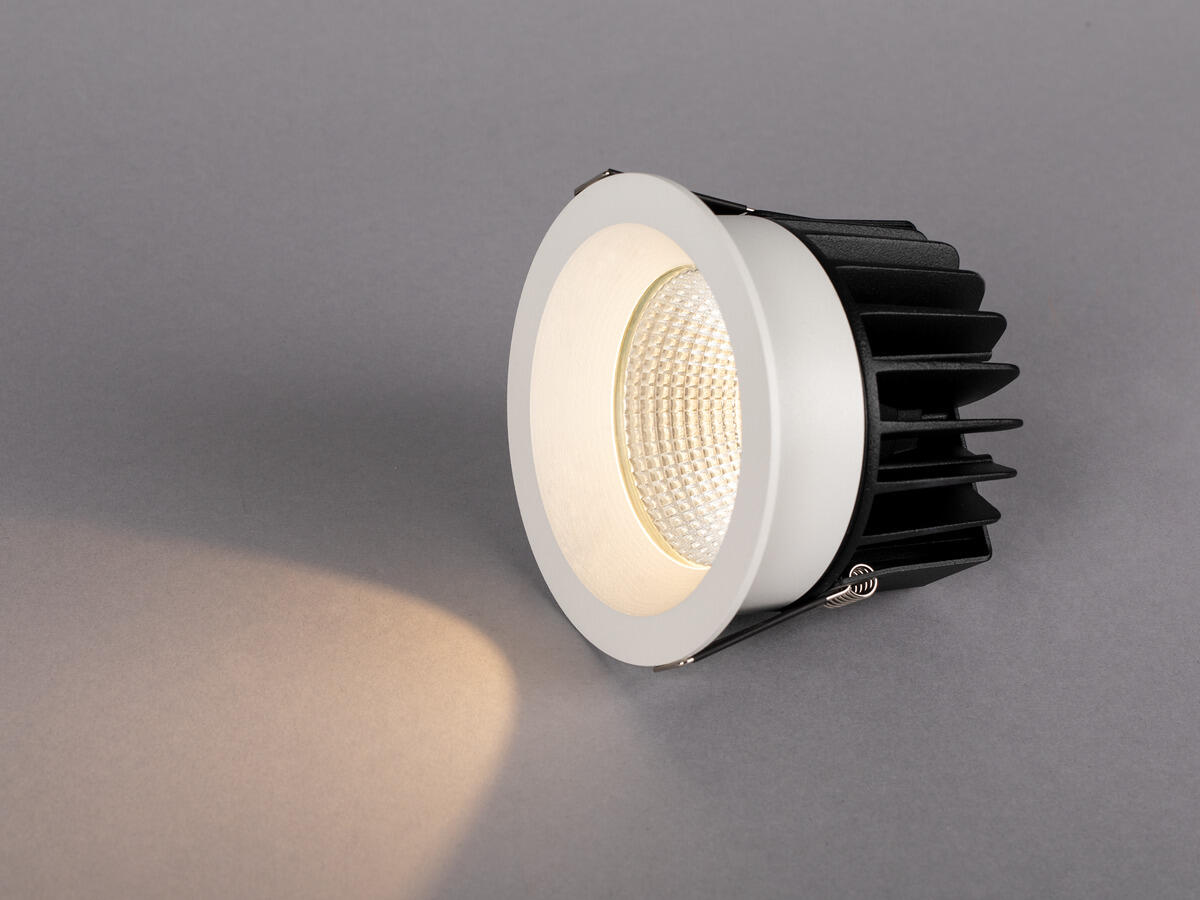

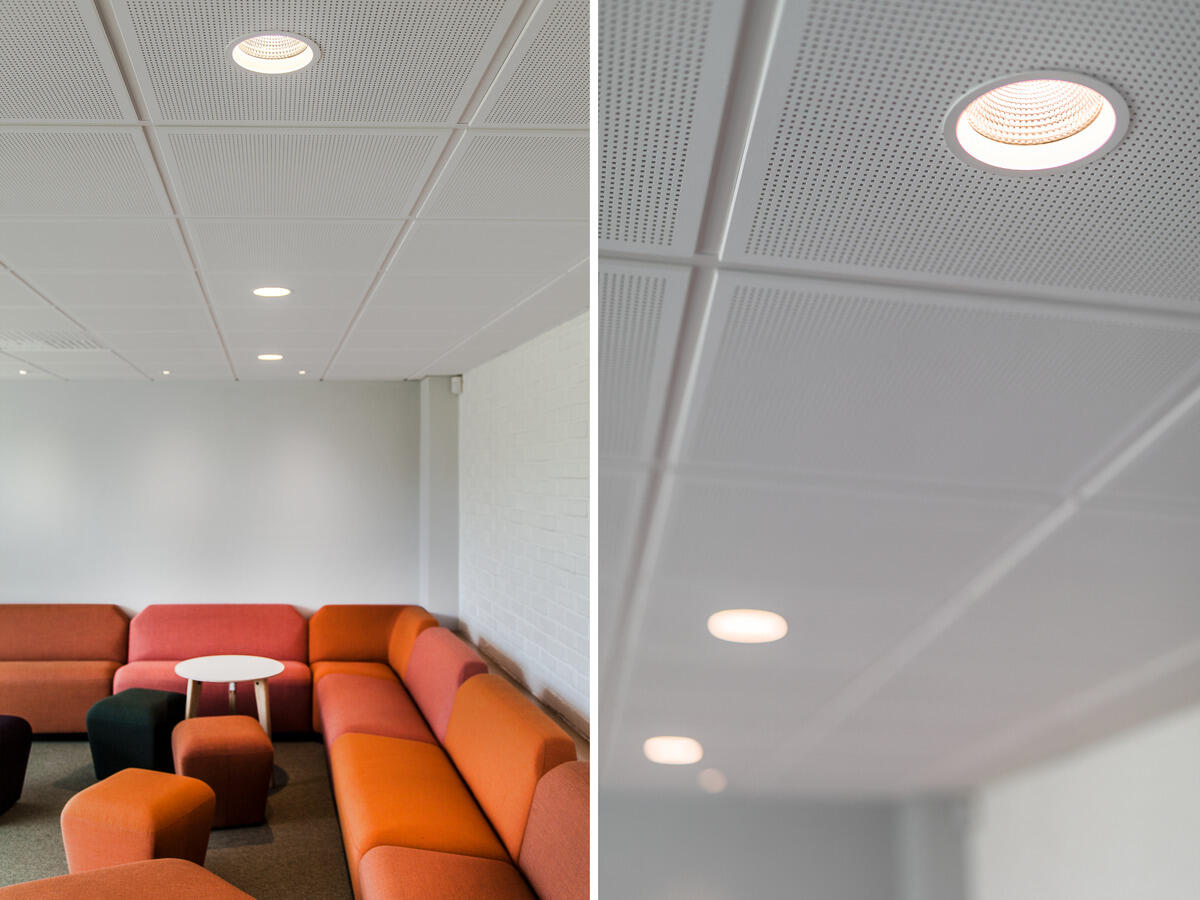

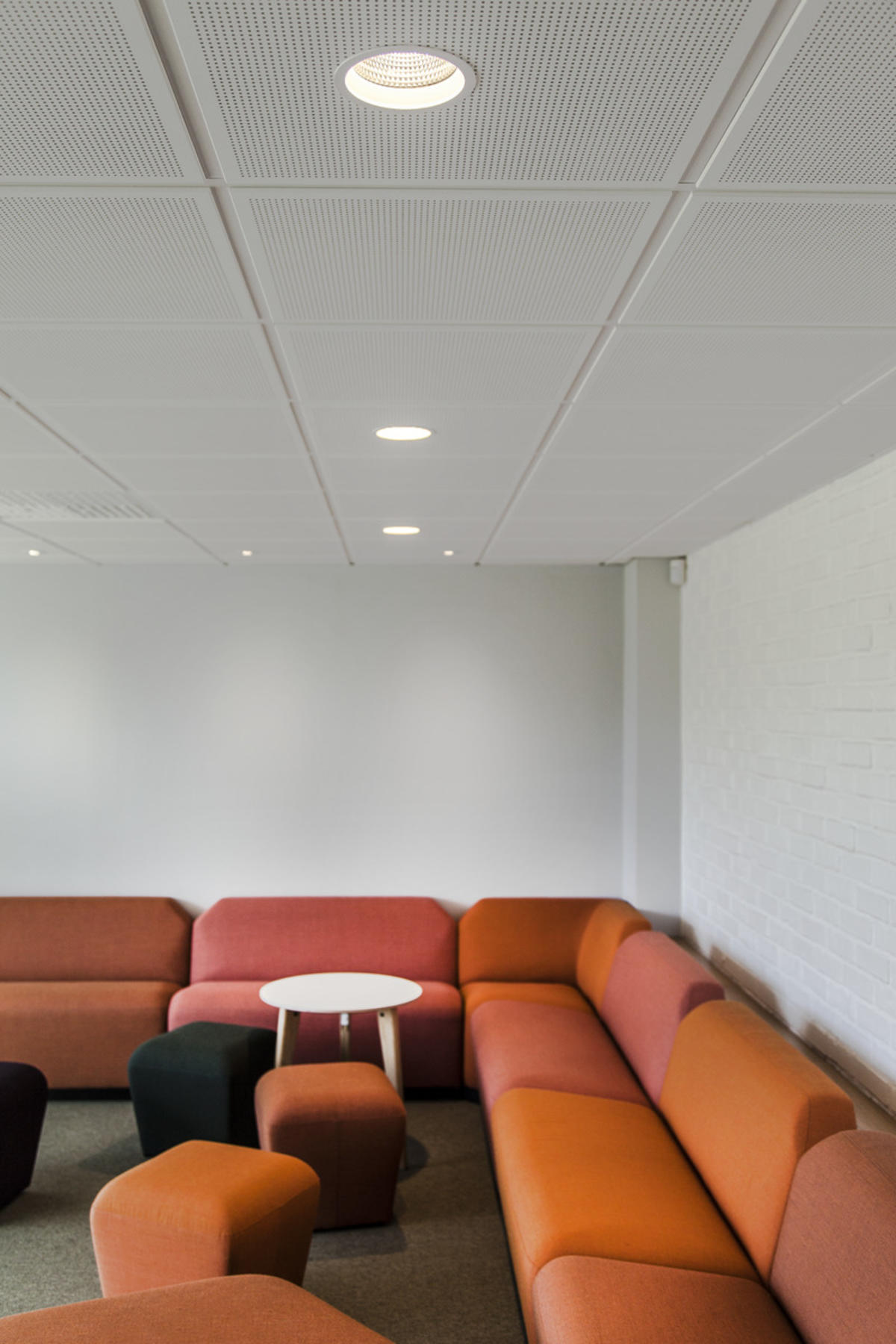

Solo Mini G2 is our downlight with a wide range of applications for indoor and outdoor usage. IP54-rating with clear cover glass. Both for private and public environment where more light is required, e.g. rooms with high ceilings and corridors, shops and outdoor entrance ceilings. Reflector technology with light situated high in the luminaire to give a highly glare-free appearance. Comes complete with driver IP20 mains dimmable or DALI, with push-in, loop-in, loop-out terminals and screwless strain relief. Can be supplied with Q-Box Mini or Linect.

GTIN	Item Name	Color	Type of Dimming

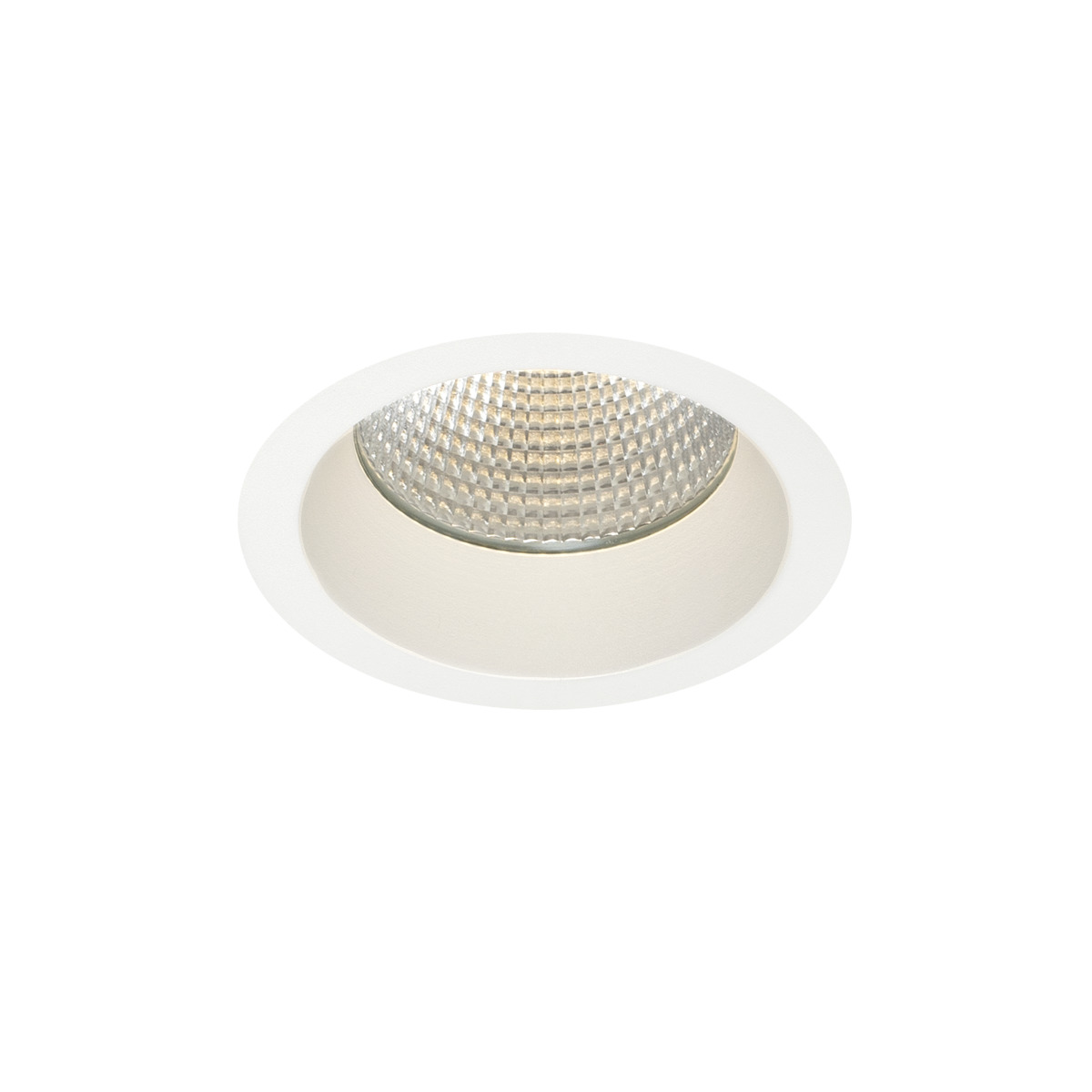

7392971135069	Solo Mini G2 White 3000K	White	Trailing Edge, Leading Edge
7392971135076	Solo Mini G2 White 3000K DALI	White	Push 230V, DALI 2

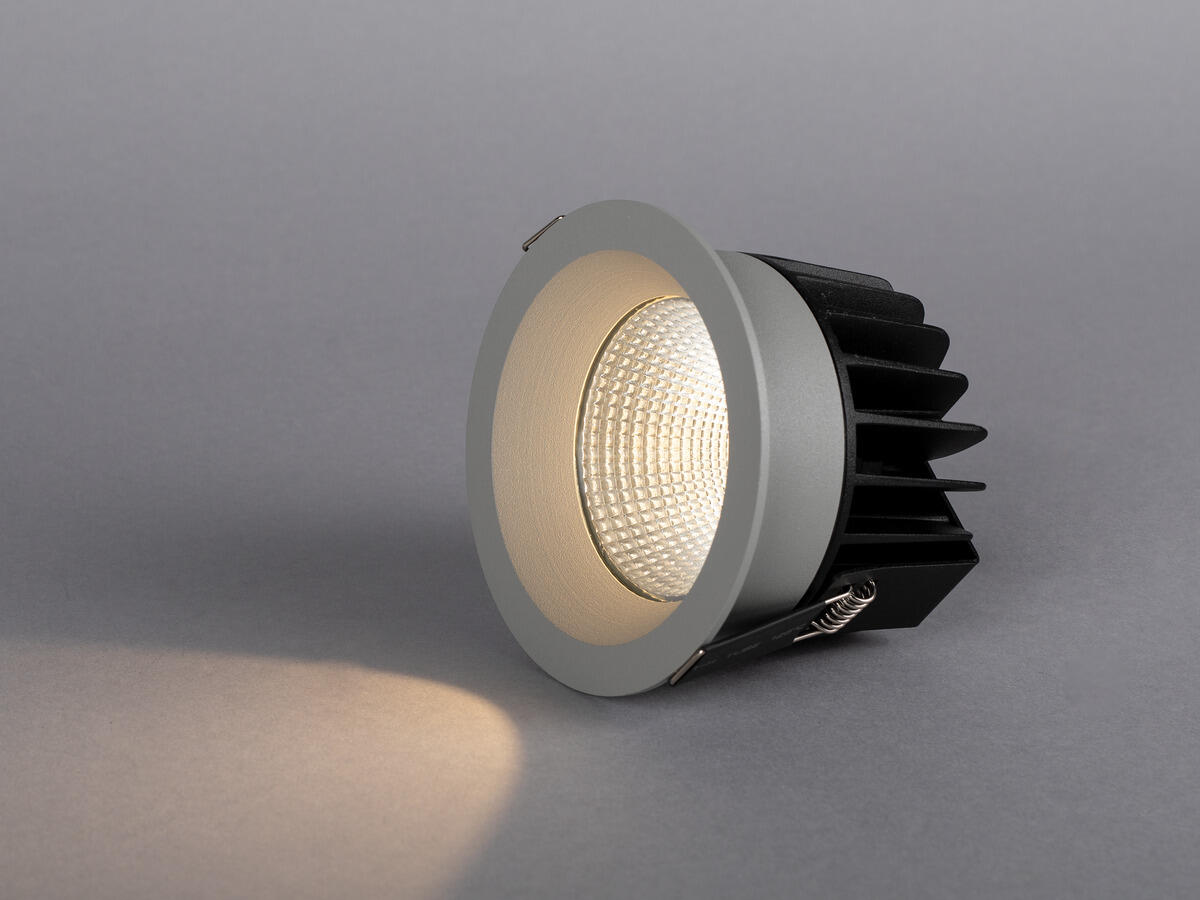

7392971135083	Solo Mini G2 Grey 3000K	Grey	Trailing Edge, Leading Edge
7392971135090	Solo Mini G2 Grey 3000K DALI	Grey	Push 230V, DALI 2
7392971135106	Solo Mini G2 Anthracite 3000K	Antracit	Trailing Edge, Leading Edge
7392971135113	Solo Mini G2 Anthracite 3000K DALI	Antracit	Push 230V, DALI 2

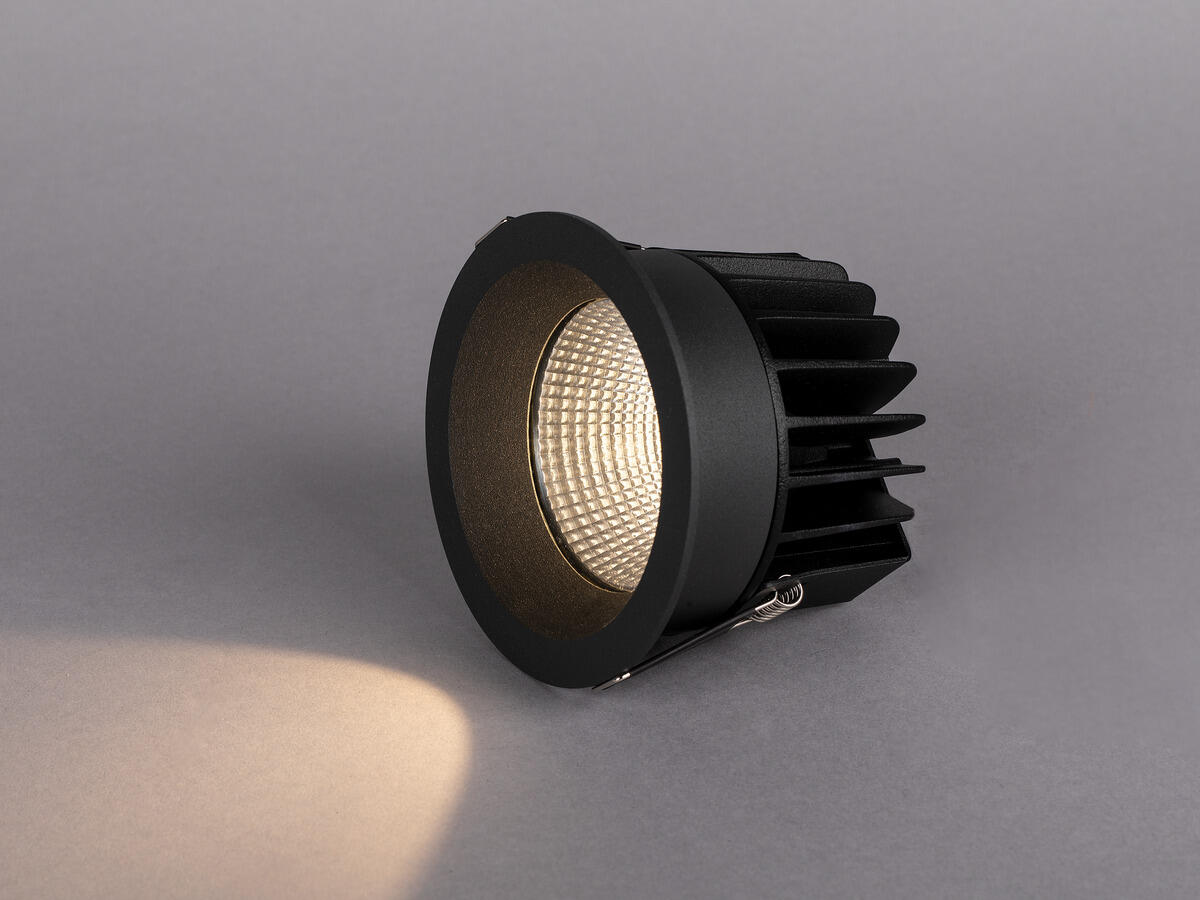

7392971135120	Solo Mini G2 Black 3000K	Black	Trailing Edge, Leading Edge
7392971135137	Solo Mini G2 Black 3000K DALI	Black	Push 230V, DALI 2

Description: GTIN 7392971135069

Item Name Solo Mini G2 White 3000K

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 1080

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Replaceable Control gear by professional

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >85

Colour Consistency (SDCM) 3

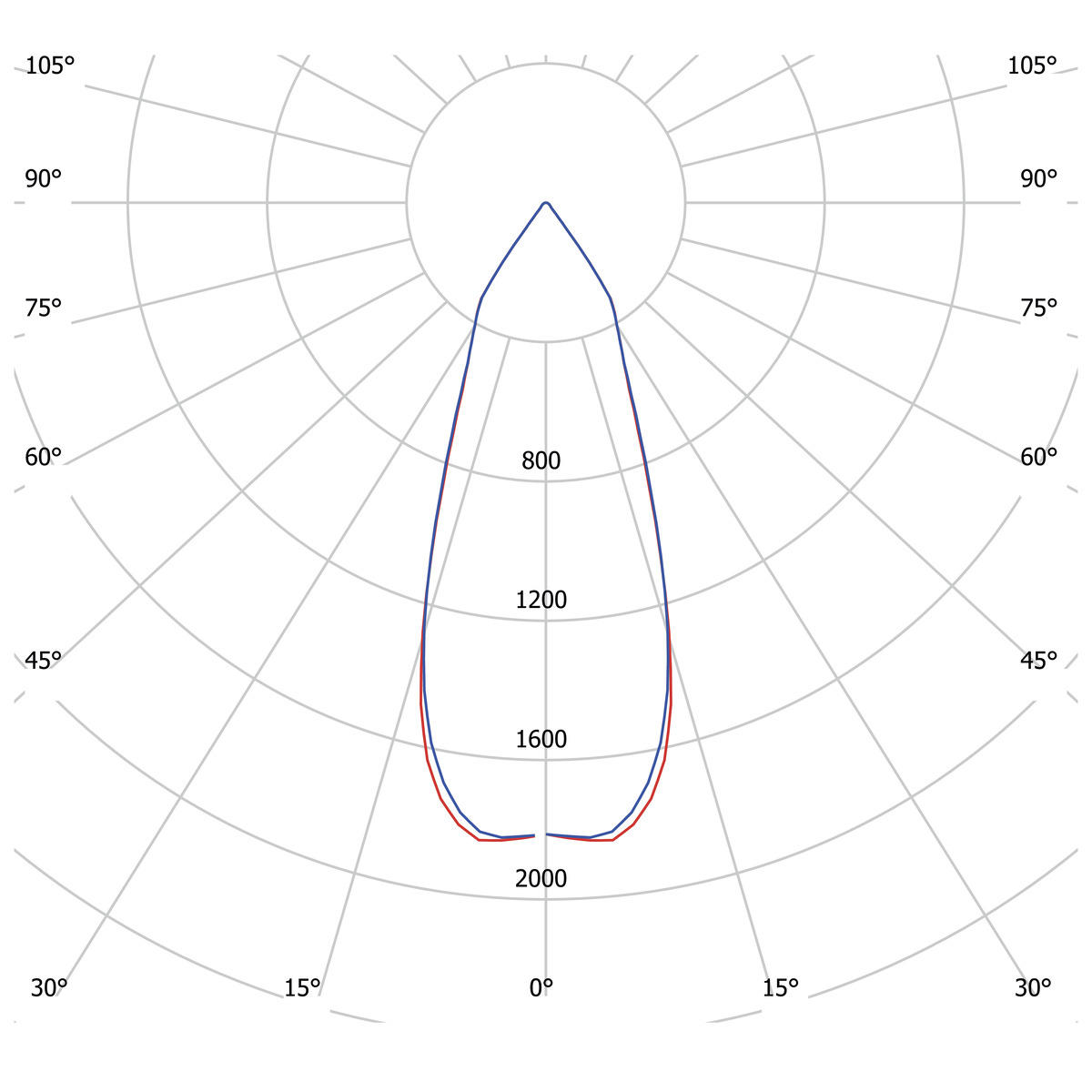

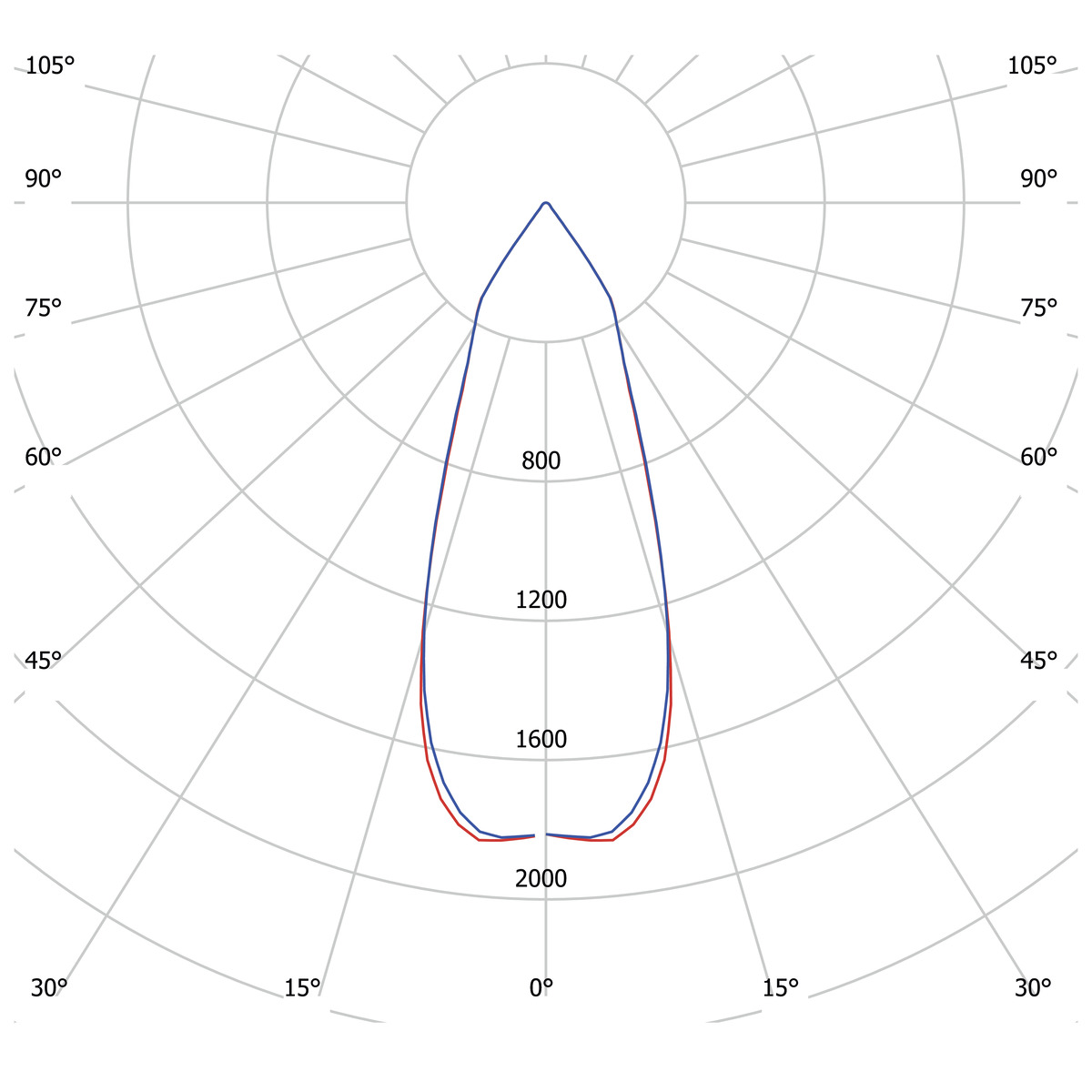

Luminous Intensity (cd) 1990

Beam Angle (°) 40

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L80 100 000h Ta 25°C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L92

Lumen maintenance 100 000h L87

LLMF @ 50 000h 0,92

LLMF @ 100 000h 0,87

Life Time Driver 50 000h/10%

Flicker (PstLM) 0,044

Stroboscopic effect (SVM) 0,009
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Power Luminaire (W) 15

System Power (W) 15

Efficiency Luminaire (lm/W) 72

Efficiency System (lm/W) 72

Containing light source energy efficiency class (EU) 2019/2015 E
Operation and Connection: Dimmable Yes

Type of Dimming Trailing Edge, Leading Edge

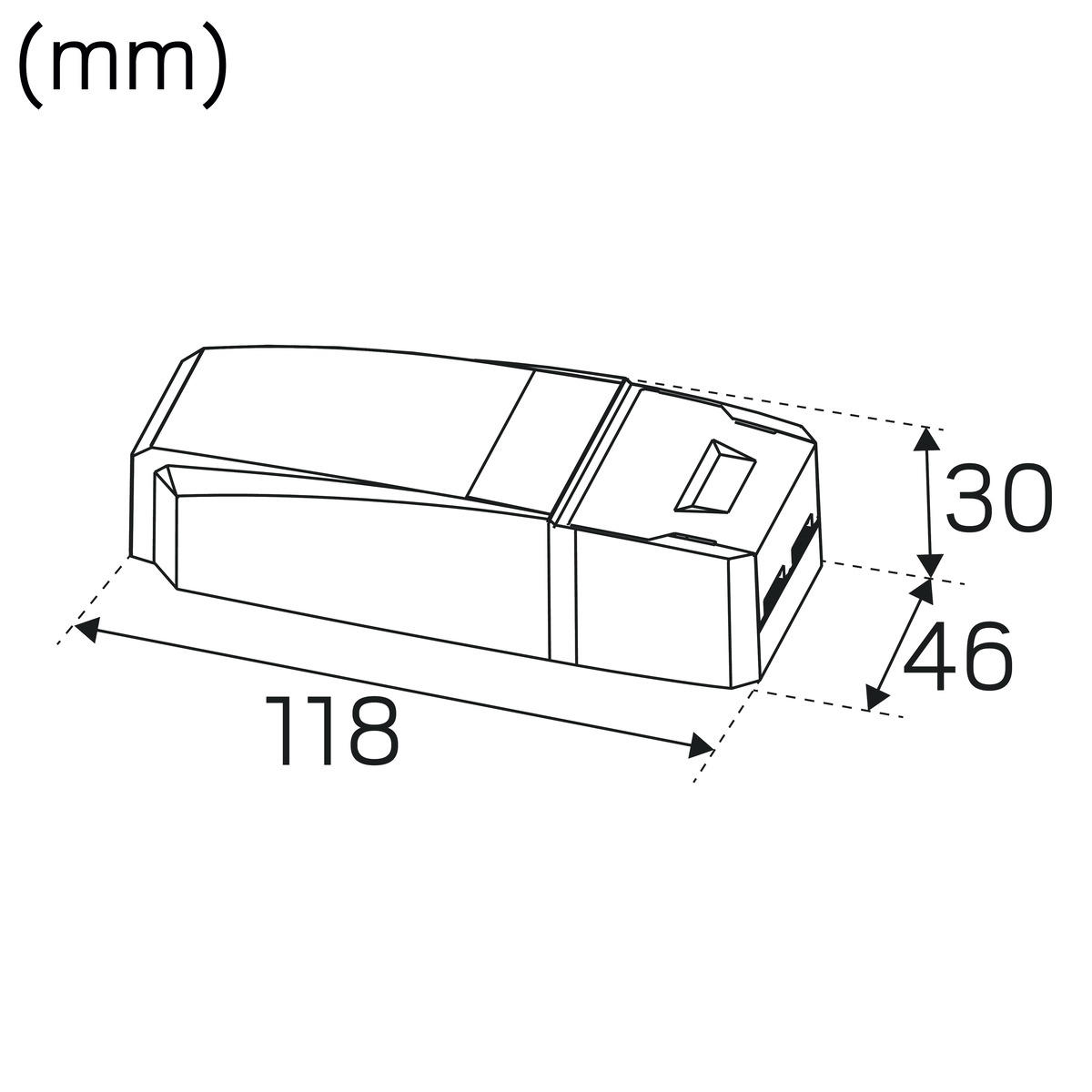

Driver Included Yes

Driver Model Constant Current

Driver Type Stand Alone

Connection (type) Quick Terminal

Connection (mm2) 3x0,75-2,5

Through Wiring Yes

Strain Relief Yes

Constant Current (mA) 350

Operating Temperature -20…+50

Max. Tc (°C) 85

Fuse B10 (pcs) 23

Fuse B16 (pcs) 38

Fuse C10 (pcs) 23

Fuse C16 (pcs) 38
Color and material: Material Aluminium

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / wet locations, Outdoor

IP Degree of Protection 54

Protection Class II

Installation Built-in

Mounting Installation Mounting Spring

Ceiling Thickness Interval (mm) 5-45

Fire Safety Marks Not in insulation without protection cover

Approval Marks CE, SELV

Filament Test IEC 695-2-1(°C) 650

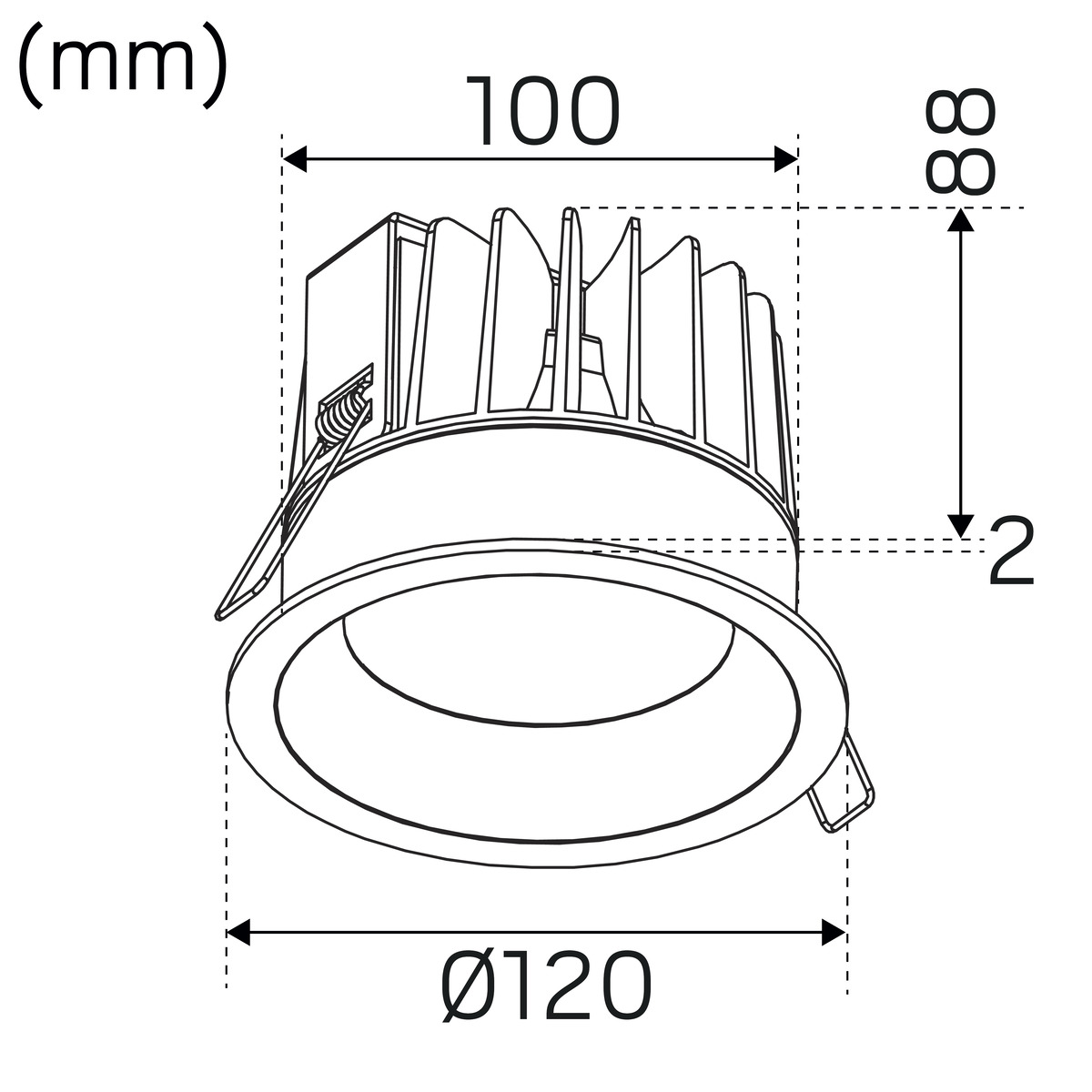

Height (mm) 90

Diameter (mm) 120

Weight (kg) 0,613

Min. Built-in (mm) 250x250x140

Height Recessed Part (mm) 87

Height Exterior Part (mm) 3

Built-in Ø (mm) 100-109

Plano Basic

Low-build, energy-saving downlight for general lighting in large premises - perfect replacement for old compact fluorescent luminaires. Selectable colour temperature via DIP switch ColourTemp. Available in three sizes suitable for most cut out dimensions from 140mm to 218mm. Extremely efficient with broad beam angle together with opal diffuser, it creates an even general lighting in corridors, schools, canteens and waiting rooms, etc. Comes complete with phase dimmable driver and 2m cord set with earthed plug. Can be supplied with Q-Box Mini or Linect.

Solo Maxi G2

Solo Maxi G2 is a large downlight with a wide range of applications areas for indoor and outdoor usage. IP54 rating with clear cover glass. Both for private and public environment where more light is required, e.g. rooms with high ceilings and corridors, shops and outdoor entrance ceilings. Reflector technology with light situated high in the luminaire to give a highly glare-free appearance. Comes complete with drivers IP20 for DALI or On/Off. Can be supplied with Q-Box Mini or Linect. Lumen output can be adjusted via DIP-switch Power.

Optic G2 L Quick ISO DALI

Downlight made for a sustainable future – easily dismantled via a module system to save time when recycling. Big brother of the Optic family, perfect for high ceilings. Low build, suited for installation in 28mm secondary spaced boarding and directly against insulation. Modern LED and reflector technology with good glare-free light distribution and high lumen output. Tiltable 30°, which also makes it the perfect choice for sloping ceilings. Very good colour rendering, Ra>95. Driver with cover that can be adapted for cable or flex hose 16mm. Comes with 3-pole push-in terminal for through wiring and strain relief. Driver comes together with Q-Box Micro. This luminaire is dimmable with the most commonly available dimmers on the market.

Solo Mini G2

Solo Mini G2 White 3000K

Accessories

Mounting Plate 400x400

Cover ring 180 Ø108

Cover frame 360x360 Ø108

Q-Box Mini 3-pole/Linect

Q-Box Mini 5-pole/Linect
