Comfort G4 Quick ISO Tilt DALI
Comfort G4 Quick ISO Tilt DALI
Comfort G4 Quick ISO Tilt DALI
Comfort G4 Quick ISO Tilt DALI

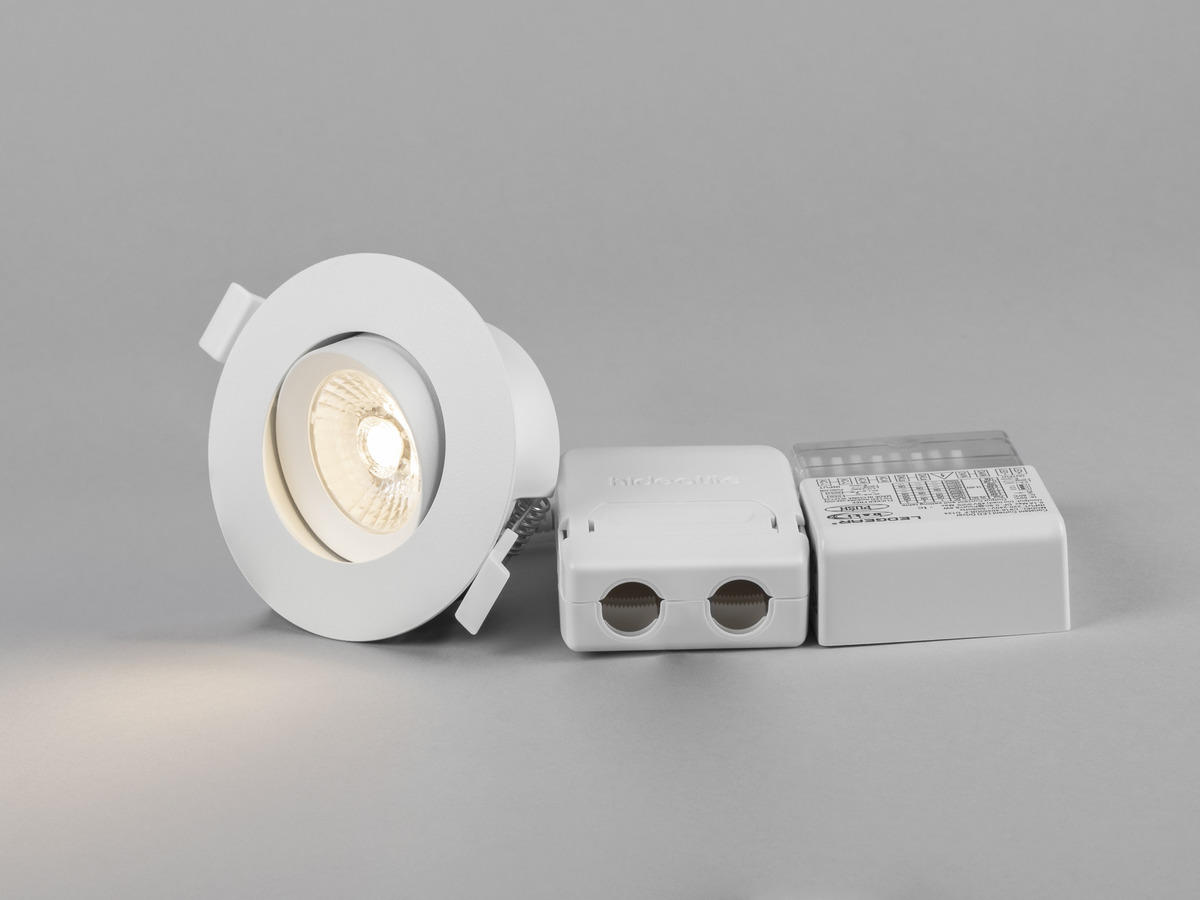

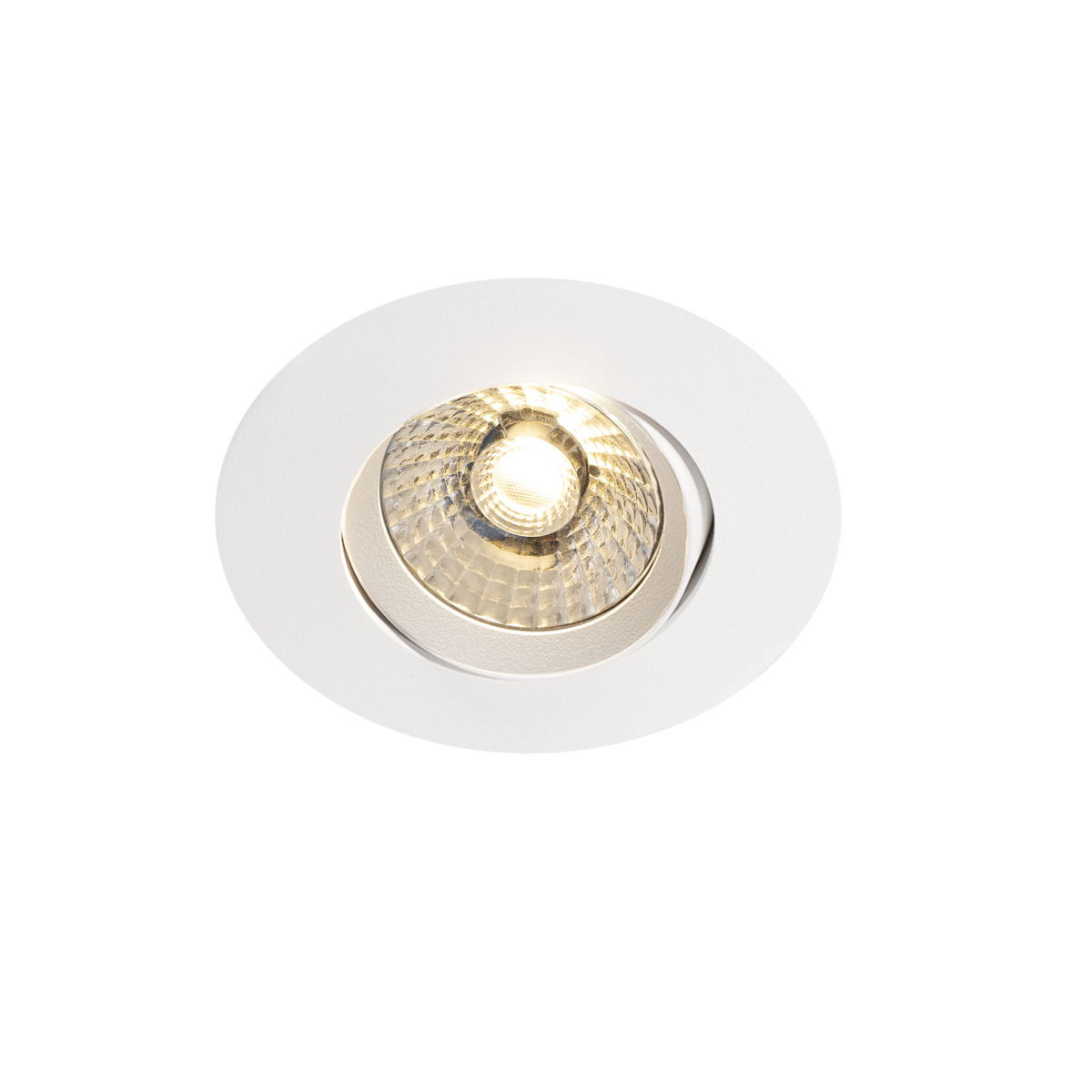

High-performance downlight made for a sustainable future – easily dismantled via a module system to save time when recycling. Comfort G4 Quick ISO is a downlight with lens technology, high lumen output and ISO cover for installation in 28mm secondary spaced boarding and approved for installation directly against insulation. Easily installed with very good colour rendering, Ra>95, that is just as good indoors as outdoors. Tiltable version (30°) is the perfect choice of luminaire for sloping ceilings. Driver with cover that can be adapted for cable or flex hose 16mm. Comes with 3-pole push-in terminal for through wiring and strain relief. Comfort G4 Quick ISO DALI comes together with Q-Box Micro driver. This luminaire is dimmable with the most commonly available dimmers on the market.
Exists in one color

Variants

GTIN Item Name Colour Temperature (K) Luminaire Lumen (lm)
Comfort G4 Quick ISO Tilt DALI White 36° 3000K 7392971146645 Comfort G4 Quick ISO Tilt DALI White 36° 3000K 3000 690
Comfort G4 Quick ISO Tilt DALI White 36° Tune 7392971146621 Comfort G4 Quick ISO Tilt DALI White 36° Tune 2700 520
Comfort G4 Quick ISO Tilt DALI White 36° 2700K 7392971146638 Comfort G4 Quick ISO Tilt DALI White 36° 2700K 2700 650

Comfort G4 Quick ISO Tilt DALI White 36° 3000K

Description
GTIN 7392971146645
Item Name Comfort G4 Quick ISO Tilt DALI White 36° 3000K
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
Replaceability Replaceable LED by professional, Replaceable Control gear by professional
LED Colour Warm White
Colour Temperature (K) 3000
Colour Rendering Index (Ra) >98
Colour Consistency (SDCM) 3
Initial Chromaticity x: 0.4323 y: 0.4058
Luminous Intensity (cd) 1550
Luminaire Lumen (lm) 690
Beam Angle (°) 36
Light sharing
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Life Time L80 100 000h Ta 25°C
Nominel Life Time (h) 100000
Lumen maintenance 50 000h L90
Lumen maintenance 75 000h L86
Lumen maintenance 100 000h L82
LLMF @ 50 000h 0,9
LLMF @ 100 000h 0,82
Life Time Driver 50 000h/10%
Technical data
Adjustable Yes
Tiltable (°) 30
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50, 60
Power LED (W) 6,5
Power Luminaire (W) 7,5
System Power (W) 7,5
Efficiency Luminaire (lm/W) 92
Efficiency System (lm/W) 92
Containing light source energy efficiency class (EU) 2019/2015 E
Operation and Connection

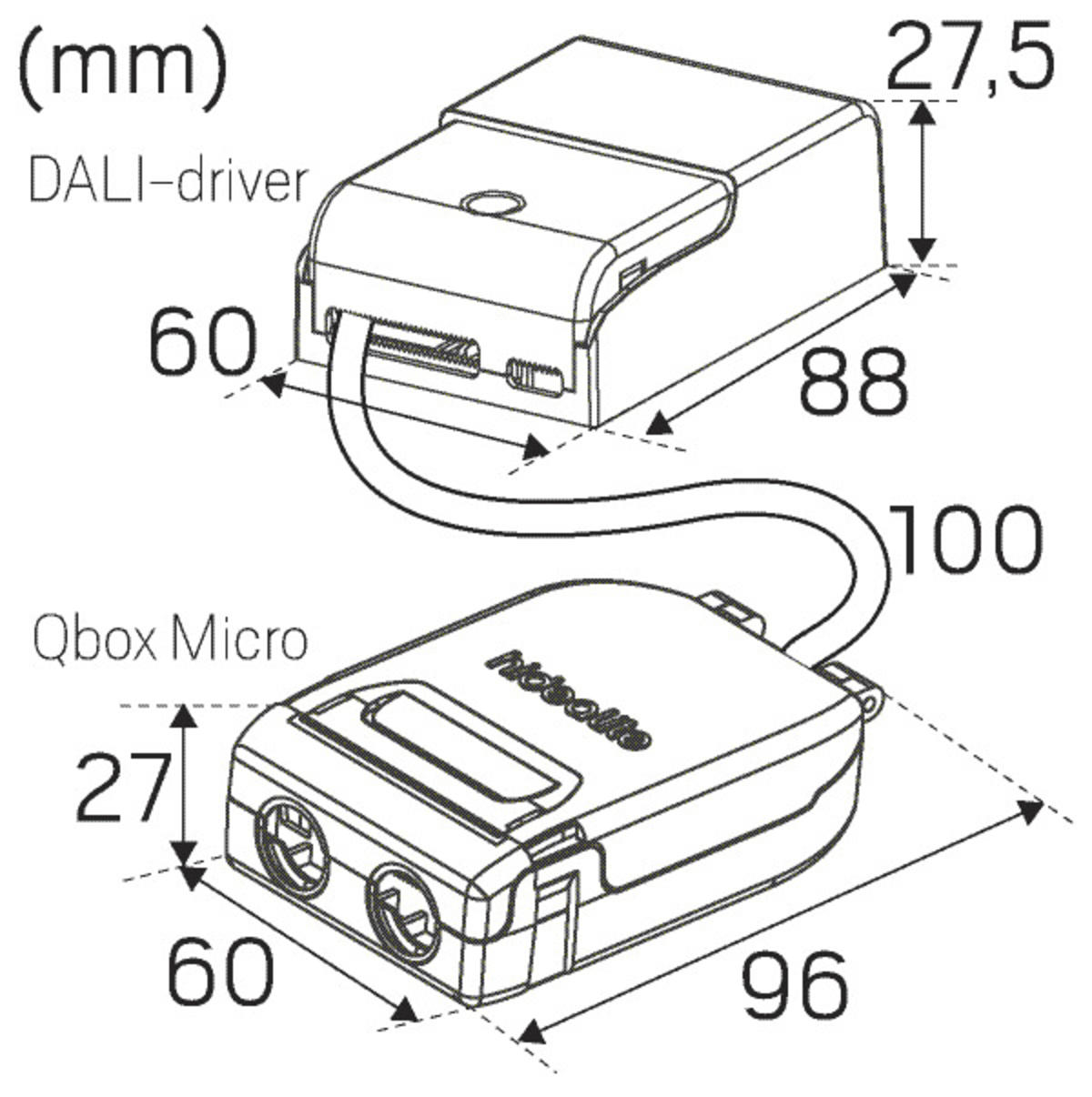

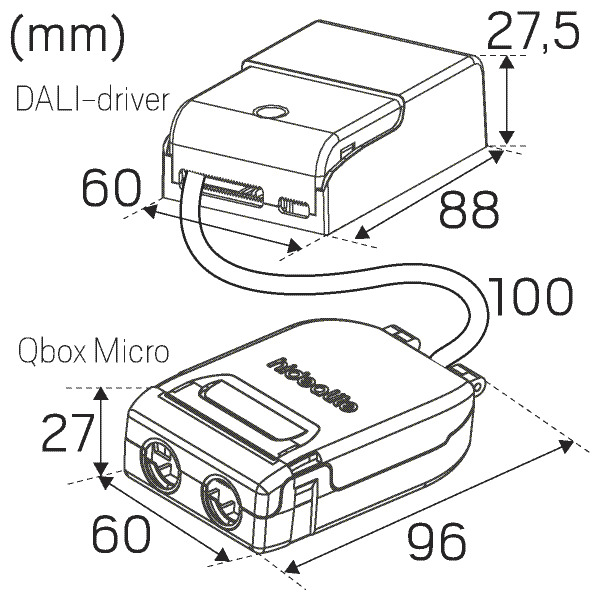

Driver Included Yes
Driver Model Constant Current
Driver Type Stand Alone
Driver Manufacturer Hide-a-lite
Connection (type) Quick Terminal
Connection (mm2) 5x0,5-2,5
Through Wiring Yes
Strain Relief Yes
Power Factor ʎ 0,95
Efficiency (%) 80
Power loss (W) 1
Leakage current (mA) (at 230 V, 50 Hz, full load) 2
THD (%) 20
Constant Current (mA) 180
Operating Temperature -20…+40
Max. Tc (°C) 85
Dimmable Yes
Type of Dimming Push 230V, DALI 2
Dimming secondary side AM
Memory Function Power Failure No
Inrush current (max/time) 16A 20µs
Fuse B10 (pcs) 65
Fuse B16 (pcs) 104
Fuse C10 (pcs) 75
Fuse C16 (pcs) 120
Color and material
Material Aluminium
Color White
Measurement and installation
Operating Environment Indoor / bathroom (ceiling area 1), Outdoor
IP Degree of Protection 44
Protection Class II
Installation Built-in
Mounting Installation Mounting Spring
Ceiling Thickness Interval (mm) 3-26
Fire Safety Marks Approved for installation against insulation
Approval Marks CE, a Hide-a-lite Choice

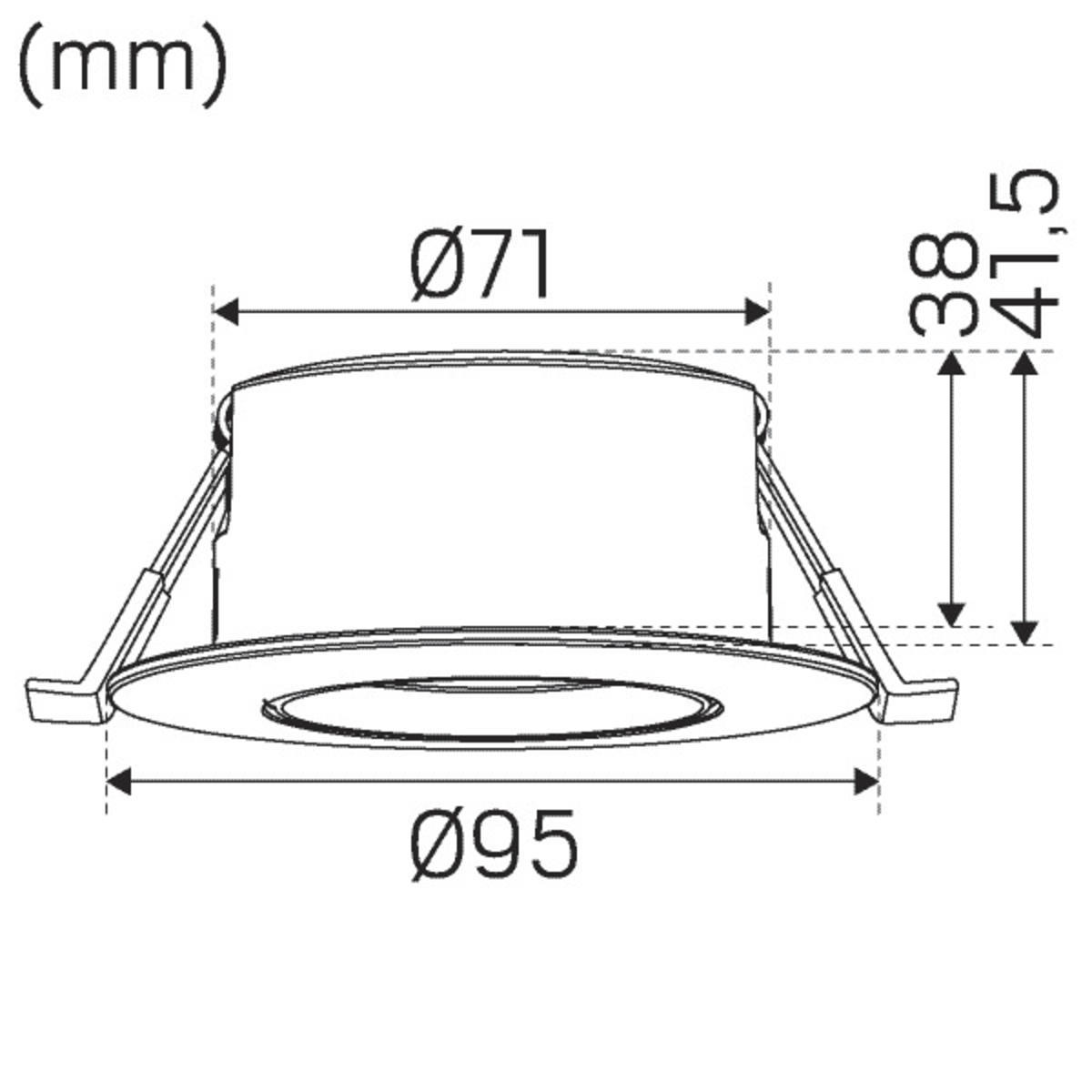

Height (mm) 41
Diameter (mm) 95
Weight (kg) 0,3
Min. Built-in (mm) 170x120x38
Min. Air Volume (cm3) 4400
Height Recessed Part (mm) 38
Height Exterior Part (mm) 3
Built-in Ø (mm) 83-85
