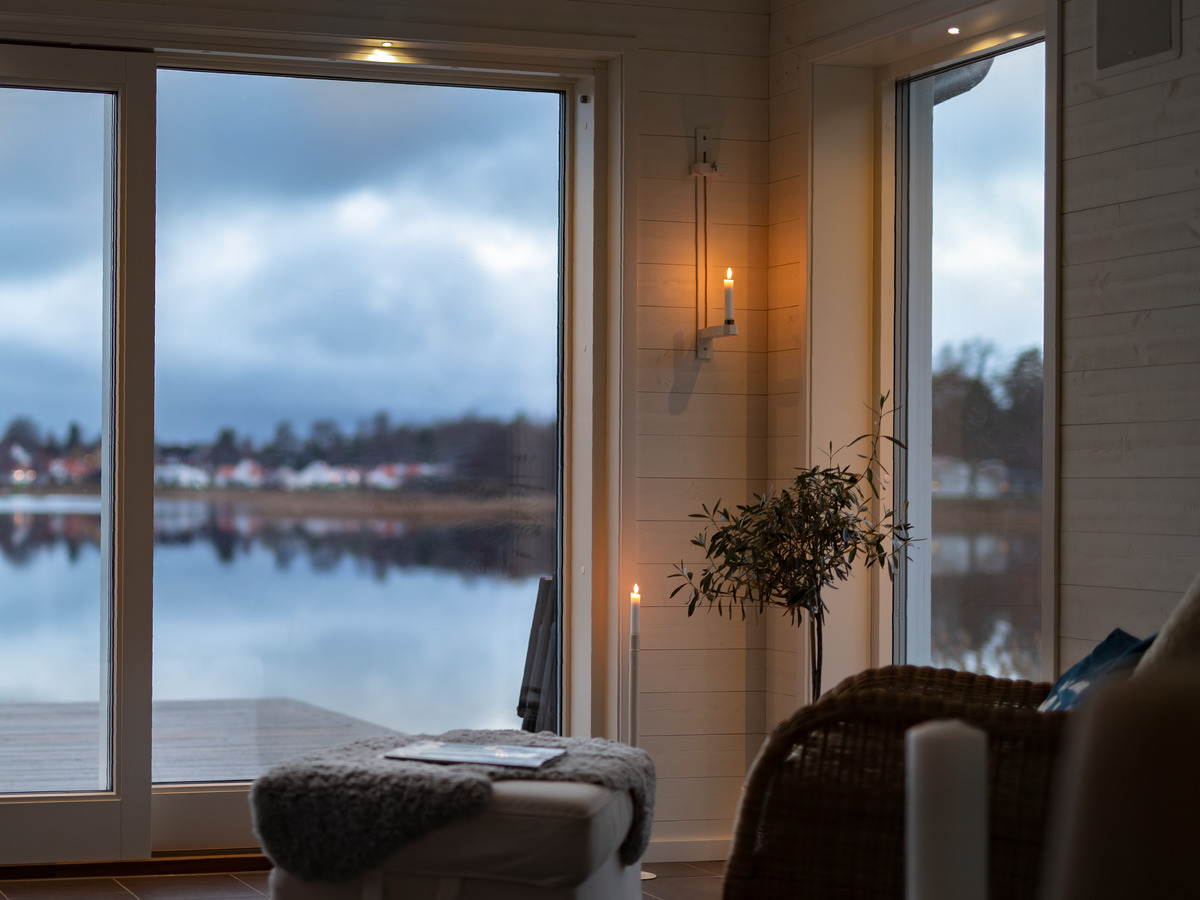

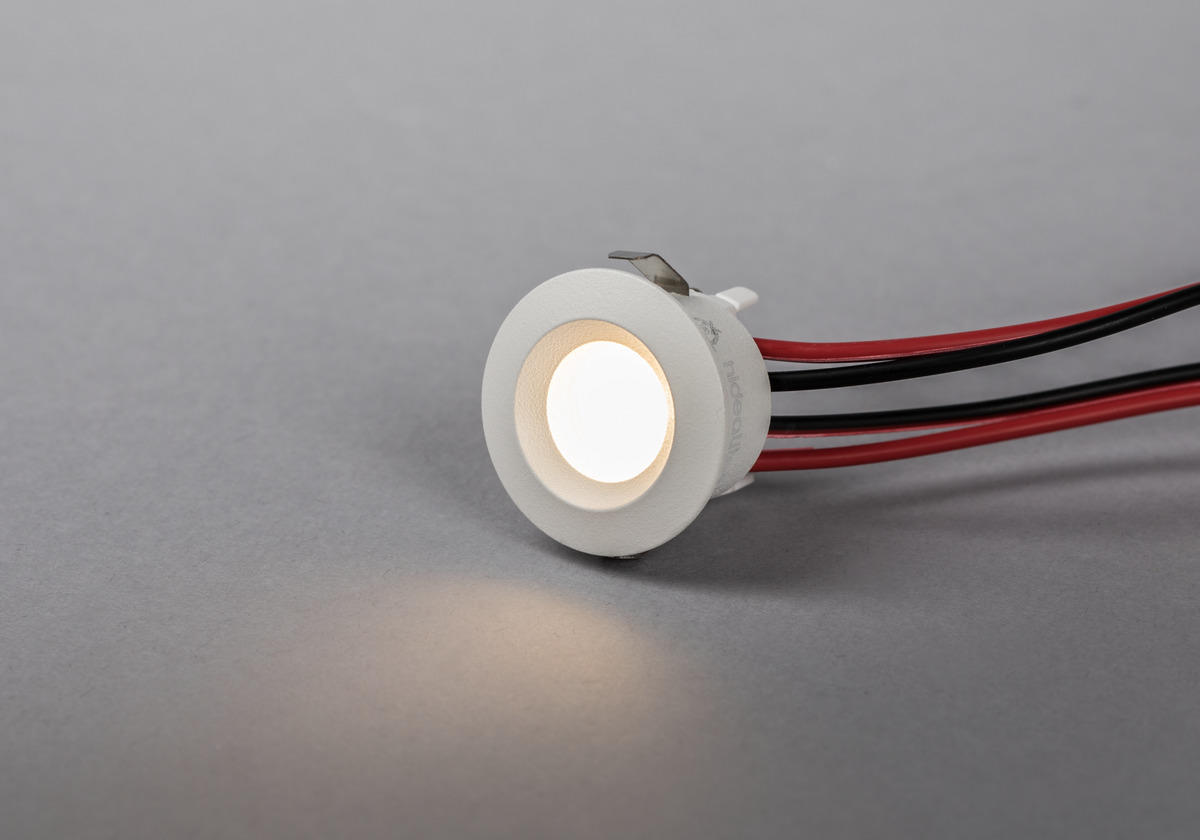

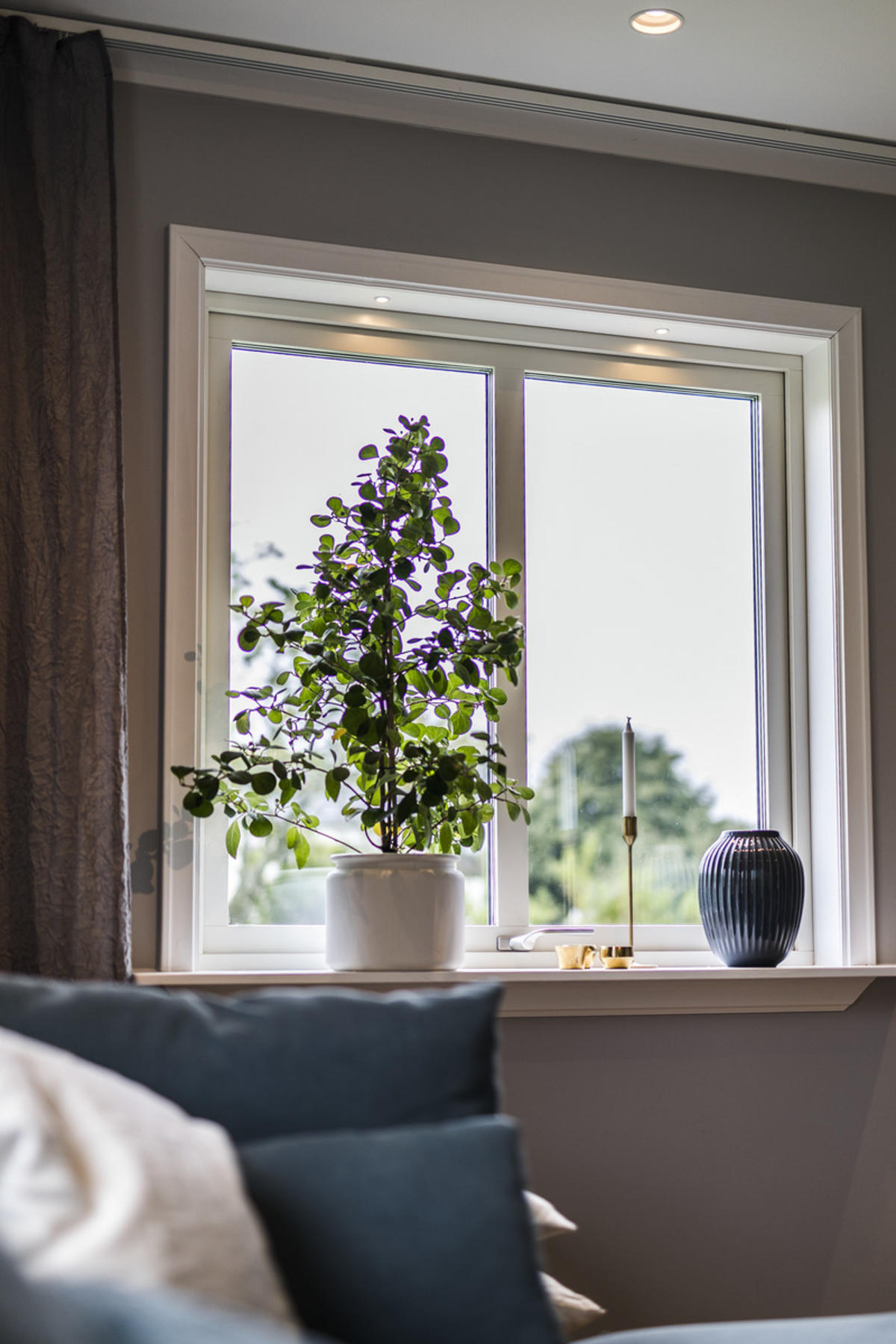

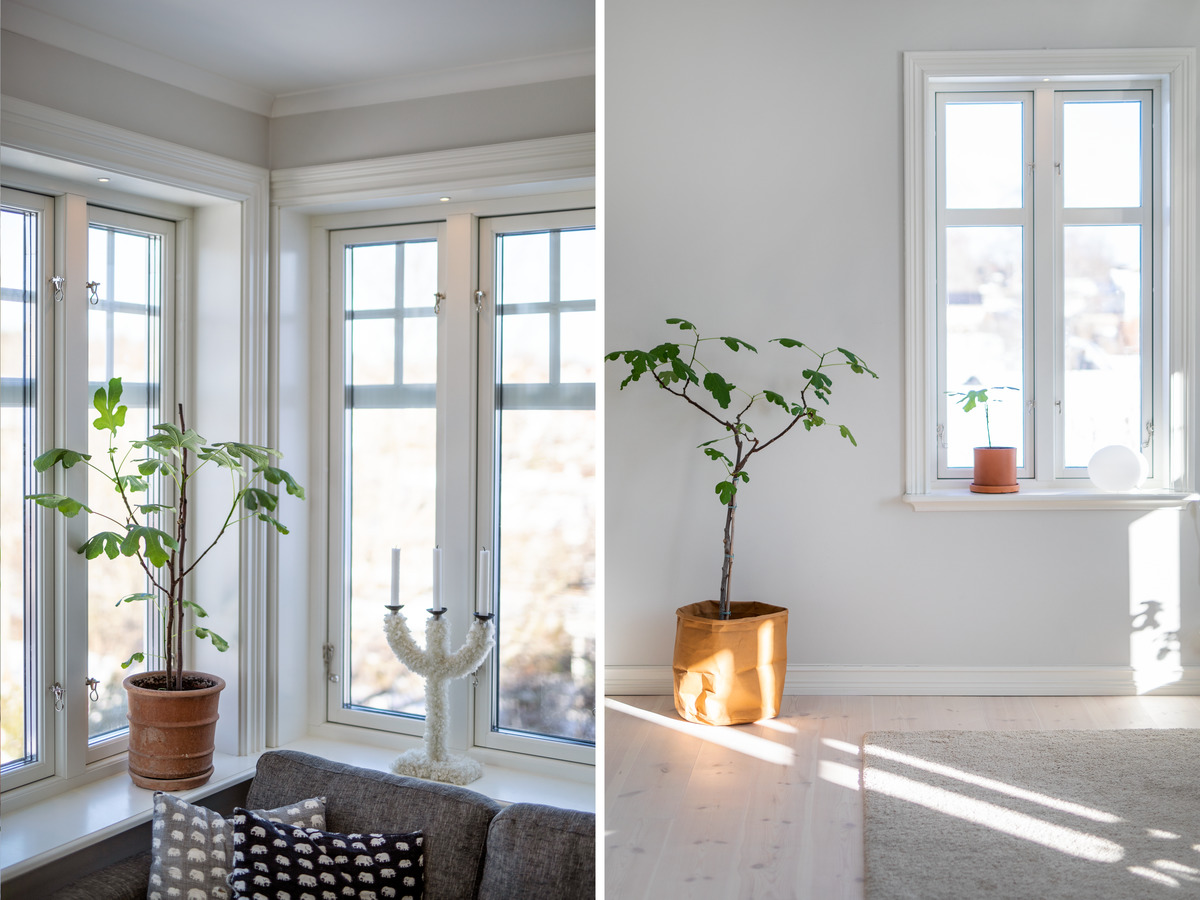

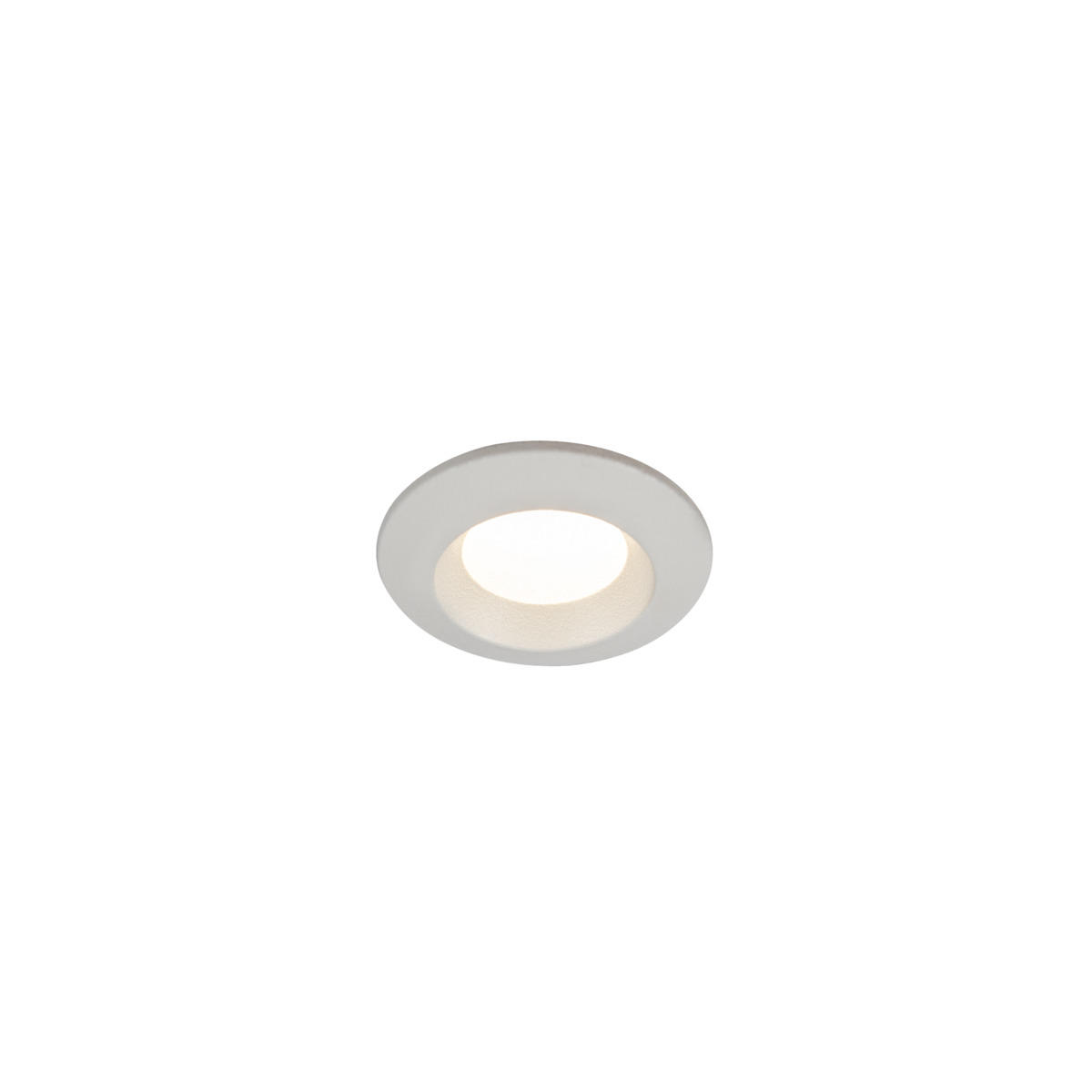

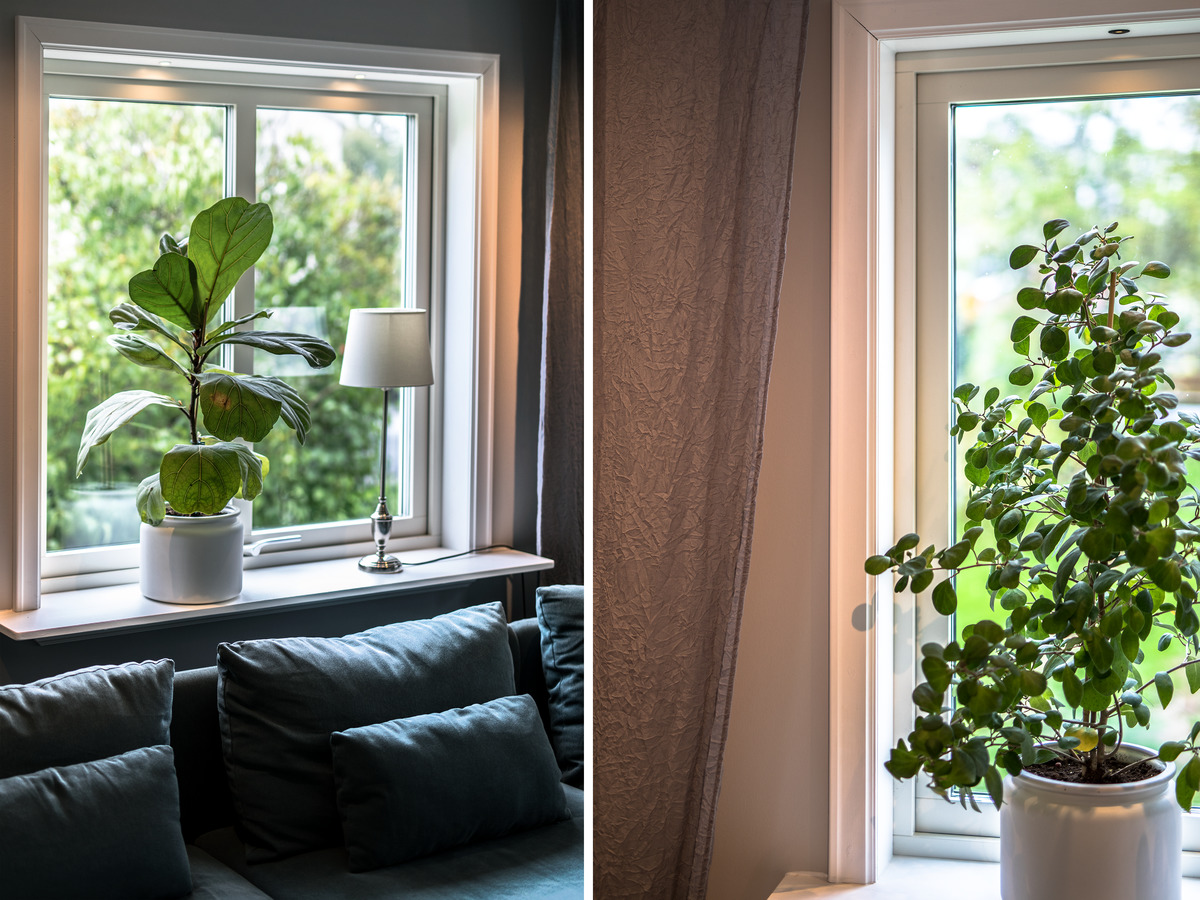

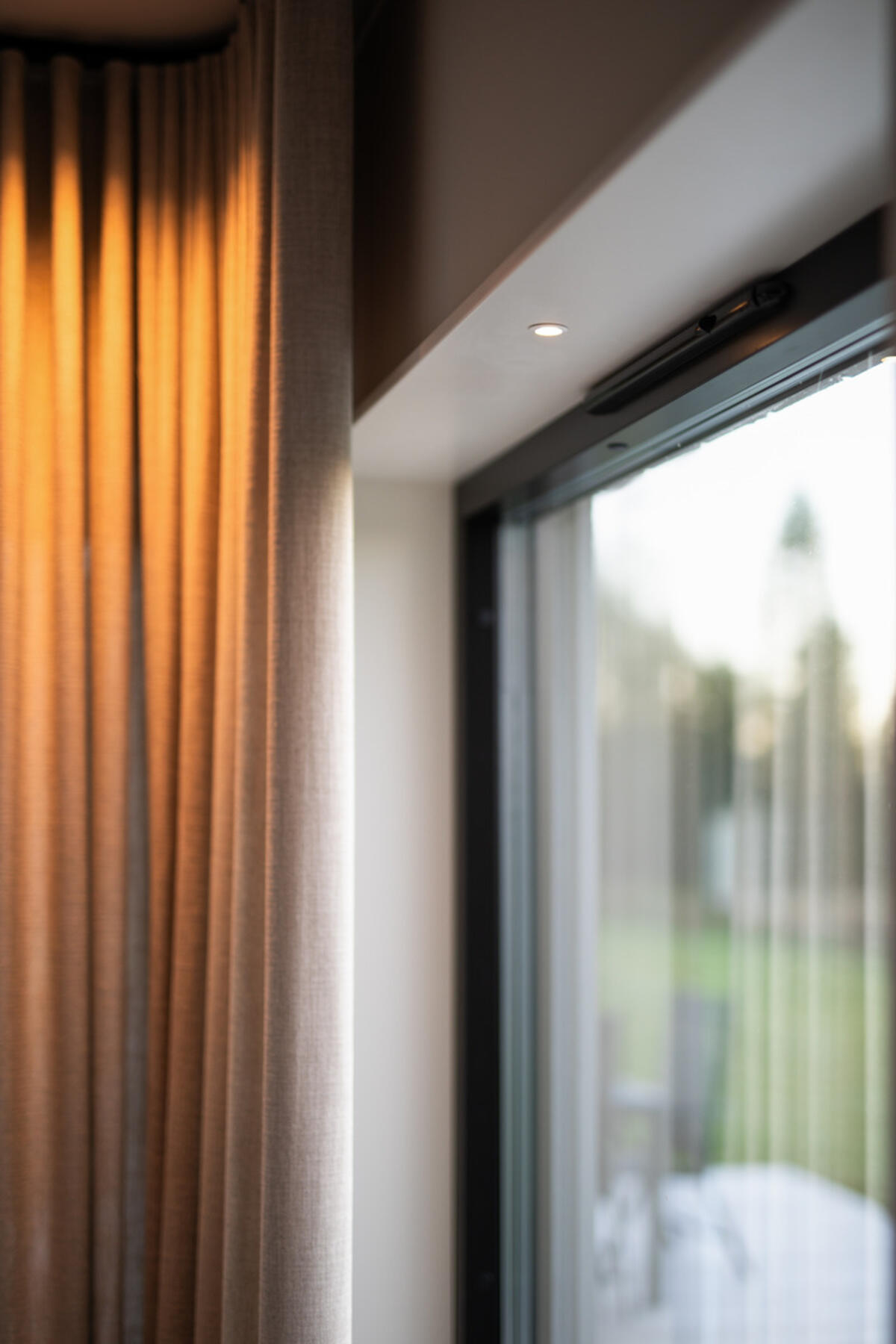

Small, exclusive accent luminaire of the highest quality for indoor use with integrated push-in terminal for simplified and smart series connection, eliminates the hassle of external joints and minimises sources of faults and simplifies troubleshooting. Recessed light spot makes the luminaire glare free. A good alternative when a 45° beam angle is wanted. Attractive as a decor light recessed into window nooks and furniture or for surface mounting with Core Smart Spacer Ring accessory.

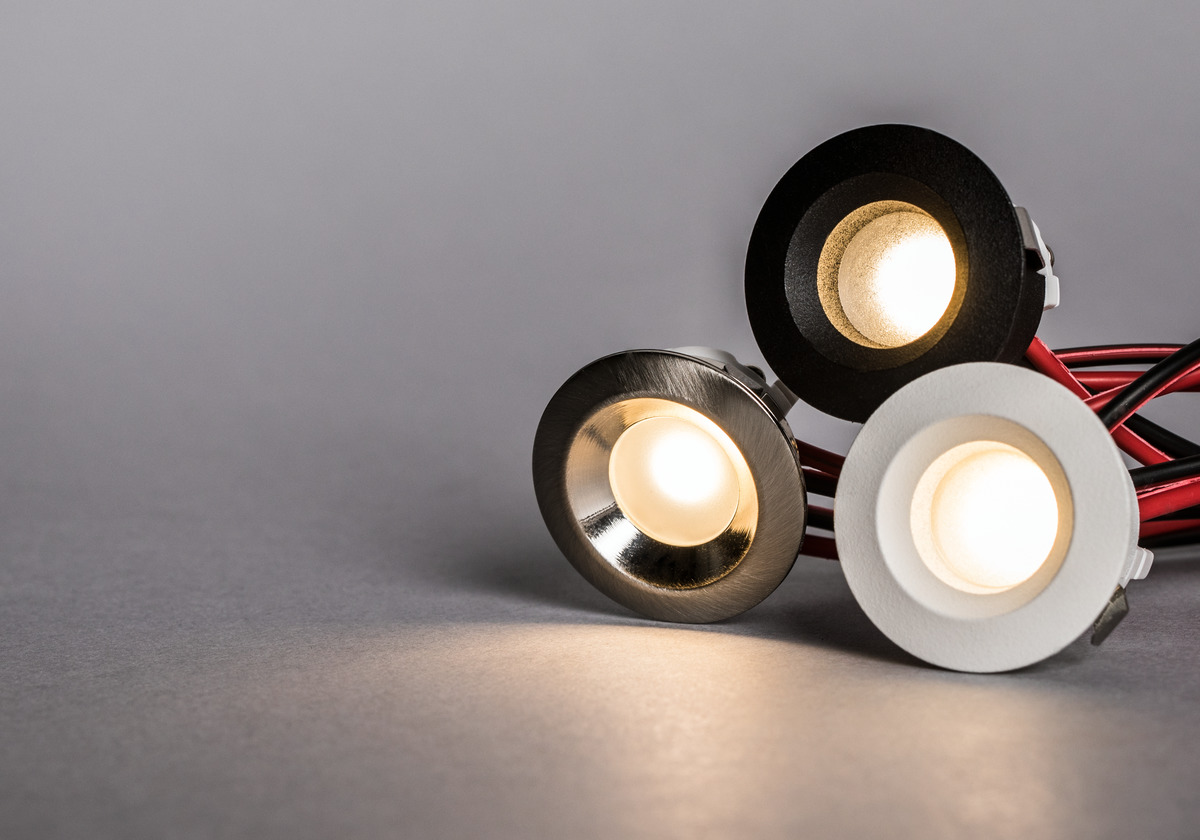

Variants

GTIN Item Name Color Colour Temperature (K) Luminaire Lumen (lm)
Core Smart 45° White 2700K 7392971134130 Core Smart 45° White 2700K White 2700 60
Core Smart 45° White 3000K 7392971134147 Core Smart 45° White 3000K White 3000 60
Core Smart 45° Brushed steel 2700K 7392971134154 Core Smart 45° Brushed steel 2700K Brushed Steel 2700 60
Core Smart 45° Brushed steel 3000K 7392971134161 Core Smart 45° Brushed steel 3000K Brushed Steel 3000 60
Core Smart 45° Black 2700K 7392971134178 Core Smart 45° Black 2700K Black 2700 40
Core Smart 45° Black 3000K 7392971134185 Core Smart 45° Black 3000K Black 3000 40

Core Smart 45° White 2700K

Description
GTIN 7392971134130
Item Name Core Smart 45° White 2700K
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
Replaceability Non-replaceaable LED
LED Colour Warm White
Colour Temperature (K) 2700
Colour Rendering Index (Ra) >90
Colour Consistency (SDCM) 3
Initial Chromaticity x:0,455, y:0,414
Luminous Intensity (cd) 90
Luminaire Lumen (lm) 60
Beam Angle (°) 45
Light sharing
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Life Time L70 90 000h Ta 25°C
Nominel Life Time (h) 90000
Technical data
Adjustable No
Voltage Forward (Vf) 3
Power Luminaire (W) 1,2
System Power (W) 1,3
Efficiency Luminaire (lm/W) 50
Efficiency System (lm/W) 46
Containing light source energy efficiency class (EU) 2019/2015 E
Operation and Connection
Driver Included No
Driver Model Constant Current

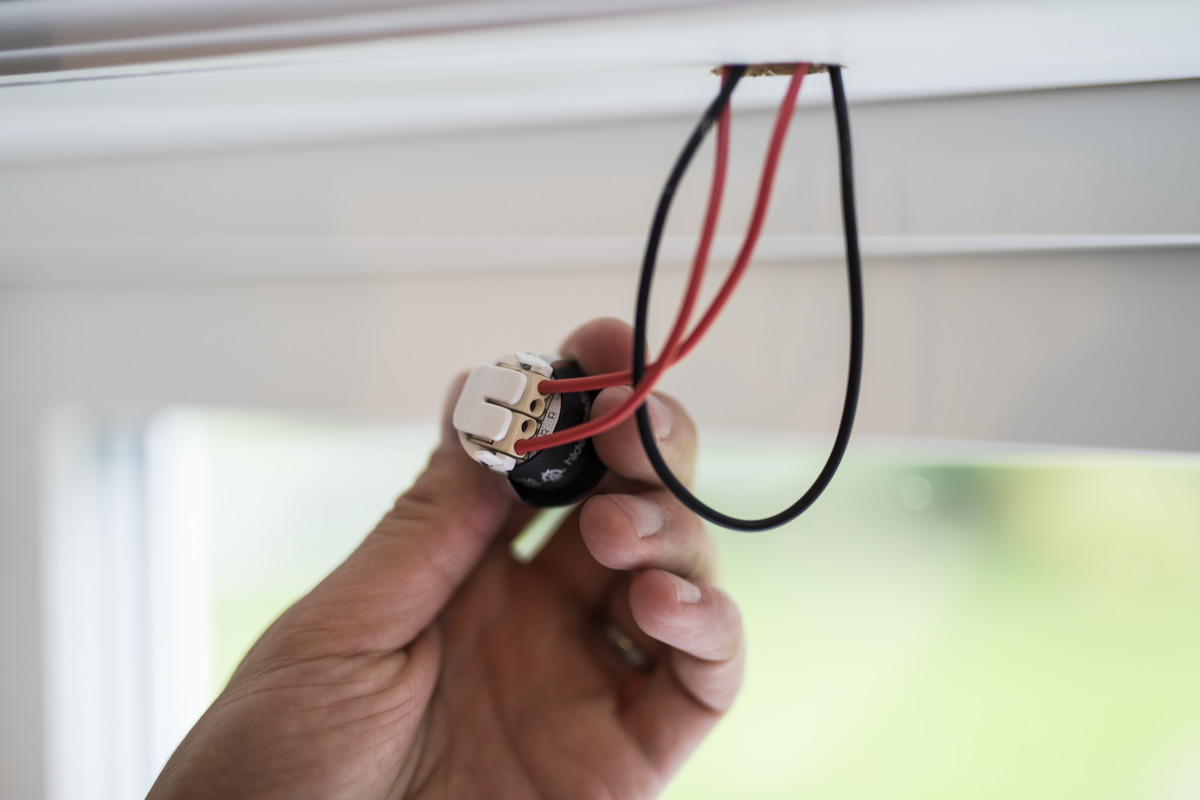

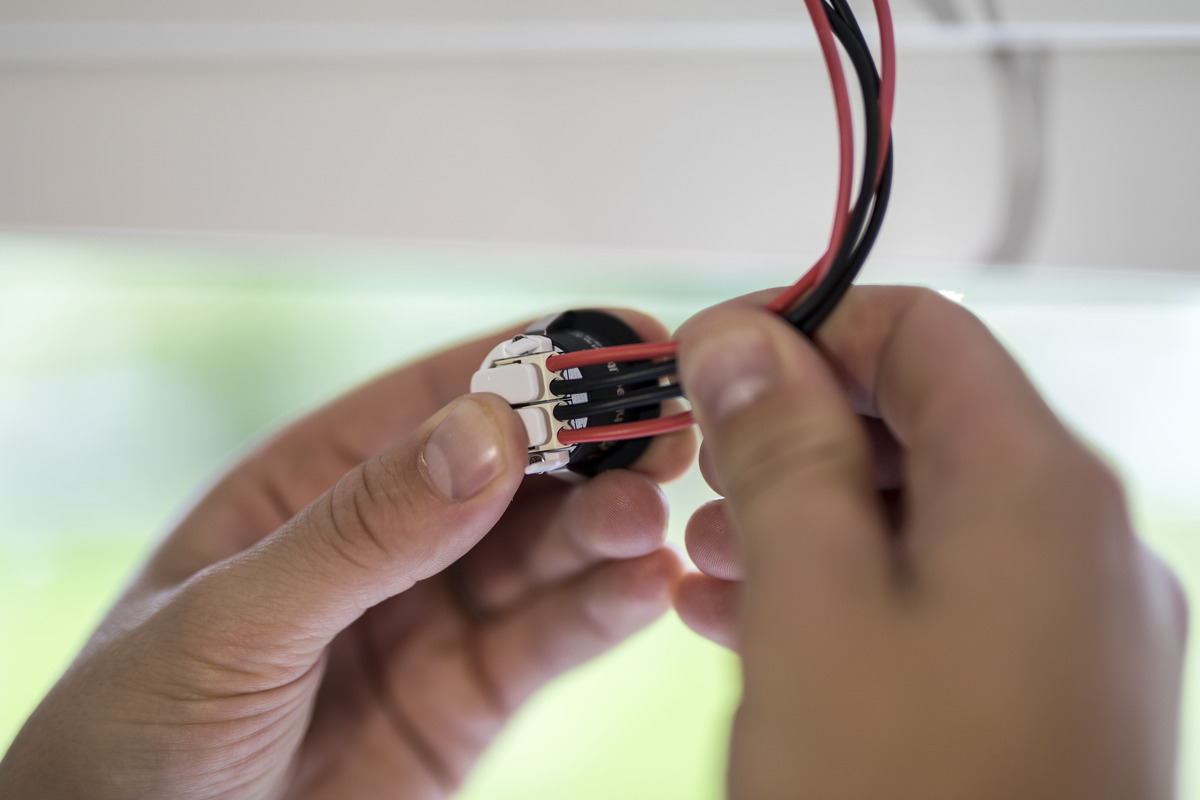

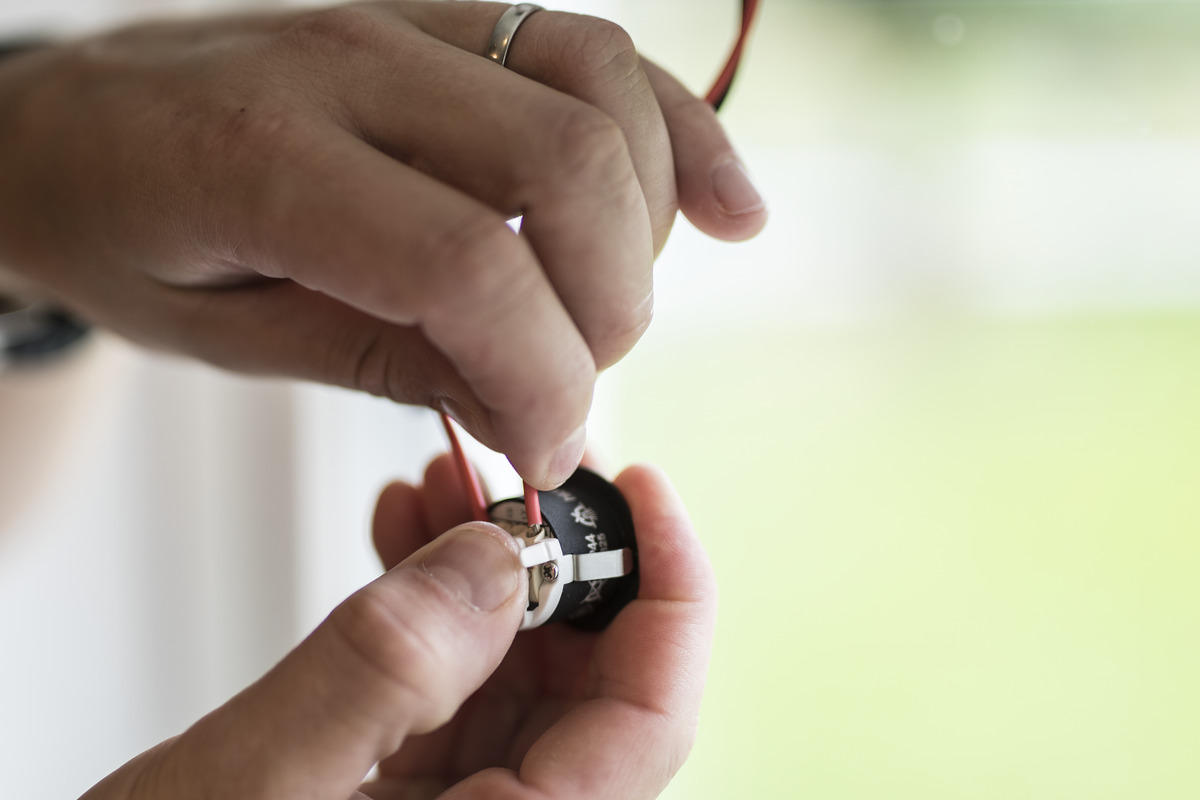

Connection (type) Quick Terminal
Connection (mm2) 2x0,2-0,75
Through Wiring Yes
Constant Current (mA) 350
Operating Temperature -20…+45
Max. Tc (°C) 80
Dimmable Yes
Color and material
Material Aluminium
Color White
Environmental Assessment Byggvarubedömningen
Measurement and installation

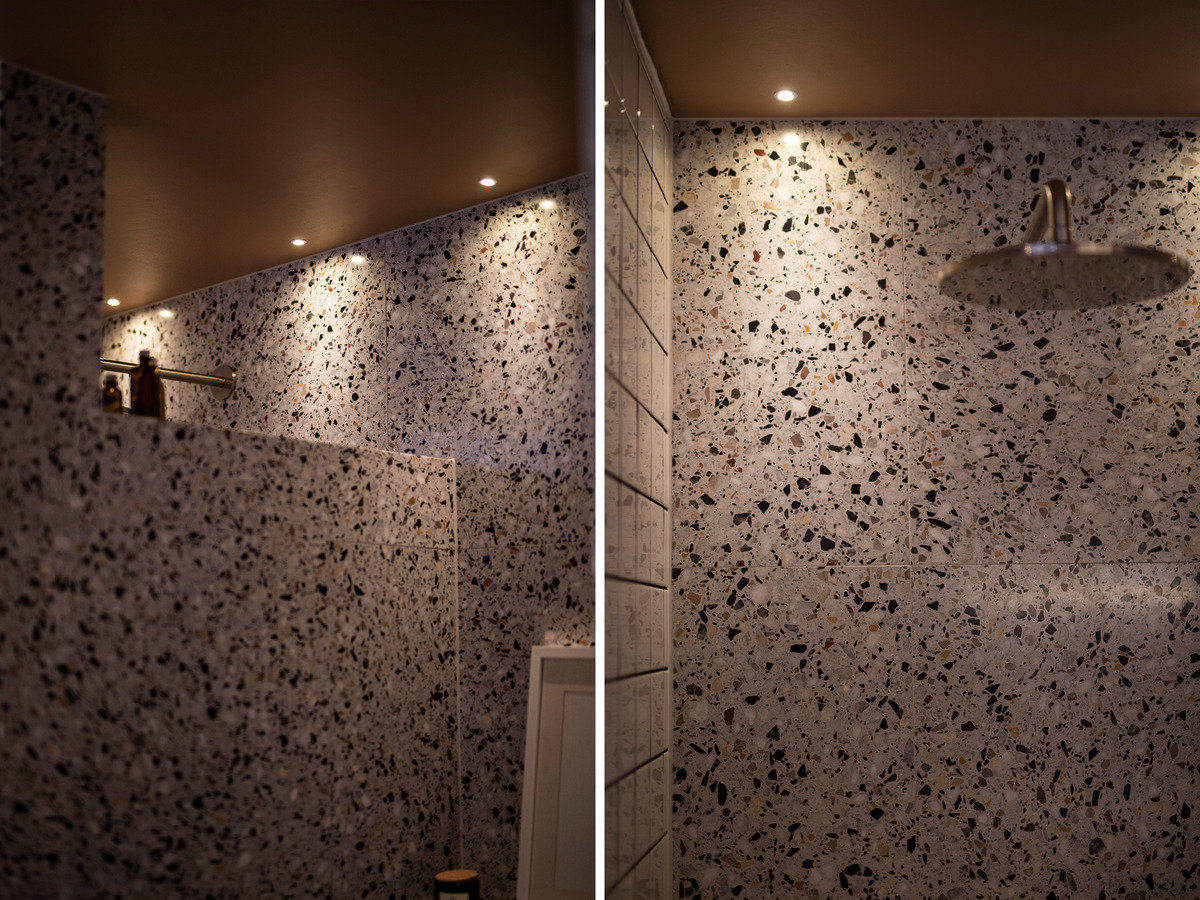

Operating Environment Indoor / bathroom (ceiling area 1)
IP Degree of Protection 44
Protection Class III
Installation Built-in
Mounting Installation Tension Spring
Ceiling Thickness Interval (mm) 3
Height Surface Mounted (mm) 30
Fire Safety Marks Not in insulation without protection cover
Approval Marks CE
Filament Test IEC 695-2-1(°C) 650

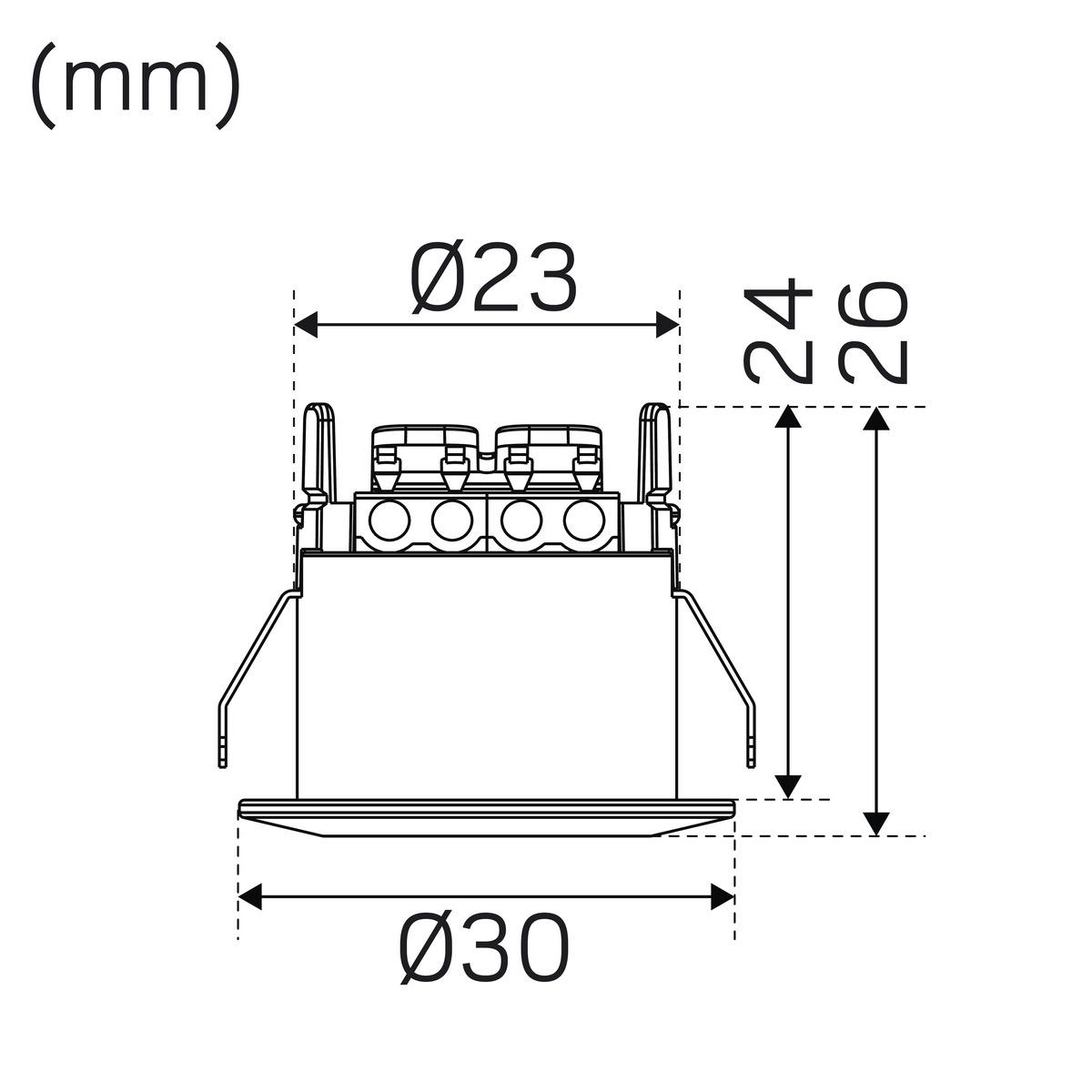

Height (mm) 26
Diameter (mm) 30
Weight (kg) 0,015
Min. Built-in (mm) Ø25x20
Height Recessed Part (mm) 24
Height Exterior Part (mm) 3
Built-in Ø (mm) 25
