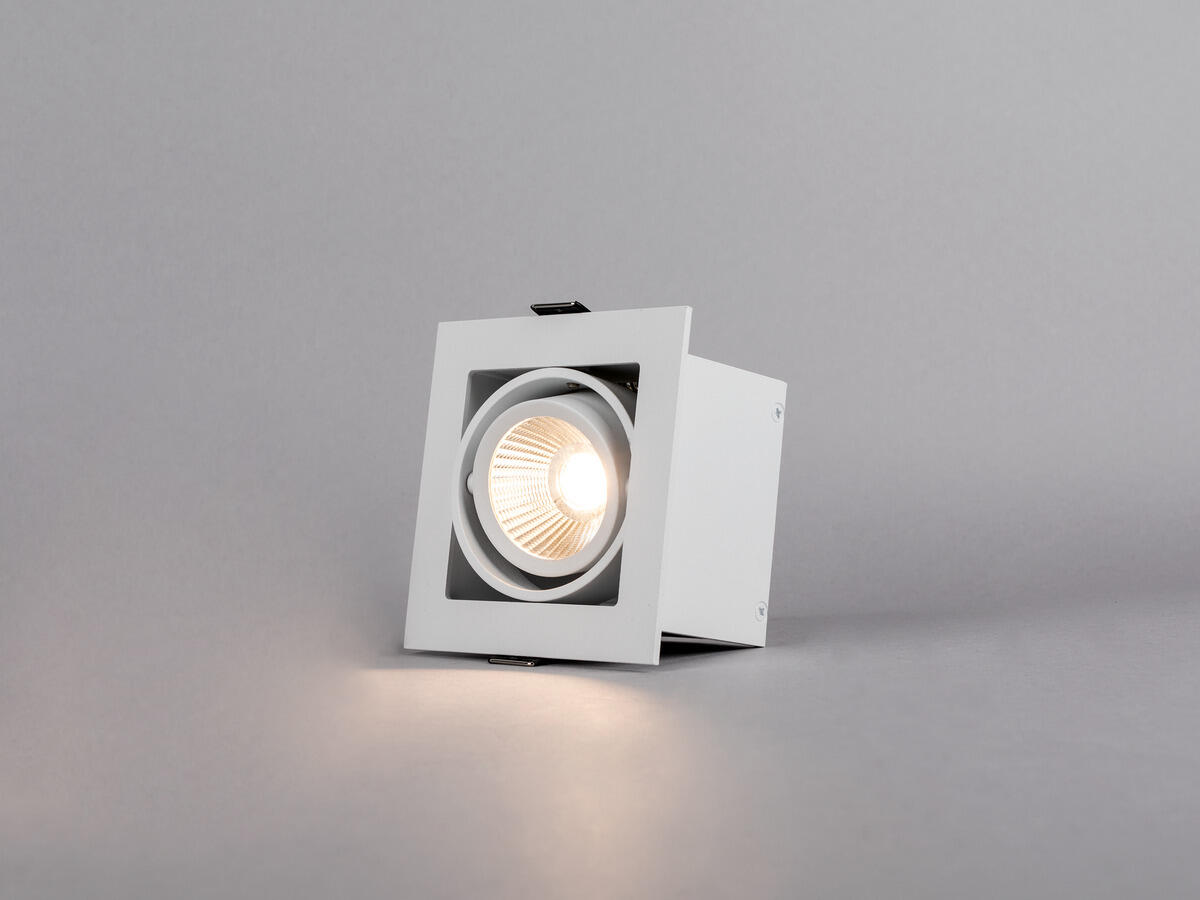

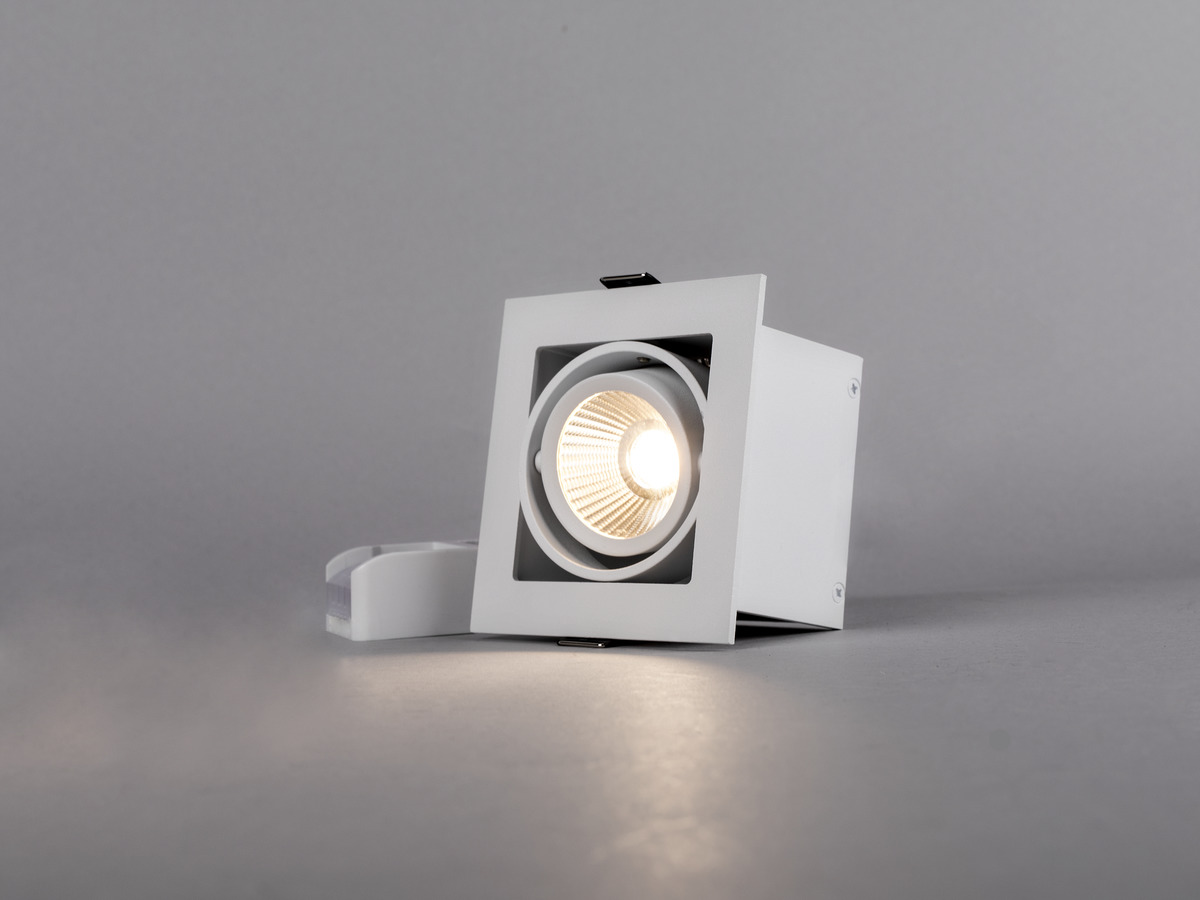

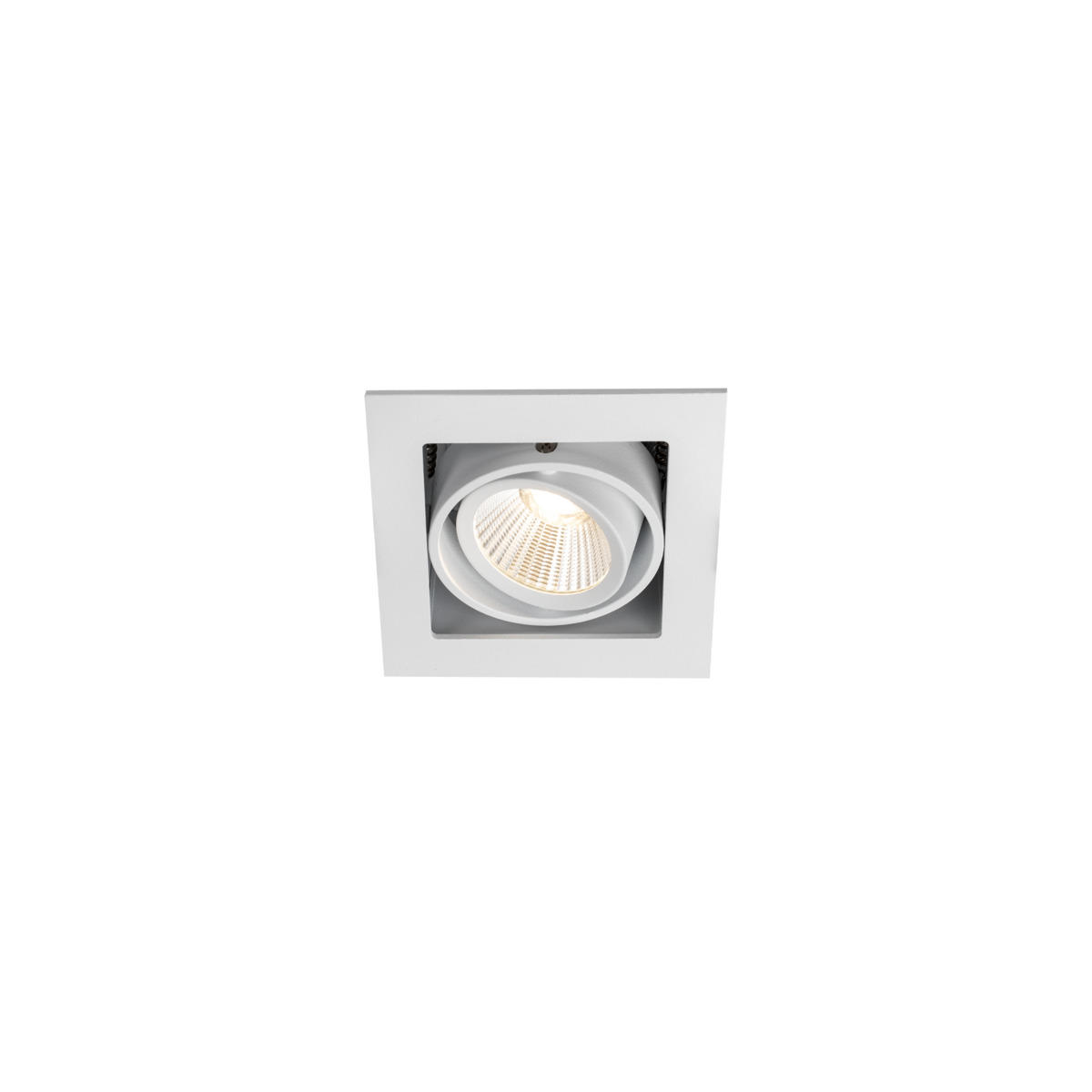

Optic Box I

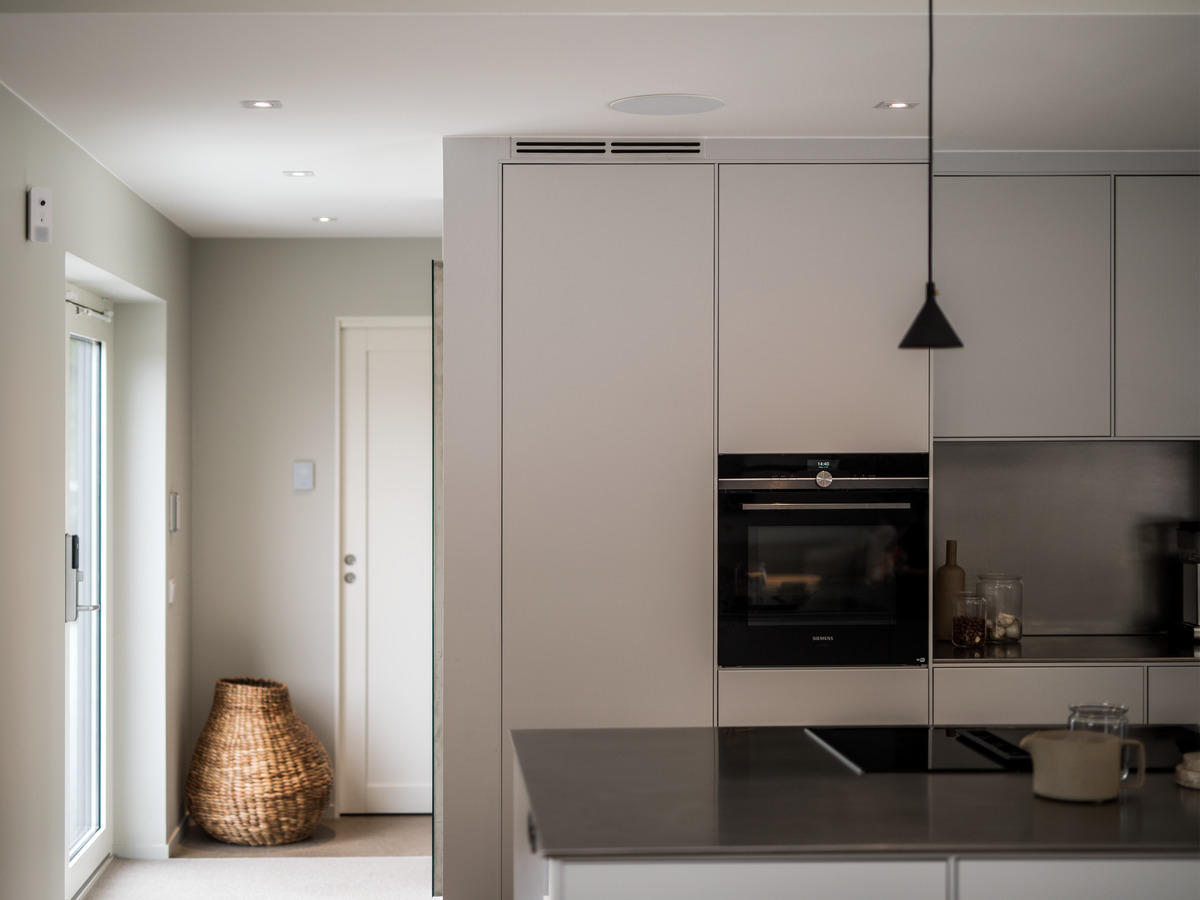

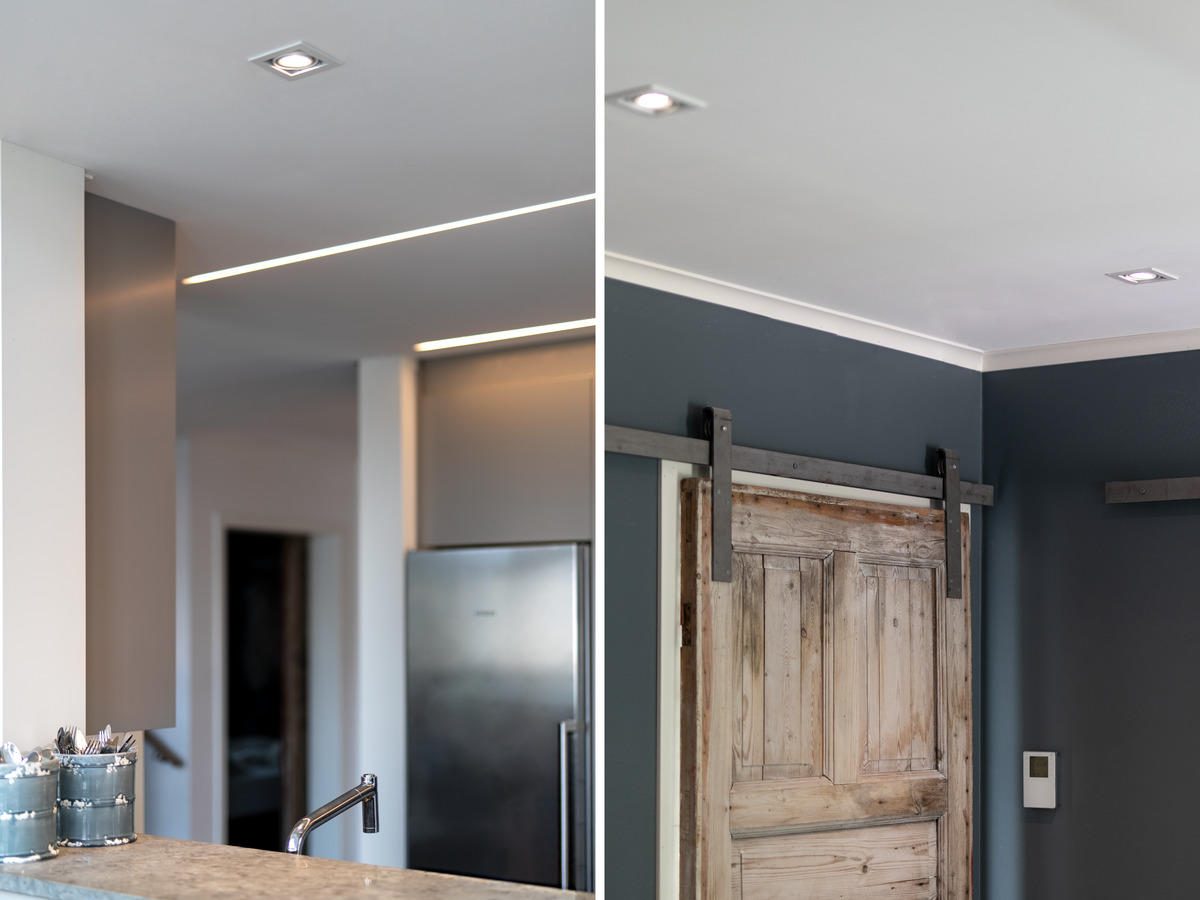

Complete 230V downlight in box-design with reflector technology and phase dimmable driver. With its square design, fits very well in both private and public environments which require a discrete and comfortable general light. Comes in several colour temperatures and Tune. Very good colour rendering, Ra>95. Can be installed under moisture barrier with our Spot Guard Gles. Complete with phase dimmable driver with push-in terminal and screwless strain relief. Dimmable with the most commonly available dimmers on the market. Can be delivered with Converter DALI.
Exists in one color


GTIN Item Name Colour Temperature (K) Luminaire Lumen (lm)
Optic Box I White Tune 7392971137438 Optic Box I White Tune 2700 465
Optic Box I White 2700K 7392971137445 Optic Box I White 2700K 2700 525
Optic Box I White 3000K 7392971137452 Optic Box I White 3000K 3000 575

Optic Box I White Tune

GTIN 7392971137438
Item Name Optic Box I White Tune
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
LED Colour Tune
Colour Temperature (K) 2700
Range Colour Temperature (K) Tune 2000-2700
Colour Rendering Index (Ra) >95
Colour Consistency (SDCM) 3
Initial Chromaticity x:0.4402 y:0.4035
Luminous Intensity (cd) 800
Luminaire Lumen (lm) 465
Beam Angle (°) 36
Light sharing
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Life Time L80 100 000h Ta 25°C
Nominel Life Time (h) 100000
Life Time Driver 50 000h/10%
Technical data
Adjustable Yes
Tiltable (°) 25
Rotatable (°) 360
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50, 60
Power LED (W) 6,5
Power Luminaire (W) 7,5
System Power (W) 7,5
Efficiency Luminaire (lm/W) 62
Efficiency System (lm/W) 62
Operation and Connection

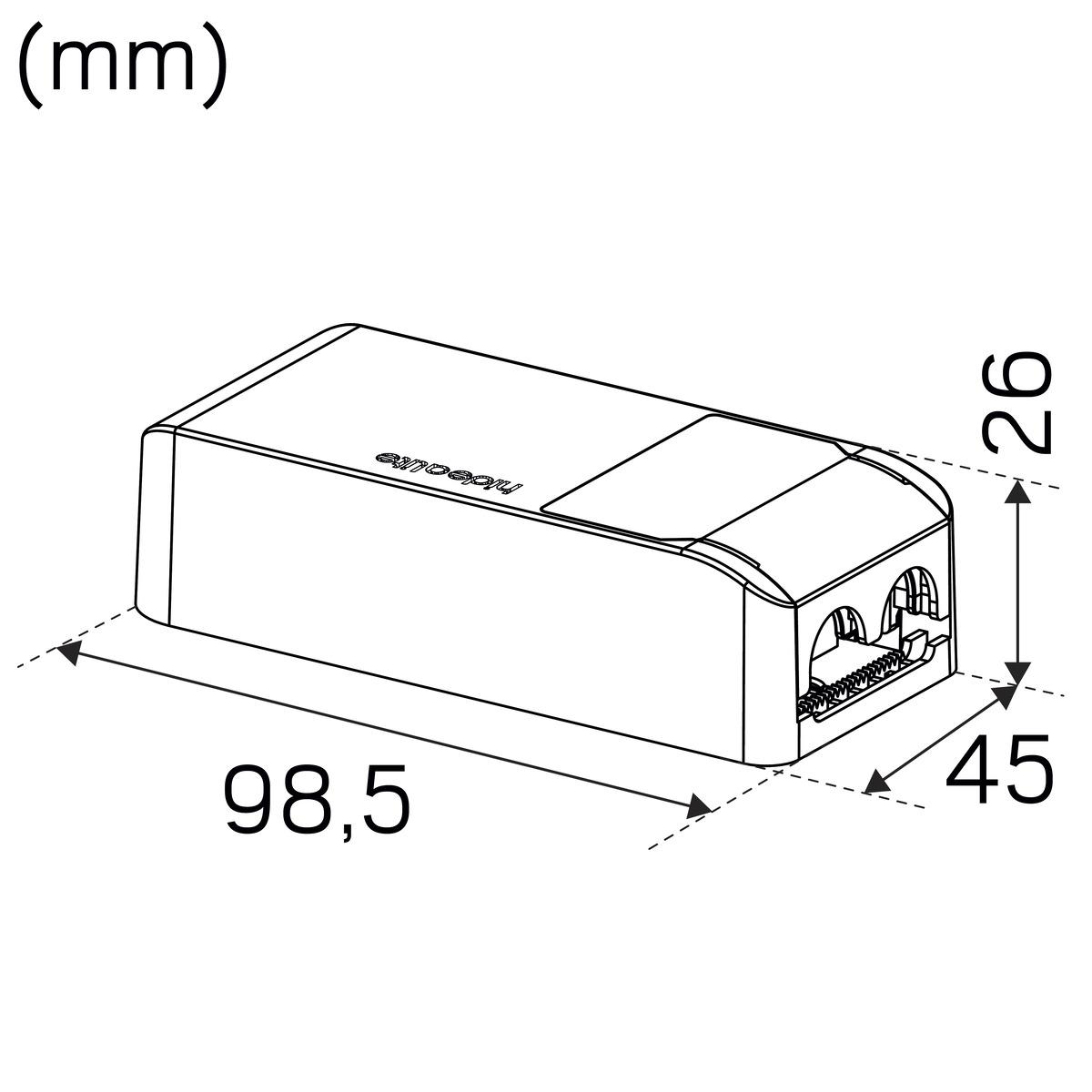

Driver Included Yes
Driver Model Constant Current
Driver Type Stand Alone
Connection (type) Quick Terminal
Connection (mm2) 3x0,5-2,5
Through Wiring Yes
Strain Relief Yes
Power Factor ʎ 0,9
Efficiency (%) 80
Constant Current (mA) 180
Operating Temperature -20…+40
Max. Tc (°C) 85
Dimmable Yes
Type of Dimming Trailing Edge, Leading Edge
Memory Function Power Failure No
Protection Against Short Circuit, Overheating 110°C, Overload
Fuse B10 (pcs) 55
Fuse B16 (pcs) 85
Fuse C10 (pcs) 90
Fuse C16 (pcs) 140
Color and material
Material Aluminium
Color White
Environmental Assessment Byggvarubedömningen
Measurement and installation
Operating Environment Indoor / damp locations
IP Degree of Protection 21
Protection Class II
Installation Built-in
Mounting Installation Mounting Spring
Ceiling Thickness Interval (mm) 3-26
Fire Safety Marks Not in insulation without protection cover
Protection Cover 7466700, 7466701, 7466702
Approval Marks CE, SELV
Filament Test IEC 695-2-1(°C) 650

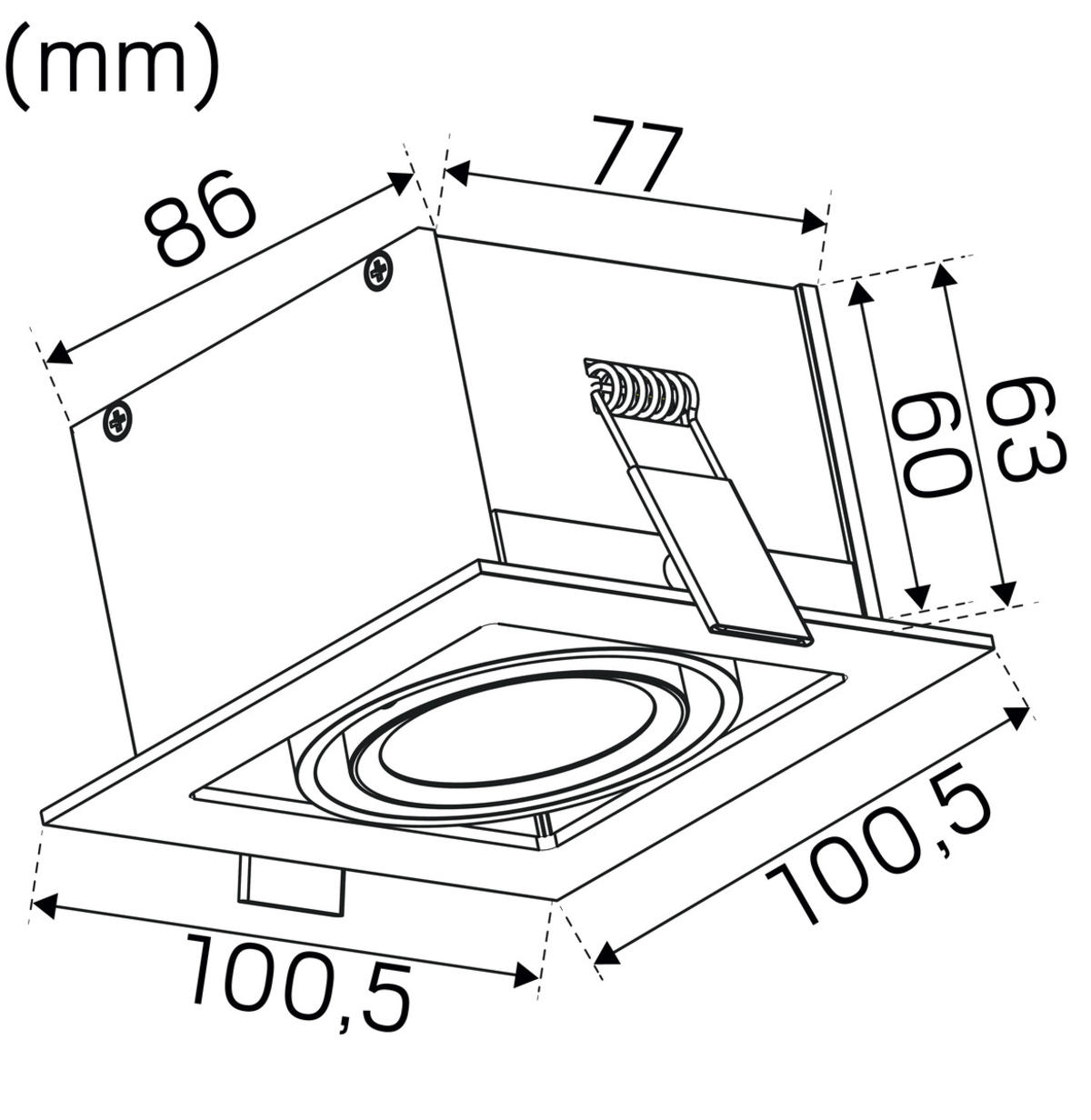

Length (mm) 101
Width (mm) 101
Height (mm) 63
Weight (kg) 0,44
Min. Built-in (mm) 200x200x70
Min. Air Volume (cm3) 2400
Height Recessed Part (mm) 60
Height Exterior Part (mm) 3
Built-in LxB (mm) 88x88
