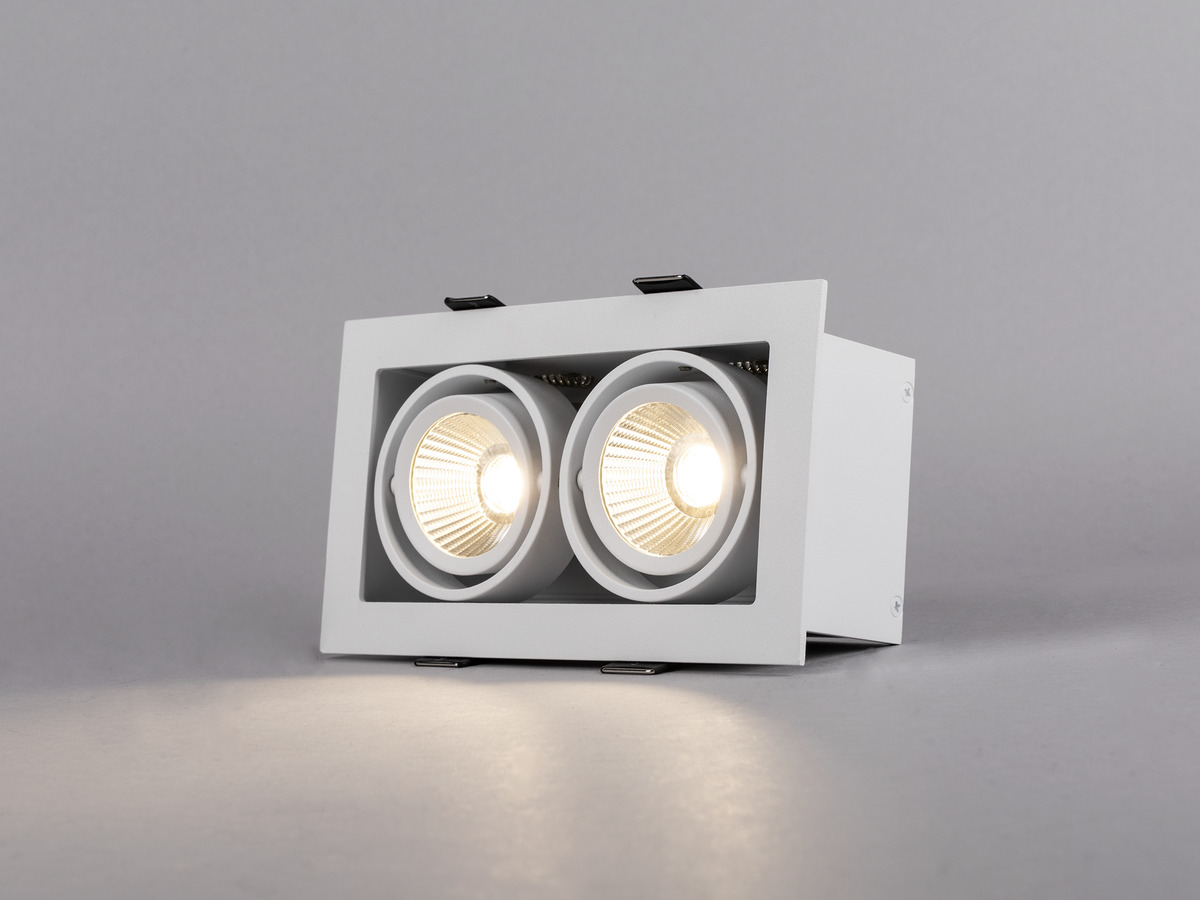

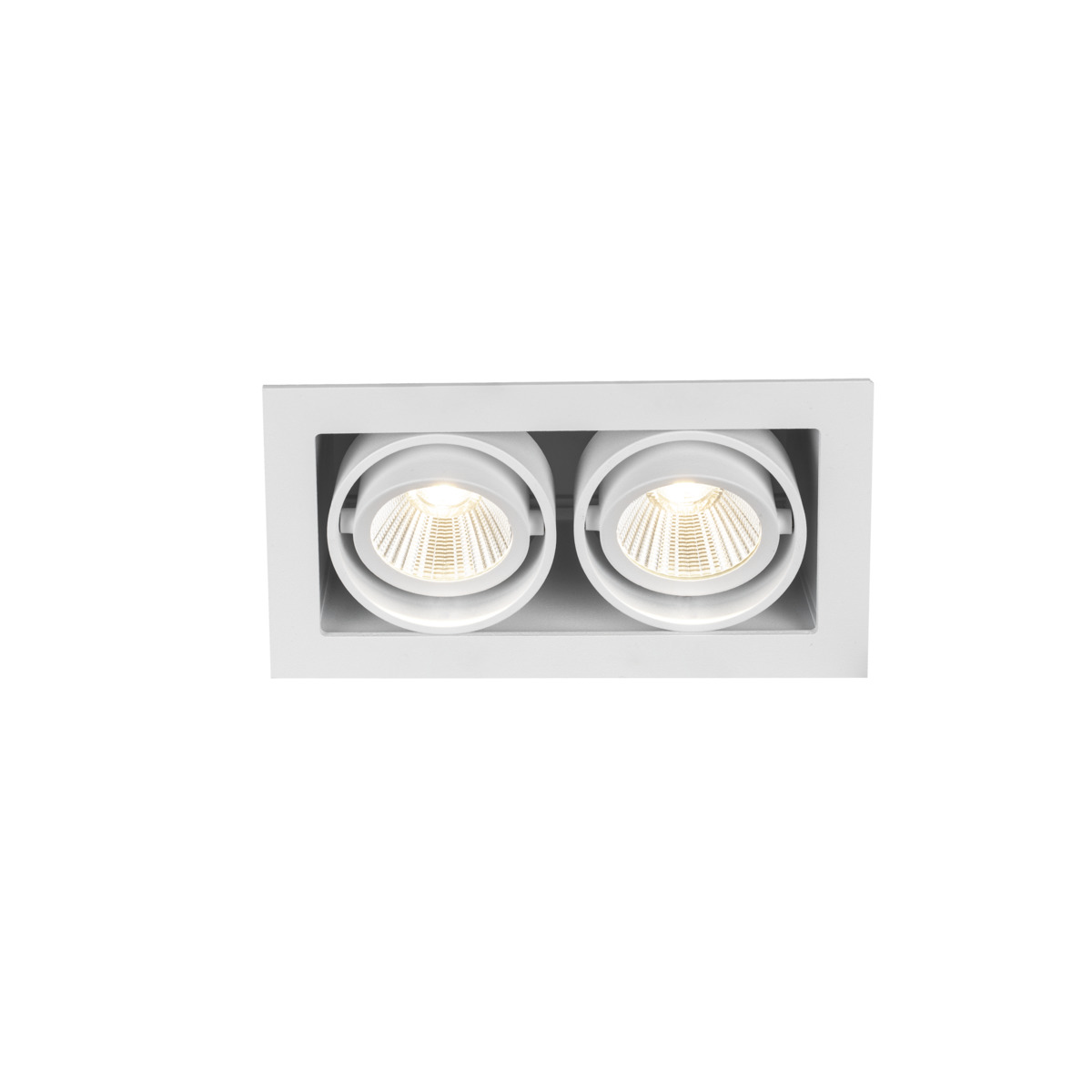

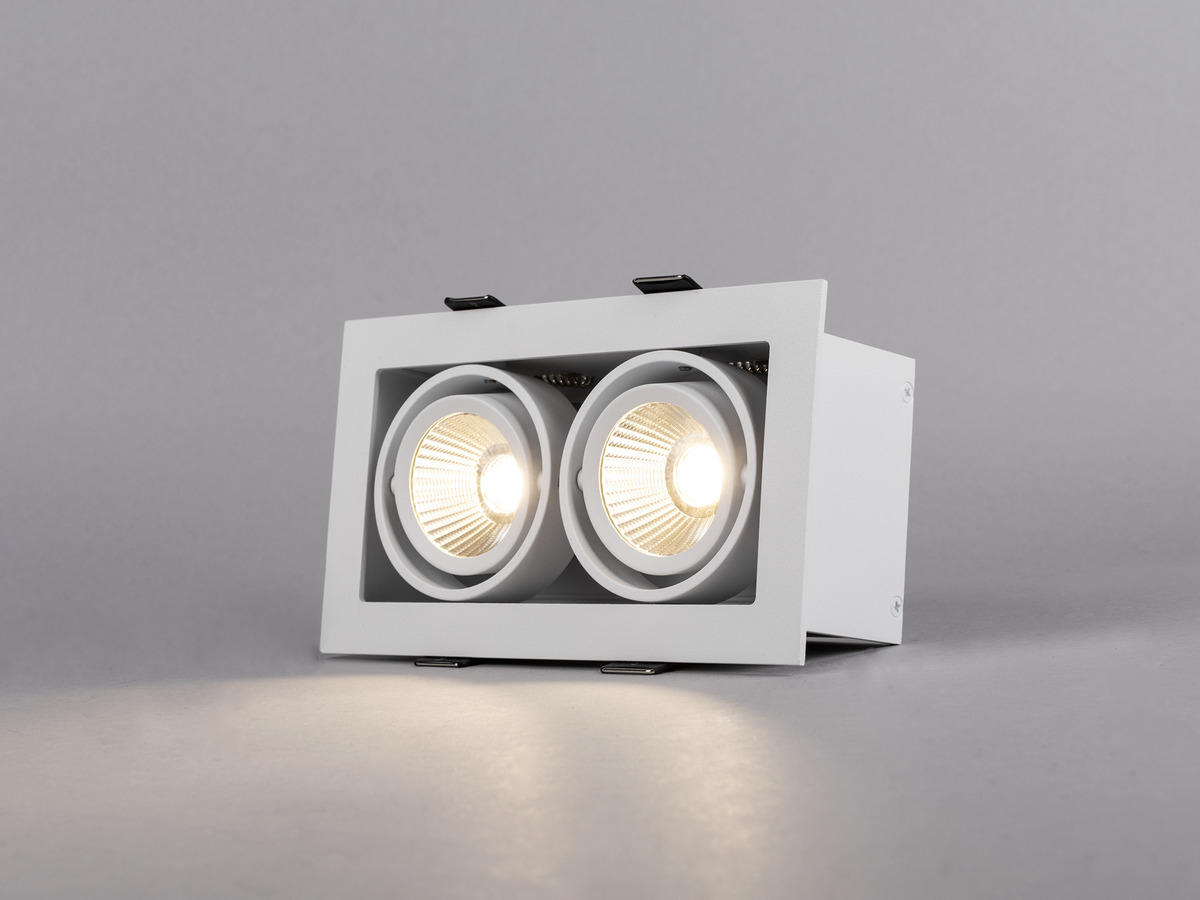

Optic Box II

Complete 230V downlight in box-design with reflector technology and phase dimmable driver. With its square design, fits very well in both private and public environments which require a discrete and comfortable general light. Comes in several colour temperatures and Tune. Very good colour rendering, Ra>95. Can be installed under moisture barrier with our Spot Guard Gles. Complete with phase dimmable driver with push-in terminal and screwless strain relief. Dimmable with the most commonly available dimmers on the market. Can be delivered with Converter DALI.
Exists in one color
Variants GTIN Item Name Colour Temperature (K) Luminaire Lumen (lm)
Optic Box II White 2700K 7392971137476 Optic Box II White 2700K 2700 1050
Optic Box II White Tune 7392971137469 Optic Box II White Tune 2700 930
Optic Box II White 3000K 7392971137483 Optic Box II White 3000K 3000 1150

Optic Box II White 2700K

Save as favourite Save as pdf
Description
GTIN 7392971137476
Item Name Optic Box II White 2700K
Warranty 5 years
Light Technical Data
Technical data
Operation and Connection
Color and material

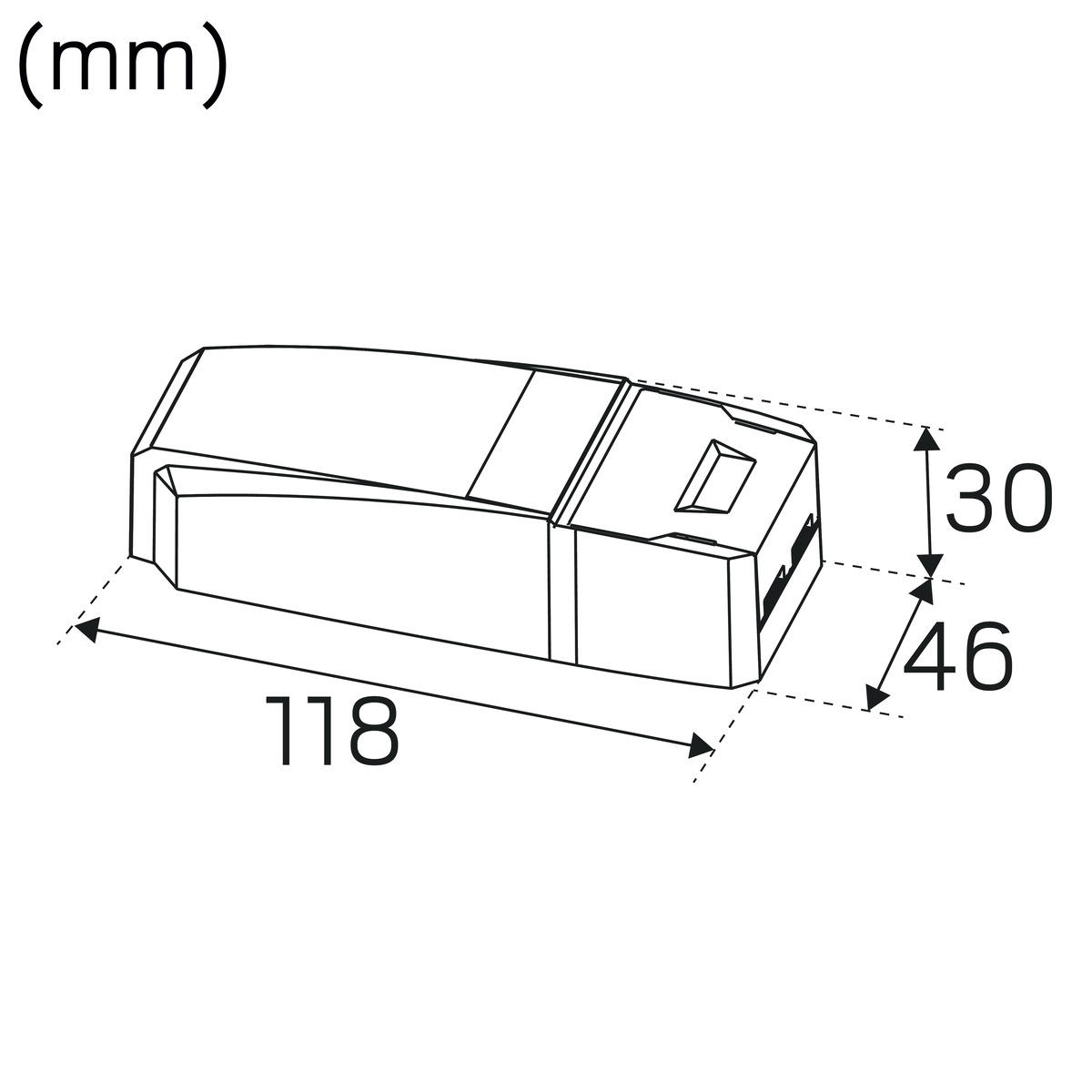

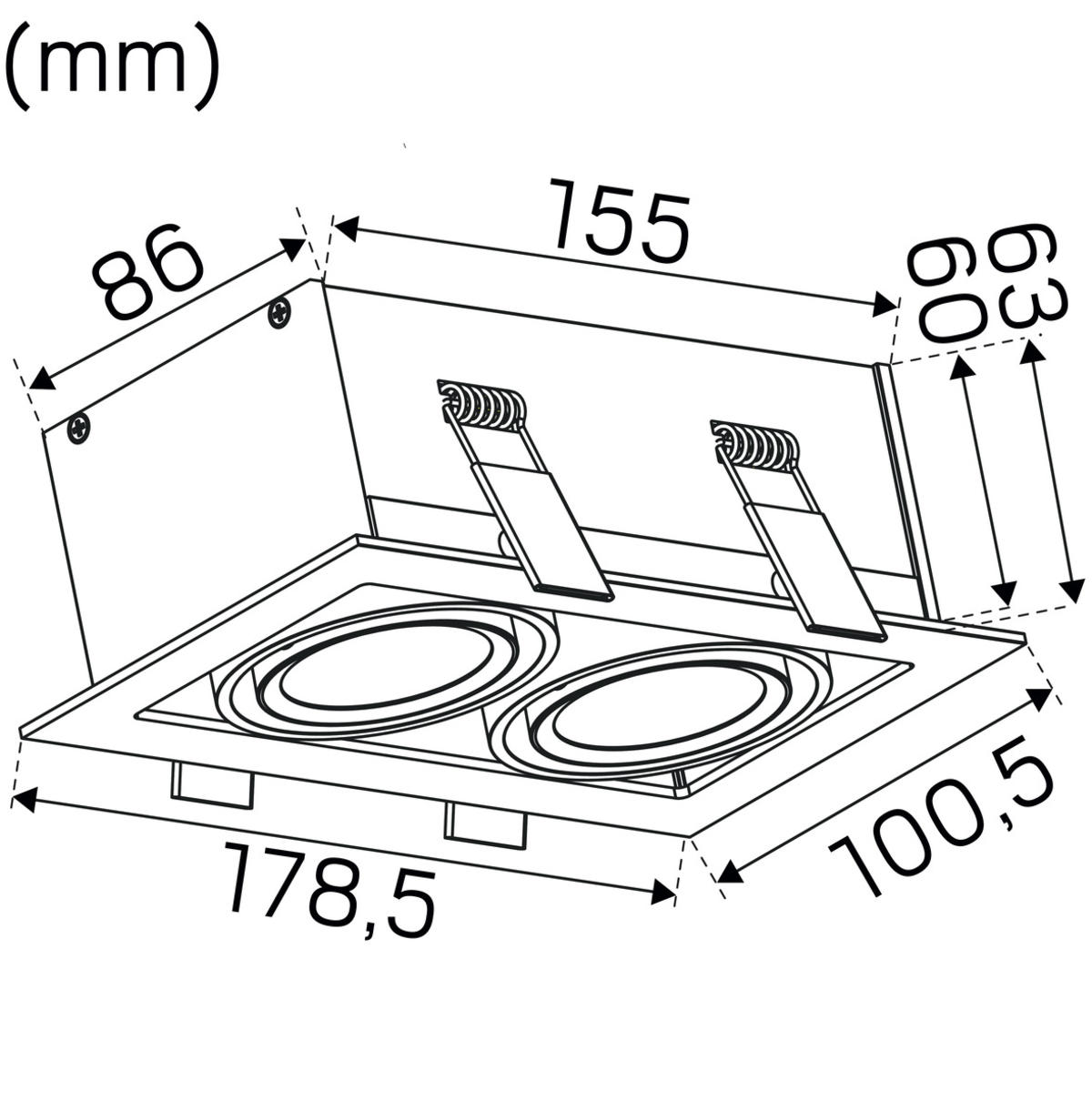

Measurement and installation

Accessories

1360591p.tif

Push dimmer Round DALI/PUSH 200W

Small and versatile dimmer puck for mains dimmable drivers and luminaires. For installatio…
7982349p.tif

Converter DALI DIP 120mA-350mA 14W

DALI converter and included Q-Box Micro for constant current luminaires. Q-box Micro has 5…
7981779p.tif

Converter DALI 350mA

DALI converter for constant current luminaires. The primary side has push-in, loop-in, loo…
7466702p.tif

Spot Guard Gles

Cover intended for low-build downlights. Easy installation between secondary space boardin…
7451600p.tif

Spot Finder Kit

With Spot Finder in Spot Guard Gles, a simple and quick magnetic search finds the right pl…
