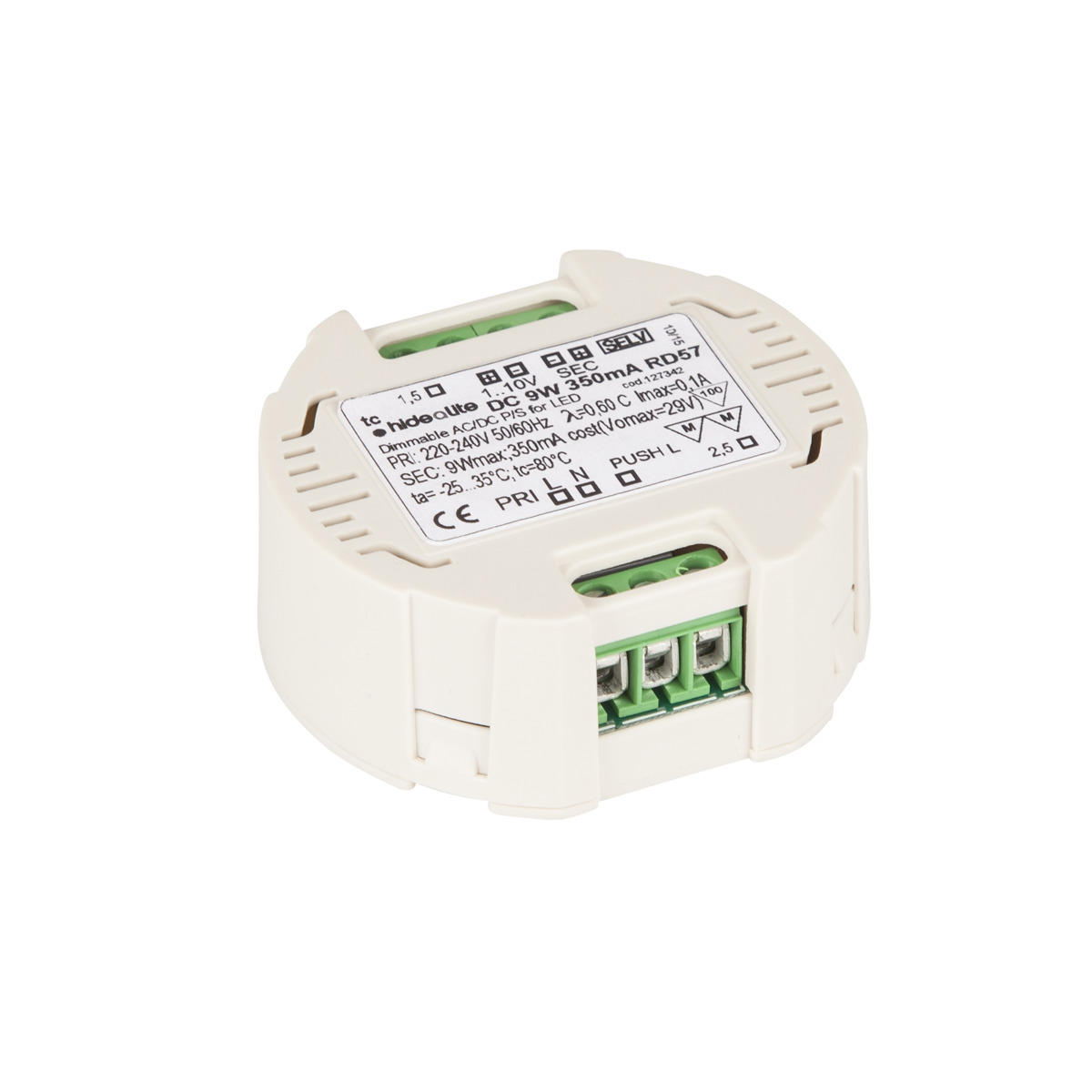

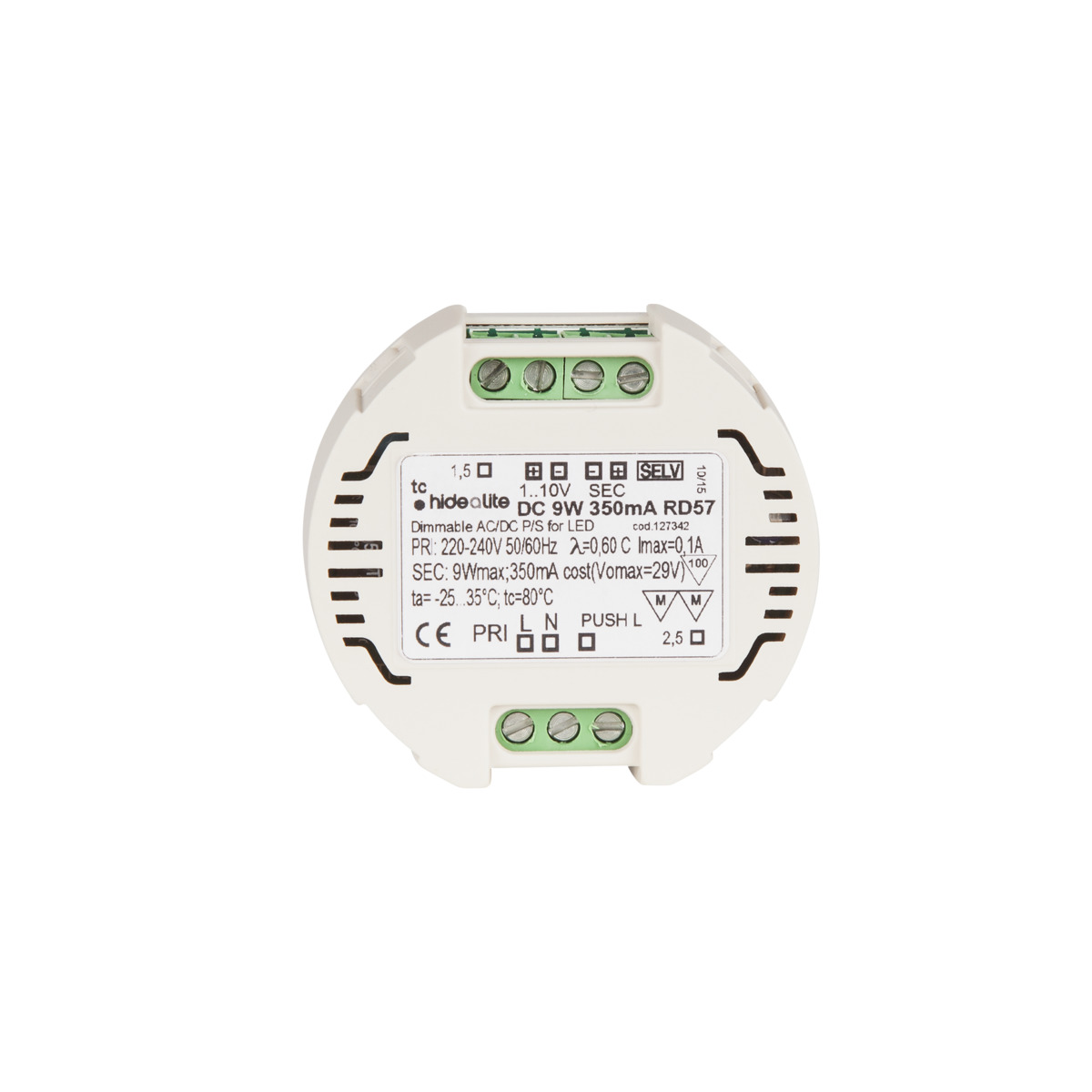

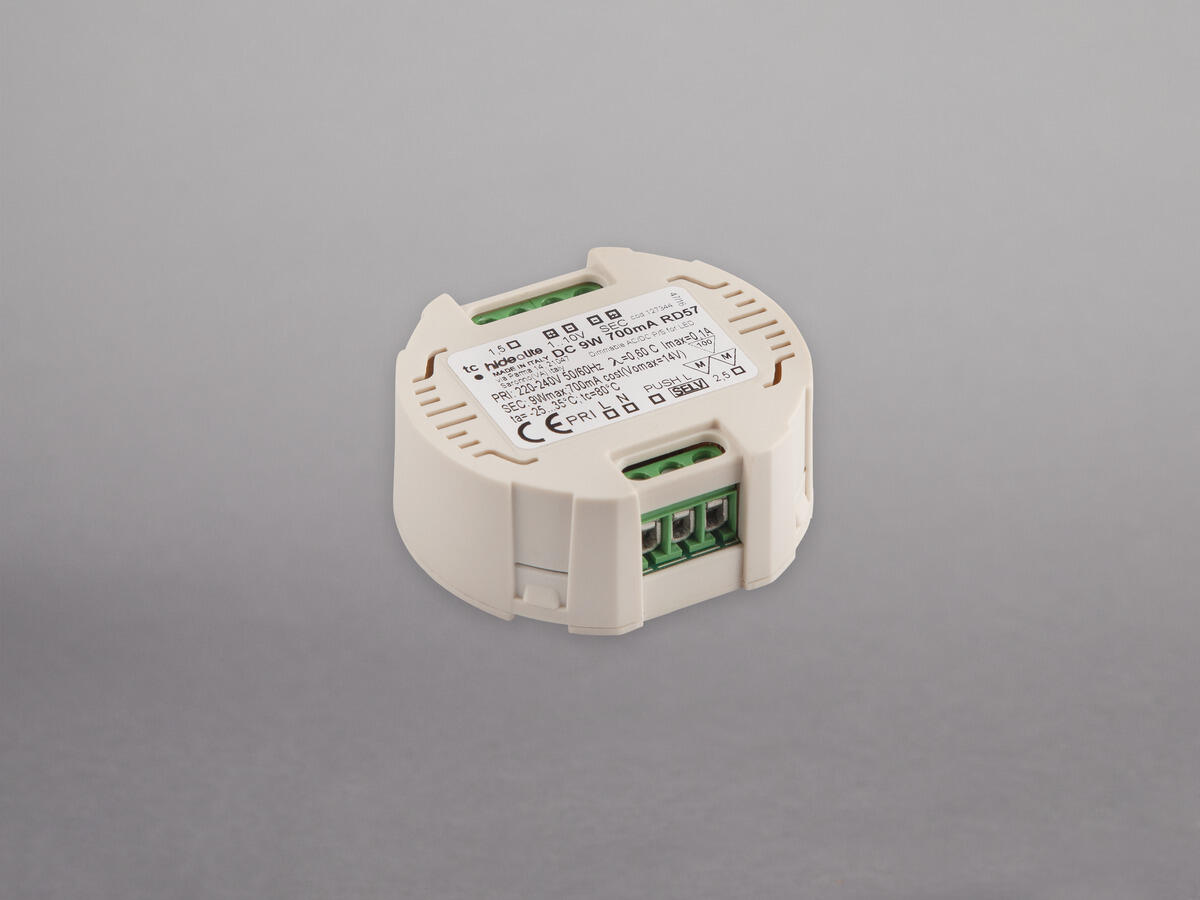

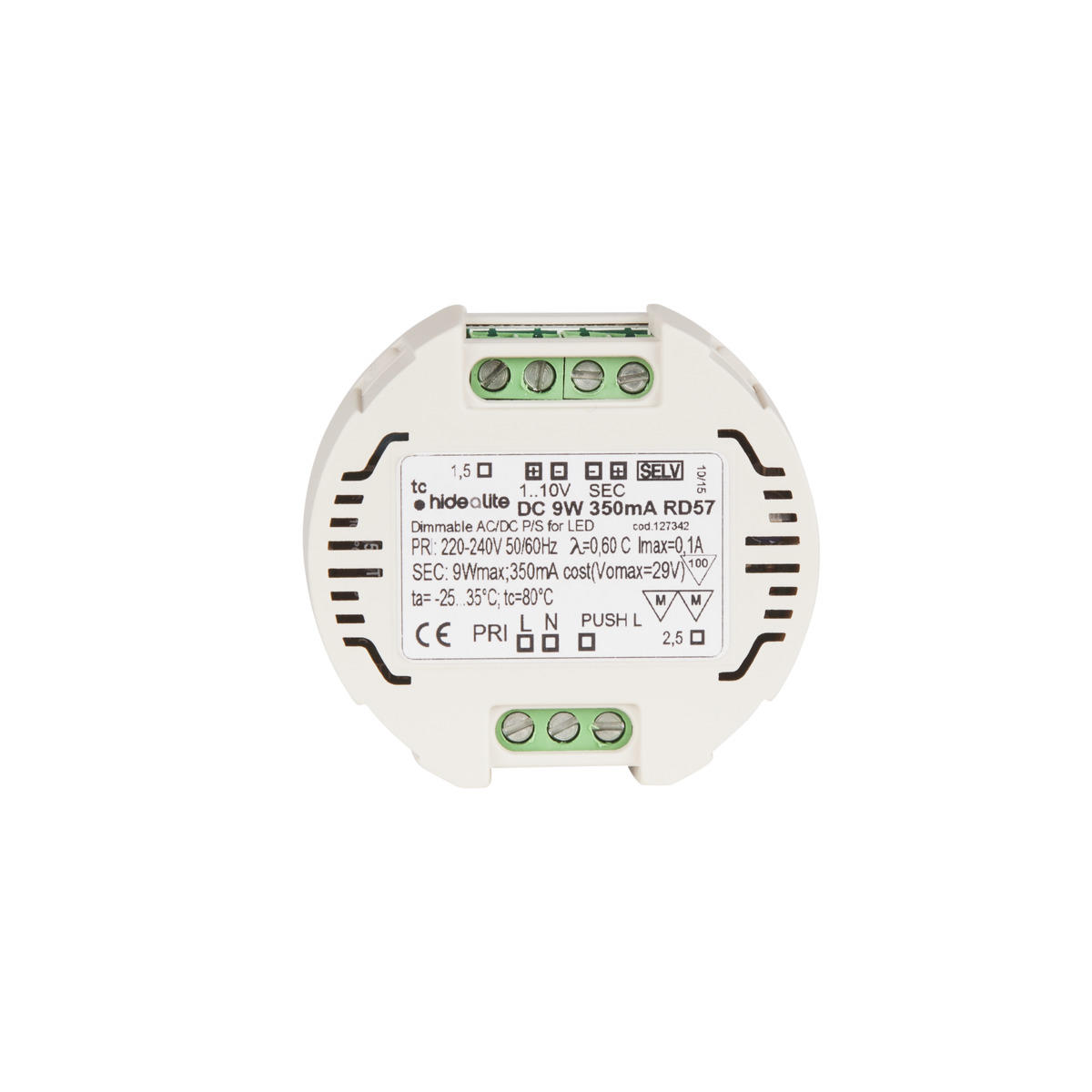

Jolly Round

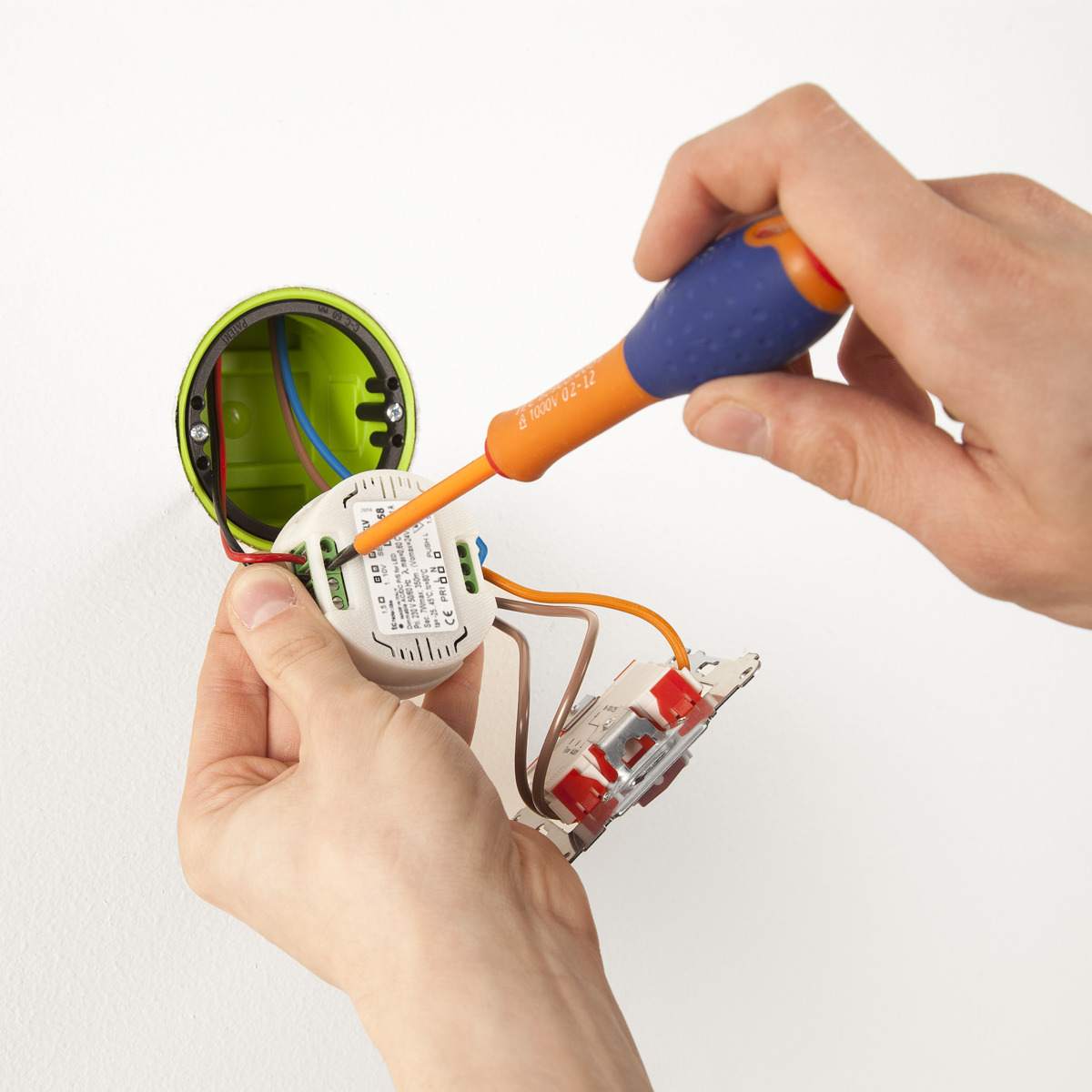

Small and versatile LED converter for constant current. Suitable for appliance boxes, which makes it easy to position. Excellent for minor projects such as lighting in window nooks or installation is luminaires. Dimmable via Push (230V) or 1-10V. Jolly Round has screw terminals that can manage cables up to 2.5 mm² and memory function that lights up at the previously set value after power cuts.
Variants
| GTIN | Item Name | |
|---|---|---|
|
7392971125220 | Jolly Round 350 |
|
7392971130187 | Jolly Round 700 |
Jolly Round 350
- Description
-
GTIN 7392971125220
Item Name Jolly Round 350
Warranty 5 years
- Light Technical Data
-
Nominel Life Time (h) 50000
Life Time Driver 50 000h/5%
- Operation and Connection
-
Driver Model Constant Current
Driver Type Built-in
Connection (type) Screw Terminals
Connection (mm2) 2x0,5-2,5
Connection Secondary (type) Screw Terminals
Secondary Connection (mm2) 2x0,5-1,5
Voltage Output Interval (V) 2-29
Power Factor ʎ 0,6
Power Interval for Catalogue (W) 0-9
Constant Current (mA) 350
Operating Temperature -25...+35
Max. Tc (°C) 80
Dimmable Yes
Type of Dimming 1-10V, Push 230V, Potentiometer
Memory Function Power Failure Yes
Protection Against Short Circuit, Overload, Overheating 100°C
- Color and material
-
Material Plastic
Color White
Environmental Assessment SundaHus, Byggvarubedömningen
- Measurement and installation
-
Operating Environment Indoor / dry locations
Installation Built-in
Fire Safety Marks MM-mark
Approval Marks CE
Filament Test IEC 695-2-1(°C) 850

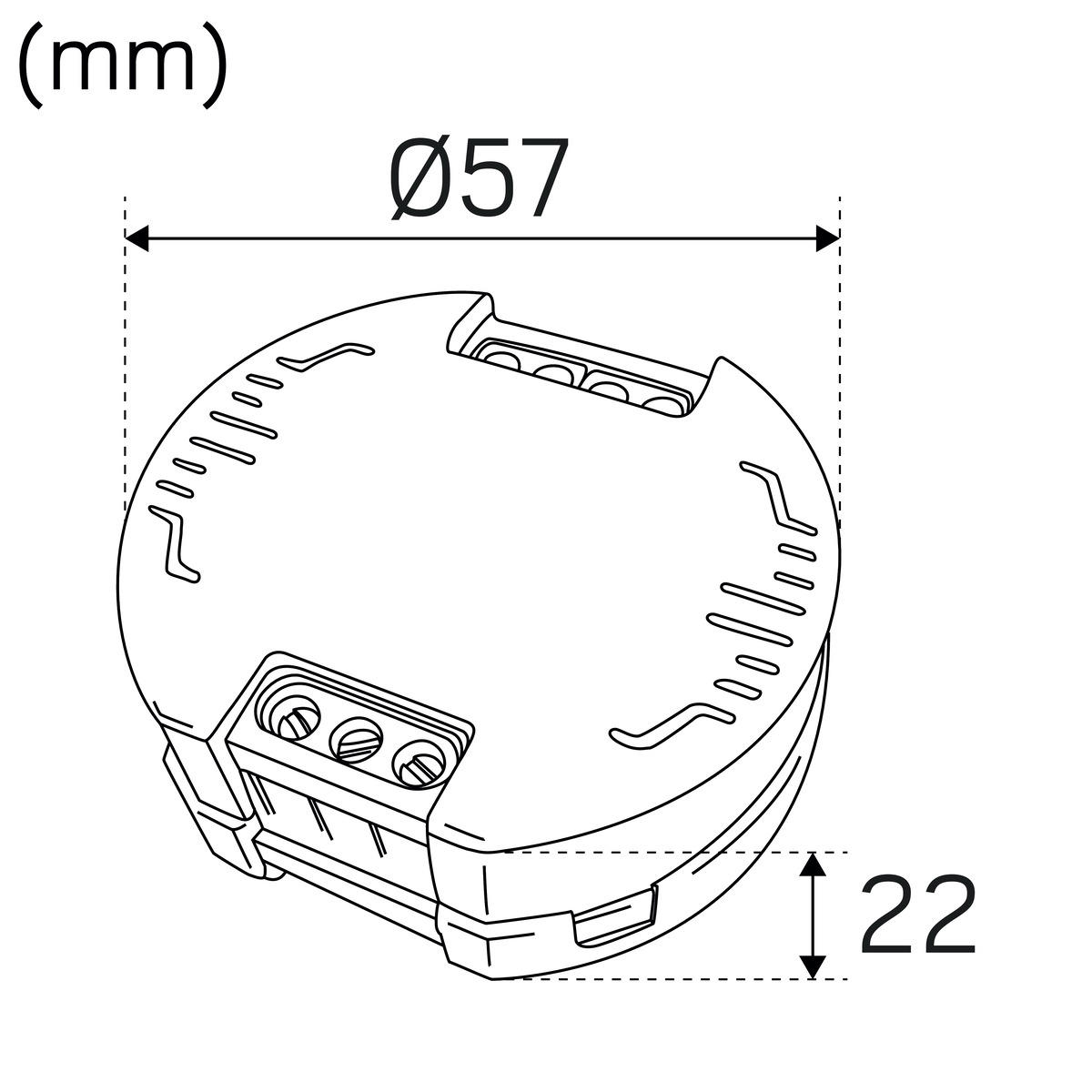

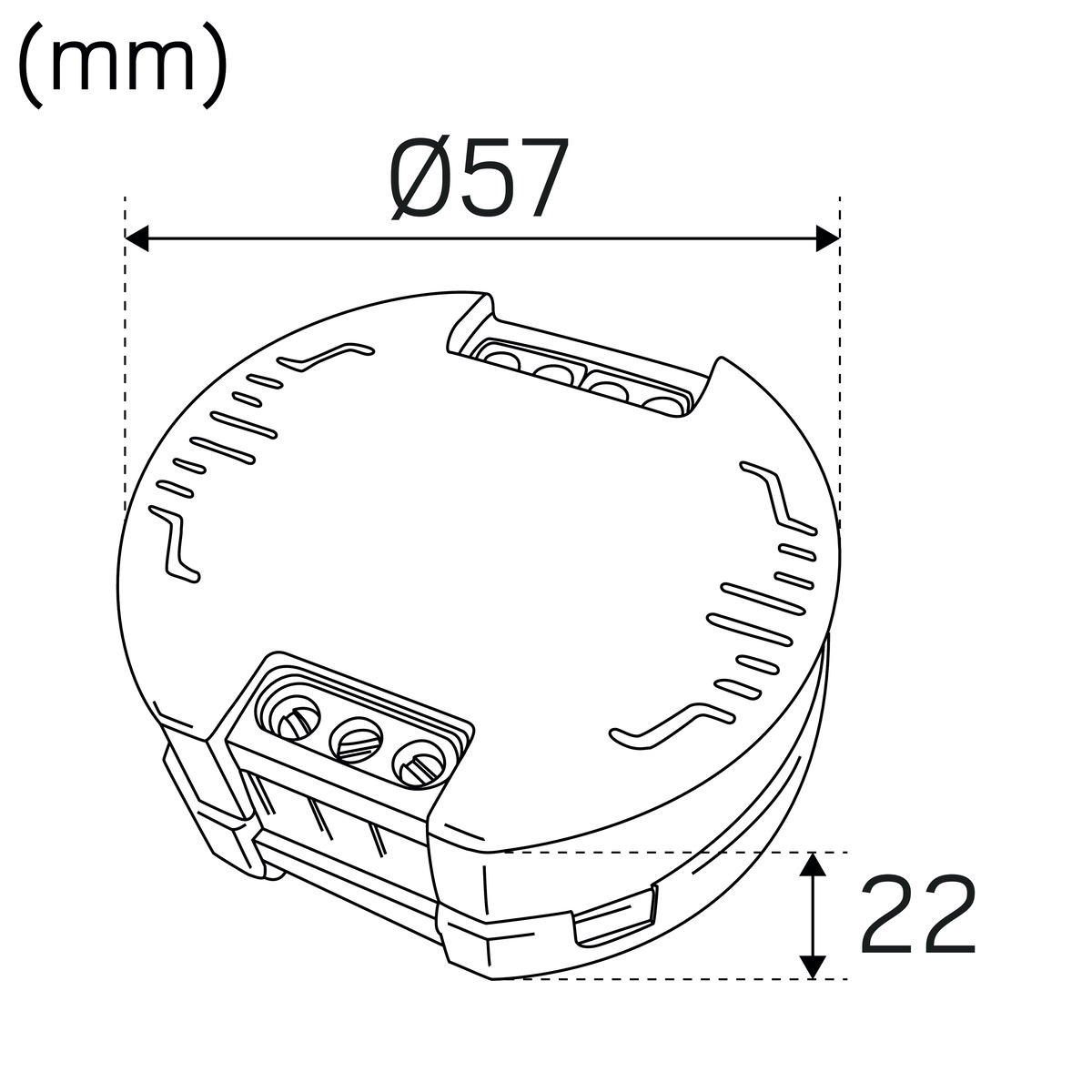

Height (mm) 22
Diameter (mm) 57
Weight (kg) 0,041
Built-in Ø (mm) 58
