Jolly Maxi US

Choose with or without Casambi, for wireless control of luminaires
Easy current setting via dip switch, from 350mA to 1050mA
Smart memory function in case of power loss

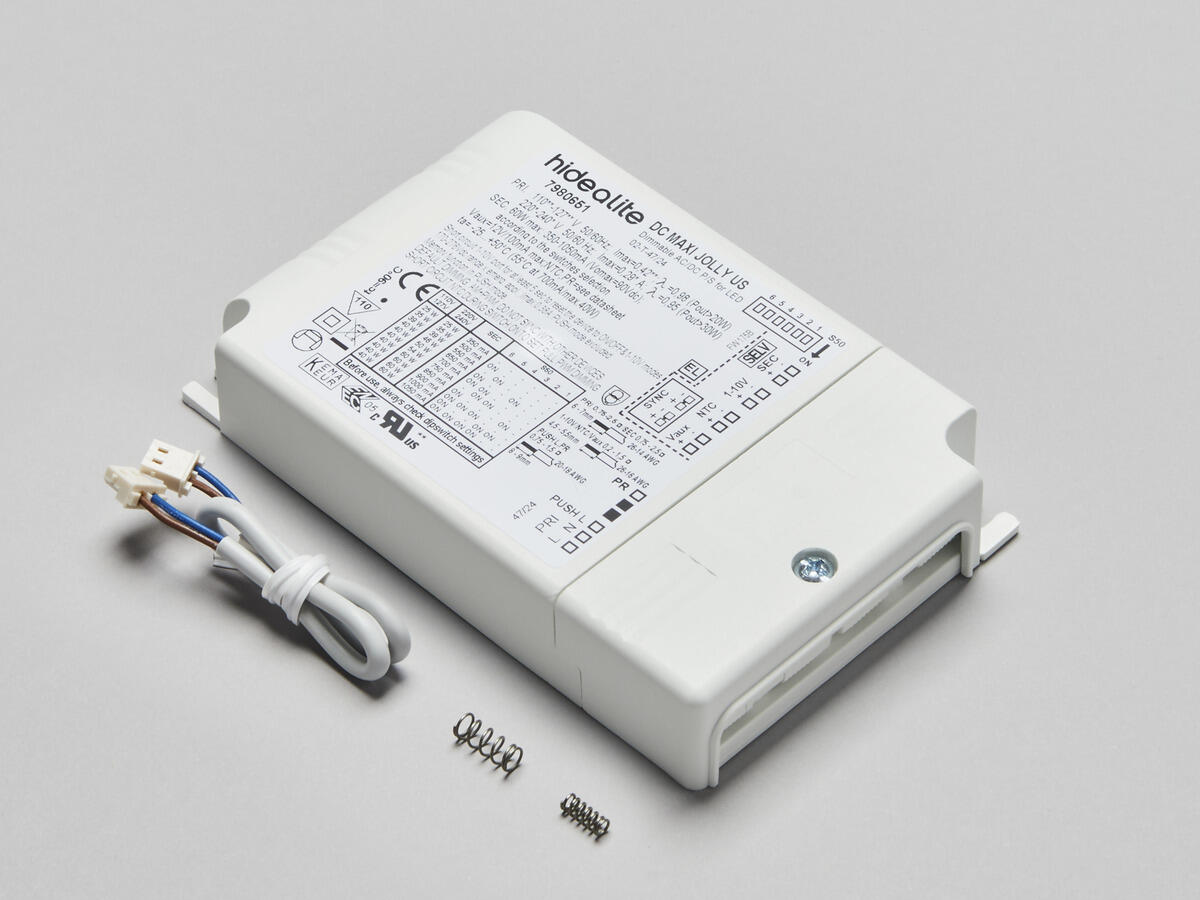

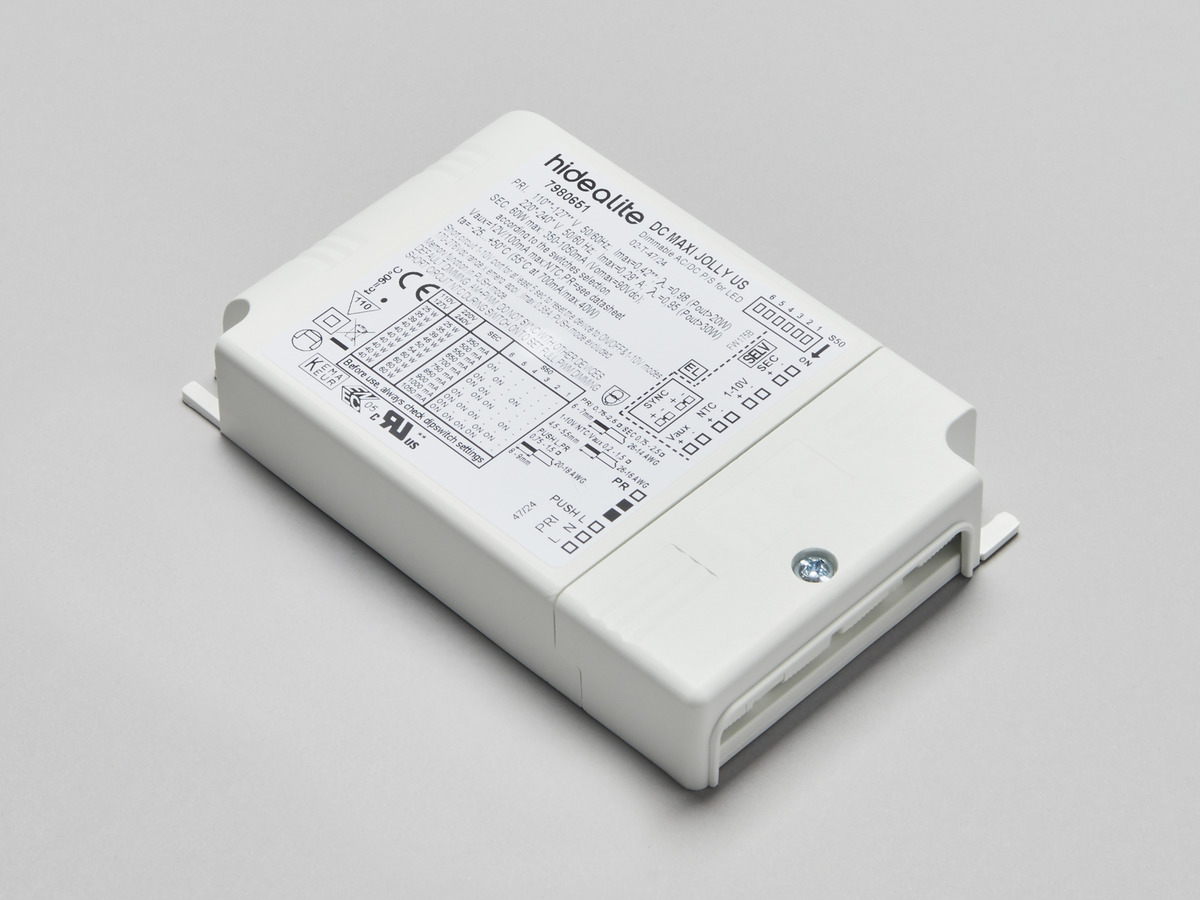

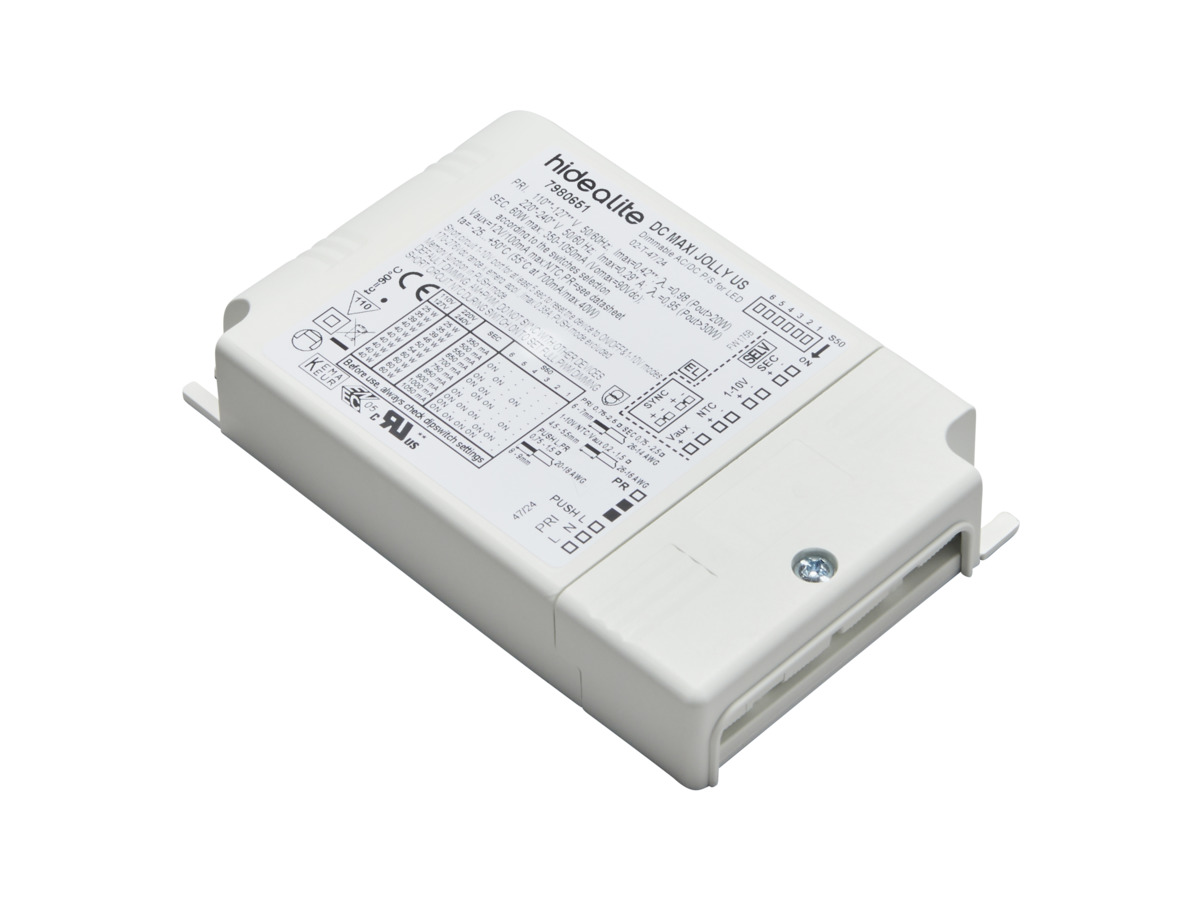

Jolly Maxi is a LED converter that gives you full control over your lighting. With a simple set-up, it can customise lighting scenarios and operate most types of constant current DC LED light sources, from 350 mA to 1050 mA, and dimming between 0-100%. The built-in dimmer function provides flicker-free light. The Casambi version also has a push input for spring-loaded switches. With Jolly Maxi US and Jolly Maxi US DALI you can link up to 10 units and control them from one or more locations via push-button reset, potentiometer, 1-10V or via bus/KNX system via actuator. A practical memory function means that the device turns on with the last set value after a possible power failure, even via push button.

GTIN	Item Name	Type of Dimming
7392971124155	Jolly Maxi US	1-10V, Push 230V, Potentiometer
7392971124162	Jolly Maxi US DALI	Push 230V, 1-10V, Potentiometer, DALI 2
7392971151496	Jolly Maxi US Casambi	Casambi LR, Push 230V

Show more articles

Description: GTIN 7392971124155

Item Name Jolly Maxi US

Warranty 5 years
Light Technical Data: Life Time Driver 50 000h/5%

Flicker (PstLM) 0,034

Stroboscopic effect (SVM) 0,022
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240V

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60
Operation and Connection: Dimmable Yes

Type of Dimming 1-10V, Push 230V, Potentiometer

Driver Model Constant Current

Driver Type Stand Alone

Driver Manufacturer TCI

Connection (type) Quick Terminal

Through Wiring No

Strain Relief Yes

Voltage Output Interval (V) 2-74V

Power Factor ʎ 0,95

Efficiency (%) 92

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,5

THD (%) 10

Power Interval for Catalogue (W) 350mA 0-25W (2-74V) 500mA 0-35W (2-72V) 550mA 0-39W (2-72V) 650mA 0-46W (2-72V) 700mA 0-50W (2-72V) 750mA 0-54W (2-72V) 850mA 60W (2-70V) 900mA 0-60W (2-66V) 1000mA 0-60W (2-60V) 1050mA 0-60W( 2-57V)

Constant Current (mA) 1000, 350, 500, 550, 650, 700, 750, 850, 900, 1050

Min. Ta (°C) -25

Max. Ta (°C) 50

Max. Tc (°C) 85

Dimming secondary side Hybrid

Memory Function Power Failure Yes

Protection Against Short Circuit, Overload, Overheating 110°C

Inrush current (max/time) 10A 200µs

Mains surge protection DM (kV) 4

Mains surge protection CM (kV) 5

Fuse B10 (pcs) 9

Fuse B16 (pcs) 15

Fuse C10 (pcs) 15

Fuse C16 (pcs) 25
Color and material: Material Plastic

Color White

Halogen free No

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class II

Installation Built-in, Surface mounted

Fire Safety Marks MM-mark

Approval Marks CE, S, Kema Keur, ENEC 05

Filament Test IEC 695-2-1(°C) 850

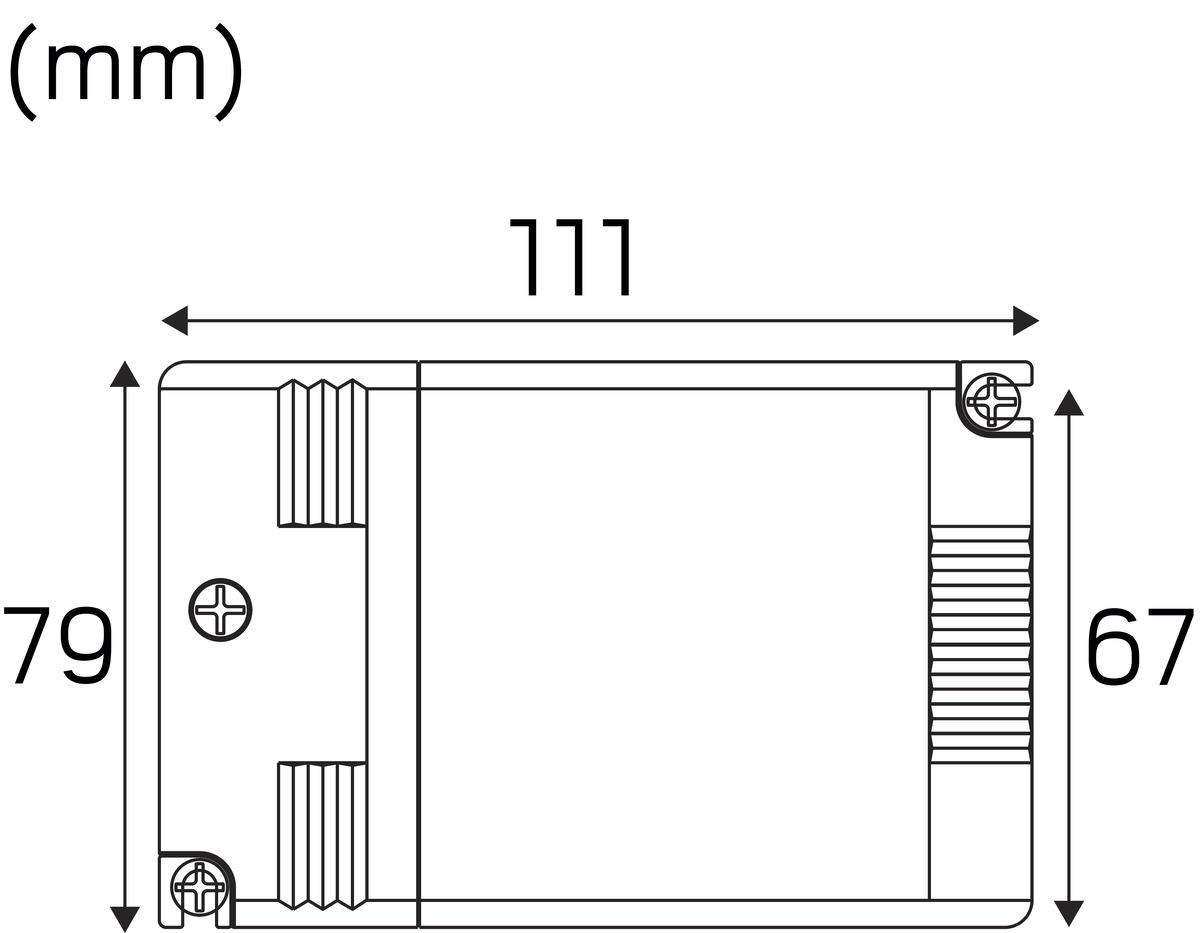

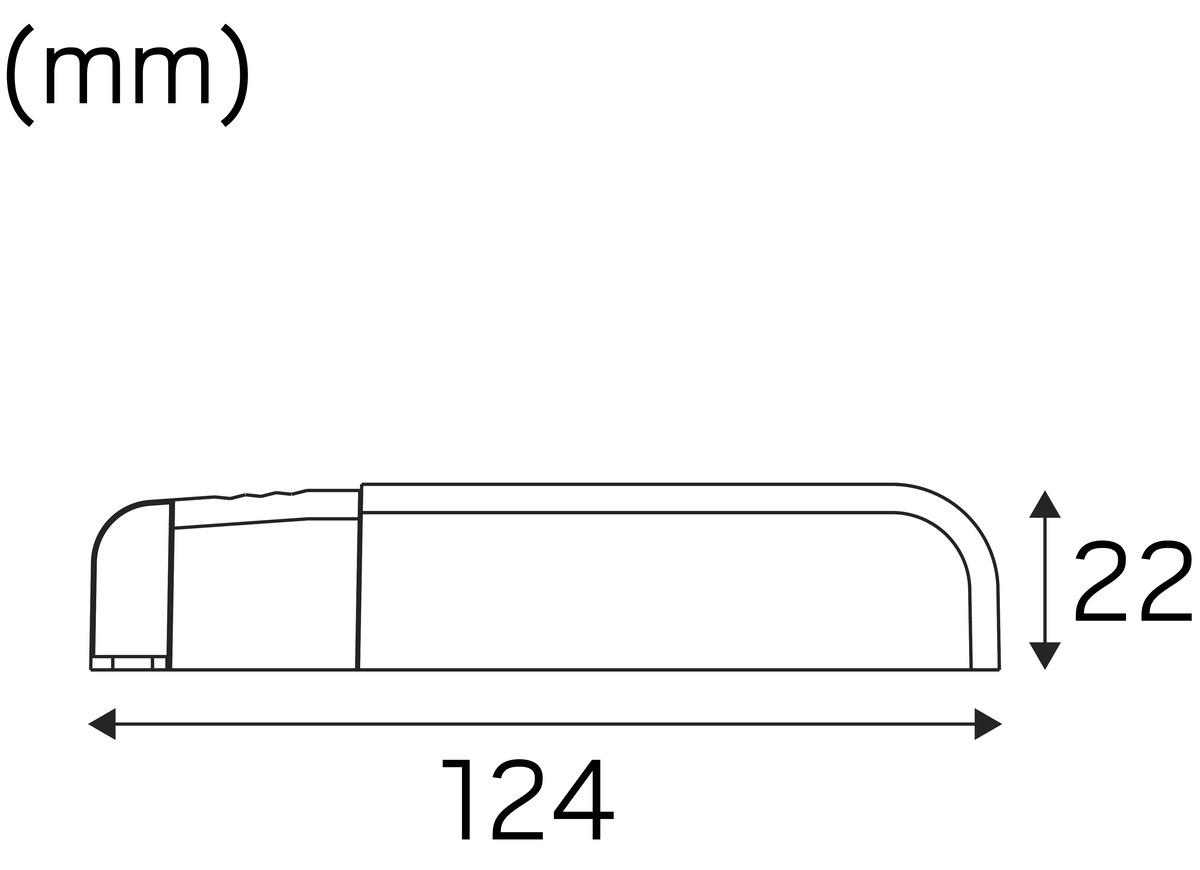

Length (mm) 124

Width (mm) 79

Height (mm) 22

Weight (kg) 0,13

Built-in Ø (mm) 85mm

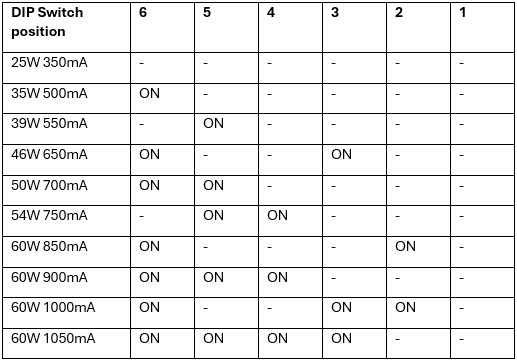

DIP-table Drivers

mA	Max Power	V out DC
350mA	25W	2-74
500mA	35W	2-72
550mA	39W	2-72
650mA	46W	2-72
700mA	50W	2-72
750mA	54W	2-72
850mA	60W	2-70
900mA	60W	2-66
1000mA	60W	2-60
1050mA	60W	2-57

Show table

Show DIP-table

Jolly Maxi US

mA	Max Power	V out DC
350mA	25W	2-74
500mA	35W	2-72
550mA	39W	2-72
650mA	46W	2-72
700mA	50W	2-72
750mA	54W	2-72
850mA	60W	2-70
900mA	60W	2-66
1000mA	60W	2-60
1050mA	60W	2-57

Factory setting:
