Jolly Mini DALI

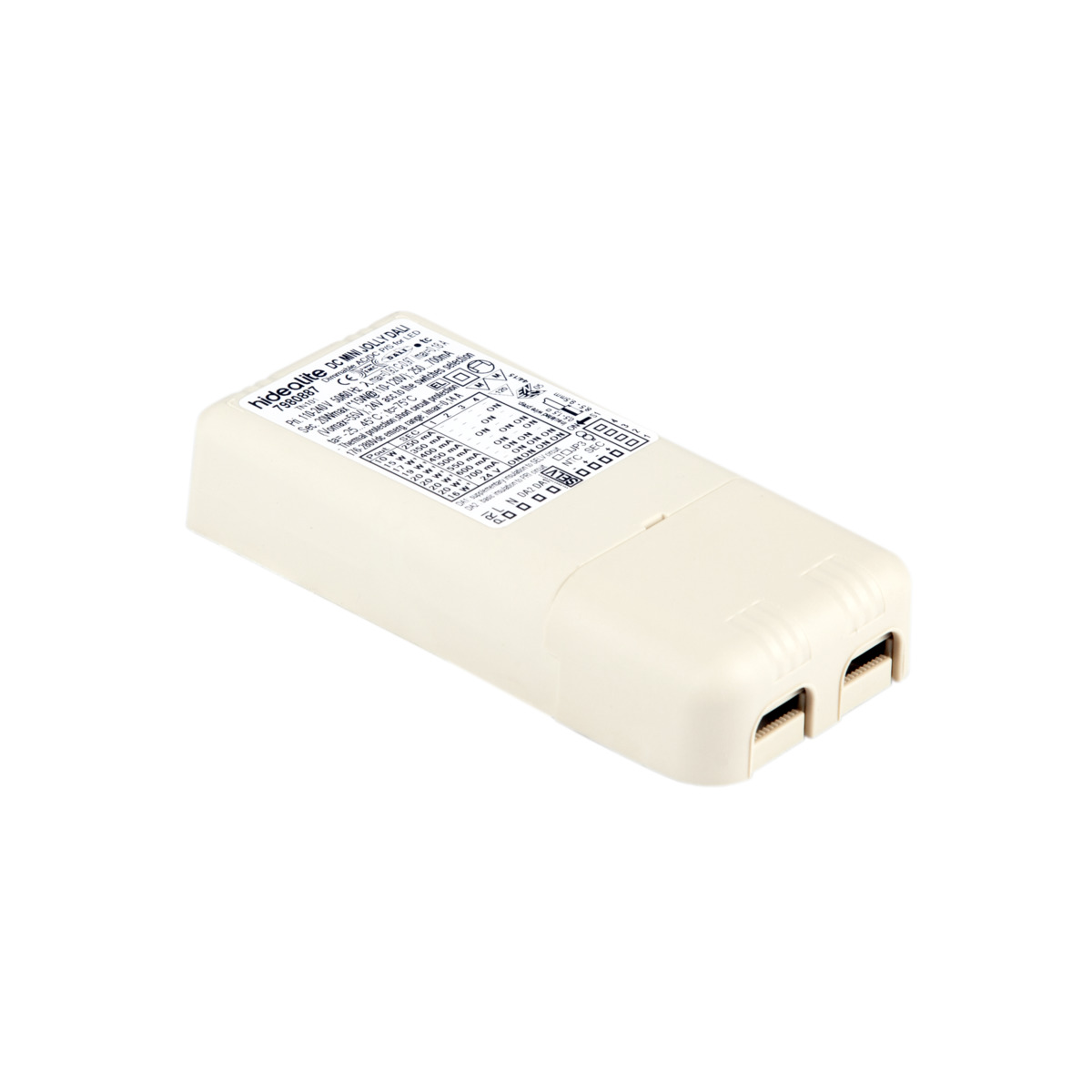

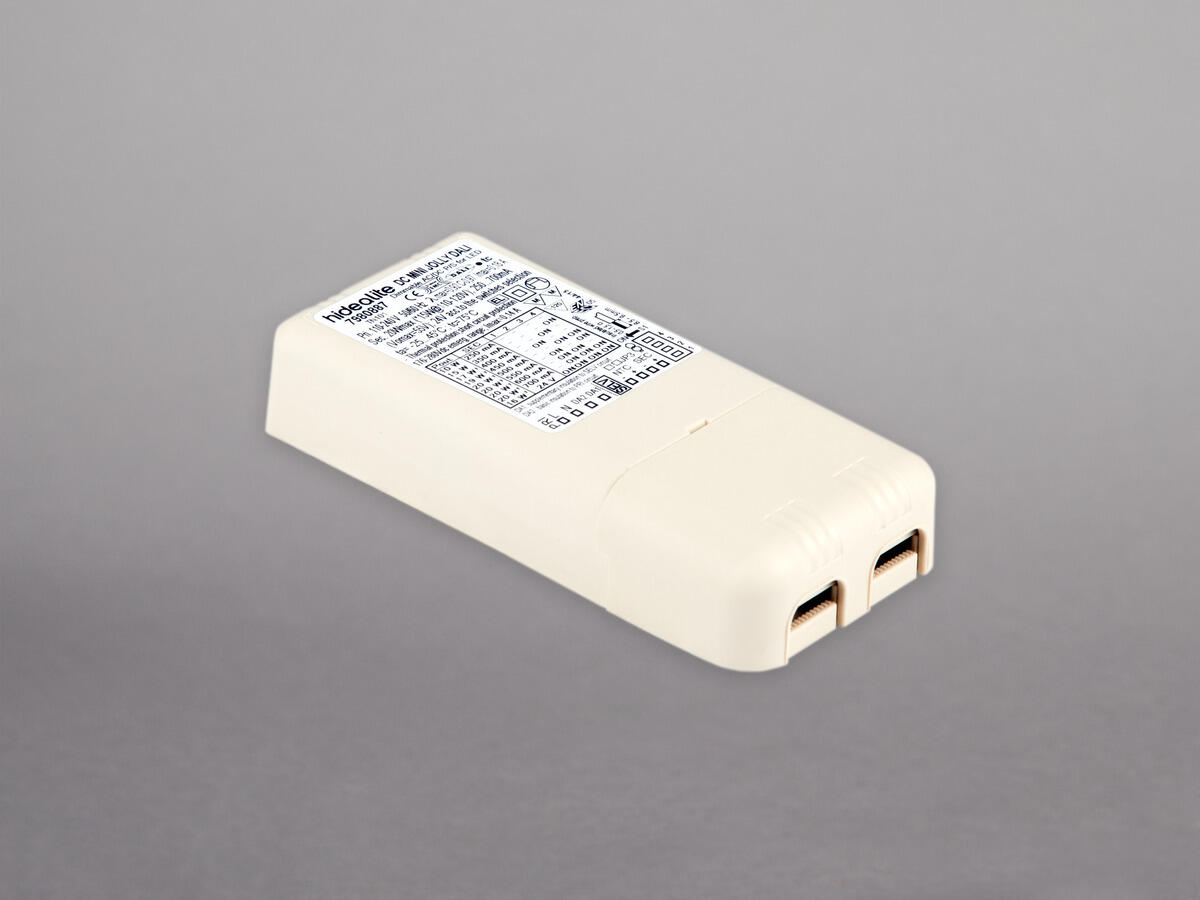

All-in-one converter with built in hybrid dimmer for controlling with standard DALI2 interface (1-100%). Able via a simple adjustment to drive and regulate several types of LED light sources, both constant voltage DC (24V) and constant current DC (250, 350, 400, 450, 500, 550, 600 and 700 mA). Simple setting of output current with dip switch. Slimmed format for simple installation in 1 ½ boxes or together with the luminaire in Spot Guard Gles. Connects to 230V.

Description: GTIN 7392971126623

Item Name Jolly Mini DALI

Warranty 5 years
Light Technical Data: Life Time Driver 50 000h/5%

Flicker (PstLM) 0,019

Stroboscopic effect (SVM) 0,003
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 110...240V

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60
Operation and Connection: Dimmable Yes

Type of Dimming DALI 2

Driver Model Constant Current, Constant Voltage

Driver Type Stand Alone

Driver Manufacturer TCI

Connection (type) Quick Terminal

Connection (mm2) 2x0,5-1,5

Through Wiring No

Strain Relief Yes

Connection Secondary (type) Quick Terminal

Secondary Connection (mm2) 2x0,5-2,5

Voltage Output Interval (V) 2-55V

Power Factor ʎ 0,95

Efficiency (%) 87

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,5

Power Interval for Catalogue (W) 350mA 0-15W (2-43V) 500mA 0-20W (2-40V) 700mA 0-20W (2-29V) 24V 0-16W

Standby Power 0,5

Constant Current (mA) 250, 350, 400, 450, 500, 550, 600, 700

Min. Ta (°C) -20

Max. Ta (°C) 50

Max. Tc (°C) 75

Dimming secondary side Hybrid

Frequency PWM dimming (Hz) >300

Memory Function Power Failure No

Protection Against Short Circuit, Overheating 120°C, Overload

Inrush current (max/time) 5A 50μs

Fuse B10 (pcs) 31

Fuse B16 (pcs) 50

Fuse C10 (pcs) 52

Fuse C16 (pcs) 85
Color and material: Material Plastic

Color White

Halogen free No

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class II

Installation Surface mounted

Mounting Installation Screw Mounting

Fire Safety Marks MM-mark

Approval Marks CE, Kema Keur, ENEC 05

Filament Test IEC 695-2-1(°C) 850

Length (mm) 111

Width (mm) 52

Height (mm) 22

Weight (kg) 0,105

Built-in Ø (mm) 55mm

DIP-table Drivers

mA	Max Power	V out DC
250mA	12W	15-49
350mA	17W	10-49
400mA	19W	5-49
450mA	20W	5-45
500mA	20W	5-40
550mA	20W	3-36
600mA	20W	3-33
700mA	20W	3-28
700mA	16W	24V

Show table

Show DIP-table

Jolly Mini DALI

mA	Max Power	V out DC
250mA	12W	15-49
350mA	17W	10-49
400mA	19W	5-49
450mA	20W	5-45
500mA	20W	5-40
550mA	20W	3-36
600mA	20W	3-33
700mA	20W	3-28
700mA	16W	24V

Factory setting:

Jolly Maxi US

Jolly Maxi is a LED converter that gives you full control over your lighting. With a simple set-up, it can customise lighting scenarios and operate most types of constant current DC LED light sources, from 350 mA to 1050 mA, and dimming between 0-100%. The built-in dimmer function provides flicker-free light. The Casambi version also has a push input for spring-loaded switches. With Jolly Maxi US and Jolly Maxi US DALI you can link up to 10 units and control them from one or more locations via push-button reset, potentiometer, 1-10V or via bus/KNX system via actuator. A practical memory function means that the device turns on with the last set value after a possible power failure, even via push button.
