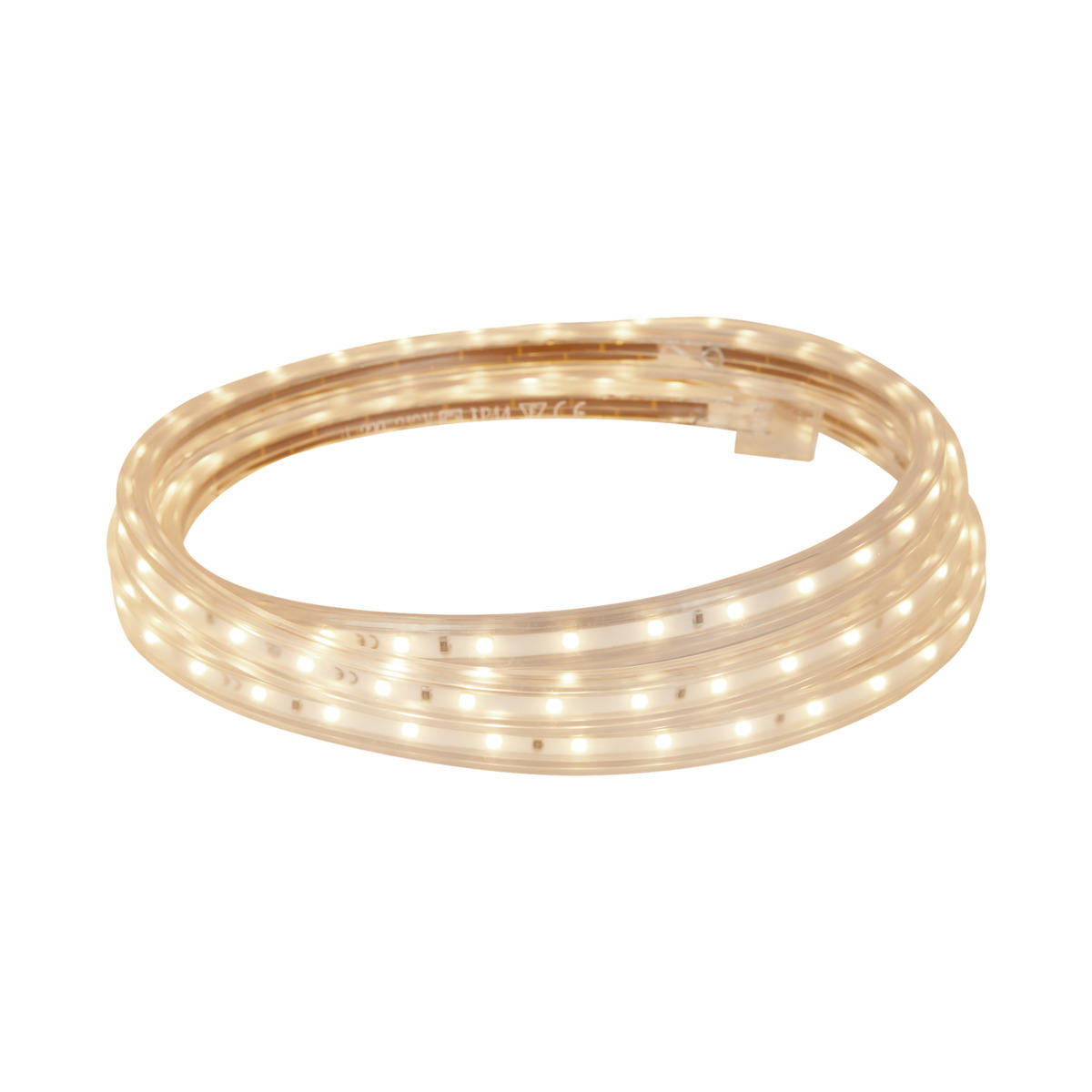

LEDstrip HV FDIM

Max length 50m, 70LED/m. Upon request, running meters with connection cables 80cm are delivered according to your specifications; running meters are delivered as standard without connection cables.

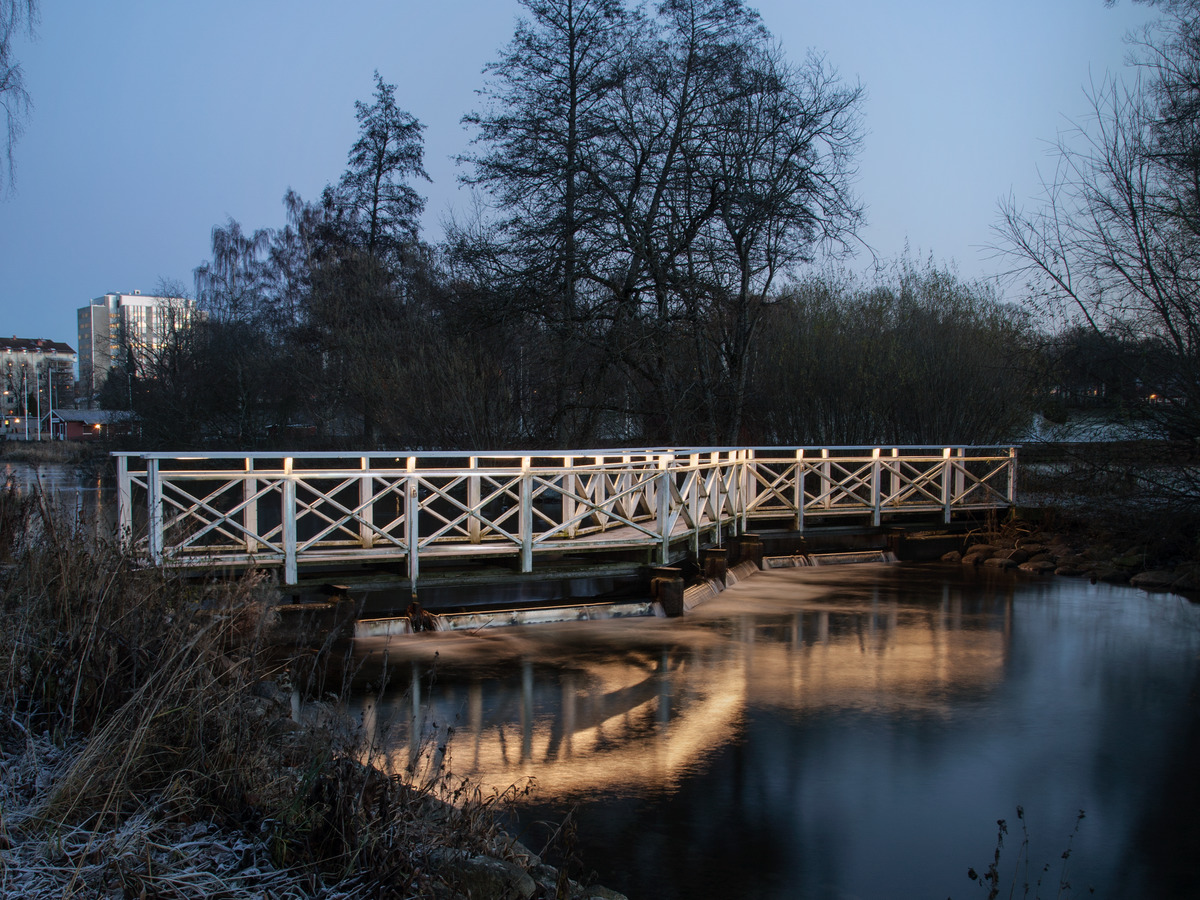

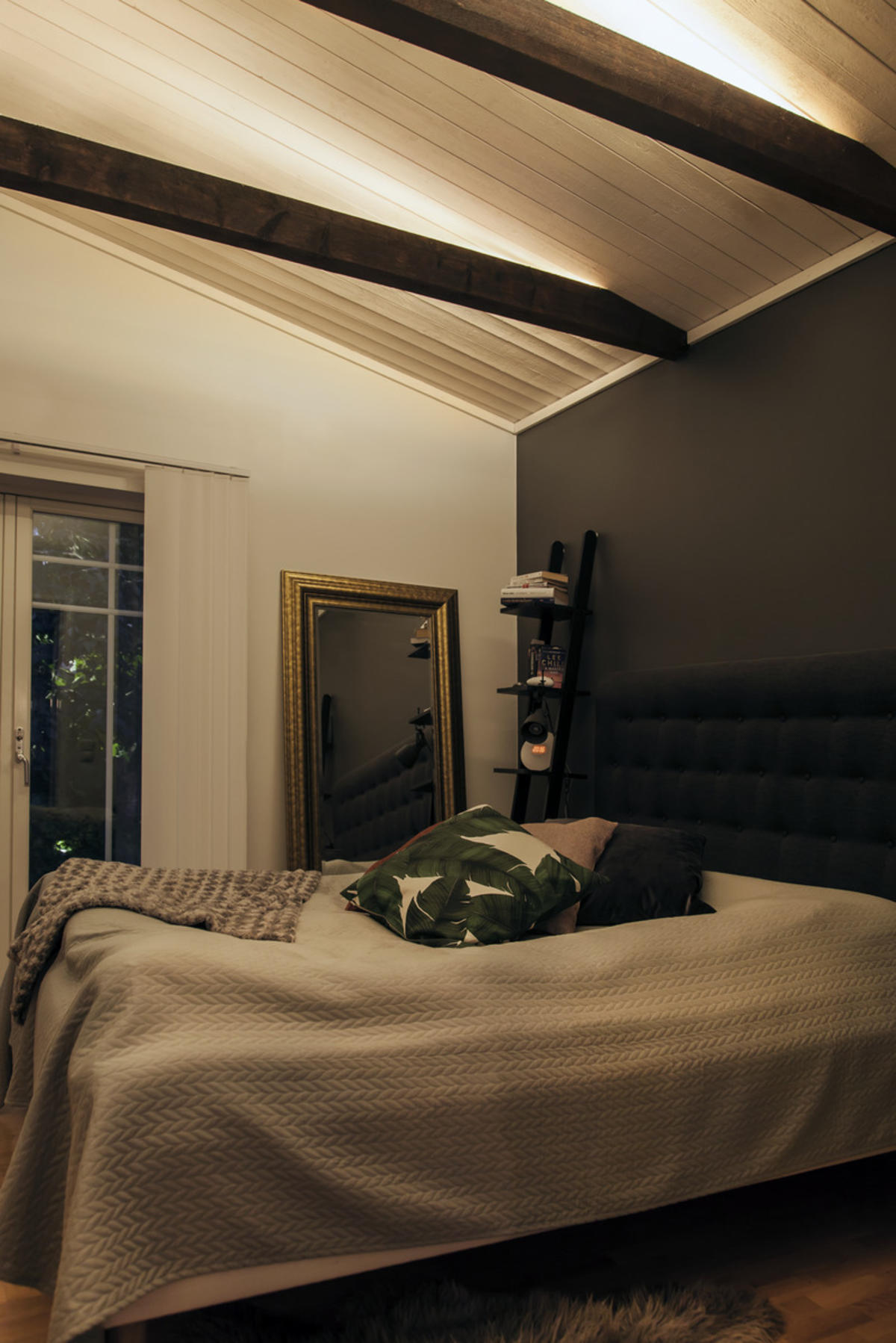

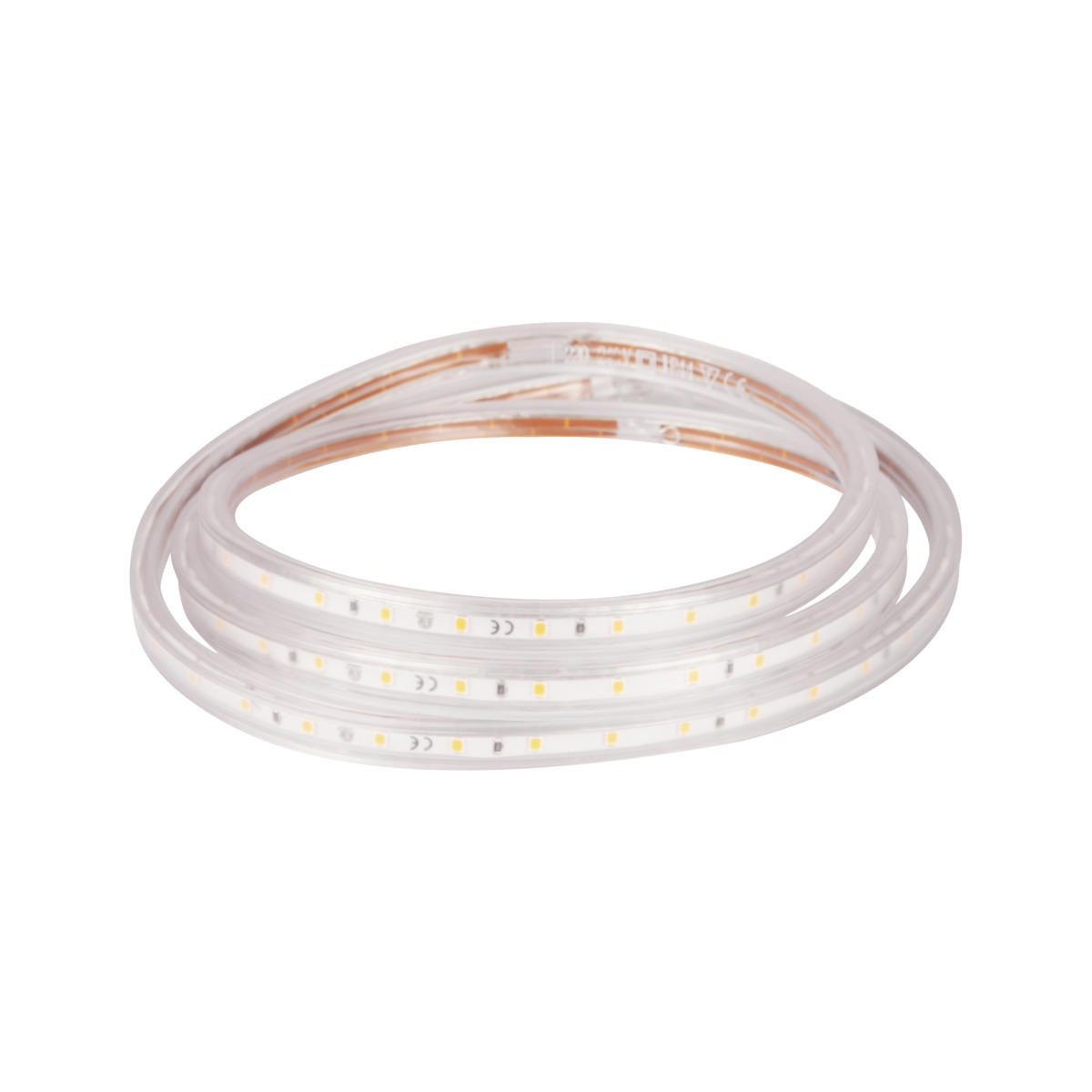

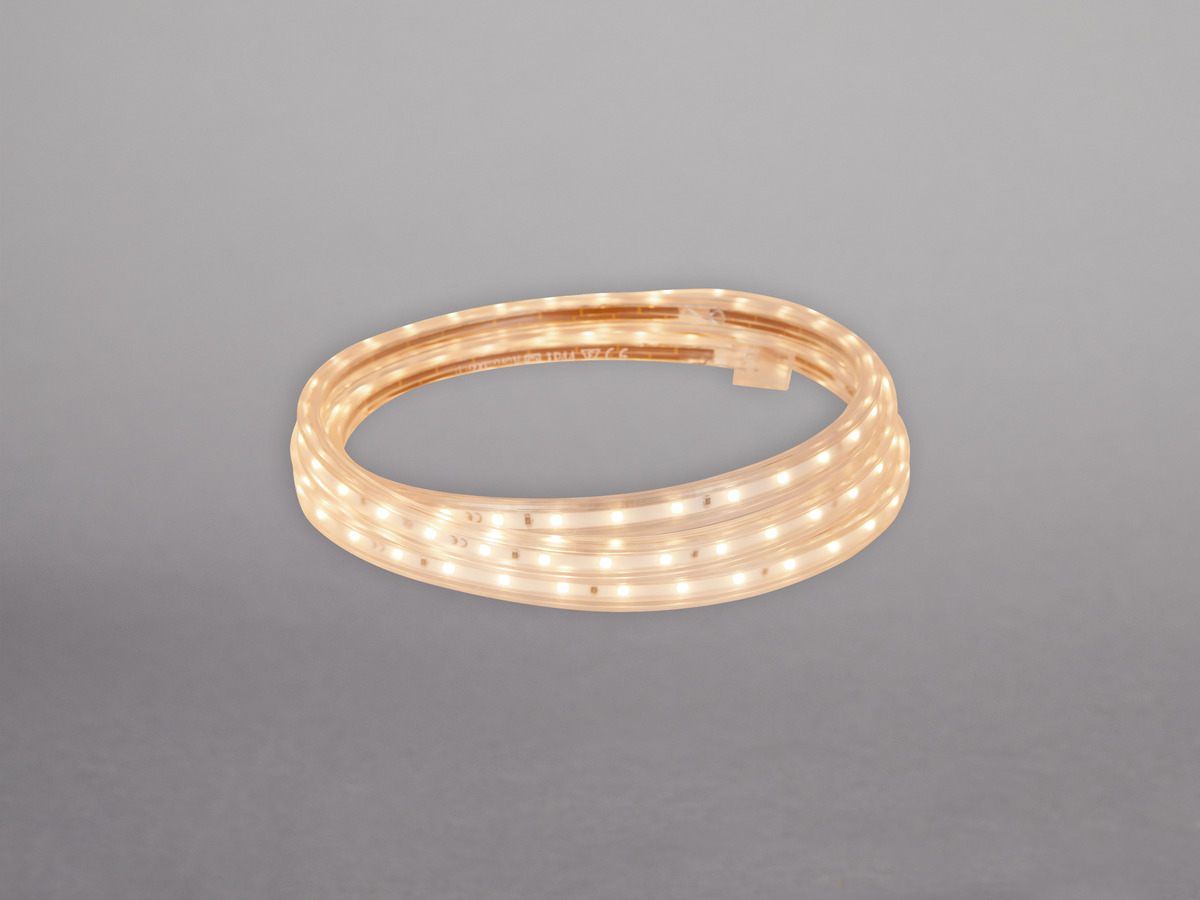

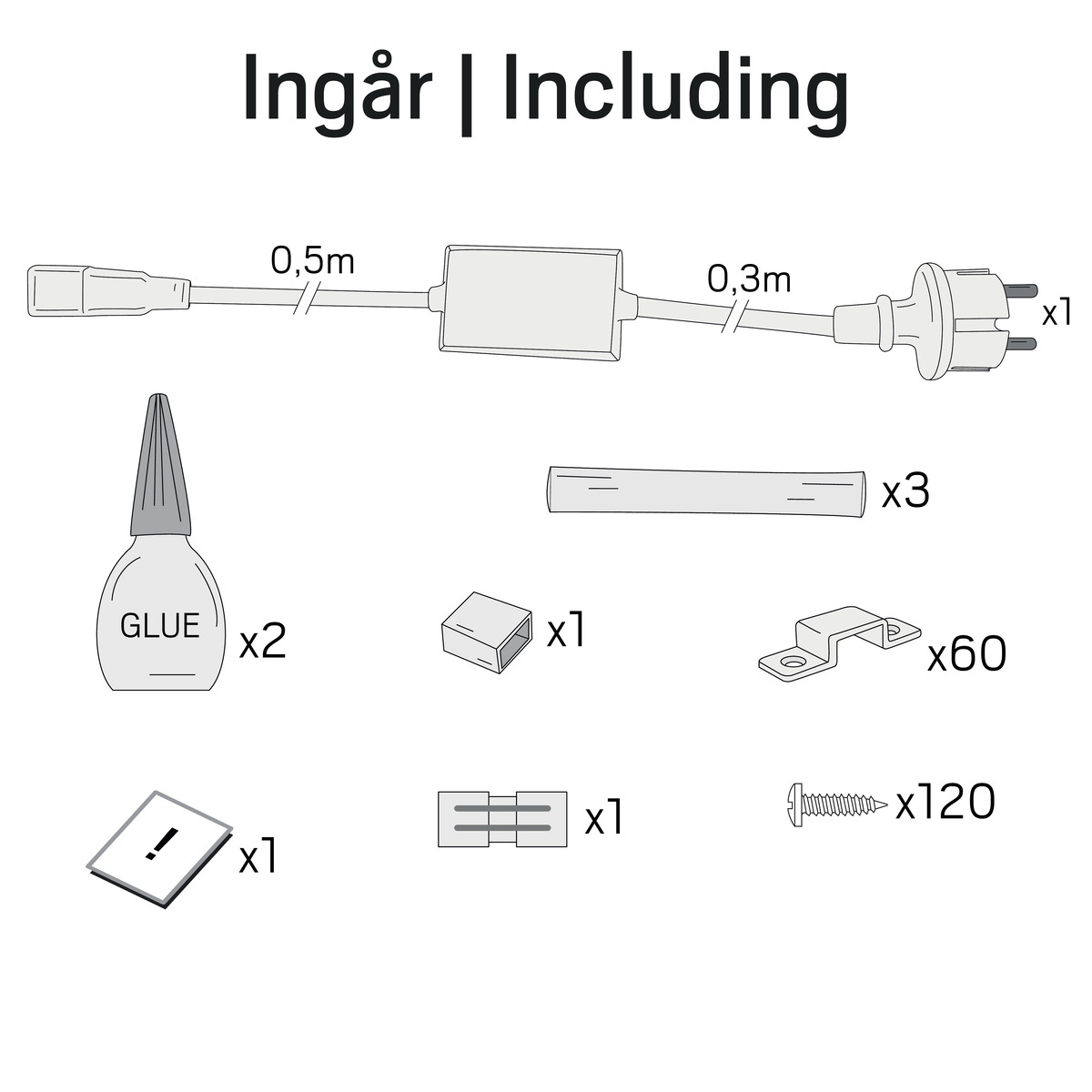

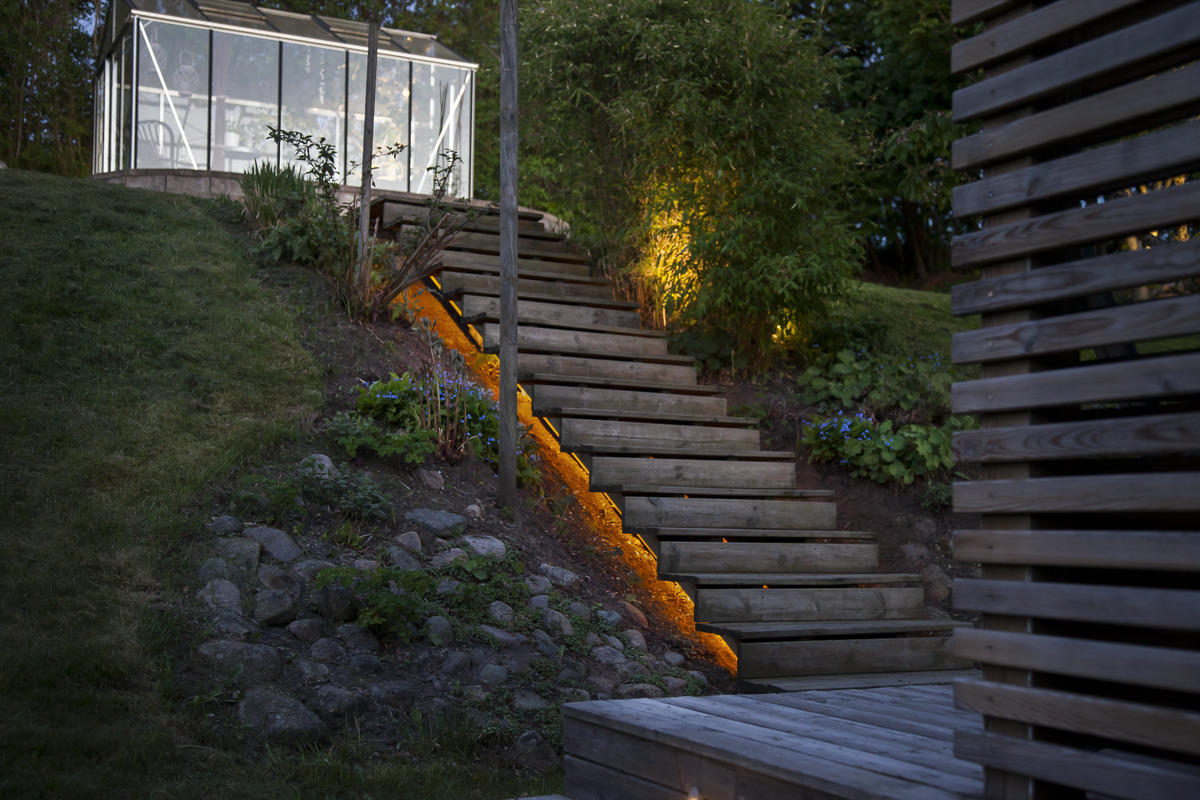

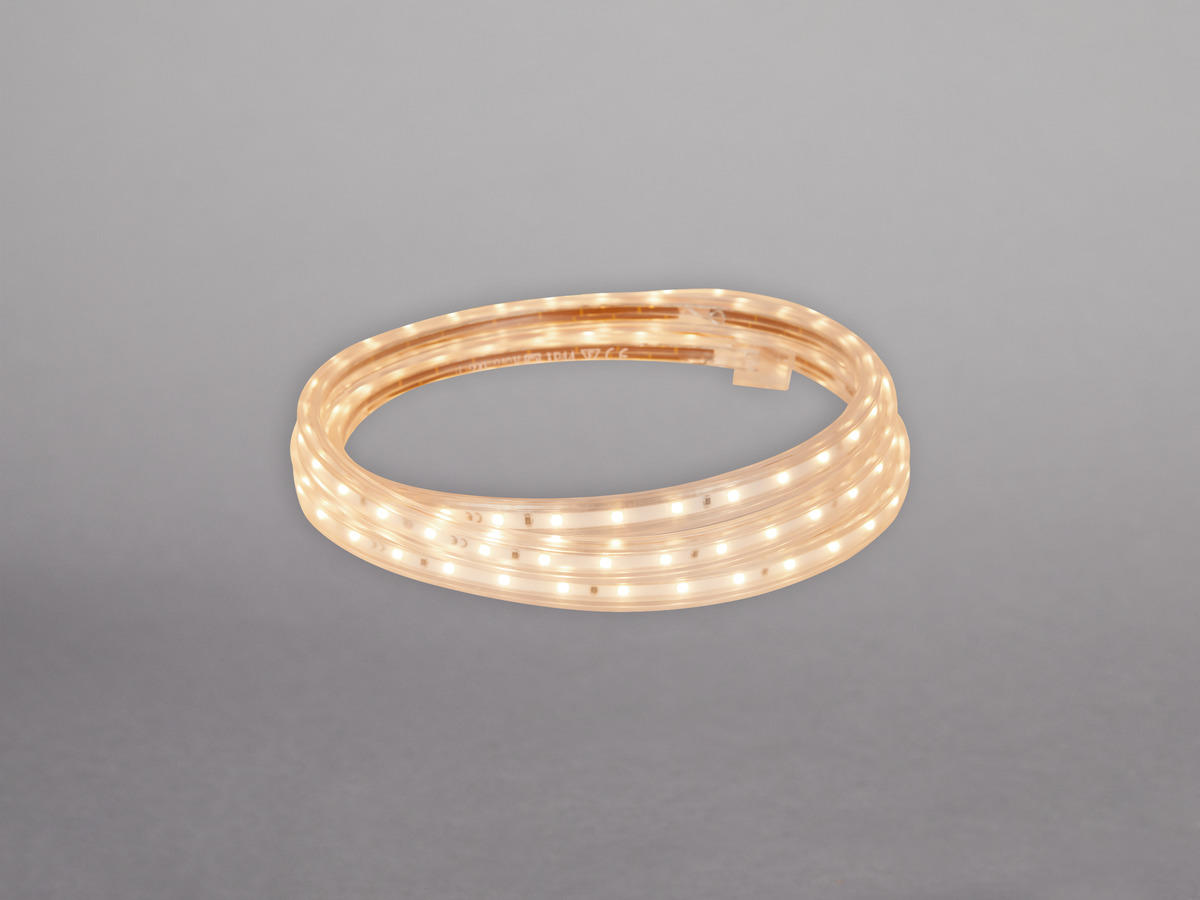

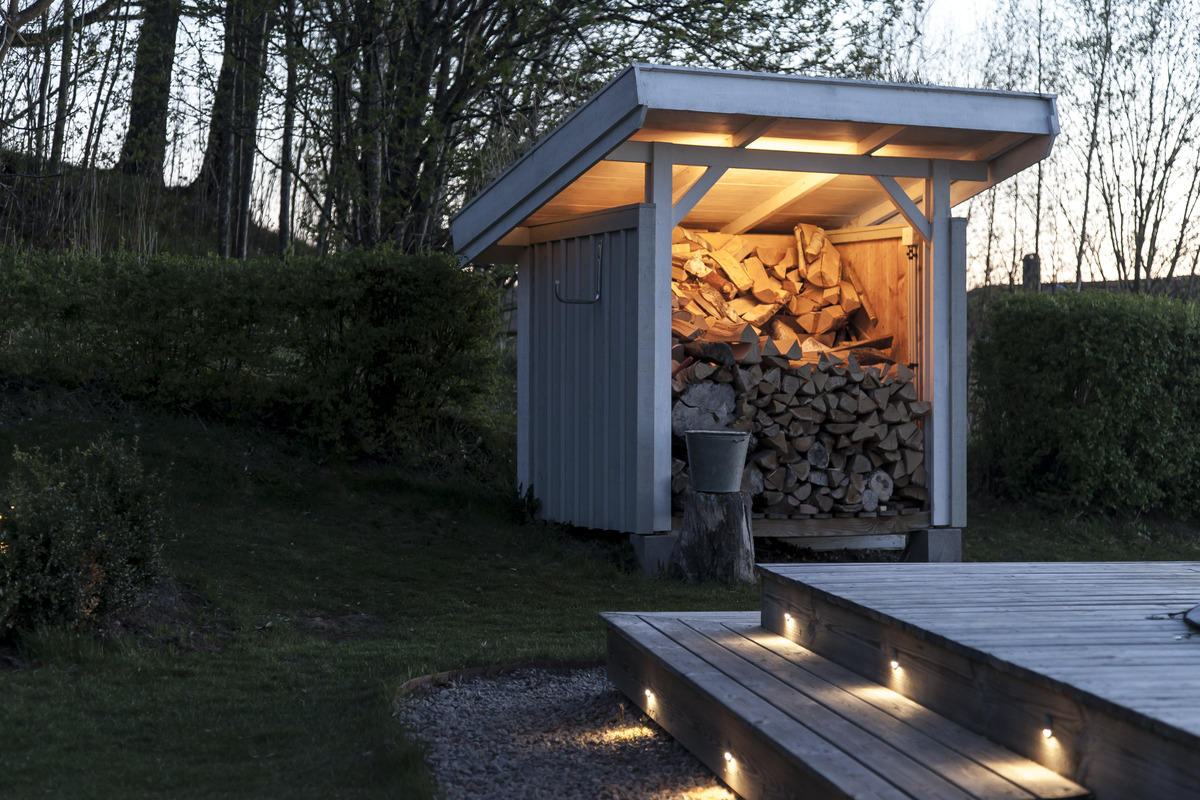

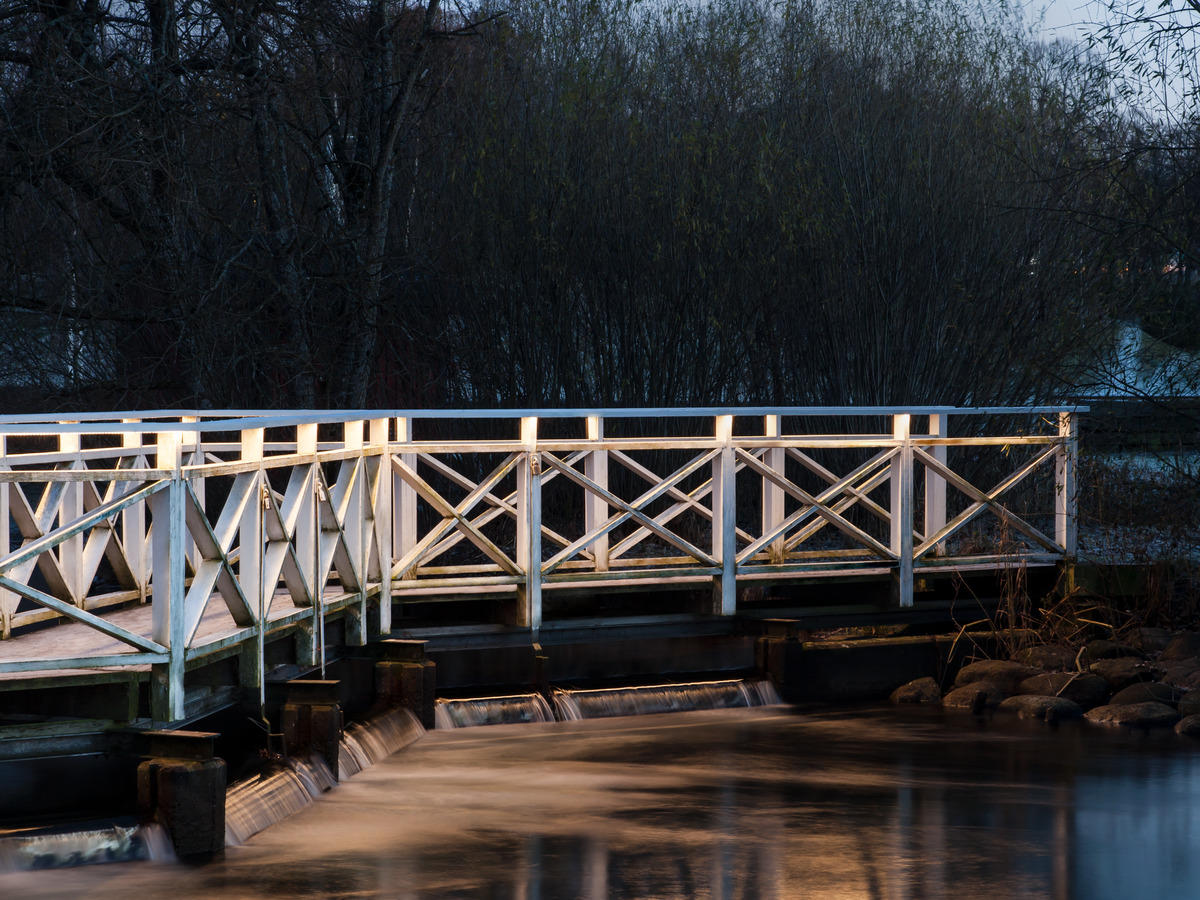

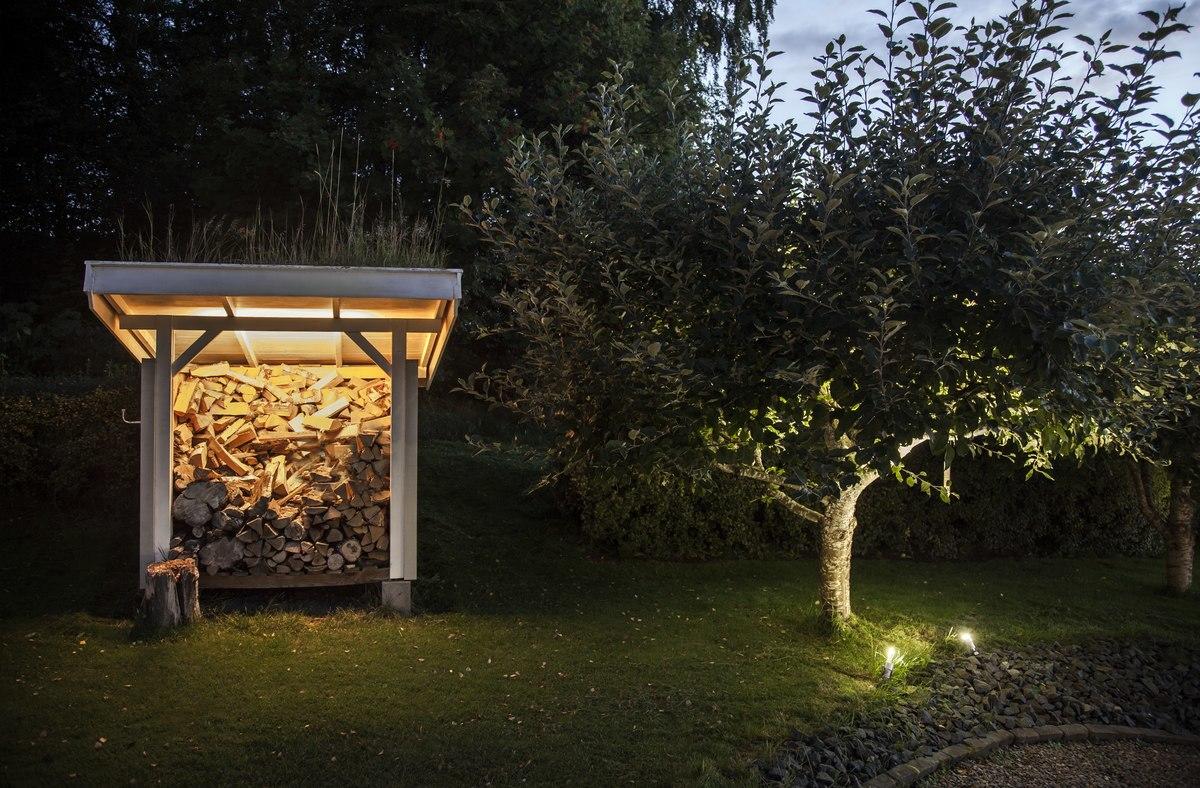

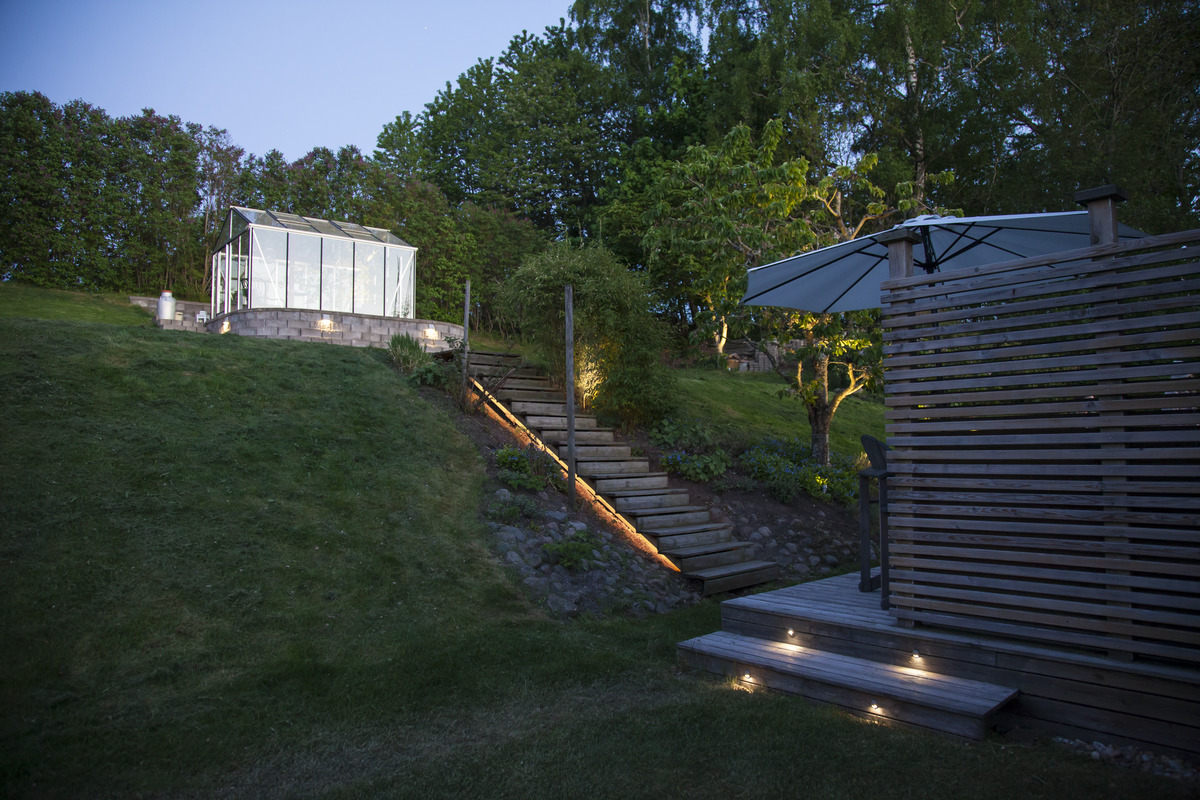

Mains dimmable 230V LEDstrip with IP44 rating for outdoor lighting. High lumen output and very good colour rendering, RA > 90. For striking and concealed lighting, e.g. as an uplight on rafters, under the eaves or on a railing. As standard, in rolls of 10 metres with fitted cord set (80cm), earthed plug and mains dimmable DC converter, clips and joints for an easy installation. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Available made to measure in lengths of up to 50m, cut in lengths of 1 metre.

GTIN	Item Name	Colour Temperature (K)	Max. Luminaire Lumen (lm)
7392971131009	LEDstrip HV FDIM 2100K 10m	2100	8200
7392971131016	LEDstrip HV FDIM 2100K lpm	2100	820
7392971131023	LEDstrip HV FDIM 3000K 10m	3000	8400
7392971131030	LEDstrip HV FDIM 3000K lpm	3000	840

Show more articles

Description: GTIN 7392971131009

Item Name LEDstrip HV FDIM 2100K 10m

Warranty 5 years
Light Technical Data: Max. Luminaire Lumen (lm) 8200

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED

LED Colour Warm White

Colour Temperature (K) 2100

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 4

Luminous Intensity (cd) 270

Beam Angle (°) 120

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 700

LED Pitch (mm) 14

Life Time L70 50 000h Ta 25°C

Nominel Life Time (h) 50000

Life Time Driver 50 000h/10%

Flicker (PstLM) 0,115
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240V

Voltage Nominal (V) 230

Line Frequency (Hz) 50

Voltage Forward (Vf) 2,5

Power LED (W) 0,137

Max. Power Luminaire (W) 100

Max. System Power (W) 100

Max. Efficiency Luminaire (lm/W) 82

Max. Efficiency System (lm/W) 82

Energy Efficiency Class (EU) 2019/2015 F
Operation and Connection: Dimmable Yes

Type of Dimming Trailing Edge

Driver Included Yes

Connection (type) Cord Set

Length Connection (cm) 80

Through Wiring No

Strain Relief No

Min. Ta (°C) -20

Max. Ta (°C) 45

Max. Tc (°C) 60
Color and material: Material Copper, PVC

Color White

Halogen free No
Measurement and installation: Operating Environment Outdoor

IP Degree of Protection 44

Protection Class II

Installation Surface mounted

Mounting Installation Clips

Approval Marks CE

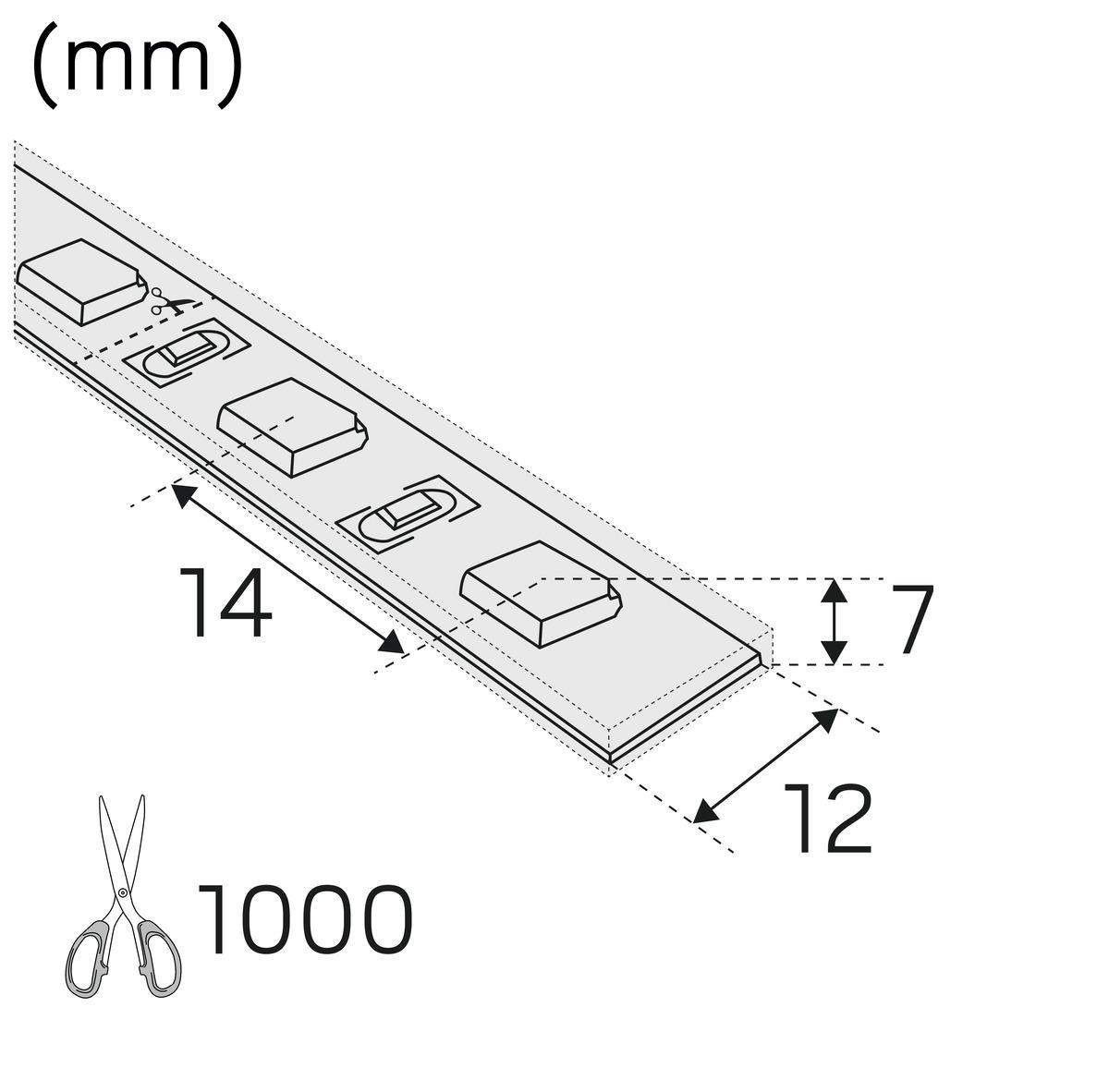

Length (mm) 10000

Width (mm) 12

Height (mm) 7

Weight (kg) 1,1
LEDstrips: Min. Bend Radius (mm) 40

Min. Length (m) 1

Max. Length (m) 50

Cutting Increments (mm) 1000

LEDstrip 230V IP65

LEDstrip IP65 for direct connection to 230V, cutting increments 10cm. No drivers and limited secondary leads. Perfect for outdoor use comes in three lumen outputs, Low, Mid, High and several color temperatures, not dimmable. We recommend using an aluminium profile with opal cover if the fitting is visible. Comes as standard in roles of 10m with self-adhesive tape, 3m connecting cable with plug, clips and shrink hose for the end cover. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Available made to measure in optional lengths, accessories are ordered separately.

LEDstrip HV FDIM

LEDstrip HV FDIM 2100K 10m

Accessories

Profile U Plastic 15mm 2m

Connection kit HV FDIM IP44 230V

End cover HV IP44 230V

Joint HV IP44 230V

Joint 90° HV IP44 230V

Extension Cable HV IP44 1m

Clips HV IP44 230V
