Profile 30x30 Profile 30x30 White 2m

Product family for surface-mounted, suspended and recessed installation
Fits all our LED strips with double-sided tape
Opal, prismatic or black diffuser available as accessory
For both indoor and outdoor use

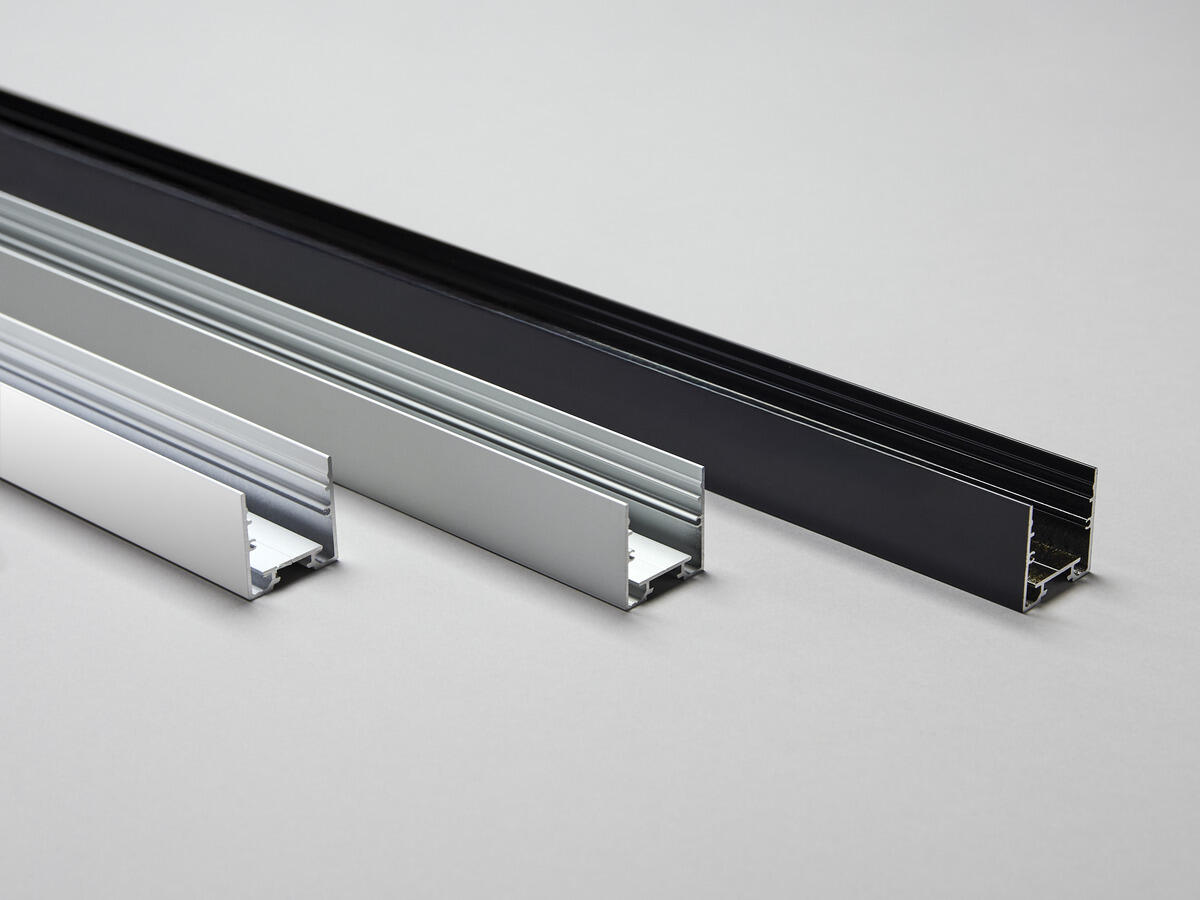

Available in white, black and alu, can be supplied in a choice of colours on request Wide range of accessories for desired light effect and easy installation

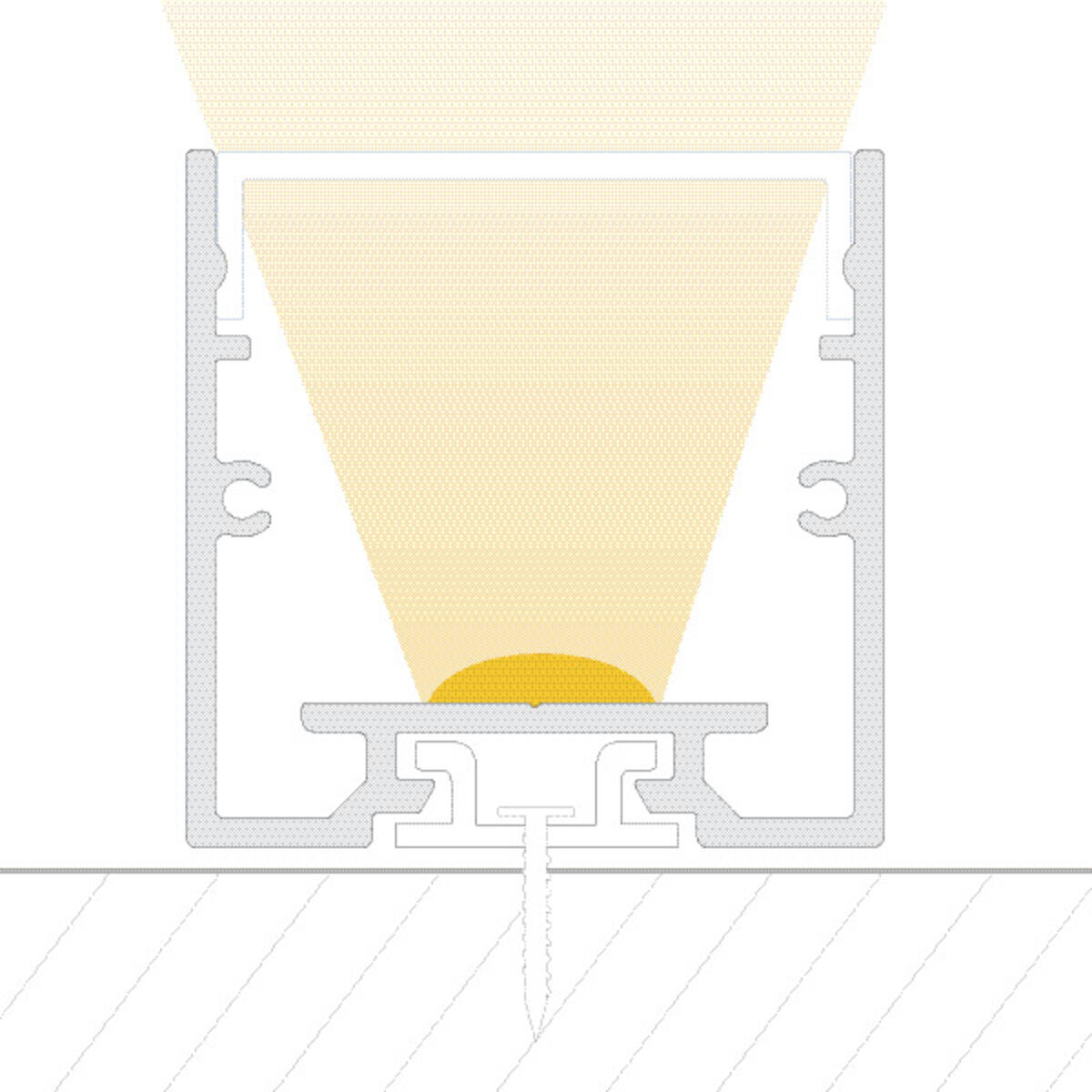

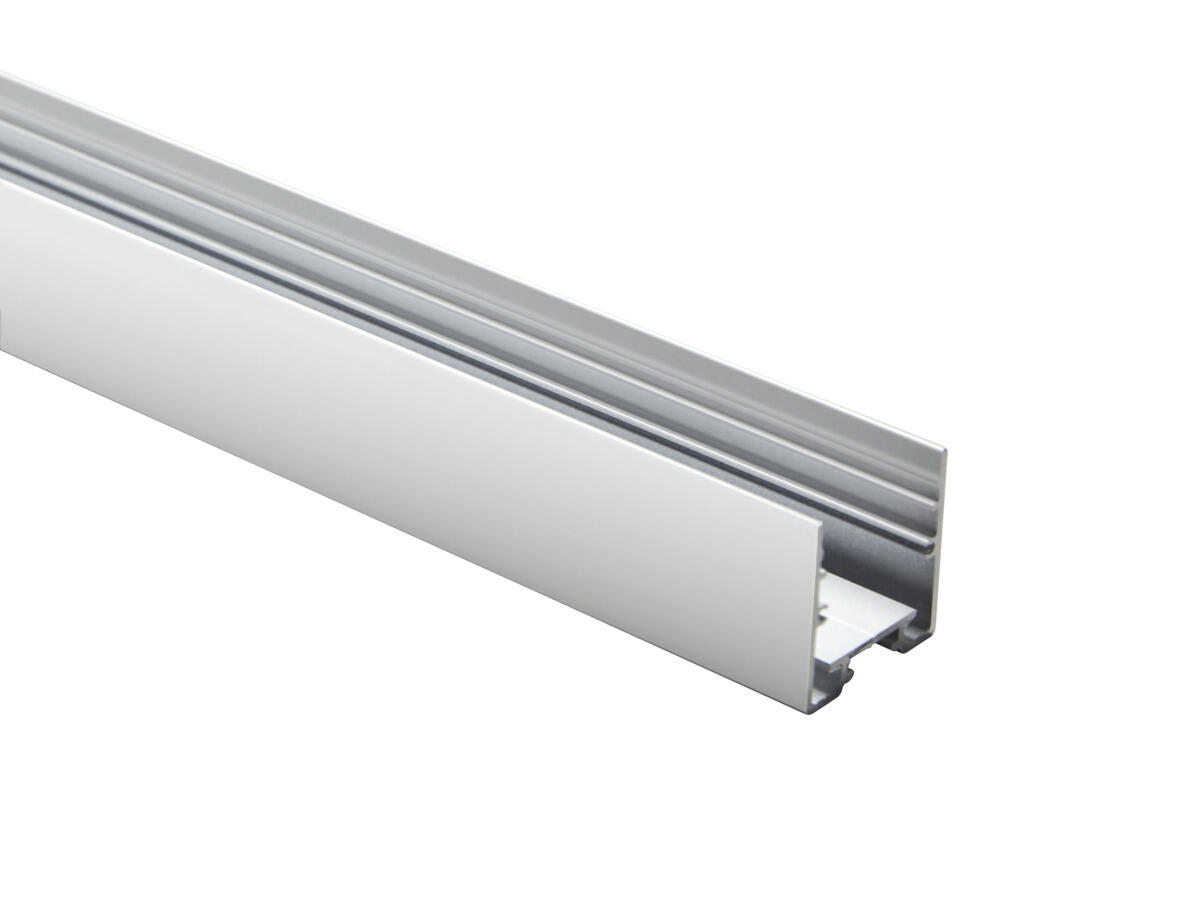

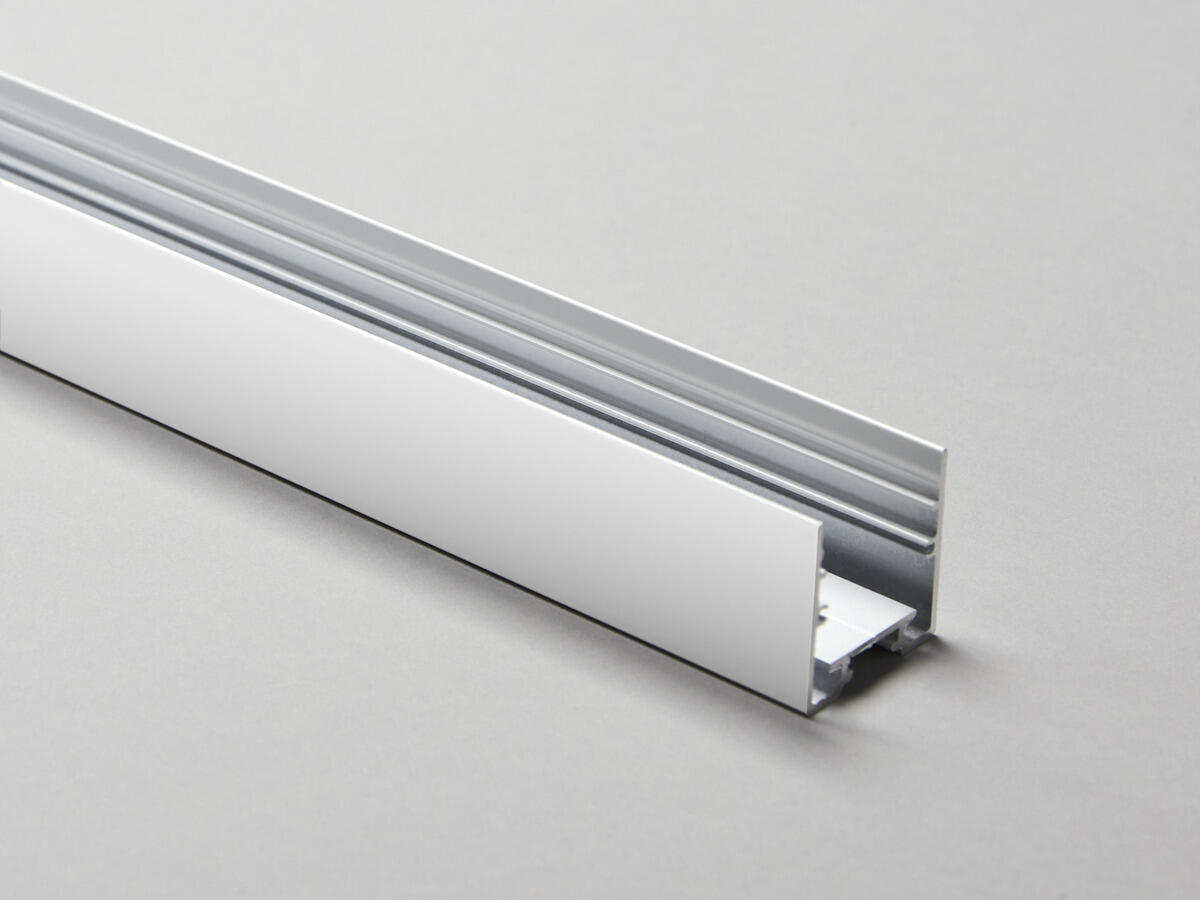

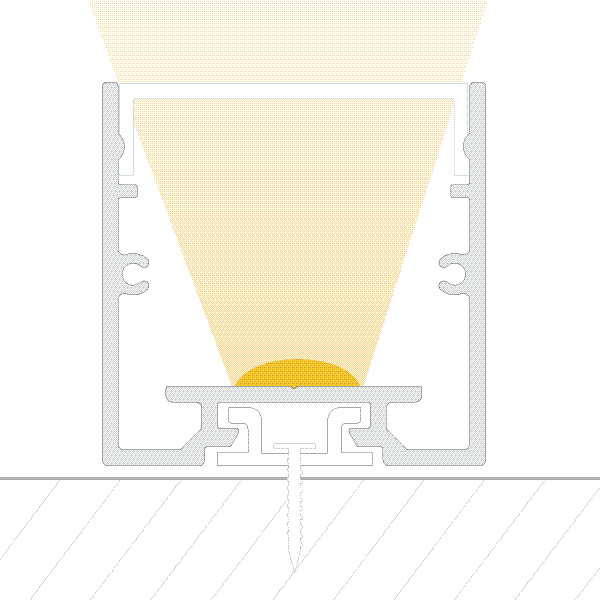

Profile 30x30 is a U-profile that fits several LED strips in our range. The profile facilitates installation and gives the lighting a professional frame. Available for both surface-mounted and recessed mounting and supplied with pre-drilled holes for quick and easy installation. The profile is available in three colours, white, black and aluminium, and can be supplied in any colour on request. For extra flexibility, accessories such as extension arms, profile brackets, covers and end caps are also available.

GTIN	Item Name	Color
7392971153025	Profile 30x30 White 2m	White
7392971153032	Profile 30x30 Alu 2m	Aluminum
7392971153049	Profile 30x30 Black 2m	Black
7392971153056	Profile 30x30 Recessed White 2m	White
7392971153063	Profile 30x30 Recessed Alu 2m	Aluminum
7392971153070	Profile 30x30 Recessed Black 2m	Black

Show more articles

Description: GTIN 7392971153025

Item Name Profile 30x30 White 2m

Warranty 5 years
Color and material: Material Aluminium

Color White

Available in special color Yes
Measurement and installation: Operating Environment Indoor / dry locations, Indoor / damp locations, Indoor / wet locations, Indoor / bathroom (ceiling area 1), Outdoor

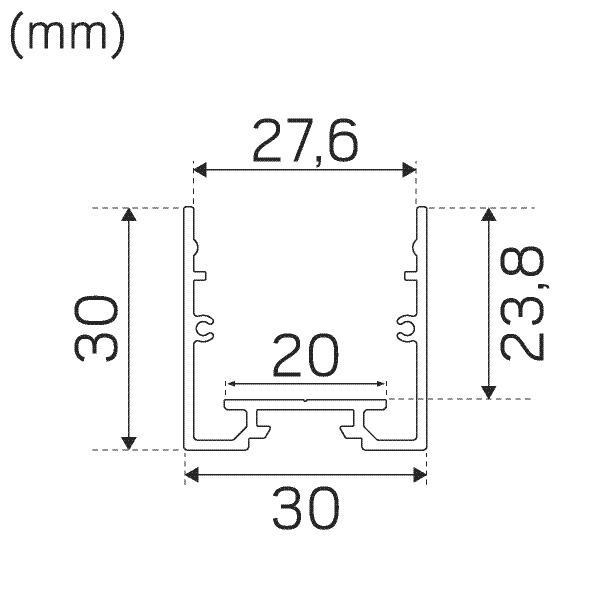

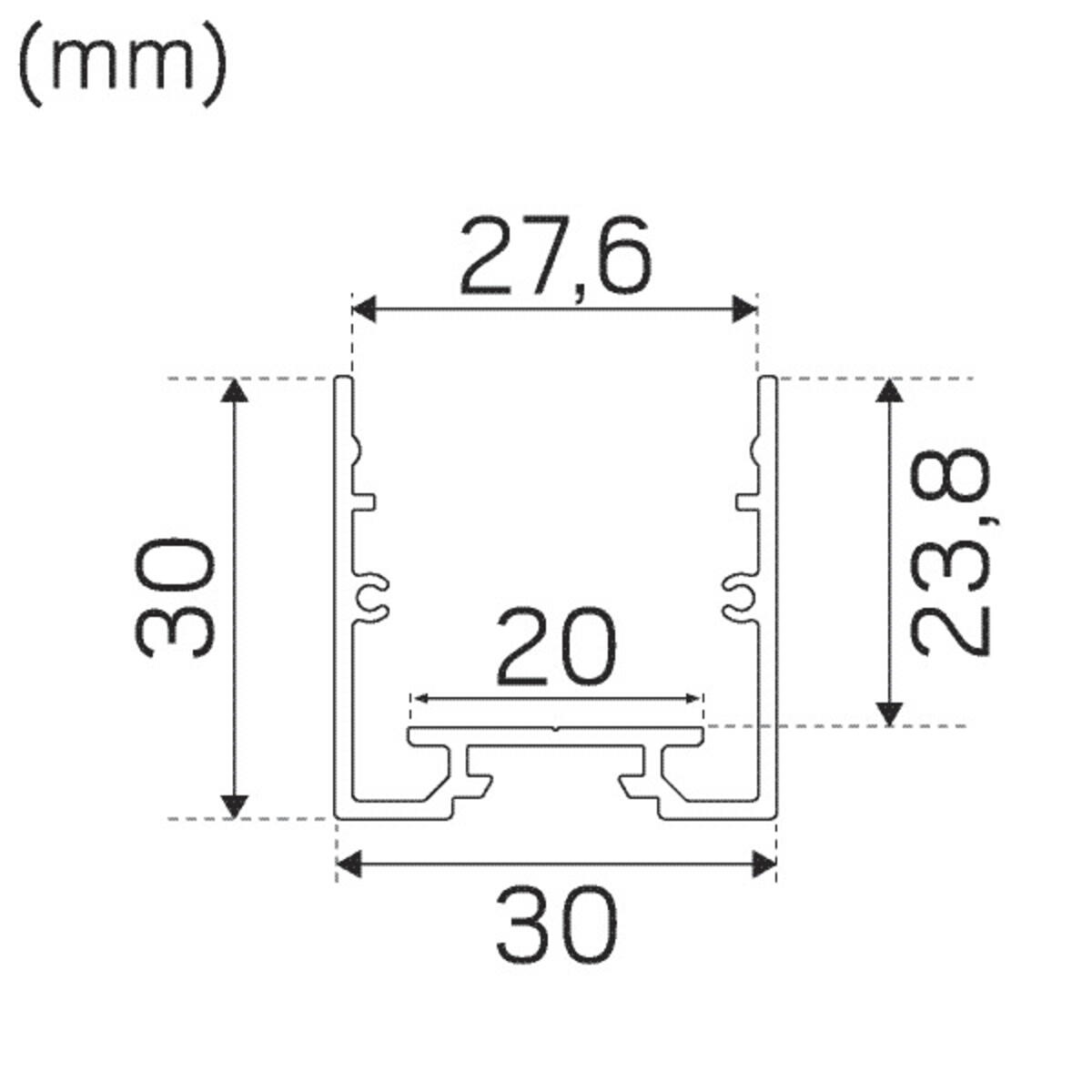

Width (mm) 30

Height (mm) 30

Depth (mm) 2010

Weight (kg) 0,78

Profil Art High

Universal profile primarily intended for surface mounting. Perfect for visible installation on wall or ceiling, works with most of our LED strips. Can be supplemented with clear or opal cover for increased protection, new appearance and light spread. Available accessories include clips for mounting and end caps. Profile and accessories are adapted for installation in both indoor and outdoor environments.

Profile-U High

Universal profile mainly for surface mounting. Complete with cover to protect and change appearance and light pattern. With the Opal Cover, an even light is created without any spots, perfect for creating uniform lines of light. Any unevenness on the installation surface when installing with clips is adjusted with the three grooves in the profile. Refer to the tabular summary under the document tab for suitable LEDstrips.

Profil Art Low

A low-build profile which is easy to use also where the space is limited and which can be used with most of our LED strips. Can be supplemented with clear or opal cover for increased protection, new appearance and light spread. Available accessories include clips for mounting and end caps. Profile and accessories are adapted for installation in both indoor and outdoor environments.

Profile 30x30

Profile 30x30 White 2m

Accessories

Cover Opal 28mm 2m

Cover Black 28mm 2m

Cover Prism 28mm 2m

Profile bracket Lockable 2 pcs

Bracket Stainless steel 2 pcs

End cap 30x30 White 2 pcs

End cap 30x30 Alu 2pcs

End cap 30x30 Black 2 pcs

End cap 30x30 Recessed White 2 pcs

End cap 30x30 Recessed Alu 2pcs

End cap 30x30 Recessed Black 2 pcs

Angle bracket Profile 27-32mm White 2 pcs

Angle bracket Profile 27-32mm Alu 2 pcs

Angle bracket Profile 27-32mm Black 2 pcs

Extension arm Profile 27-32mm White 2 pcs

Extension arm Profile 27-32mm Alu 2 pcs

Extension arm Profile 27-32mm Black 2 pcs

Spring Bracket 30x30 Recessed 1pcs

Suspension Kit M4 2 pcs
