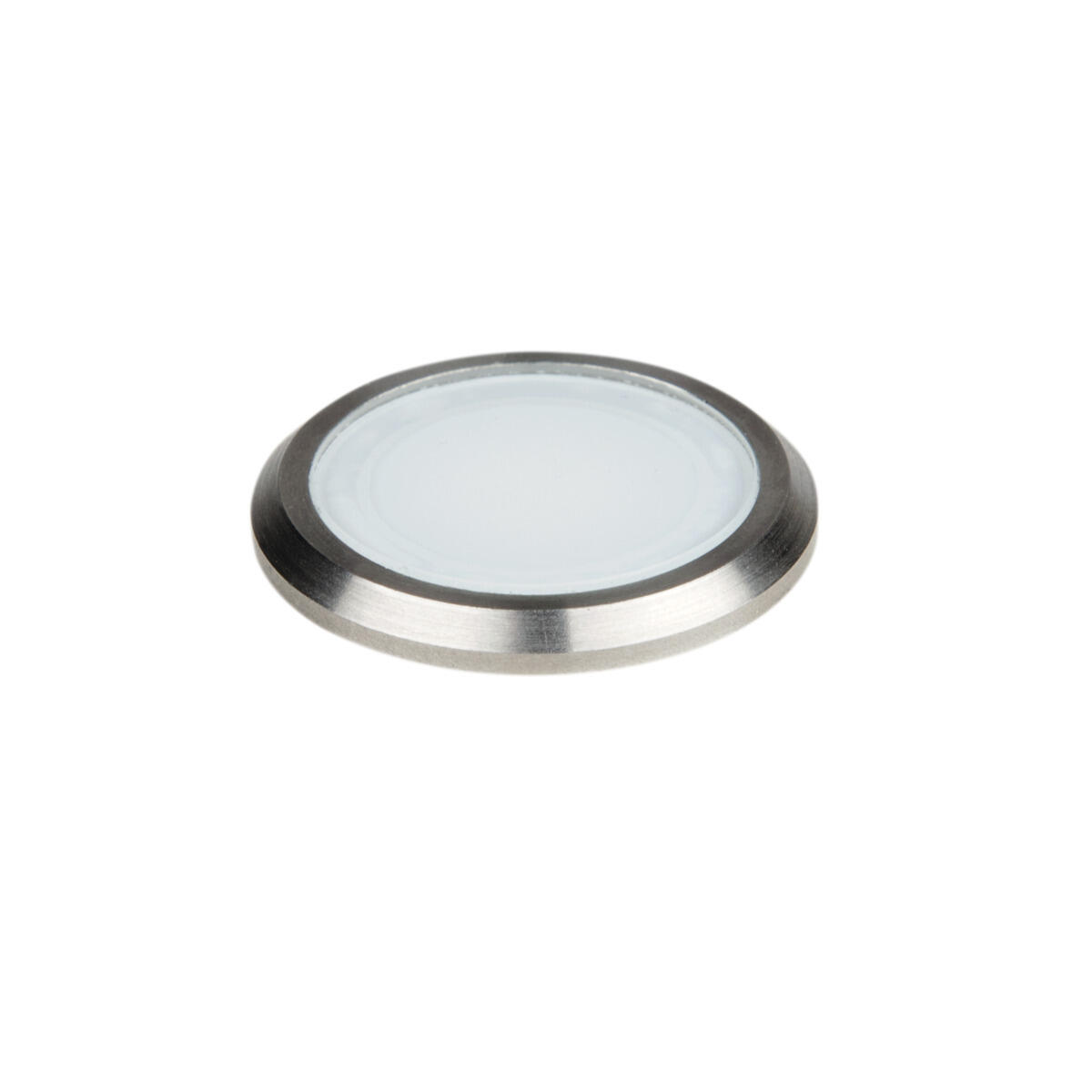

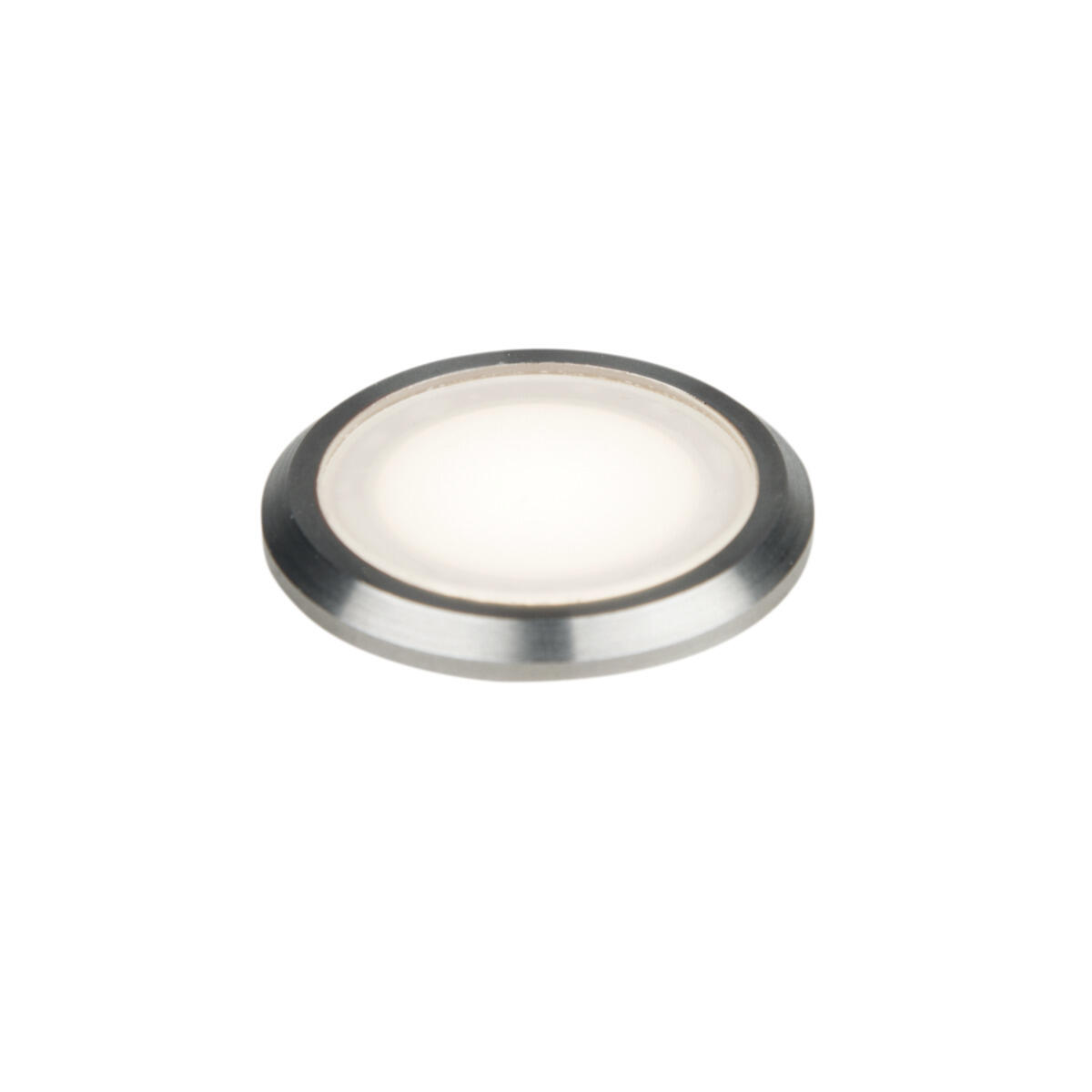

Decklight Garden

Comes with 2pcs 0.5m rubber cables with screw connections
Can be combined with other luminaires in the Garden range, simple installation with a common connection system

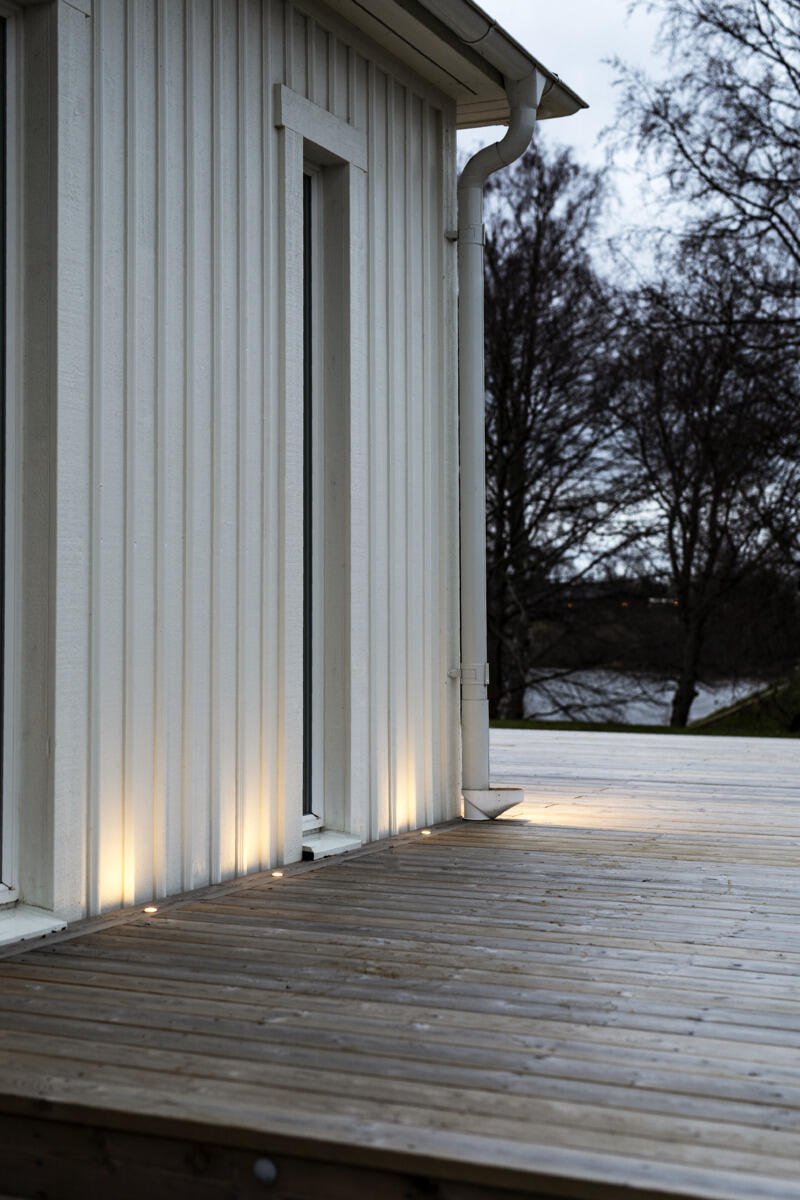

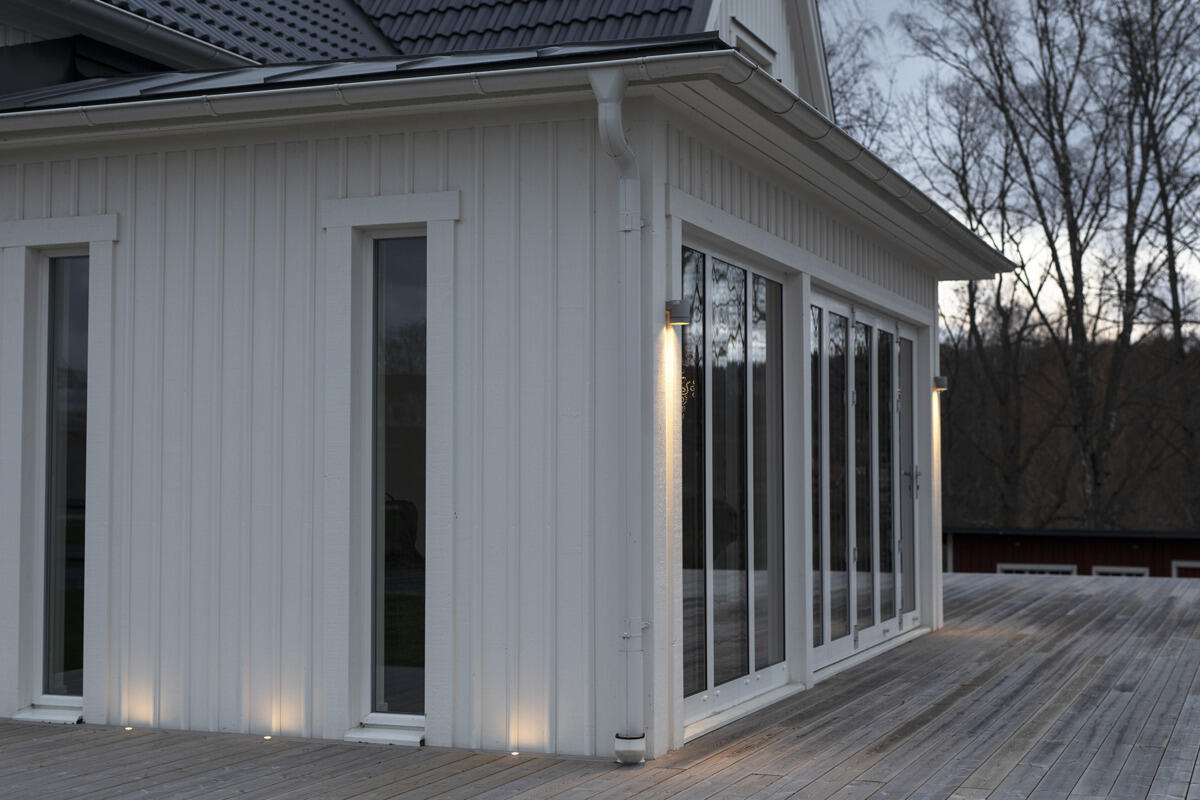

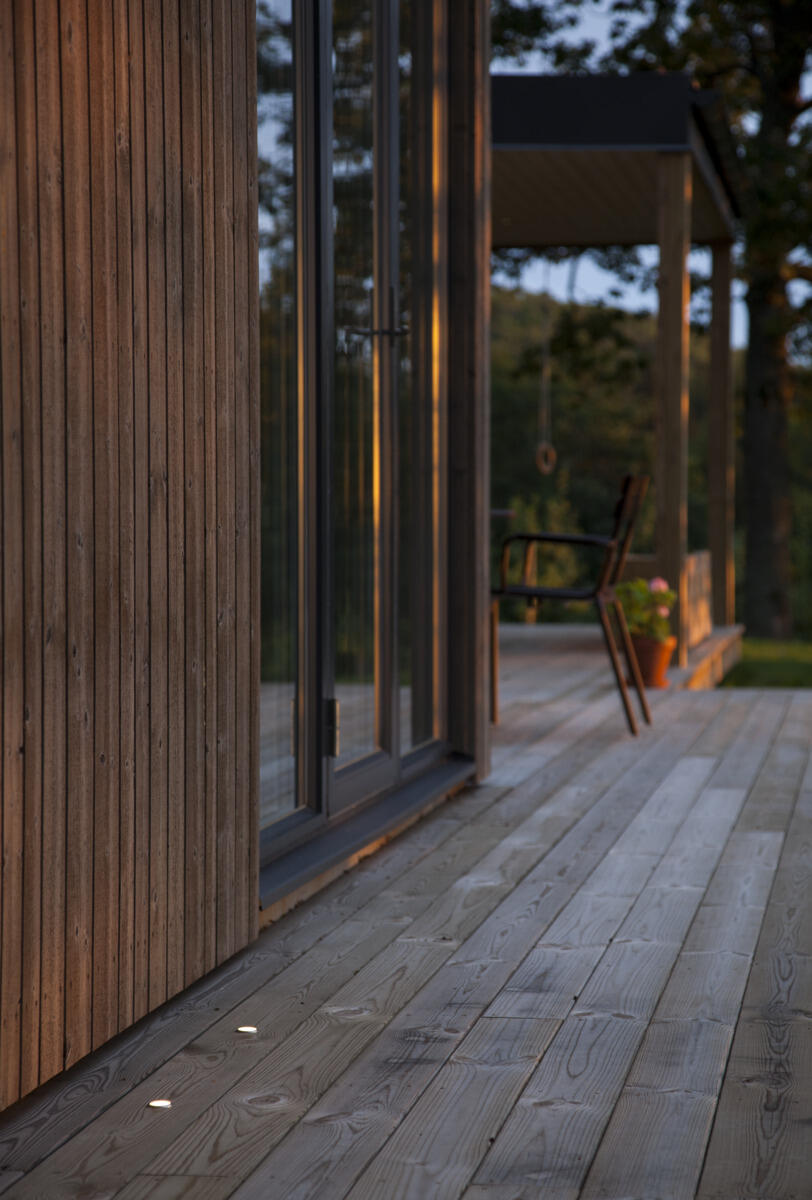

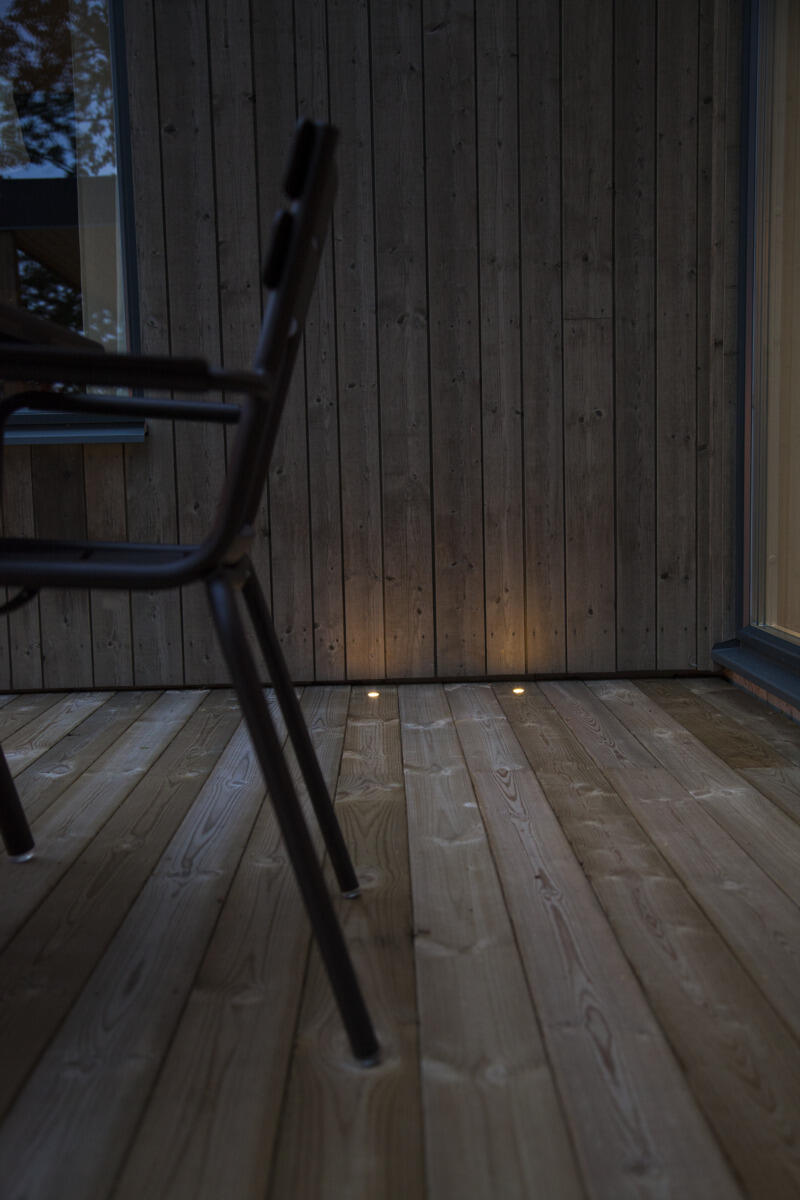

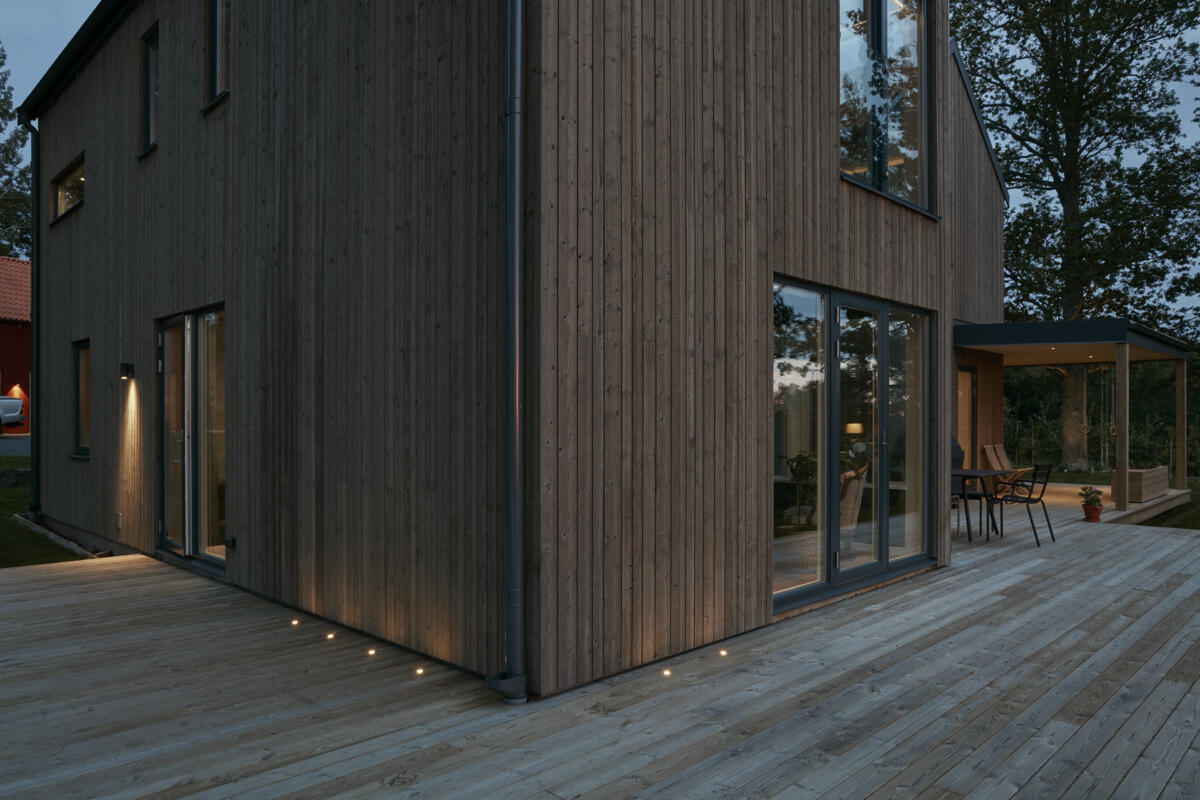

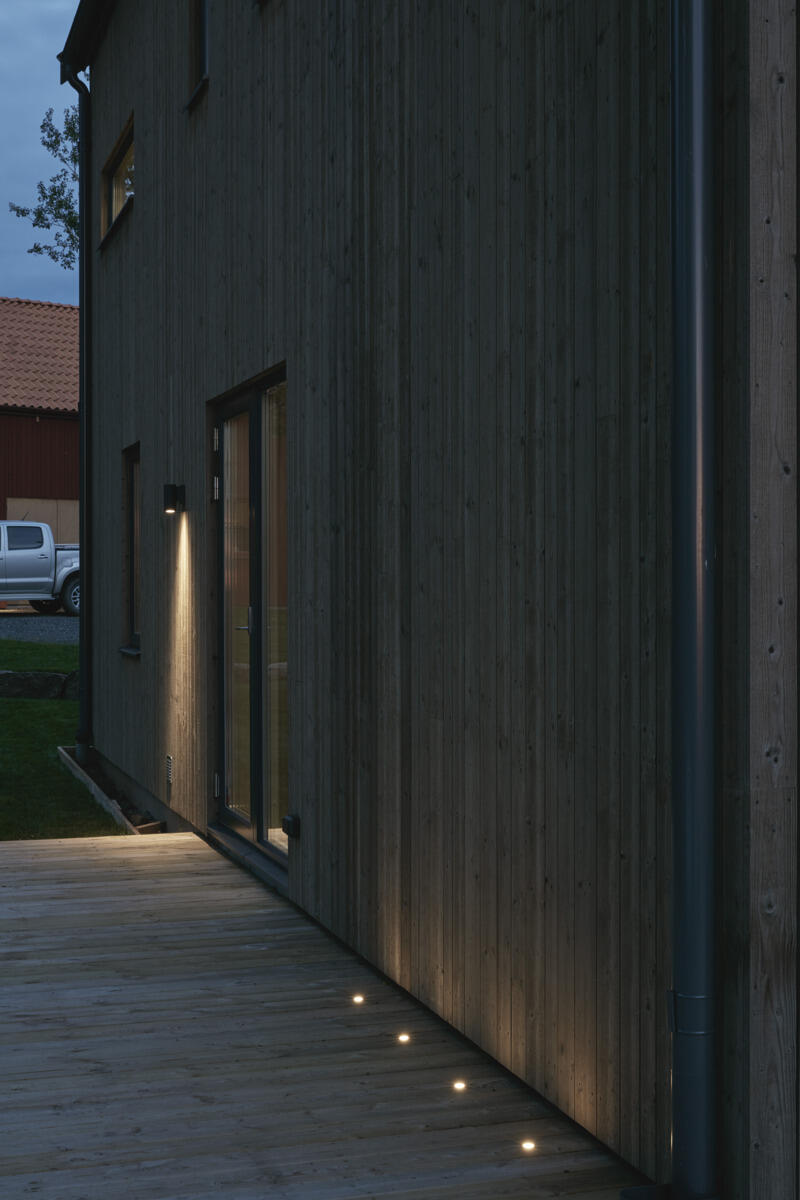

A decorative and striking luminaire for wooden decks with low energy consumption. You can also increase security around your home by creating pleasant effects with outdoor lighting. Comes with 2x 0.5 m rubber cables with screw connections. A transformer and 1 m or 5 m extension cable are also available as accessories. Can be combined with Spotlight Garden thanks to the common coupling system.

Description: GTIN 7392971130156

Item Name Decklight Garden

Warranty 5 years
Light Technical Data: Max. Luminaire Lumen (lm) 5

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 20

Light sharing Symmetric

Light Outlet Indirect

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L70 50000h Ta 25°C

Nominel Life Time (h) 50000

Lumen maintenance 50 000h L70

LLMF @ 50 000h 0.7
Technical data: Adjustable No

Voltage (type) DC

Voltage Interval (V) 12...12V

Voltage Nominal (V) 12

Max. Power Luminaire (W) 0,8

Max. System Power (W) 0,8
Operation and Connection: Dimmable No

Type of Dimming OnOff

Driver Included No

Driver Model Constant Voltage

Connection (type) Screw Connection

Through Wiring No

Strain Relief No

Min. Ta (°C) -15

Max. Ta (°C) 40

Max. Tc (°C) 60
Color and material: Material Stainless Steel

Color Stainless Steel

Halogen free No
Measurement and installation: Operating Environment Indoor / wet locations, Outdoor

IP Degree of Protection 67

Protection Class III

Installation Built-in

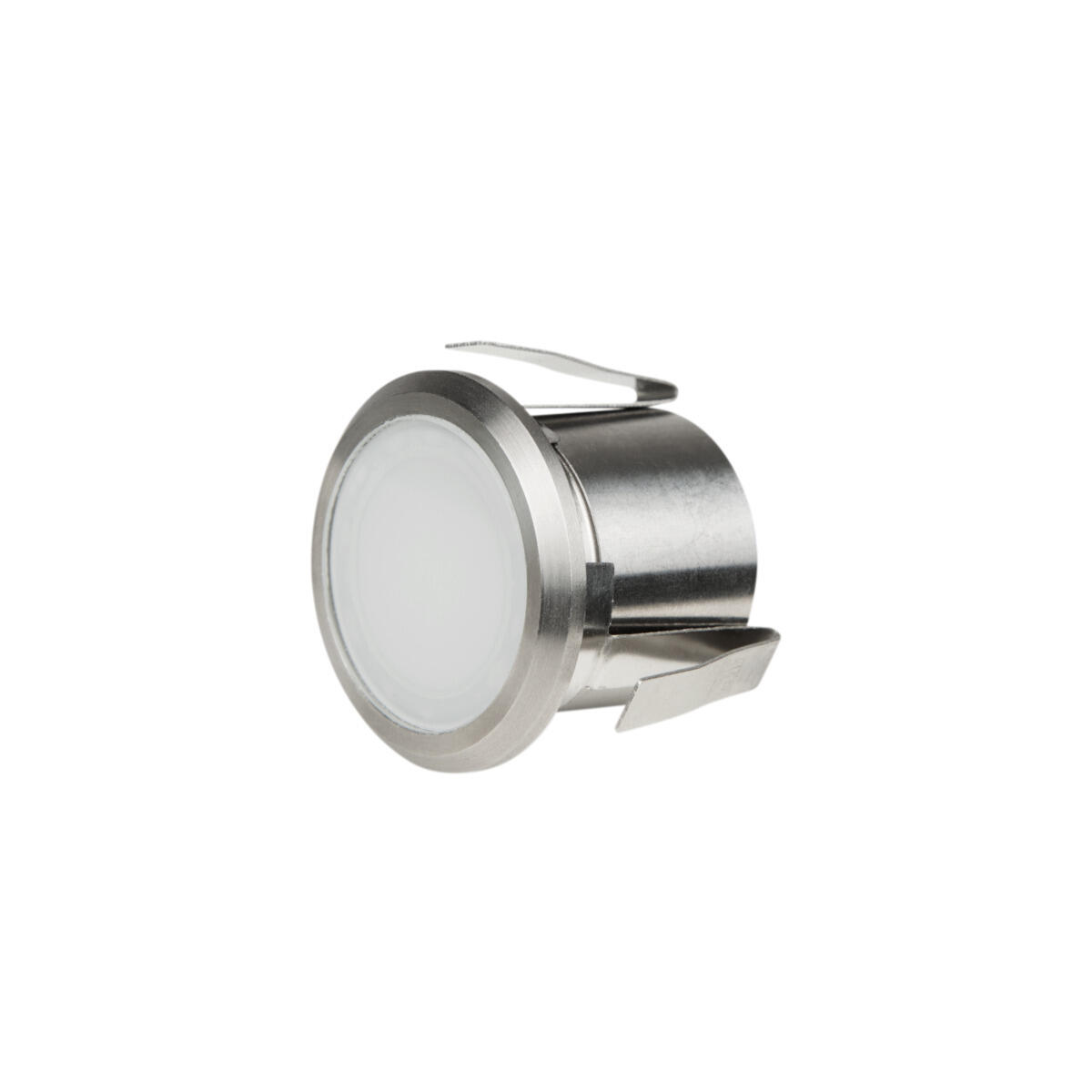

Mounting Installation Tension Spring

Max. Pressure (kg) 100

Approval Marks CE

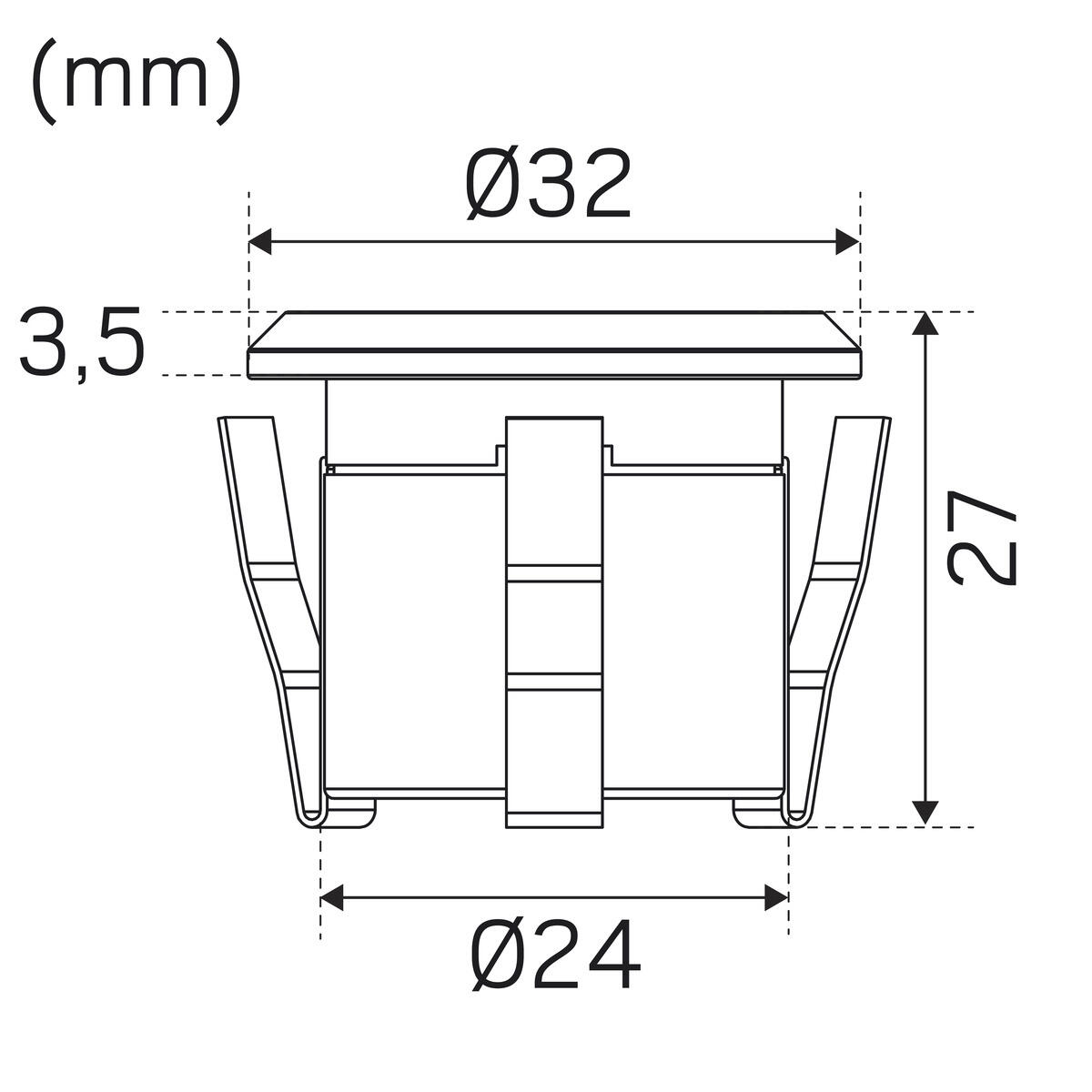

Height (mm) 27

Diameter (mm) 32

Weight (kg) 0,11

Min. Built-in (mm) Ø28x25

Height Exterior Part (mm) 4

Built-in Ø (mm) 28mm
