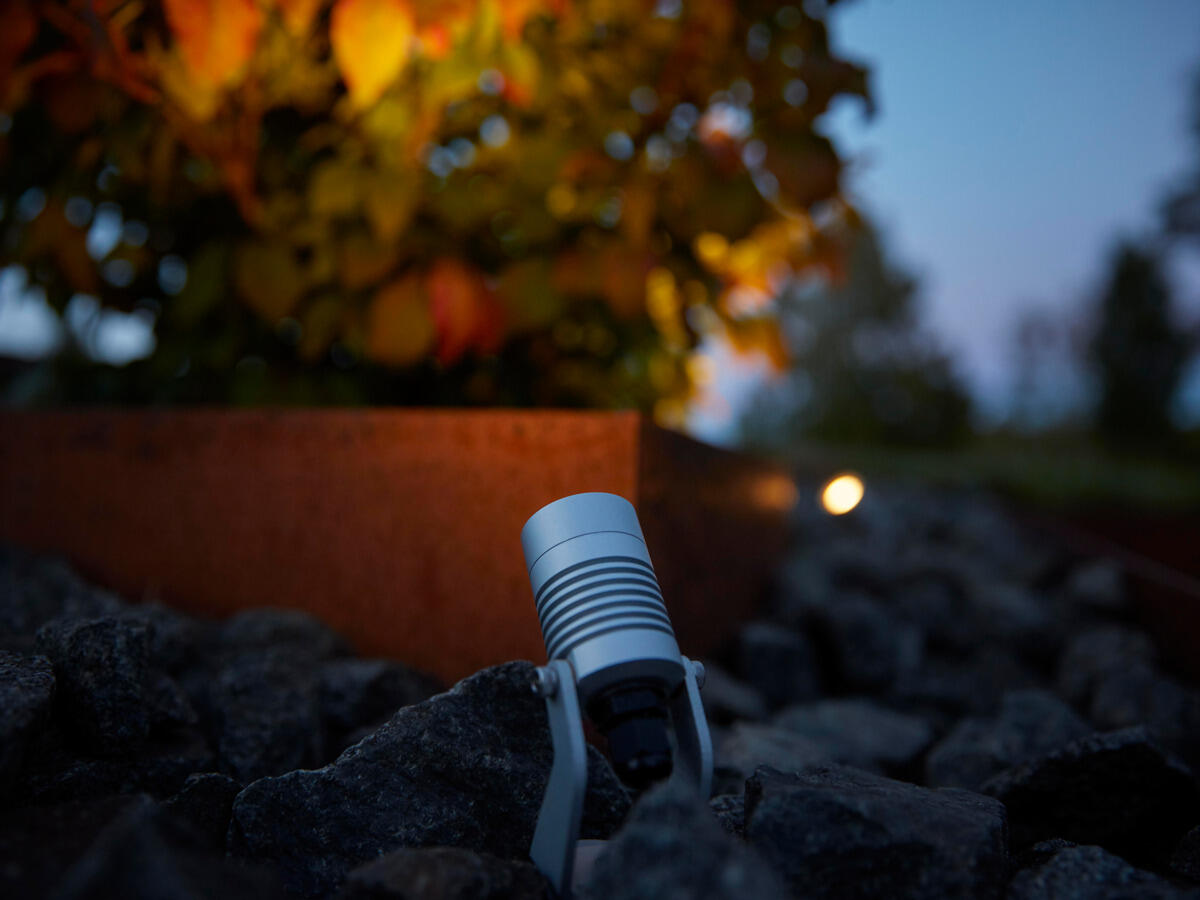

Spotlight Garden

Can be combined with other luminaires in the Garden range, simple installation with a common connection system

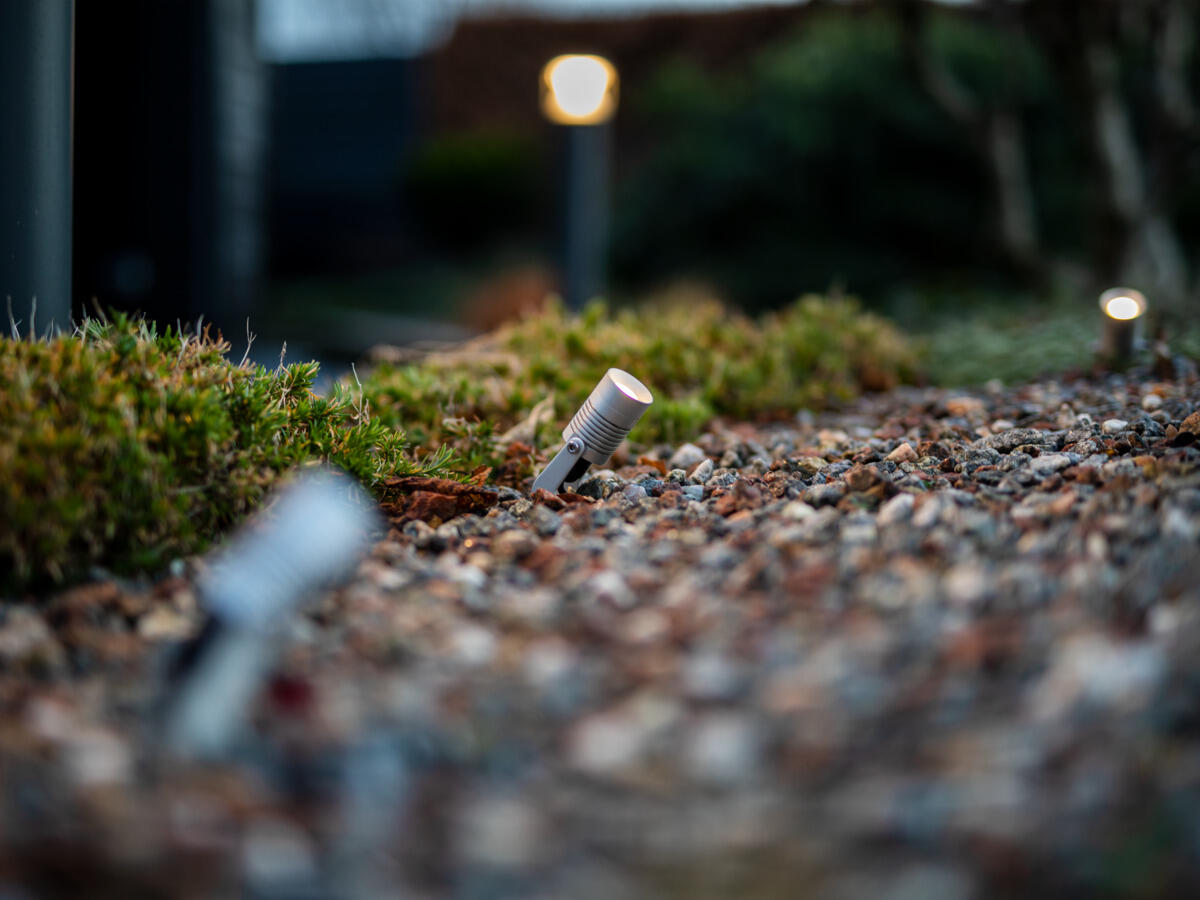

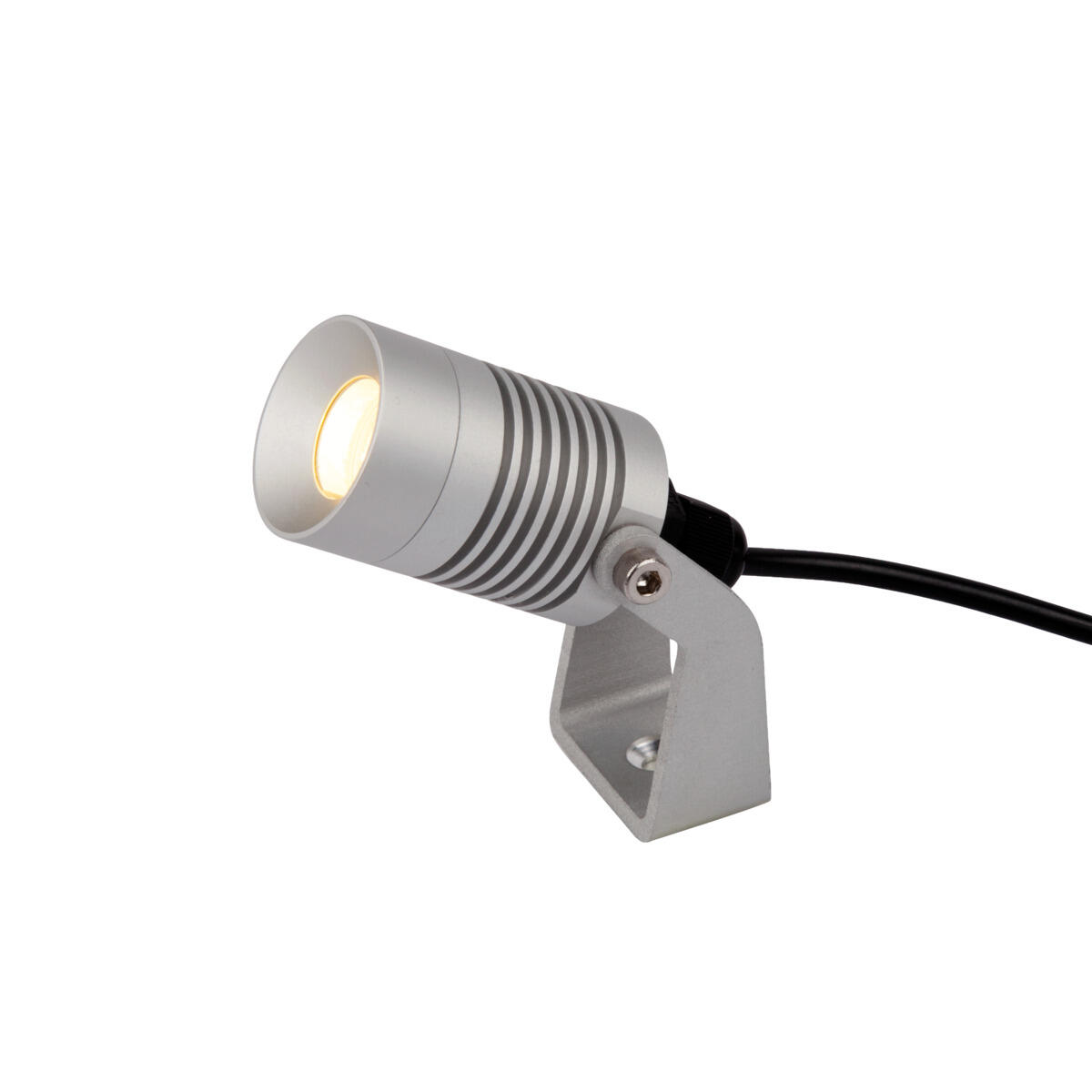

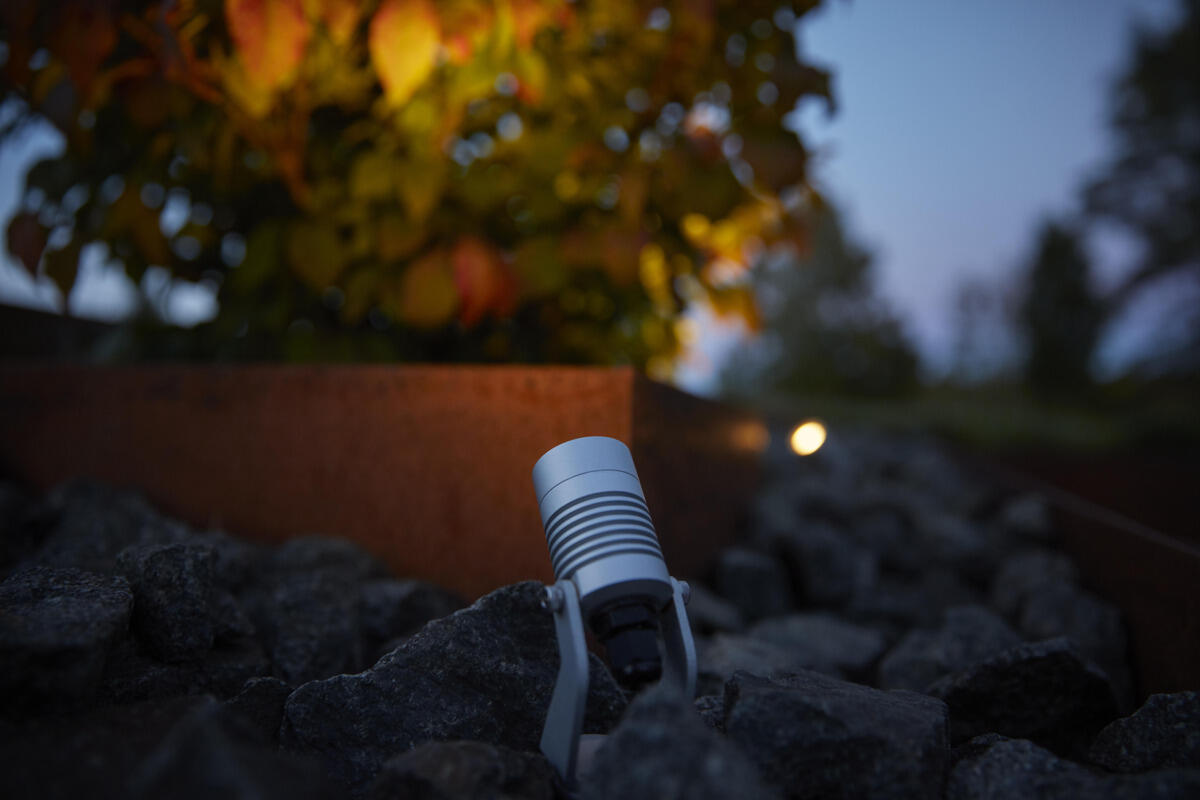

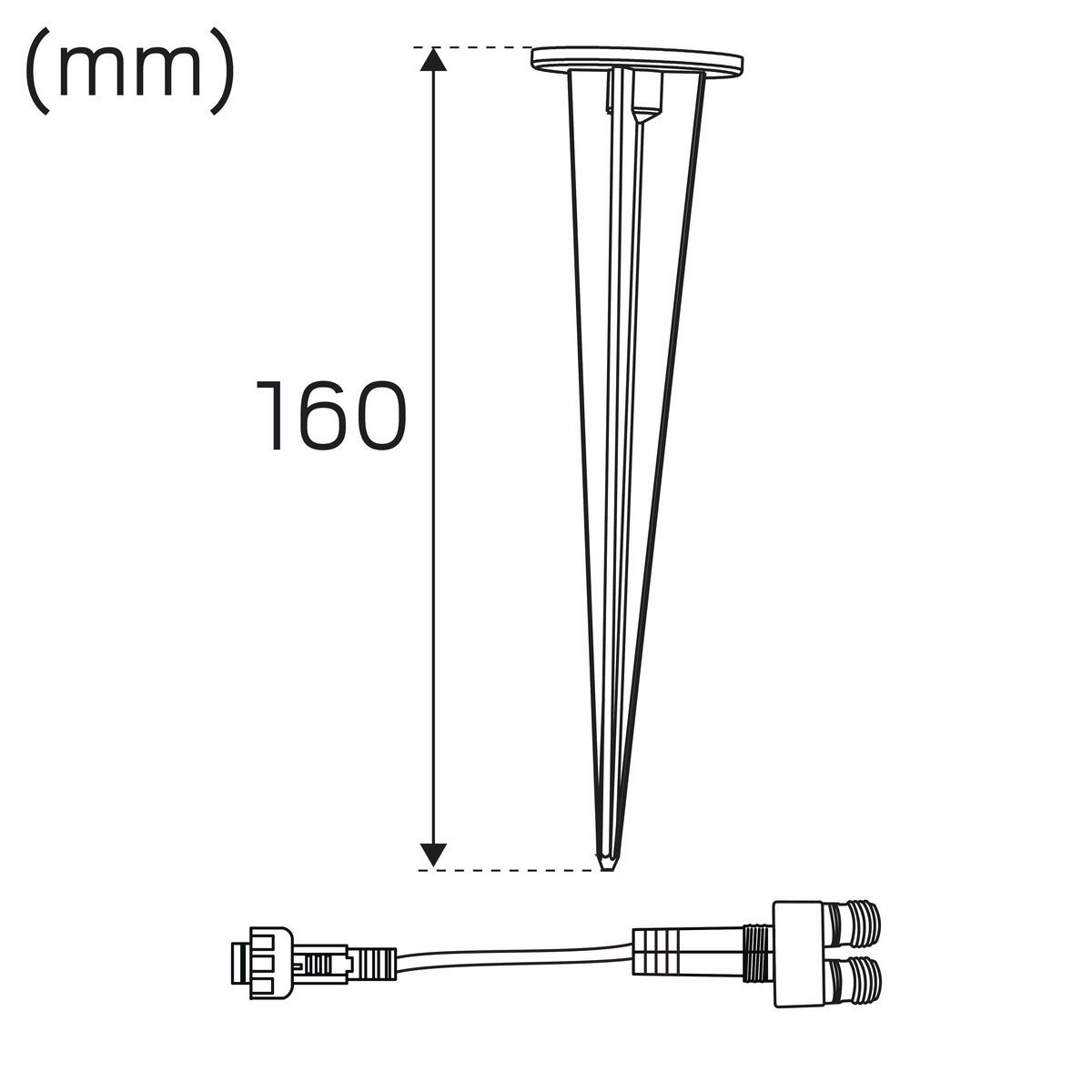

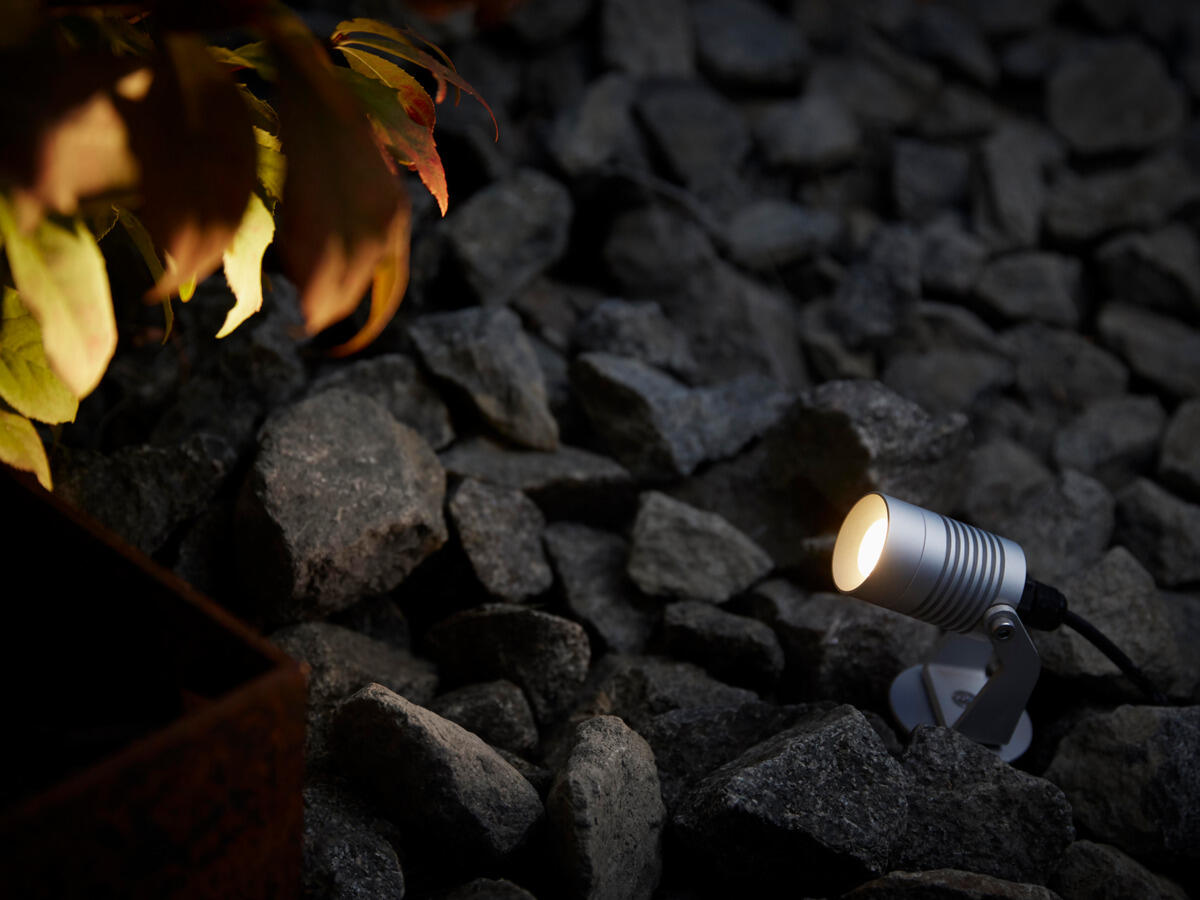

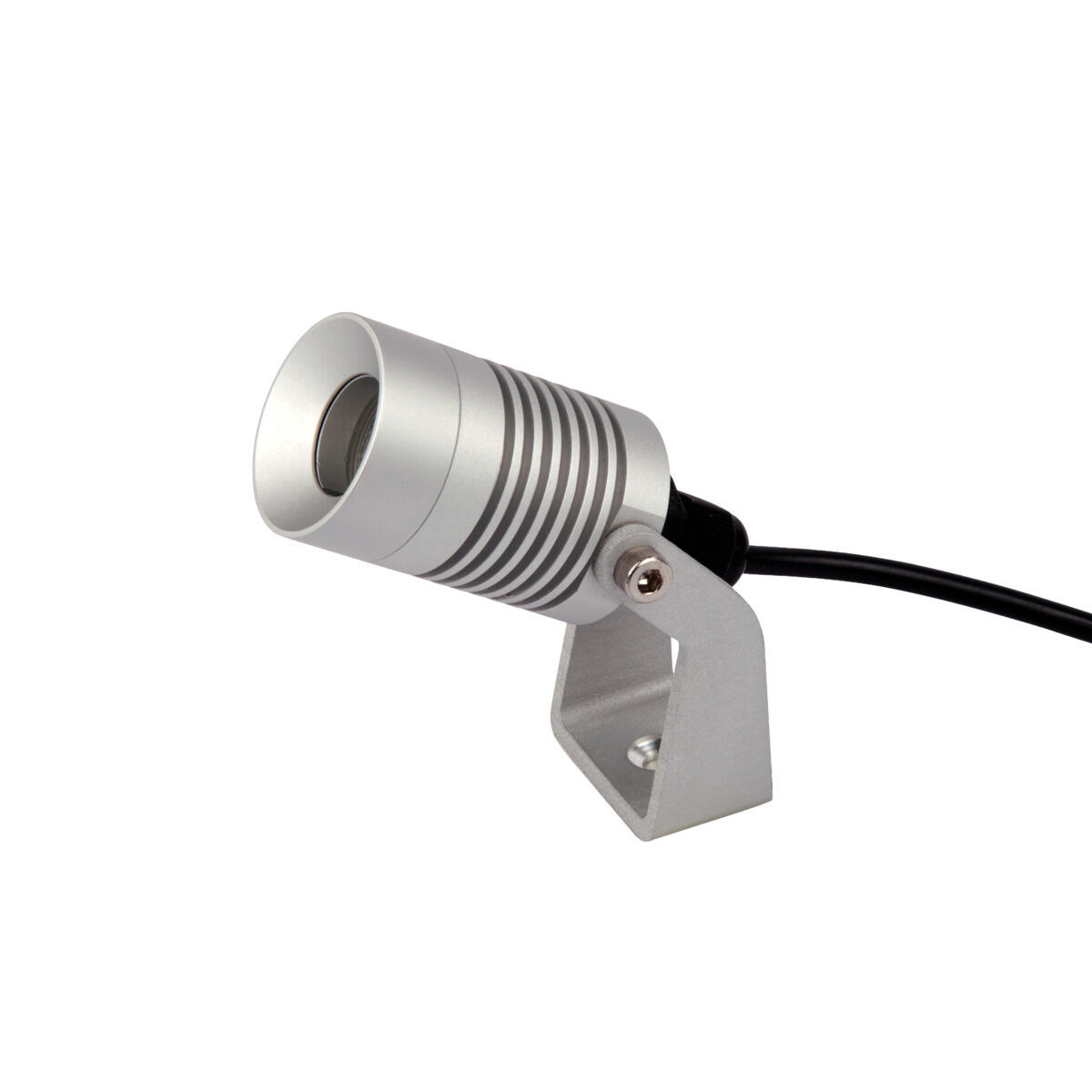

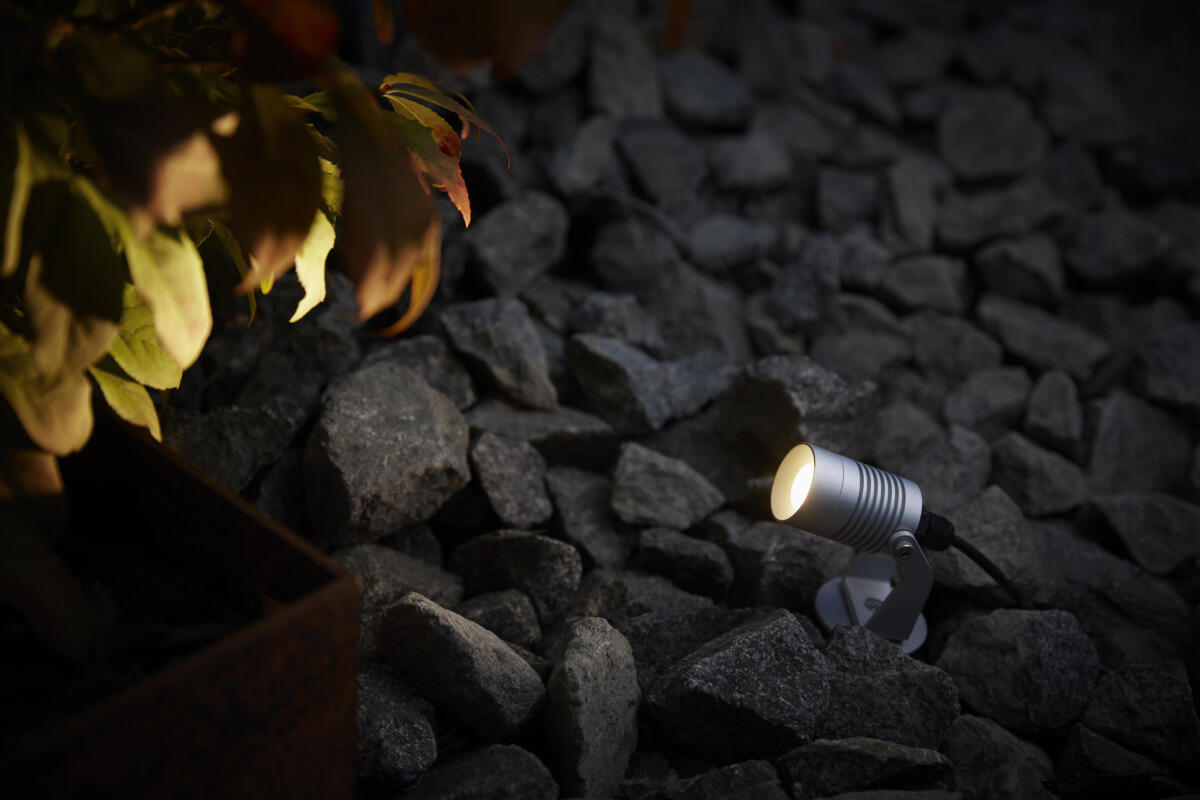

A striking mini spot with low energy consumption. Small, adjustable and stylish luminaire for illuminating smaller objects in the garden, such as flower beds or small bushes and trees. Comes with 0.5 m rubber cable with screw connection, T-connection and ground spike. A transformer and 1 m or 5 m extension cable are available as accessories. Can be combined with Decklight Garden thanks to the common coupling system.

Description: GTIN 7392971130132

Item Name Spotlight Garden

Warranty 5 years
Light Technical Data: Max. Luminaire Lumen (lm) 40

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 150

Beam Angle (°) 36

Light sharing Symmetric

Light Outlet Indirect

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L70 50000h Ta 25°C

Nominel Life Time (h) 50000

Lumen maintenance 50 000h L70

LLMF @ 50 000h 0.7
Technical data: Adjustable Yes

Tiltable (°) 90

Rotatable (°) 360

Voltage (type) DC

Voltage Interval (V) 12...12V

Voltage Nominal (V) 12

Max. Power Luminaire (W) 0,8

Max. System Power (W) 0,8
Operation and Connection: Dimmable No

Type of Dimming OnOff

Driver Included No

Driver Model Constant Voltage

Connection (type) Screw Terminals

Through Wiring No

Strain Relief No

Min. Ta (°C) -15

Max. Ta (°C) 40

Max. Tc (°C) 40
Color and material: Material Aluminium

Color Aluminum

Color Cover Ring Aluminum

Halogen free No
Measurement and installation: Operating Environment Indoor / wet locations, Outdoor

IP Degree of Protection 67

Protection Class III

Installation Surface mounted

Mounting Installation Screw Mounting, Ground Spike

Approval Marks CE

Impact Strength IK10

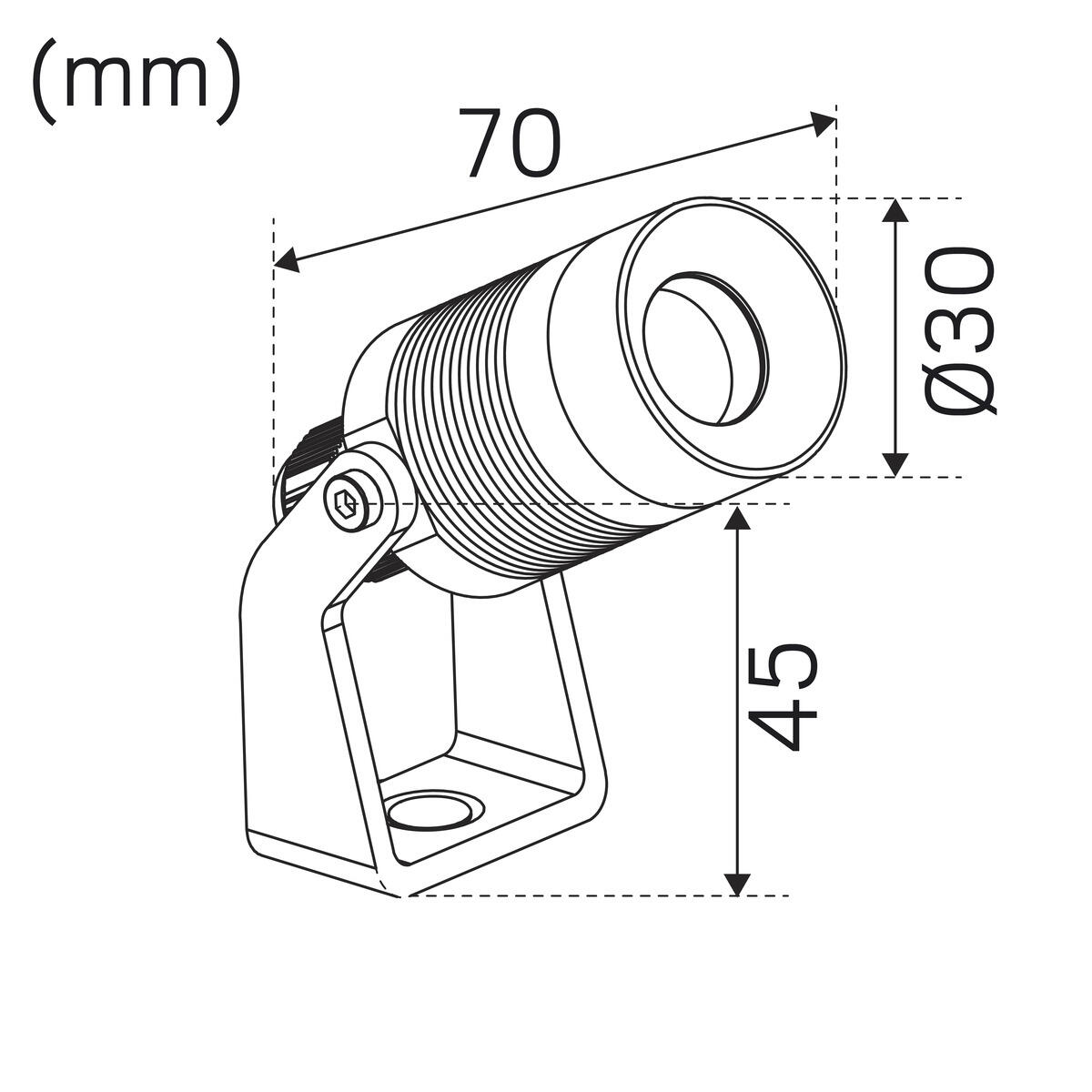

Length (mm) 70

Height (mm) 70

Diameter (mm) 30

Weight (kg) 0,2
