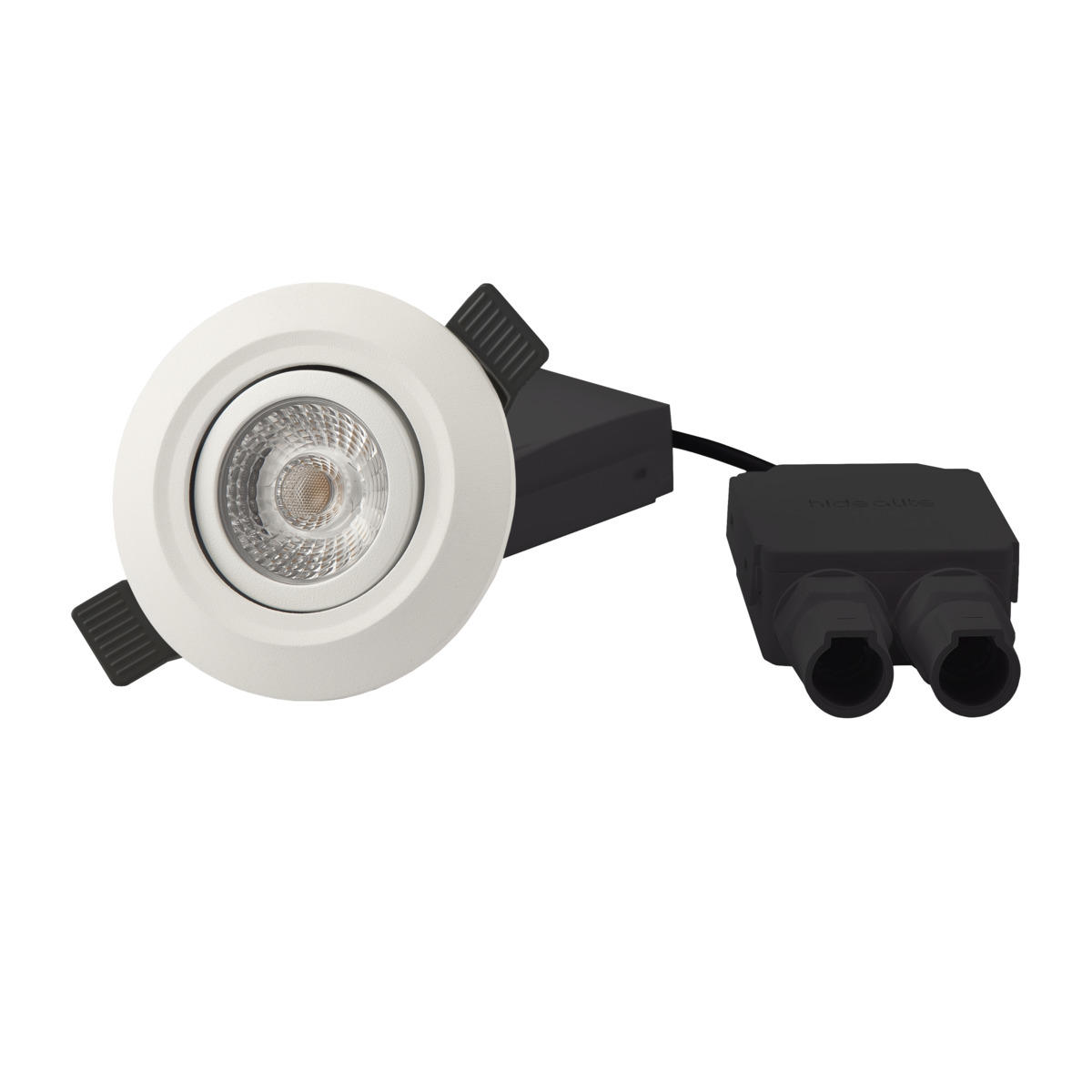

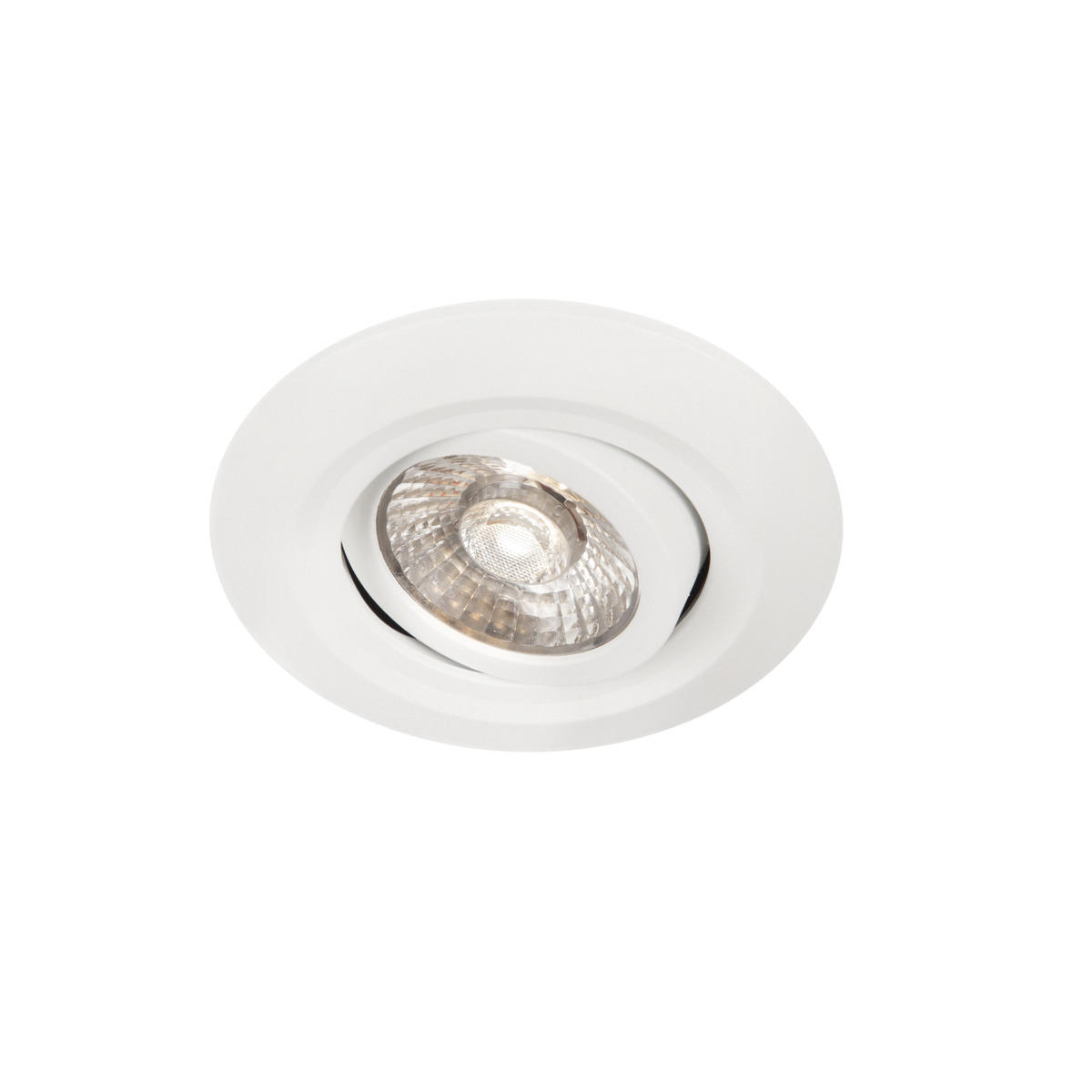

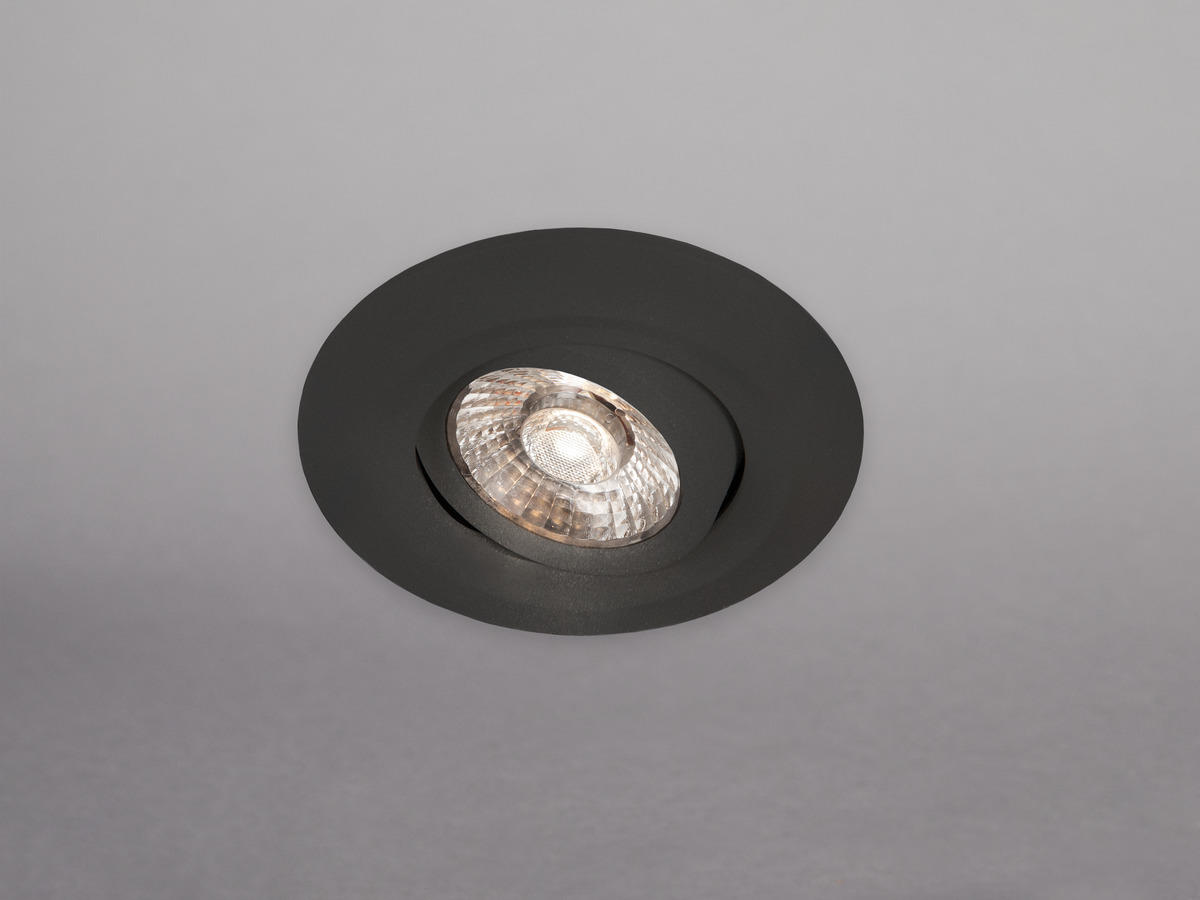

Comfort Quick Outdoor

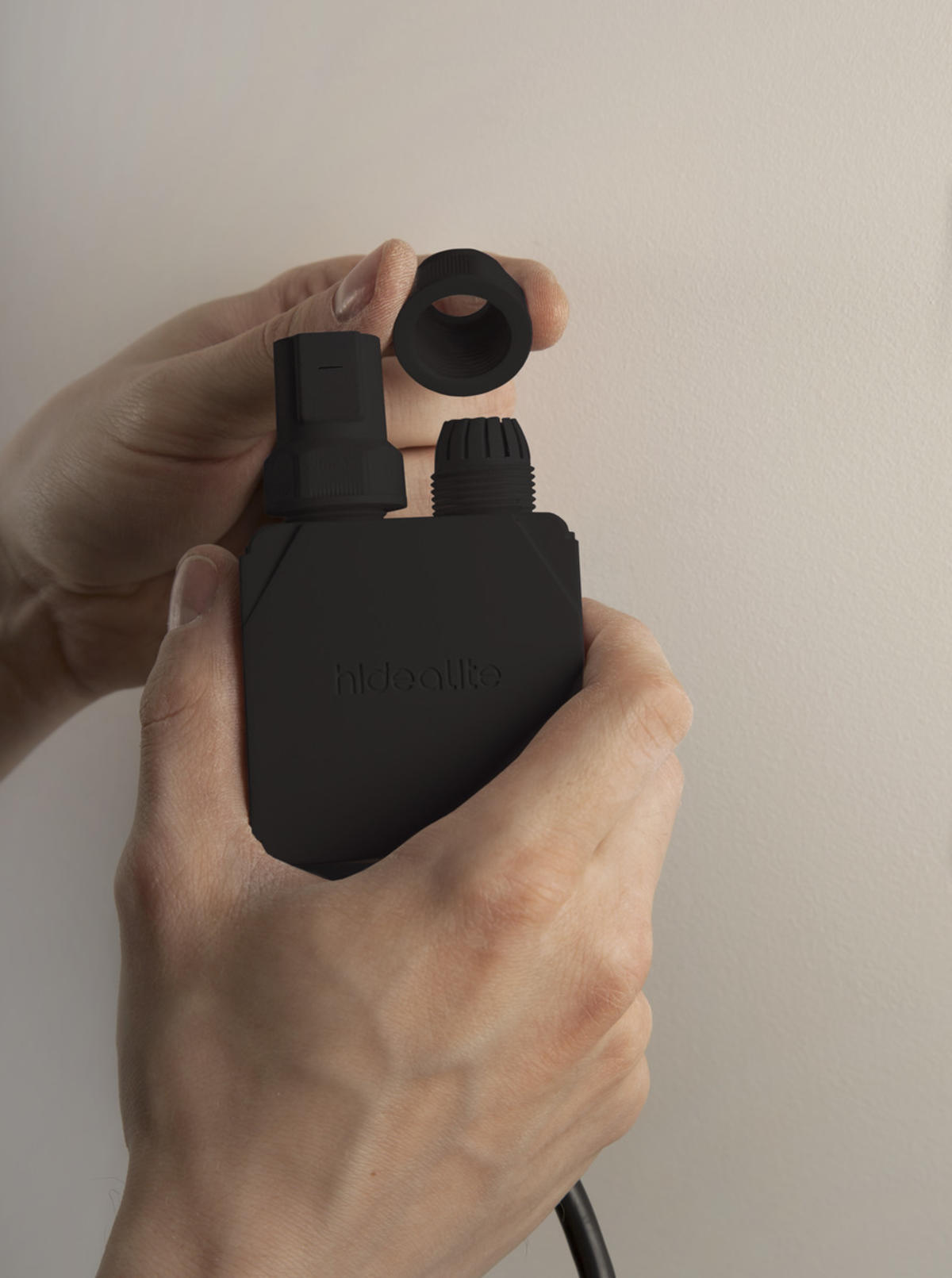

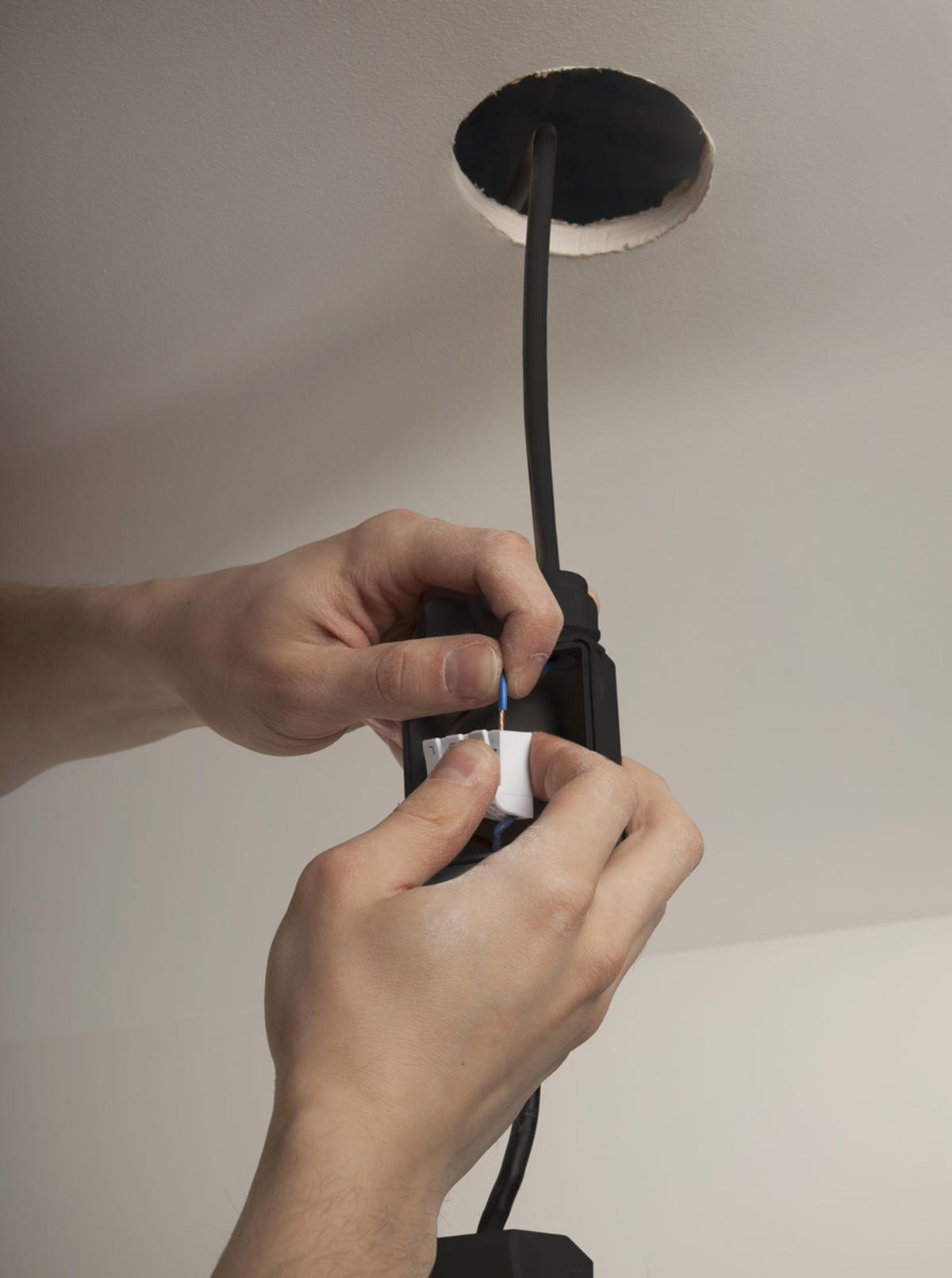

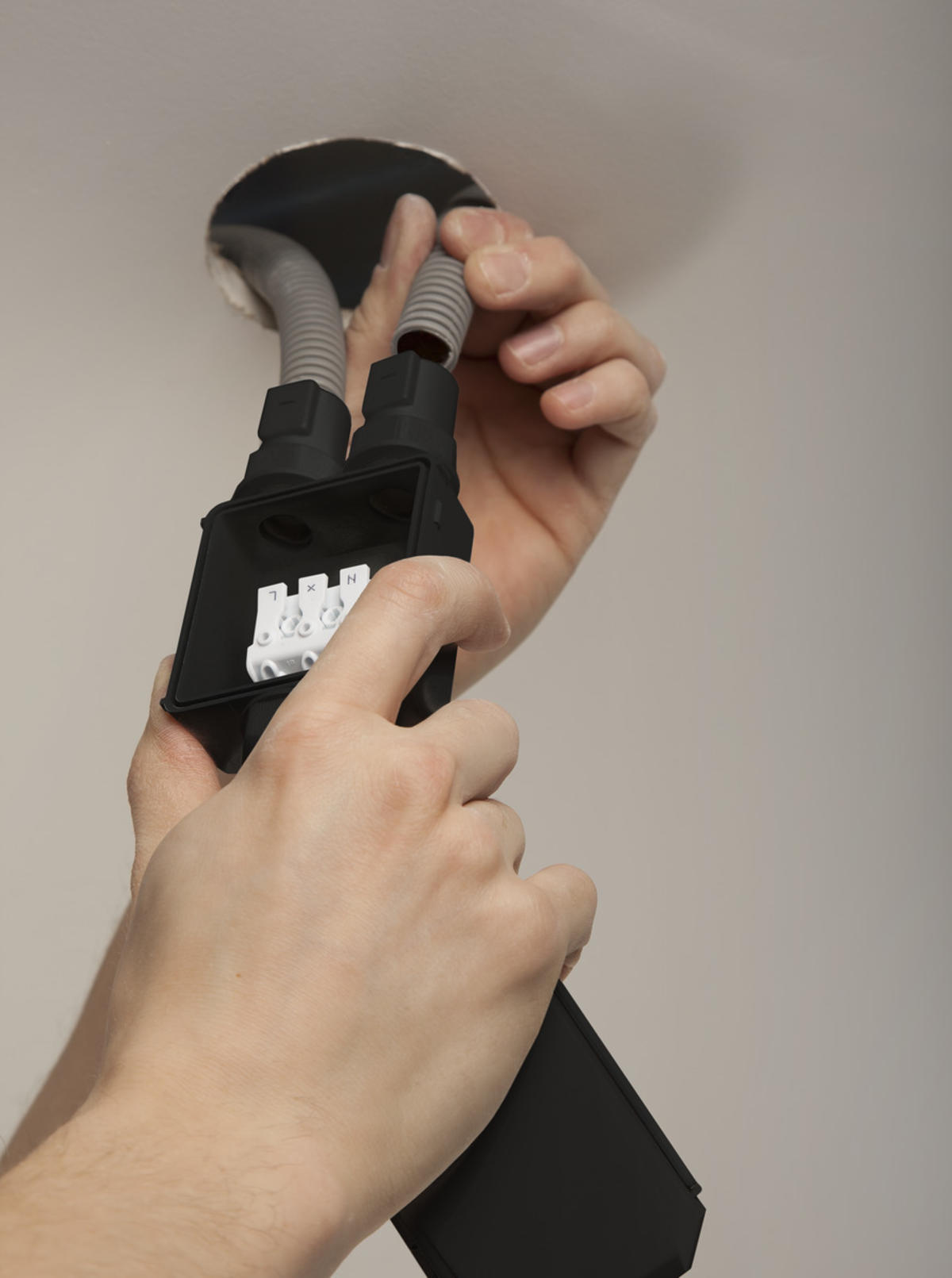

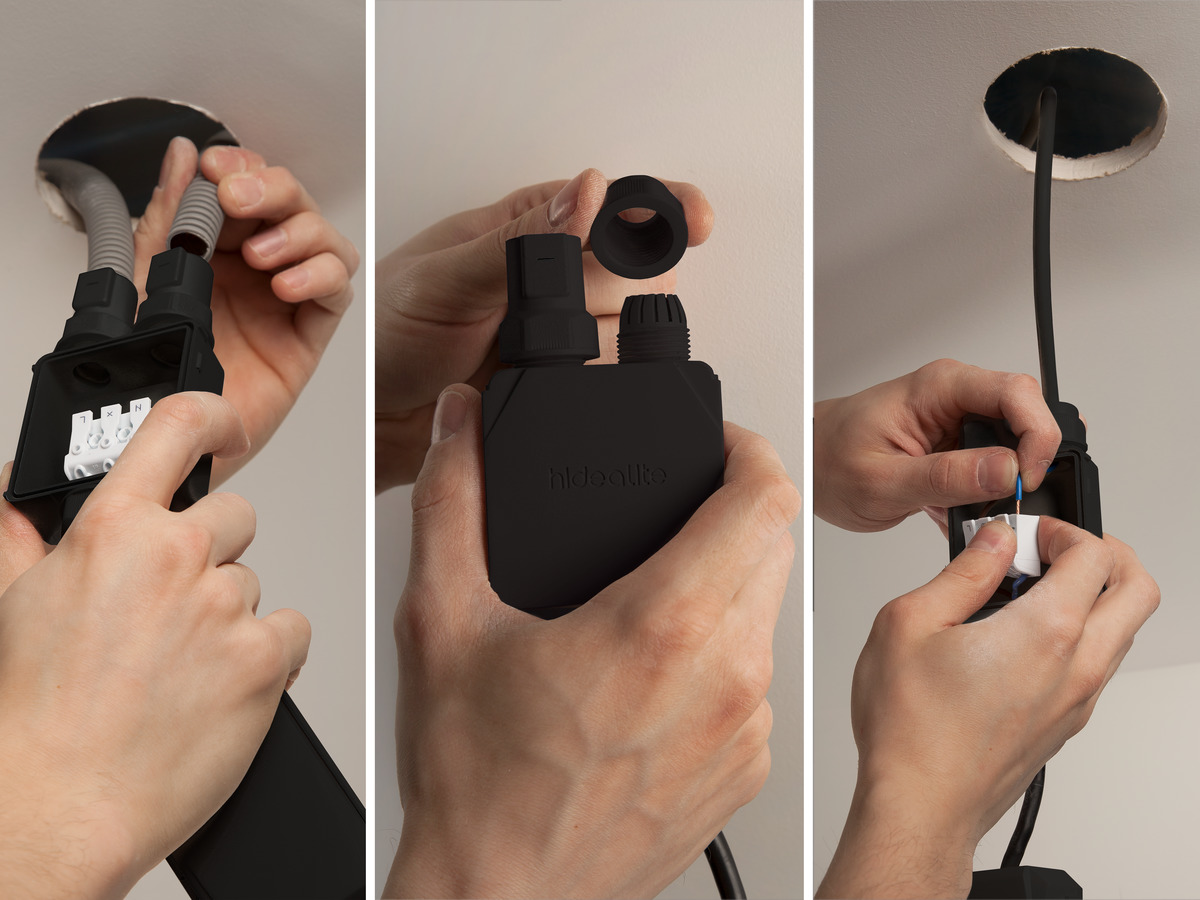

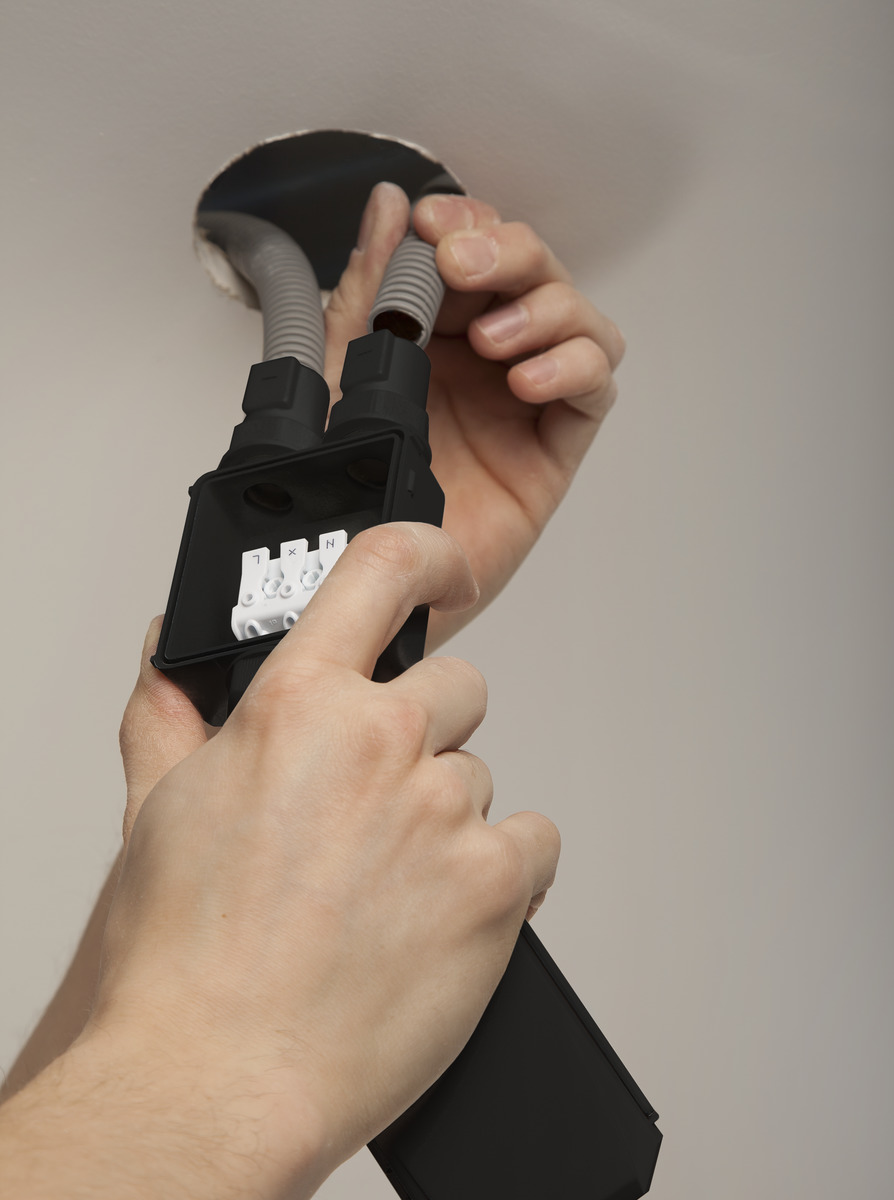

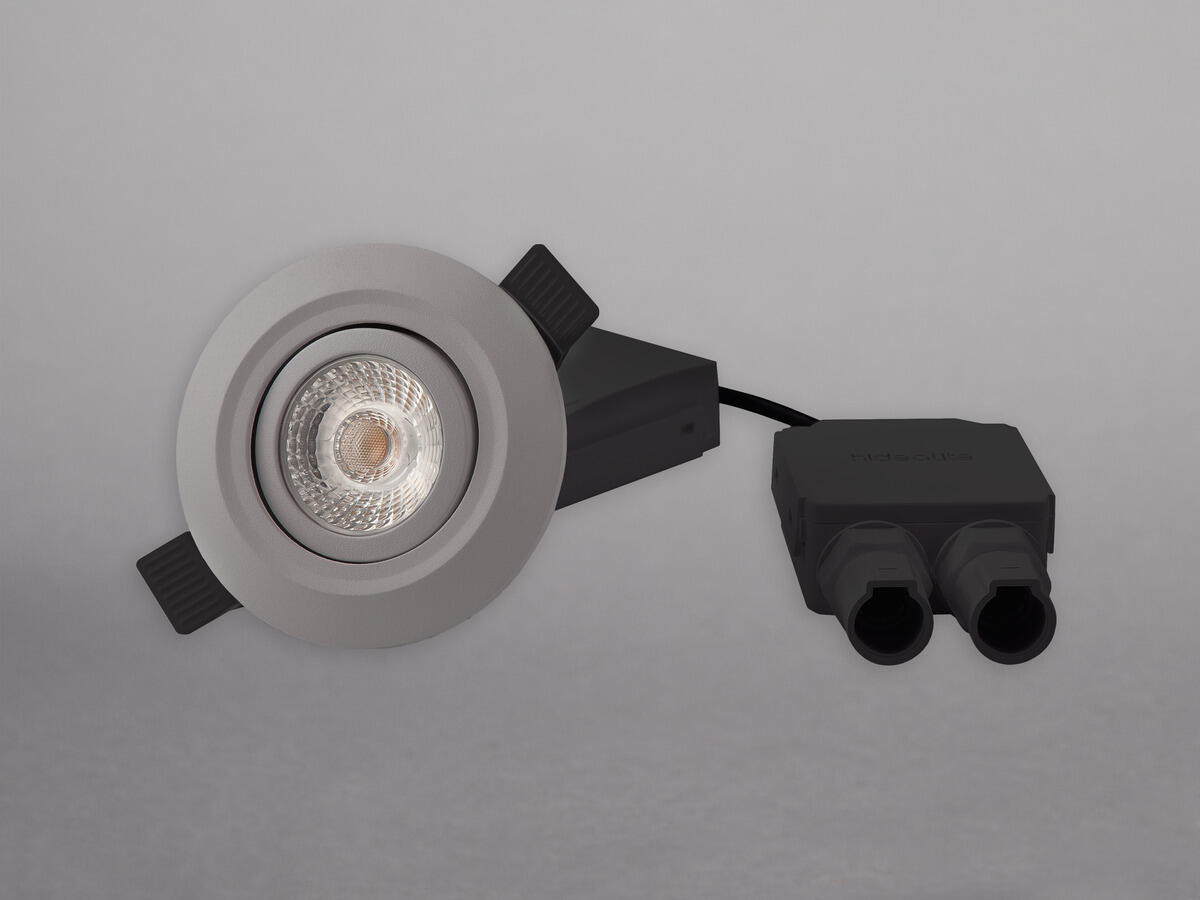

Low built and adjustable outdoor luminaire in the Comfort series with an installation height of just 40 mm. All components are IP44 and approved for installation in open ceiling structures or directly against insulation. Hole dimensions between 73 and 85 - perfect for housing improvements. Complete with mains dimmable driver, connection box with push-in, loop-in, loop-out terminals and screwless strain relief for cable or flexi-hose 16 mm. Dimmable with the most commonly available dimmers on the market.

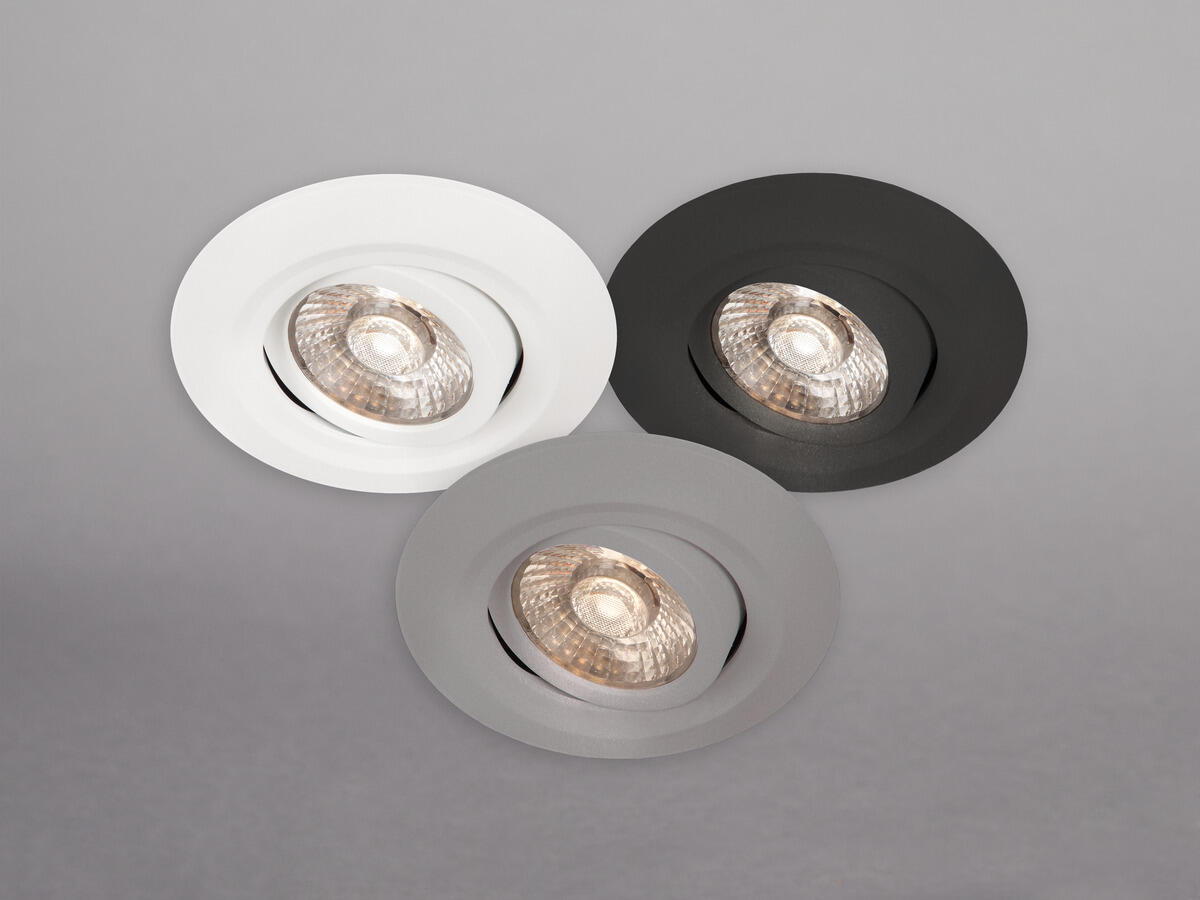

Exists in several colors
  • Vit #ffffff
  • Antracit #4e4e4e
  • Grå #b8b3b0

Variants

GTIN Item Name Color
Comfort Quick Outdoor Anthracite 3000K 7392971130033 Comfort Quick Outdoor Anthracite 3000K Antracit
Comfort Quick Outdoor Grey 3000K 7392971130026 Comfort Quick Outdoor Grey 3000K Grey
Comfort Quick Outdoor White 3000K 7392971130019 Comfort Quick Outdoor White 3000K White

Comfort Quick Outdoor White 3000K A+

Description
GTIN 7392971130019
Item Name Comfort Quick Outdoor White 3000K
Lighting Data
Light Source LED
Light Source Included (type) LED not exchangeable
LED Colour Warm White
Colour Temperature (K) 3000
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 3
Luminous Intensity (cd) 920
Luminaire Lumen (lm) 435
Beam Angle (°) 36
Light sharing Symmetric
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Technical data
Adjustable Yes
Tiltable (°) 15
Life Time (L70) 50 000h Ta 40°C
Nominel Life Time (h) 50000
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50
Power LED (W) 5
Power Luminaire (W) 6
System Power (W) 6
Efficiency Luminaire (lm/W) 73
Efficiency System (lm/W) 73
Energy Efficiency Class A+
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Stand Alone
Connection (type) Quick Terminal
Connection (mm2) 3x0,75-2,5
Through Wiring Yes
Strain Relief Yes
Operating Temperature -20…+45
Max. Tc (°C) 85
Dimmable Yes
Type of Dimming Trailing Edge, Leading Edge
Memory Function Power Failure No
Fuse B10 (pcs) 68
Fuse B16 (pcs) 110
Fuse C10 (pcs) 114
Fuse C16 (pcs) 184
Color and material
Material Aluminium
Color White
Color Code (RAL) 9016
Measurement and installation
Operation Environment Indoor, Outdoor
IP Degree of Protection 44
Installation Built-in
Mounting Installation Mounting Spring
Ceiling Thickness Interval (mm) 3-26
Fire Safety Marks Approved for installation in insulation
Approval Marks CE
Protection Class II
Height (mm) 40
Diameter (mm) 95
Weight (kg) 0,29
Min. Built-in (mm) 170x75x40
Height Recessed Part (mm) 32
Height Exterior Part (mm) 8
Min. Built-in (Ø mm) 73
Max. Built-in (Ø mm) 85
