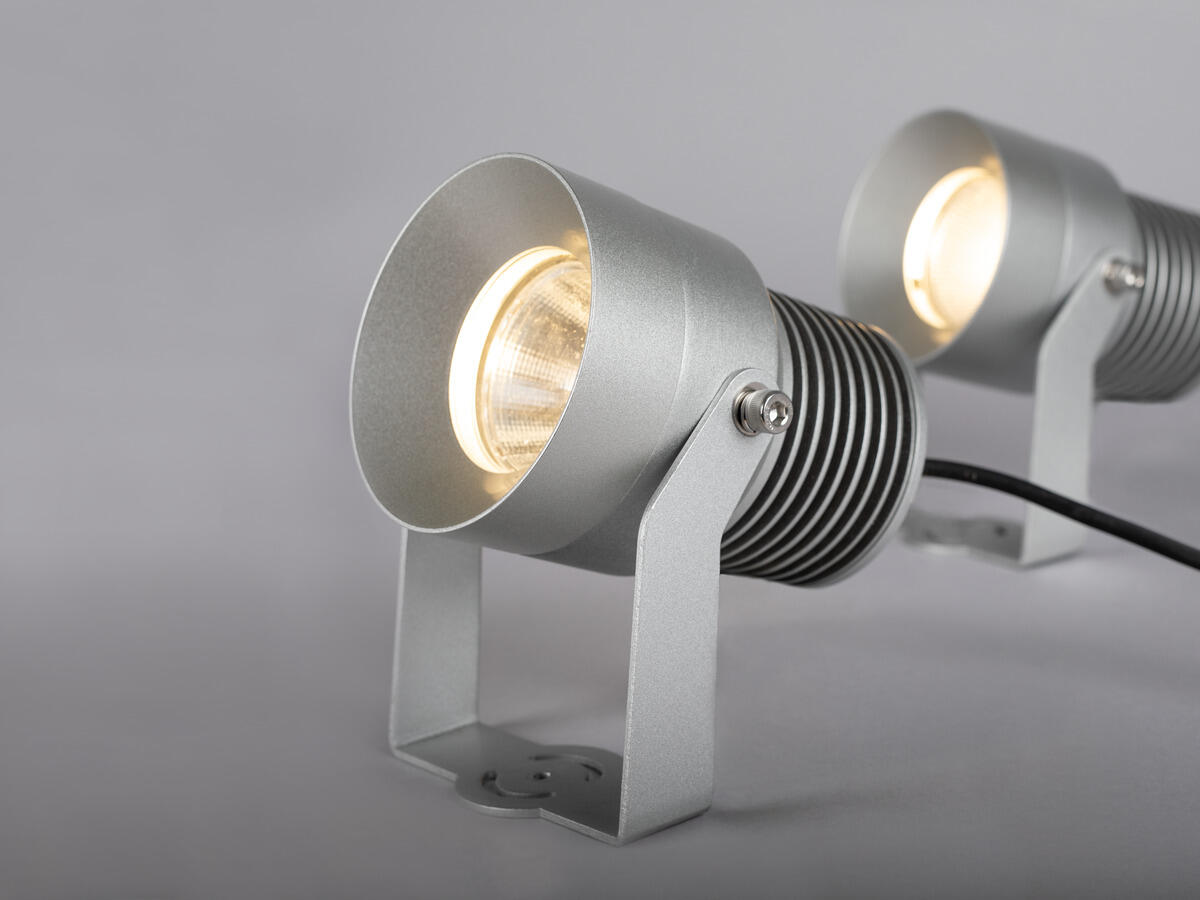

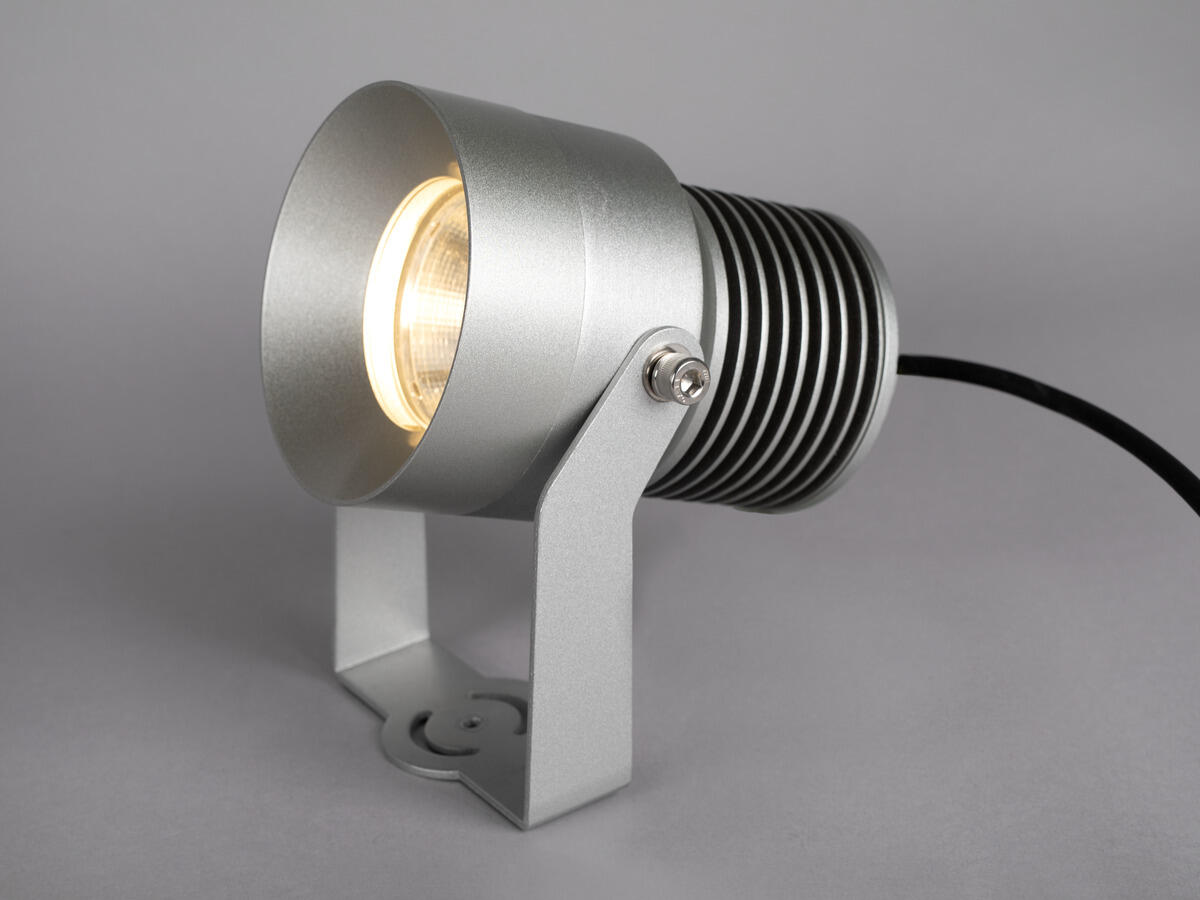

Spot It Multi 26

LED COB with reflector technology
Two different beam angles, 16° and 40°
Comes complete with integrated driver and 2m rubber cable.
Installed with bracket or accompanying ground spike

Compact projector spot for public environments. Perfect for illuminating parks, high building facades, signs and industrial properties. Choose between beam angles of 16° or 40° for a narrow or broad light distribution. Luminaire housing of cast aluminium, corrosion-treated and powder coated in a mat silver-grey colour. Installed with bracket or together with a ground spike or post bracket. Can also be supplemented with anti-glare shield. Comes complete with integrated driver, 2m rubber cable and ground spike.

Variants	GTIN	Item Name	Beam Angle (°)
	7392971135823	Spot It Multi 26 16° 3000K	16
	7392971135830	Spot It Multi 26 40° 3000K	40

Description: GTIN 7392971135823

Item Name Spot It Multi 26 16° 3000K

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 2320

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Non-replaceable Control gear

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

Initial Chromaticity x:0.4334 y:0.4054

Luminous Intensity (cd) 15200

Beam Angle (°) 16

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L70 50 000h Ta 25°C

Nominel Life Time (h) 50000

Lumen maintenance 50 000h L75

LLMF @ 50 000h 0,75

Life Time Driver 50 000h/5%
Technical data: Adjustable Yes

Tiltable (°) 180

Rotatable (°) 360

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50

Power LED (W) 21,6

Power Luminaire (W) 26

System Power (W) 26

Efficiency Luminaire (lm/W) 89

Efficiency System (lm/W) 89

Containing light source energy efficiency class (EU) 2019/2015 D
Operation and Connection: Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Connection (type) Cable, Open Cable End

Length Connection (cm) 200

Connection (mm2) 3x0,75

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,11

Constant Current (mA) 600

Operating Temperature -20…+50

Max. Tc (°C) 75

Dimmable No

Type of Dimming OnOff

Inrush current (max/time) 29A 78µs

Fuse B10 (pcs) 37

Fuse B16 (pcs) 57

Fuse C10 (pcs) 37

Fuse C16 (pcs) 57
Color and material: Material Diecasted, Aluminium

Color Silver

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / wet locations, Outdoor

IP Degree of Protection 65

Protection Class I

Installation Surface mounted

Mounting Installation Screw Mounting

Approval Marks CE

Impact Strength IK08

Length (mm) 173

Height (mm) 118

Diameter (mm) 115

Weight (kg) 2,5

Spot It L

Compact phase dimmable floodlight with modern LED technology and a lean, stylish design. Adjust the amount of light as needed and easily let the amount of light grow in step with your garden. Illuminate trees, bushes, patios and facades, creating attractive effects. In black, which gives a modern impression. IP67 finish with luminaire housing in corrosion-treated cast aluminium with durable powder coating to cope with our Nordic climate. Selectable colour temperature via DIP-Switch ColourTemp Installed with bracket or accompanying ground spike. Comes complete with integrated dimmable driver and 2m rubber cable. Dimmable with most common dimmers on the market.

Spot It Multi 17

Spot It is a compact 17W projector spot for indoor and outdoor lighting. Create a snug garden atmosphere with modern technology and a stylish design. Illuminate trees, bushes, patios and facades, creating attractive effects and a play of light. Housing of cast aluminium, corrosion-treated and powder-coated in a mat silver-grey colour. Installed with ground spike or brace. Comes complete with integrated driver, 2 m rubber cable and ground spike. Available also in smaller variants, 3W and 7W.

Spot It Multi 7

Spot It is a compact projector spot for indoor and outdoor lighting. Create a snug garden atmosphere with modern technology and a stylish design. Illuminate trees, bushes, patios and facades, creating attractive effects and a play of light. Housing of cast aluminium, corrosion-treated and powder-coated in a mat silver-grey colour. Installed with ground spike or brace. Comes complete with integrated driver, 2 m rubber cable and ground spike. 50,000 hour life time (L70) at Ta 25°. Available also in variants 3W and 17W.

Spot It Multi 26

Spot It Multi 26 16° 3000K

Accessories

Cap Spot It Multi 17

Connector Straight 5P IP68

Post Bracket Spot It Multi

Ground spike Spot It Multi

Connector 4-way 4P IP68
