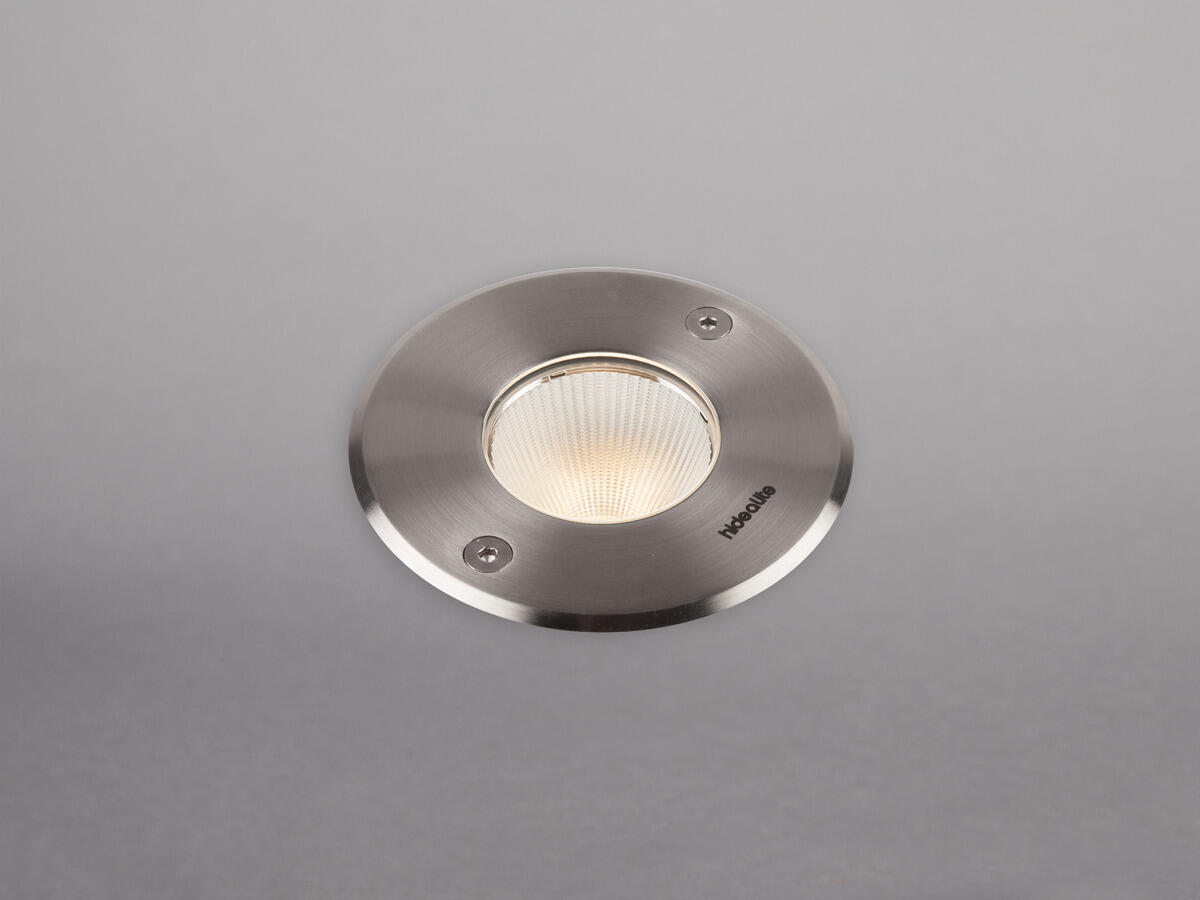

Spot Up Multi 7

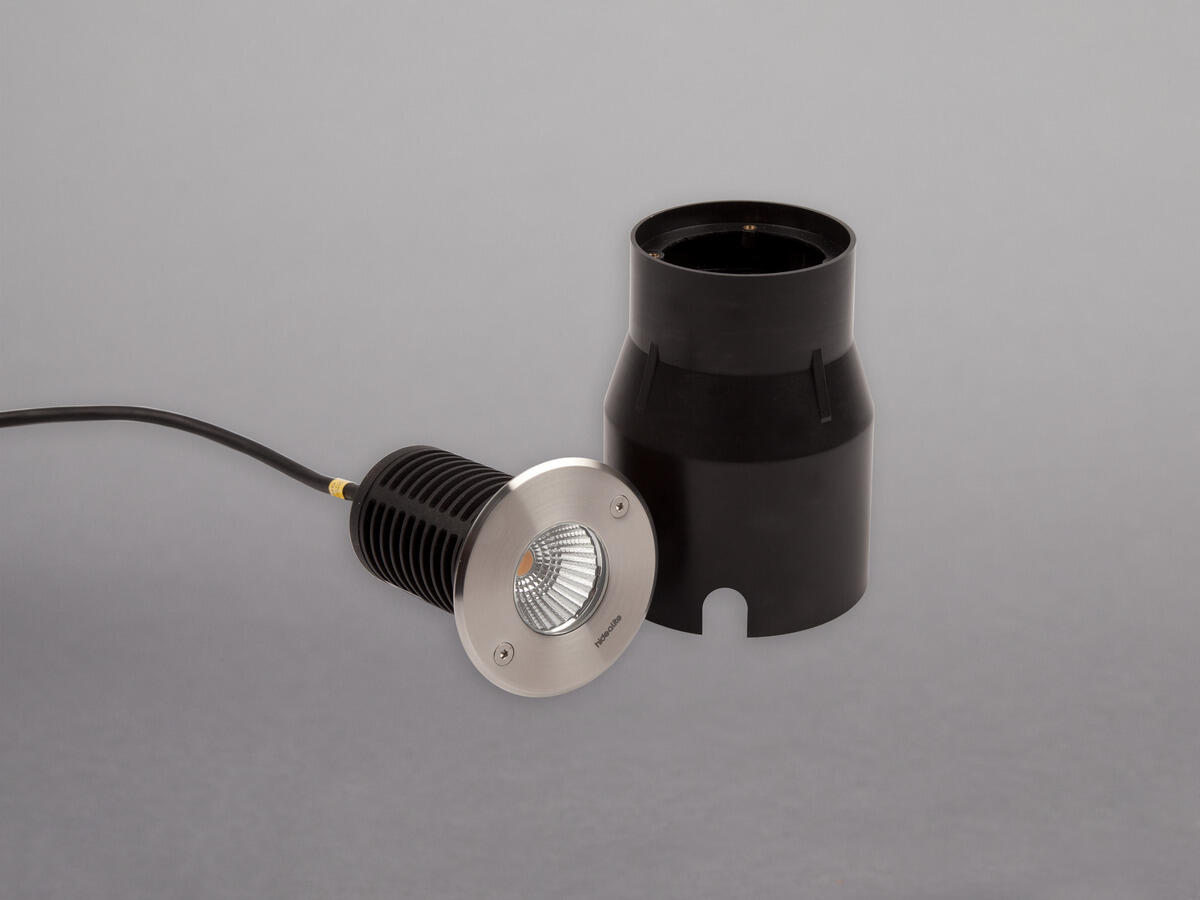

Mounted in the ground or cast in, with the enclosed box

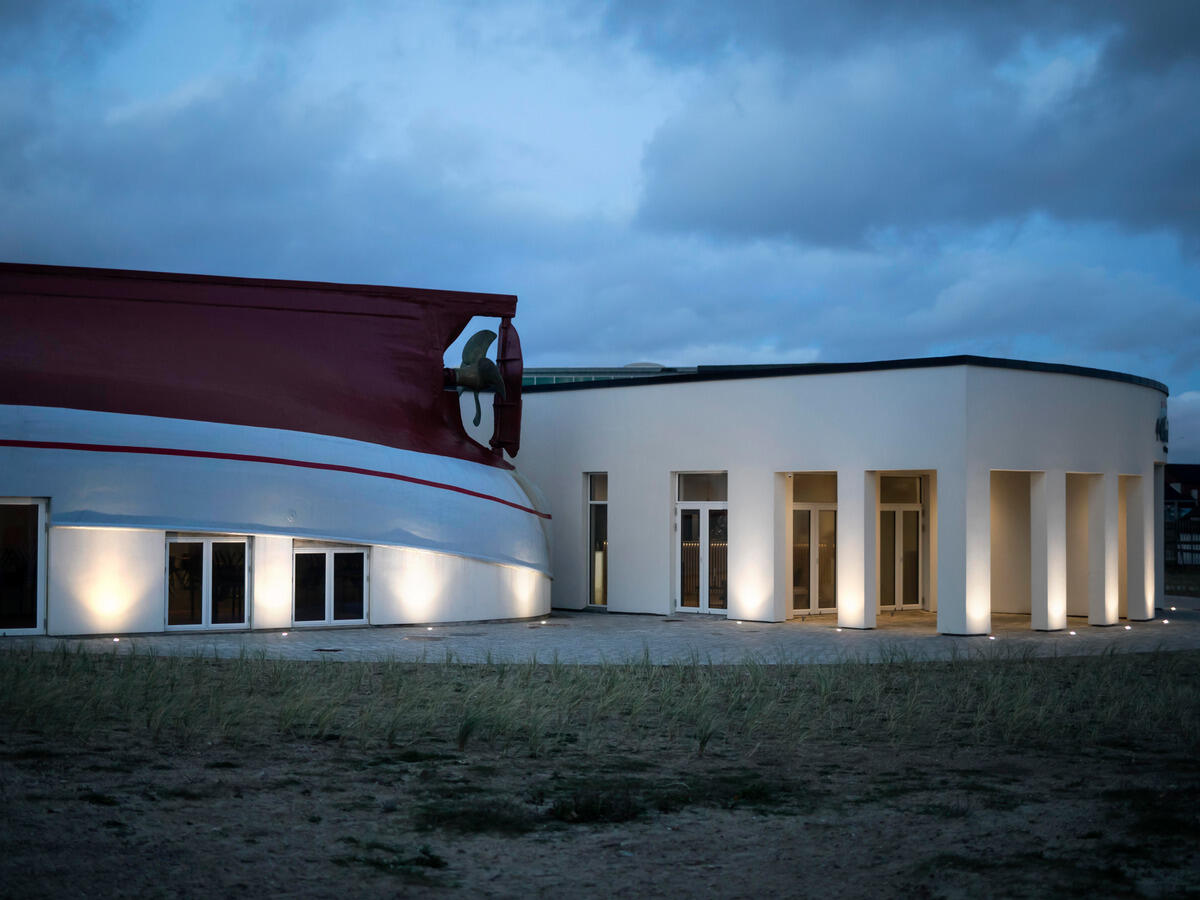

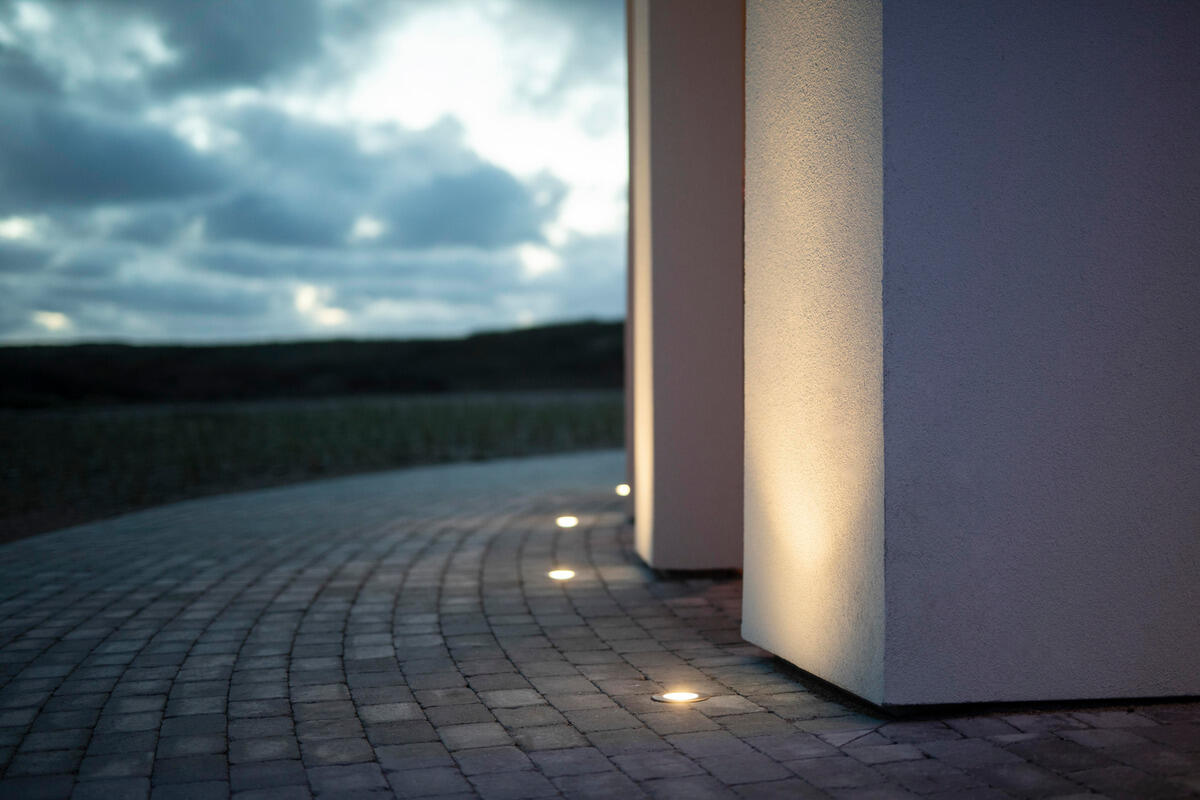

A stylish energy efficient ground spot for gardens or properties. Multichip and reflector optics give excellent light with halogen character. Housing of cast aluminium, outer ring of stainless steel (316) and hardened protective glass. Can be installed in the ground together mounting box. Comes complete with integrated driver, 2 m rubber cable and mounting box. Life time: (L70) 50,000 hours. Available also in variants 3W and 17W.

Description: GTIN 7392971123318

Item Name Spot Up Multi 7 3000K

Warranty 5 years
Light Technical Data: Max. Luminaire Lumen (lm) 500

Light Source LED

Light Source Included Yes

Replaceability Non-replaceable LED and control gear

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 1080

Beam Angle (°) 40

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L70 50000h Ta 25°C

Nominel Life Time (h) 50000

Lumen maintenance 50 000h L77

LLMF @ 50 000h 0.77

Life Time Driver 50 000h/5%
Technical data: Adjustable No

Voltage Interval (V) 220...240V

Voltage Nominal (V) 230

Line Frequency (Hz) 50

Power LED (W) 5,76

Max. Power Luminaire (W) 7,5

Max. System Power (W) 7,5

Max. Efficiency Luminaire (lm/W) 71

Max. Efficiency System (lm/W) 71

Containing light source energy efficiency class (EU) 2019/2015 D
Operation and Connection: Dimmable No

Type of Dimming OnOff

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Connection (type) Cable, Open Cable End

Length Connection (cm) 200

Connection (mm2) 3x1,5

Through Wiring No

Strain Relief No

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,08

Min. Ta (°C) -20

Max. Ta (°C) 40

Max. Tc (°C) 75

Fuse B10 (pcs) 107

Fuse B16 (pcs) 173

Fuse C10 (pcs) 107

Fuse C16 (pcs) 173
Color and material: Material Diecasted, Aluminium

Material Cover Ring Stainless Steel

Color Stainless Steel

Color Cover Ring Stainless Steel

Halogen free No
Measurement and installation: Operating Environment Indoor / wet locations, Outdoor

IP Degree of Protection 67

Protection Class I

Installation Built-in

Mounting Installation Mounting Box

Max. Pressure (kg) 1220

Approval Marks CE

Impact Strength IK08

Width (mm) 85

Height (mm) 121

Depth (mm) 85

Diameter (mm) 85

Weight (kg) 0,7

Height Recessed Part (mm) 118

Height Exterior Part (mm) 3

Built-in Ø (mm) 80mm

Spot Up Multi 3

A stylish energy efficient 3W ground spot for gardens or properties. Multichip and reflector optics give excellent light with halogen character. Housing of cast aluminium, outer ring of stainless steel (316) and hardened protective glass. Can be installed in the ground together mounting box. Comes complete with integrated driver, 2 m rubber cable and mounting box. Available also in larger variants, 7W and 17W.

Spot Up Multi 7 Tilt

Adjustable ground spot in two sizes with high finish for gardens and buildings. The luminaire is adjustable 12.5° in two directions so the light can be directed towards facades, for example, while reducing glare. Multichip and reflector optics give excellent light with halogen character. Housing of cast aluminium, outer ring of stainless steel (316) and hardened protective glass. Installed in ground or embedded. Comes complete with integrated driver, 2 m rubber cable and mounting box. Connects to 230V.

Spot Up Multi 17

A stylish energy efficient 17W ground spot for gardens or properties. Multichip and reflector optics give excellent light with halogen character. Housing of cast aluminium, outer ring of stainless steel (316) and hardened protective glass. Can be installed in the ground together mounting box. Comes complete with integrated driver, 2 m rubber cable and mounting box. Available also in smaller variants, 3W and 7W.
