Bloc II Bloc II White 3000K

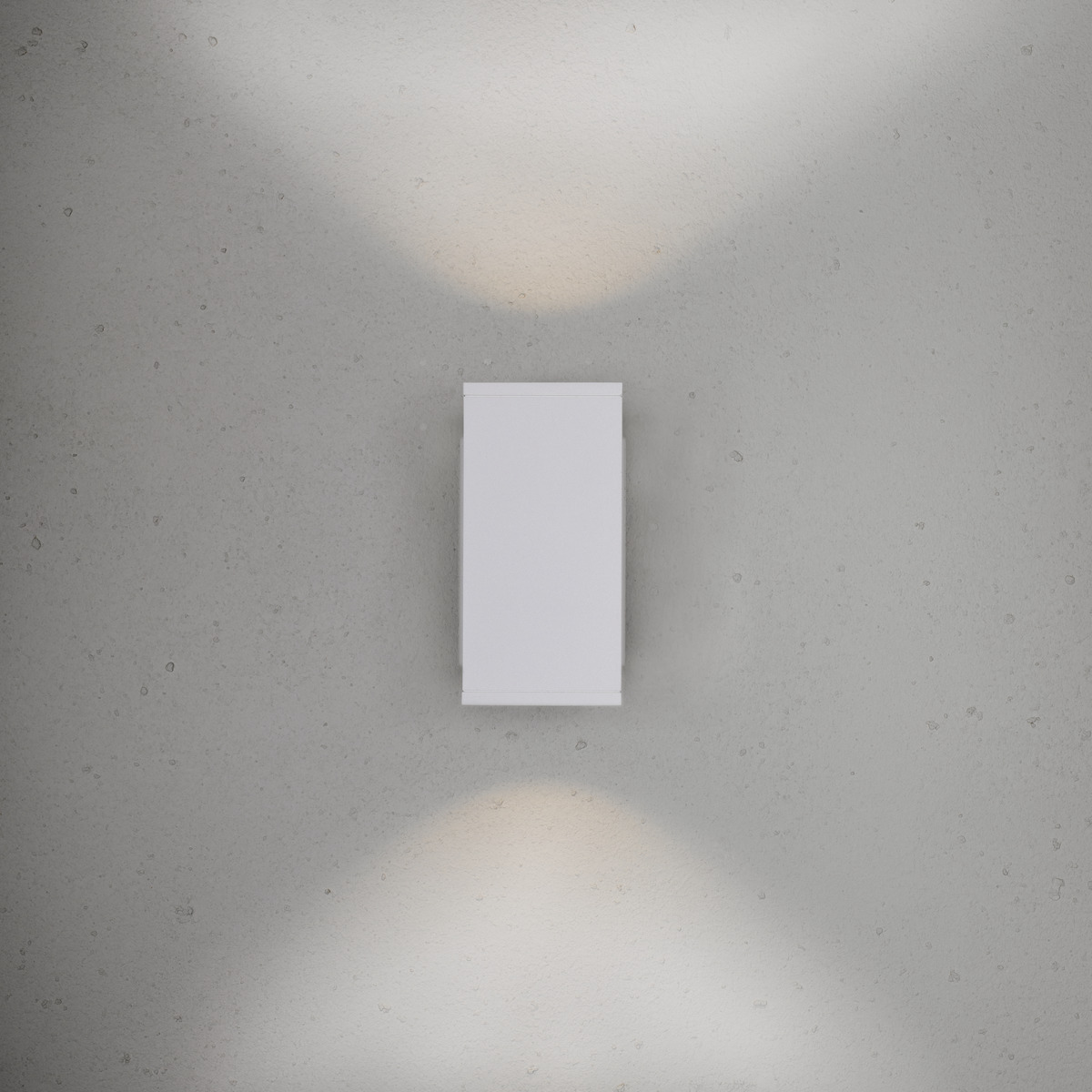

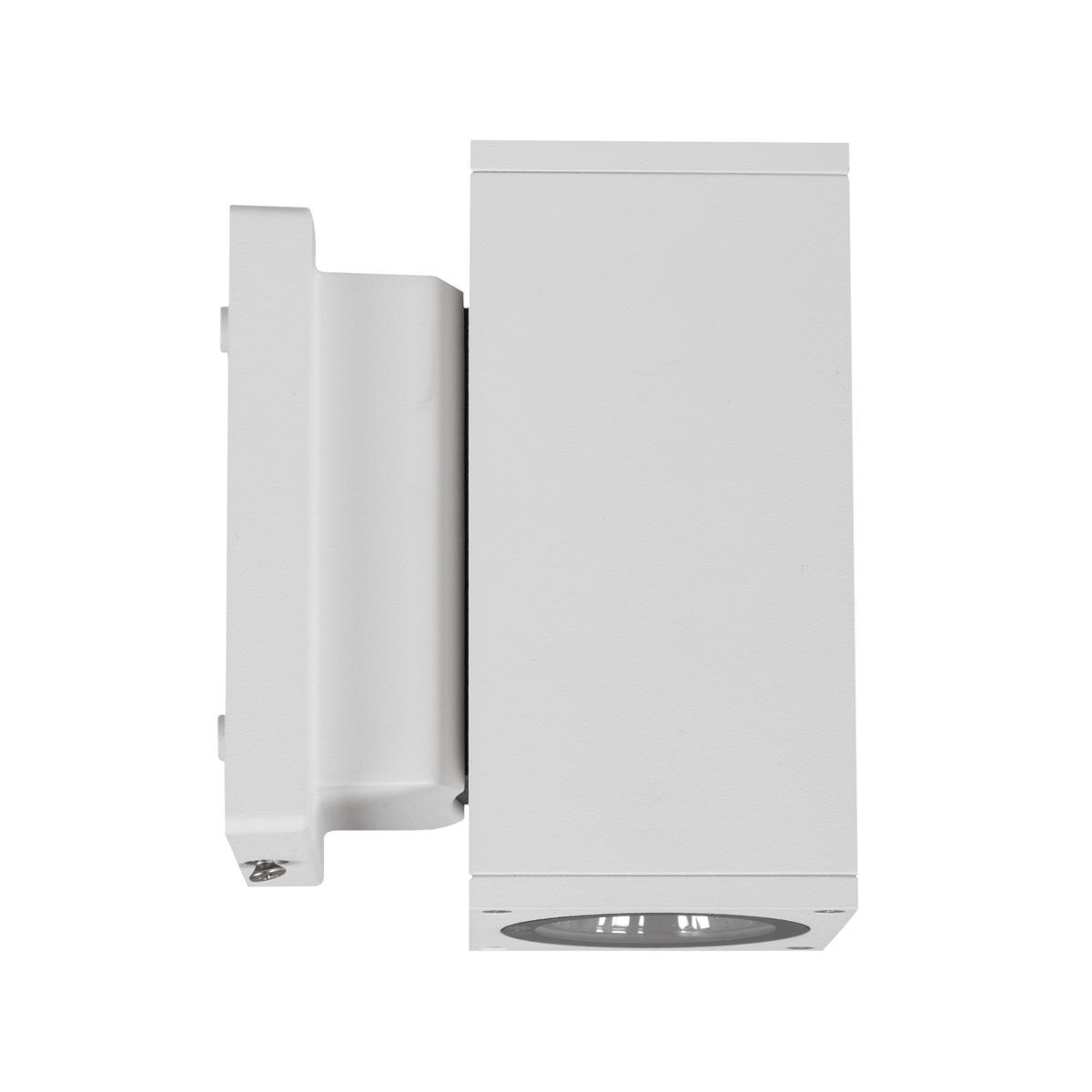

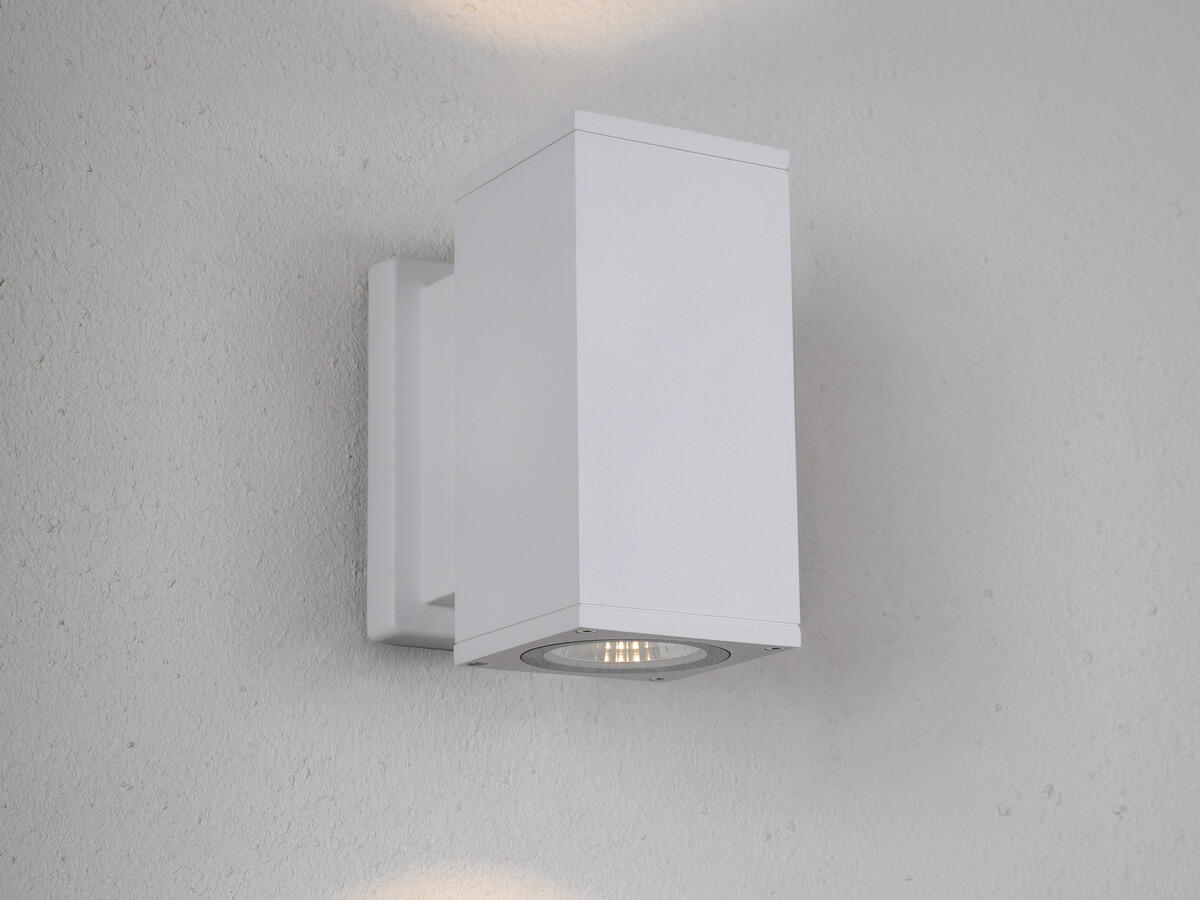

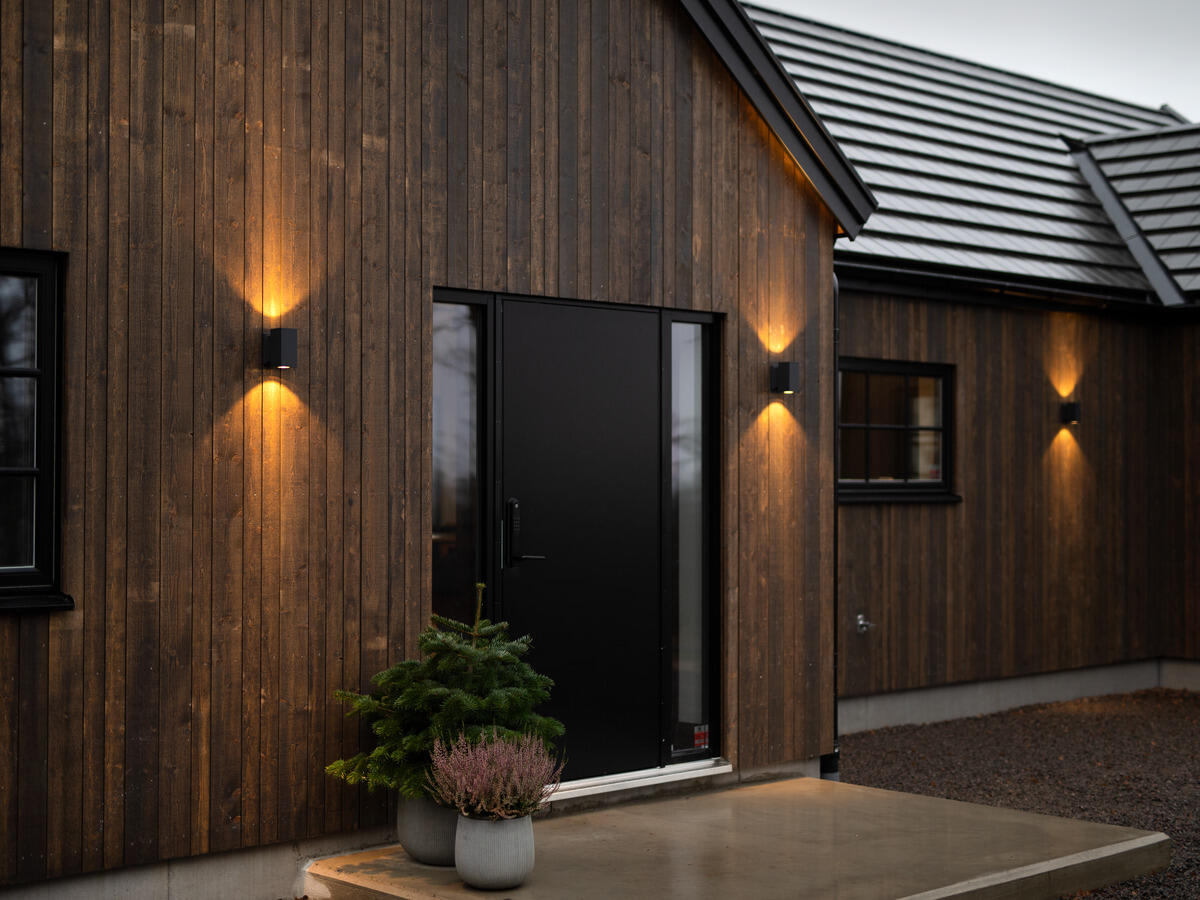

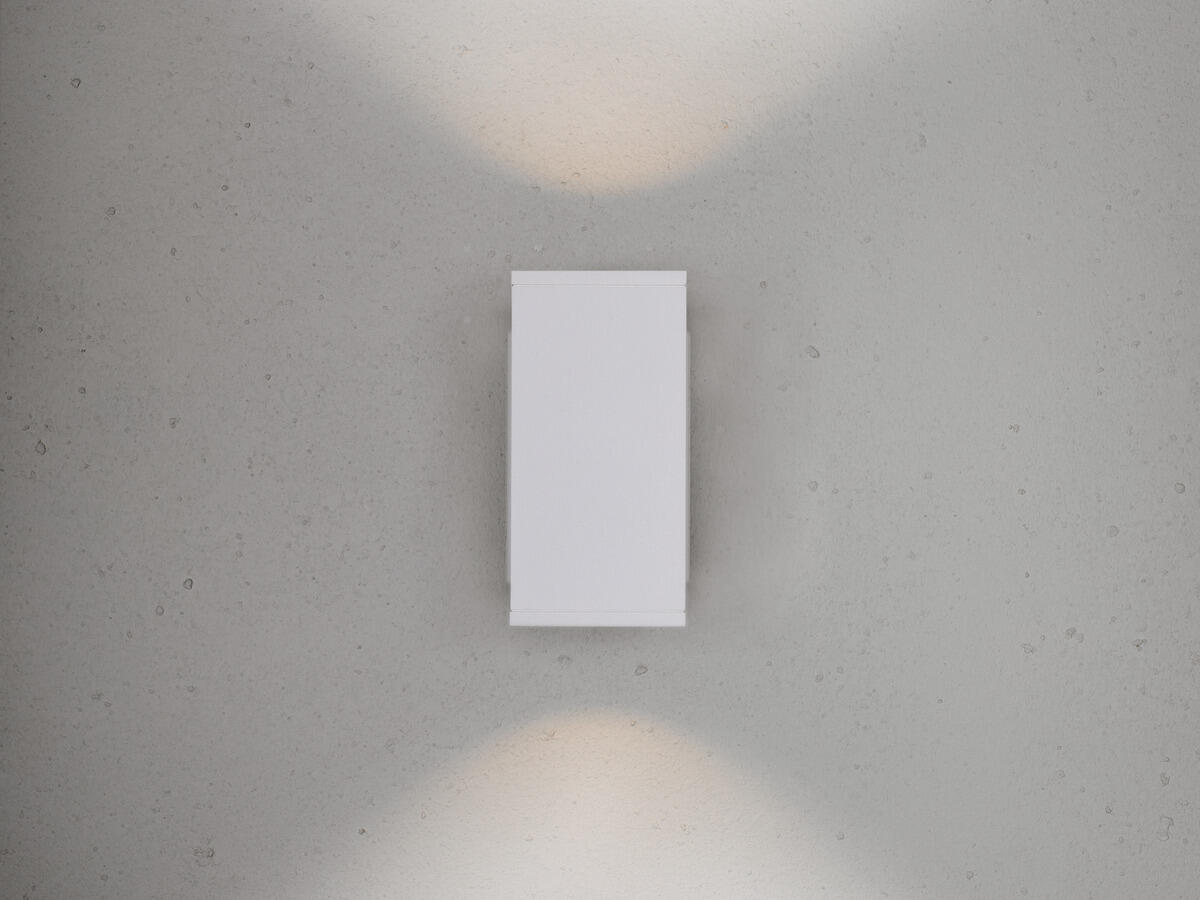

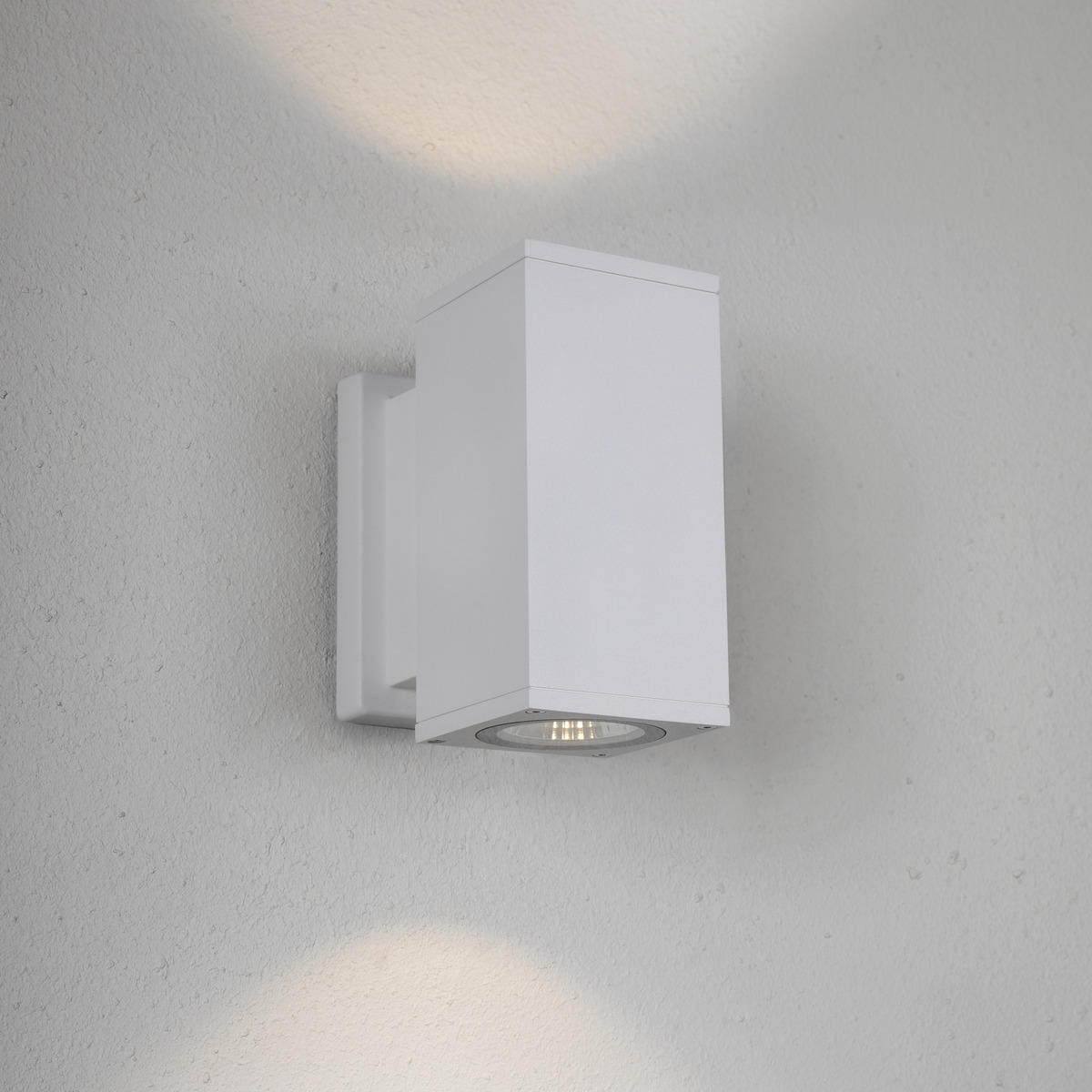

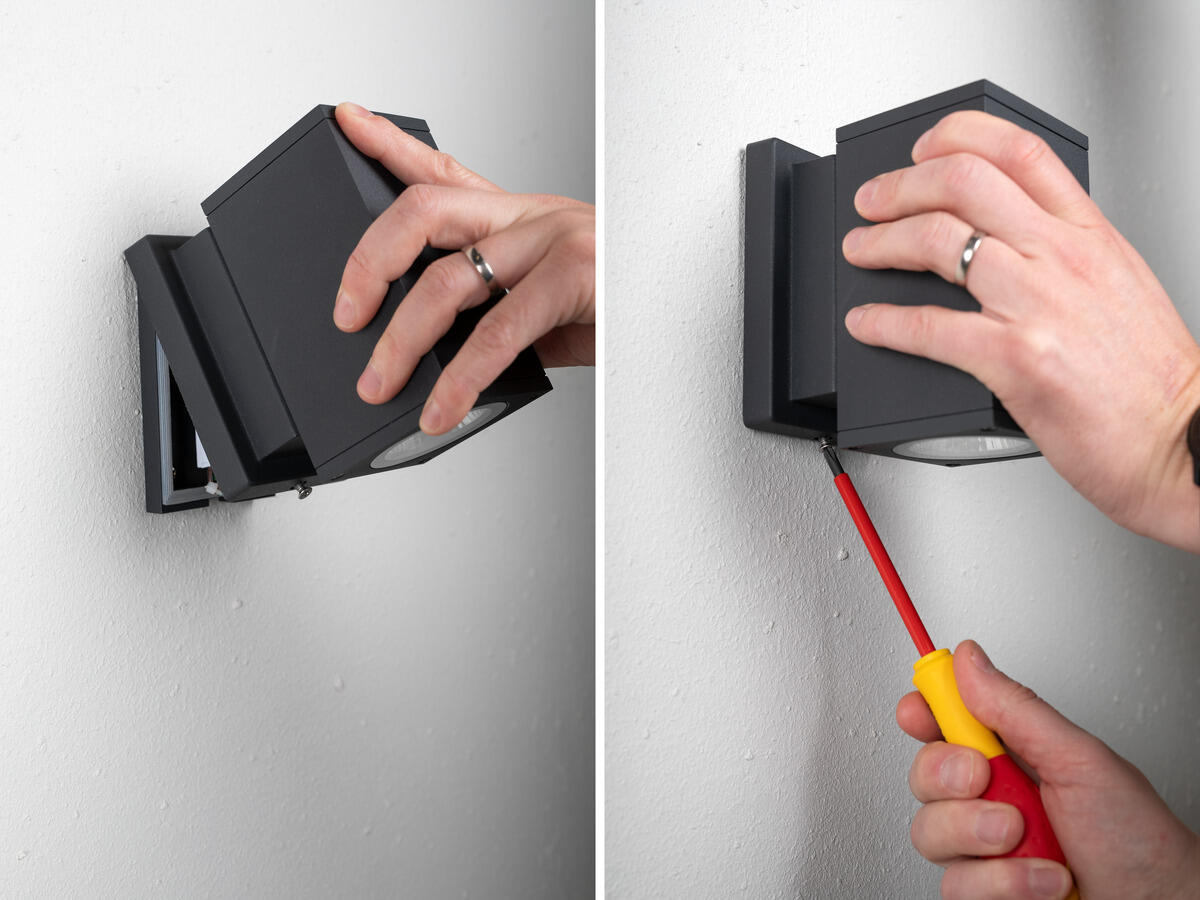

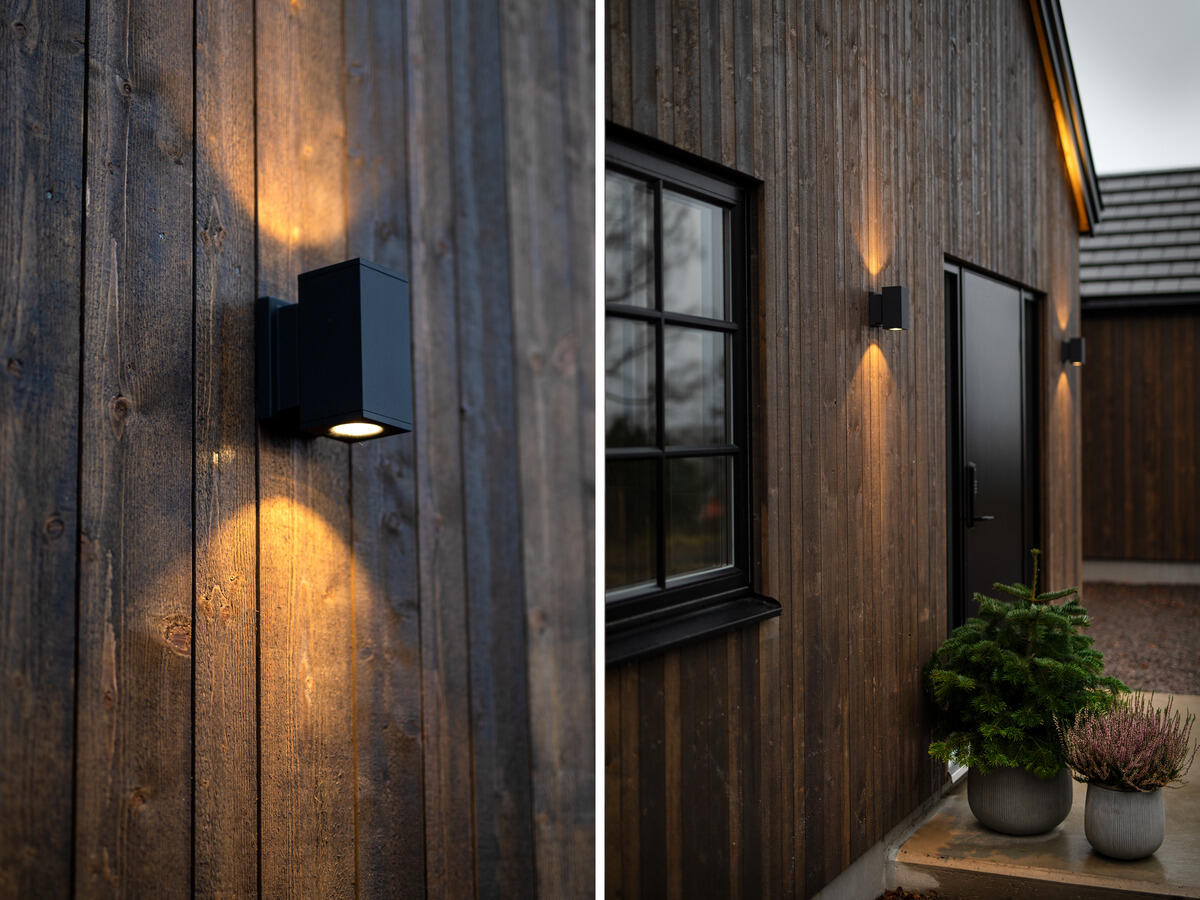

Wall luminaire with rectangular design, integrated phase dimmable driver and both upward and downward light emission. Light up the facade, create a welcoming impression at the entrance and easily dim the light to the desired level. IP65 design with luminaire housing for harsh outdoor climate. Easily installed thanks to separate rear element with double cable bushings and push-in, loop-in, loop-out terminal block for direct connection to 230V. Spacers for surface-mounted cable routing included. Dimmable with most common dimmers on the market.

GTIN	Item Name	Color
7392971141558	Bloc II White 3000K	White

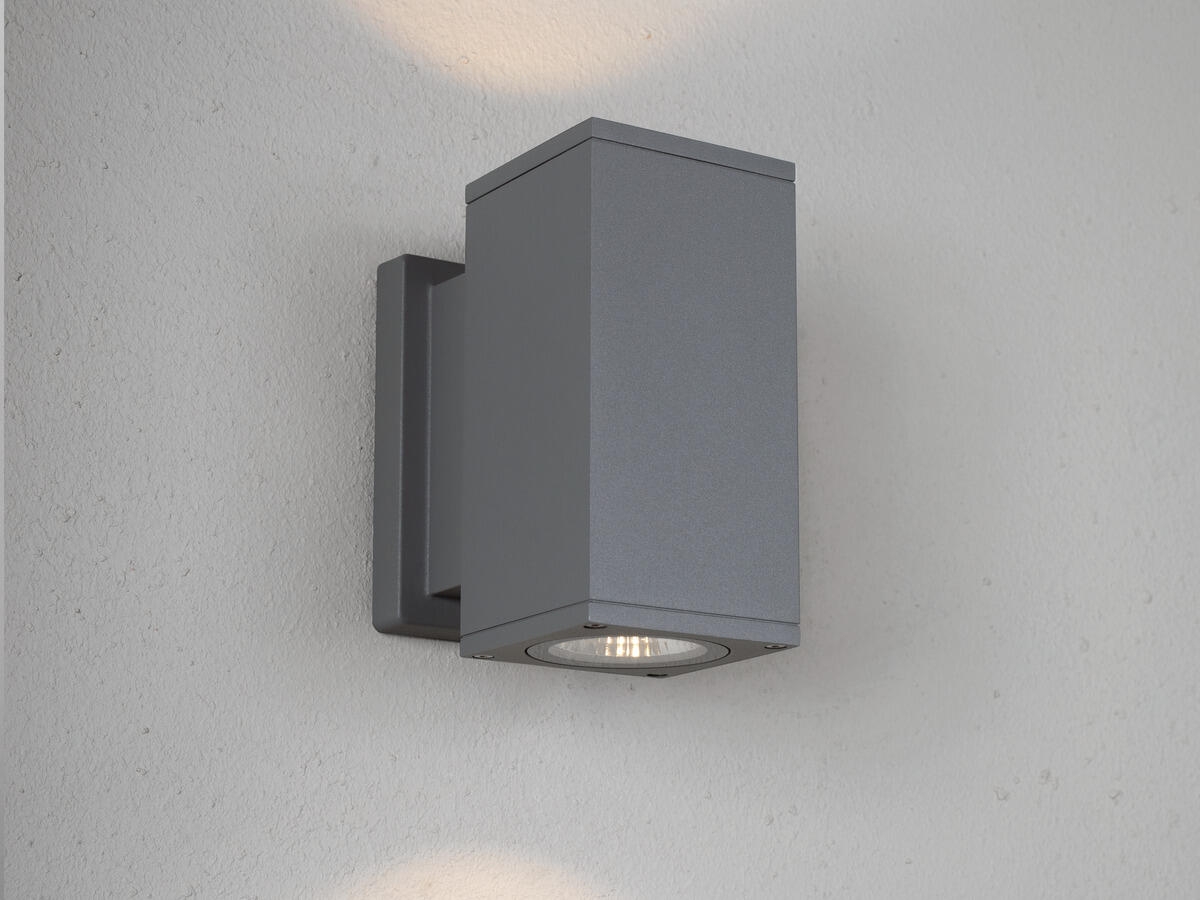

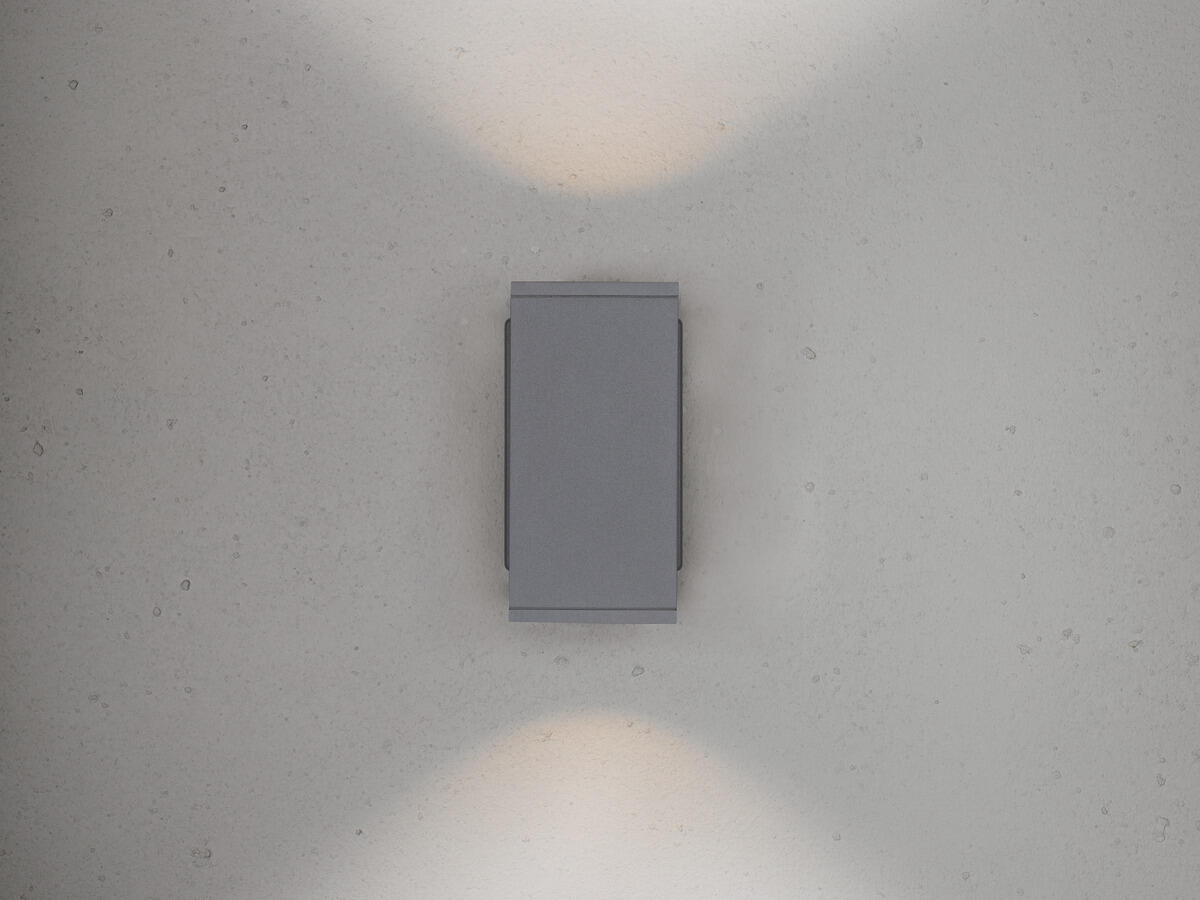

7392971141565	Bloc II Grey 3000K	Grey

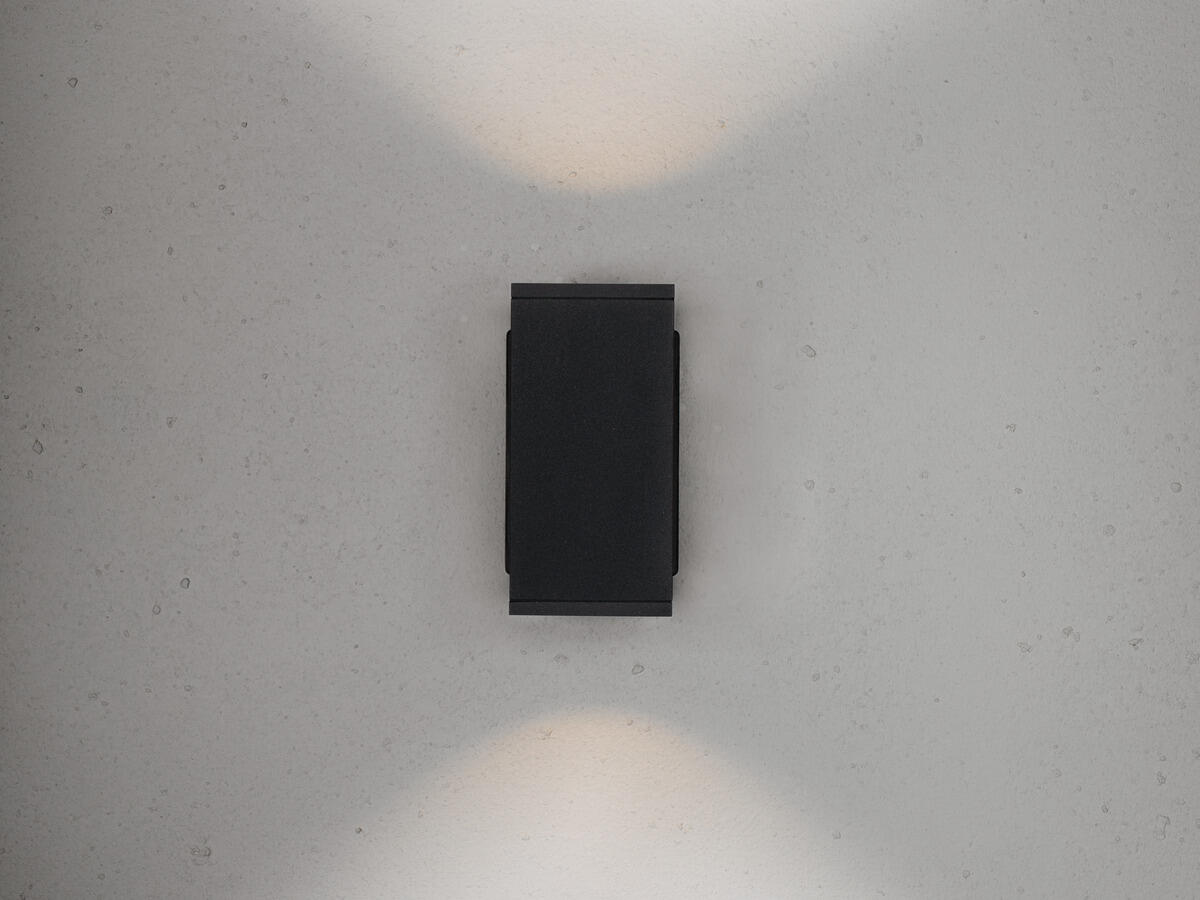

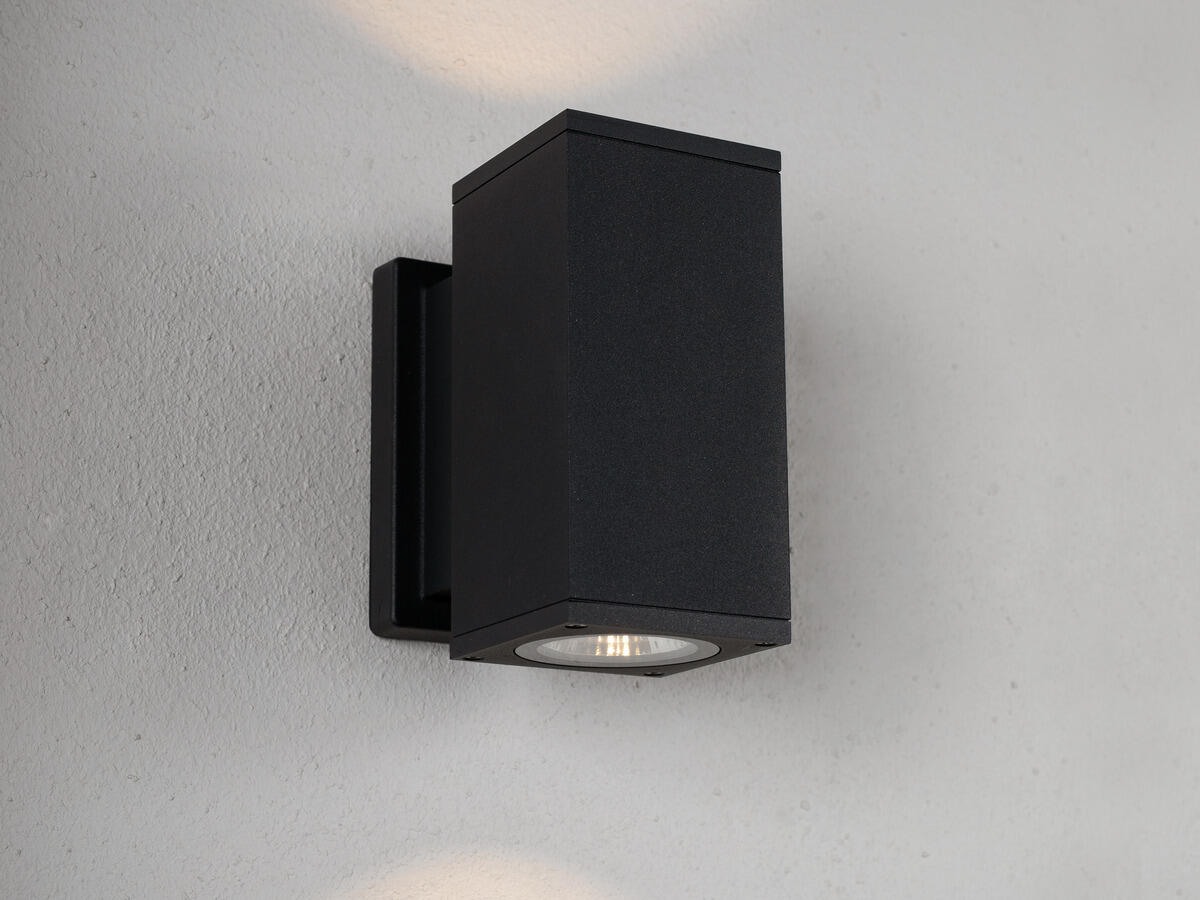

7392971141572	Bloc II Anthracite 3000K	Antracit

Description: GTIN 7392971141558

Item Name Bloc II White 3000K

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 750

Light Source LED

Light Source Included Yes

Replaceability Replaceable LED by professional, Replaceable Control gear by professional

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 2x1020

Beam Angle (°) 25

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 2

Number of LED (pcs) 2

Life Time L80 50 000h Ta 25°C

Nominel Life Time (h) 50000

Lumen maintenance 50 000h L82

LLMF @ 50 000h 0,82

Life Time Driver 50 000h/5%

Flicker (PstLM) 0,02

Stroboscopic effect (SVM) 0,01
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Voltage Forward (Vf) 16

Power LED (W) 6

Power Luminaire (W) 7

System Power (W) 7

Efficiency Luminaire (lm/W) 107

Efficiency System (lm/W) 107

Containing light source energy efficiency class (EU) 2019/2015 D
Operation and Connection: Dimmable Yes

Type of Dimming Trailing Edge

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Driver Manufacturer Hide-a-lite

Connection (type) Quick Terminal

Connection (mm2) 3x0,5-2,5

Through Wiring Yes

Strain Relief Yes

Power Factor ʎ 0,9

Efficiency (%) 80

Constant Current (mA) 350

Operating Temperature -20…+50

Max. Tc (°C) 85

Dimming secondary side AM

Fuse B10 (pcs) 140

Fuse B16 (pcs) 224

Fuse C10 (pcs) 280

Fuse C16 (pcs) 448
Color and material: Material Aluminium

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / wet locations, Outdoor

IP Degree of Protection 65

Protection Class I

Installation Surface mounted

Mounting Installation Screw Mounting

Approval Marks CE

Impact Strength IK05

Filament Test IEC 695-2-1(°C) 650

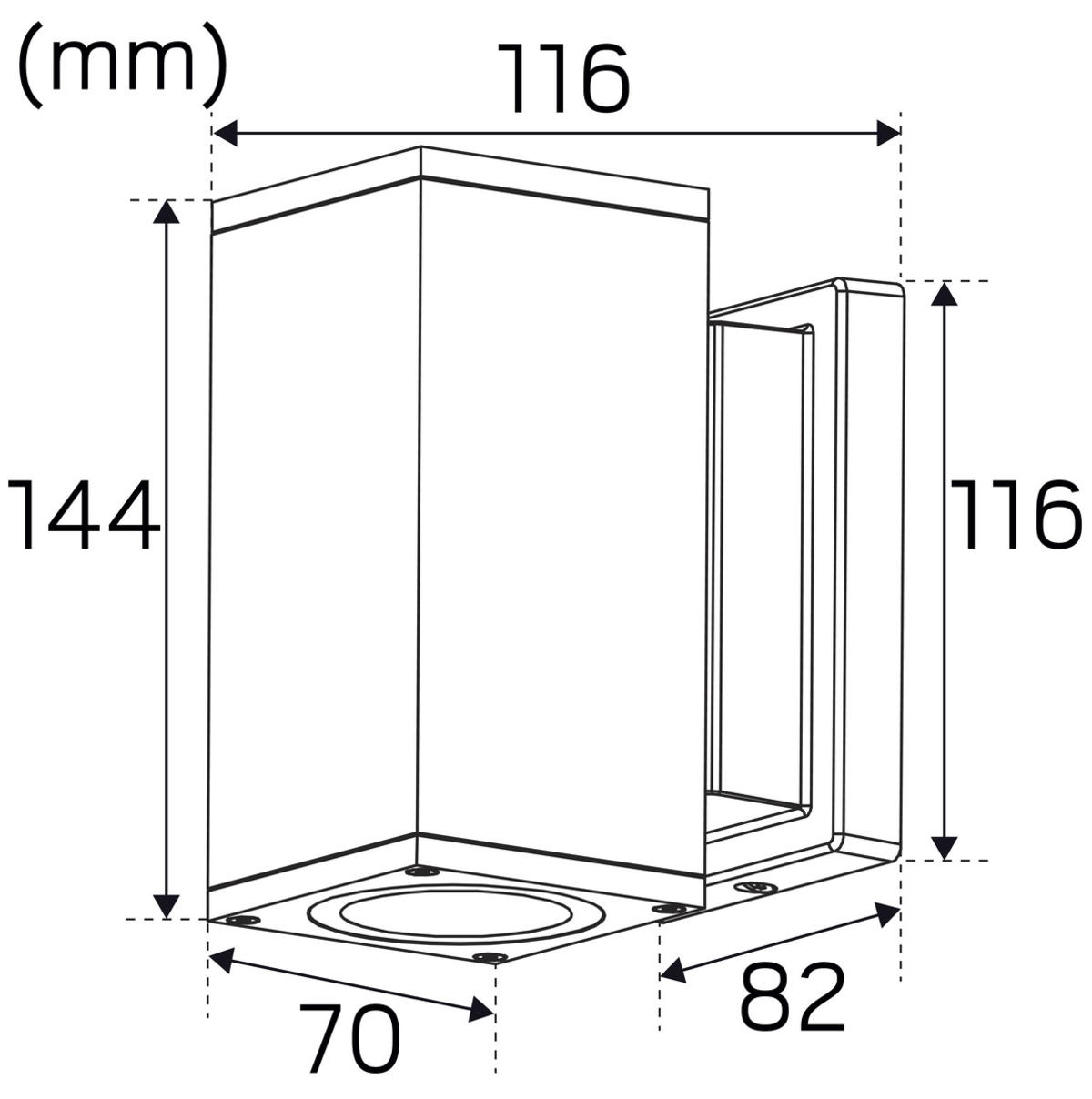

Width (mm) 82

Height (mm) 142

Depth (mm) 115

Weight (kg) 0,844
