Cube XL I
Cube XL I
Cube XL I

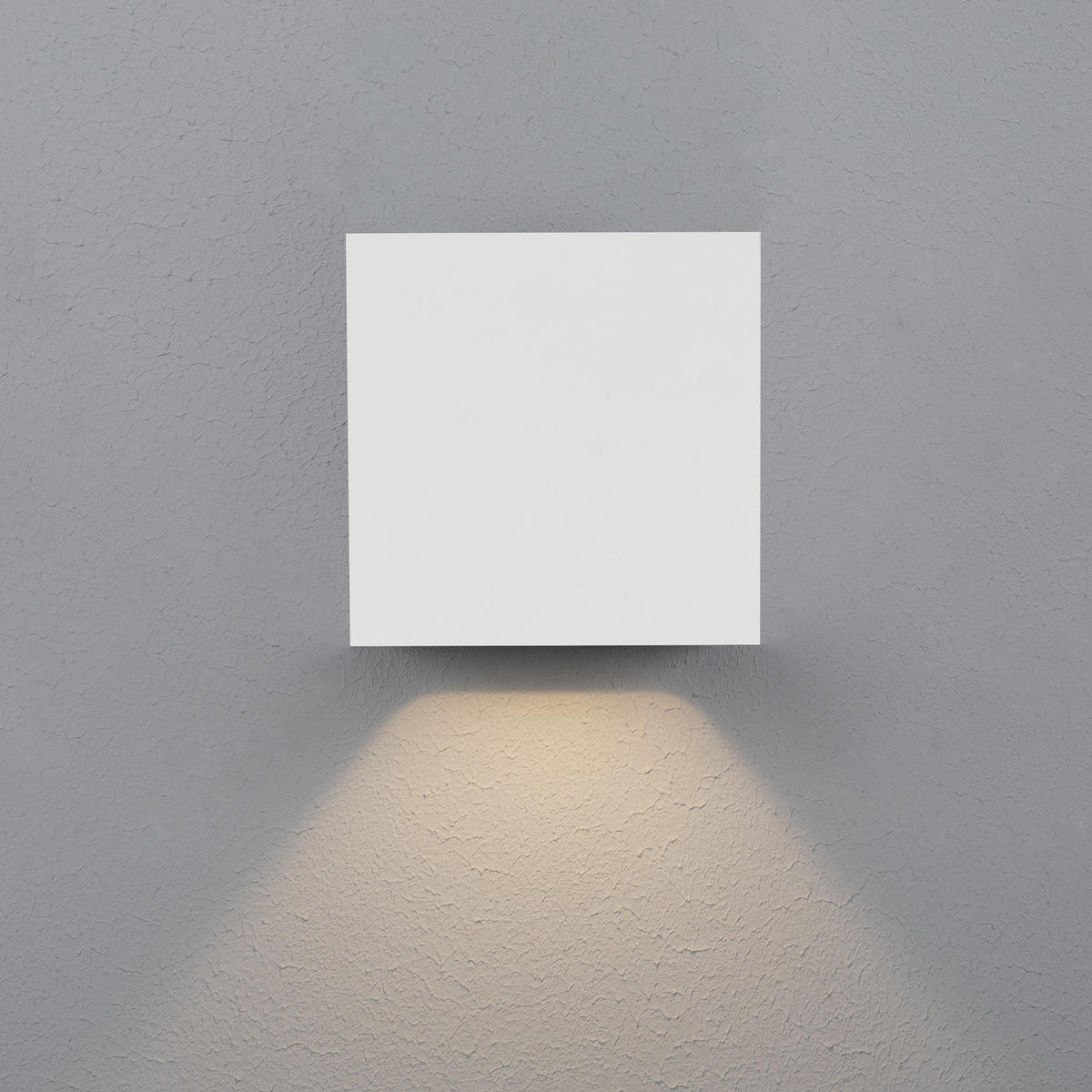

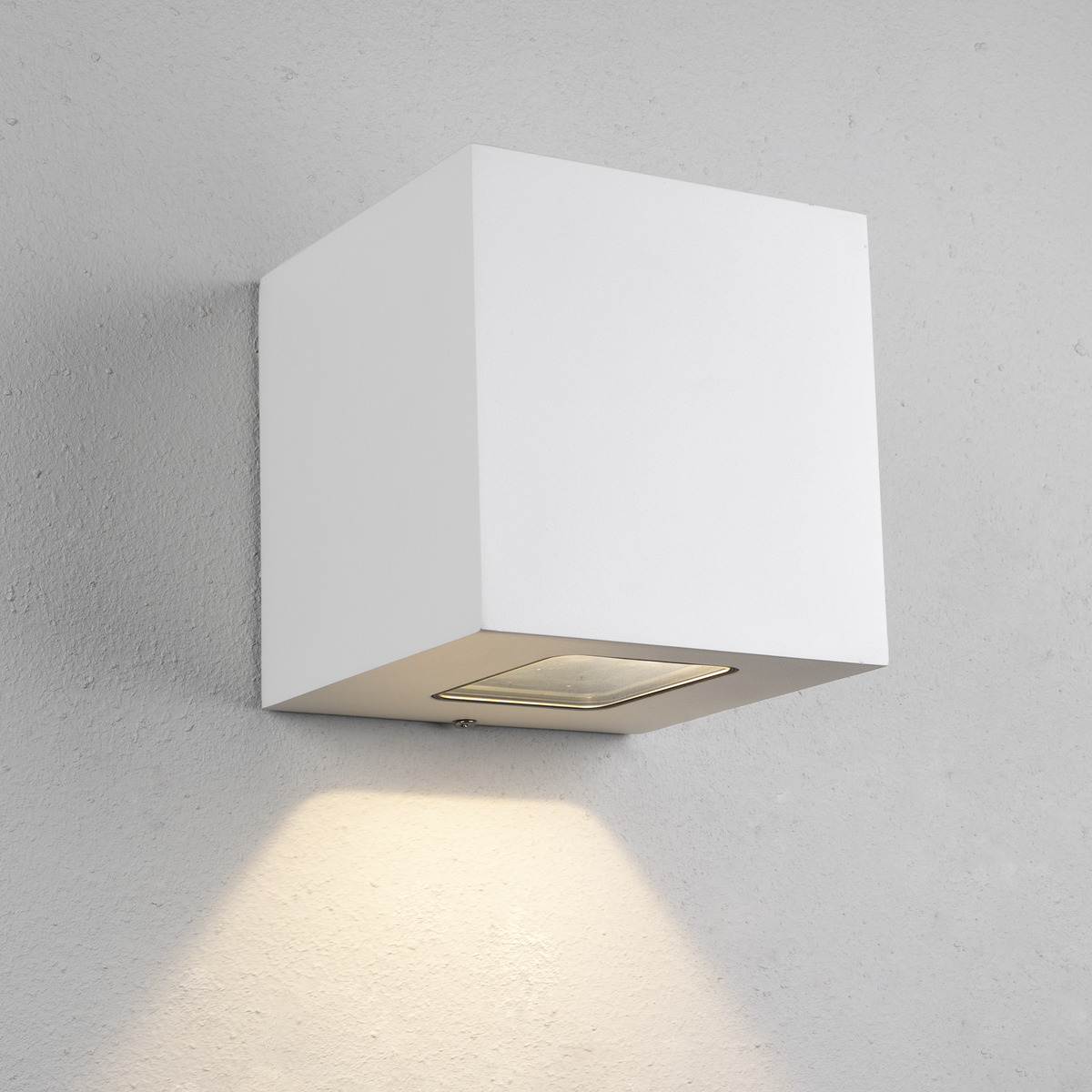

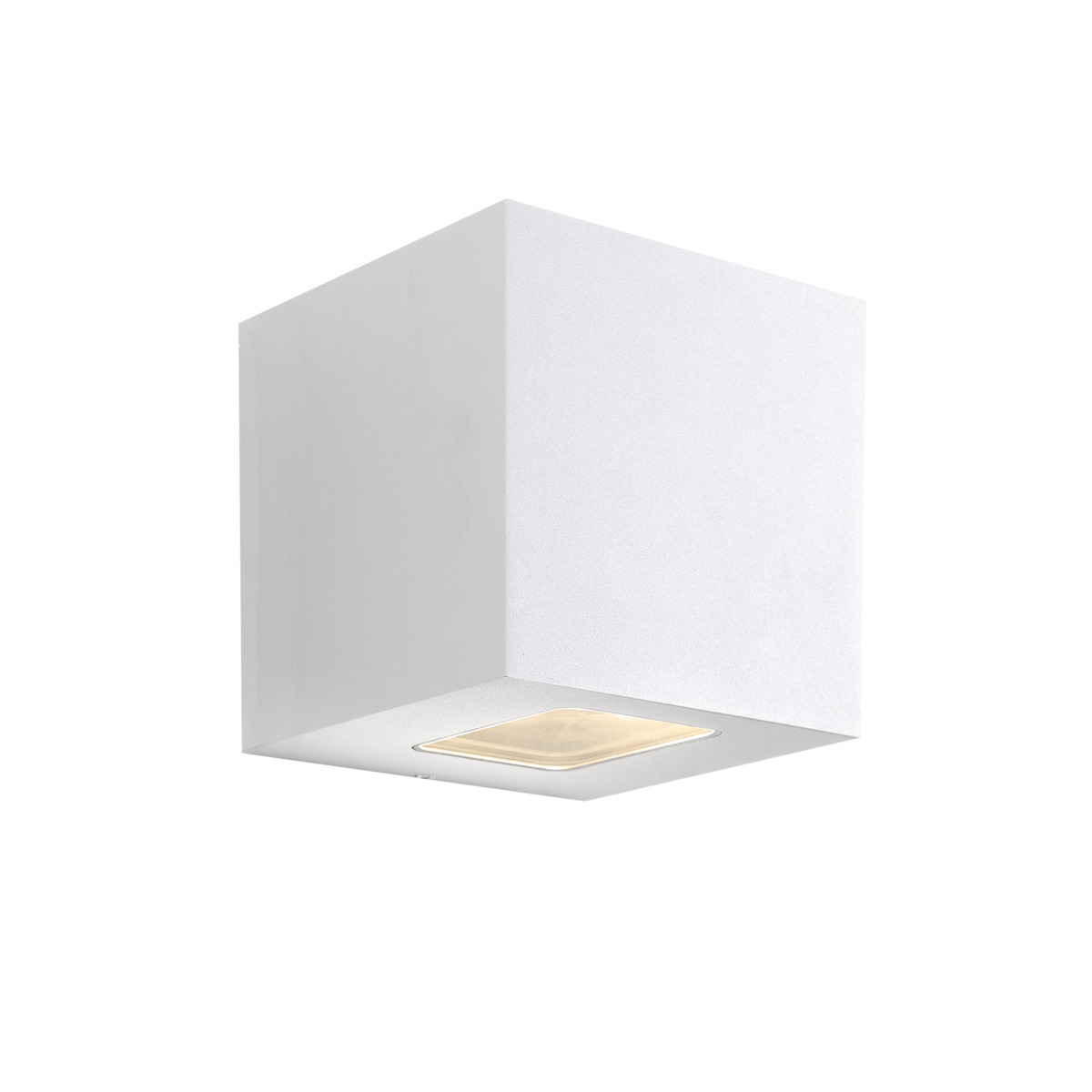

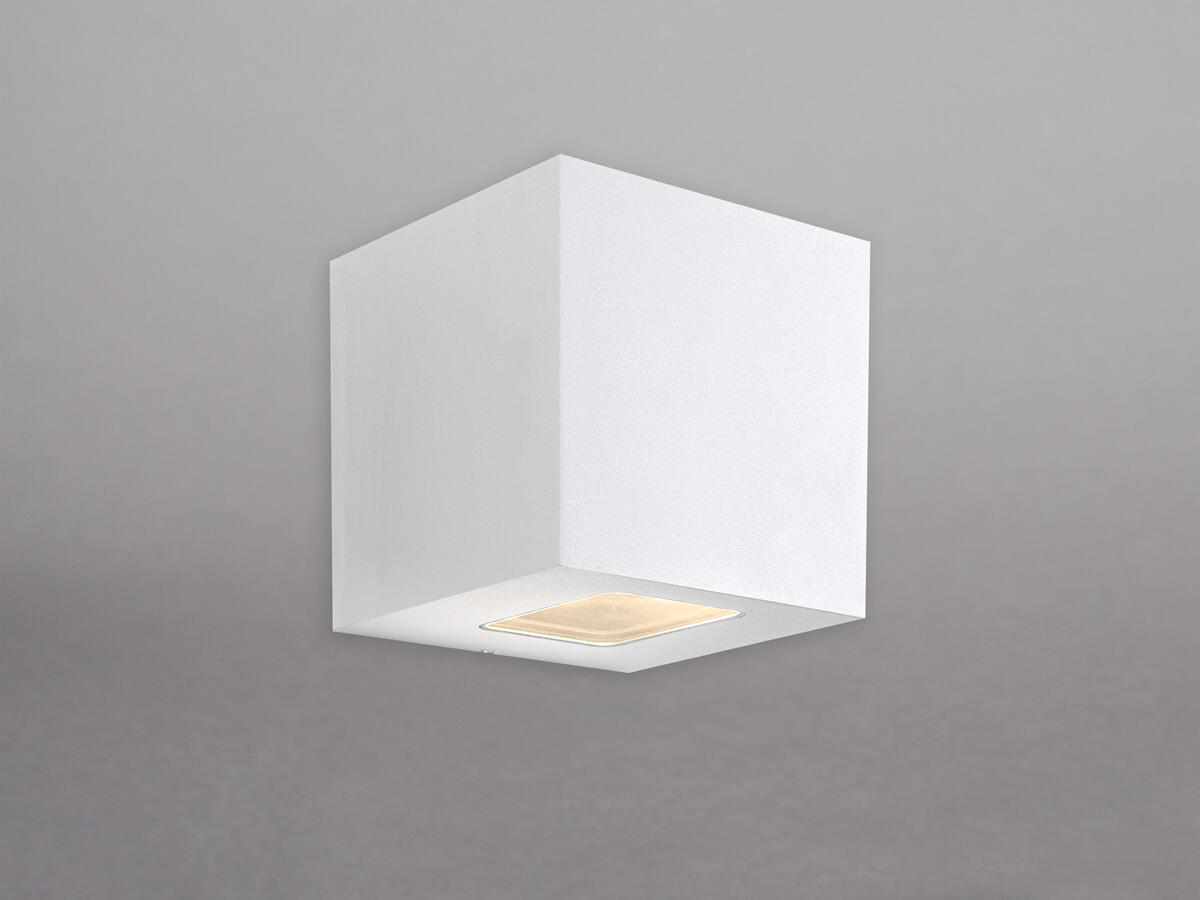

Impact resistant wall luminaire in cube-shaped timeless design for illumination of larger facades and entrances. Big brother in the Cube family. Easily installed and ready for direct connection to 230V. Simple installation thanks to separate rear element and push-in, loop-in, loop-out terminal block. Spacers for surface-mounted cable routing included. IP65 rating and durable powder coating for tough environments. Integrated driver with separate adjustable light level via DIP-Switch Power for up or downlight, 60% and 100%.
Exists in several colors
  • Vit
  • Grå

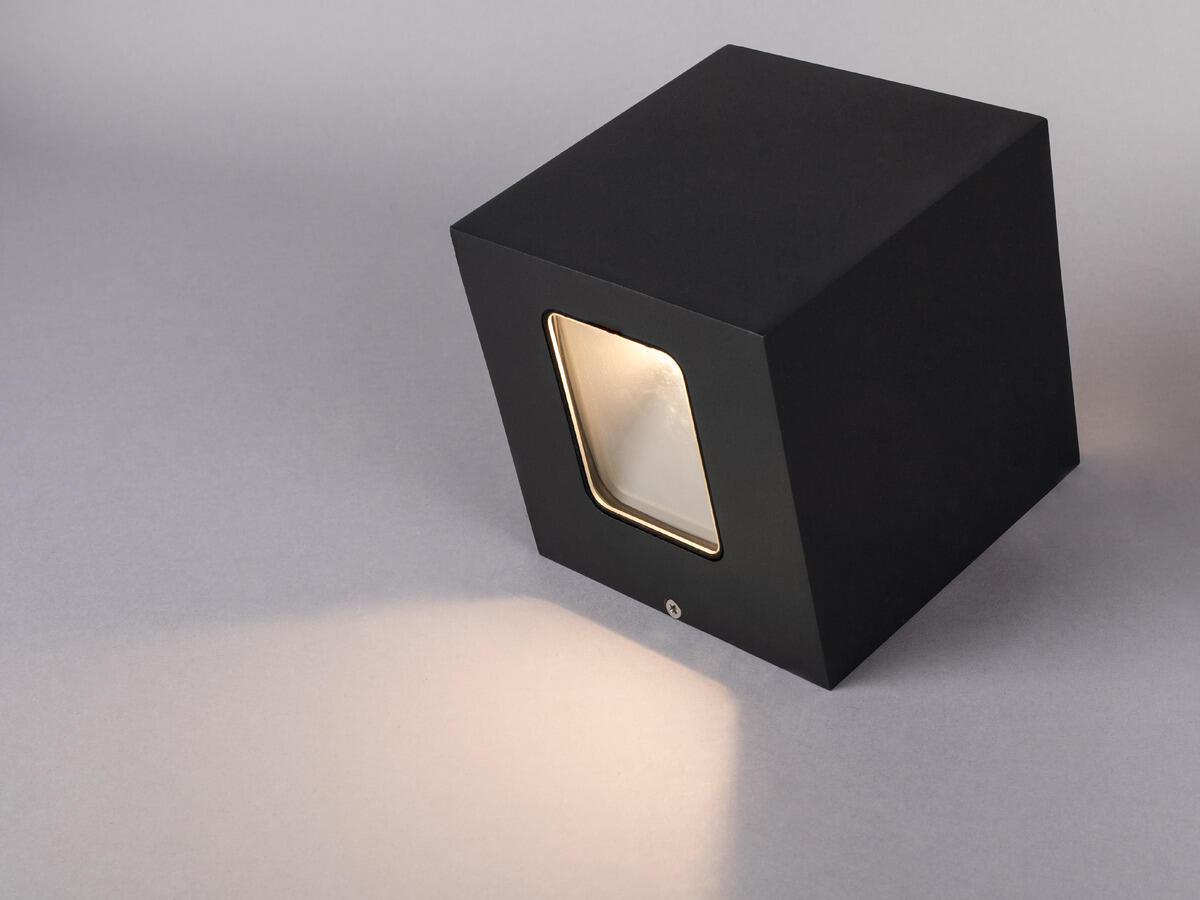

  • Antracit

Variants

GTIN Item Name Color
Cube XL I White 3000K 7392971135724 Cube XL I White 3000K White
Cube XL I Grey 3000K 7392971135731 Cube XL I Grey 3000K Grey
Cube XL I Anthracite 3000K 7392971135748 Cube XL I Anthracite 3000K Antracit
Description
GTIN 7392971135724
Item Name Cube XL I White 3000K
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
Replaceability Non-replaceaable LED, Replaceable Control gear by professional
LED Colour Warm White
Colour Temperature (K) 3000
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 3
Initial Chromaticity x:0,434 y:0,403
Luminous Intensity (cd) 617
Luminaire Lumen (lm) 925
Beam Angle (°) 80
Light sharing
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Life Time L70 75 000h Ta 25°C
Nominel Life Time (h) 75000
Life Time Driver 50 000h/10%
Technical data
Adjustable No
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50
Voltage Forward (Vf) 31
Power LED (W) 10,8
Power Luminaire (W) 12,5
System Power (W) 12,5
Efficiency Luminaire (lm/W) 76
Efficiency System (lm/W) 76
Containing light source energy efficiency class (EU) 2019/2015 C
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Built-in
Connection (type) Quick Terminal
Connection (mm2) 3x0,5-2,5
Through Wiring Yes
Strain Relief No
Constant Current (mA) 180, 300
Operating Temperature -20…+50
Max. Tc (°C) 80
Dimmable No
Type of Dimming DIP 60% 100%, DIP-Switch Power
Fuse B10 (pcs) 25
Fuse B16 (pcs) 41
Fuse C10 (pcs) 29
Fuse C16 (pcs) 47
Color and material
Material Aluminium
Color White
Environmental Assessment SundaHus, Byggvarubedömningen
Measurement and installation
Operating Environment Indoor / wet locations, Outdoor
IP Degree of Protection 65
Protection Class I
Installation Surface mounted
Mounting Installation Screw Mounting
Approval Marks CE
Impact Strength IK10

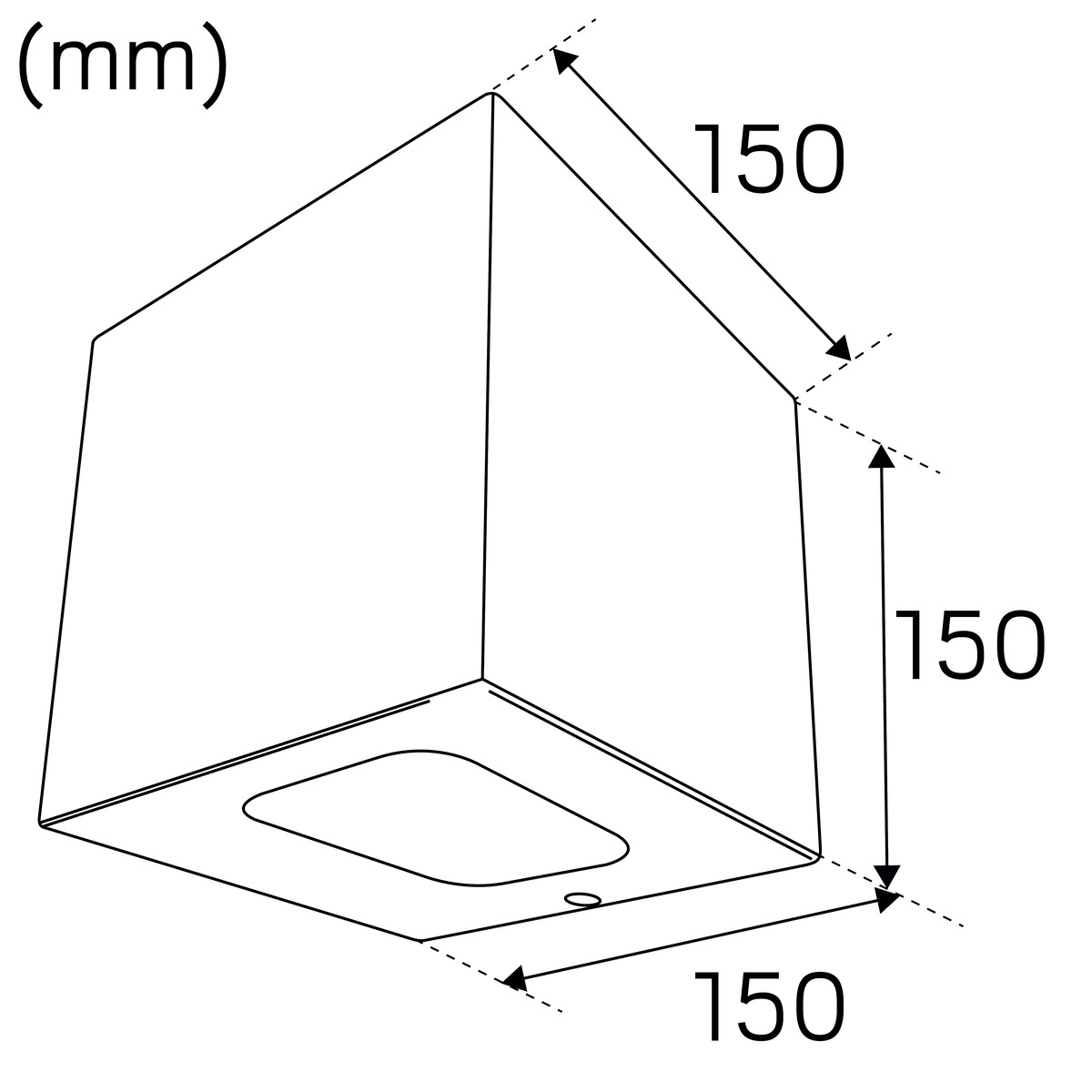

Width (mm) 150
Height (mm) 150
Depth (mm) 150
Weight (kg) 2,87

Images and downloads

Accessories

No accessories for this product.
