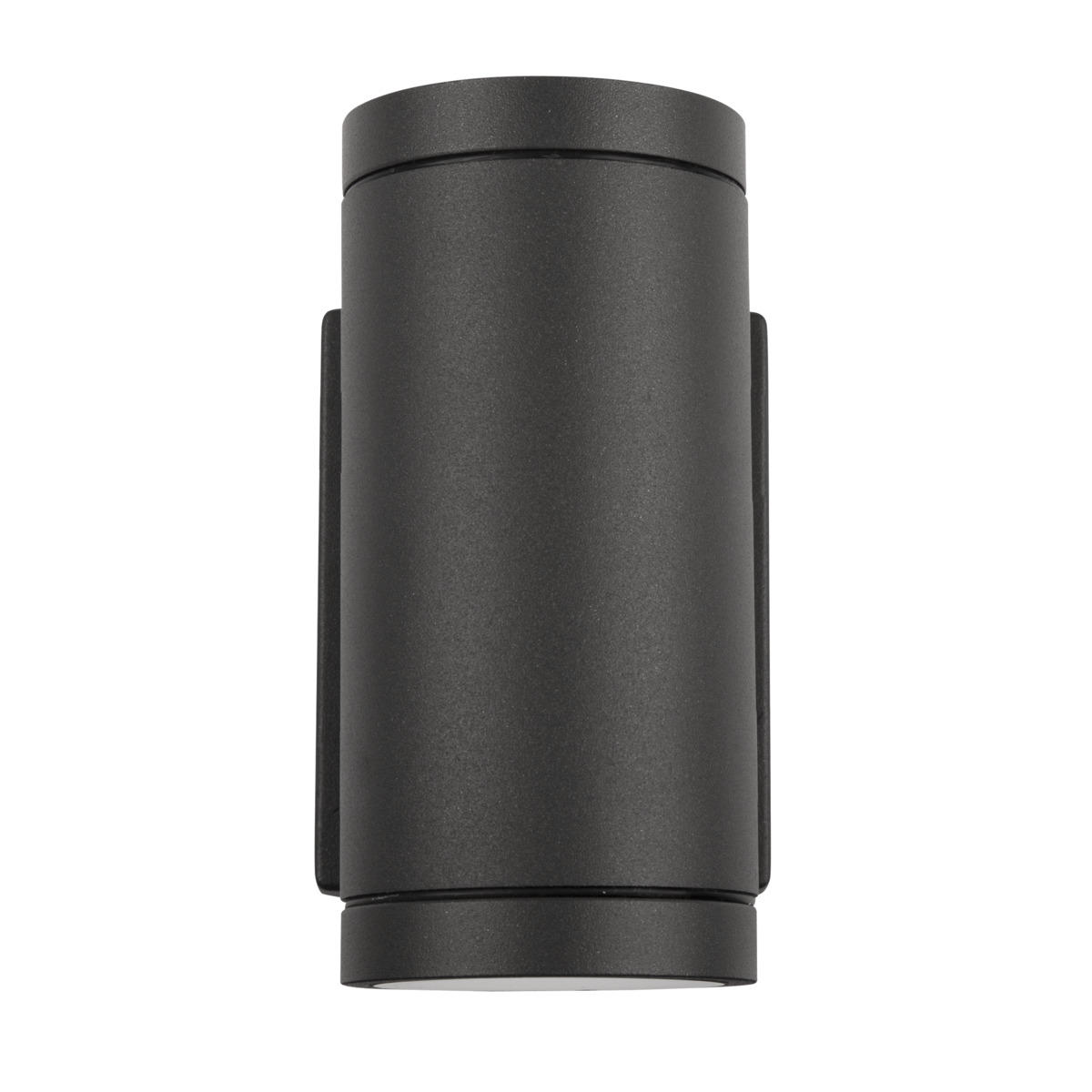

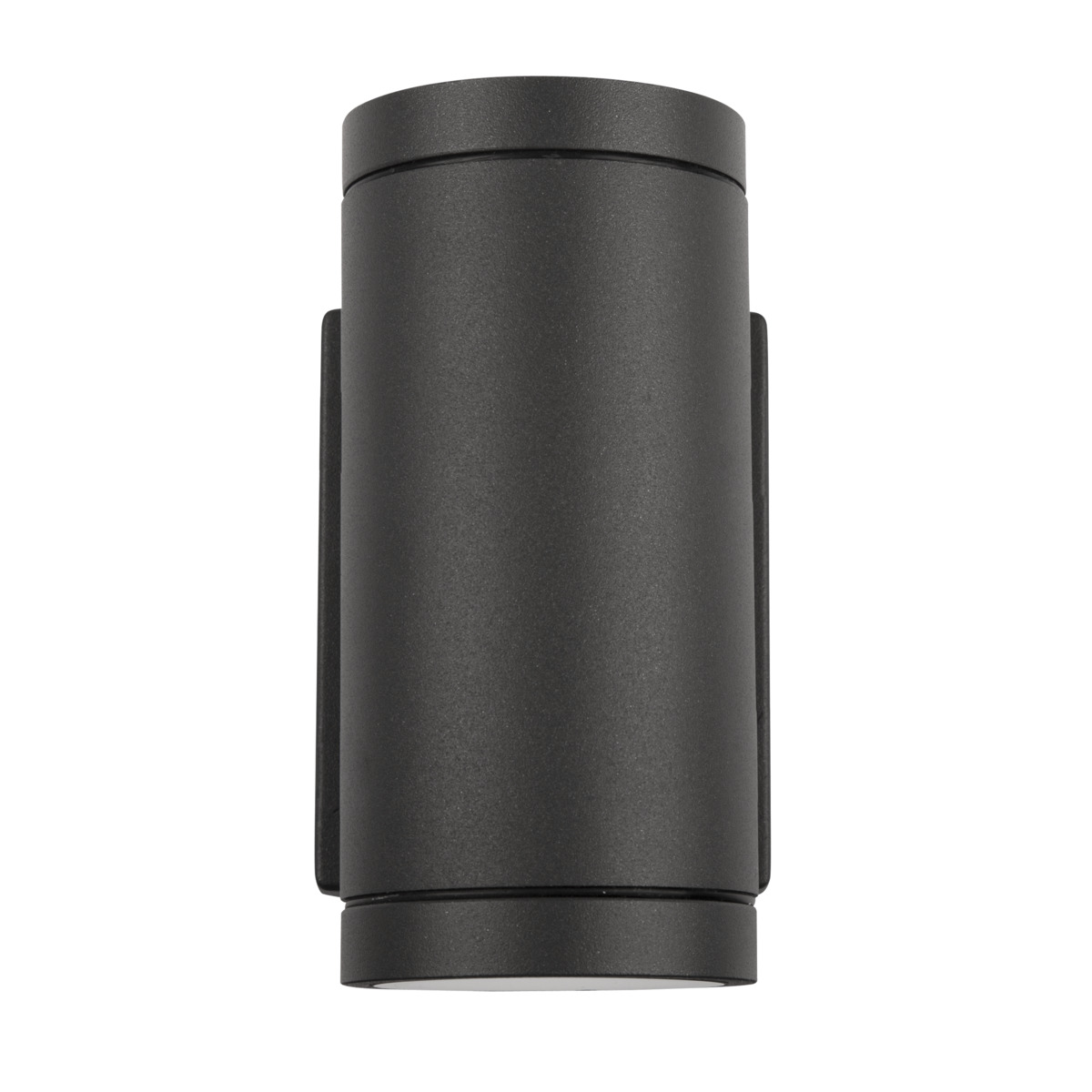

Milo II

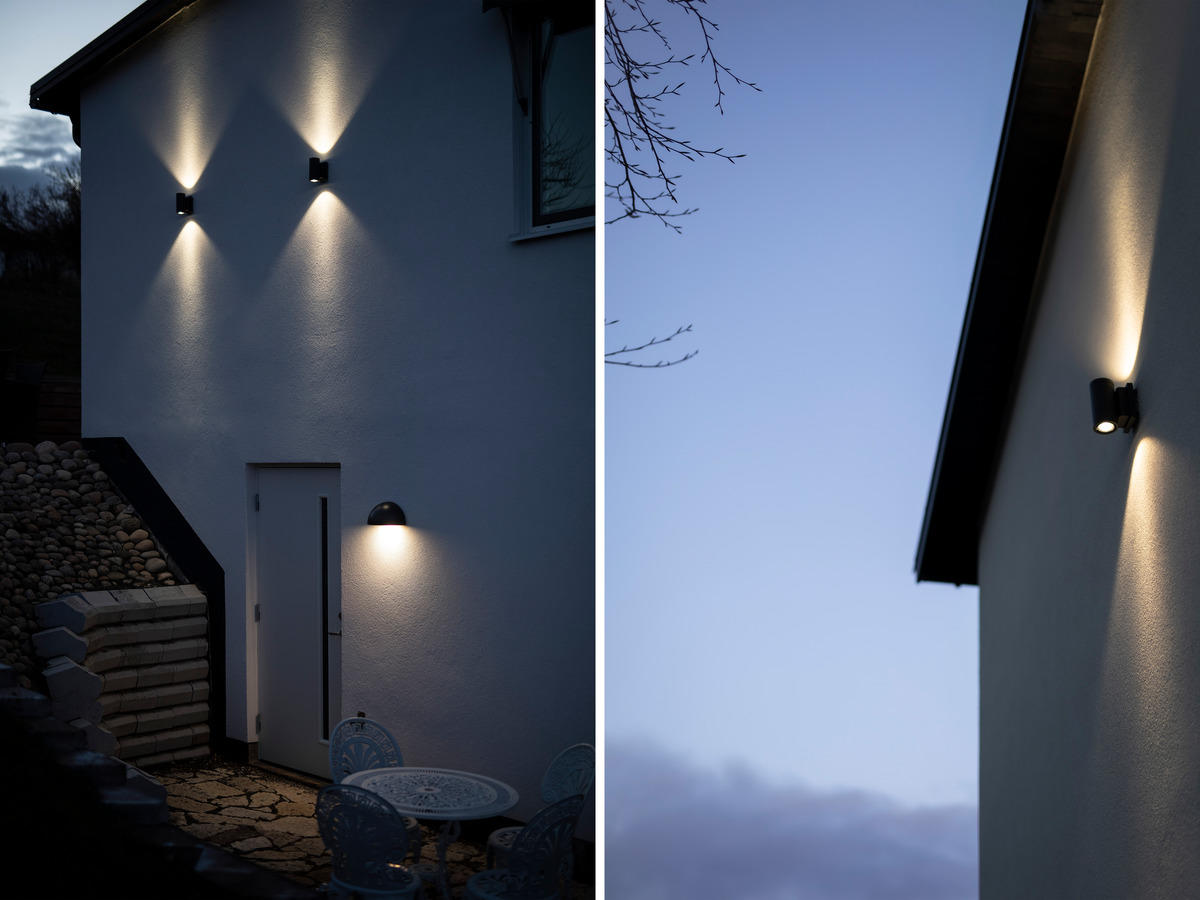

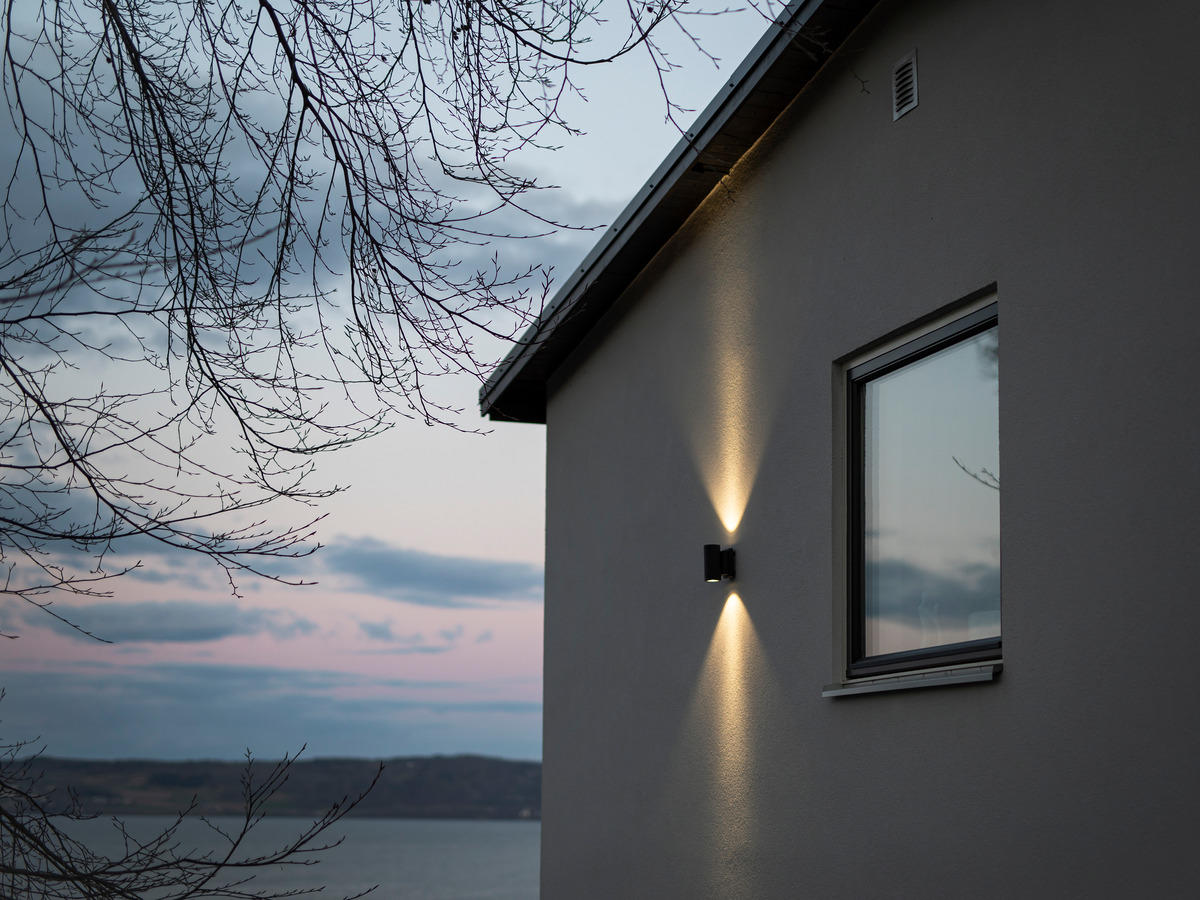

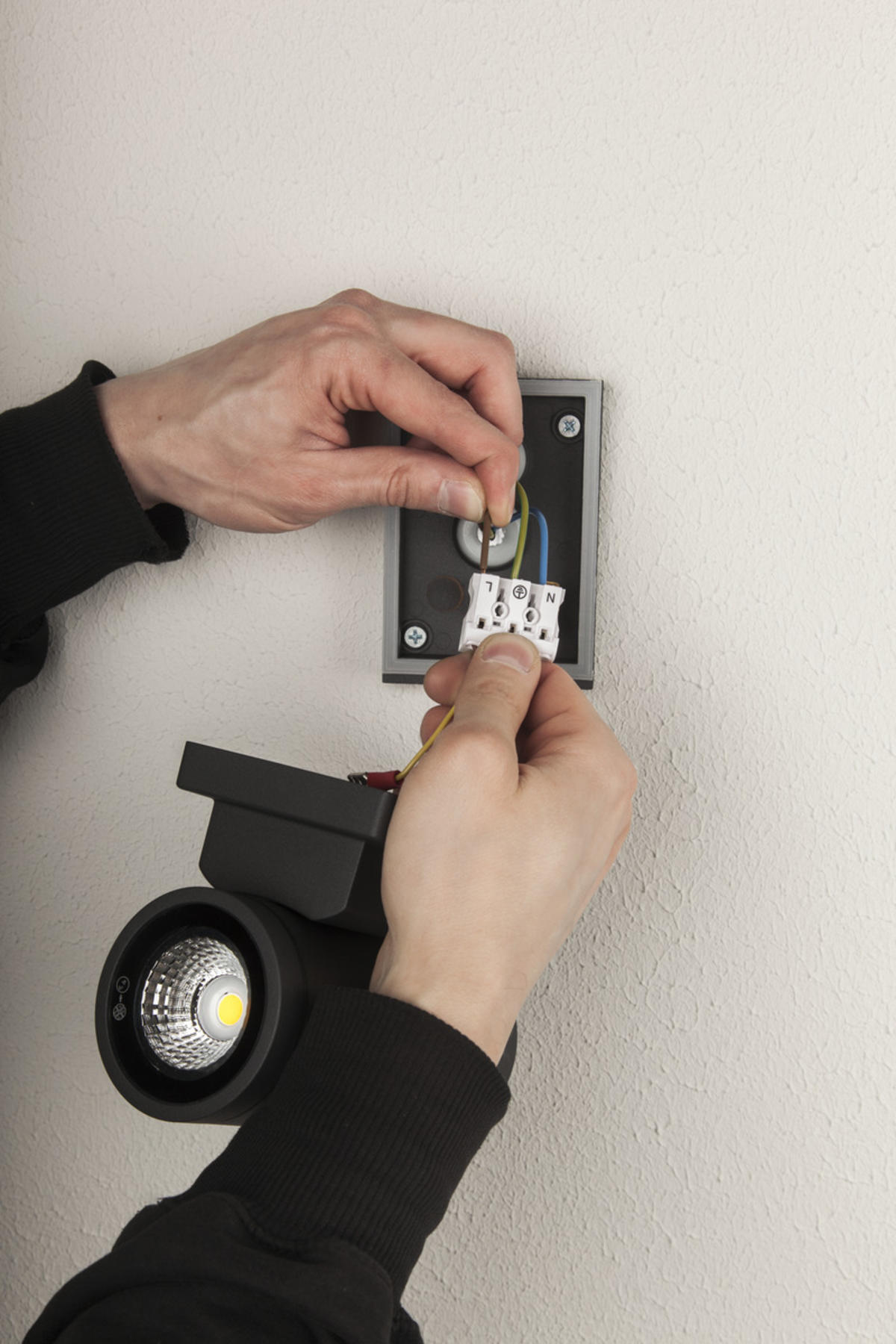

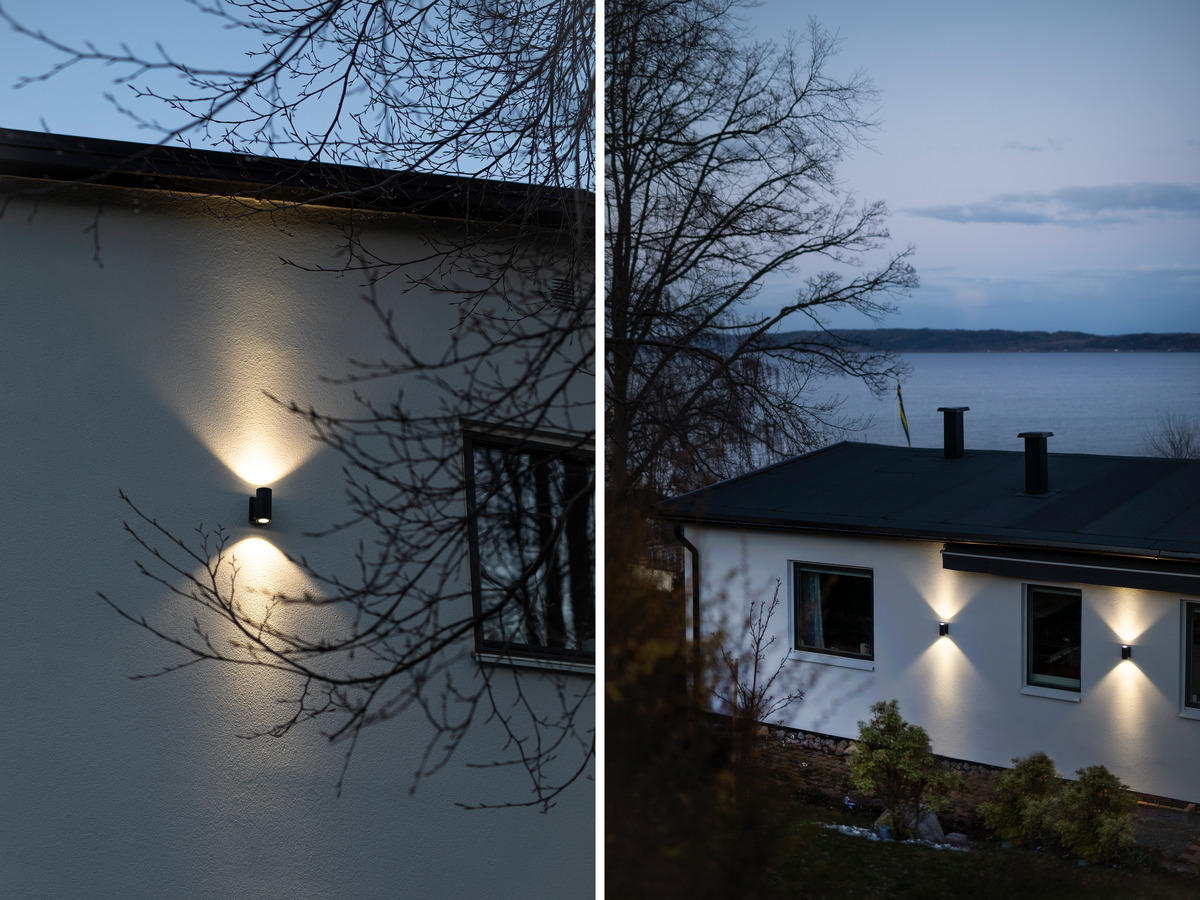

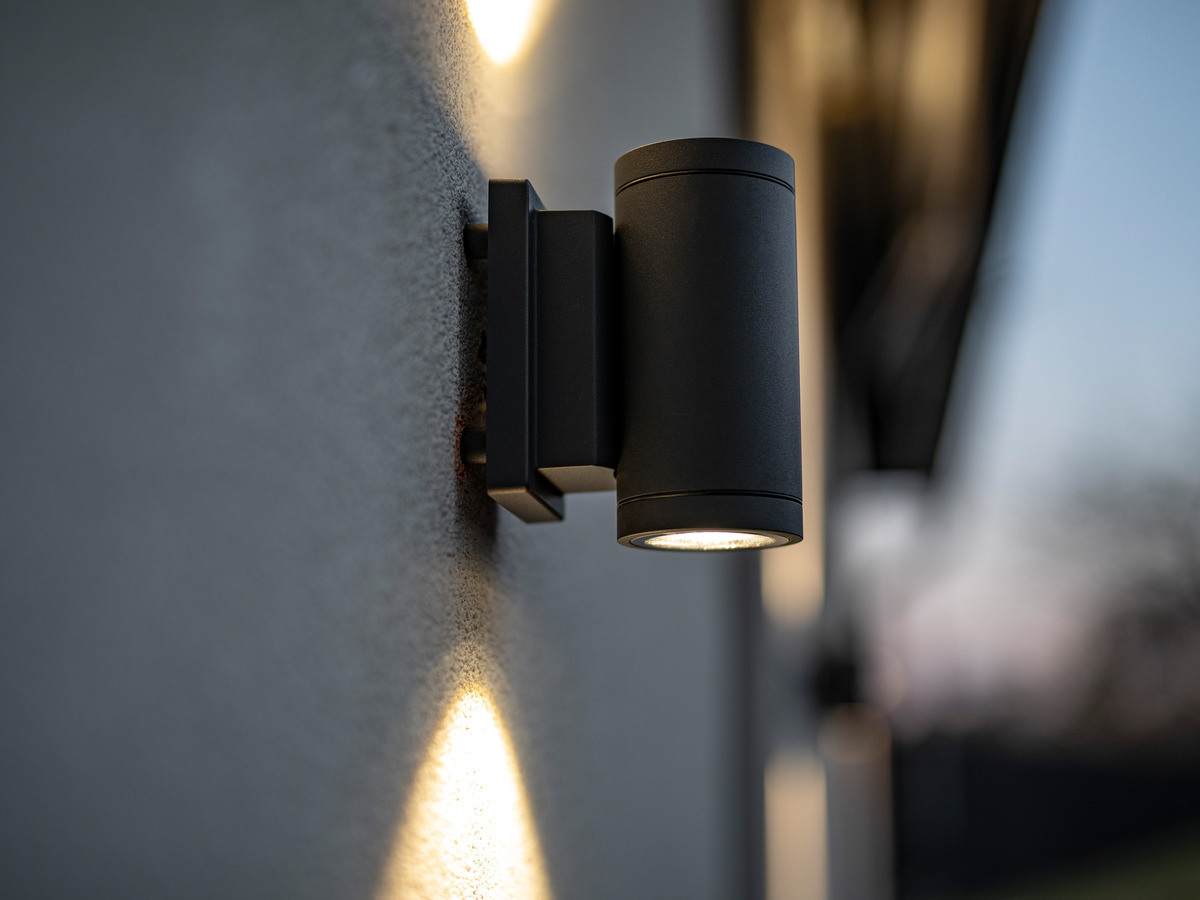

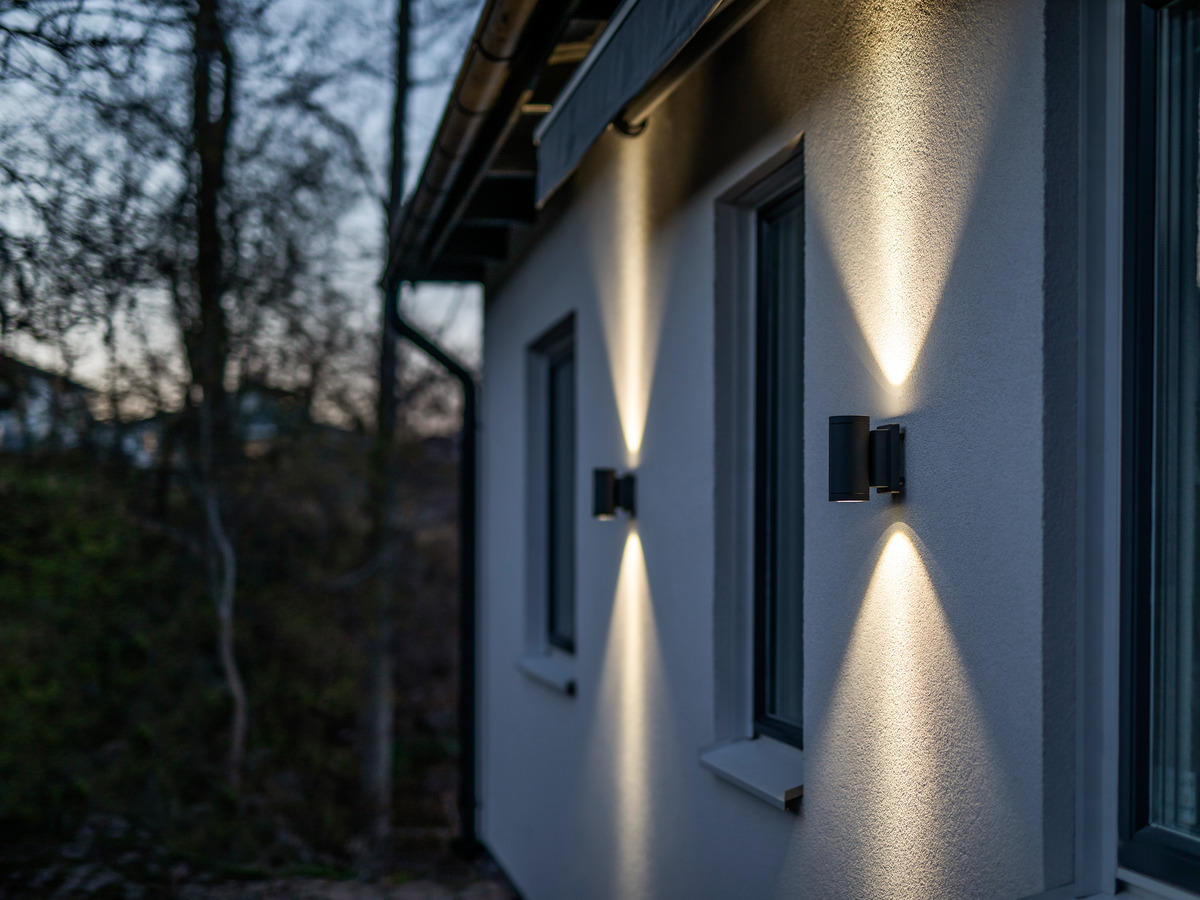

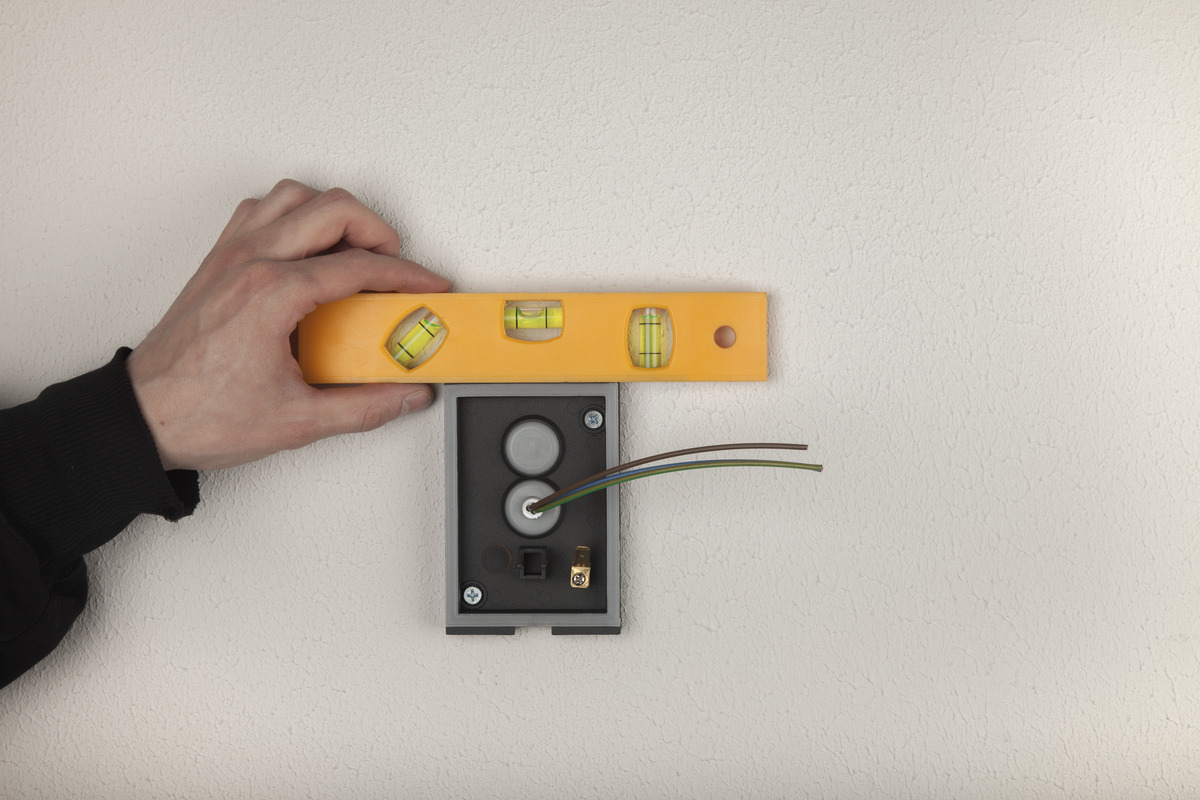

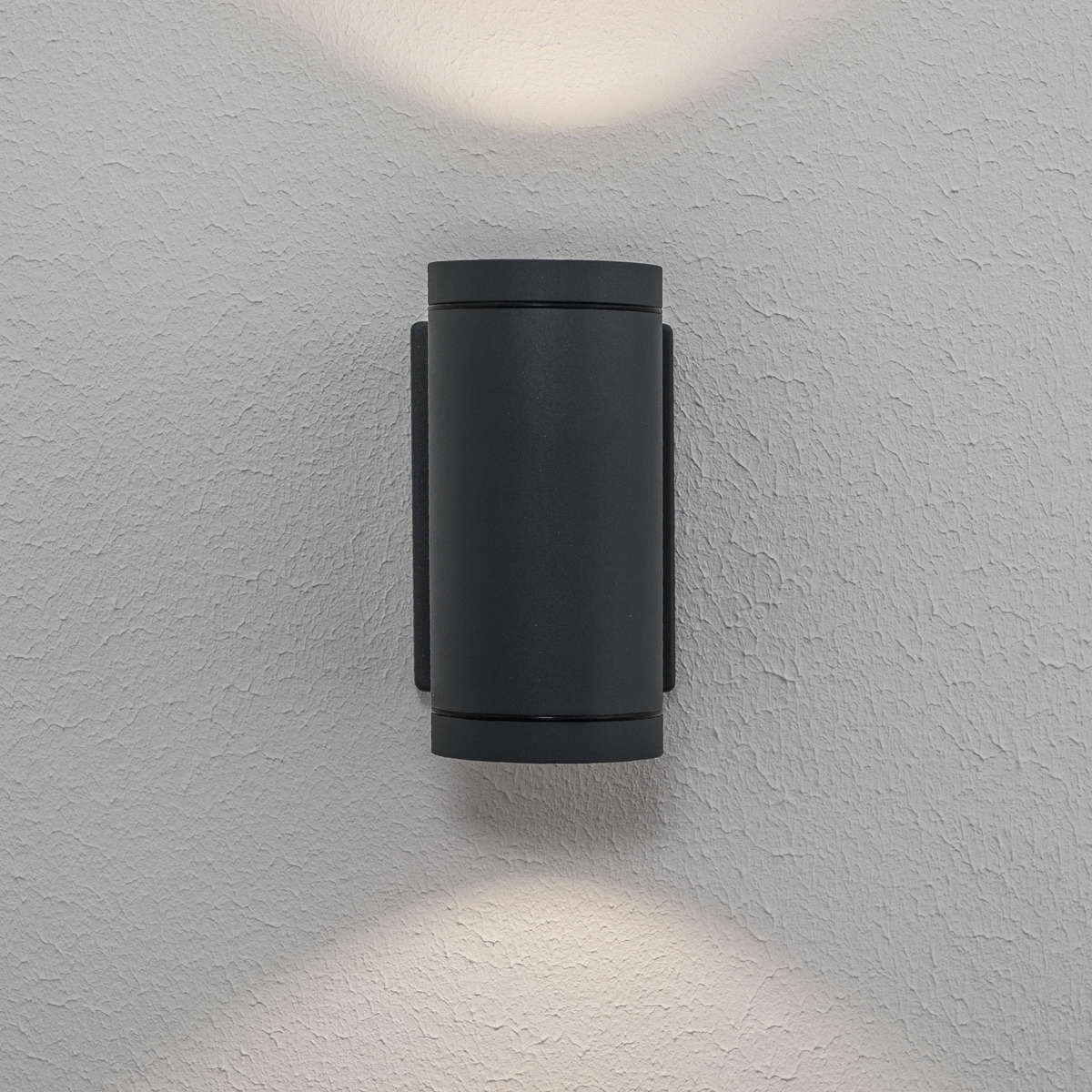

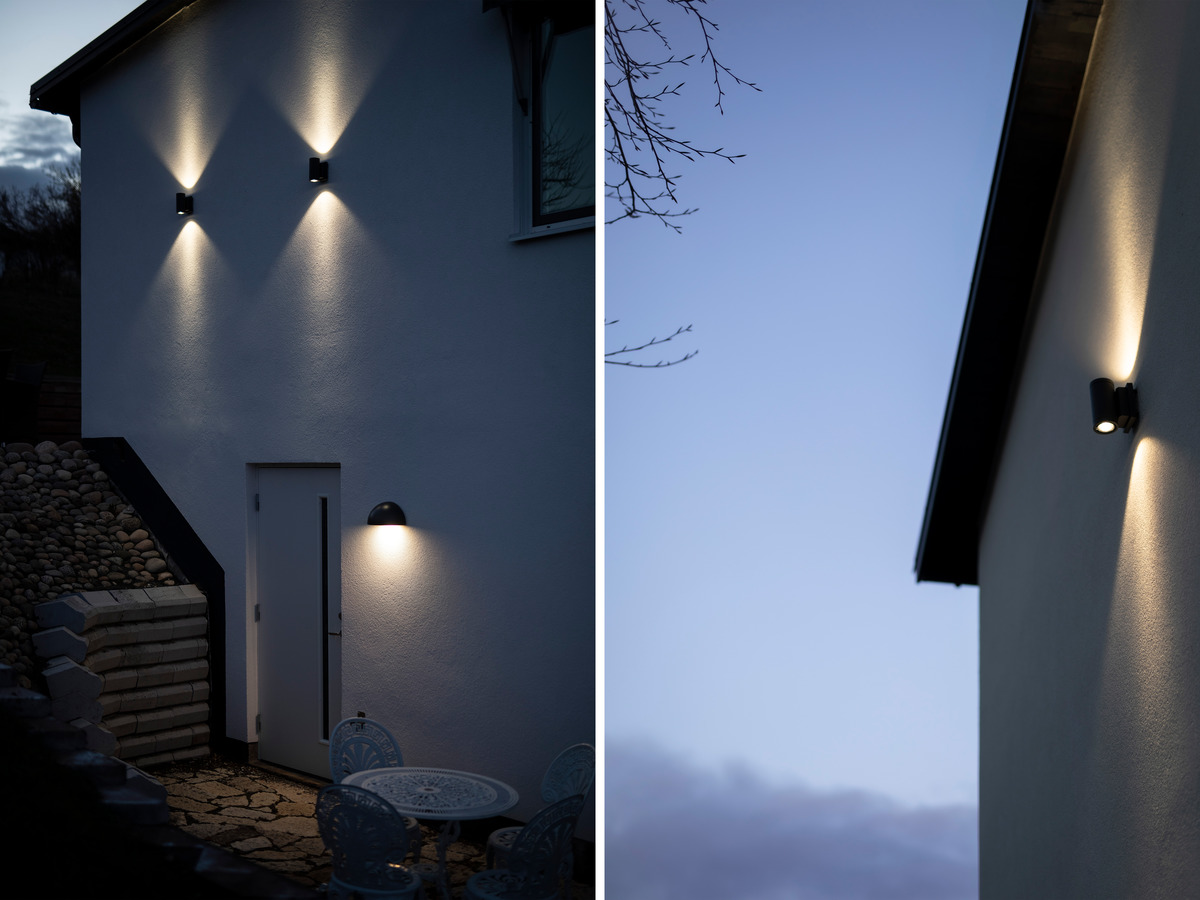

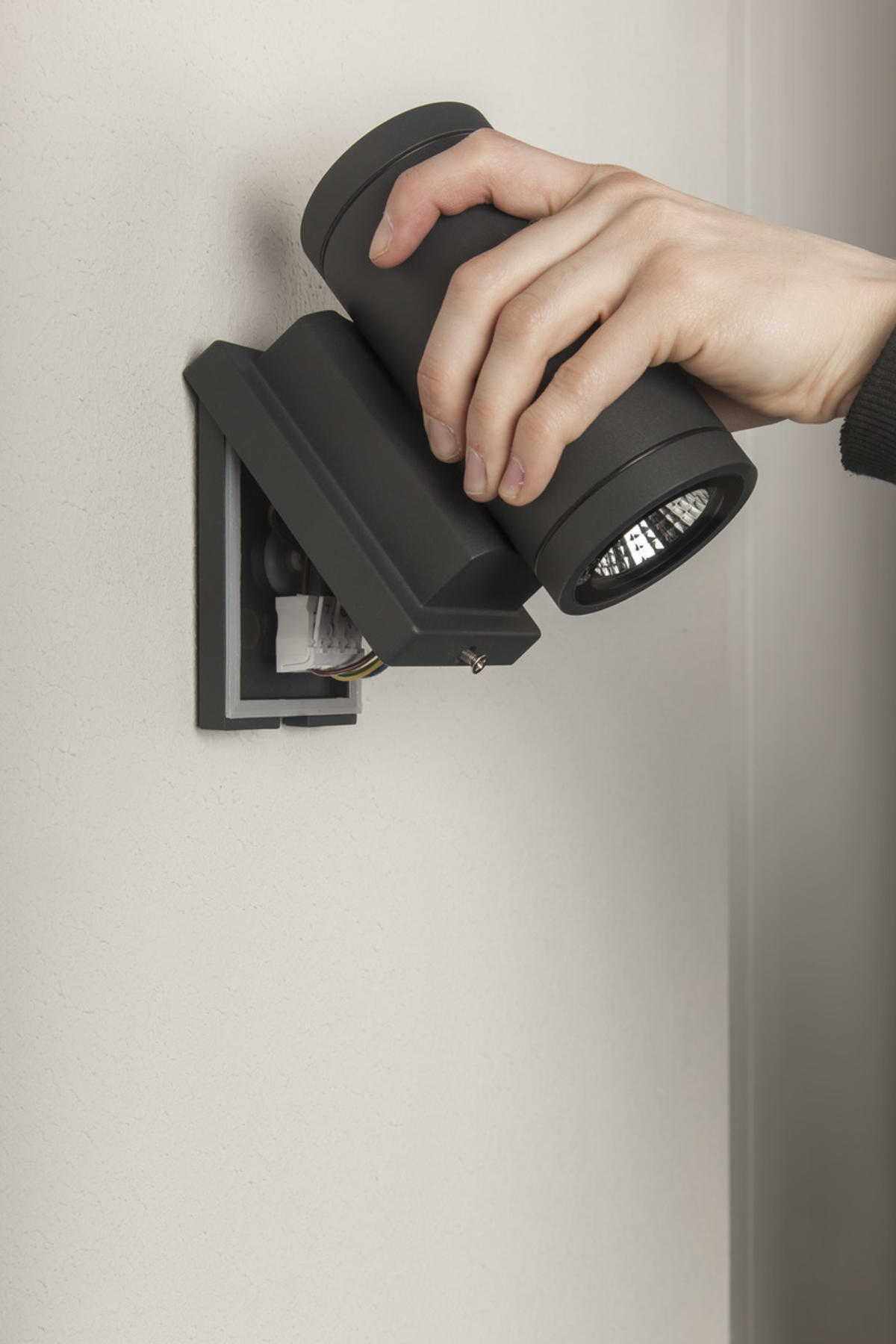

Wall-mounted luminaire in a timeless design with light emission both up and down. LED COB with reflector optics and well-conceived design provides a good light spread and good luminous comfort. Separate rear element with dual cable bushings and push-in, loop-in, loop-out terminal block for easy installation. IP55 design with anodised and powder-coated housing for rough outdoor climate. Comes with built-in driver and spacers for surface-mounted cable routing.

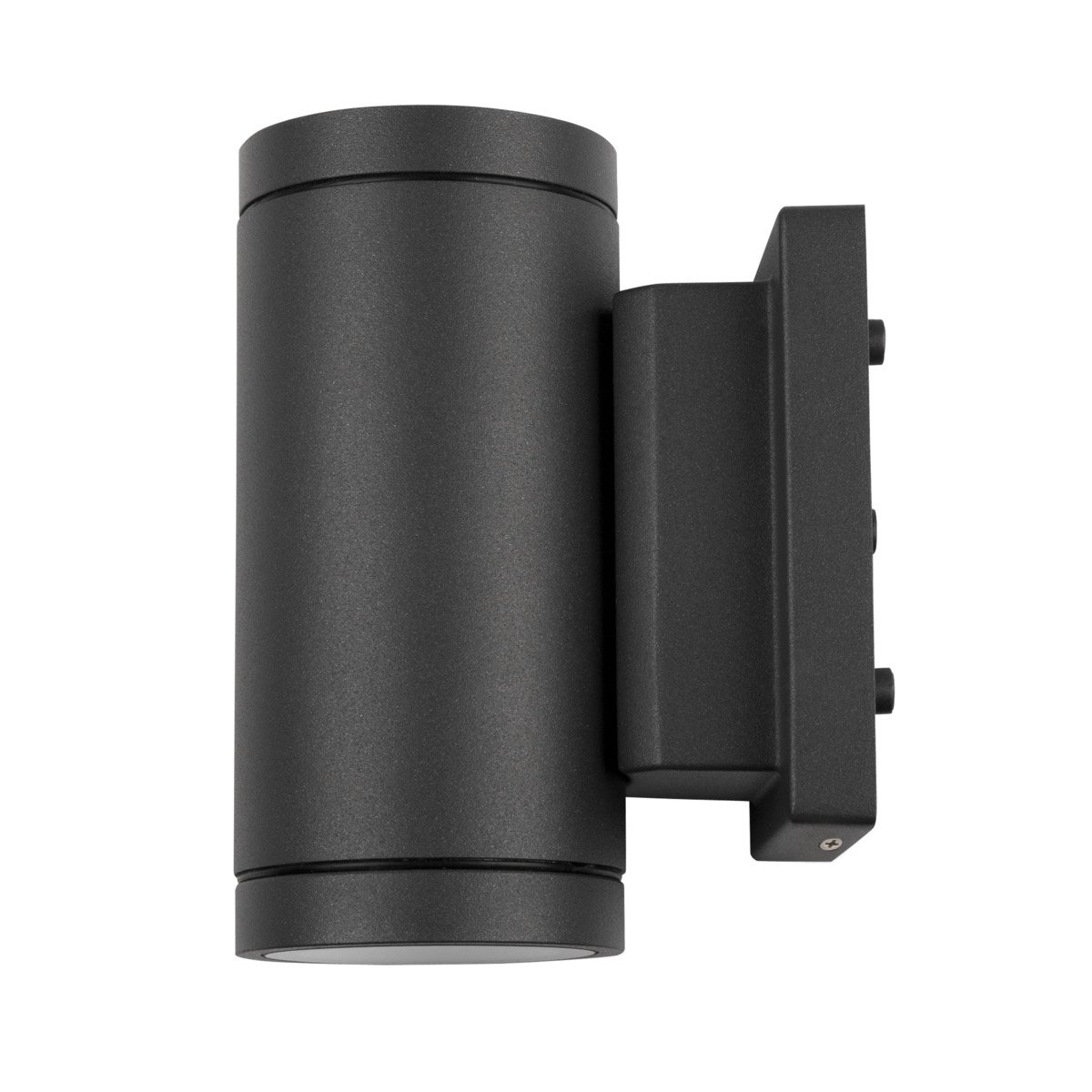

Milo II Anthracite 3000K
-
GTIN 7392971132952Item Name Milo II Anthracite 3000KWarranty 5 years
- Light Technical Data
-
Max. Luminaire Lumen (lm) 800Light Source LEDReplaceability Replaceable LED by professional, Replaceable Control gear by professionalLED Colour Warm WhiteColour Temperature (K) 3000Colour Rendering Index (Ra) >80Colour Consistency (SDCM) 3Luminous Intensity (cd) 2x1000Beam Angle (°) 25Light sharing SymmetricLight Outlet DirectNumber of Lamps (pcs) 2Number of LED (pcs) 2Life Time L70 100 000h Ta 25°CNominel Life Time (h) 100000Lumen maintenance 50 000h L82Lumen maintenance 100 000h L70LLMF @ 50 000h 0.82LLMF @ 100 000h 0.7Life Time Driver 50 000h/10%Flicker (PstLM) 0,01Stroboscopic effect (SVM) 0,01
- Technical data
-
Voltage (type) ACVoltage Interval (V) 220...240VVoltage Nominal (V) 230Line Frequency (Hz) 50, 60Power LED (W) 6Max. Power Luminaire (W) 7,5Max. System Power (W) 7,5Max. Efficiency Luminaire (lm/W) 106,7Max. Efficiency System (lm/W) 106,7Containing light source energy efficiency class (EU) 2019/2015 D
- Operation and Connection
-
Dimmable NoType of Dimming OnOffDriver Included YesDriver Model Constant CurrentDriver Type Built-inConnection (type) Quick TerminalConnection (mm2) 3x0,5-2,5Through Wiring YesStrain Relief YesOperating TemperatureMax. Tc (°C) 80Fuse B10 (pcs) 46Fuse B16 (pcs) 74Fuse C10 (pcs) 93Fuse C16 (pcs) 149
- Color and material
-
Material AluminiumColor AntracitEnvironmental Assessment Byggvarubedömningen

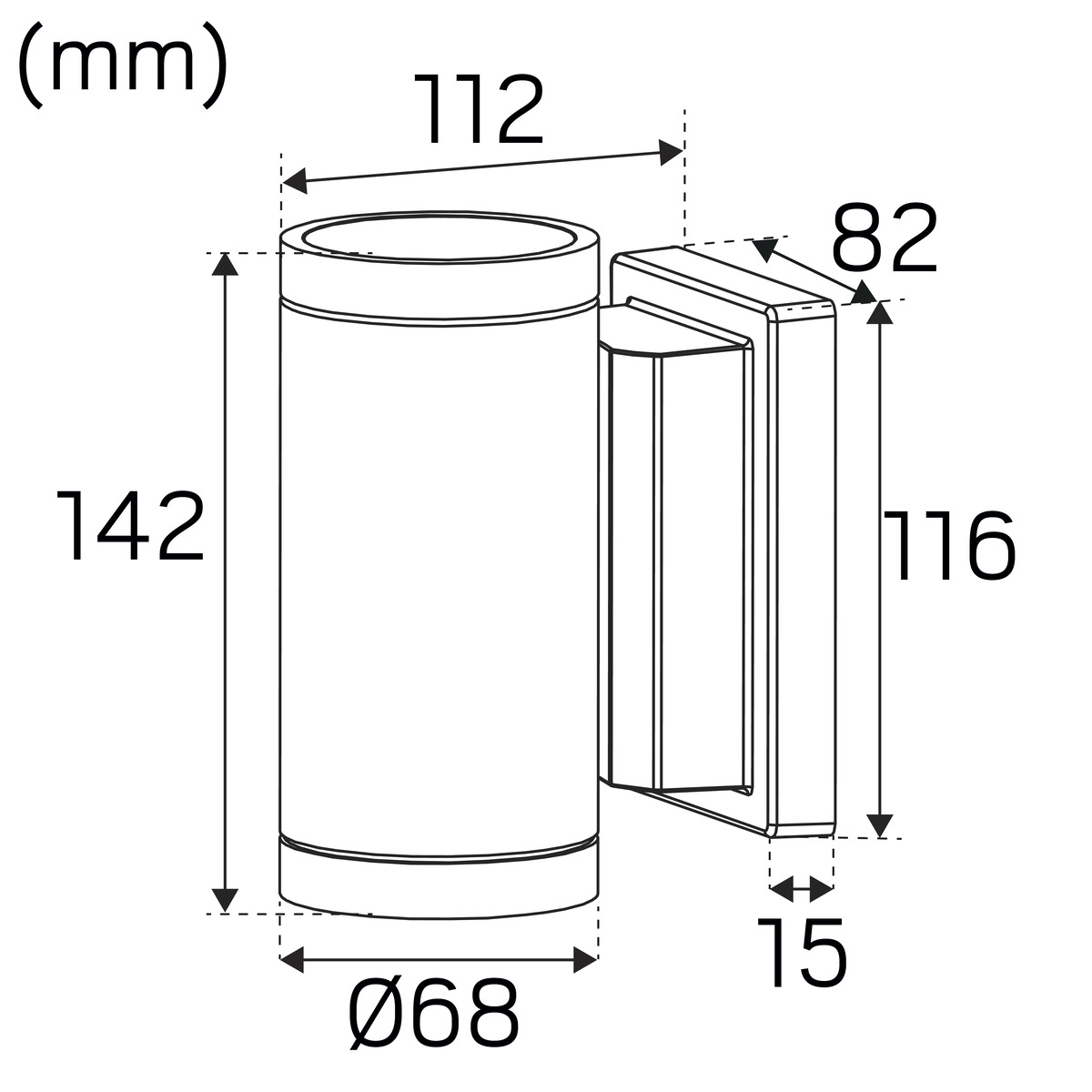

- Measurement and installation
-

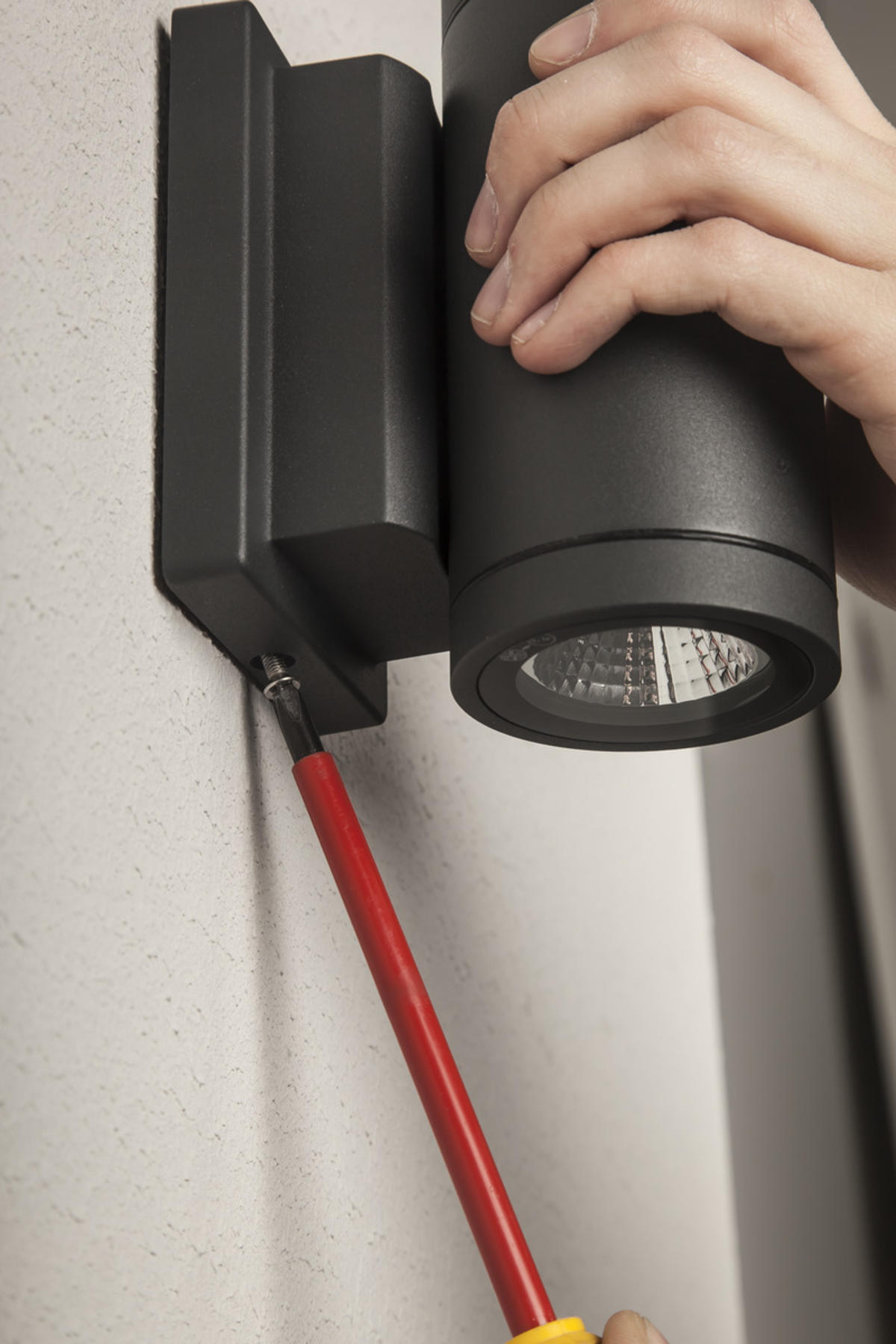

Operating EnvironmentIP Degree of Protection 55Protection Class IInstallation Surface mountedMounting Installation Screw MountingApproval Marks CEImpact Strength IK06Width (mm) 82Height (mm) 142Depth (mm) 112Diameter (mm) 68Weight (kg) 0,648
