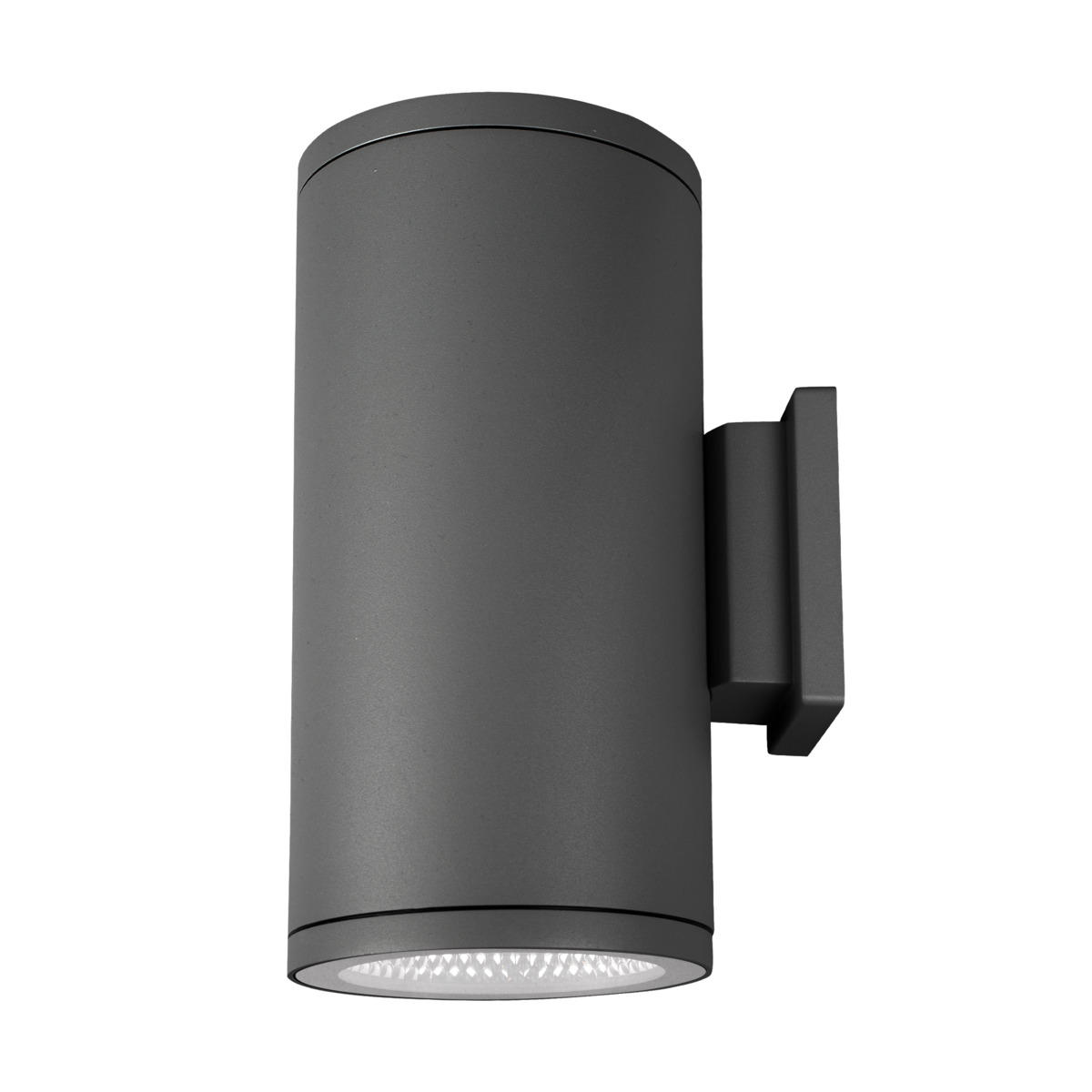

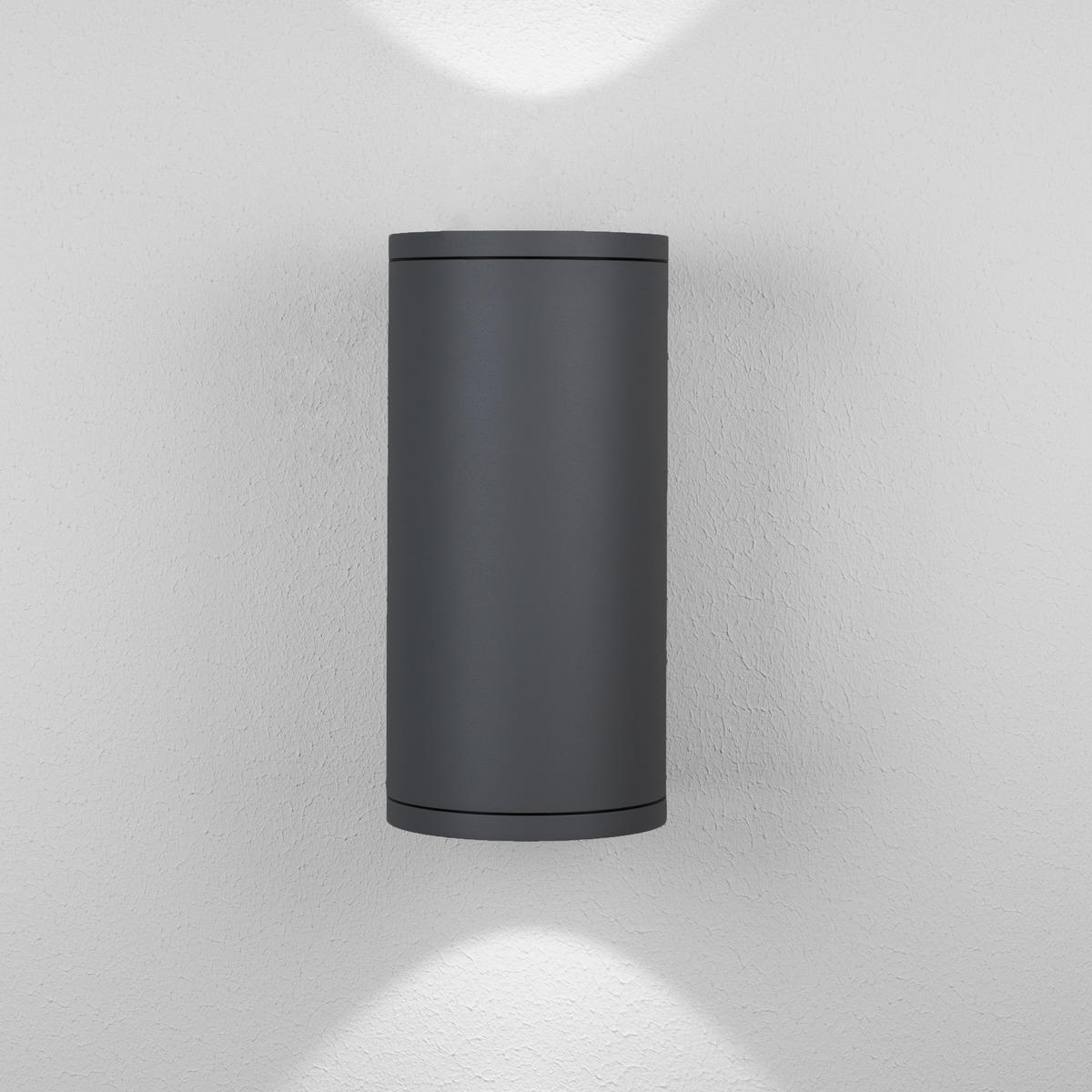

Wall luminaire in a timeless design with both up- and downward light for lighting large properties and facades. Impact resistant (IK09) cylinder-shaped luminaire that creates security and provides good lighting during the dark hours of the day. Easily installed thanks to separate rear element and push-in, loop-in, loop-out terminal block for direct connection to 230V. IP65 model, anodised with durable powder coating for tough environments. Comes with integrated driver and spacers for surface-mounted cable routing.
Exists in several colors
  • Grå
  • Antracit


GTIN Item Name Color Colour Temperature (K) Luminaire Lumen (lm)
Milo XXL II Anthracite 4000K 7392971138084 Milo XXL II Anthracite 4000K Antracit 4000 3700
Milo XXL II Grey 3000K 7392971137995 Milo XXL II Grey 3000K Grey 3000 3400
Milo XXL II Anthracite 3000K 7392971138008 Milo XXL II Anthracite 3000K Antracit 3000 3400

Milo XXL II Anthracite 4000K

GTIN 7392971138084
Item Name Milo XXL II Anthracite 4000K
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
LED Colour White
Colour Temperature (K) 4000
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 3
Luminous Intensity (cd) 2x3900
Luminaire Lumen (lm) 3700
Beam Angle (°) 36
Light sharing Symmetric
Light Outlet Direct
Number of Lamps (pcs) 2
Number of LED (pcs) 2
Life Time L70 100 000h Ta 25°C
Nominel Life Time (h) 100000
Lumen maintenance 50 000h L88
Lumen maintenance 100 000h L70
LLMF @ 50 000h 0,88
LLMF @ 100 000h 0,7
Life Time Driver 50 000h/10%
Technical data
Adjustable No
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50, 60
Power LED (W) 30,6
Power Luminaire (W) 34
System Power (W) 34
Efficiency Luminaire (lm/W) 109
Efficiency System (lm/W) 109
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Built-in
Connection (type) Quick Terminal
Connection (mm2) 3x0,75-2,5
Through Wiring Yes
Strain Relief Yes
Power Factor ʎ 0,9
Efficiency (%) 91
Operating Temperature -20…+40
Max. Tc (°C) 95
Dimmable No
Type of Dimming OnOff
Fuse B10 (pcs) 6
Fuse B16 (pcs) 9
Fuse C10 (pcs) 20
Fuse C16 (pcs) 32
Color and material
Material Aluminium
Color Antracit
Environmental Assessment Byggvarubedömningen
Measurement and installation
Operating Environment Indoor / wet locations, Outdoor
IP Degree of Protection 65
Protection Class I
Installation Surface mounted
Mounting Installation Screw Mounting
Approval Marks CE
Impact Strength IK09
Filament Test IEC 695-2-1(°C) 650

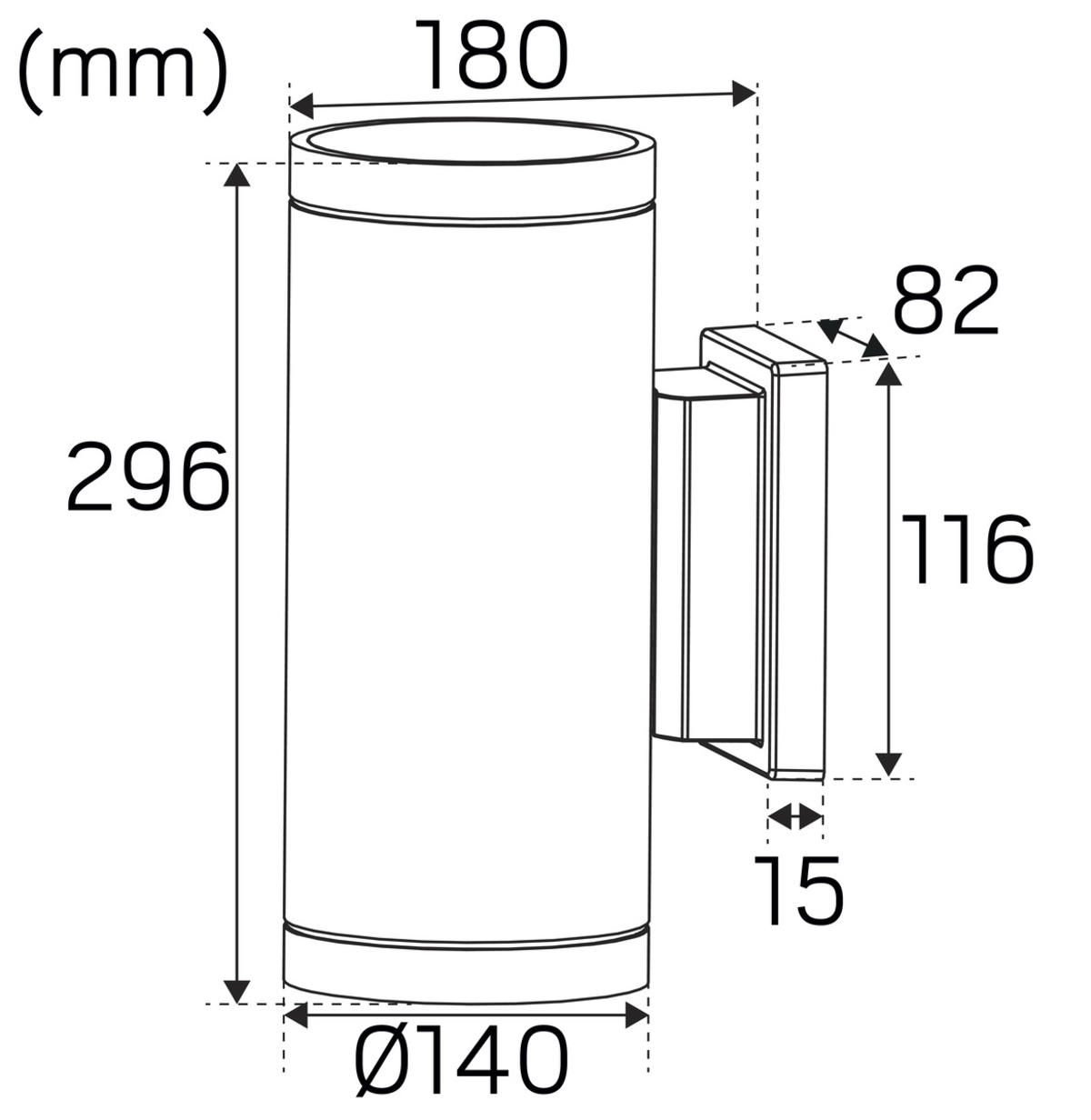

Width (mm) 140
Height (mm) 296
Depth (mm) 180
Diameter (mm) 140
Weight (kg) 2,35
