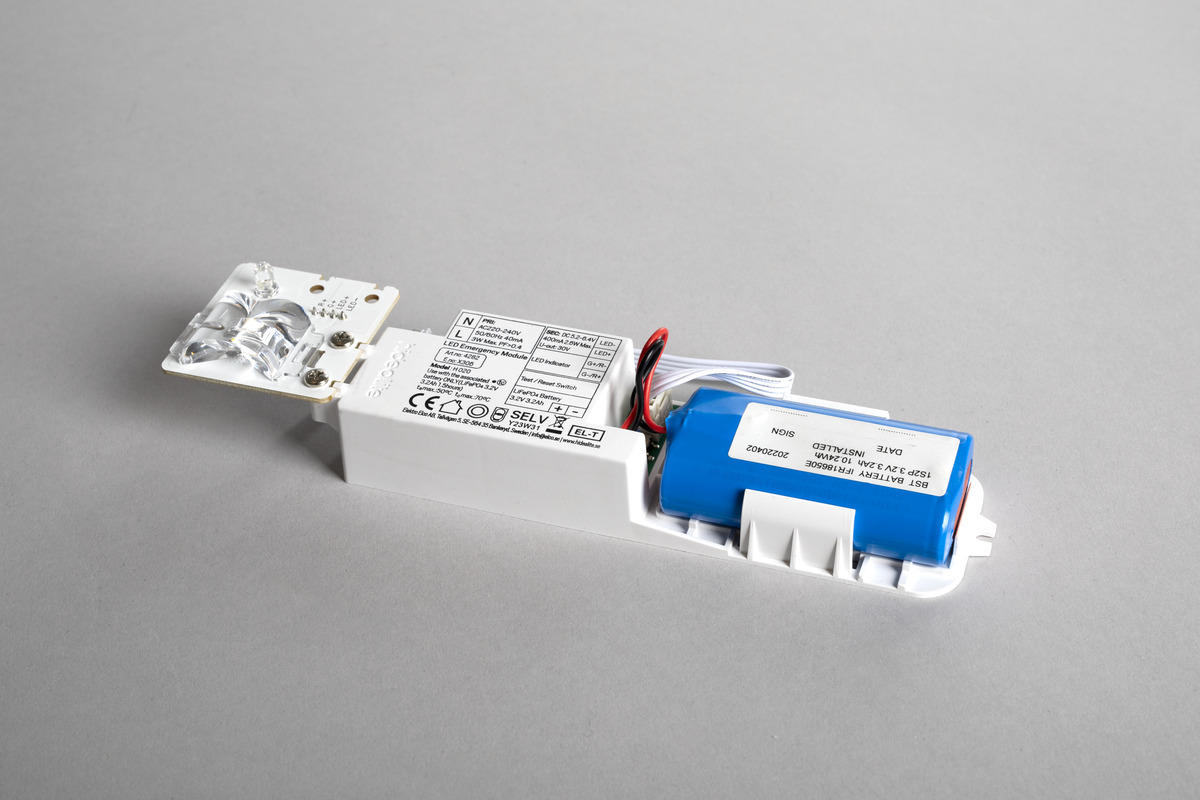

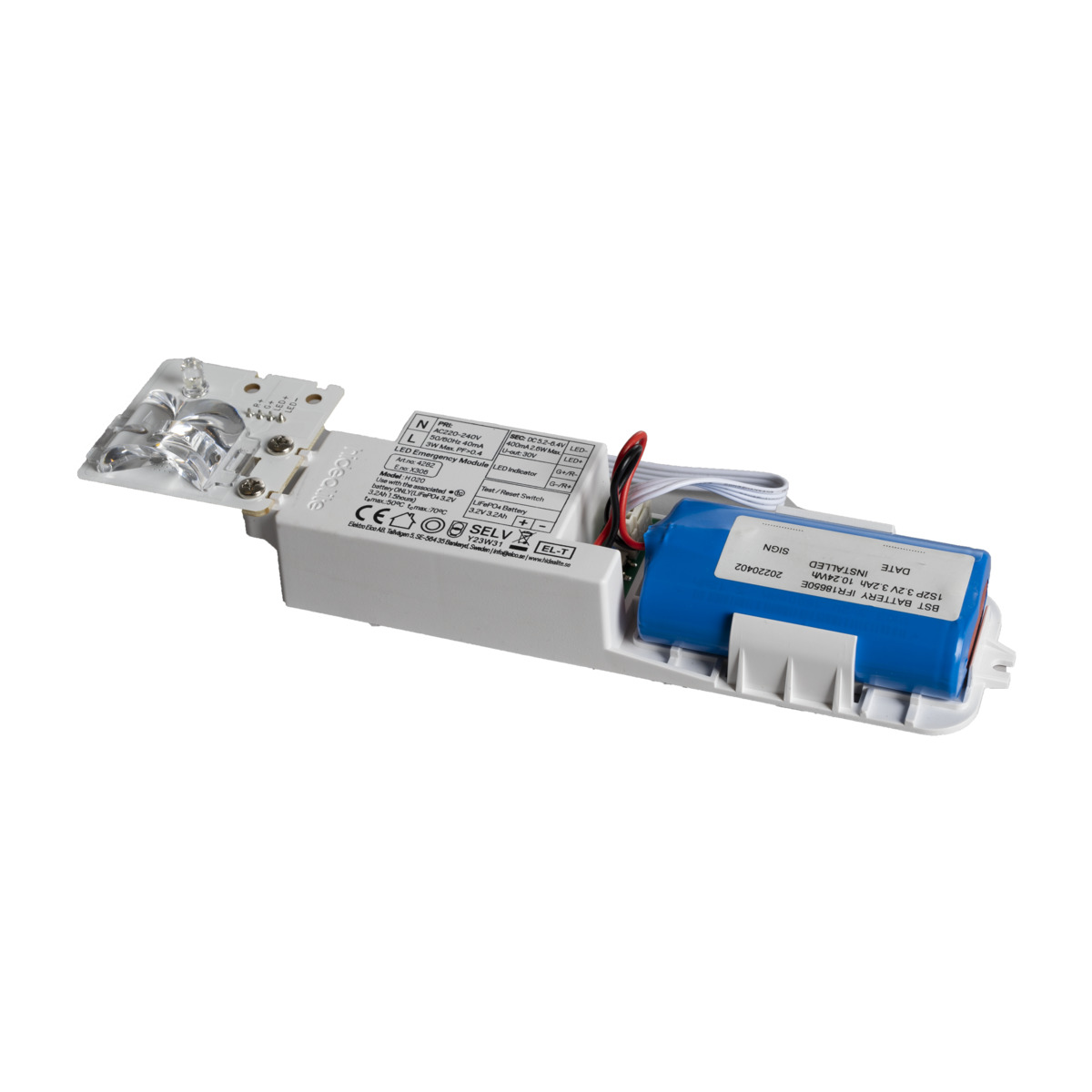

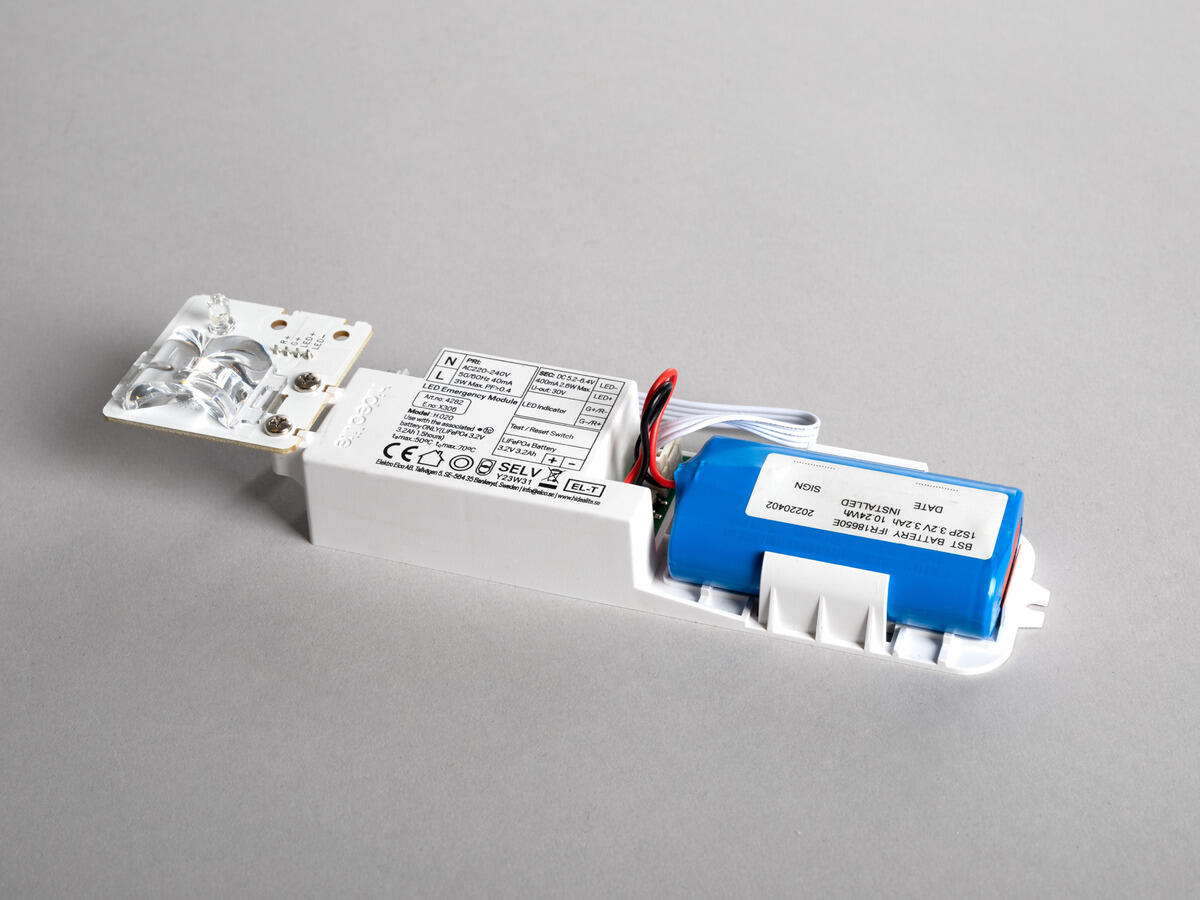

Emergency Lighting Module Liteline G2
- Emergency lighting module suitable for Liteline G2 IP44 1200
- Installed using the accompanying screws
- The emergency lighting module is equipped with automatic self-testing and indicates status via green or red LED
- Provides light for 1.5 hours in the event of a power failure
Emergency lighting module including battery. Installed using the accompanying screws. The luminaires can be supplemented with an emergency lighting modules afterwards and will retain their normal capacity and control function. The emergency lighting module is equipped with automatic self-testing and indicates status via green or red LED. Provides light for 1.5 hours with power failure.
| Variants | GTIN | Item Name | Color |
|---|---|---|---|
|
7392971147727 | Emergency Lighting Module Liteline G2 | White |
|
7392971145648 | Emergency light battery Li-Ion 3,2V 3,2Ah 1,5h | Blue |
Emergency Lighting Module Liteline G2
-
GTIN 7392971147727Item Name Emergency Lighting Module Liteline G2Warranty 5 years
- Technical data
-
Adjustable No
- Operation and Connection
-
Connection (type) Quick TerminalConnection (mm2) 2x0,5-1,5Through Wiring NoConnection Secondary (type) Plug-inOperating Temperature
- Color and material
-
Material PlasticColor WhiteAvailable in special color No

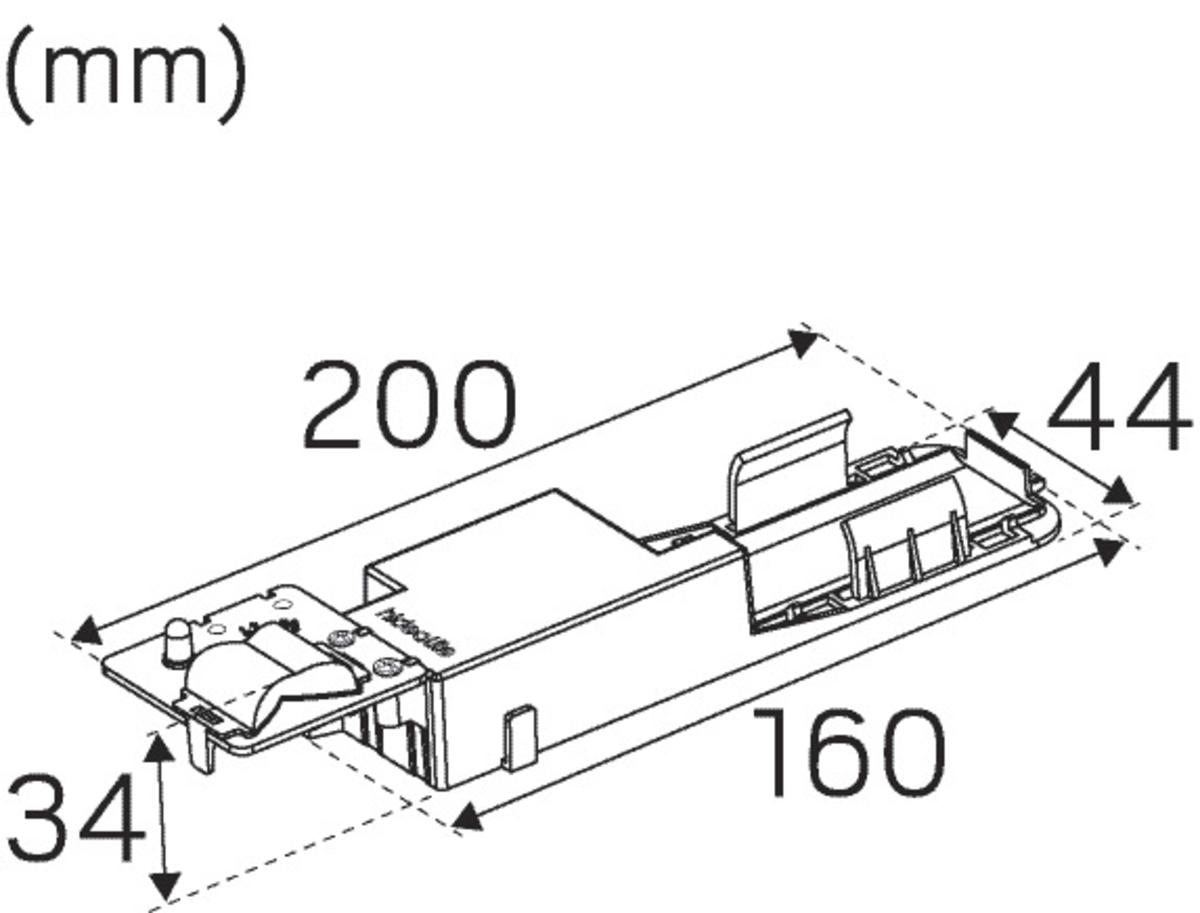

- Measurement and installation
-
IP Degree of Protection 20Installation Built-inMounting Installation Screw MountingLength (mm) 199Width (mm) 45Height (mm) 34Weight (kg) 0,16
