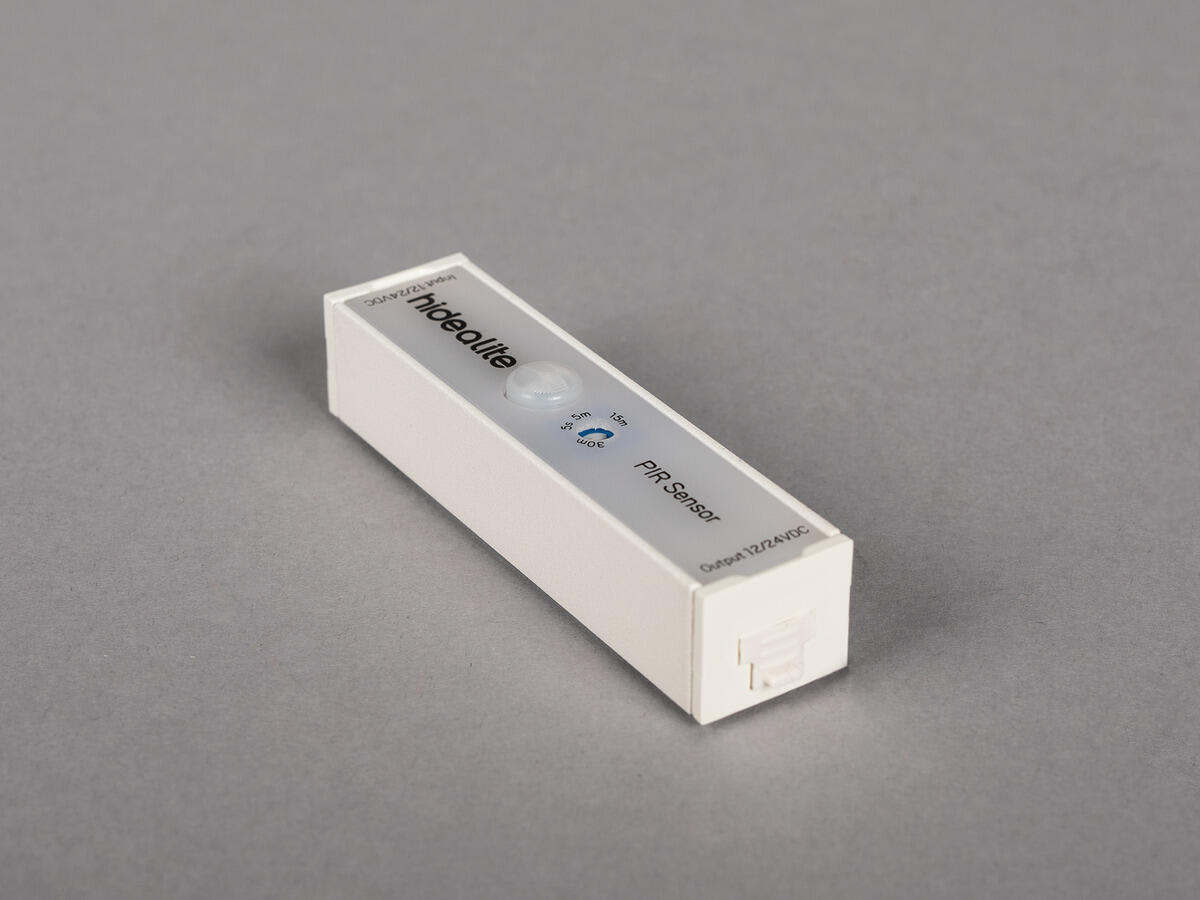

LED Extend G2 PIR Sensor

PIR-sensor that increases range of LED Extend G2 for smart dimming with timer. Perfect for LED Extend G2 on shelves and in cabinets, etc. The PIR-sensor has the same form and finish as the LED strip. Comes with self adhesive tape, link pin and screw.

LED Extend G2 PIR Sensor

Description
GTIN 7392971135427
Item Name LED Extend G2 PIR Sensor
Warranty 5 years
Technical data
Voltage (type) DC
Voltage Interval (V) 24...24
Voltage Nominal (V) 24
Operation and Connection
Driver Model Constant Voltage
Connection (type) Plug-in
Connection Secondary (type) Plug-in
Power Interval for Catalogue (W) 3,5-54
Dimmable No
Type of Dimming PIR Sensor
Color and material
Material Aluminium
Color White
Environmental Assessment Byggvarubedömningen
Measurement and installation
Operating Environment Indoor / damp locations
IP Degree of Protection 21
Protection Class III
Installation Surface mounted
Mounting Installation Screw Mounting, Clips
Approval Marks CE
Length (mm) 76
Width (mm) 19
Height (mm) 16
Weight (kg) 0,025

Images and downloads

Accessories

No accessories for this product.
