Touchpanel
- Change the colour and luminous intensity of TW, RGB or RGBW LED strip
- Control driver with DALI Broadcast or via addressing
- Create paths to pre-installed scenarios

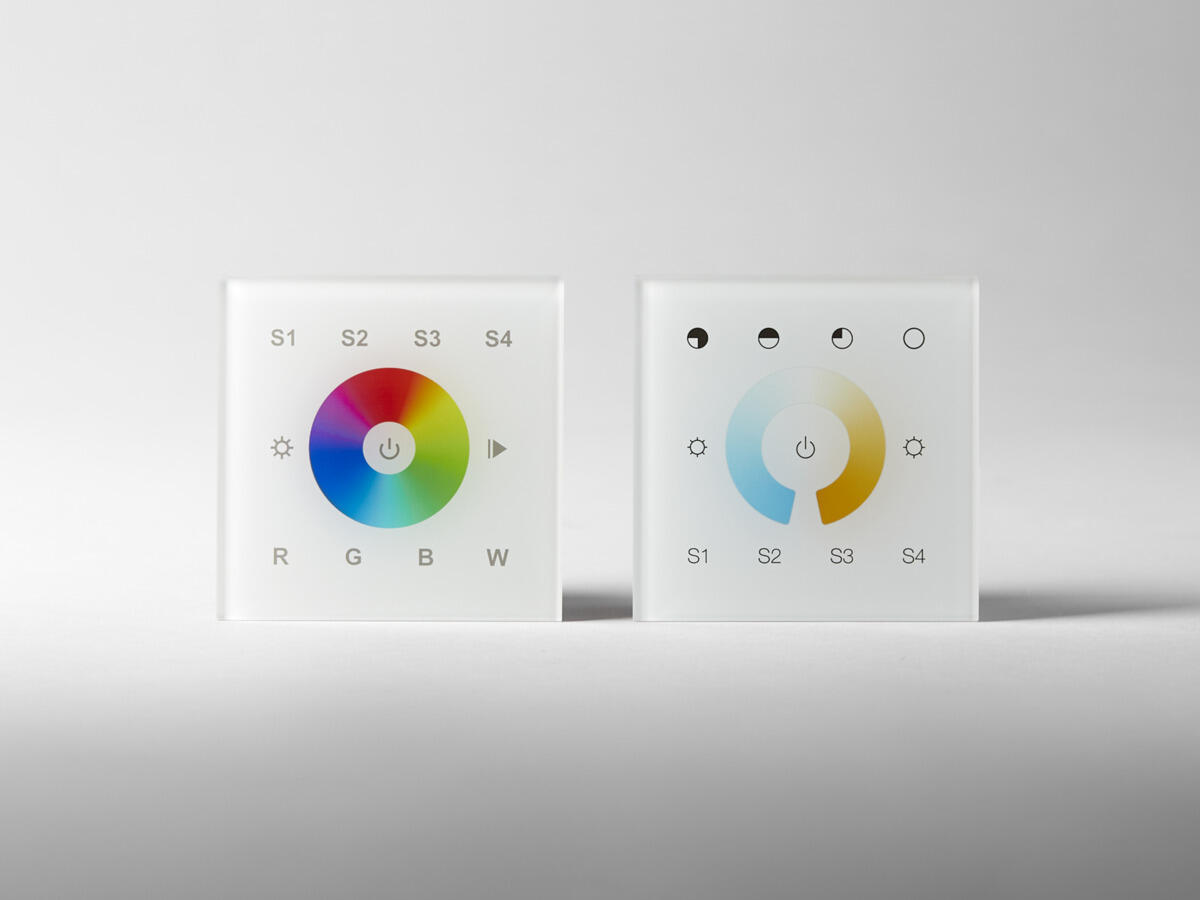

With our RGB, RGBW and TW LEDstrips together with Touchpanel RGBW or Touchpanel TW you can easily change colour and luminous intensity with a few simple clicks. Control your connected driver with DALI Broadcast or via addressing. Create paths to pre-installed scenarios. Simple installation in appliance box on the wall. Easily connect to four panels in a loop to control the lighting from several places.
| Variants | GTIN | Item Name |
|---|---|---|
|
7392971149424 | Touchpanel TW DALI |
|
7392971149431 | Touchpanel RGBW DALI |
Show more articles

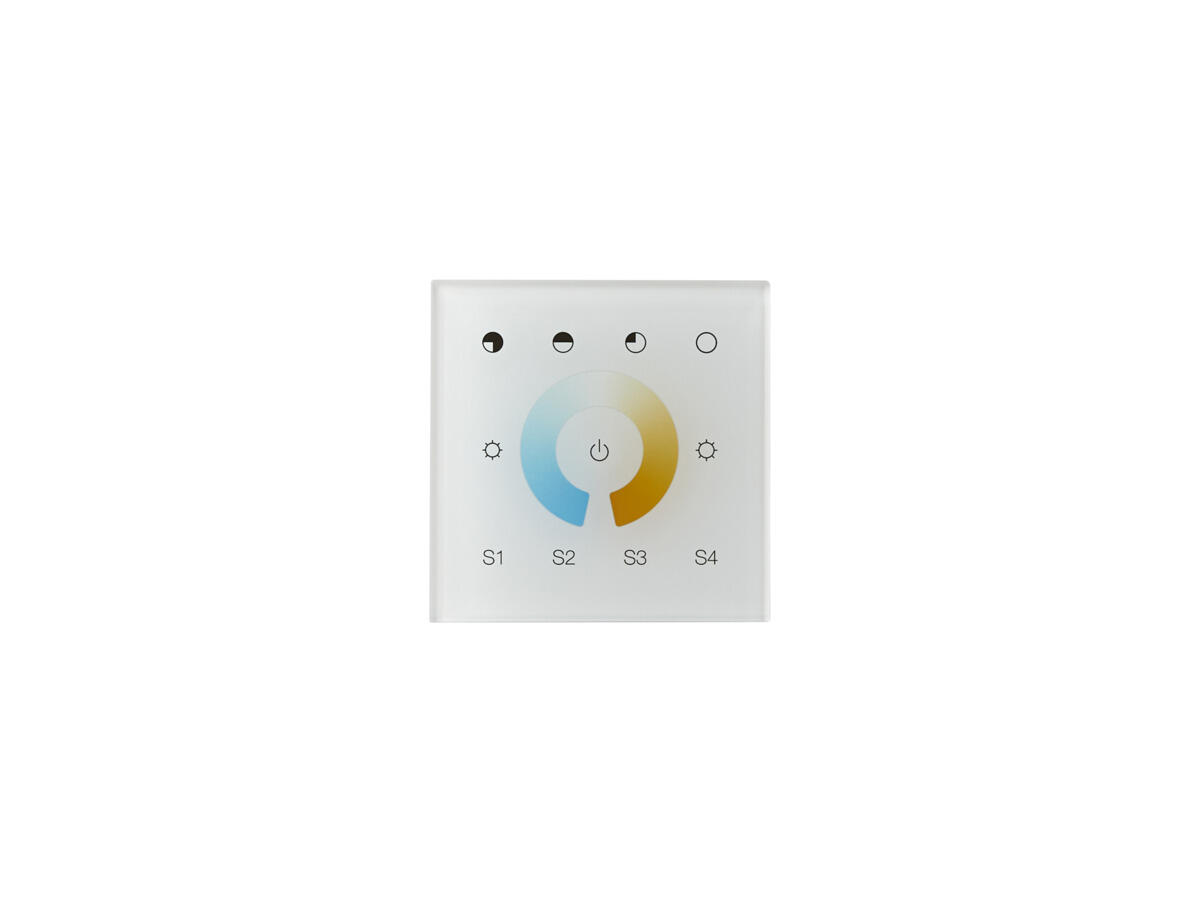

Touchpanel TW DALI
-
GTIN 7392971149424Item Name Touchpanel TW DALIWarranty 5 years
- Technical data
-
Adjustable NoVoltage (type) ACVoltage Interval (V) 110...240VVoltage Nominal (V) 230Line Frequency (Hz) 50, 60
- Operation and Connection
-
Dimmable YesType of Dimming DALI DT8, TouchDriver Type Built-inConnection (type) Quick TerminalConnection (mm2) 2x0,5-1,5Through Wiring NoStrain Relief NoConnection Secondary (type) Quick TerminalSecondary Connection (mm2) 2x0,5-1,5Leakage current (mA) (at 230 V, 50 Hz, full load) 0,3Standby Power 0,7Operating TemperatureMemory Function Power Failure YesMains surge protection DM (kV) 1
- Color and material
-
Color White
- Measurement and installation
-

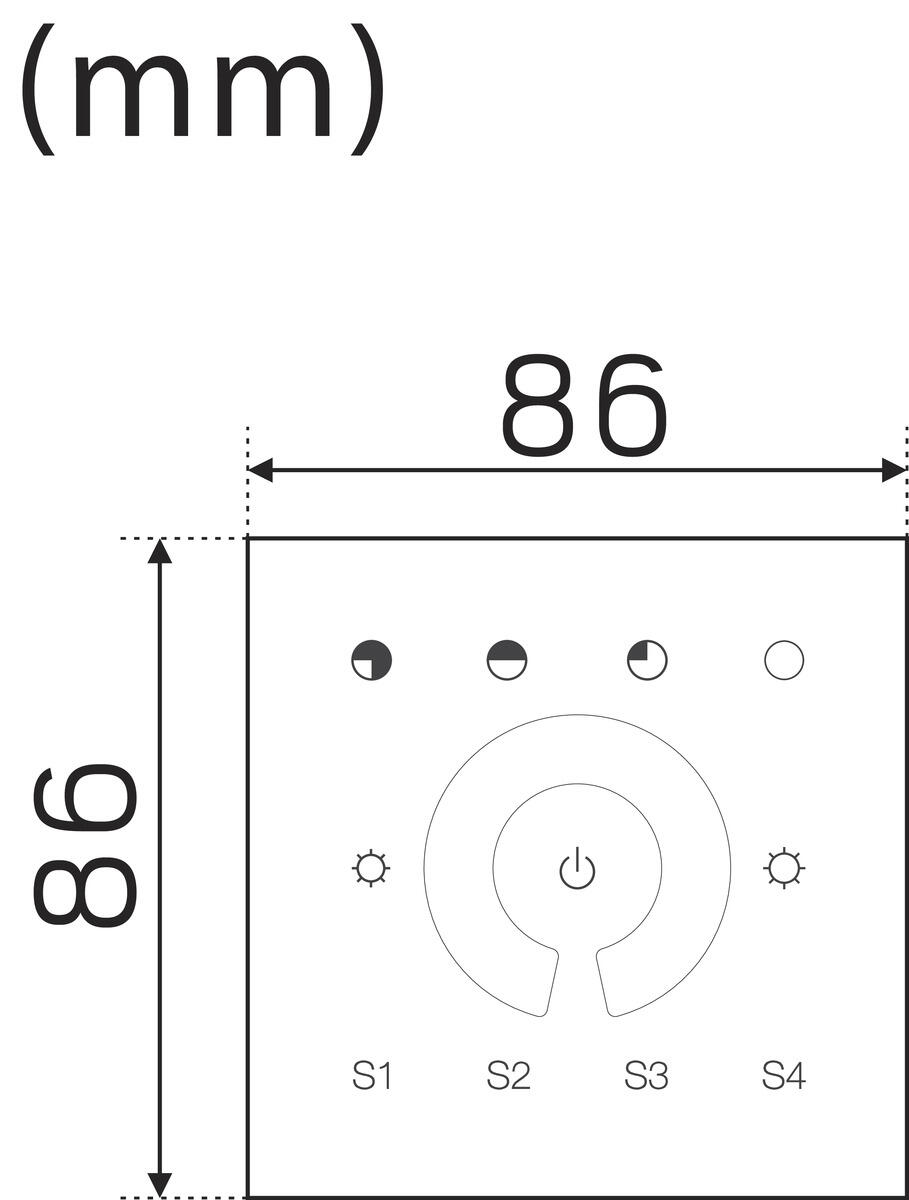

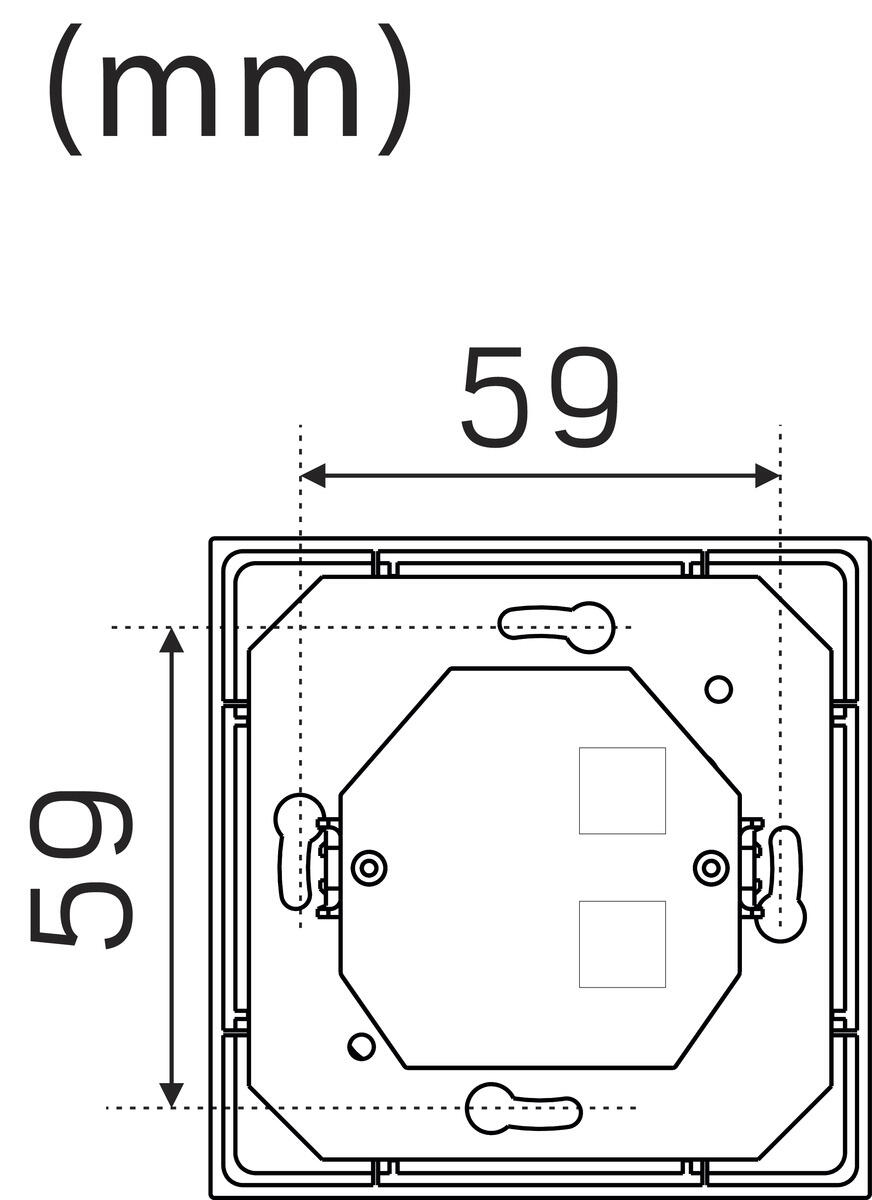

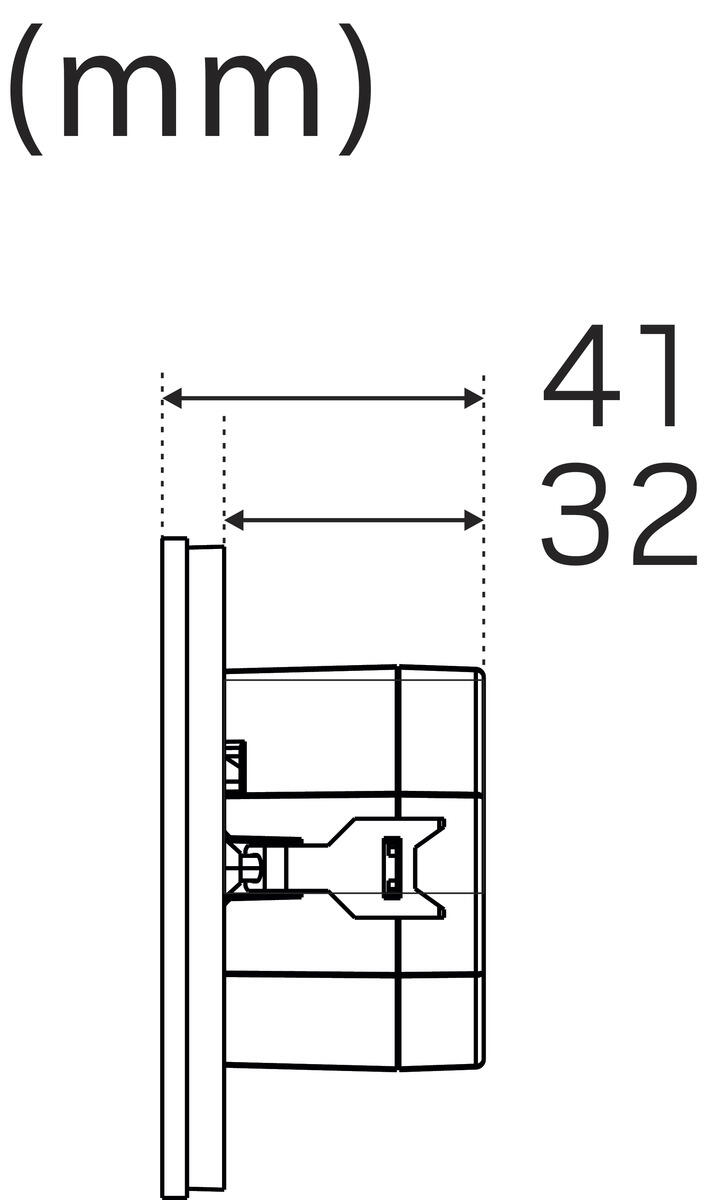

Operating EnvironmentIP Degree of Protection 20Installation Built-inMounting Installation Screw MountingApproval Marks CEFilament Test IEC 695-2-1(°C) 650Length (mm) 86Width (mm) 86Height (mm) 29Weight (kg) 0,2Built-in Ø (mm) 73mm
