Kitchen Line Kitchen Line White 2700K/3000K 580

Selectable colour temperature via DIP-Switch ColourTemp

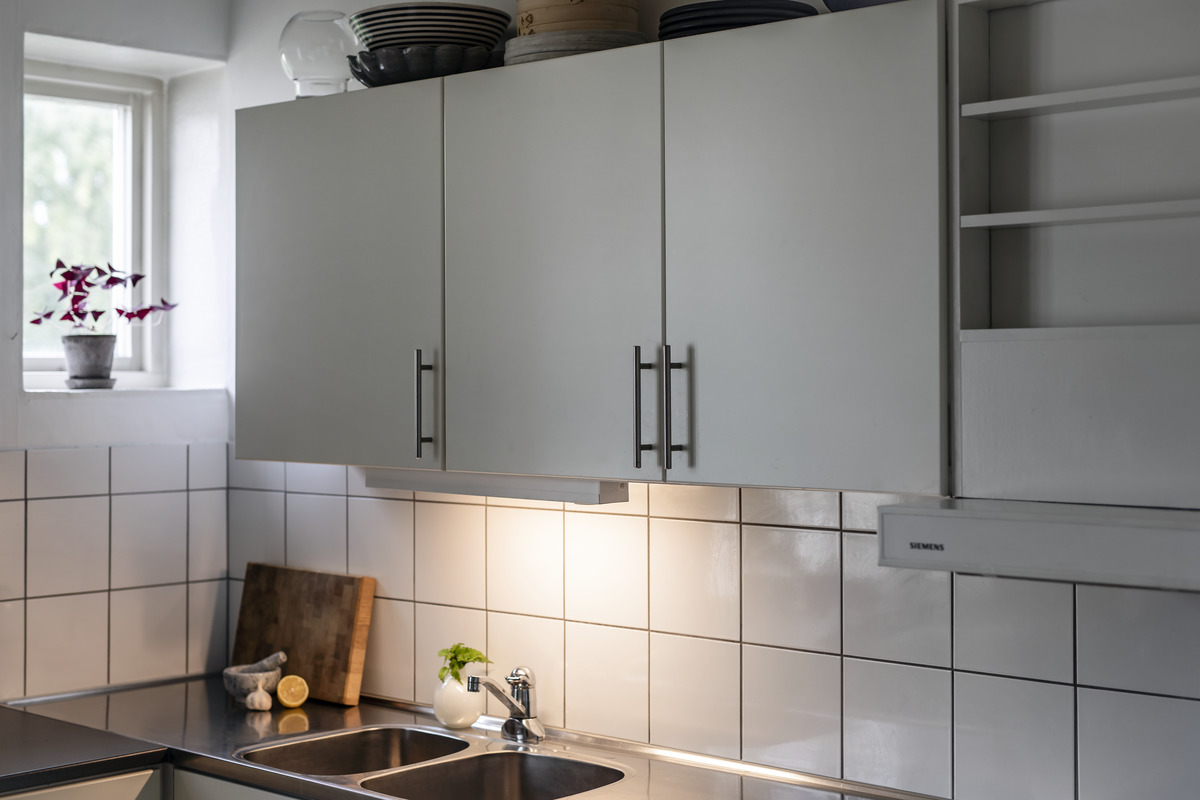

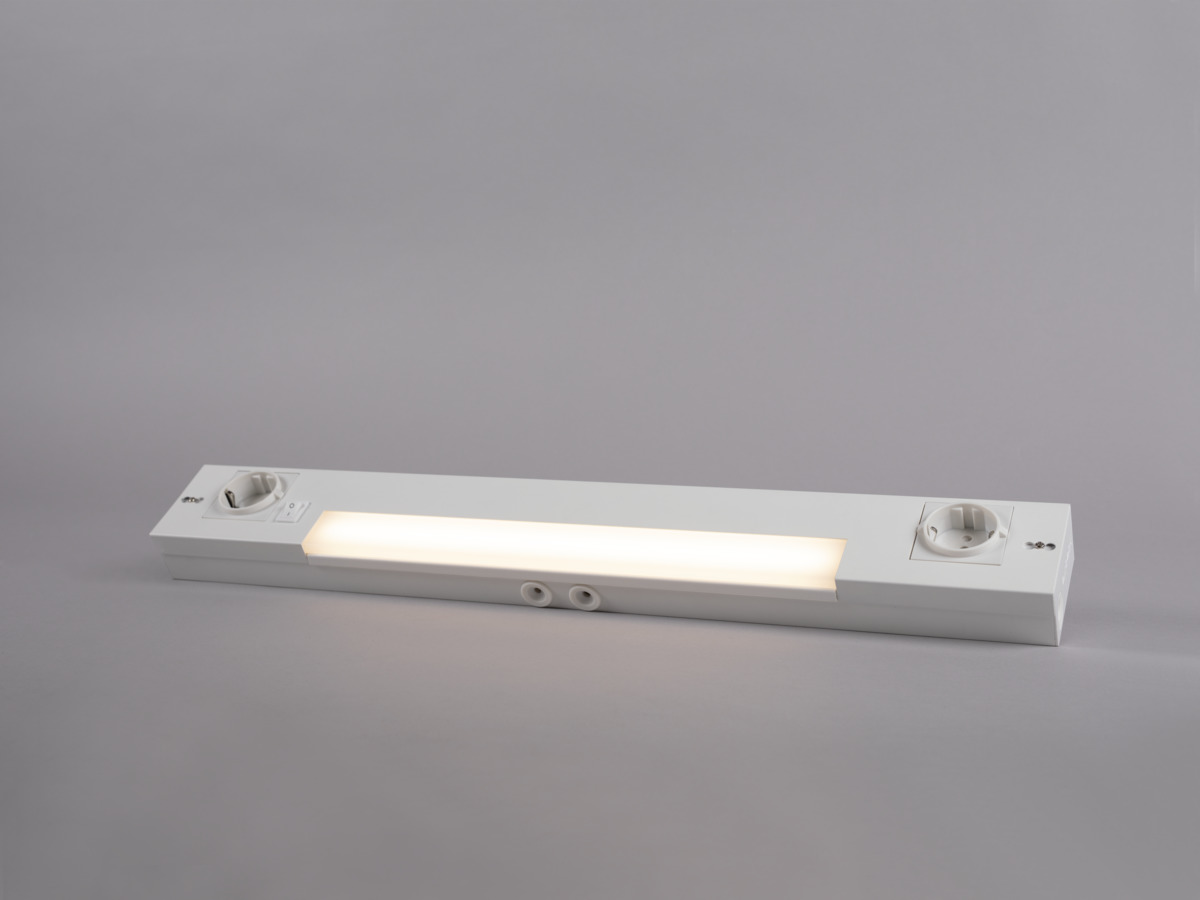

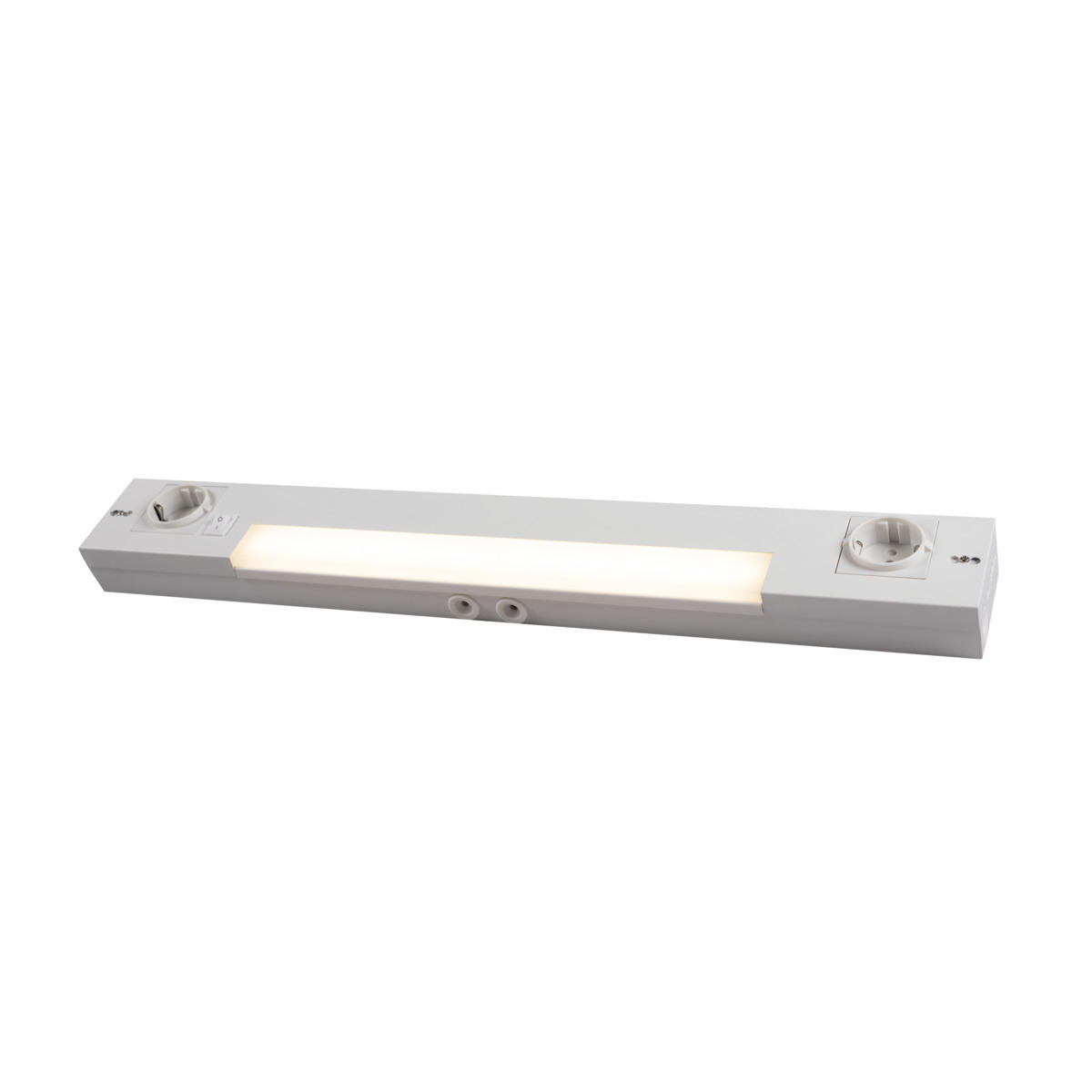

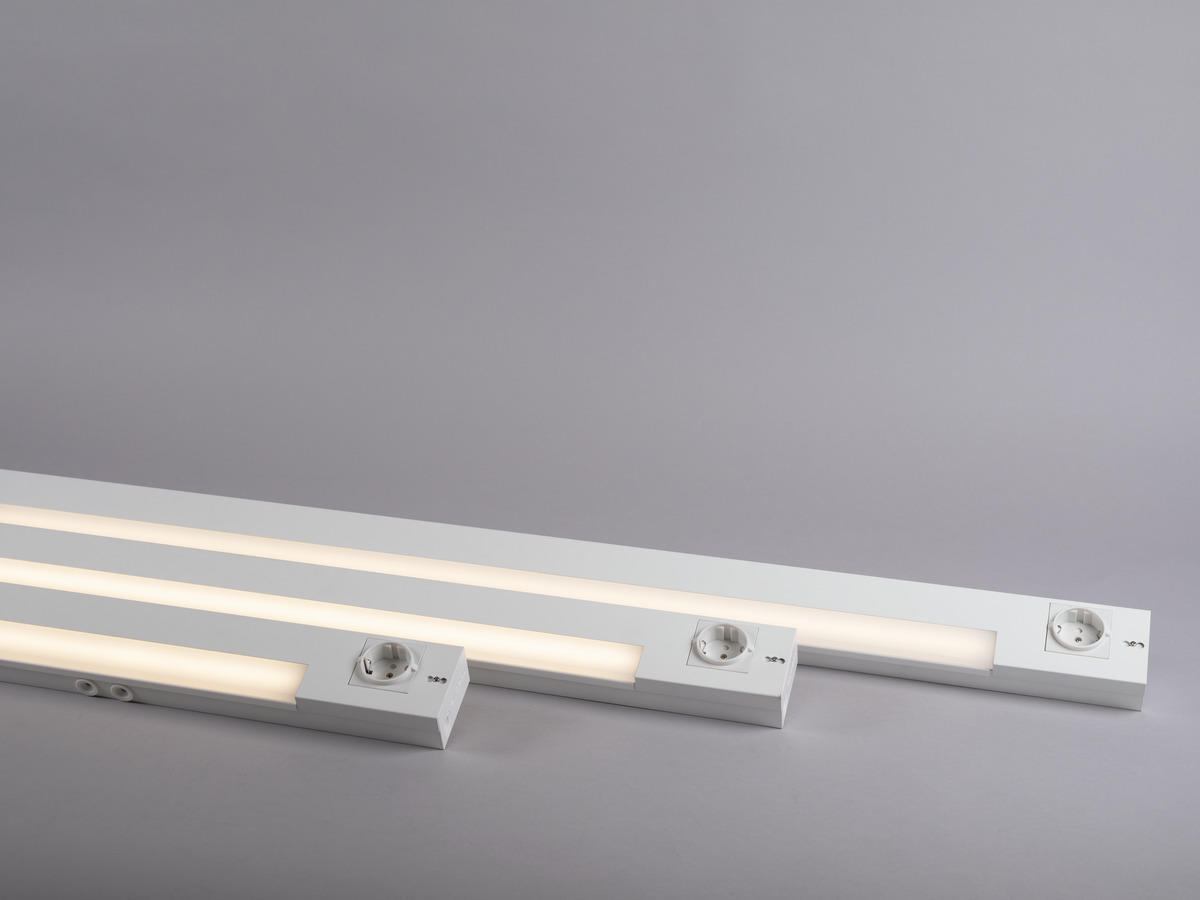

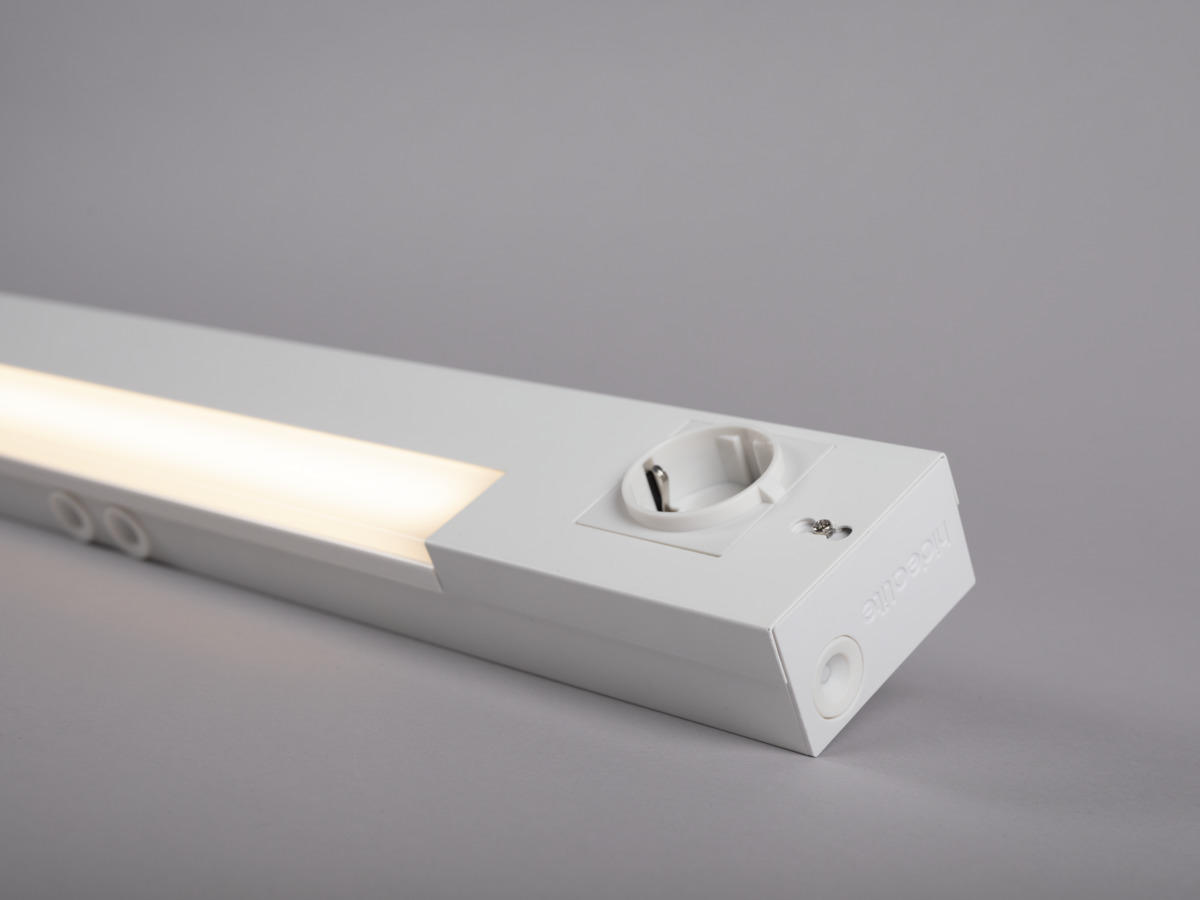

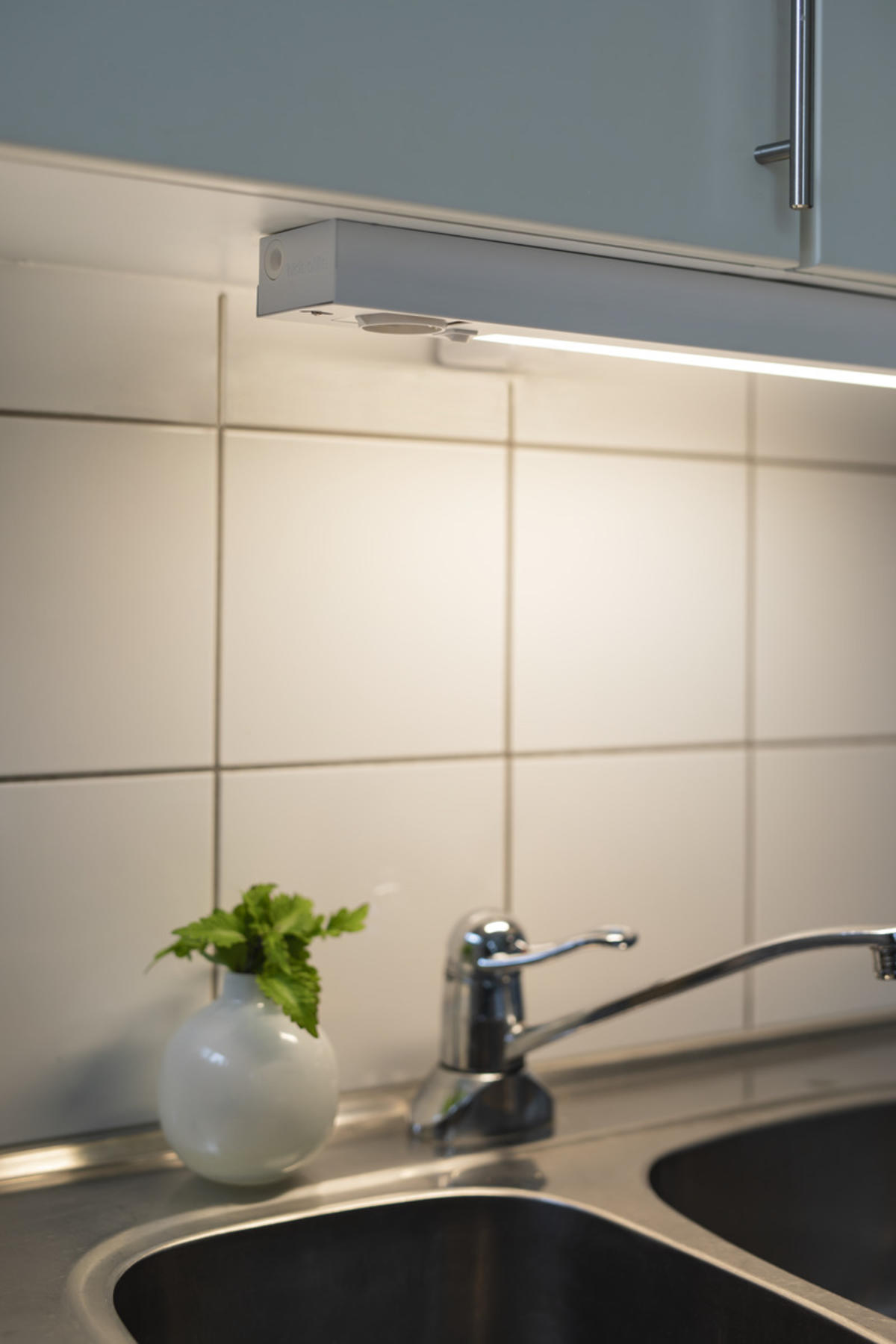

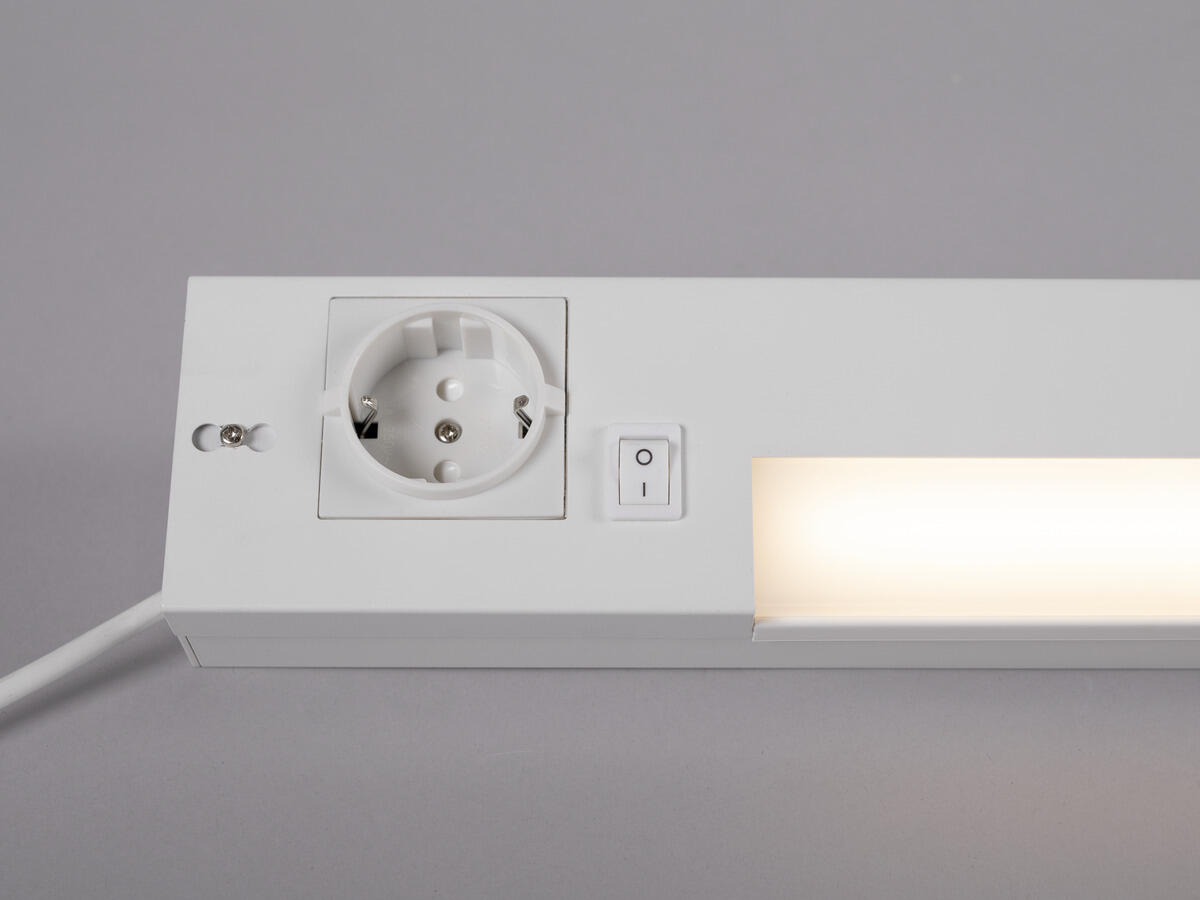

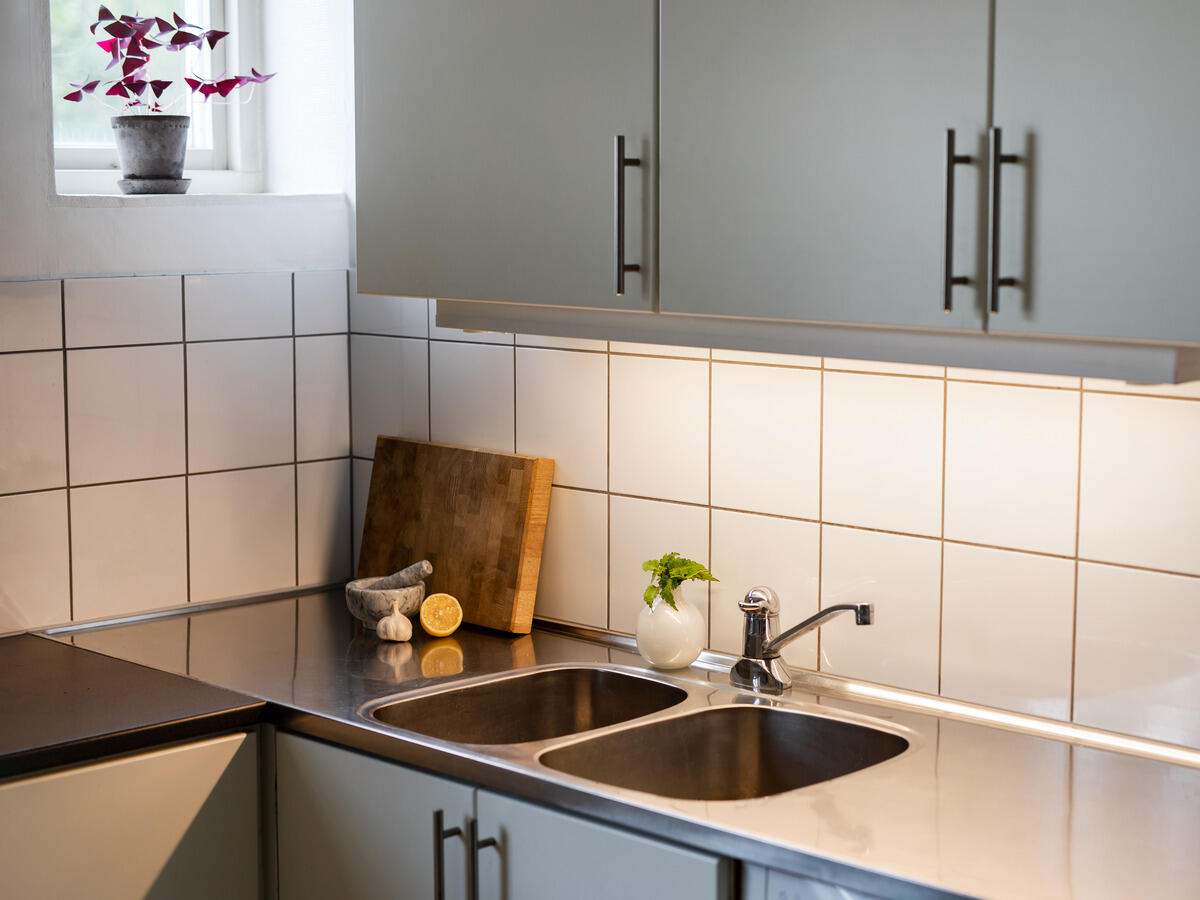

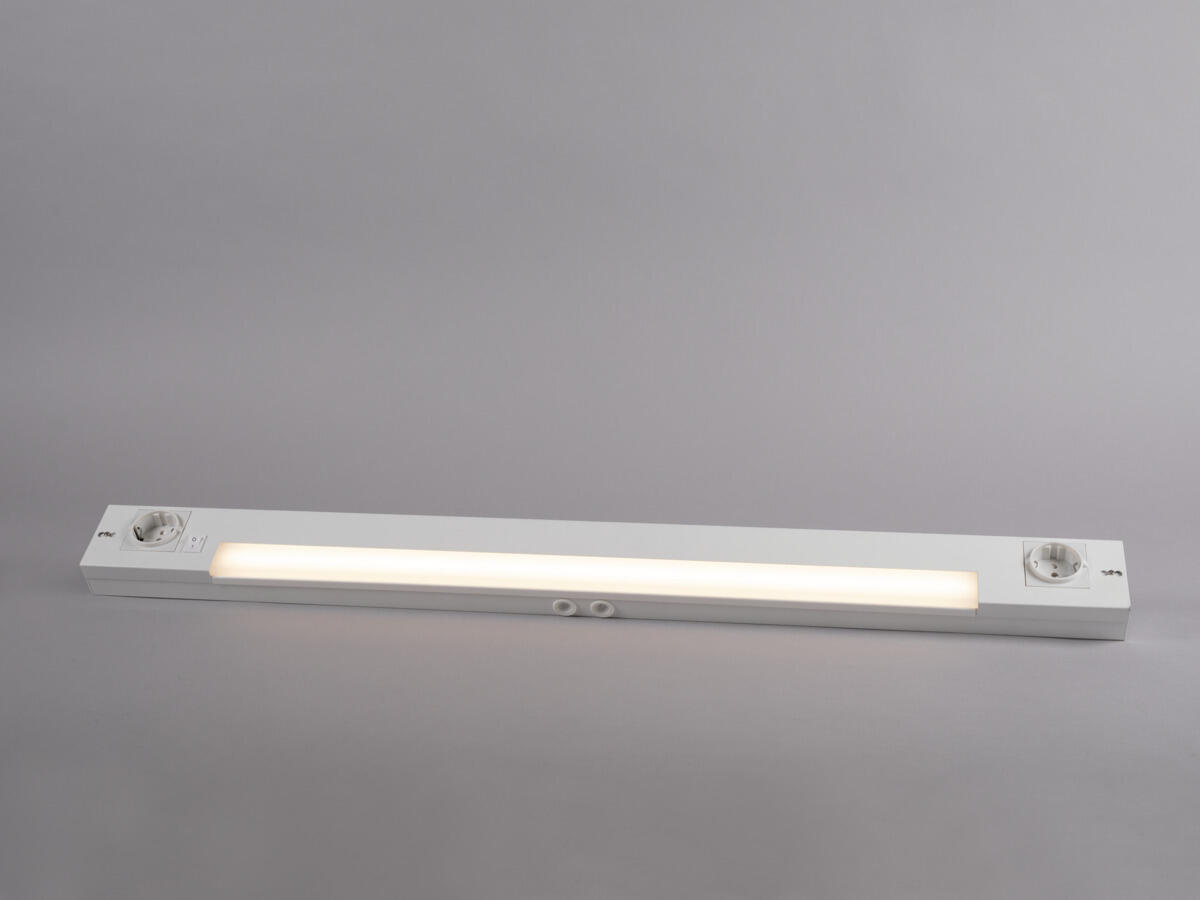

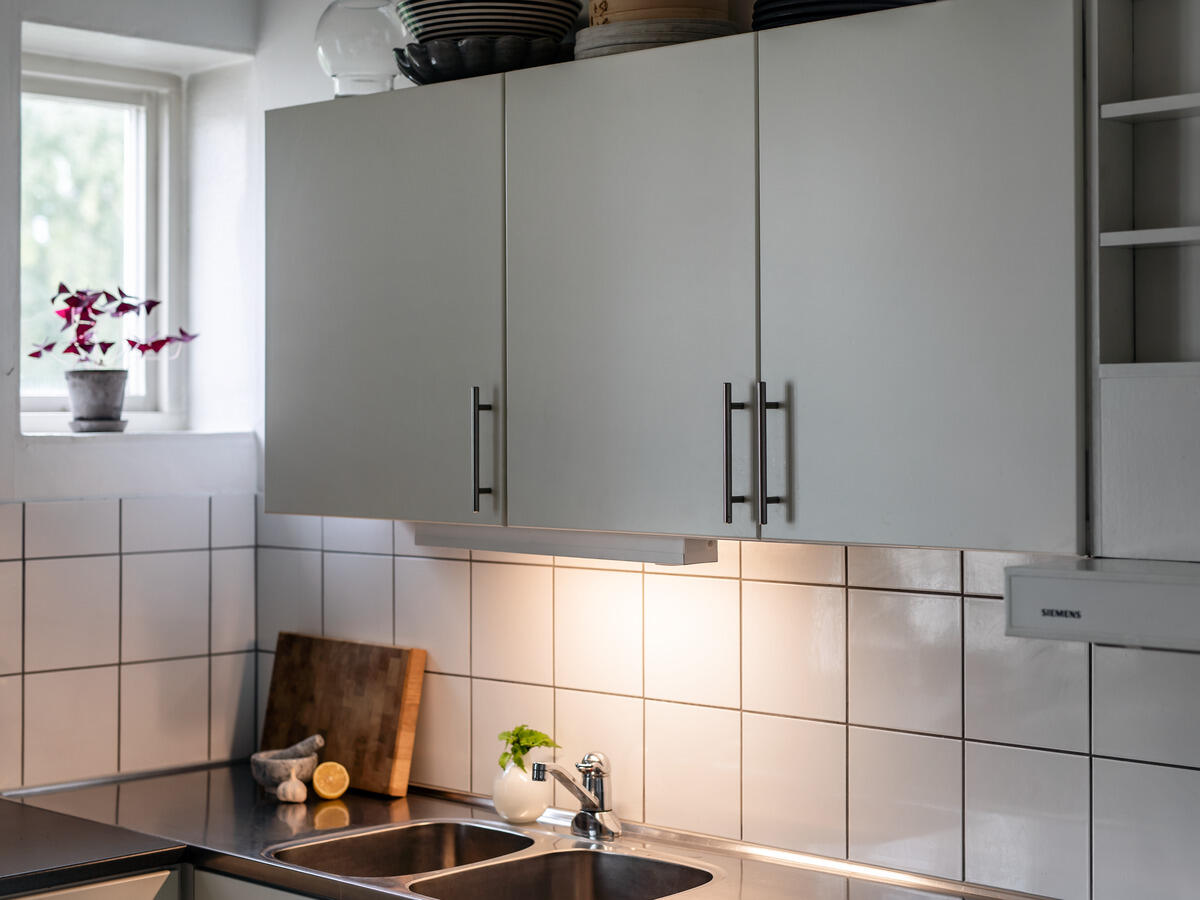

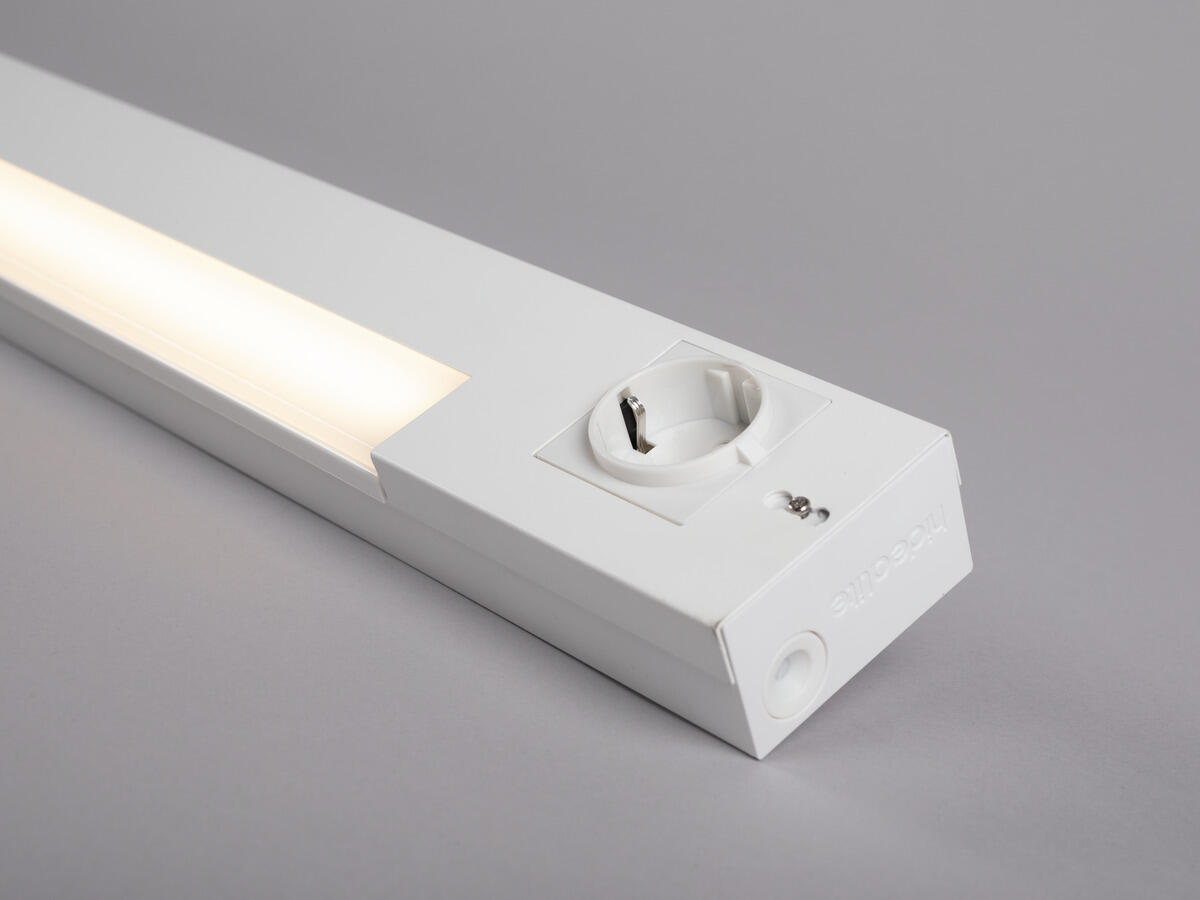

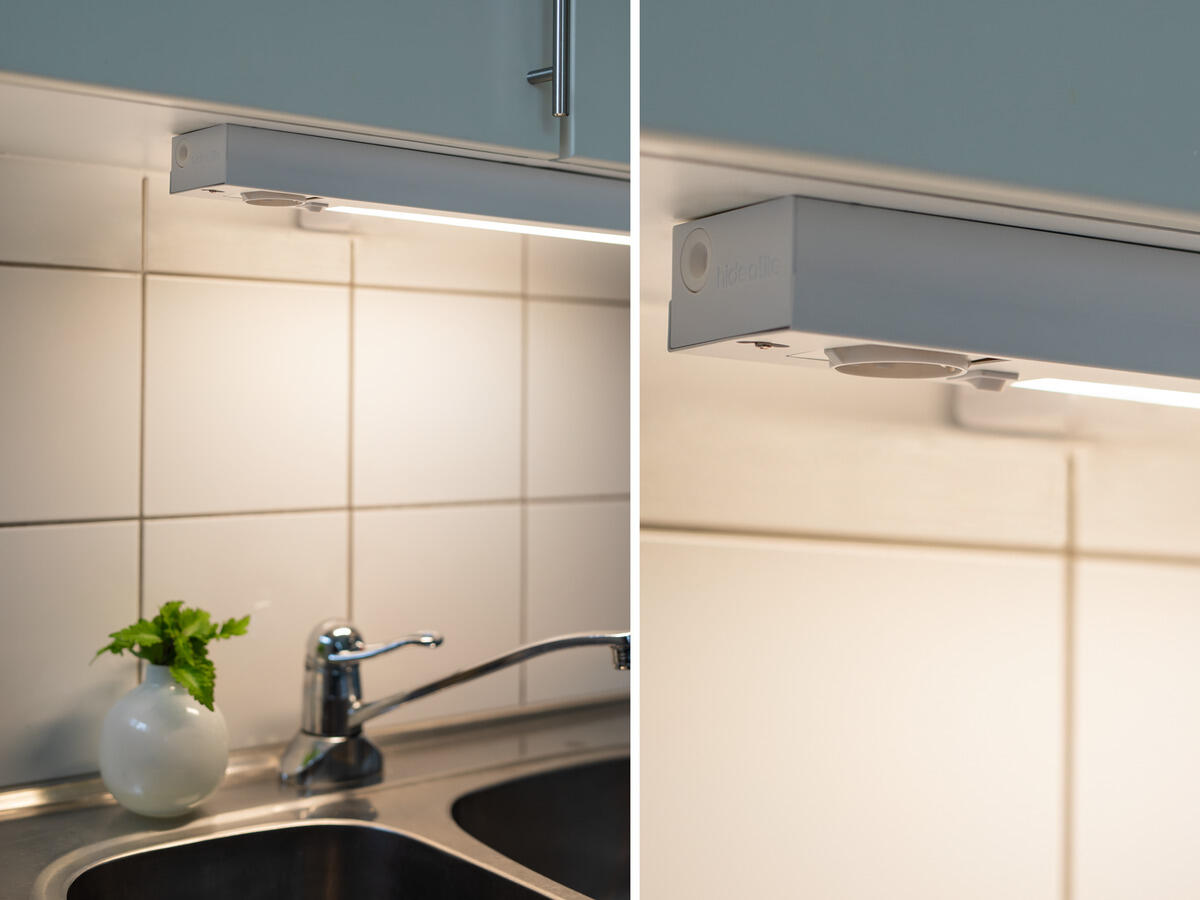

Dimmable cabinet lighting with linear light in three lengths, sockets in each side. Perfect replacement for fluorescent tube fittings or in new installations. Opal light in two directions, giving light on work surface and wall. Selectable colour temperature via DIPswitch ColourTemp. On/Off switch on the luminaire, can be dimmed via external dimmer. Plenty of space for installation, screws, keyhole assembly and cable bushing on long and short sides. Lighting and power sockets can be controlled separately.

GTIN	Item Name	Luminaire Lumen (lm)
7392971143309	Kitchen Line White 2700K/3000K 580	750
7392971143316	Kitchen Line White 2700K/3000K 880	1190
7392971143323	Kitchen Line White 2700K/3000K 1180	1420

Description: GTIN 7392971143309

Replaces 7392971137537

Item Name Kitchen Line White 2700K/3000K 580

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 750

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Replaceable Control gear by professional

LED Colour Warm White

Colour Temperature (K) 2700, 3000

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 250

Beam Angle (°) 110

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 72

Life Time L70 100 000h Ta 25°C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L90

Lumen maintenance 75 000h L80

Lumen maintenance 100 000h L70

LLMF @ 50 000h 0,9

LLMF @ 100 000h 0,7

Life Time Driver 50 000h/10%

Flicker (PstLM) 0,031

Stroboscopic effect (SVM) 0,02
Technical data: Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50

Power LED (W) 6,24

Power Luminaire (W) 8

System Power (W) 8

Efficiency Luminaire (lm/W) 94

Efficiency System (lm/W) 94

Containing light source energy efficiency class (EU) 2019/2015 F
Operation and Connection: Dimmable Yes

Type of Dimming Trailing Edge

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Driver Manufacturer Hide-a-lite

Connection (type) Quick Terminal

Connection (mm2) 4x0,5-1,5

Through Wiring Yes

Strain Relief Yes

Power Factor ʎ 0,9

Efficiency (%) 78

Power loss (W) 1,76

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,1

THD (%) 30

Operating Temperature -20…+40

Max. Tc (°C) 85

Dimming secondary side AM

Protection Against Short Circuit, Overheating 100°C, Overload

Inrush current (max/time) 2,7A 72µs

Mains surge protection DM (kV) 0,5

Mains surge protection CM (kV) 1

Fuse B10 (pcs) 100

Fuse B16 (pcs) 120

Fuse C10 (pcs) 100

Fuse C16 (pcs) 120
Color and material: Material Steel

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class I

Installation Surface mounted

Mounting Installation Screw Mounting, Self Adhesive Tape

Approval Marks CE

Filament Test IEC 695-2-1(°C) 650

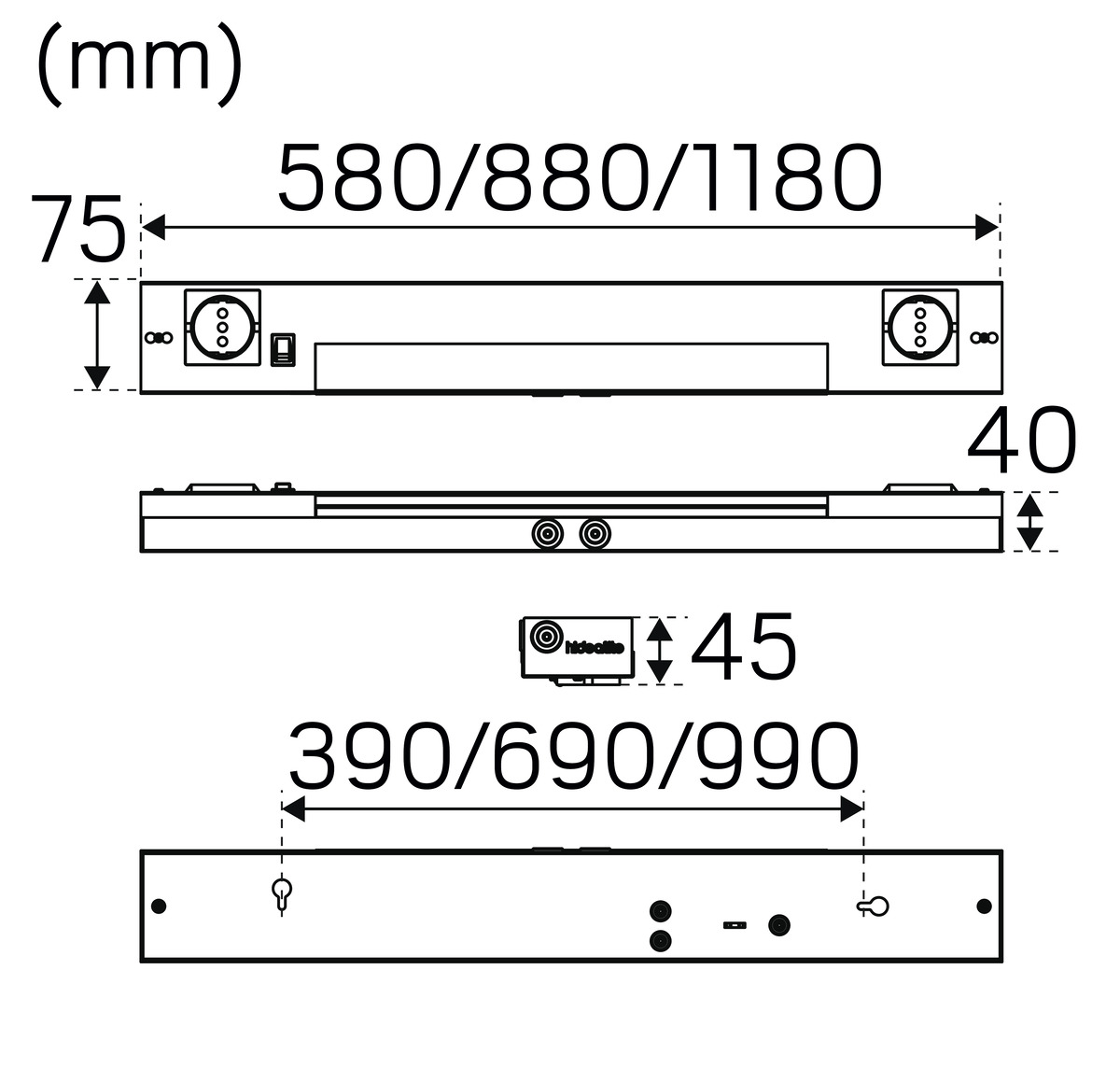

Length (mm) 580

Width (mm) 75

Height (mm) 46

Weight (kg) 1,05
