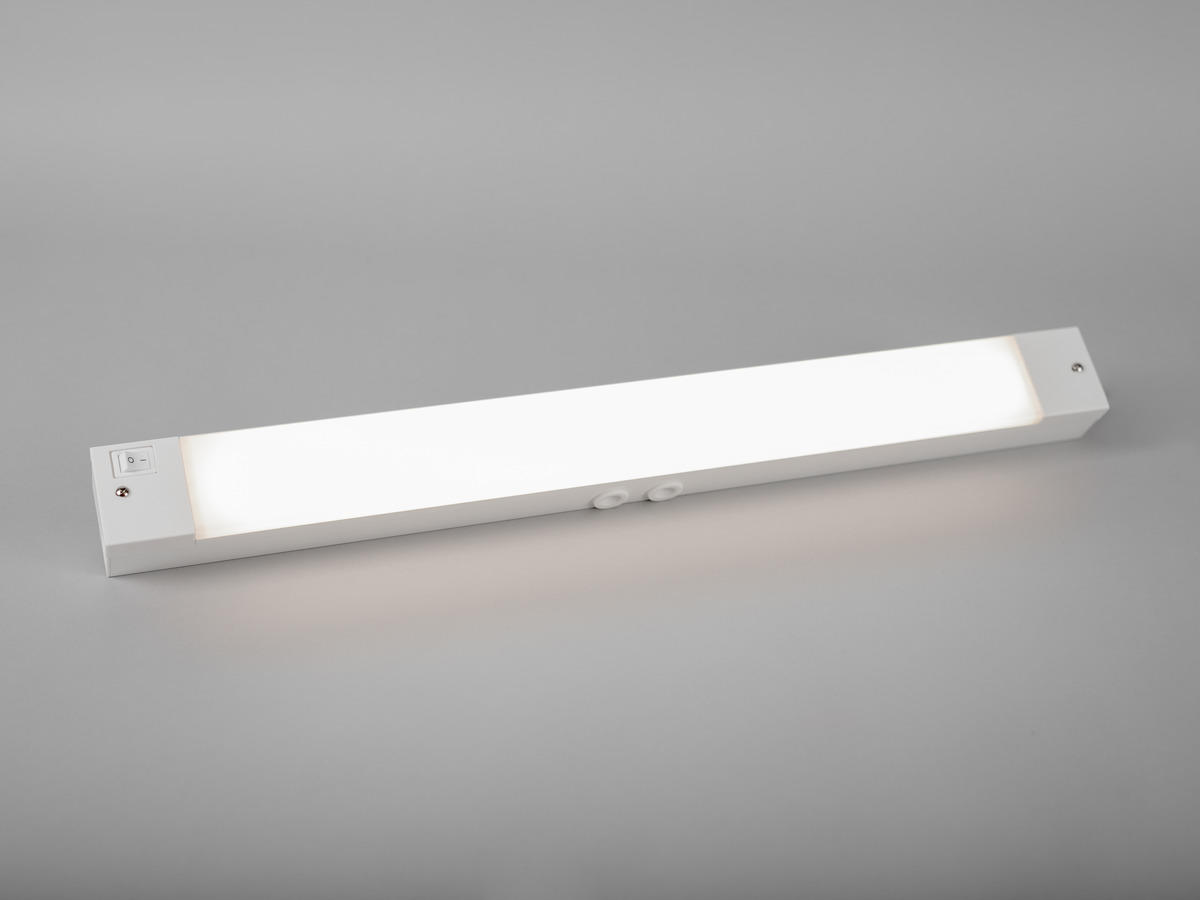

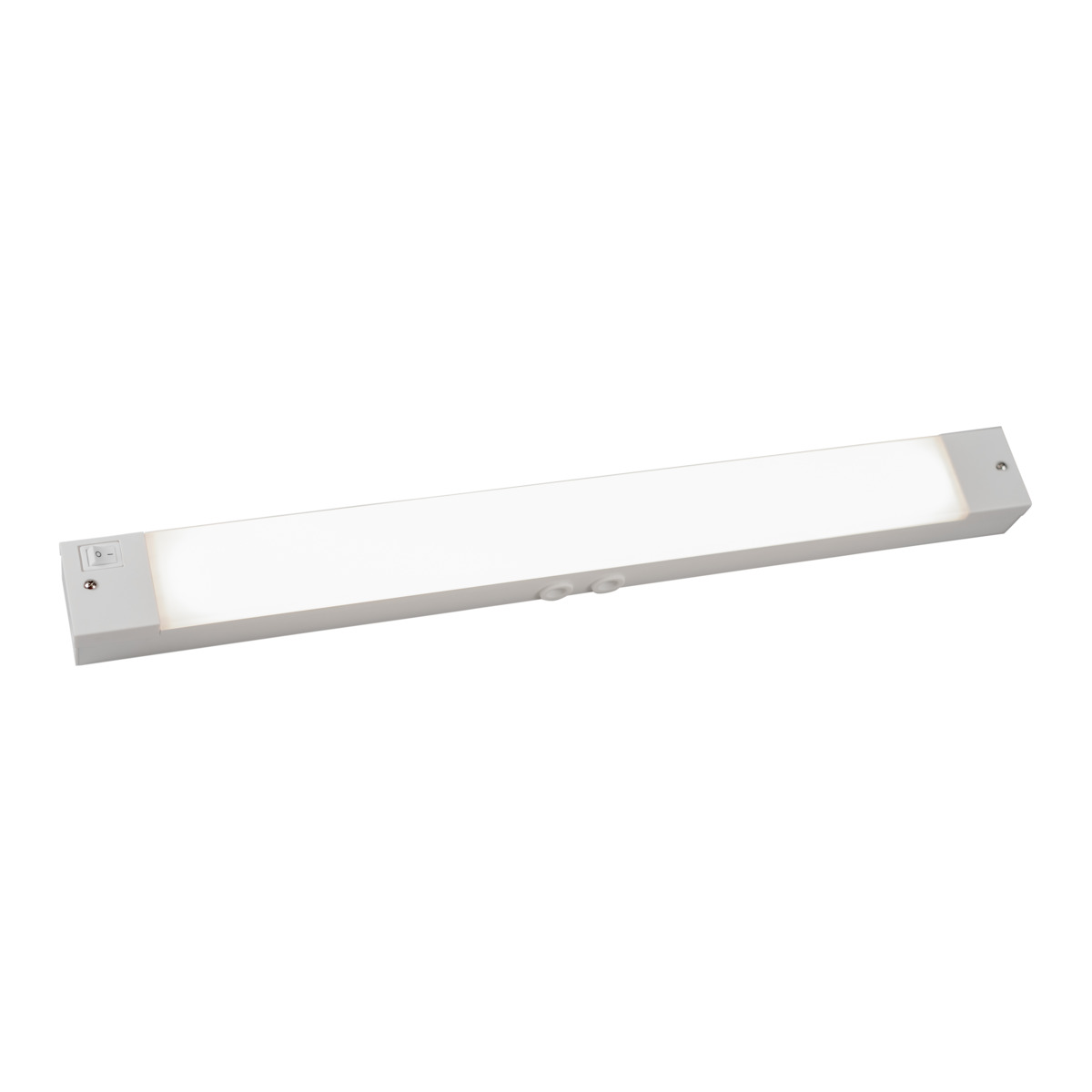

Kitchen Line Basic Kitchen Line Basic White 2700K/3000K 580

Selectable colour temperature via DIP-Switch ColourTemp

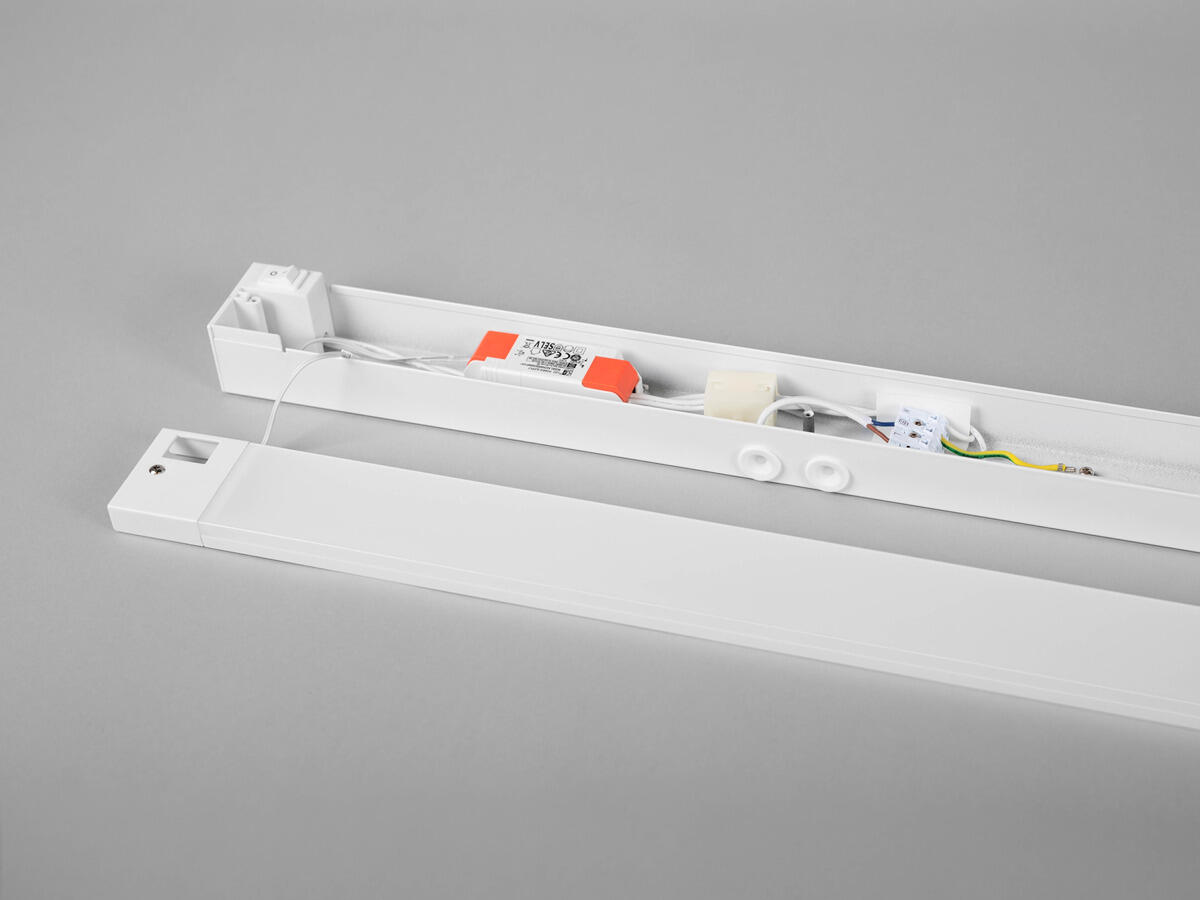

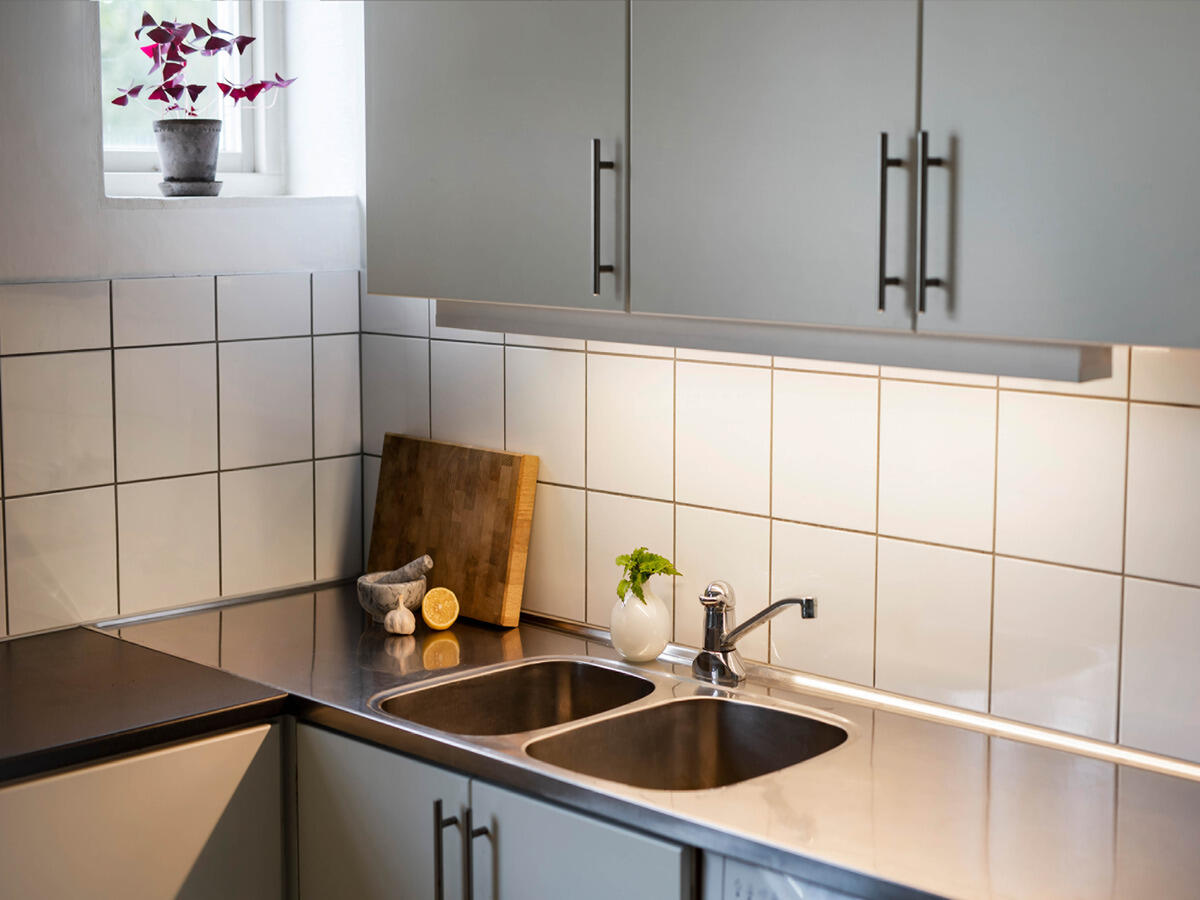

Easily installed cabinet luminaire with linear light. Perfect replacement for fluorescent tube luminaires or for new installations and retrofit work, such as in kitchens and laundry rooms. Easy to replace parts after use. Opal light outlet that creates a well balanced light distribution on both work surfaces and walls. Selectable colour temperature via DIP switch. On/Off switch on luminaire. Installation using double-sided tape and screws, plenty of space for cables, keyhole assembly and cable bushing on both the long and short sides.

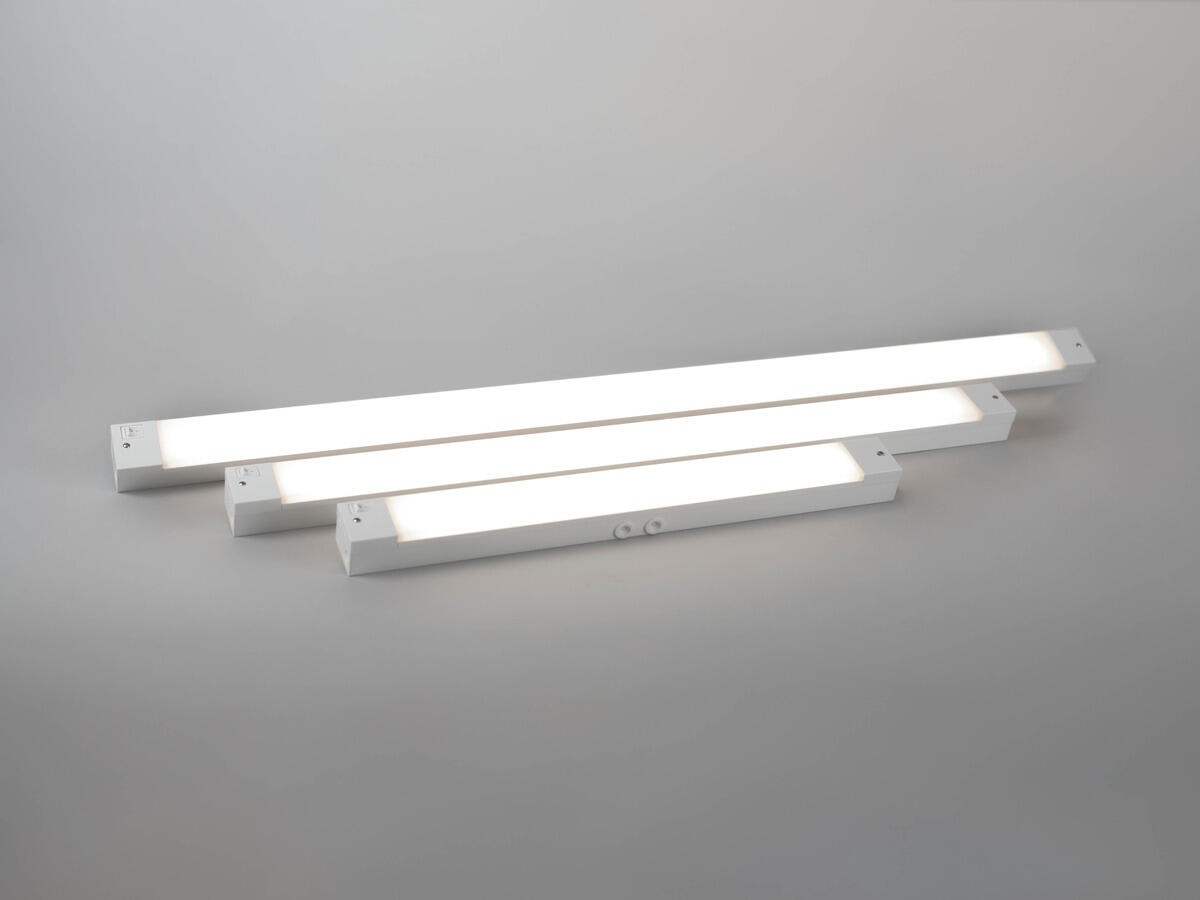

GTIN	Item Name	Luminaire Lumen (lm)
7392971145419	Kitchen Line Basic White 2700K/3000K 580	770
7392971145426	Kitchen Line Basic White 2700K/3000K 880	1270
7392971145433	Kitchen Line Basic White 2700K/3000K 1180	1520

Description: GTIN 7392971145419

Item Name Kitchen Line Basic White 2700K/3000K 580

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 770

Light Source LED

Light Source Included Yes

Replaceability Replaceable LED by professional, Replaceable Control gear by professional

LED Colour Warm White

Colour Temperature (K) 2700, 3000

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 270

Beam Angle (°) 110

Light sharing Asymmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 240

Life Time L80 100 000h Ta 25°C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L90

Lumen maintenance 75 000h L86

Lumen maintenance 100 000h L81

LLMF @ 50 000h 0,9

LLMF @ 100 000h 0,81

Life Time Driver 50 000h/5%

Flicker (PstLM) 0,014

Stroboscopic effect (SVM) 0,042
Technical data: Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50

Power LED (W) 6,51

Power Luminaire (W) 8

System Power (W) 8

Efficiency Luminaire (lm/W) 96

Efficiency System (lm/W) 96

Containing light source energy efficiency class (EU) 2019/2015 E
Operation and Connection: Dimmable No

Type of Dimming OnOff

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Driver Manufacturer Hide-a-lite

Connection (type) Quick Terminal

Connection (mm2) 3x0,5-2,5

Through Wiring Yes

Strain Relief Yes

Power Factor ʎ 0,82

Efficiency (%) 80

Power loss (W) 1,37

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,25

THD (%) 49

Standby Power 0,5

Constant Current (mA) 300

Operating Temperature -20…+40

Max. Tc (°C) 75

Protection Against Short Circuit, Overload

Inrush current (max/time) 13A 200µs

Fuse B10 (pcs) 34

Fuse B16 (pcs) 55

Fuse C10 (pcs) 57

Fuse C16 (pcs) 92
Color and material: Material Steel

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class I

Installation Surface mounted

Mounting Installation Screw Mounting, Self Adhesive Tape

Approval Marks CE, a Hide-a-lite Choice

Filament Test IEC 695-2-1(°C) 650

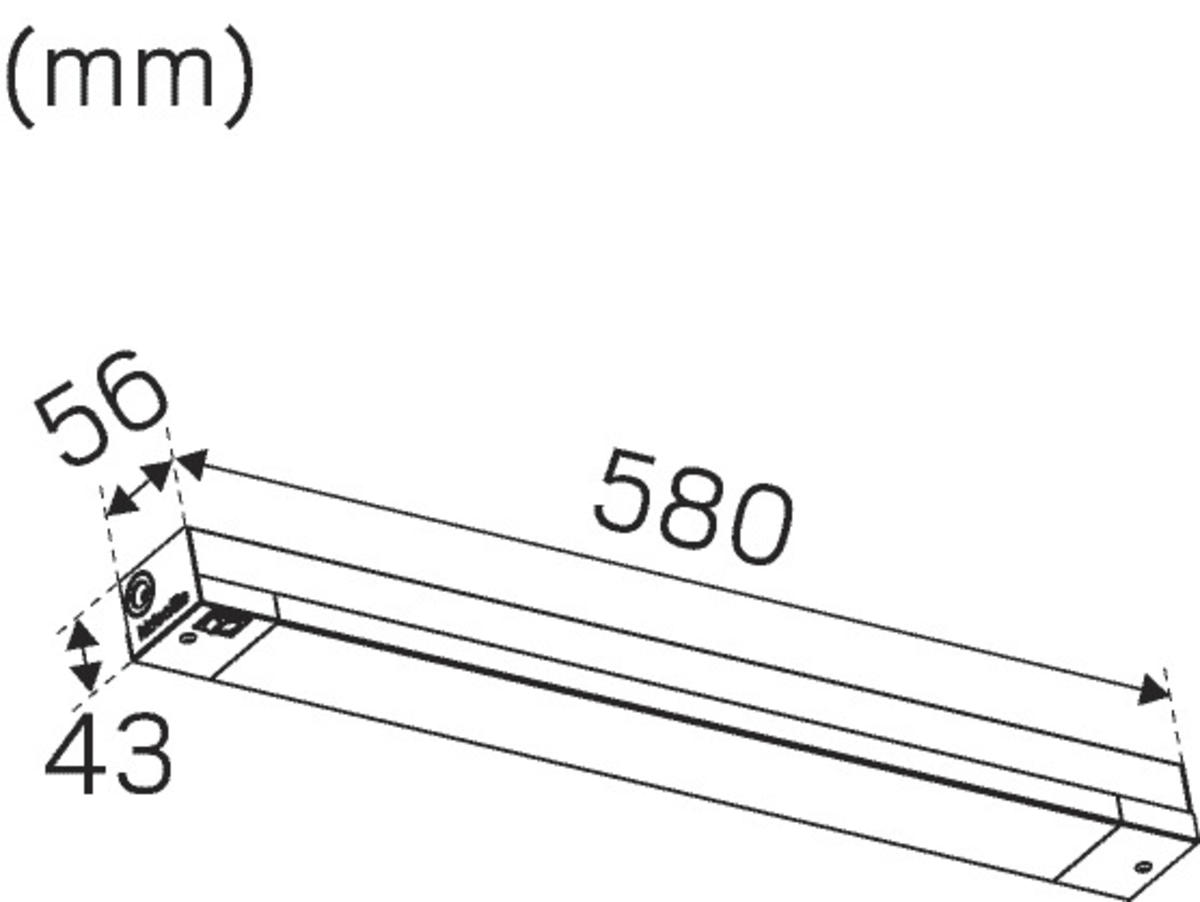

Length (mm) 580

Width (mm) 56

Height (mm) 43

Weight (kg) 0,66

Spare parts

If you need spare parts, contact our customer support

LED-Module Kitchen Line Basic 8W X311
Driver Kitchen Line Basic 300mA 8W X314
