Highlite IP65

spinner symbol
Highlite IP65
Highlite IP65
Highlite IP65

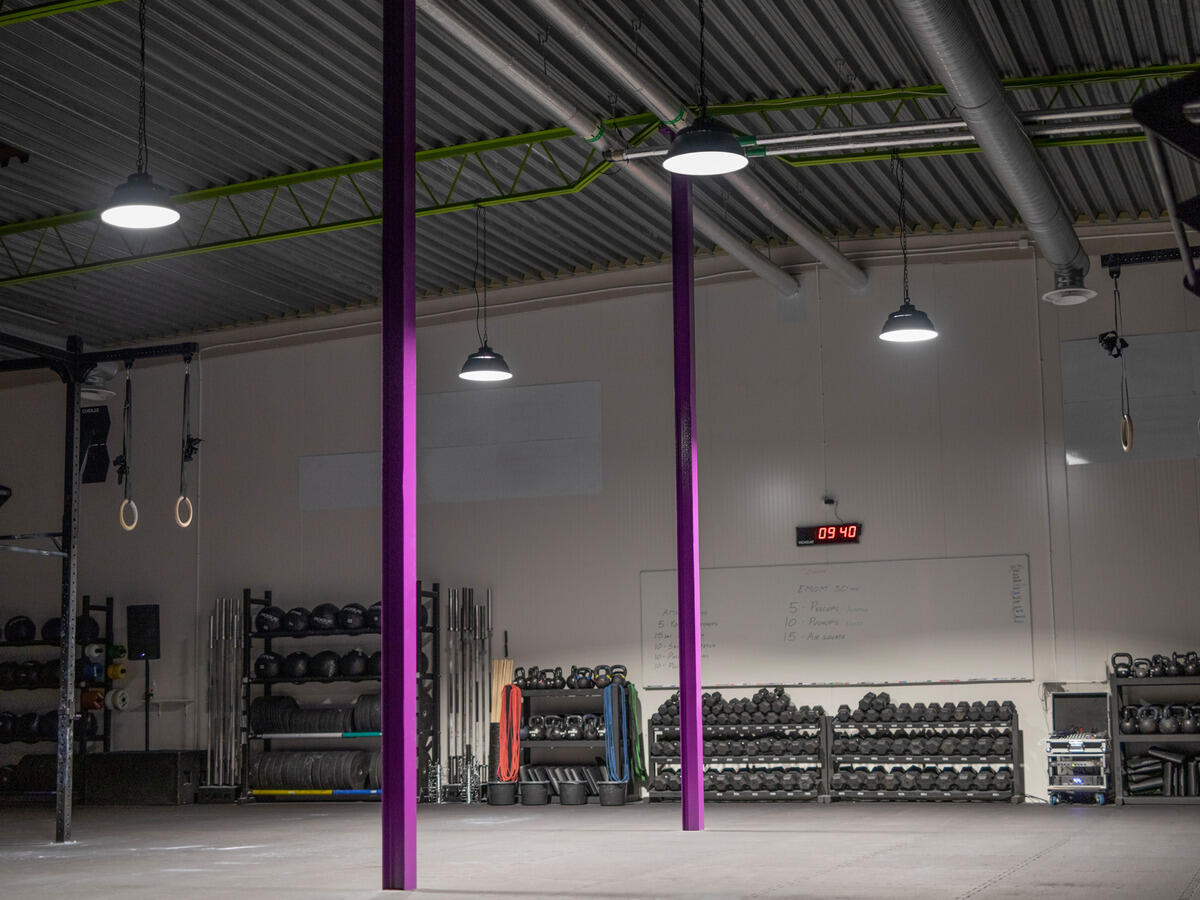

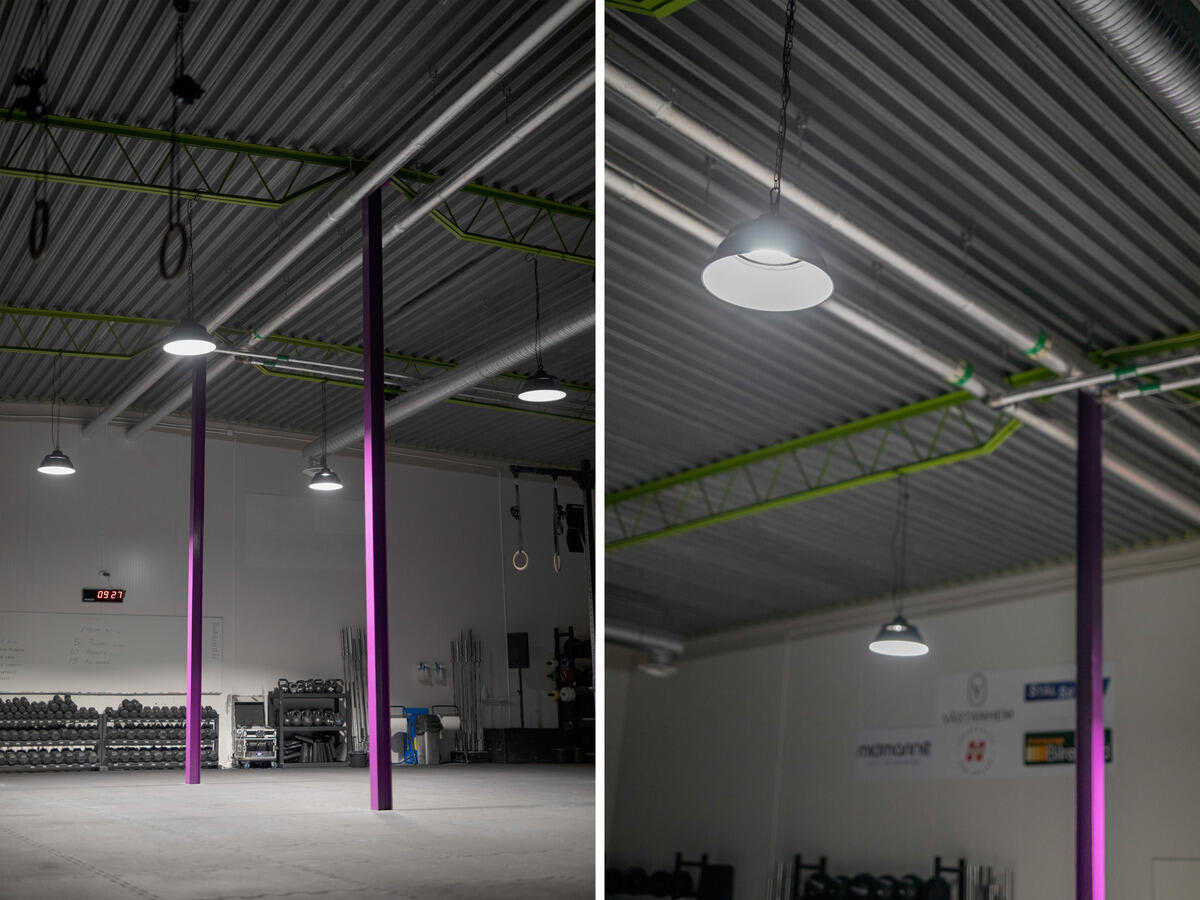

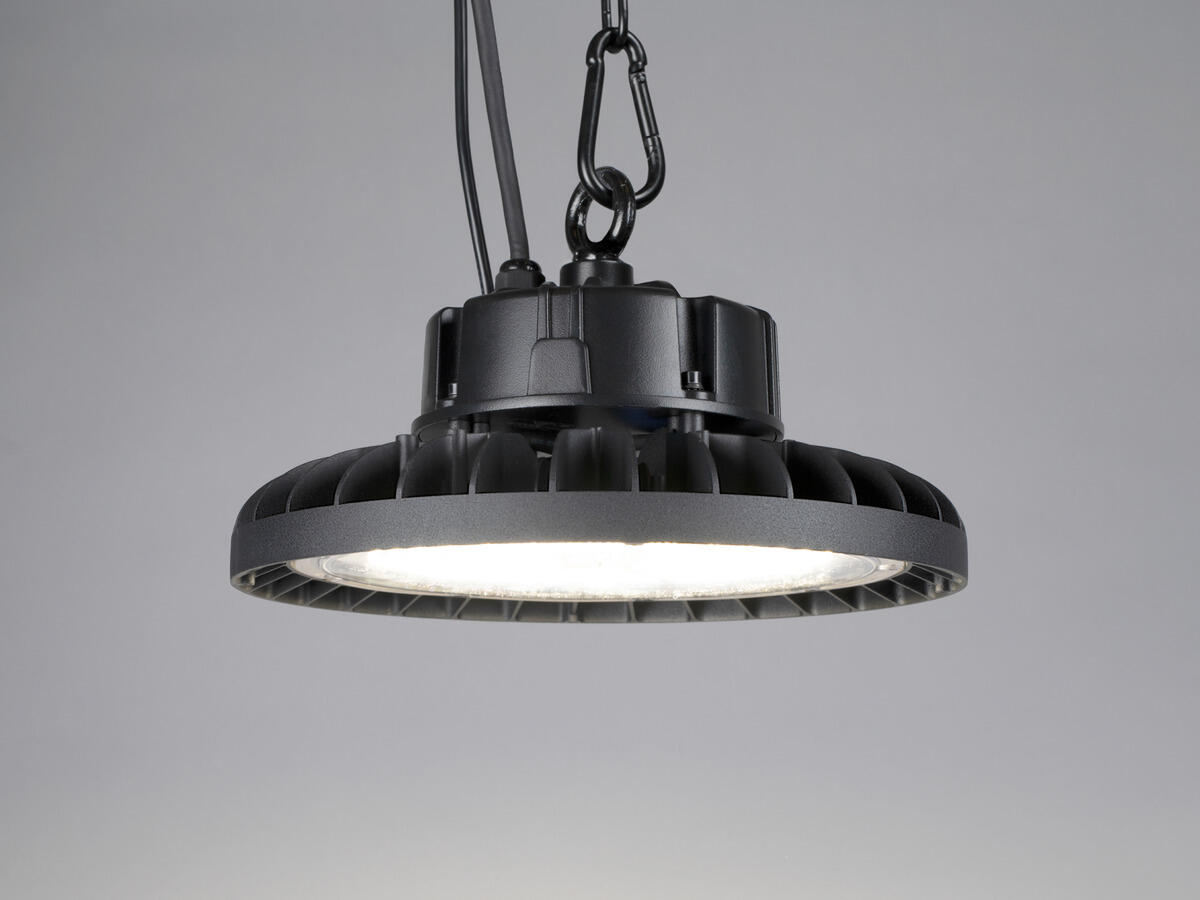

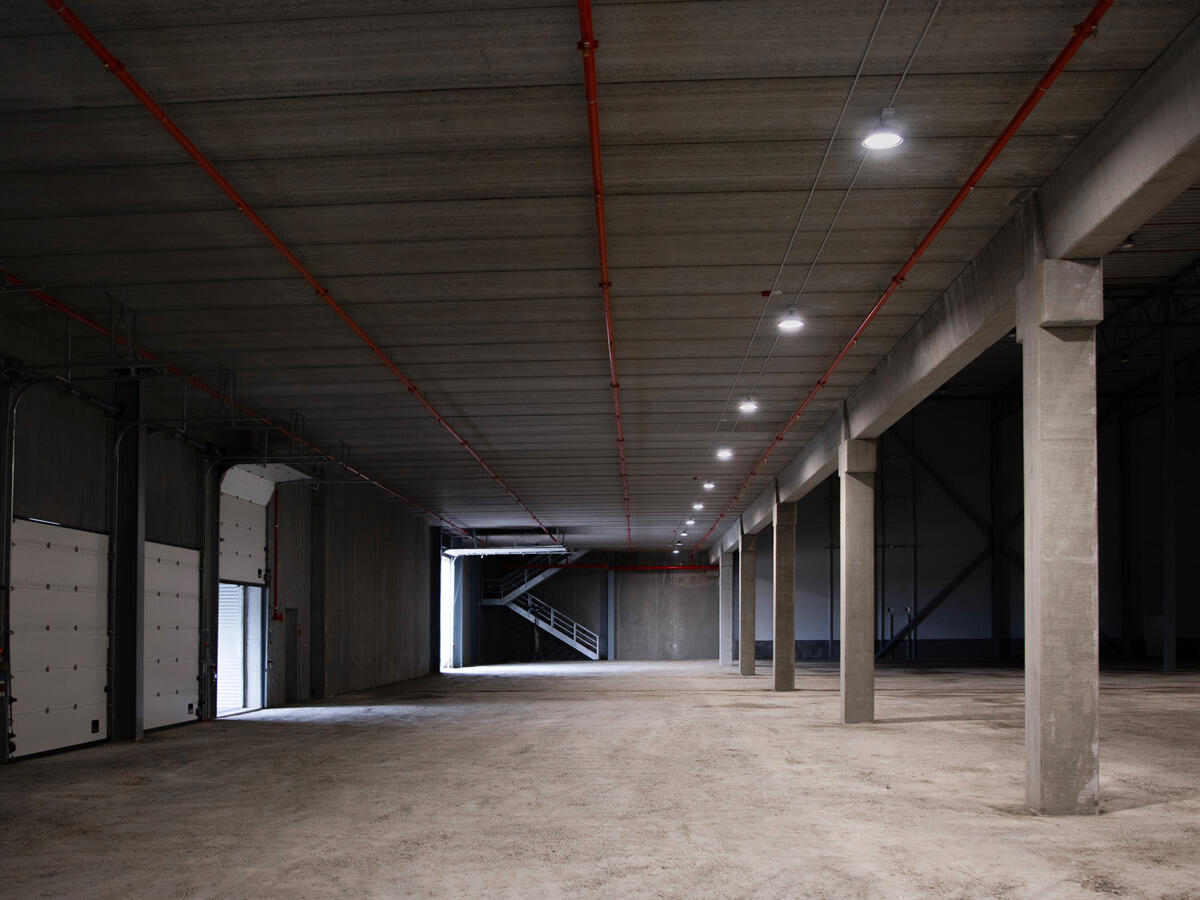

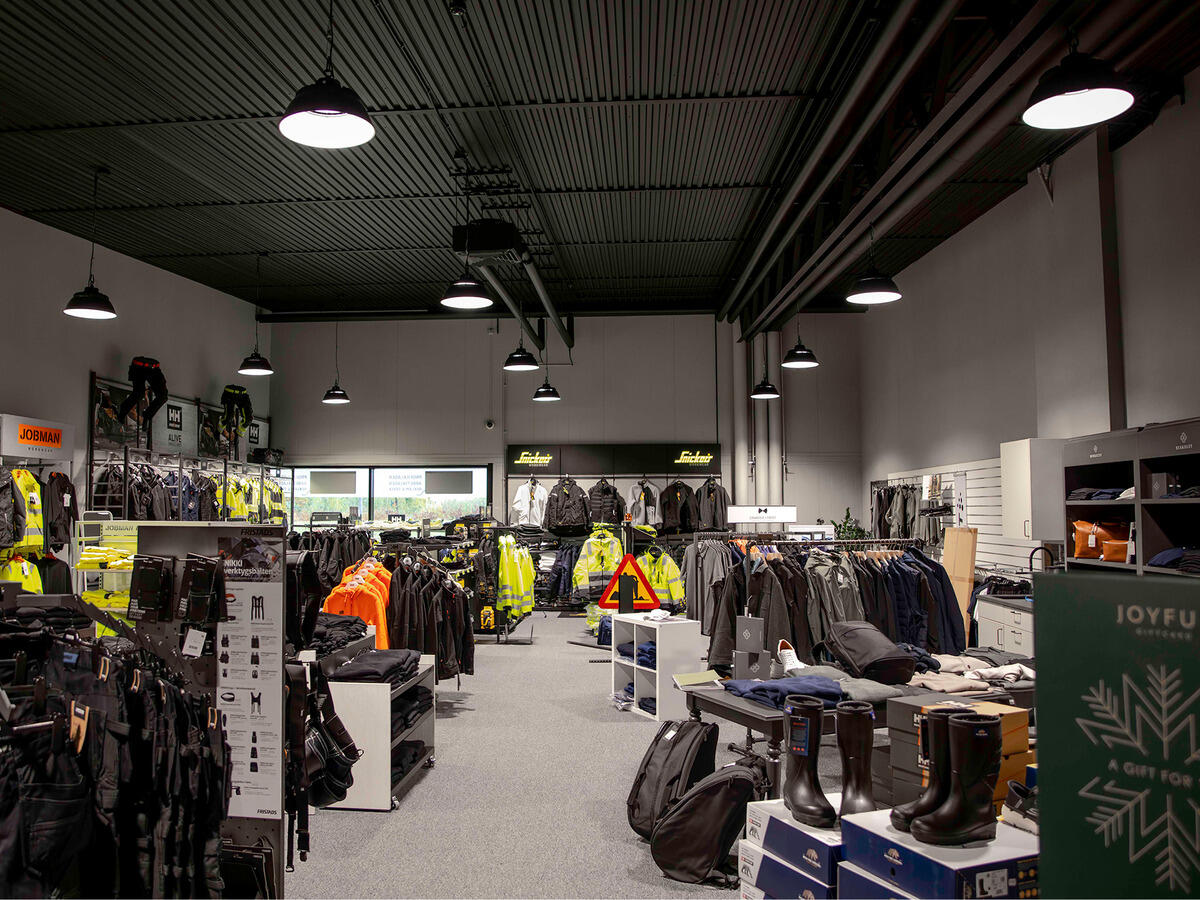

Highly efficient highbay fixture where the most important features are maximum light and minimum maintenance. Highlite IP65 is an industrial luminaire adapted for the factory environment, as well as for the crossfit center or the supermarket. Mounted as a pendant or in a fixed ceiling with an adjustable ceiling and wall bracket as an accessory. Other accessories include reflectors to change the appearance and a strong chain for suspension. Replaceable driver, three meter connection cable and simple installation with the snap hook provided.

Variants

GTIN Item Name Luminaire Lumen (lm) Type of Dimming Beam Angle (°)
Highlite IP65 S 120° 4000K DALI 7392971145969 Highlite IP65 S 120° 4000K DALI 15100 Push 230V, DALI 2 120
Highlite IP65 S 60° 4000K 7392971145914 Highlite IP65 S 60° 4000K 16100 OnOff 60
Highlite IP65 S 90° 4000K 7392971145921 Highlite IP65 S 90° 4000K 15800 OnOff 90
Highlite IP65 S 120° 4000K 7392971145938 Highlite IP65 S 120° 4000K 16400 OnOff 120
Highlite IP65 S 60° 4000K DALI 7392971145945 Highlite IP65 S 60° 4000K DALI 15000 Push 230V, DALI 2 60
Highlite IP65 S 90° 4000K DALI 7392971145952 Highlite IP65 S 90° 4000K DALI 15100 Push 230V, DALI 2 90
Highlite IP65 L 60° 4000K 7392971145976 Highlite IP65 L 60° 4000K 30200 OnOff 60
Highlite IP65 L 90° 4000K 7392971145983 Highlite IP65 L 90° 4000K 29900 OnOff 90
Highlite IP65 L 120° 4000K 7392971145990 Highlite IP65 L 120° 4000K 31500 OnOff 120
Highlite IP65 L 60° 4000K DALI 7392971146003 Highlite IP65 L 60° 4000K DALI 29000 Push 230V, DALI 2 60
Highlite IP65 L 90° 4000K DALI 7392971146010 Highlite IP65 L 90° 4000K DALI 29500 Push 230V, DALI 2 90
Highlite IP65 L 120° 4000K DALI 7392971146027 Highlite IP65 L 120° 4000K DALI 29800 Push 230V, DALI 2 120

Highlite IP65 S 120° 4000K DALI

Description
GTIN 7392971145969
Item Name Highlite IP65 S 120° 4000K DALI
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
Replaceability Non-replaceaable LED, Replaceable Control gear by professional
LED Colour White
Colour Temperature (K) 4000
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 5
Initial Chromaticity (0.380,0.380)
Luminous Intensity (cd) 5500
Luminaire Lumen (lm) 15100
Beam Angle (°) 120
Light sharing
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 408
Life Time L70 100 000h Ta 25°C
Nominel Life Time (h) 100000
Lumen maintenance 50 000h L88
Lumen maintenance 100 000h L77
LLMF @ 50 000h 0,88
LLMF @ 100 000h 0,77
Life Time Driver 100 000h/10%
Technical data
Adjustable No
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50, 60
Power LED (W) 91
Power Luminaire (W) 100
System Power (W) 100
Efficiency Luminaire (lm/W) 151
Efficiency System (lm/W) 151
Containing light source energy efficiency class (EU) 2019/2015 C
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Built-in
Connection (type) Open Cable End
Length Connection (cm) 300
Through Wiring No
Strain Relief Yes
Power Factor ʎ 0,98
Efficiency (%) 90
Power loss (W) 9
Leakage current (mA) (at 230 V, 50 Hz, full load) 0,75
THD (%) 20
Standby Power 0,5
Constant Current (mA) 450
Operating Temperature -20…+40
Max. Tc (°C) 85
Dimmable Yes
Type of Dimming Push 230V, DALI 2
Dimming secondary side AM
Inrush current (max/time) 60A 230µs
Mains surge protection DM (kV) 6
Mains surge protection CM (kV) 6
Fuse B10 (pcs) 6
Fuse B16 (pcs) 9
Fuse C10 (pcs) 10
Fuse C16 (pcs) 16
Color and material
Material Aluminium
Color Black
Measurement and installation
Operating Environment Indoor / wet locations, Outdoor
IP Degree of Protection 65
Protection Class I
Installation Pendant, Wire-cable installation
Mounting Installation Hook
Fire Safety Marks D-mark
Approval Marks CE
Impact Strength IK08
Filament Test IEC 695-2-1(°C) 650
Height (mm) 178
Diameter (mm) 295
Weight (kg) 2,85
