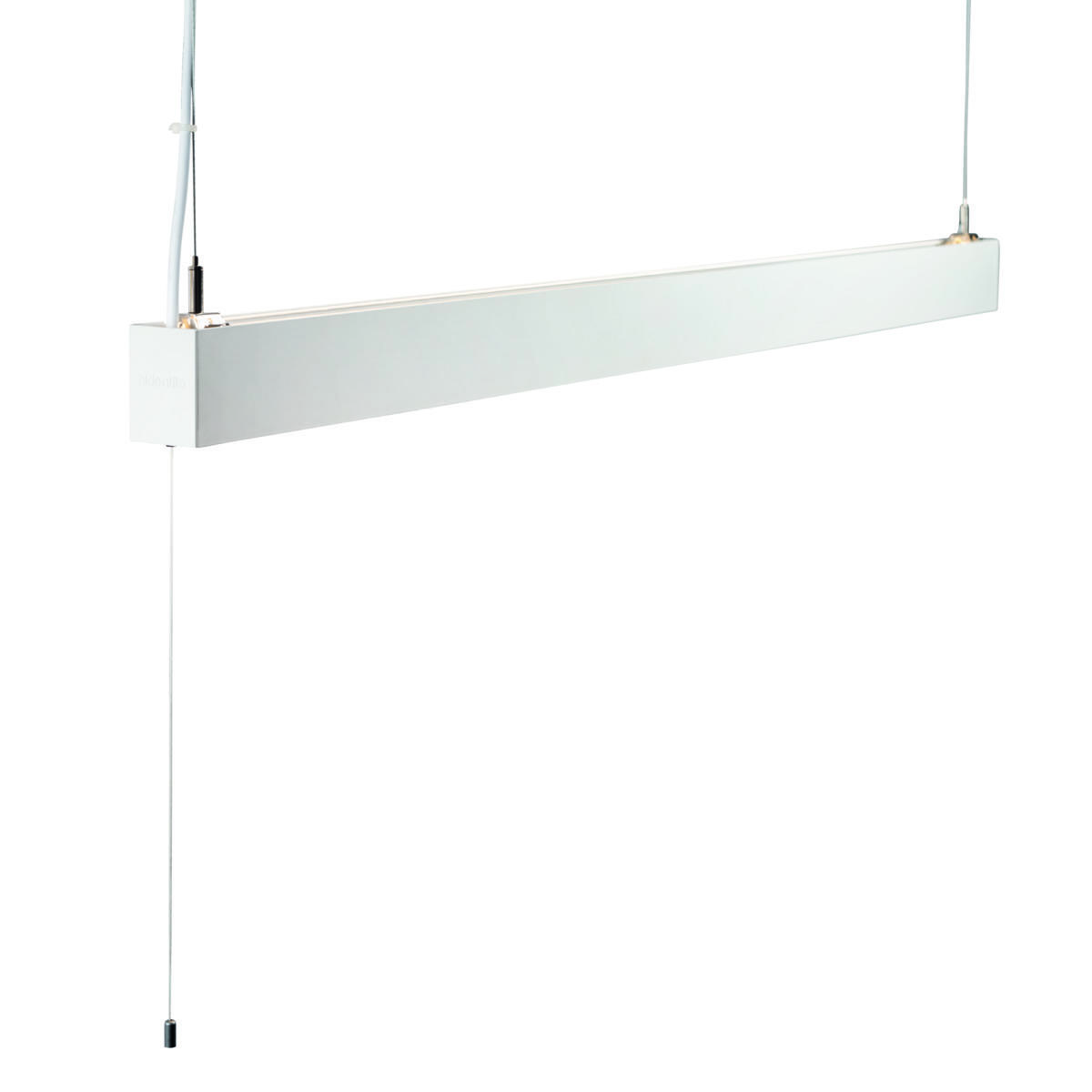

Dimmable basic luminaire with 50/50 light outlet, for offices and smaller premises. Body and end caps of white enamelled aluminium. Microprismatic louvre creates a highly glare-free downward light distribution and the uplight creates an indirect and shadow-free ambient light. A pull dim switch for common dimming of up and downlight with memory function to keep the latest setting after power cut. Complete with mounting accessories for several types of ceiling and a 2.5m cord set with earthed plug.
Exists in one color

Variants

GTIN Item Name Colour Temperature (K) Luminaire Lumen (lm)
Actor Basic Pendant MP 830 50/50 Dim 7392971138695 Actor Basic Pendant MP 830 50/50 Dim 3000 4550
Actor Basic Pendant MP 840 50/50 Dim 7392971138701 Actor Basic Pendant MP 840 50/50 Dim 4000 5050

Actor Basic Pendant MP 830 50/50 Dim

Description
GTIN 7392971138695
Item Name Actor Basic Pendant MP 830 50/50 Dim
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
Replaceability Non-replaceaable LED, Replaceable Control gear by professional
LED Colour Warm White
Colour Temperature (K) 3000
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 3
Initial Chromaticity (0.424, 0.391)
Luminous Intensity (cd) 1230
Luminaire Lumen (lm) 4550
Beam Angle (°) 80
Light sharing
Light Outlet 50/50
Number of Lamps (pcs) 2
Number of LED (pcs) 168
Life Time L80 100 000h Ta 25°C
Nominel Life Time (h) 100000
Lumen maintenance 50 000h L89
Lumen maintenance 100 000h L80
LLMF @ 50 000h 0,89
LLMF @ 100 000h 0,8
Life Time Driver 50 000h/10%
Technical data
Adjustable No
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50, 60
Power LED (W) 38
Power Luminaire (W) 46
System Power (W) 46
Efficiency Luminaire (lm/W) 99
Efficiency System (lm/W) 99
Containing light source energy efficiency class (EU) 2019/2015 C
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Built-in
Connection (type) Cord Set
Length Connection (cm) 2500
Connection (mm2) 3x0,75
Through Wiring No
Strain Relief Yes
Power Factor ʎ 0,9
Efficiency (%) 86
Standby Power 1
Constant Current (mA) 1050
Operating Temperature -20…+40
Max. Tc (°C) 85
Dimmable Yes
Type of Dimming Pull Dimmer
Memory Function Power Failure Yes
Fuse B10 (pcs) 16
Fuse B16 (pcs) 25
Fuse C10 (pcs) 27
Fuse C16 (pcs) 43
Color and material
Material Extruded, Aluminium, Plastic
Color White
Environmental Assessment Byggvarubedömningen
Measurement and installation
Operating Environment Indoor / dry locations
IP Degree of Protection 20
Protection Class I
Installation Pendant
Approval Marks CE
Filament Test IEC 695-2-1(°C) 650

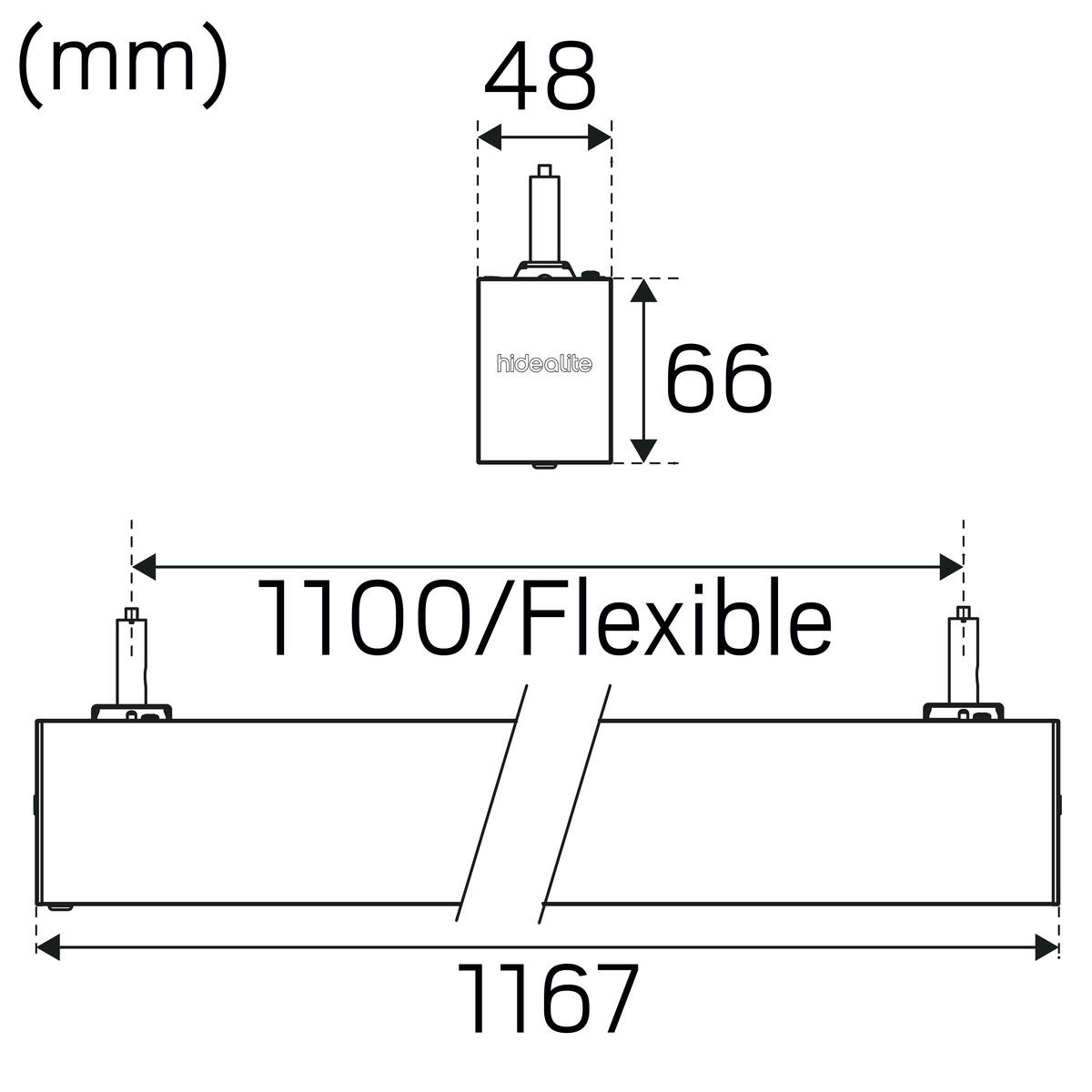

Length (mm) 1167
Width (mm) 48
Height (mm) 66
Weight (kg) 2,2
