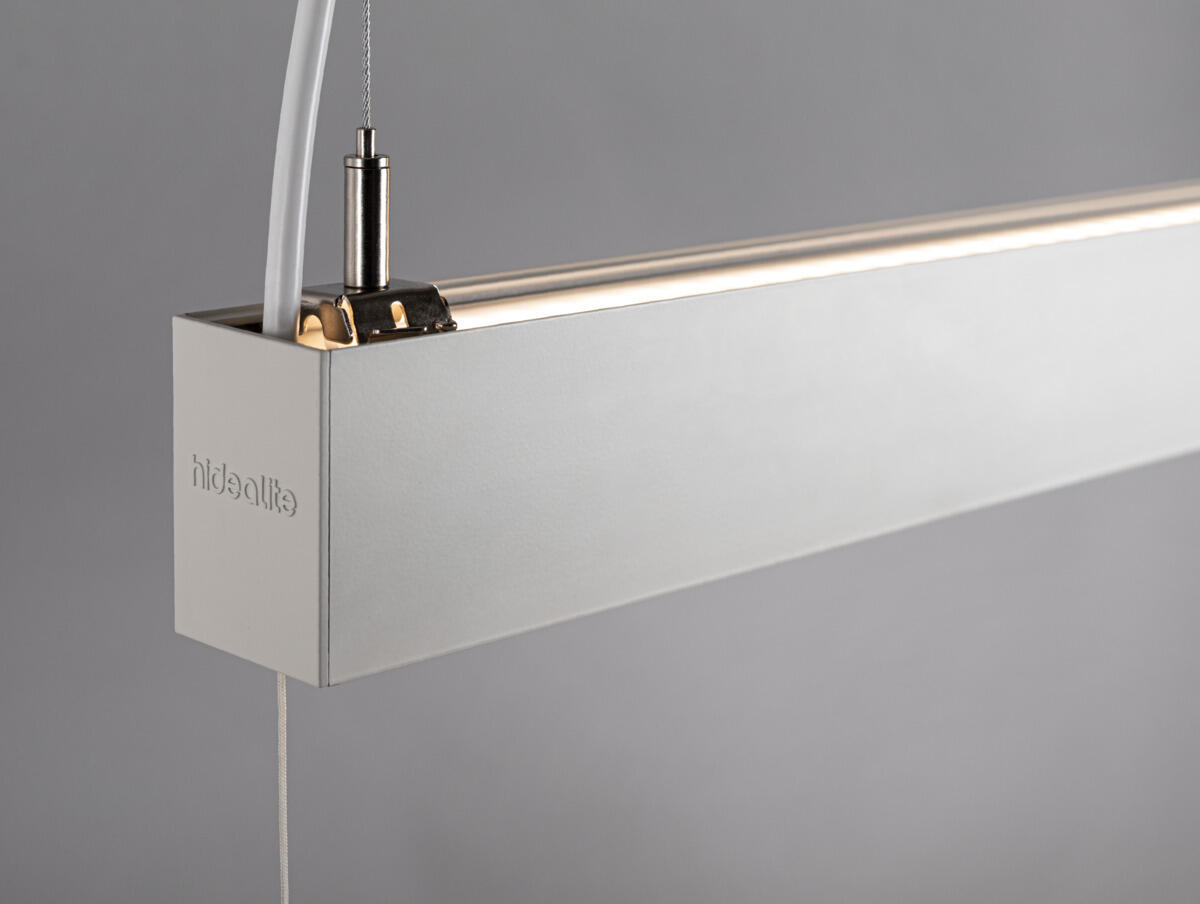

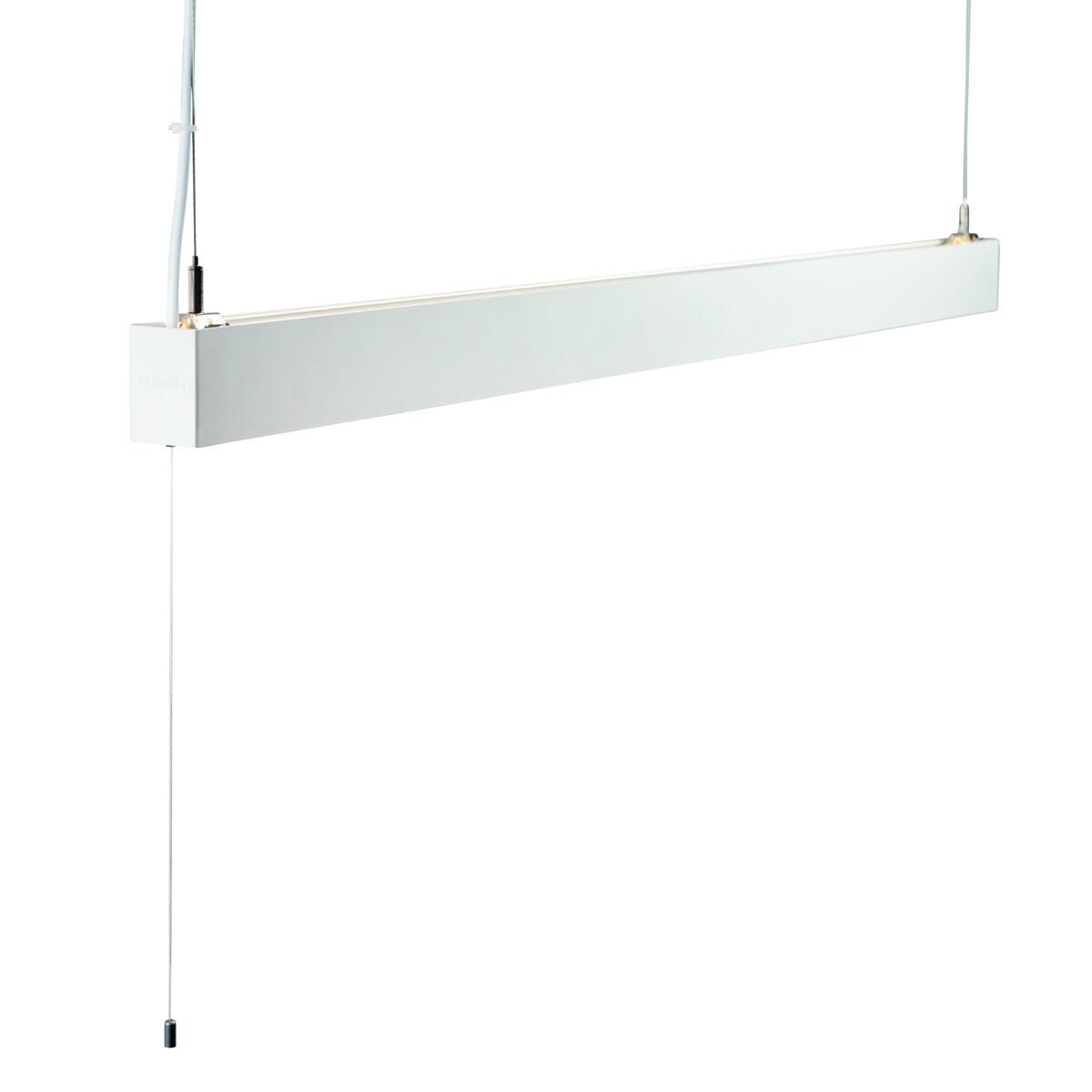

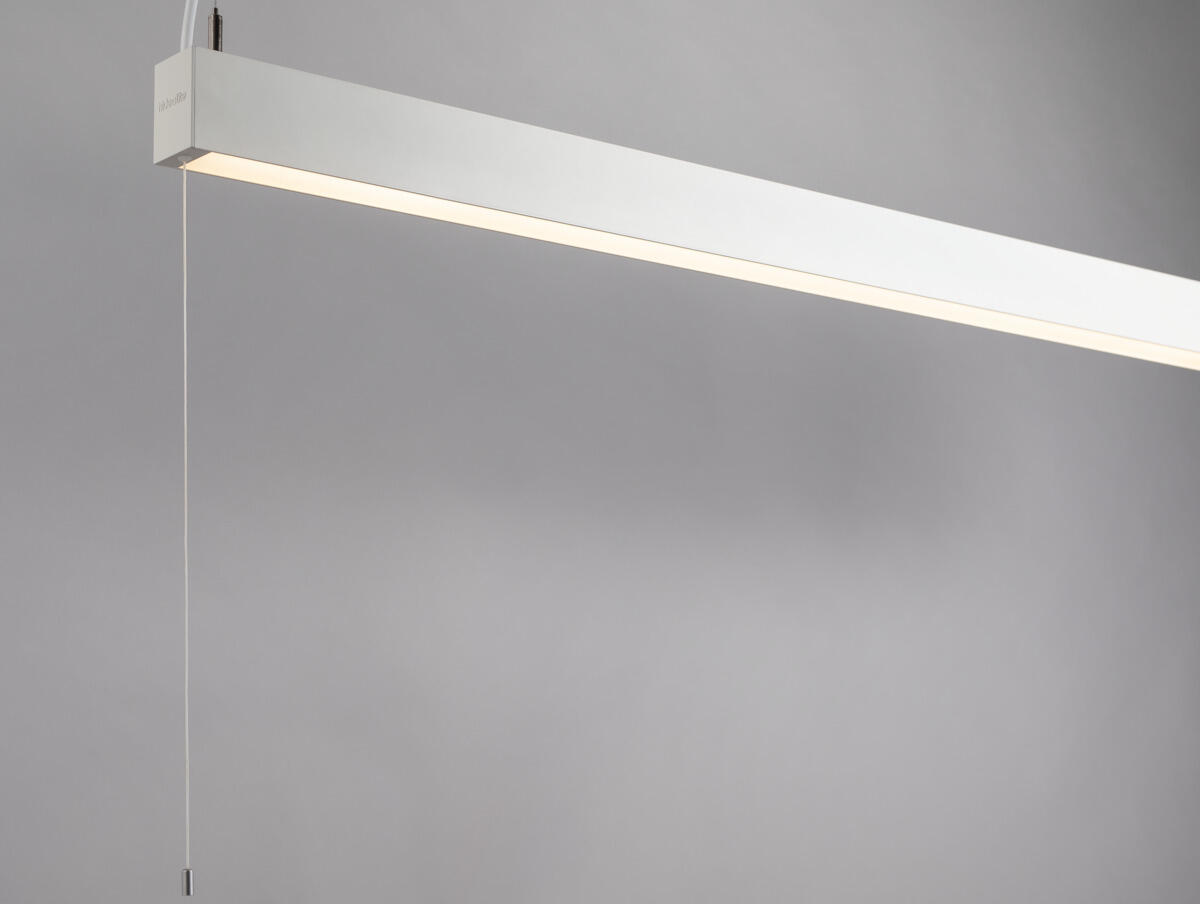

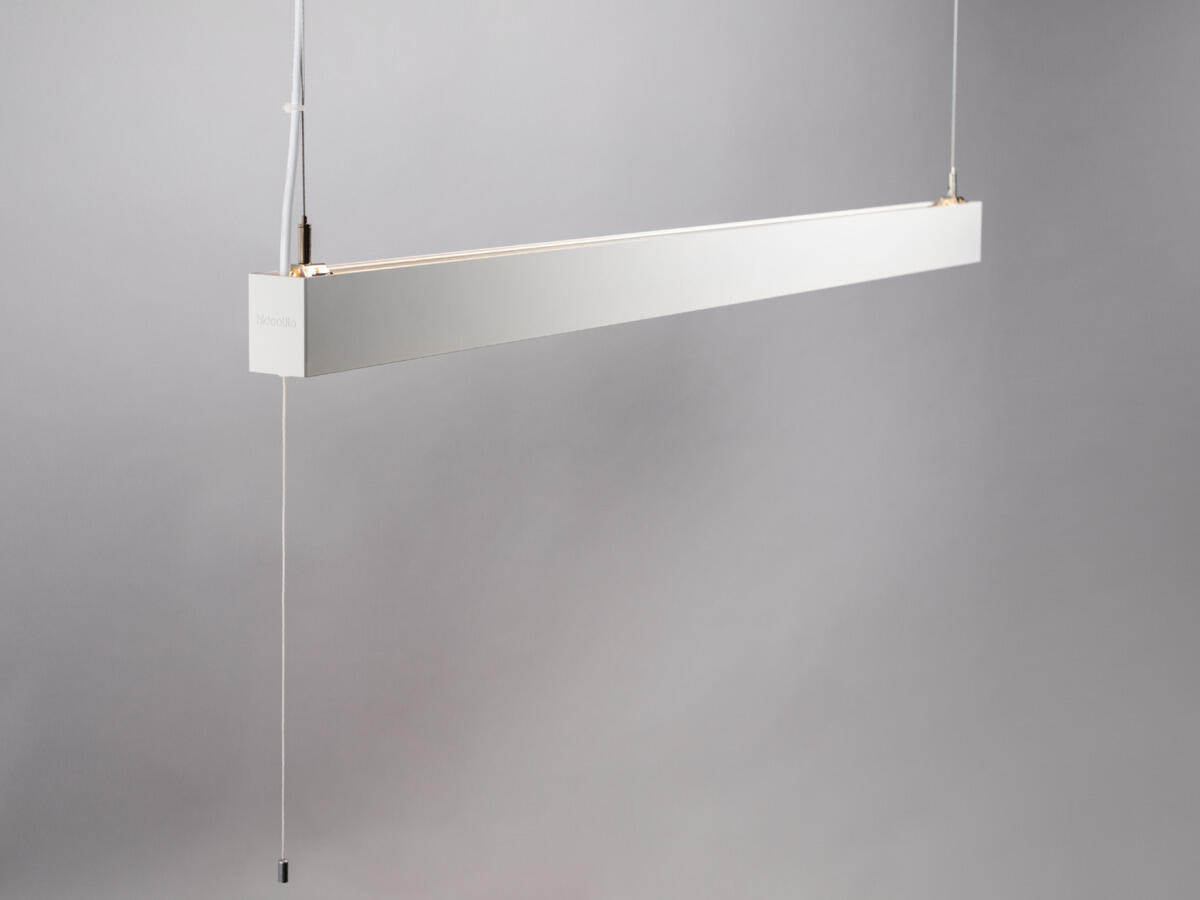

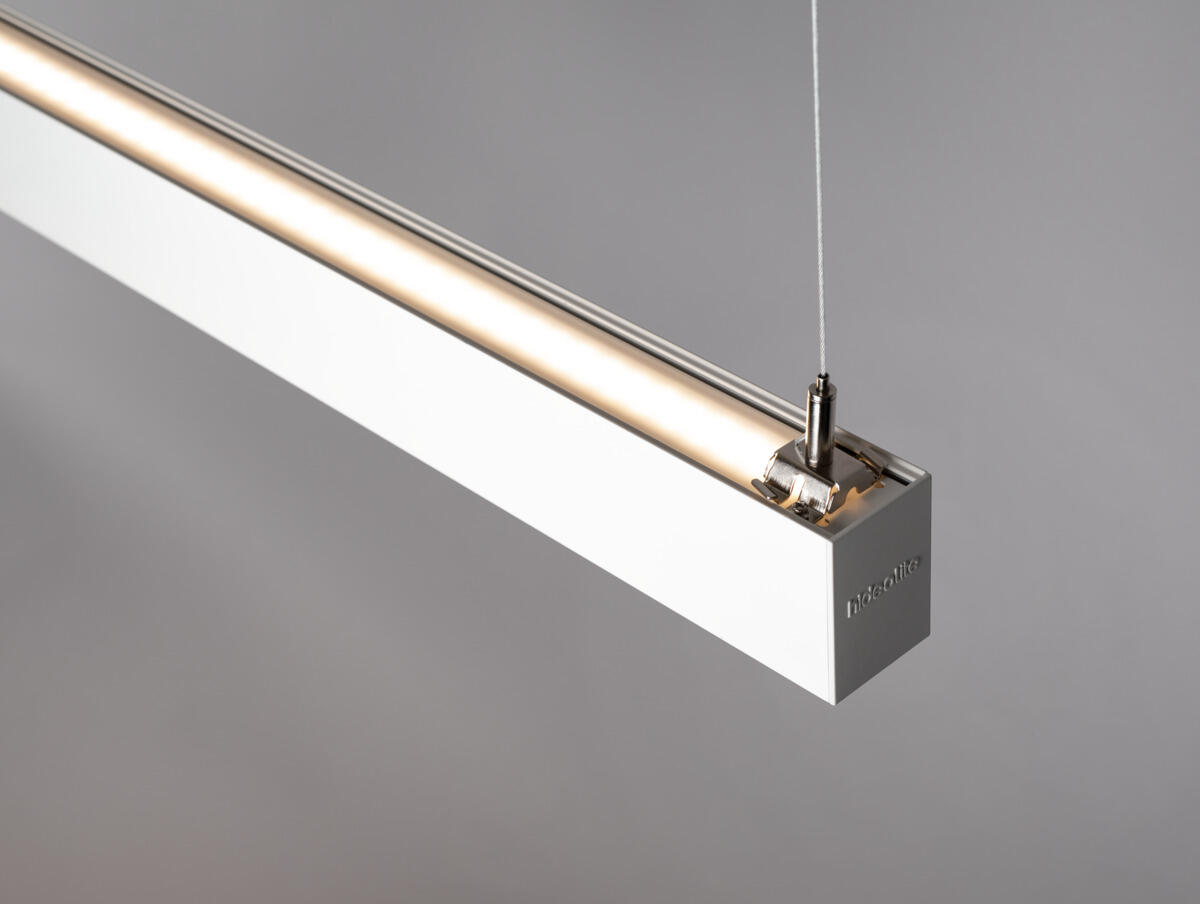

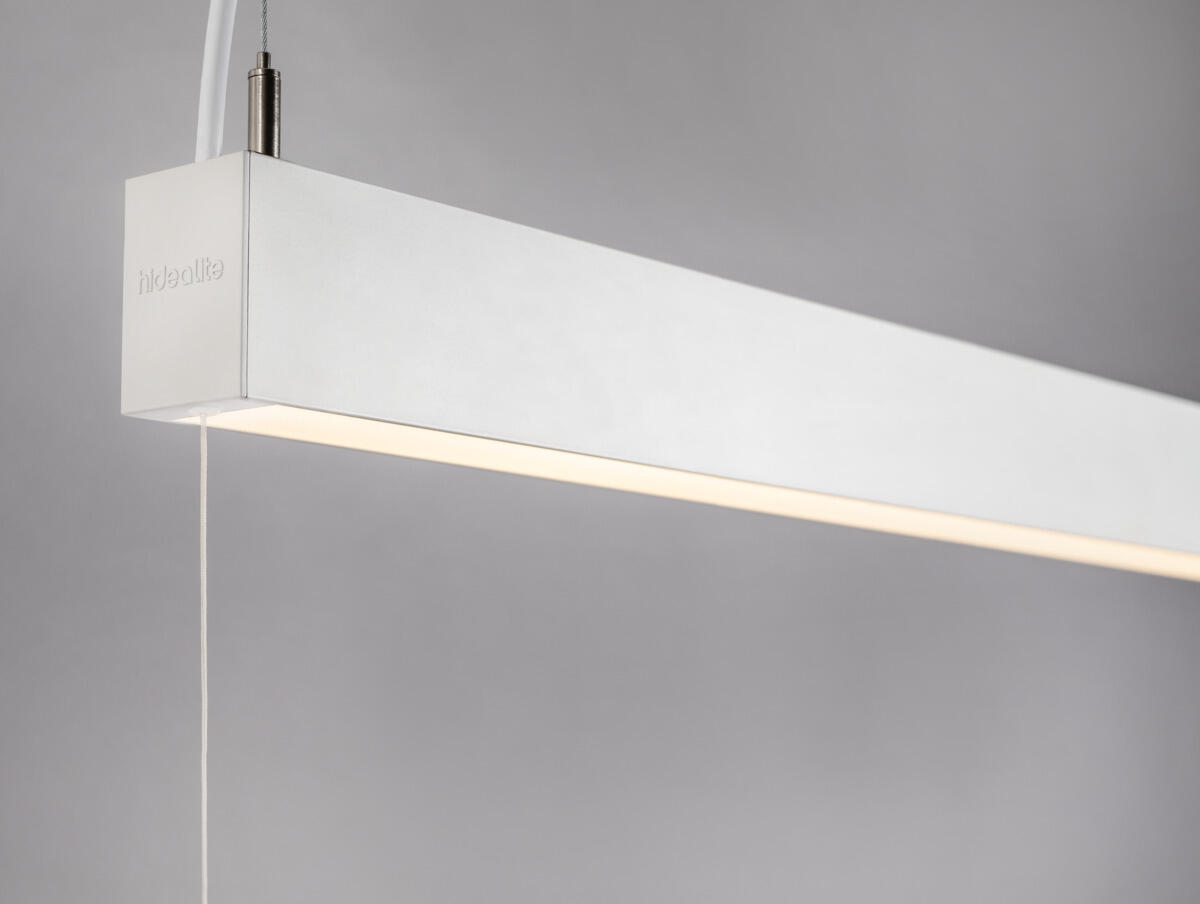

Actor Basic Pendant

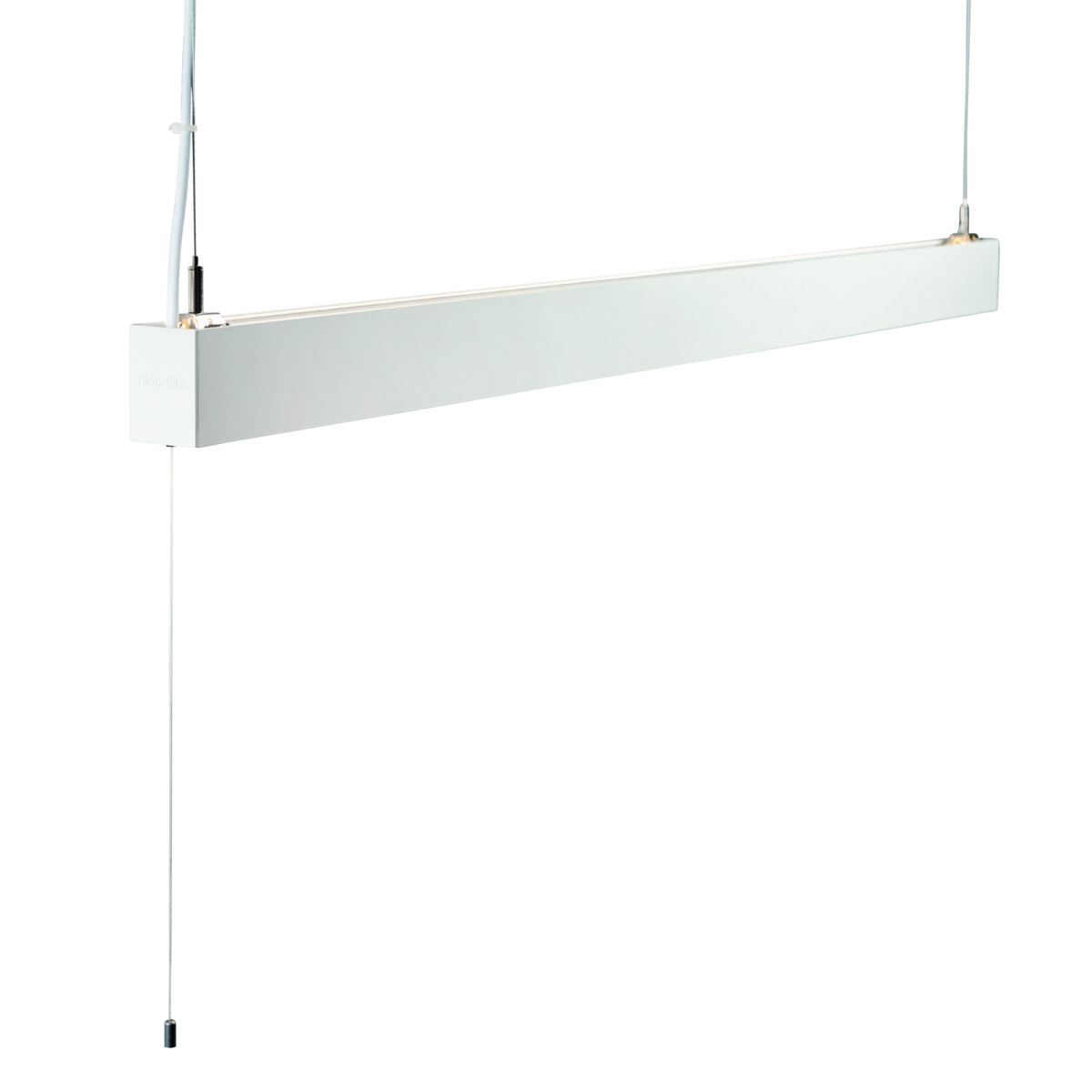

Dimmable basic luminaire with 50/50 light outlet, for offices and smaller premises. Body and end caps of white enamelled aluminium. Microprismatic louvre creates a highly glare-free downward light distribution and the uplight creates an indirect and shadow-free ambient light. A pull dim switch for common dimming of up and downlight with memory function to keep the latest setting after power cut. Complete with mounting accessories for several types of ceiling and a 2.5m cord set with earthed plug.

Variants	GTIN	Item Name	Colour Temperature (K)	Max. Luminaire Lumen (lm)
	7392971138695	Actor Basic Pendant MP 830 50/50 Dim	3000	4550
	7392971138701	Actor Basic Pendant MP 840 50/50 Dim	4000	5050

Show more articles

Description: GTIN 7392971138695

Item Name Actor Basic Pendant MP 830 50/50 Dim

Warranty 5 years
Light Technical Data: Max. Luminaire Lumen (lm) 4550

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Replaceable Control gear by professional

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

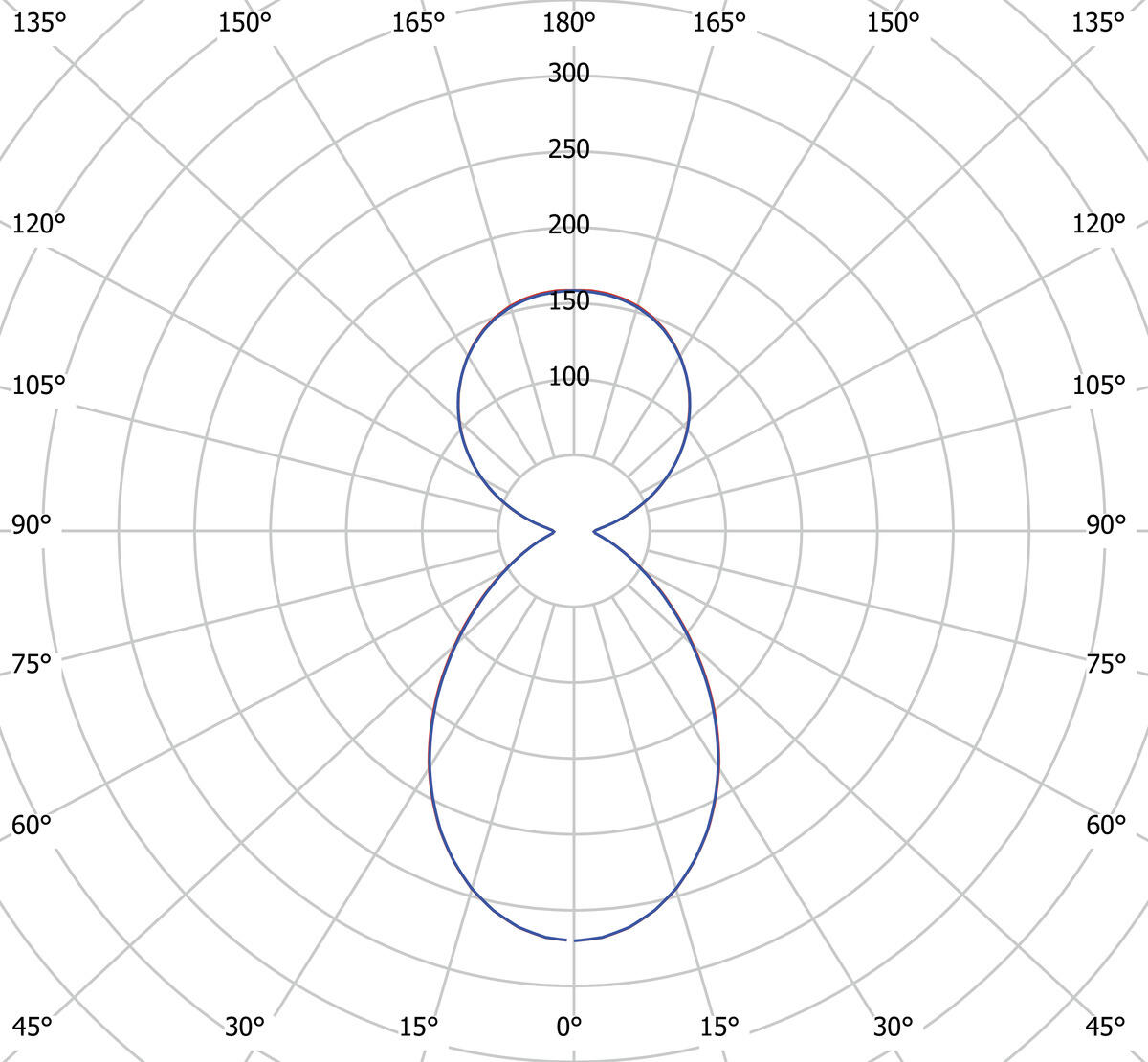

Luminous Intensity (cd) 1230

Beam Angle (°) 80

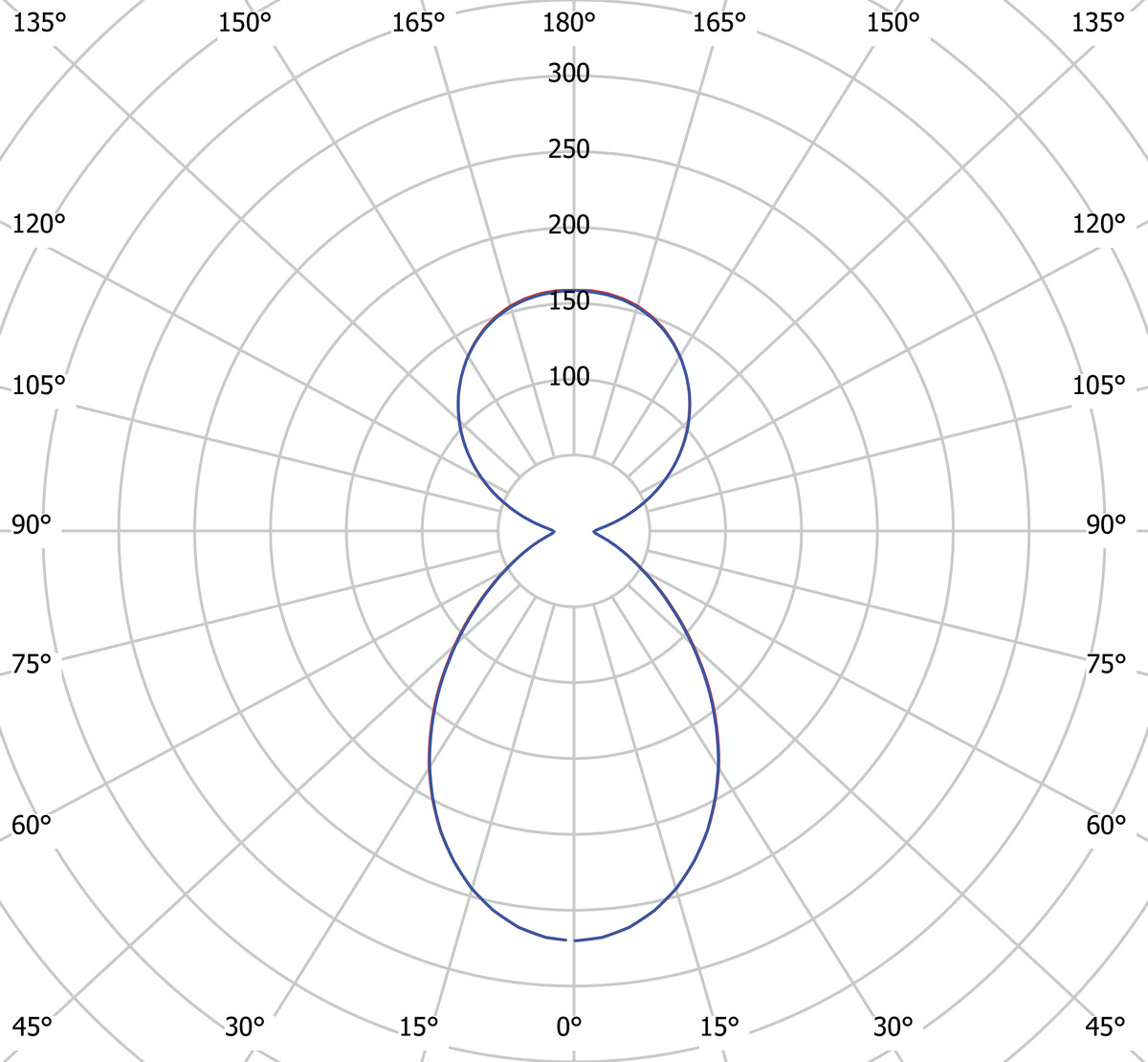

Light sharing Symmetric

Light Outlet 50/50

Number of Lamps (pcs) 2

Number of LED (pcs) 168

Life Time h Ta °C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L89

Lumen maintenance 100 000h L80

LLMF @ 50 000h 0.89

LLMF @ 100 000h 0.8

Life Time Driver 50 000h/10%

Flicker (PstLM) 0,014

Stroboscopic effect (SVM) 0,005
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240V

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Power LED (W) 38

Max. Power Luminaire (W) 46

Max. System Power (W) 46

Max. Efficiency Luminaire (lm/W) 99

Max. Efficiency System (lm/W) 99

Containing light source energy efficiency class (EU) 2019/2015 C
Operation and Connection: Dimmable Yes

Type of Dimming Pull Dimmer

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Connection (type) Cord Set

Length Connection (cm) 250

Connection (mm2) 3x0,75

Through Wiring No

Strain Relief Yes

Efficiency (%) 86

Standby Power 1

Constant Current (mA) 1050

Operating Temperature 1835

Max. Tc (°C) 85

Memory Function Power Failure Yes

Fuse B10 (pcs) 16

Fuse B16 (pcs) 25

Fuse C10 (pcs) 27

Fuse C16 (pcs) 43
Color and material: Material Extruded, Aluminium, Plastic

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class I

Installation Pendant

Ceiling Thickness Interval (mm) 0mm

Height Surface Mounted (mm) 0

Approval Marks CE

Filament Test IEC 695-2-1(°C) 650

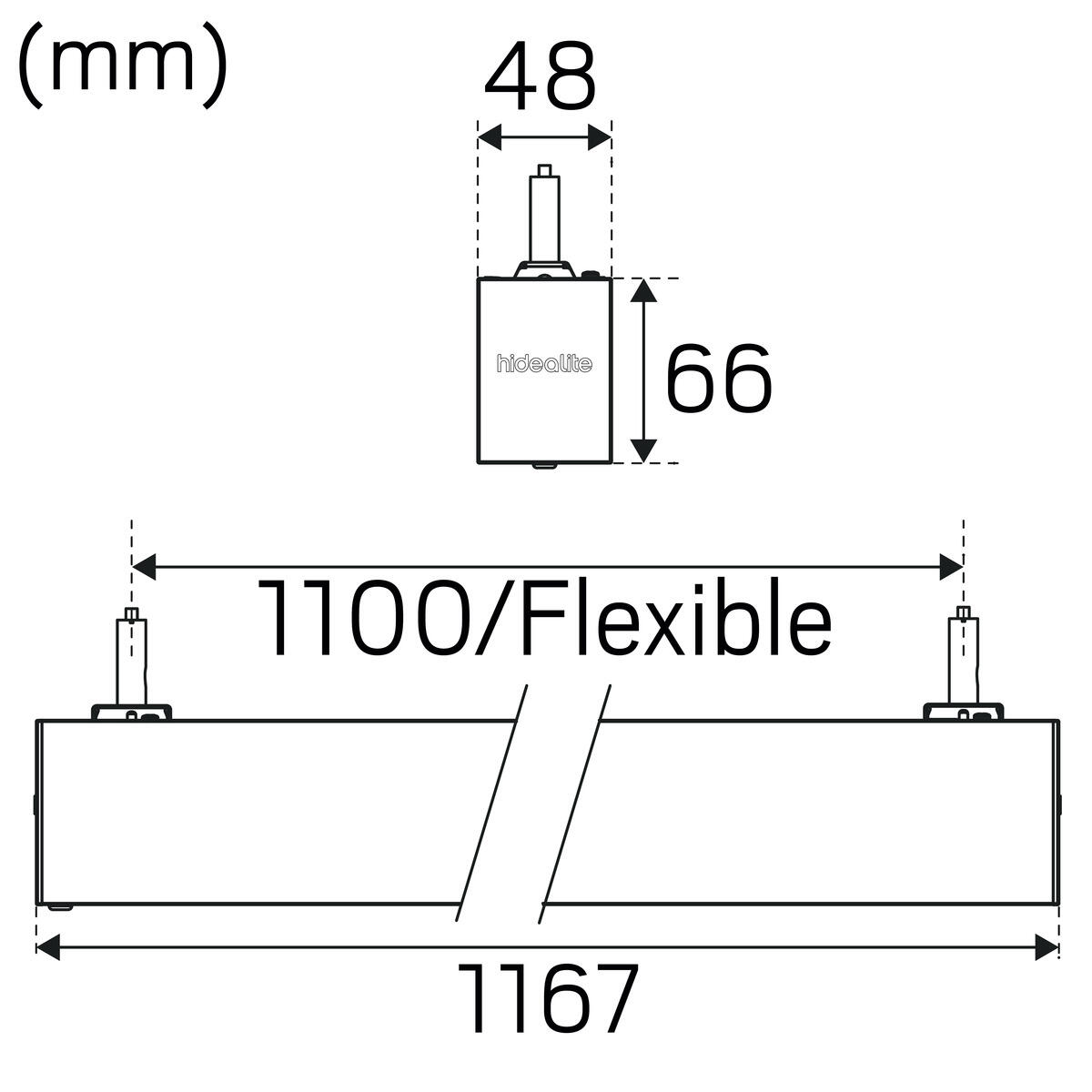

Length (mm) 1167

Width (mm) 48

Height (mm) 66

Weight (kg) 2,2
