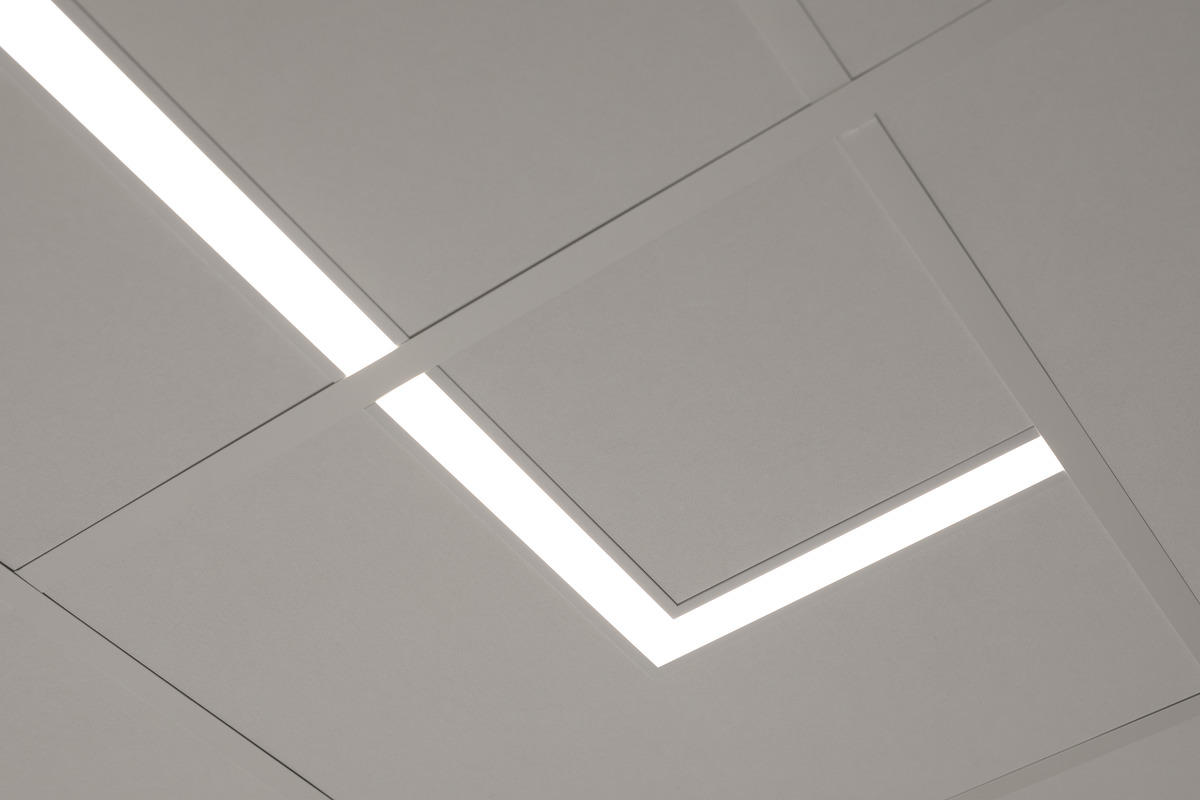

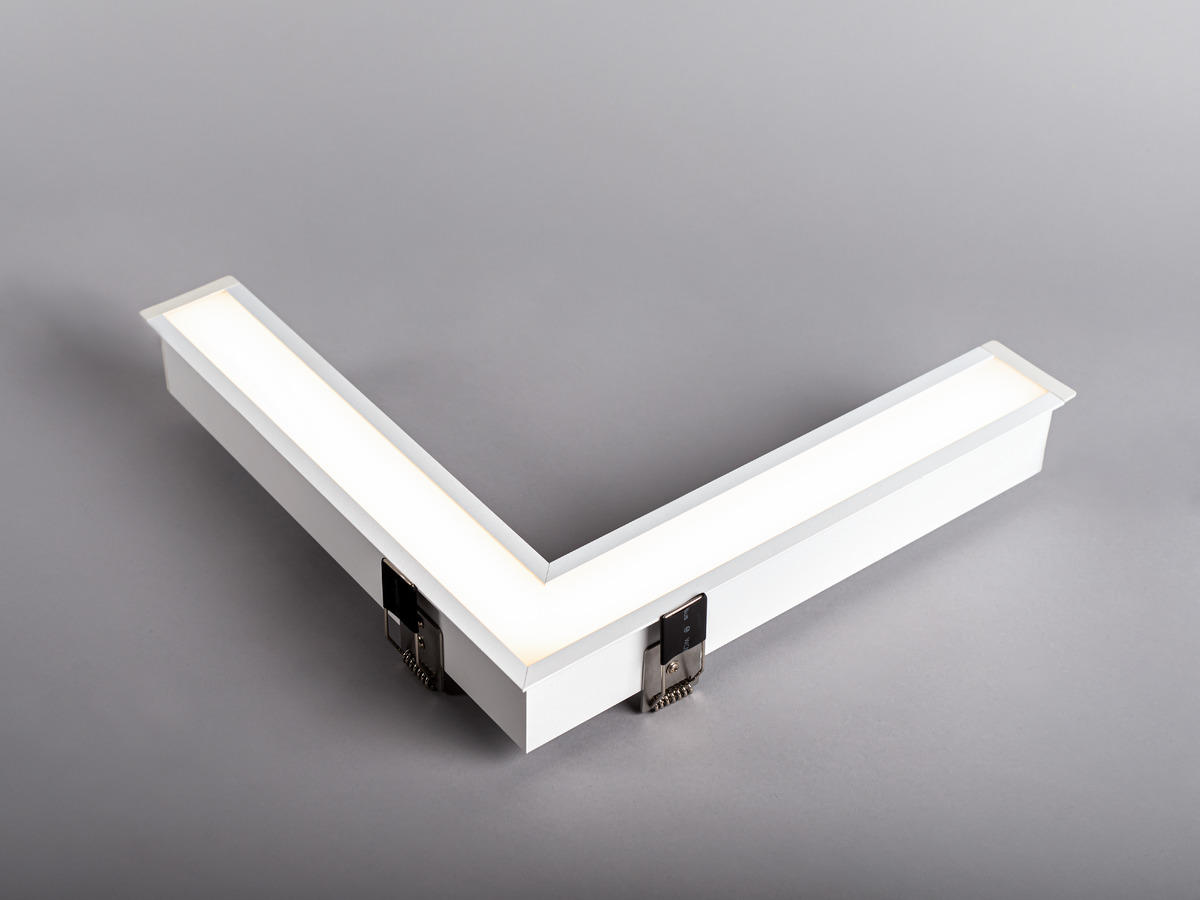

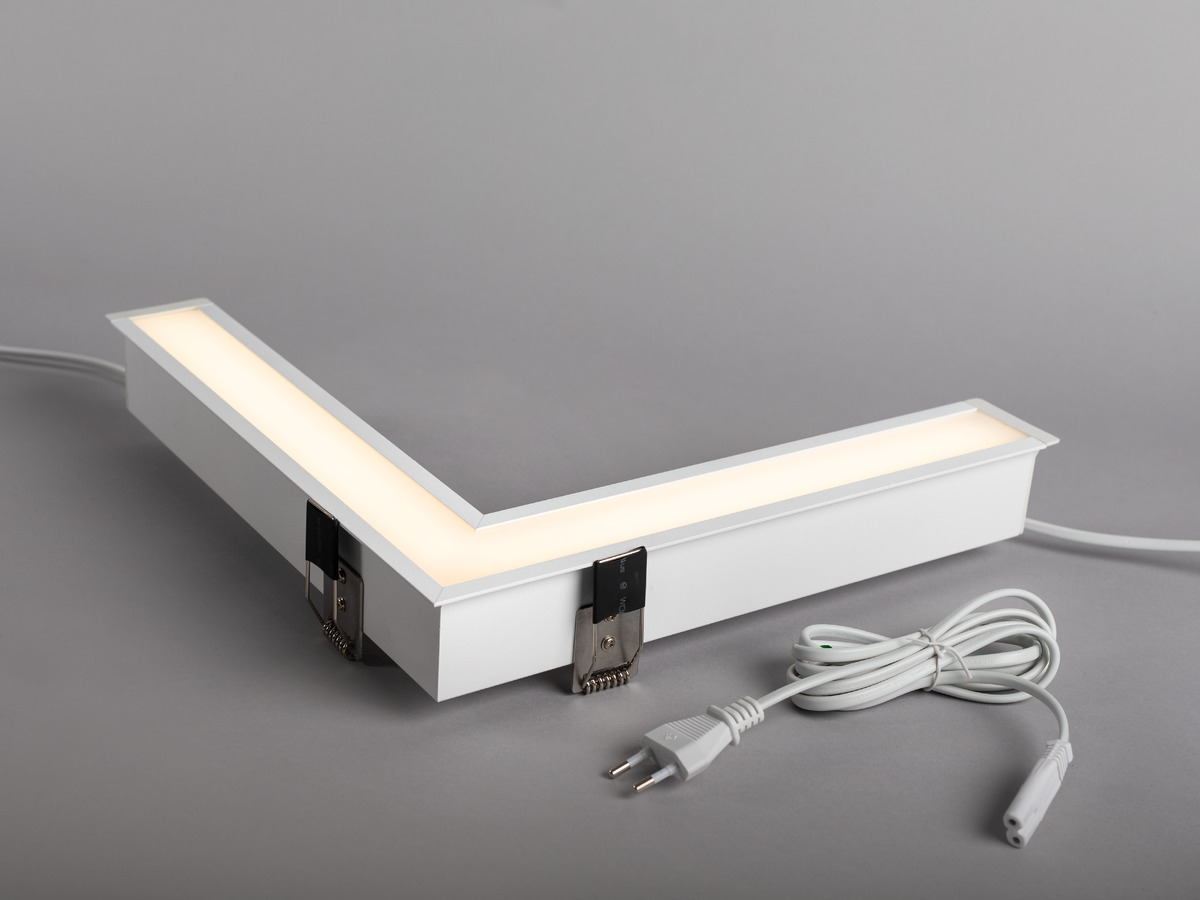

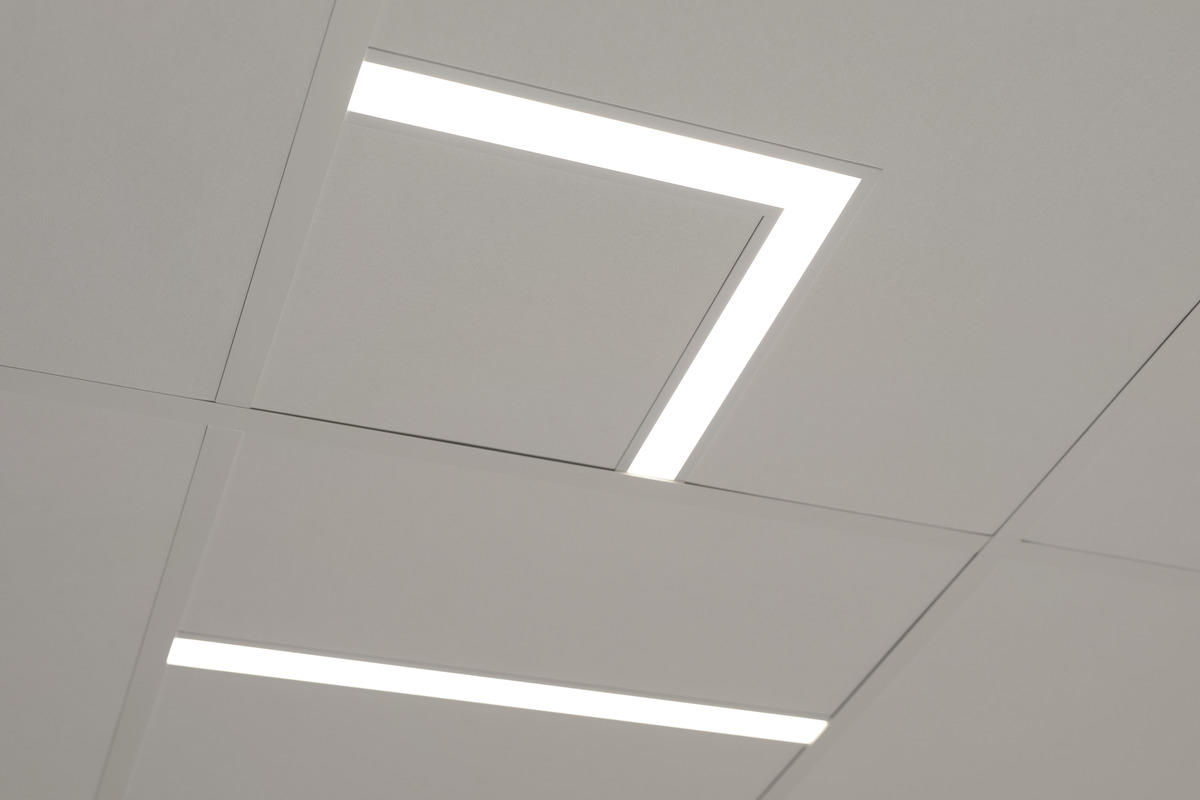

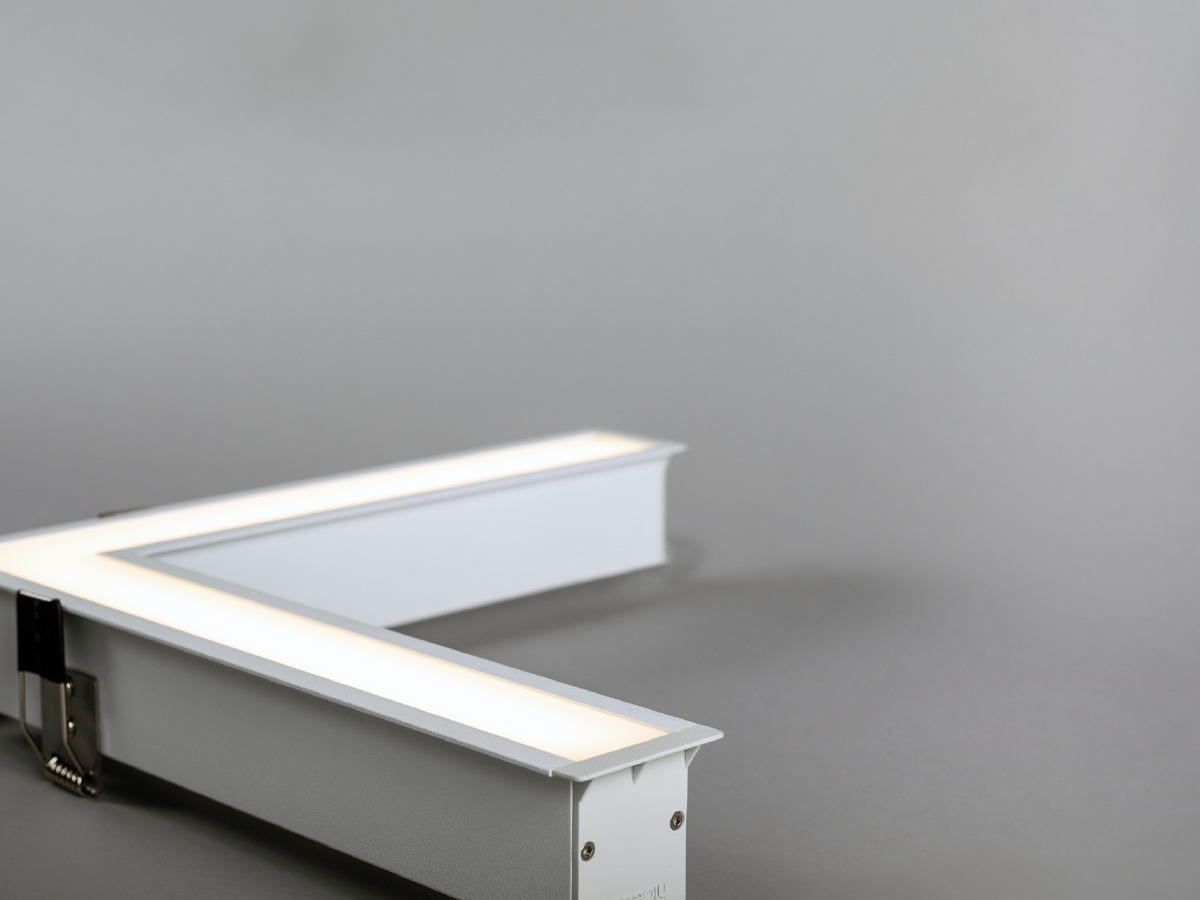

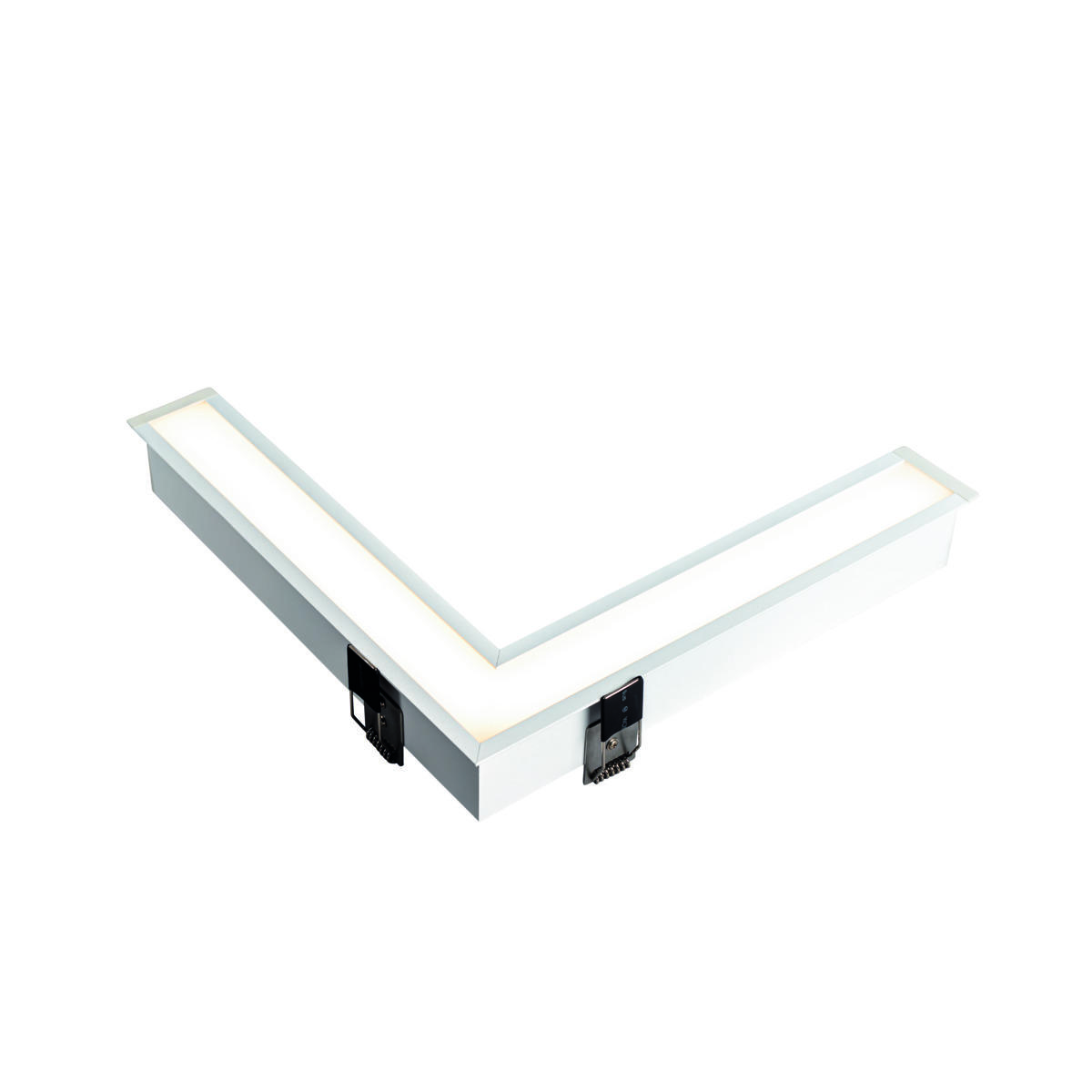

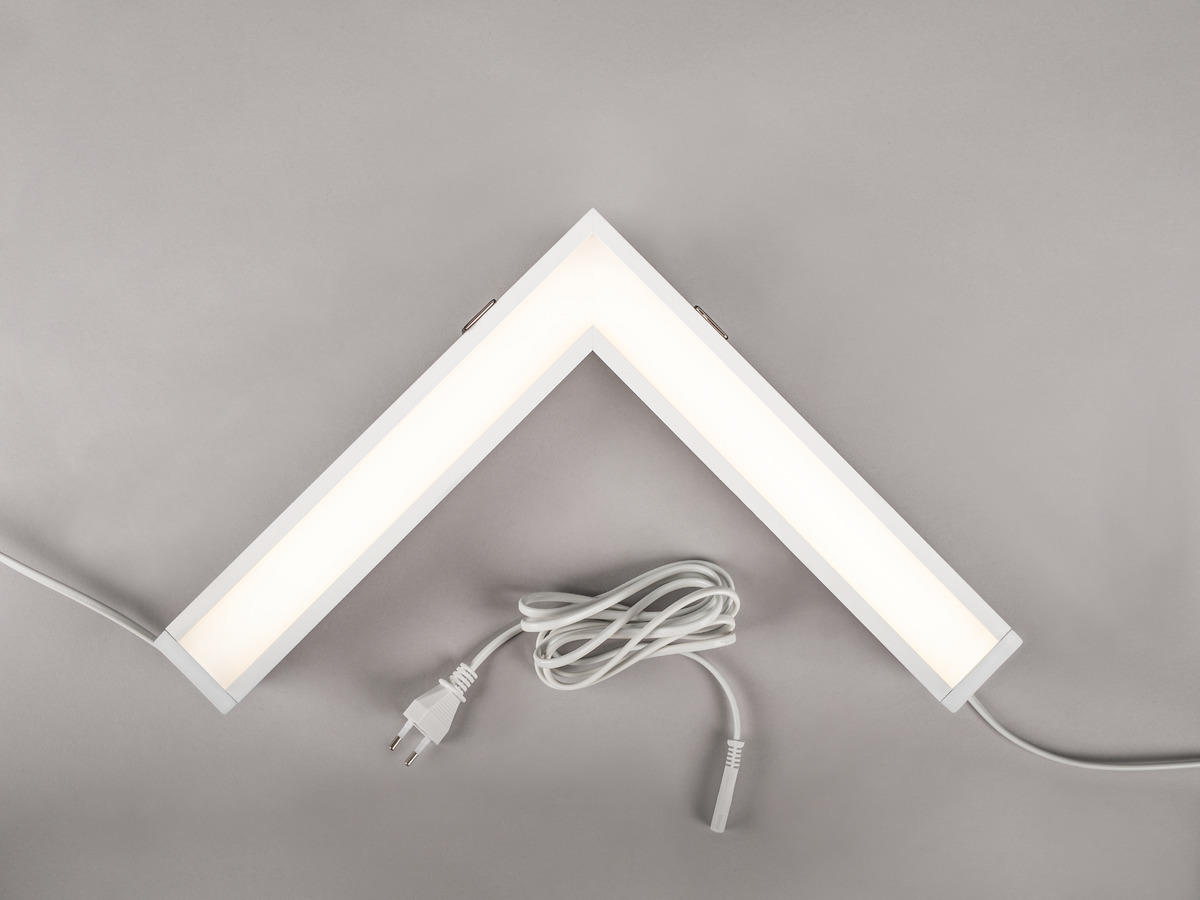

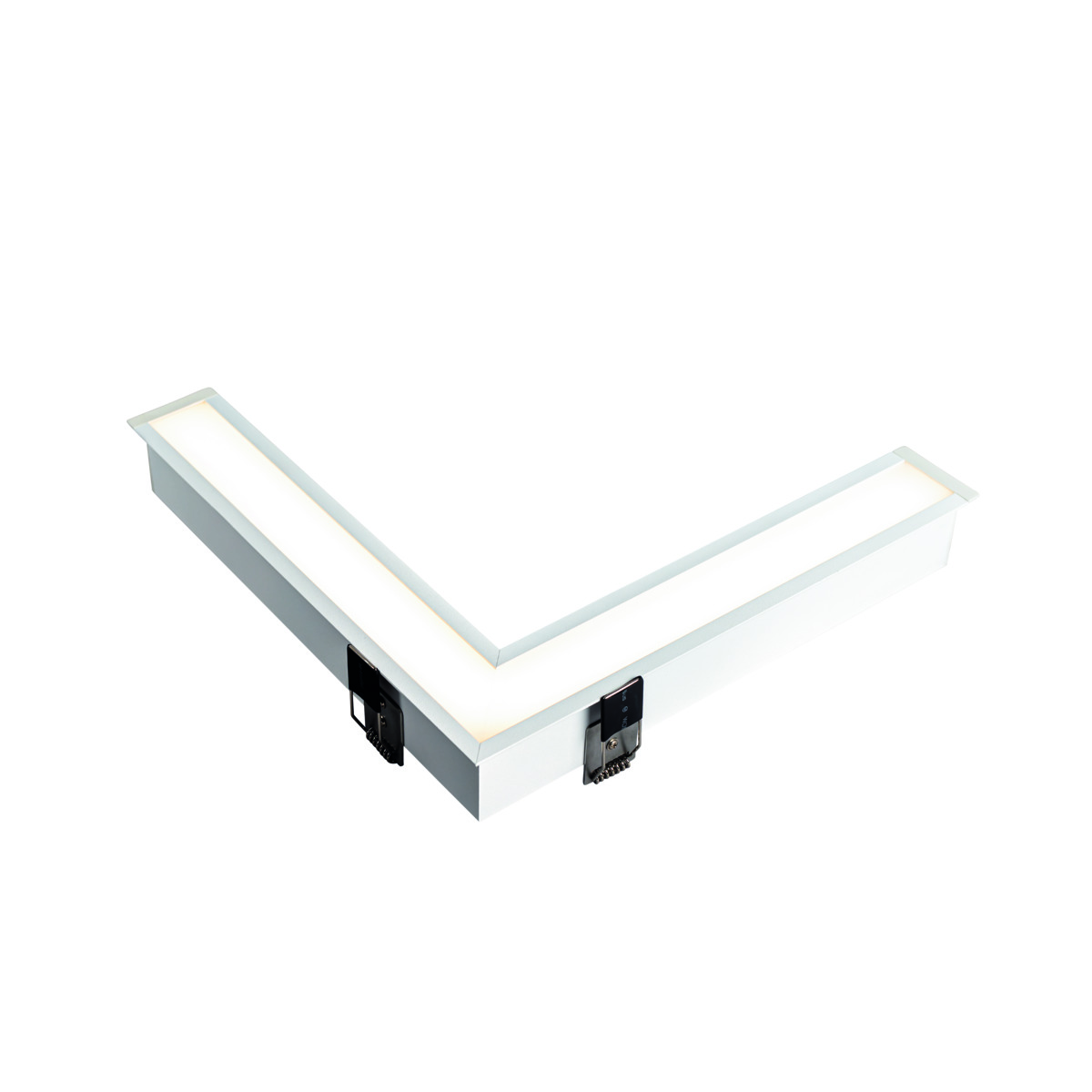

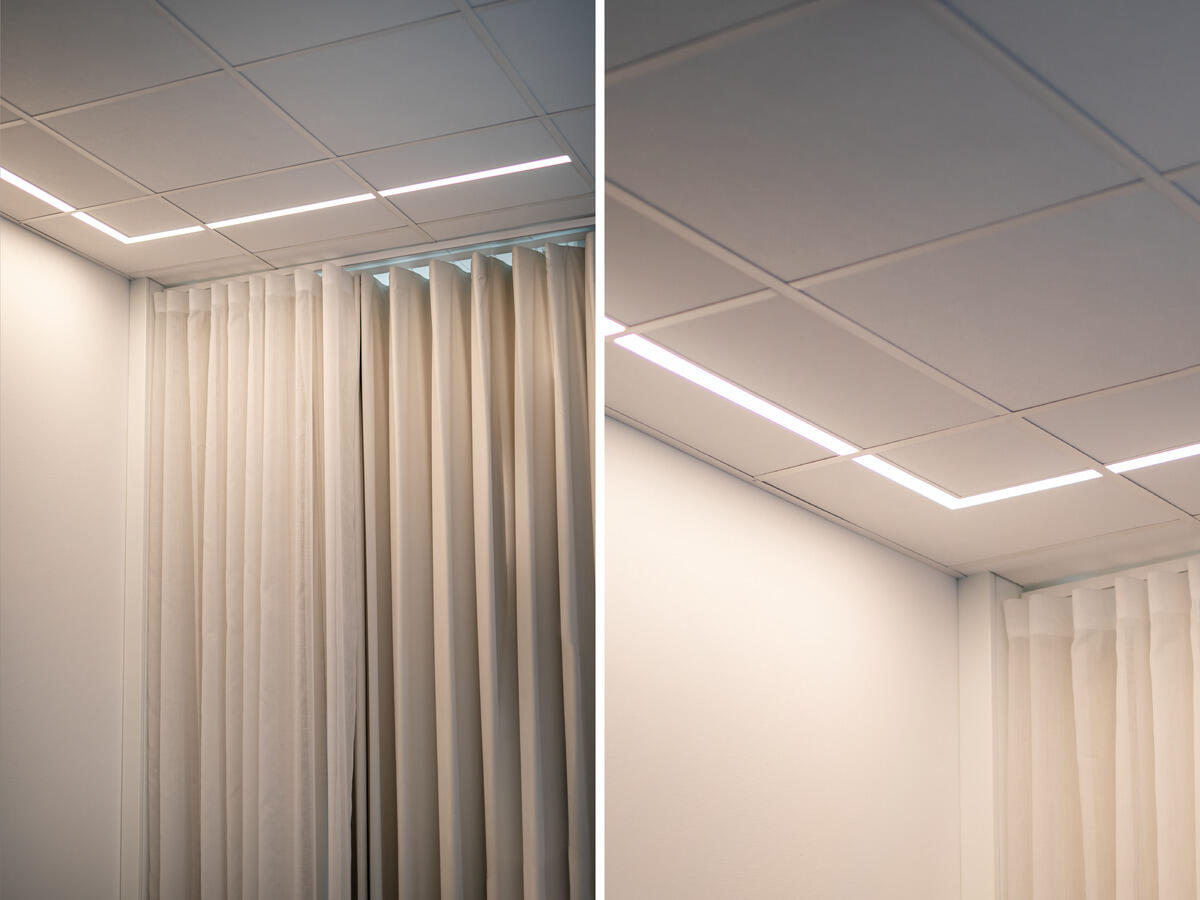

Dimmable 230V luminaire shaped as a 90° corner with opal cover. For an even, homogenous, lighting in public environments. Selectable colour temperature via DIP-Switch ColourTemp. Designed for easy installation in false ceilings with visible support profile. 40cm cable with 230V quick connection at each end to make it easy to illuminate from every other board without accessories. Integrated phase dimmable driver. Comes with 2m cord set and unearthed plug plus hole template. 3m extension cable available as accessory.
Exists in one color
Description
GTIN 7392971138916
Item Name Ray Corner OP 830/840
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
Replaceability Non-replaceaable LED, Non-replaceable Control gear
LED Colour White
Colour Temperature (K) 3000, 4000
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 3

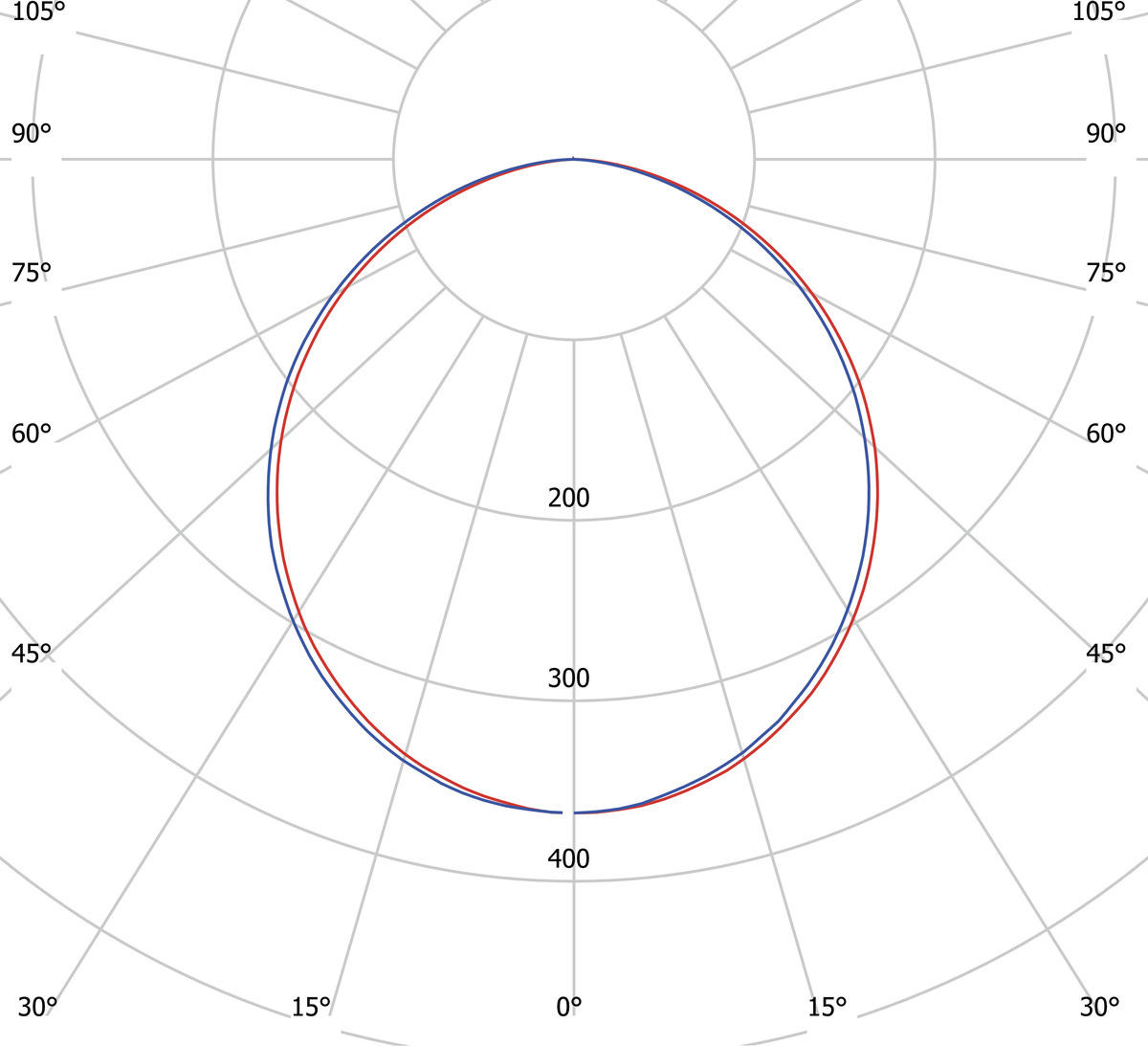

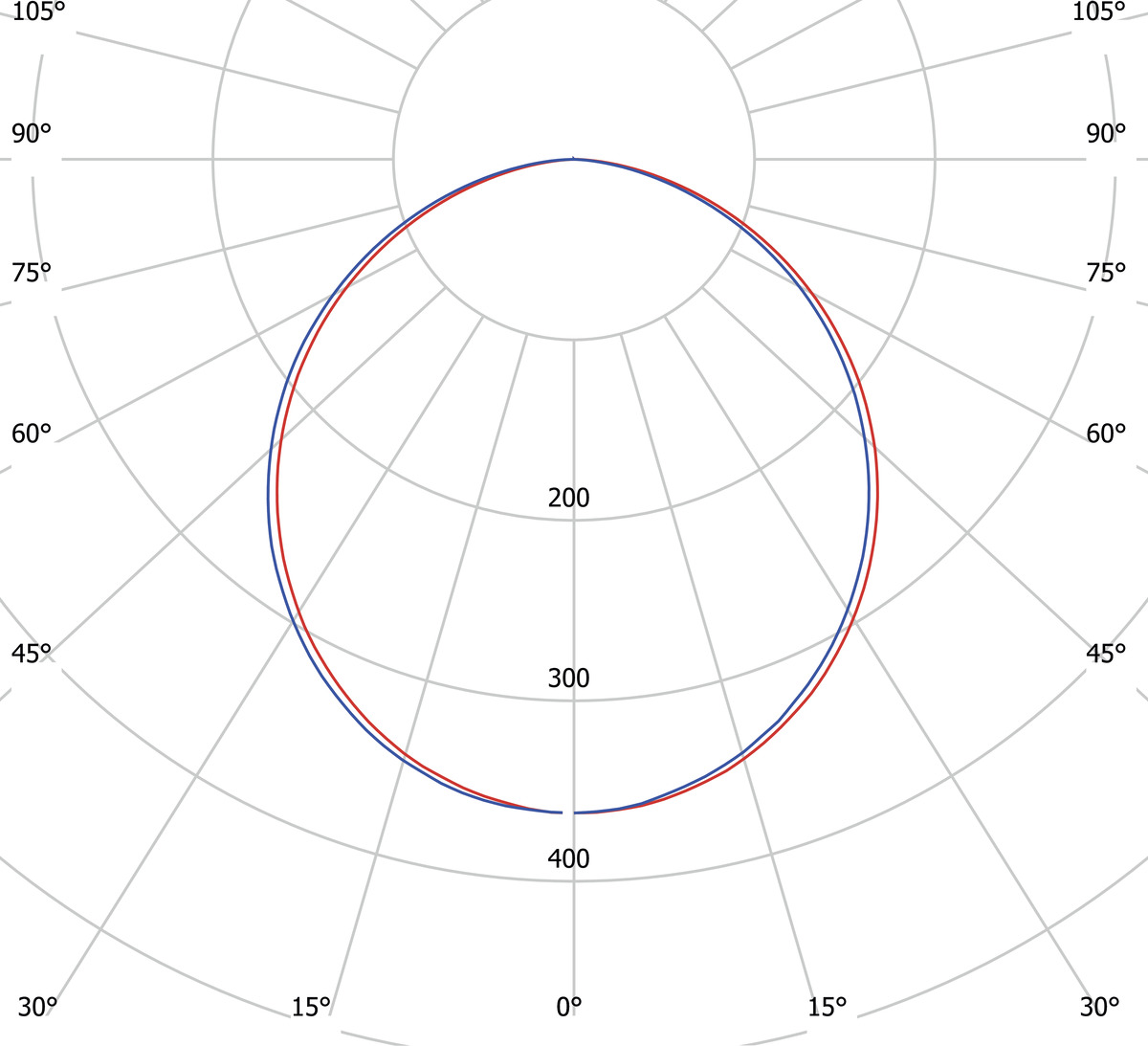

Luminous Intensity (cd) 260
Luminaire Lumen (lm) 715
Beam Angle (°) 110
Light sharing
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 200
Life Time L90 50 000h Ta 25°C
Nominel Life Time (h) 50000
Lumen maintenance 50 000h L90
Lumen maintenance 100 000h L81
LLMF @ 50 000h 0,9
LLMF @ 100 000h 0,81
Life Time Driver 50 000h/10%
Technical data
Adjustable No
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50
Power LED (W) 4,9
Power Luminaire (W) 5,8
System Power (W) 5,8
Efficiency Luminaire (lm/W) 123
Efficiency System (lm/W) 123
Containing light source energy efficiency class (EU) 2019/2015 C
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Built-in
Connection (type) Cord Set, Plug-in
Length Connection (cm) 200
Connection (mm2) 2x0,75
Through Wiring Yes
Strain Relief Yes
Power Factor ʎ 0,5
Efficiency (%) 80
Constant Current (mA) 180
Operating Temperature -20…+40
Max. Tc (°C) 60
Dimmable Yes
Type of Dimming Trailing Edge, Leading Edge
Fuse B10 (pcs) 50
Fuse B16 (pcs) 73
Fuse C10 (pcs) 60
Fuse C16 (pcs) 93
Color and material
Material Extruded, Aluminium, Plastic
Color White
Environmental Assessment SundaHus
Measurement and installation
Operating Environment Indoor / dry locations
IP Degree of Protection 20
Protection Class II
Installation Built-in
Fire Safety Marks Not in insulation without protection cover
Approval Marks CE
Filament Test IEC 695-2-1(°C) 650

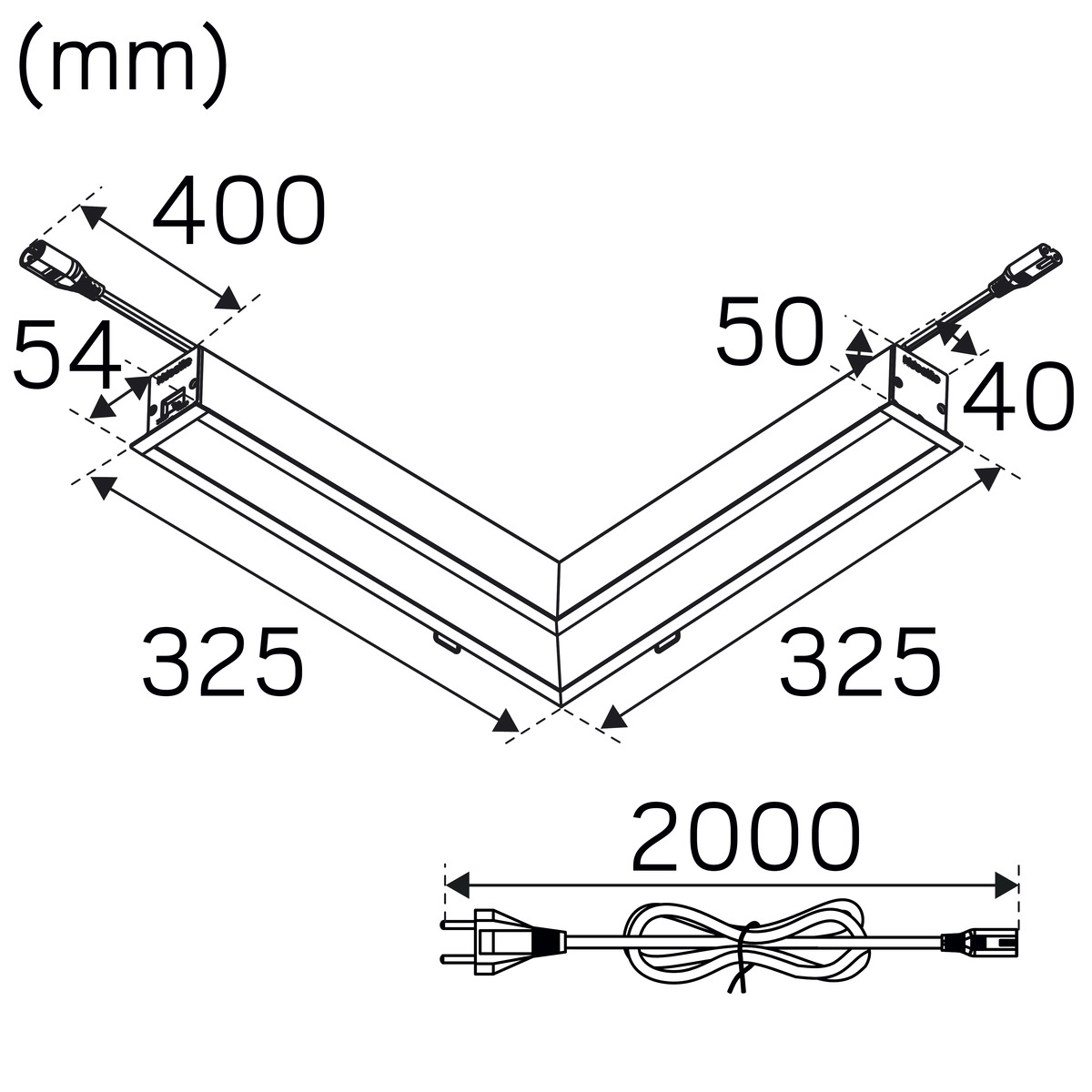

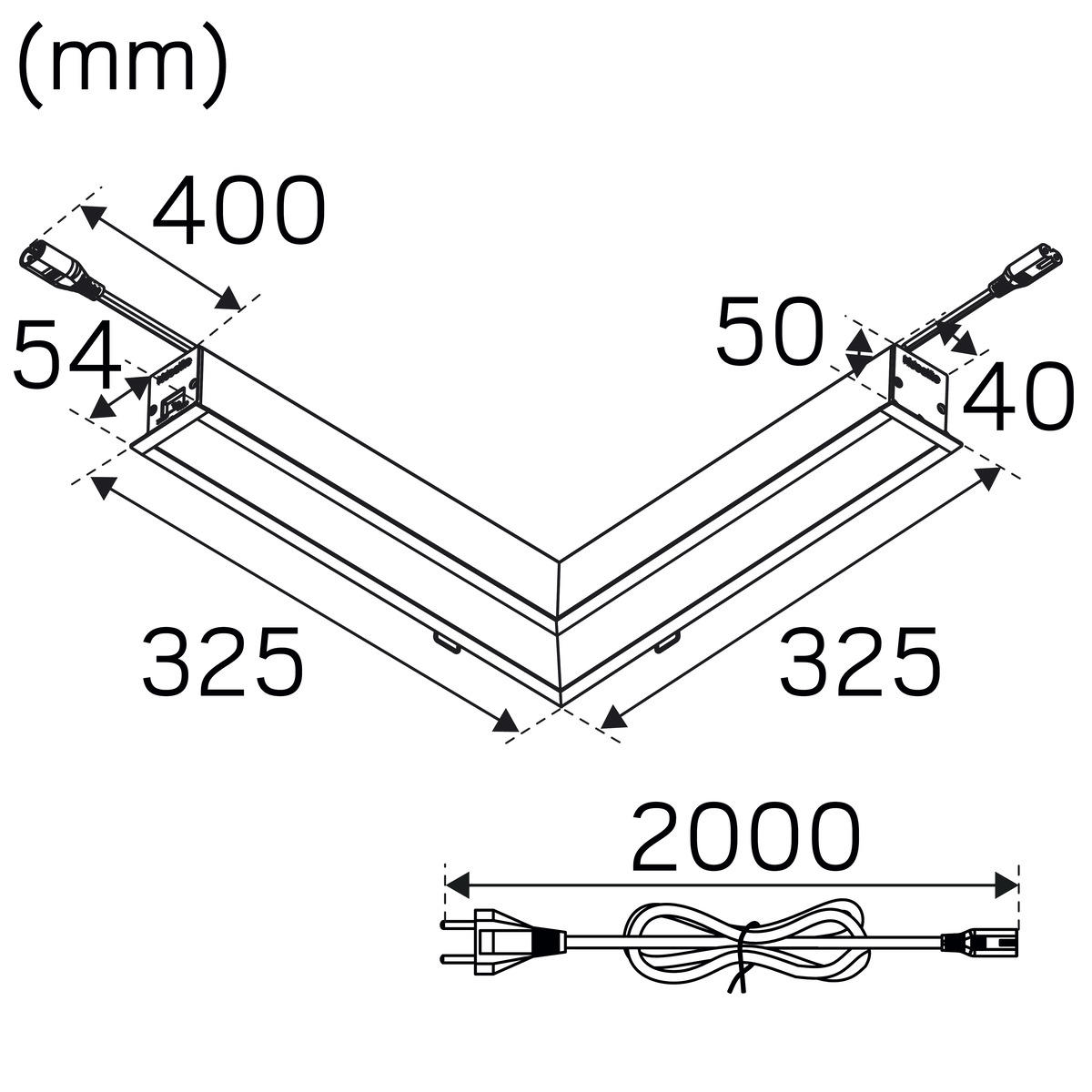

Length (mm) 325
Width (mm) 54
Height (mm) 54
Depth (mm) 325
Weight (kg) 0,69
Min. Air Volume (cm3) 1,5
Built-in LxB (mm) Manual
