Moon Basic

  • Adjusted for concealed or surface mounted cable routing
  • Selectable colour temperature via DIP-Switch ColourTemp
  • Microwave sensor for presence control, settings via DIP-switch for range, dusk control and time delay
Easily installed base plafond, LED module with integrated driver and selectable colour temperature via DIP-Switch ColourTemp 3000K or 4000K. Plenty of space in the fitting and possibility for surface-mounted cable routing. For installation flat on the ceiling or wall indoors in private or public environment such as utility rooms, storage rooms and closets. On/Off model with or without sensor. Simple installation, long life time and minimal maintenance make the plafond an economical and environmentally-friendly choice.
Exists in one color
Variants GTIN Item Name Luminaire Lumen (lm) Type of Dimming
Moon Basic 320 7392971137506 Moon Basic 320 1400 OnOff
Moon Basic 255 7392971137490 Moon Basic 255 900 OnOff
Moon Basic 255 S 7392971137513 Moon Basic 255 S 900 Microwave Sensor
Moon Basic 320 S 7392971137520 Moon Basic 320 S 1400 Microwave Sensor

Moon Basic 320

Save as favourite Save as pdf
Description
GTIN 7392971137506
Item Name Moon Basic 320
Warranty 5 years

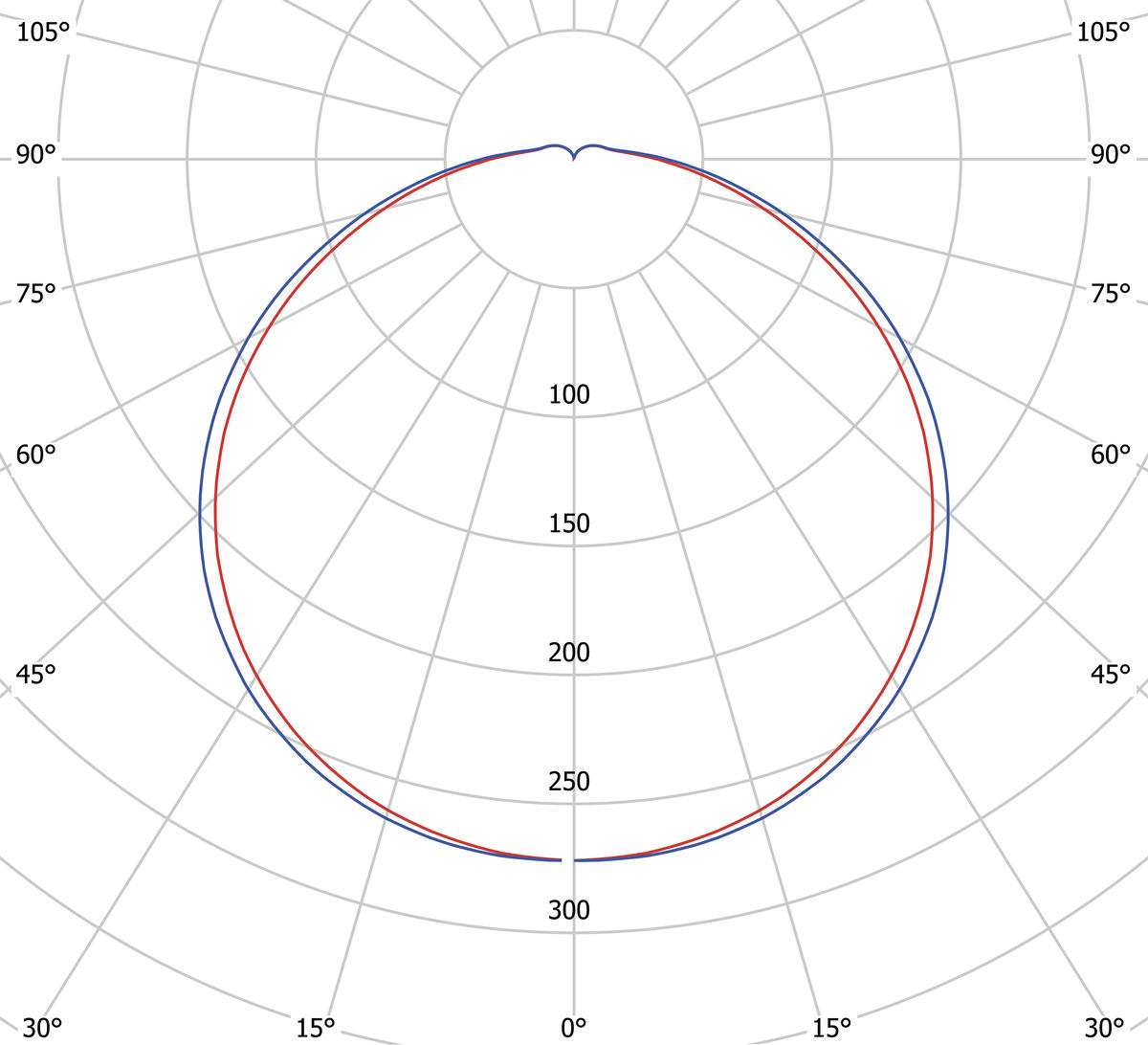

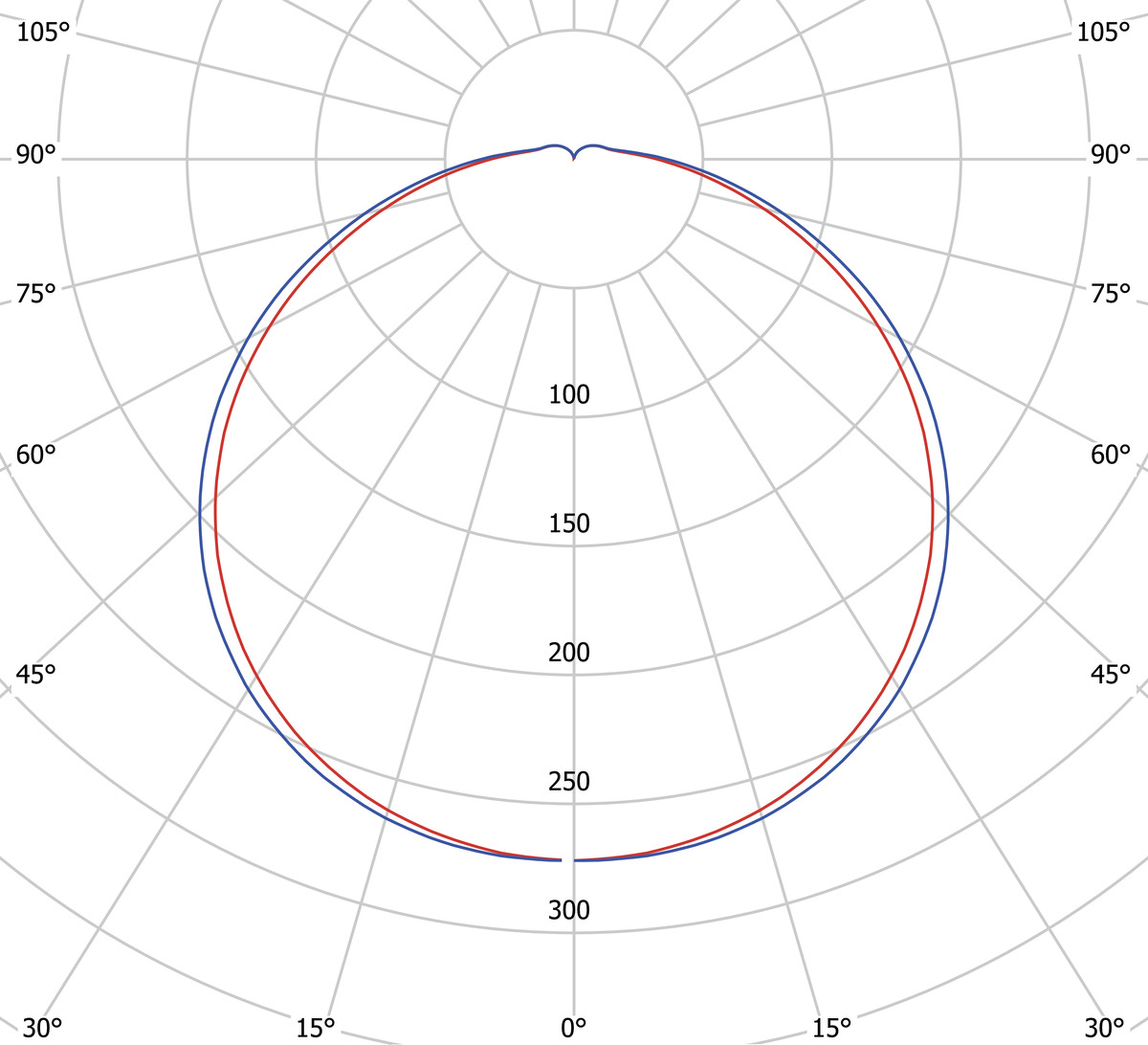

Light Technical Data
Technical data
Operation and Connection
Color and material

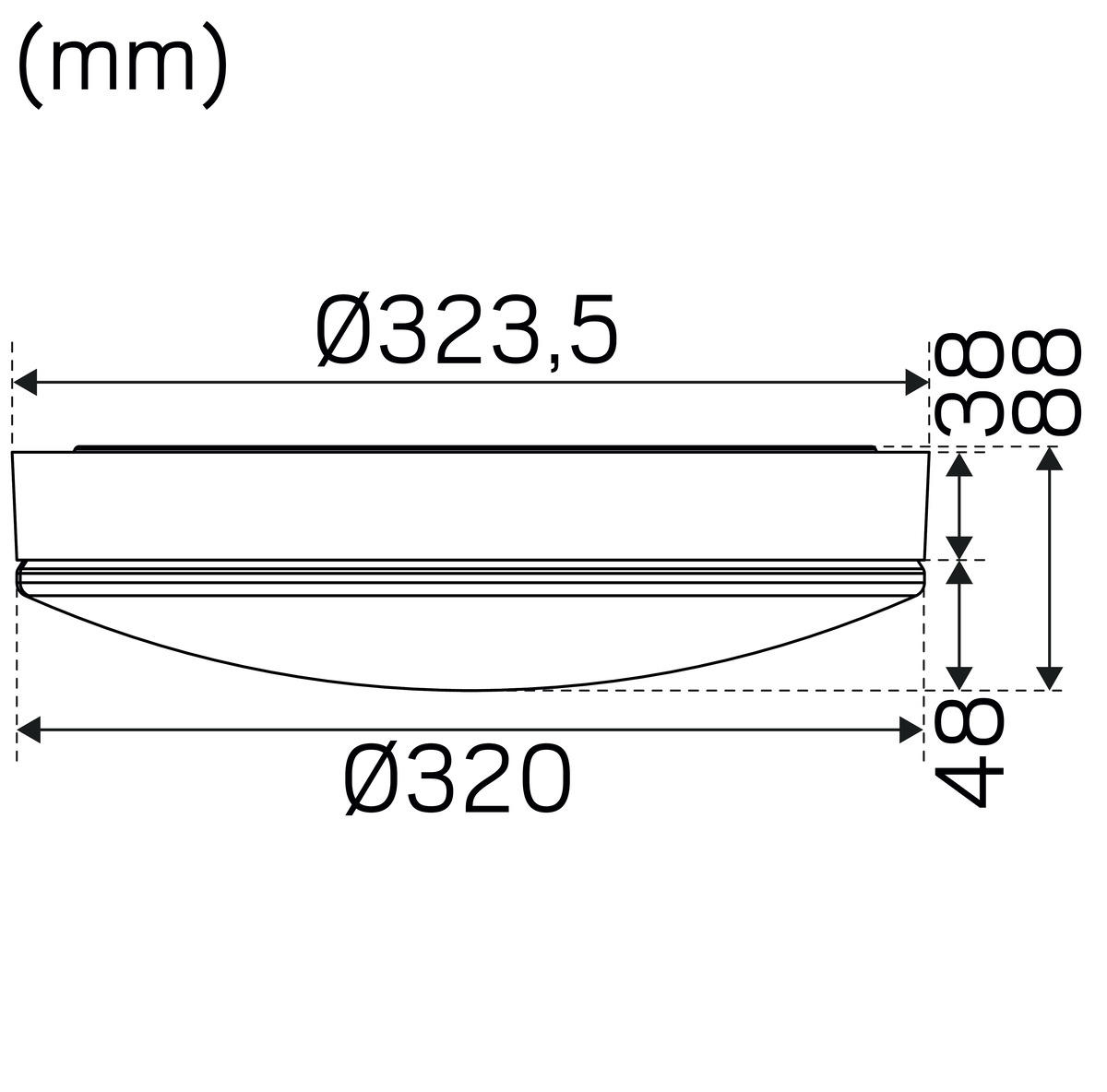

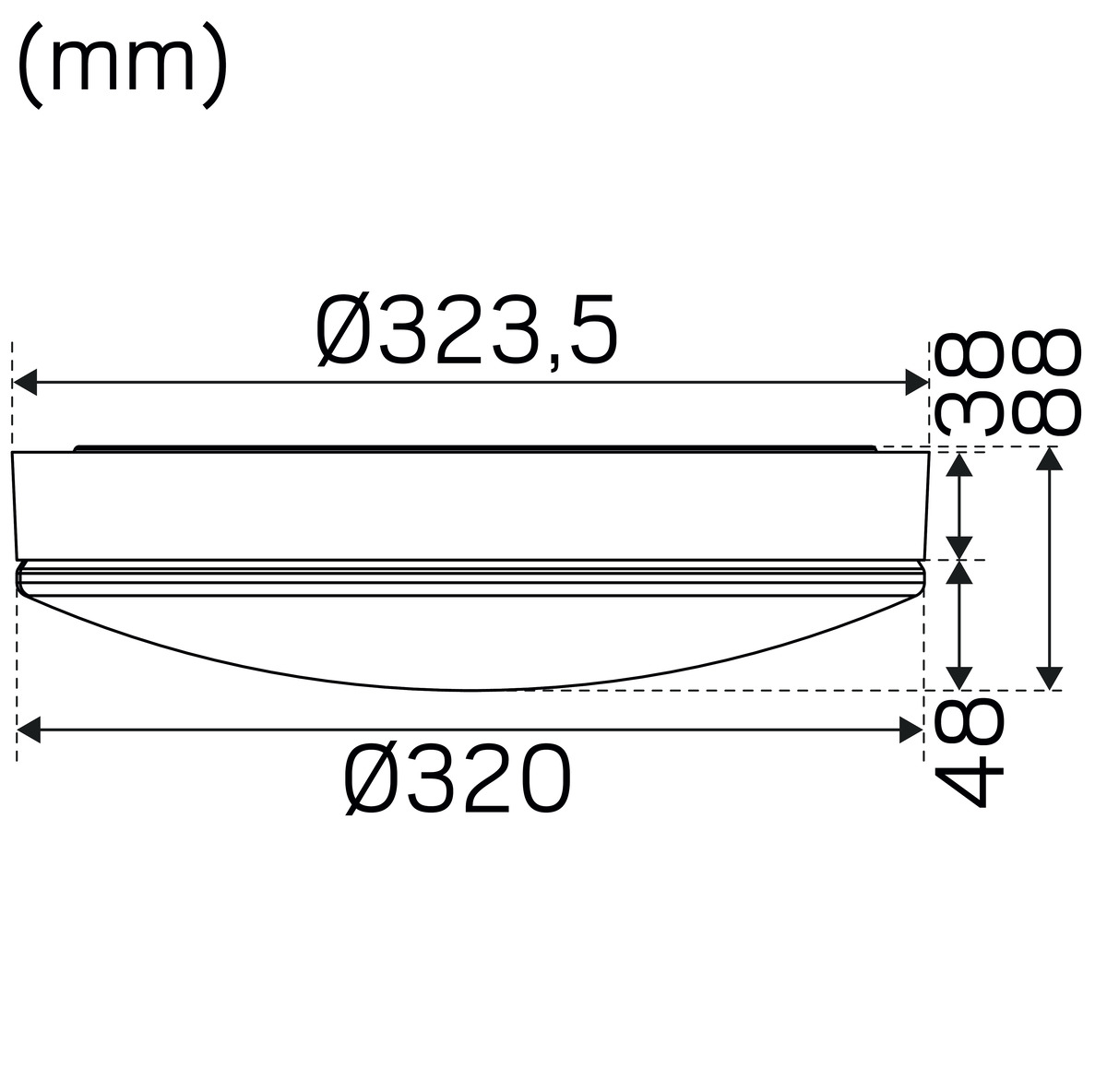

Measurement and installation

Accessories

No accessories for this product.

Spare parts

If you need spare parts, contact our customer support

  • LED-Module Moon Basic 320 X333
  • Cover Moon Basic 320 X273
