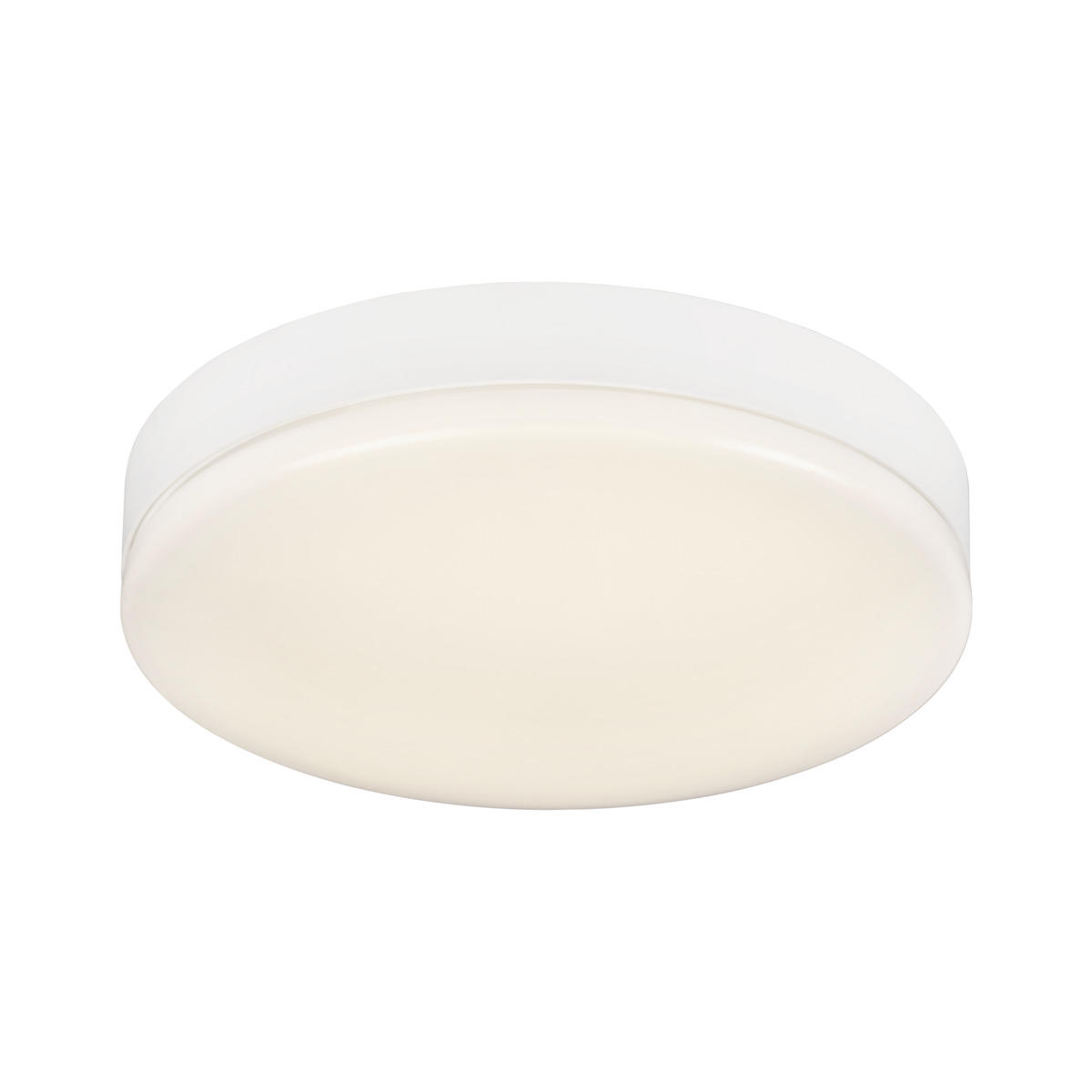

Moon Basic

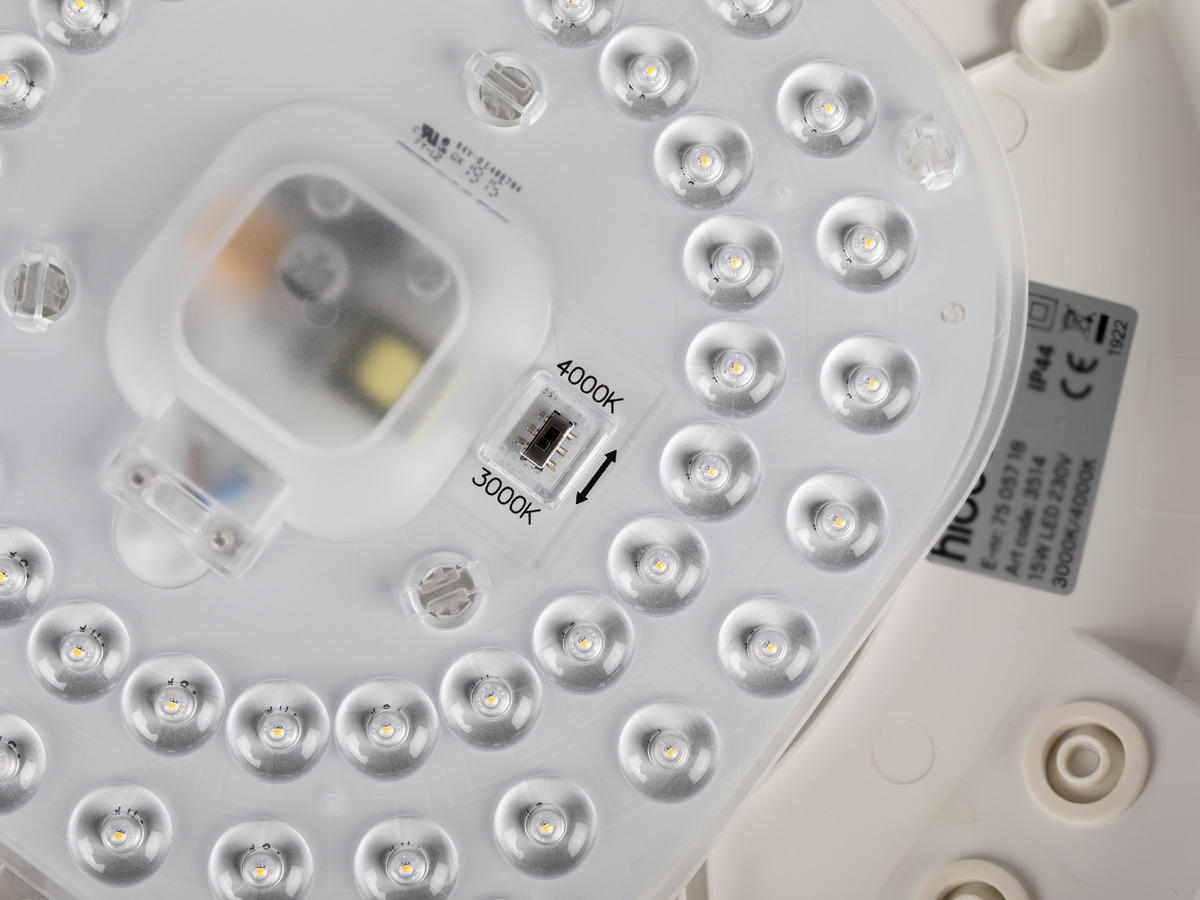

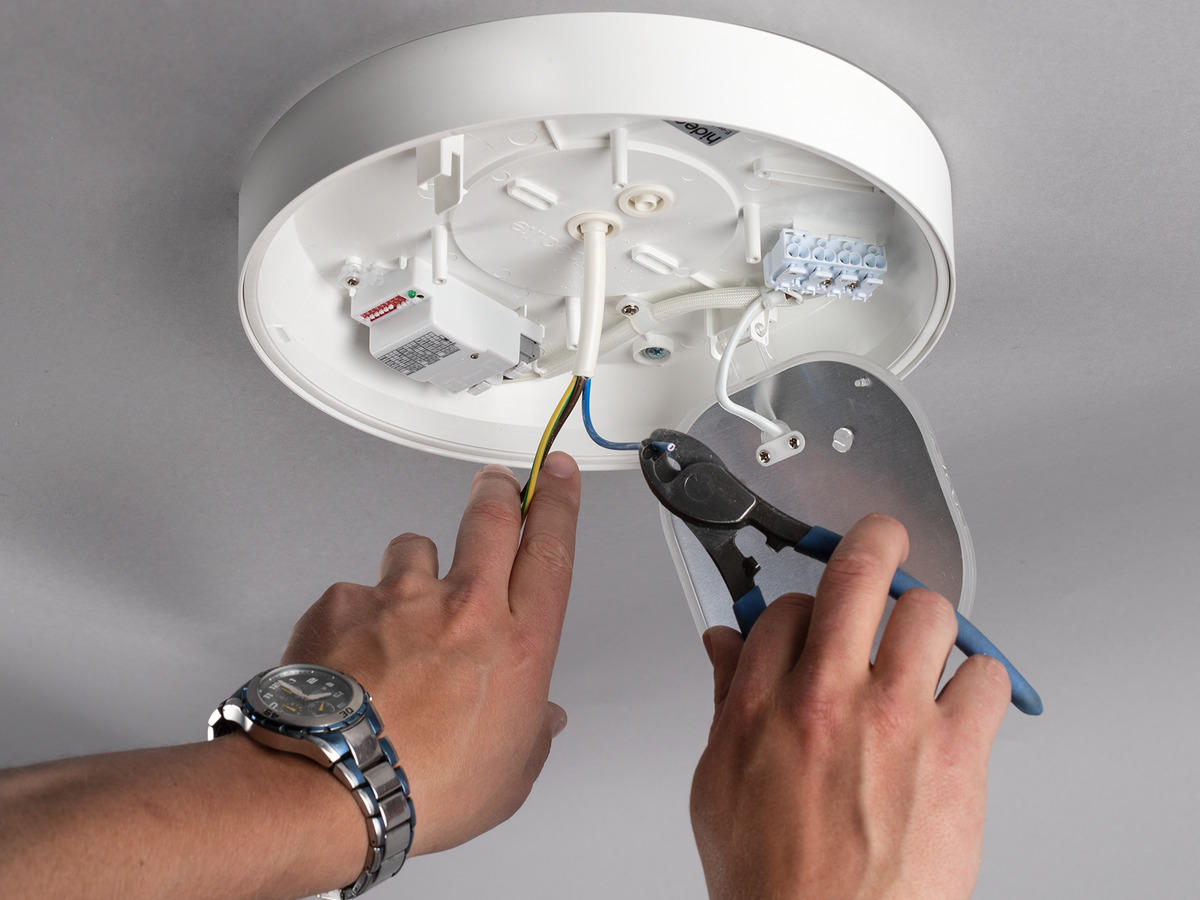

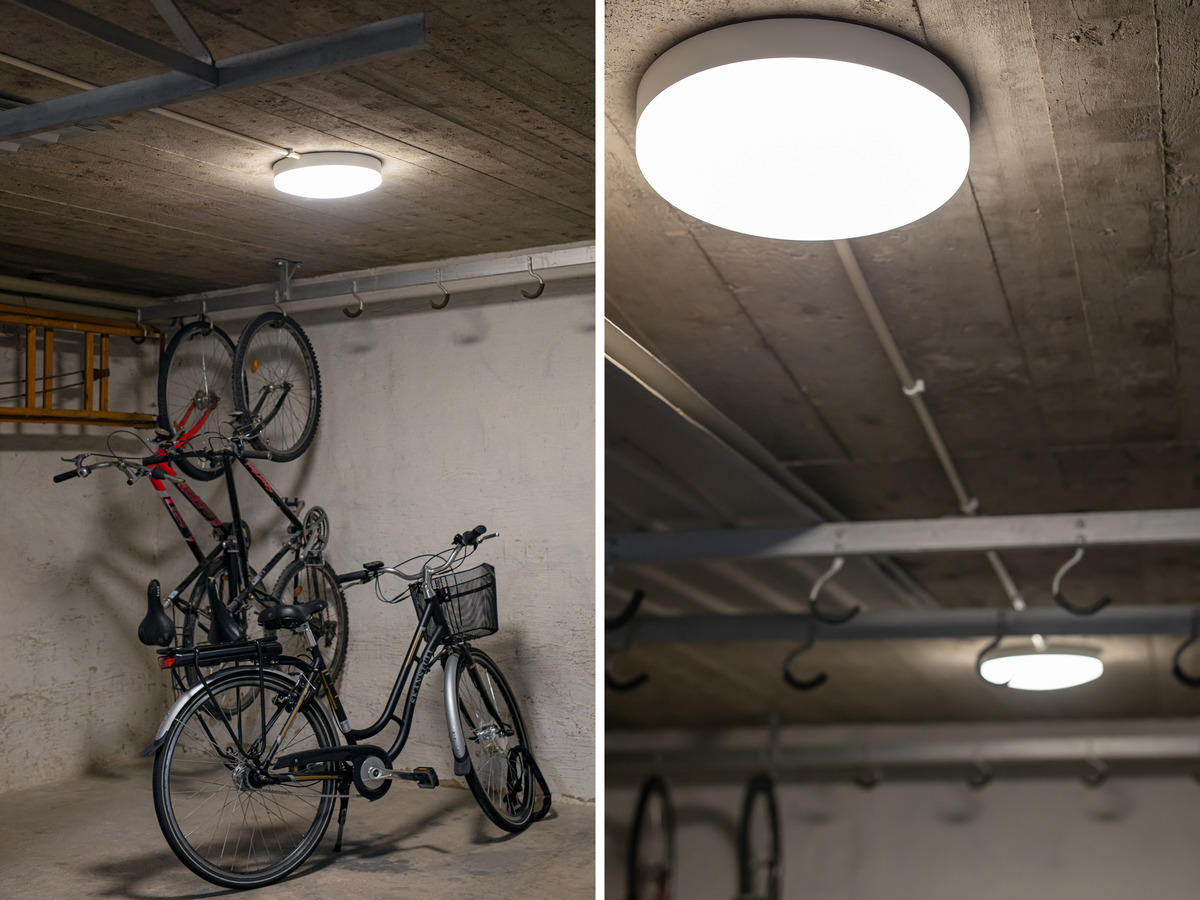

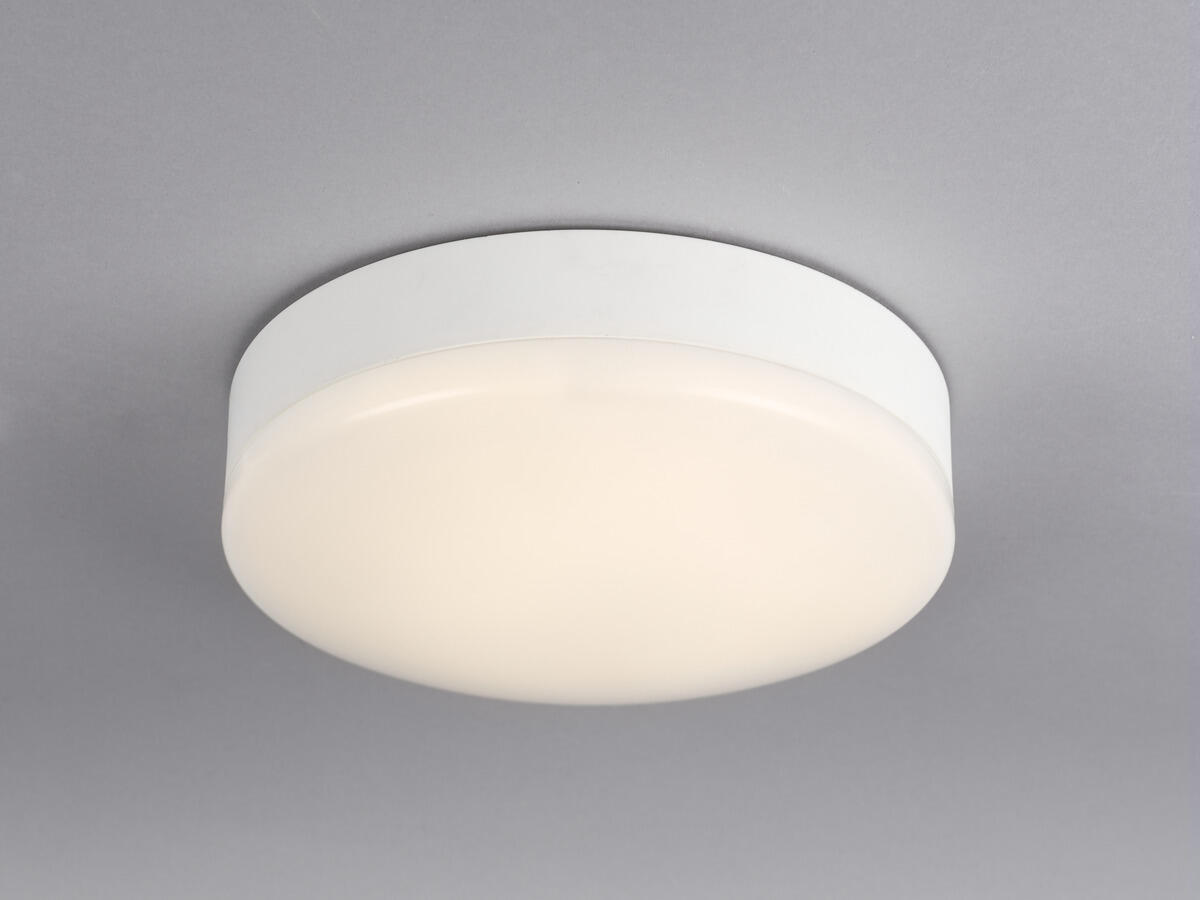

Easily installed base plafond, LED module with integrated driver and selectable colour temperature via DIP switch 3000K or 4000K. Plenty of space in the fitting and possibility for surface-mounted cable routing. For installation flat on the ceiling or wall indoors in private or public environment such as utility rooms, storage rooms and closets. On/Off model with or without sensor. Simple installation, long life time and minimal maintenance make the plafond an economical and environmentally-friendly choice.
Exists in one color


GTIN Item Name Luminaire Lumen (lm) Type of Dimming
Moon Basic 320 S 7392971137520 Moon Basic 320 S 1400 Microwave Sensor
Moon Basic 255 7392971137490 Moon Basic 255 900 OnOff
Moon Basic 320 7392971137506 Moon Basic 320 1400 OnOff
Moon Basic 255 S 7392971137513 Moon Basic 255 S 900 Microwave Sensor
GTIN 7392971137520
Item Name Moon Basic 320 S
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
LED Colour Warm White
Colour Temperature (K) 3000, 4000
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 4

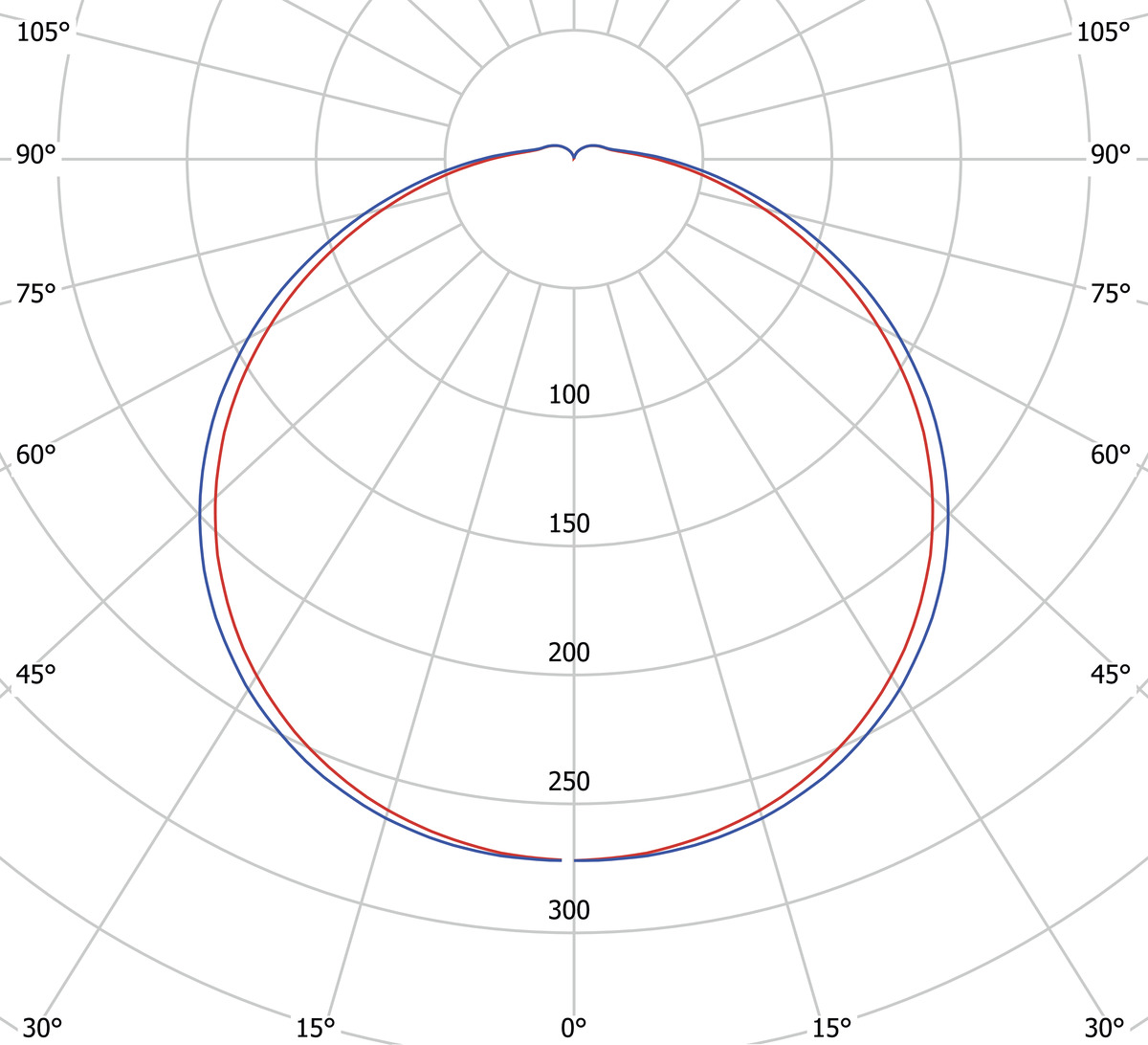

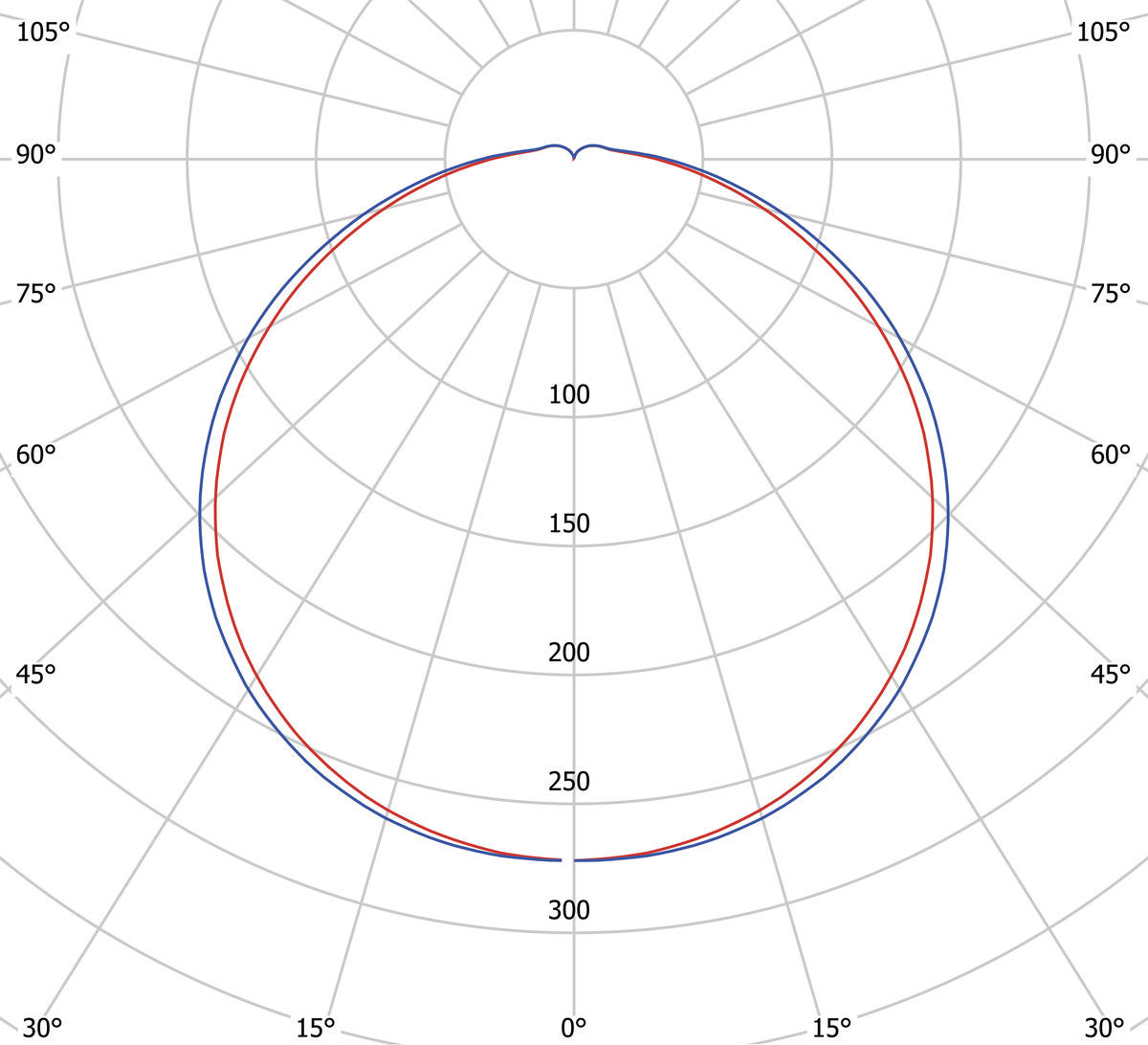

Luminous Intensity (cd) 370
Luminaire Lumen (lm) 1400
Beam Angle (°) 120
Light sharing Symmetric
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 48
Life Time L70 50 000h Ta 25°C
Nominel Life Time (h) 50000
Lumen maintenance 50 000h L72
LLMF @ 50 000h 0,72
Life Time Driver 50 000h/10%
Technical data
Adjustable No
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50, 60
Power LED (W) 13,5
Power Luminaire (W) 16
System Power (W) 16
Efficiency Luminaire (lm/W) 88
Efficiency System (lm/W) 88
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Built-in
Connection (type) Quick Terminal
Connection (mm2) 4x0,5-2,5
Through Wiring Yes
Strain Relief Yes
Efficiency (%) 84
Standby Power 1
Operating Temperature -20…+40
Max. Tc (°C) 85
Dimmable No
Type of Dimming Microwave Sensor
Protection Against Short Circuit, Overheating 120°C, Overload
Fuse B10 (pcs) 23
Fuse B16 (pcs) 35
Fuse C10 (pcs) 28
Fuse C16 (pcs) 45
Color and material
Material Plastic
Color White
Environmental Assessment Byggvarubedömningen
Measurement and installation
Operating Environment Indoor / wet locations
IP Degree of Protection 44
Protection Class II
Installation Surface mounted
Mounting Installation Screw Mounting
Approval Marks CE
Impact Strength IK06
Filament Test IEC 695-2-1(°C) 650

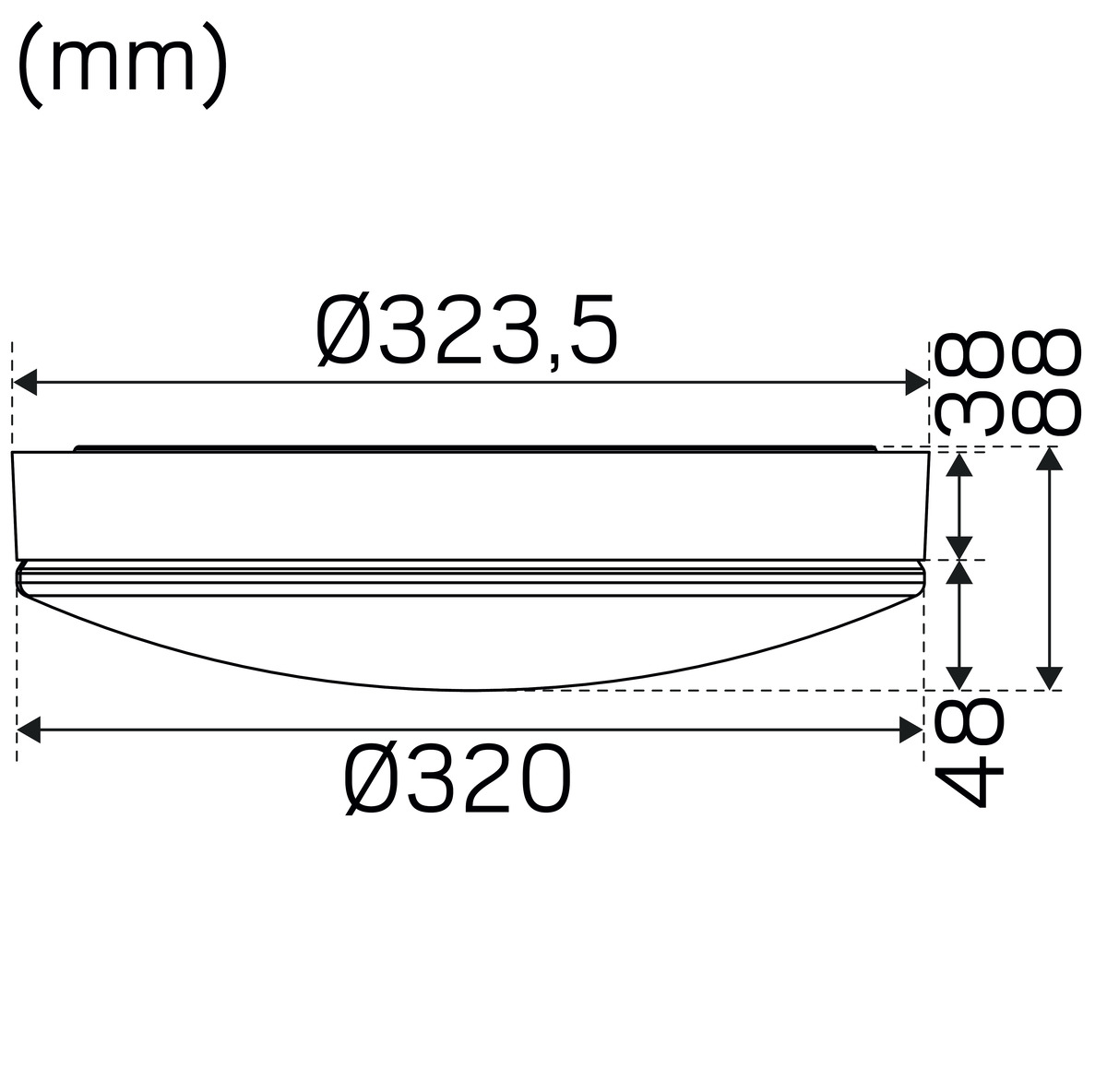

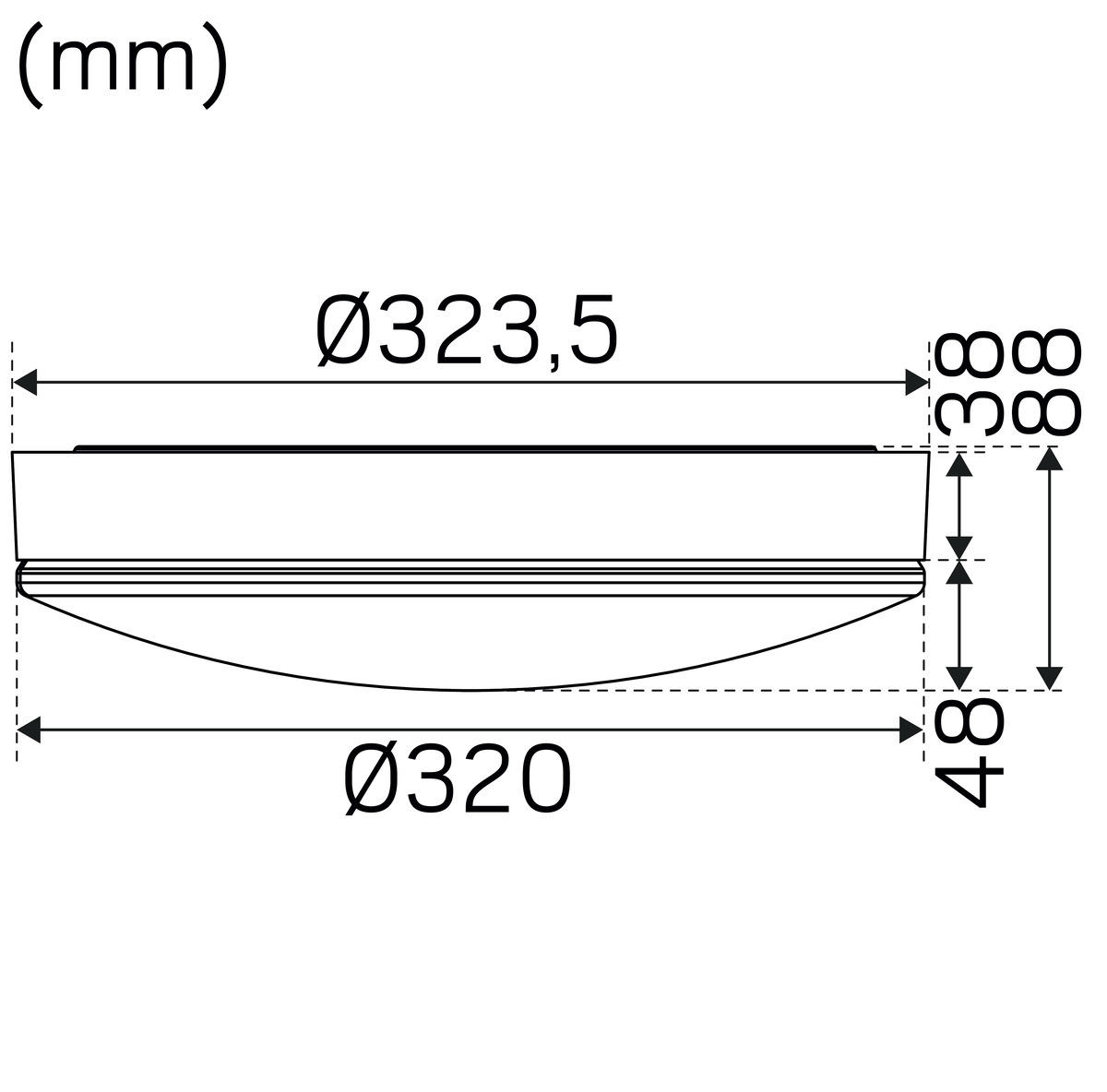

Height (mm) 89
Diameter (mm) 324
Weight (kg) 0,82
