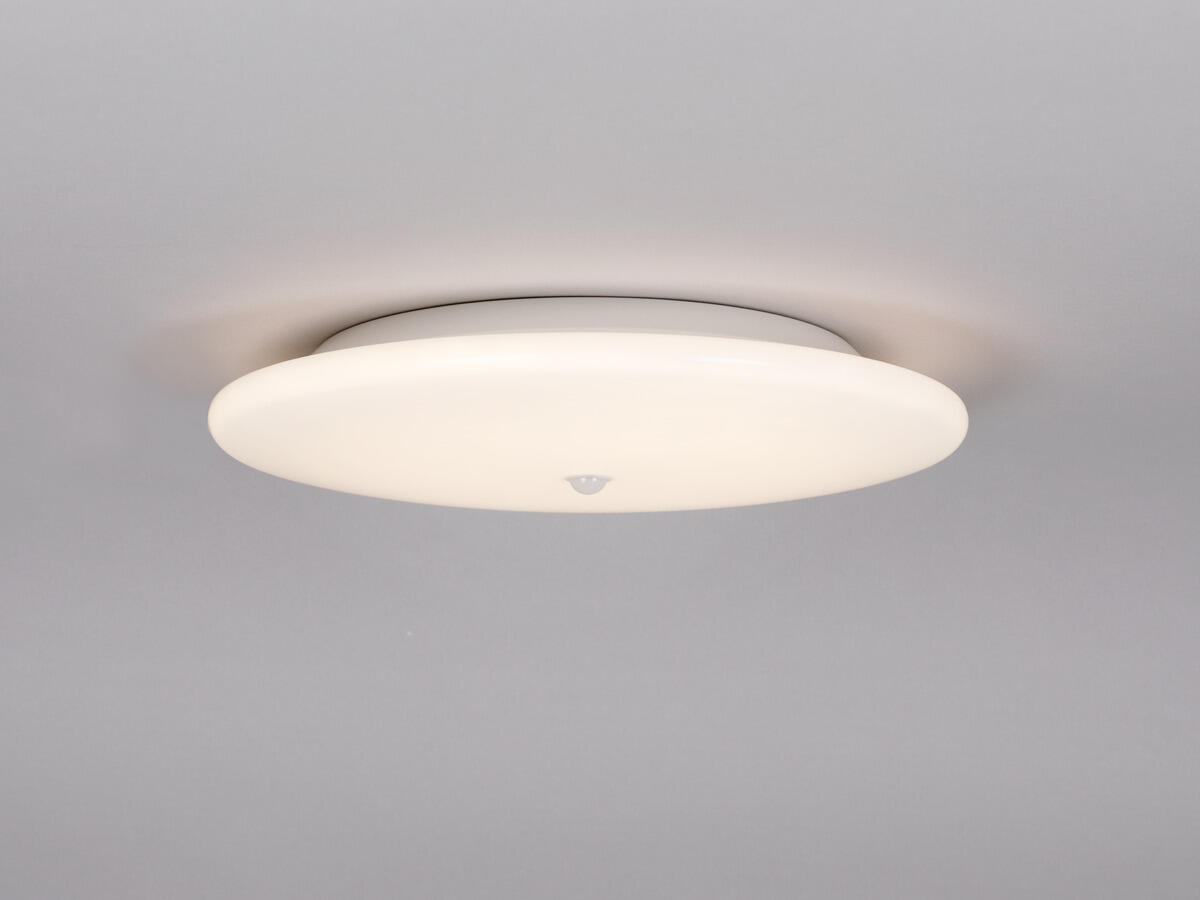

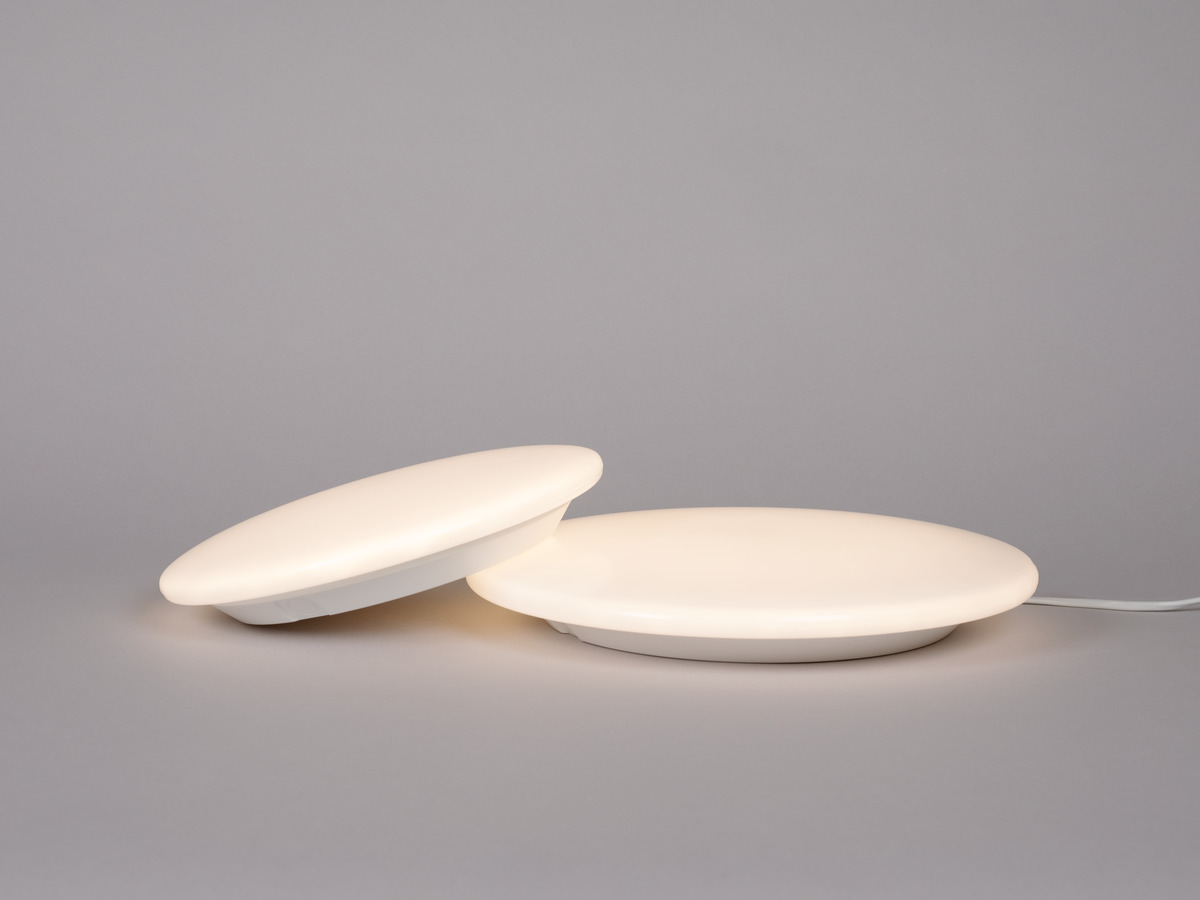

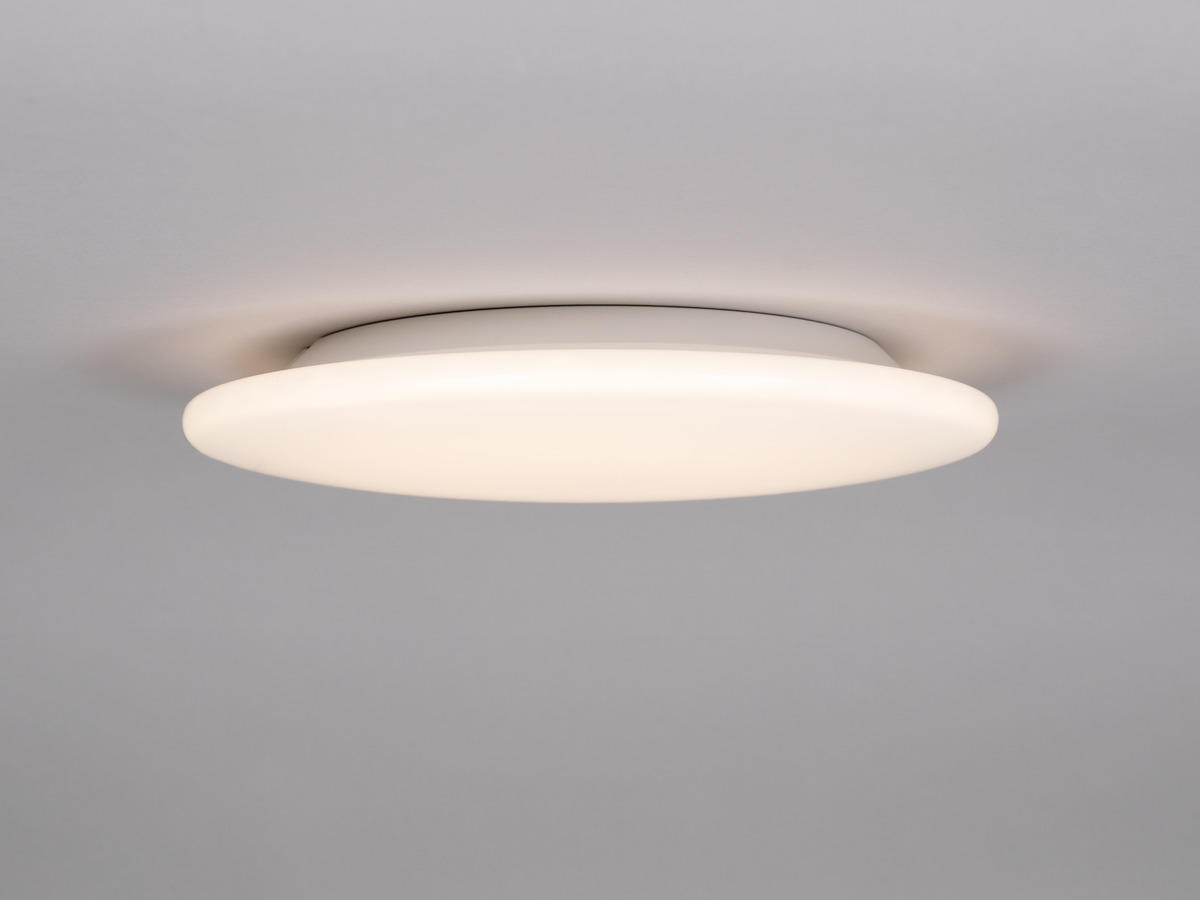

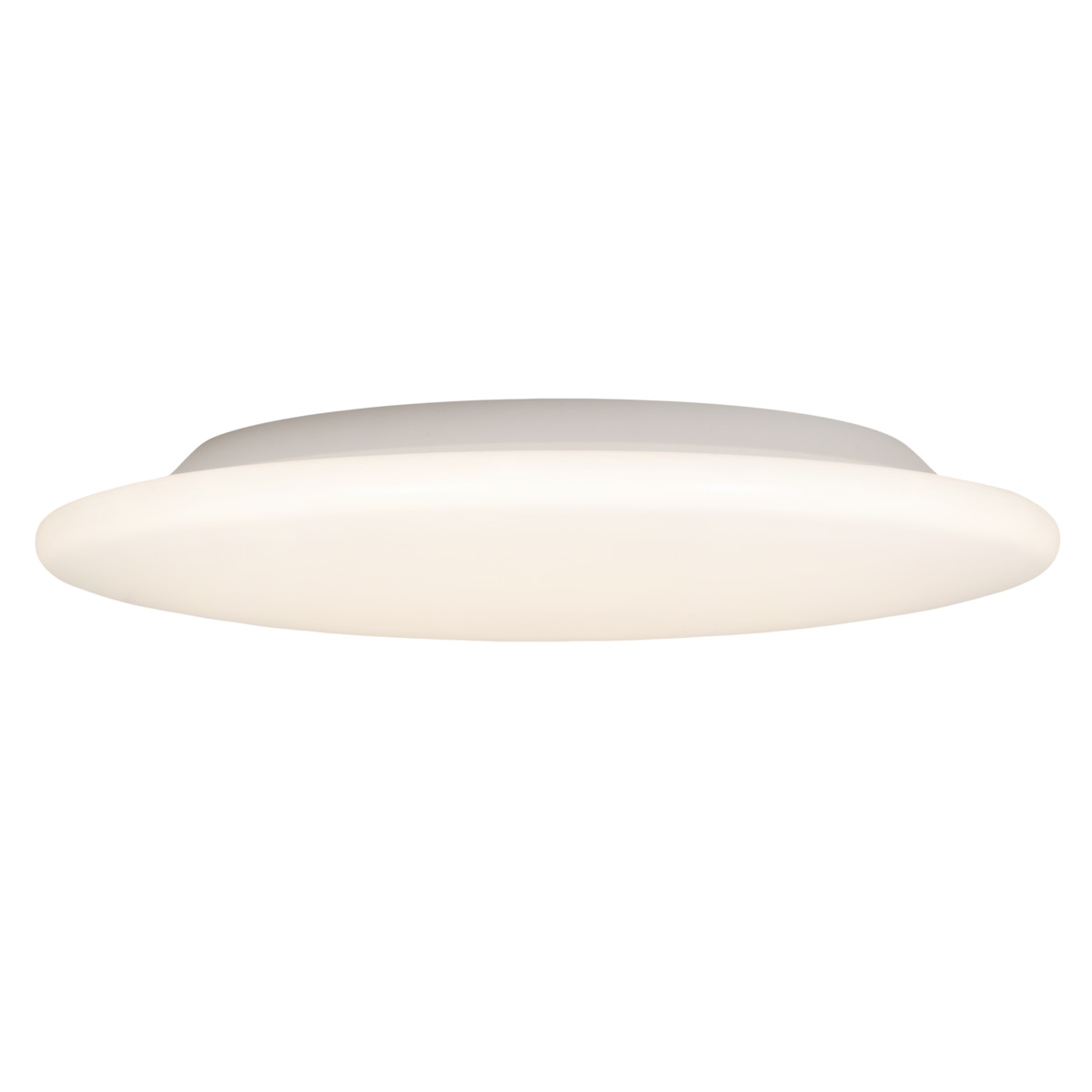

Moon Slim

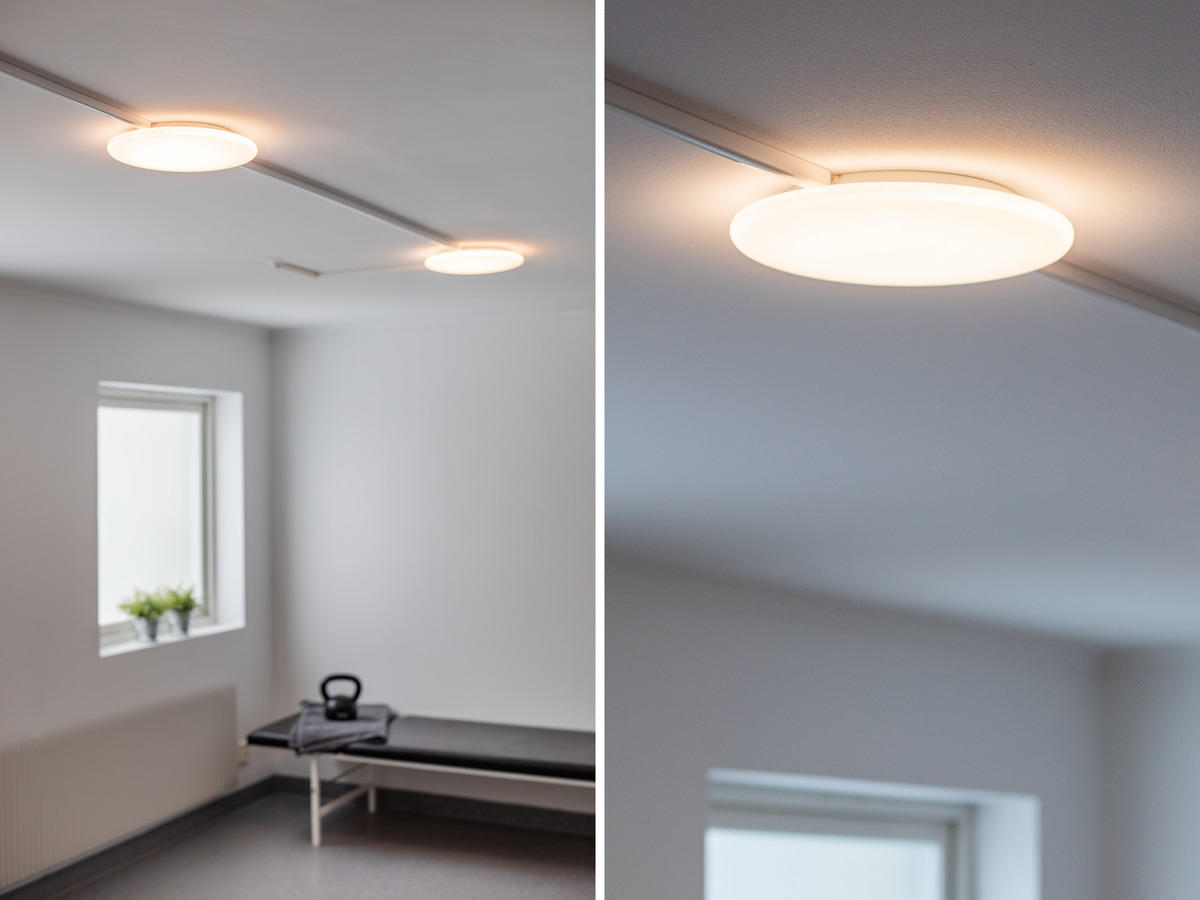

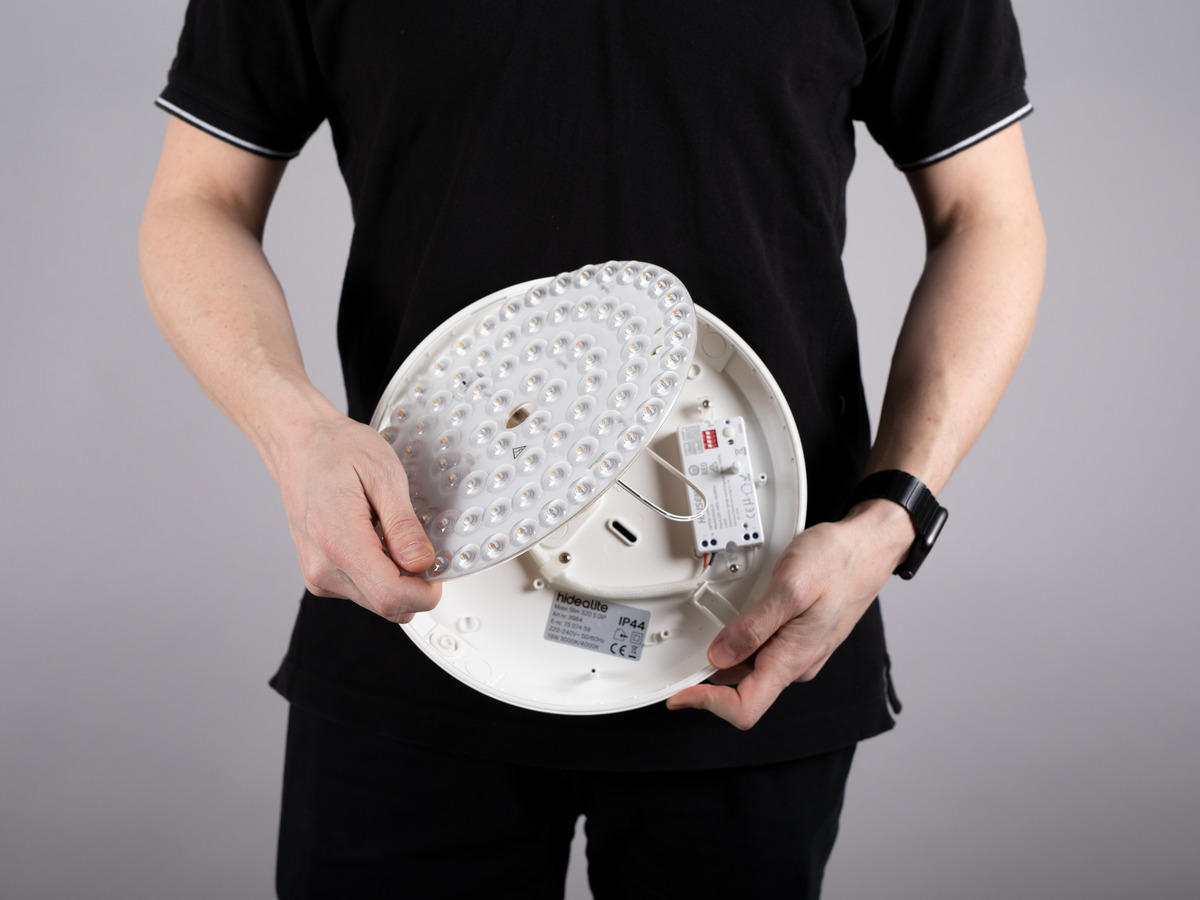

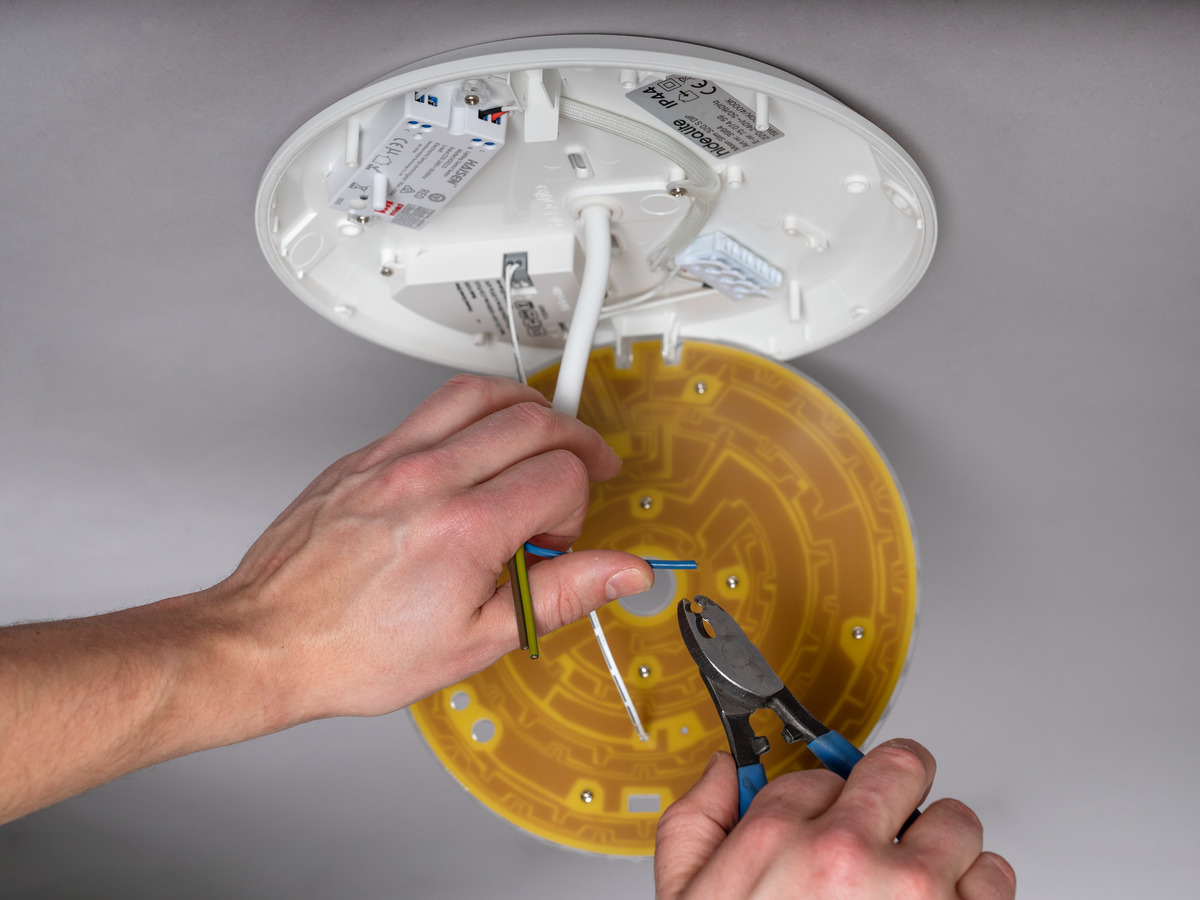

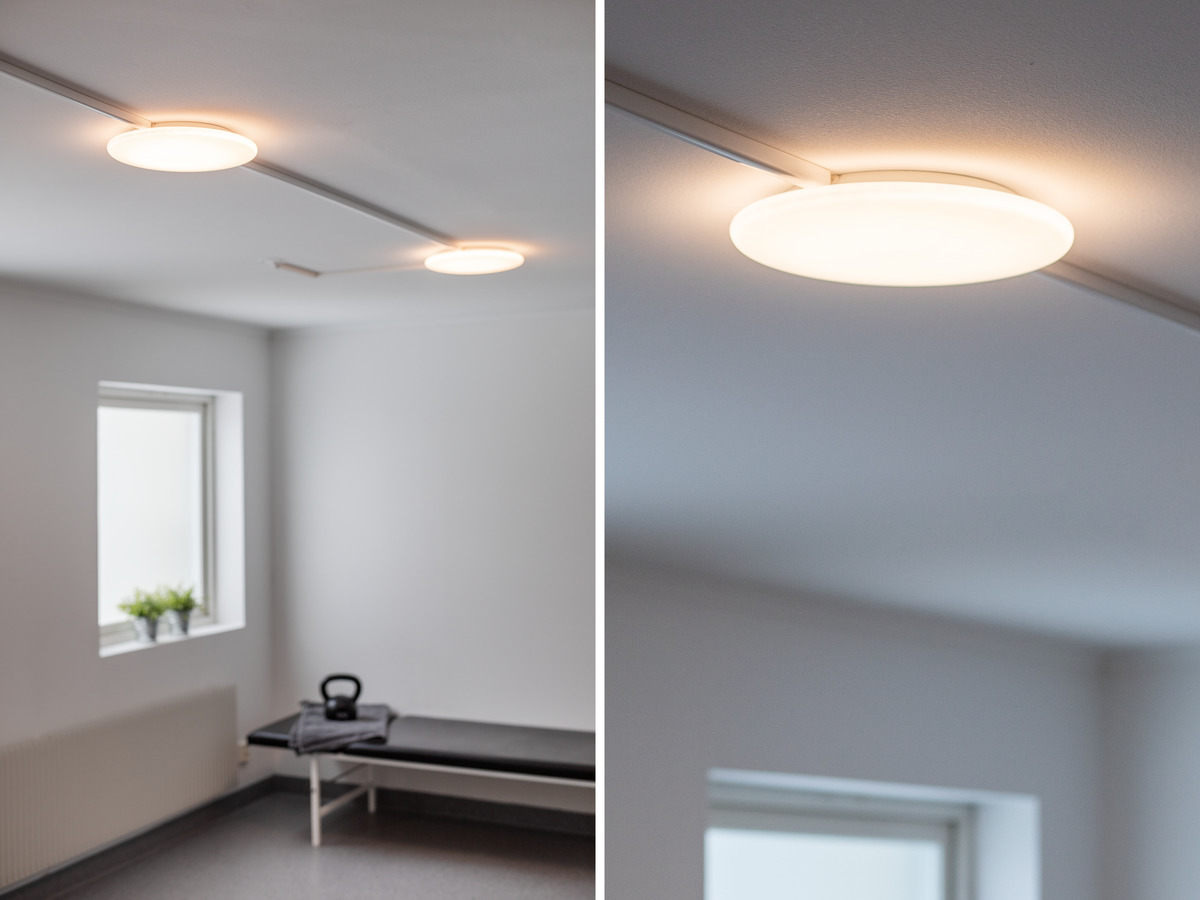

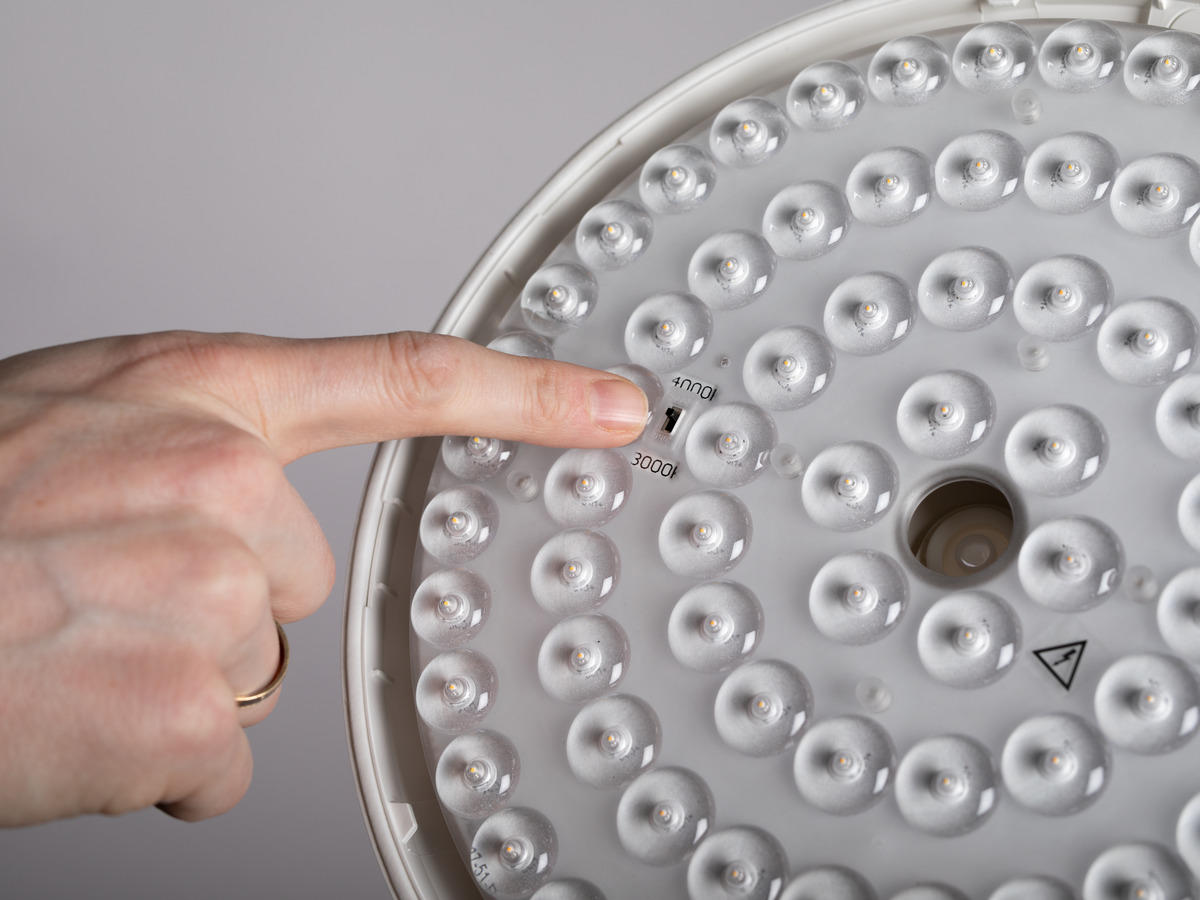

Low-build LED Plafond in slim design with a pleasant uplight that evens out contrasts towards the ceiling or wall. Selectable colour temperature via DIP-Switch ColourTemp 3000K or 4000K. Easily installed IP44 luminaire with long lifetime and high lumen output, comes complete with built-in driver; choose between many different control alternatives; also available with emergency lighting operation. Comes with screw holes that fit over a ceiling box, two entrances at the bottom, one of which is centred. Cable bushings for surface-mounted cable routing from two sides.
Exists in one color

Variants

GTIN Item Name Luminaire Lumen (lm) Type of Dimming
Moon Slim 320 7392971141251 Moon Slim 320 1700 Trailing Edge, Leading Edge
Moon Slim 255 7392971141244 Moon Slim 255 1180 Trailing Edge, Leading Edge
Moon Slim S 255 7392971141268 Moon Slim S 255 1180 Microwave Sensor
Moon Slim S 320 7392971141275 Moon Slim S 320 1700 Microwave Sensor
Moon Slim 380 7392971145303 Moon Slim 380 2300 Trailing Edge, Leading Edge
Moon Slim S 380 7392971145310 Moon Slim S 380 2300 Microwave Sensor
Moon Slim SC 320 7392971145327 Moon Slim SC 320 1750 Microwave Sensor
Moon Slim SC 380 7392971145334 Moon Slim SC 380 2300 Microwave Sensor
Moon Slim Bluetooth 320 7392971145341 Moon Slim Bluetooth 320 1750 Bluetooth, Push 230V, Microwave Sensor
Moon Slim Bluetooth 380 7392971145358 Moon Slim Bluetooth 380 2300 Bluetooth, Push 230V, Microwave Sensor
Moon Slim DALI 320 7392971145365 Moon Slim DALI 320 1750 Push 230V, DALI 2
Moon Slim DALI 380 7392971145372 Moon Slim DALI 380 2300 Push 230V, DALI 2
Moon Slim EM 380 7392971145556 Moon Slim EM 380 2300 Trailing Edge, Leading Edge
Moon Slim S EM 380 7392971145563 Moon Slim S EM 380 2300 Microwave Sensor
Moon Slim SC EM 320 7392971145570 Moon Slim SC EM 320 1750 Microwave Sensor
Moon Slim SC EM 380 7392971145587 Moon Slim SC EM 380 2300 Microwave Sensor
Moon Slim Bluetooth EM 320 7392971145594 Moon Slim Bluetooth EM 320 1750 Bluetooth, Push 230V, Microwave Sensor
Moon Slim Bluetooth EM 380 7392971145600 Moon Slim Bluetooth EM 380 2300 Bluetooth, Push 230V, Microwave Sensor
Moon Slim DALI EM 320 7392971145617 Moon Slim DALI EM 320 1750 Push 230V, DALI 2
Moon Slim DALI EM 380 7392971145624 Moon Slim DALI EM 380 2300 Push 230V, DALI 2
Description
GTIN 7392971141251
Item Name Moon Slim 320
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
LED Colour White
Colour Temperature (K) 3000, 4000
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 3
Initial Chromaticity 3000K:(0.43,0.40) 4000K:(0.38,0.38)
Luminous Intensity (cd) 480
Luminaire Lumen (lm) 1700

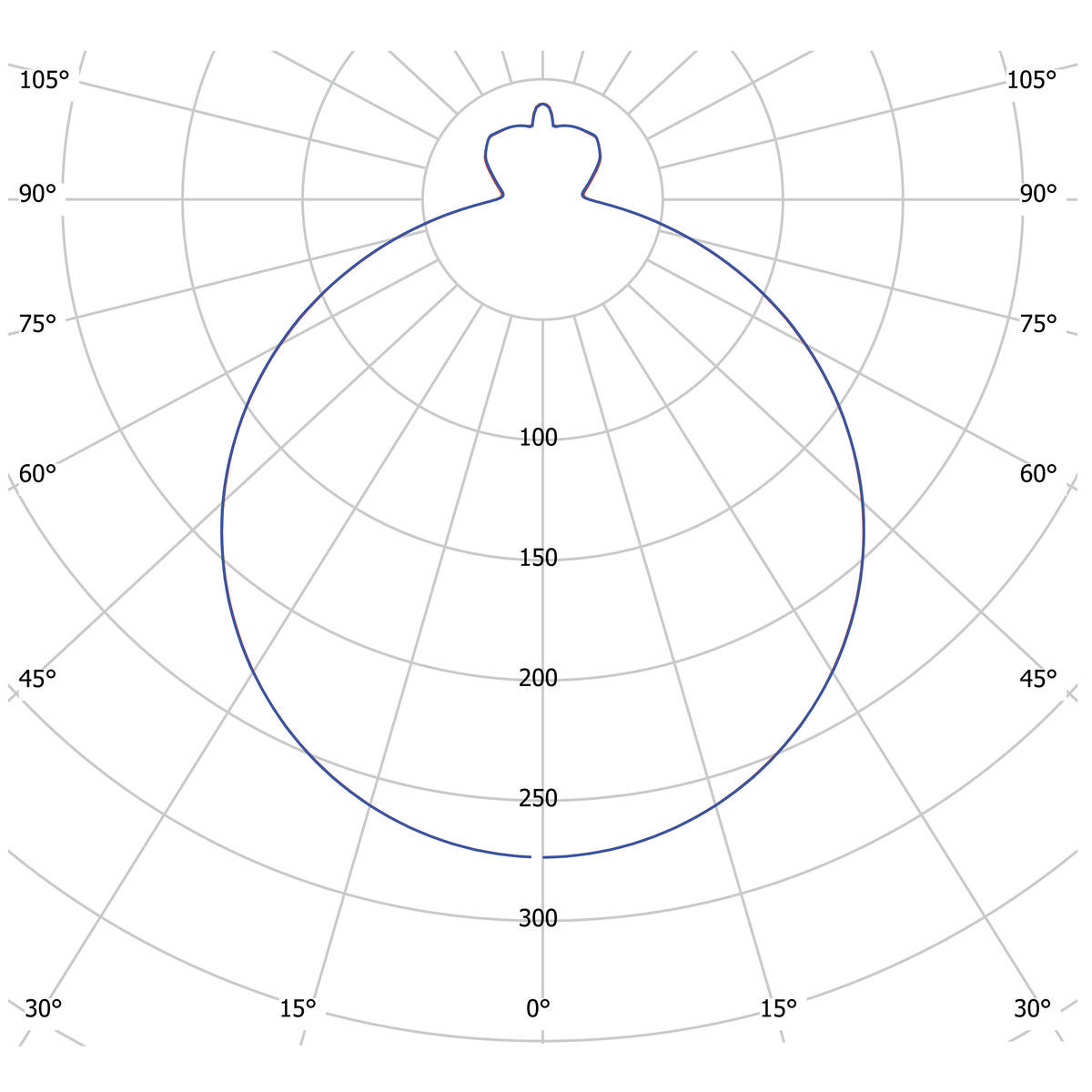

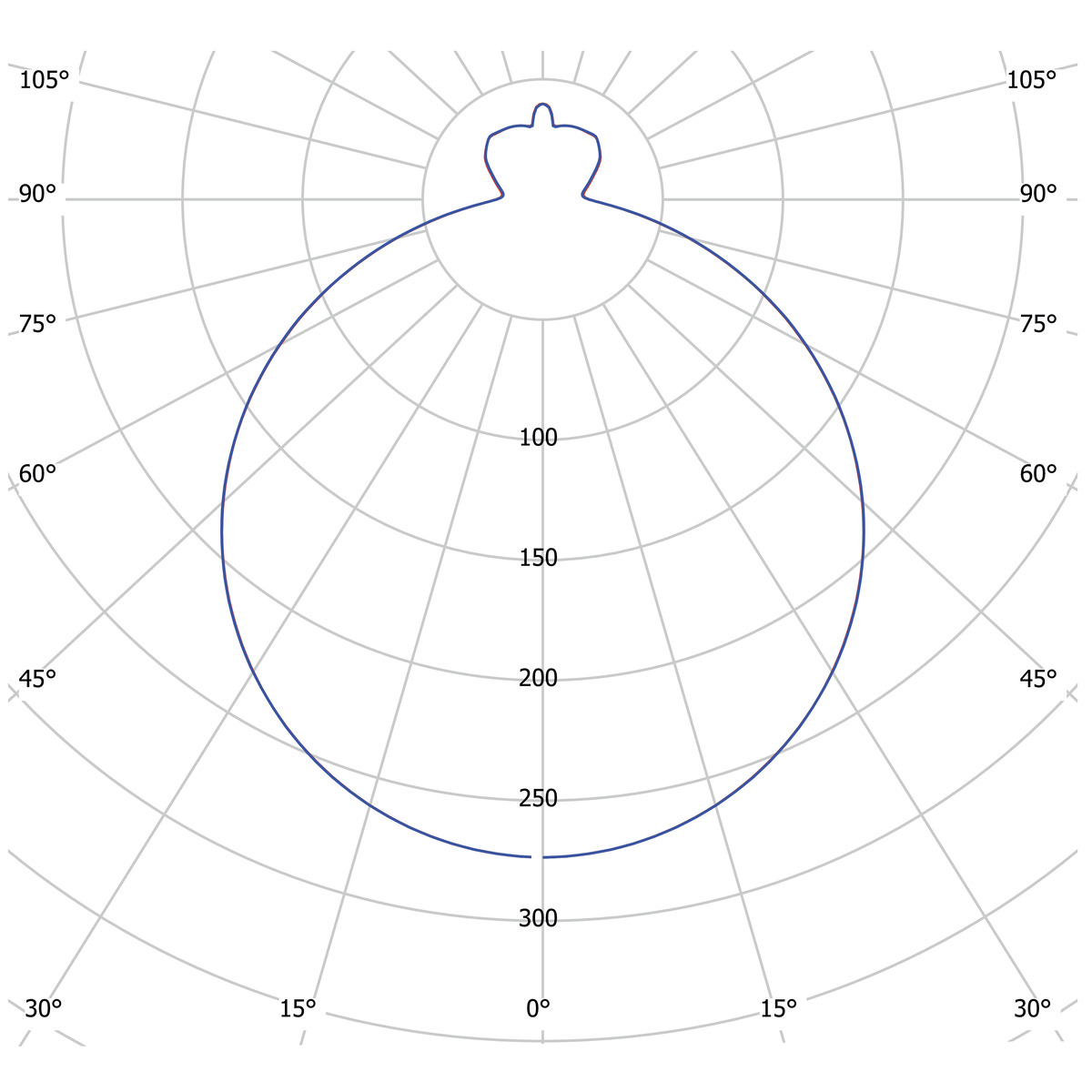

Beam Angle (°) 120
Light sharing
Light Outlet Direct, Indirect
Number of Lamps (pcs) 1
Number of LED (pcs) 84
Life Time L80 100 000h Ta 25°C
Nominel Life Time (h) 100000
Lumen maintenance 50 000h L90
Lumen maintenance 75 000h L86
Lumen maintenance 100 000h L82
LLMF @ 50 000h 0,9
LLMF @ 100 000h 0,82
Life Time Driver 50 000h/10%
Technical data
Adjustable No
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50
Power LED (W) 14,5
Power Luminaire (W) 17
System Power (W) 17
Efficiency Luminaire (lm/W) 100
Efficiency System (lm/W) 100
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Built-in
Driver Manufacturer Hide-a-lite
Connection (type) Quick Terminal
Connection (mm2) 3x0,5-2,5
Through Wiring Yes
Strain Relief Yes
Power Factor ʎ 0,8
Efficiency (%) 86
Power loss (W) 2,5
Leakage current (mA) (at 230 V, 50 Hz, full load) 0,0073
Constant Current (mA) 300
Operating Temperature -20…+40
Max. Tc (°C) 95
Dimmable Yes
Type of Dimming Trailing Edge, Leading Edge
Dimming secondary side AM
Inrush current (max/time) 11,5A 38µs
Mains surge protection DM (kV) 0,5
Fuse B10 (pcs) 69
Fuse B16 (pcs) 111
Fuse C10 (pcs) 69
Fuse C16 (pcs) 111
Color and material
Material Plastic
Color White
Environmental Assessment SundaHus, Byggvarubedömningen
Measurement and installation
Operating Environment Indoor / wet locations
IP Degree of Protection 44
Protection Class II
Installation Surface mounted
Mounting Installation Screw Mounting
Approval Marks CE
Filament Test IEC 695-2-1(°C) 650

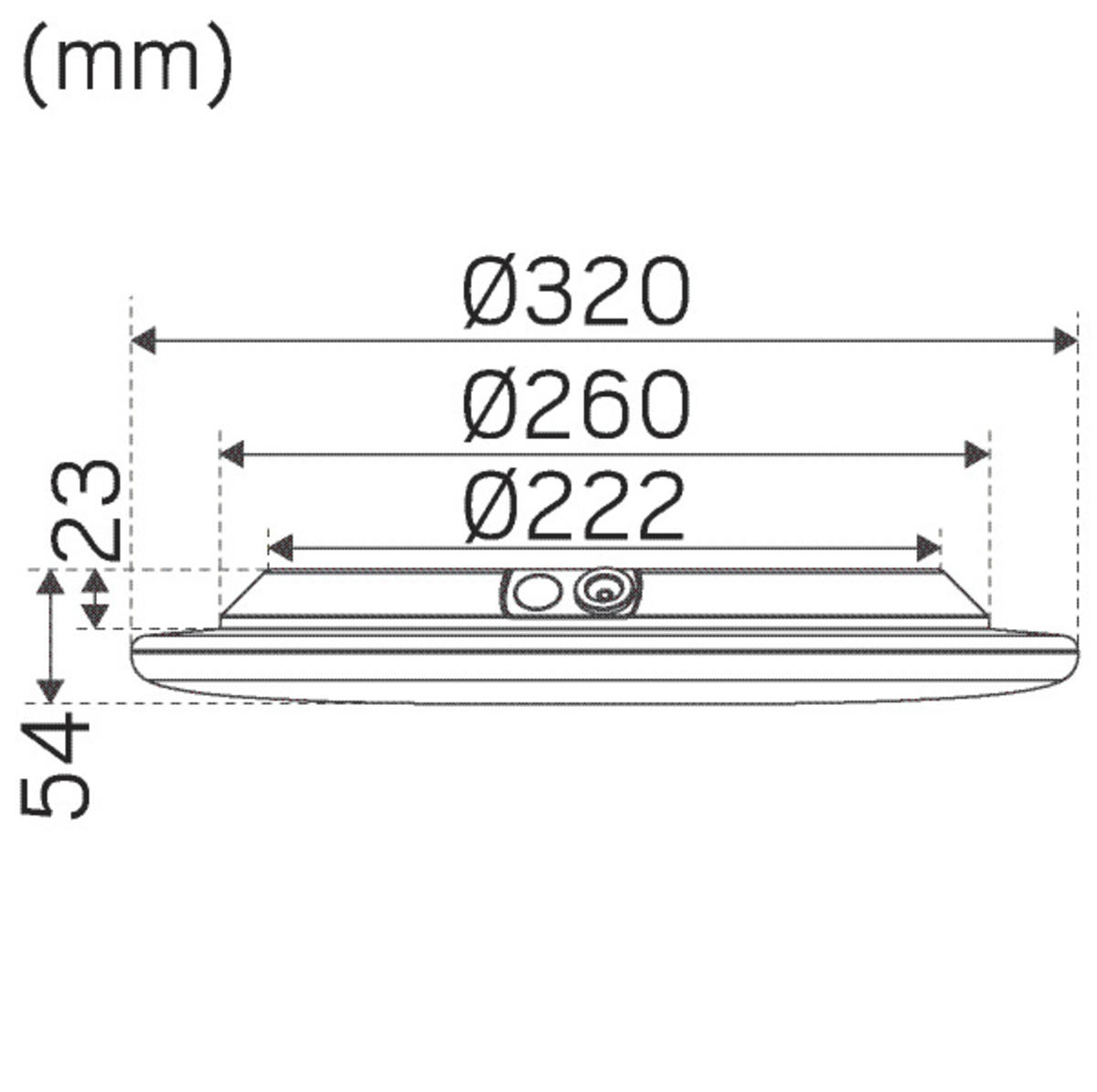

Height (mm) 54
Diameter (mm) 320
Weight (kg) 0,74
