Heatwall

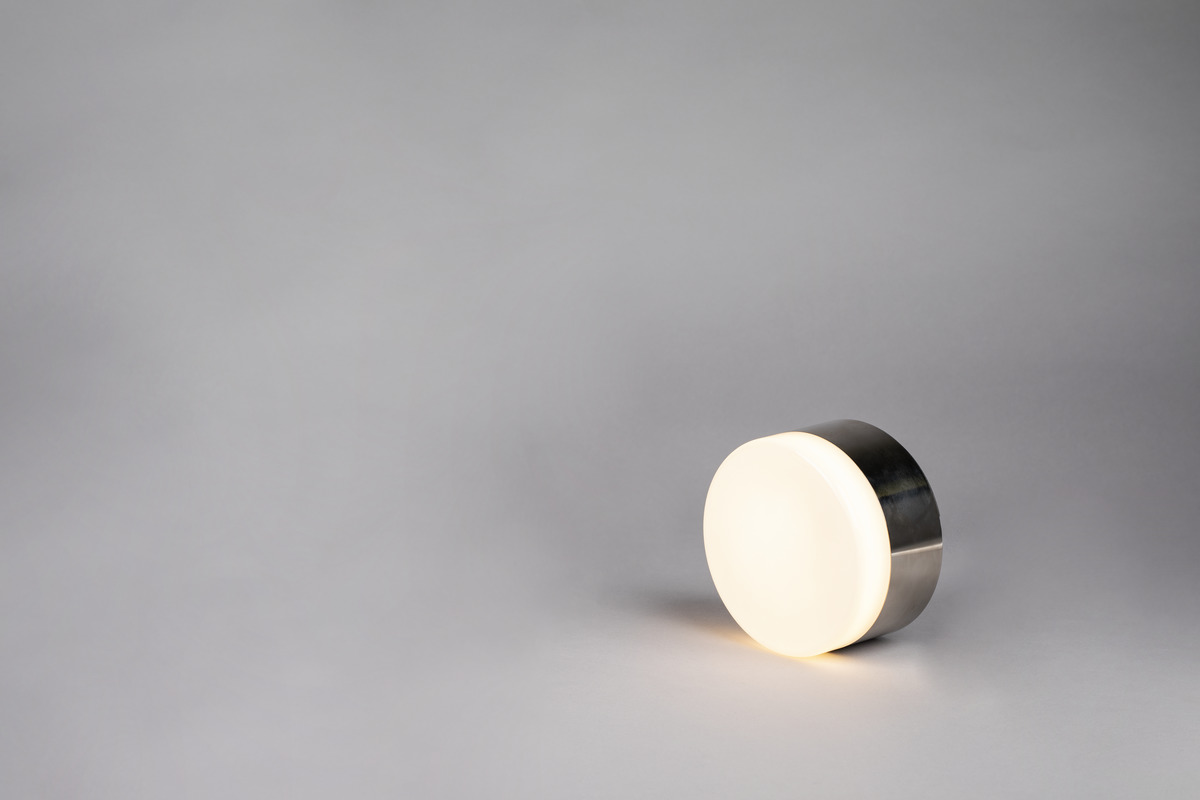

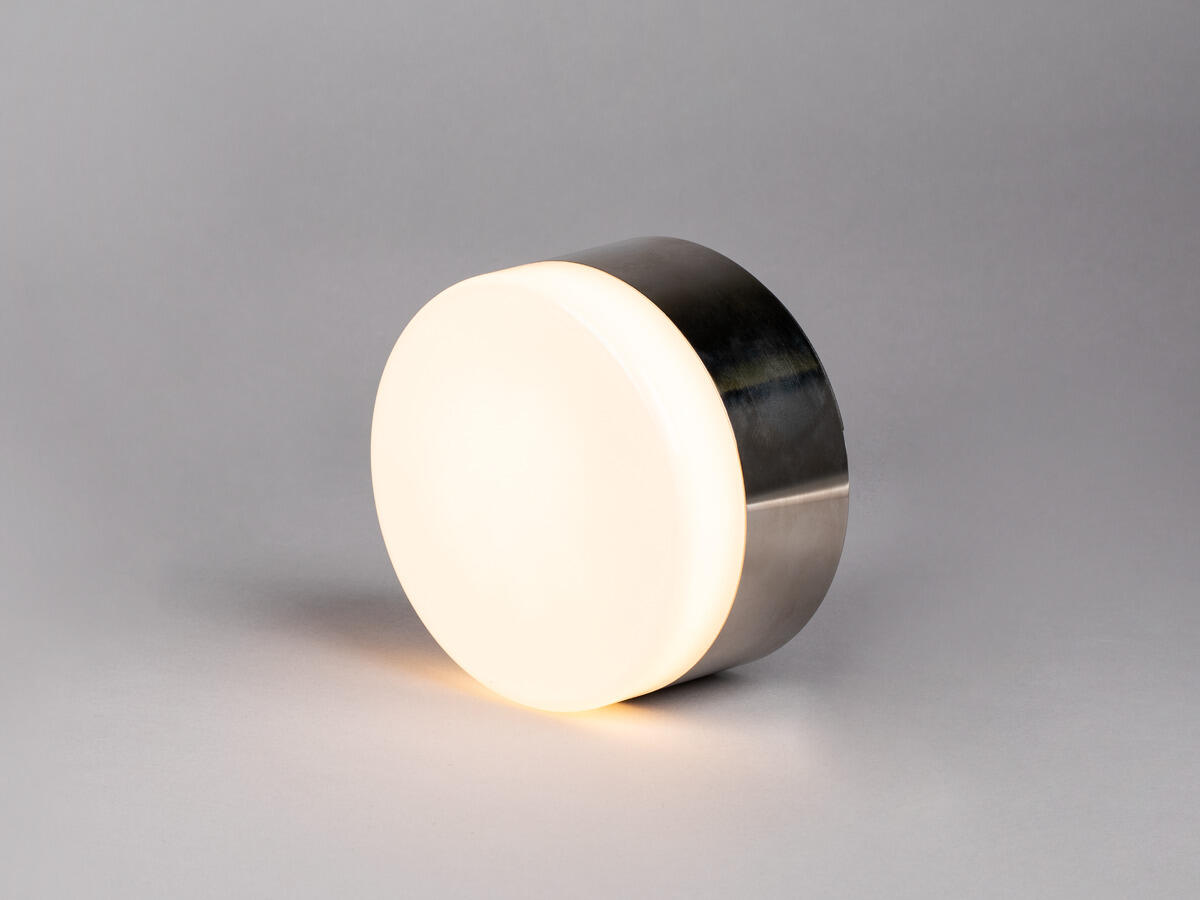

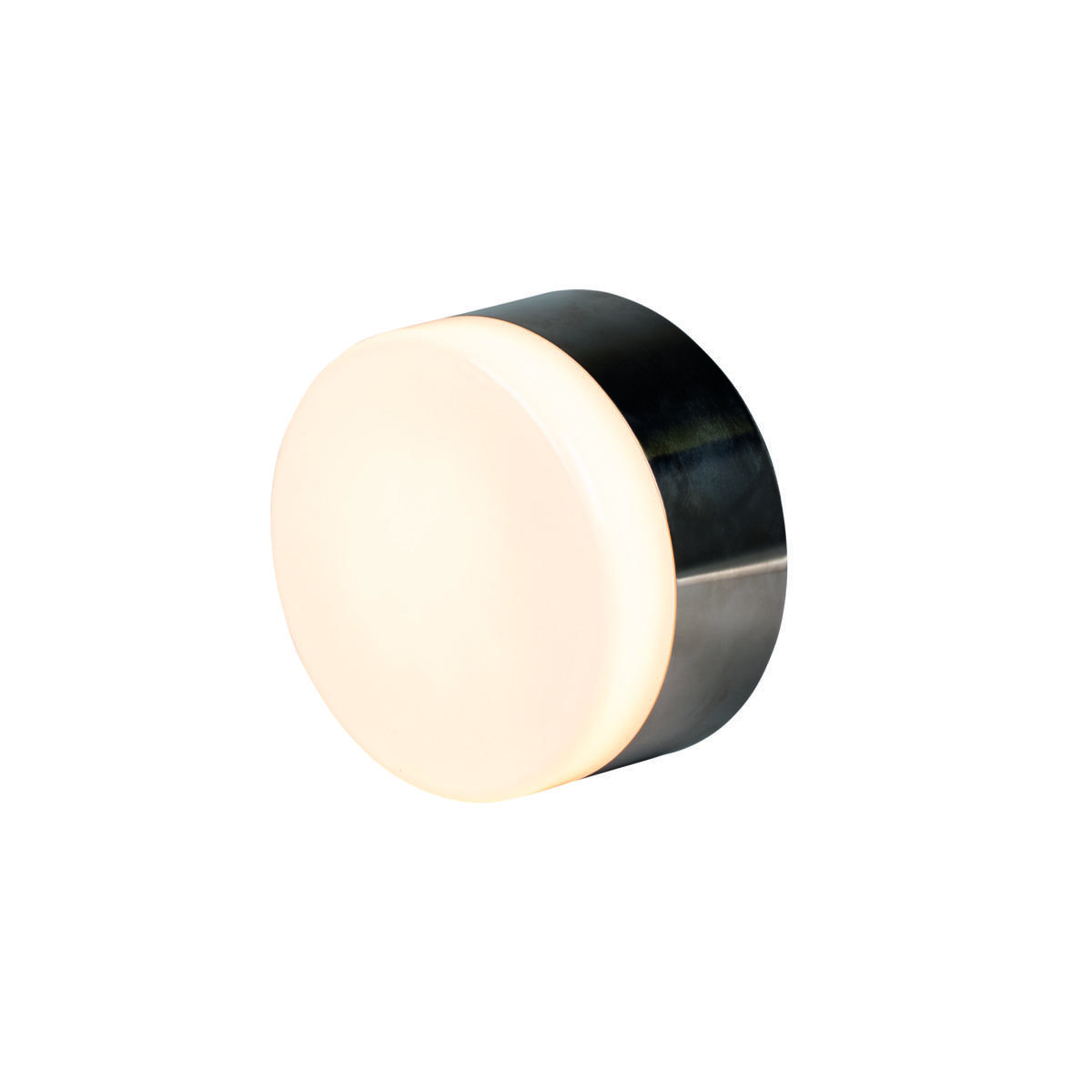

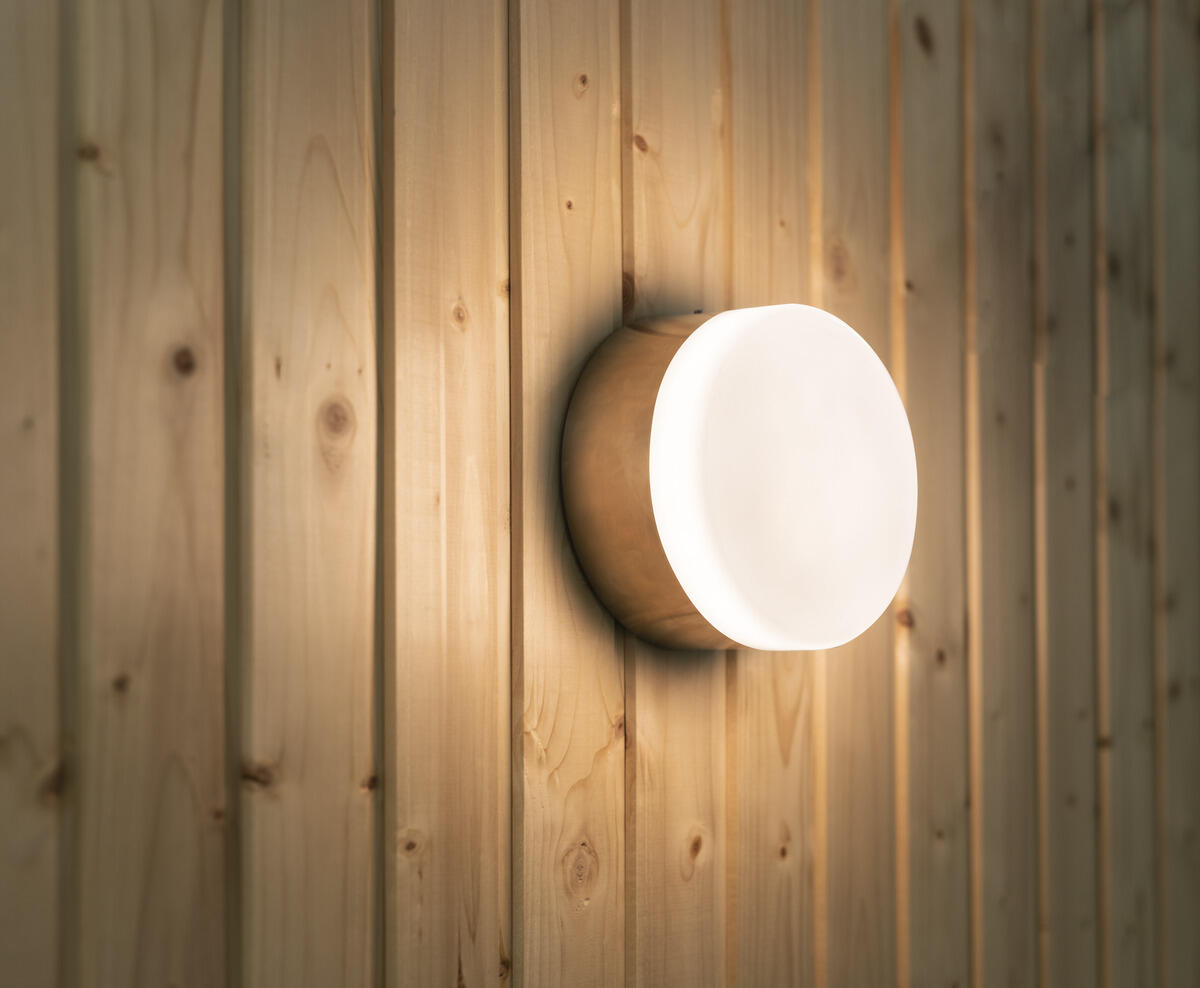

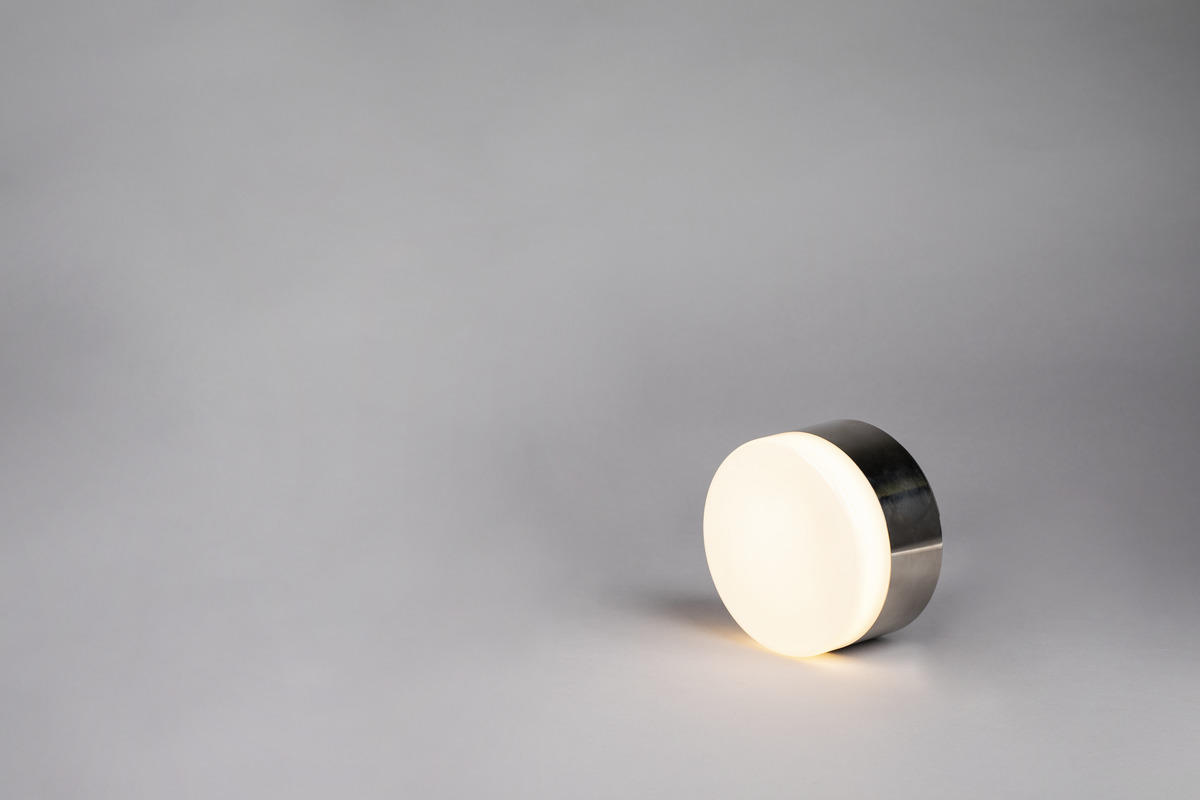

Soft and pleasant lighting gives a cosy atmosphere in the sauna. Heatwall is a compact, attractive and simple LED luminaire for saunas with IP65 and IK10 classification. Wall luminaire that is good to look at and is also suitable for installation behind a lampshade. Heatwall has a rear element of cast aluminium and finished in brushed steel with opal diffuser of heat-resistant plastic. Complete with integrated phase dimmable driver for direct connection to 230V.

Description: GTIN 7392971138787

Item Name Heatwall BS 2700K

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 515

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Non-replaceable Control gear

LED Colour Warm White

Colour Temperature (K) 2700

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 115

Beam Angle (°) 140

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 9

Life Time L90 35 000h Ta 80°C

Nominel Life Time (h) 35000

Lumen maintenance 35 000h L96

Life Time Driver 35 000h/7%
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50

Voltage Forward (Vf) 3

Power LED (W) 6,25

Power Luminaire (W) 7,5

System Power (W) 7,5

Efficiency Luminaire (lm/W) 69

Efficiency System (lm/W) 69

Containing light source energy efficiency class (EU) 2019/2015 F
Operation and Connection: Dimmable Yes

Type of Dimming Trailing Edge, Leading Edge

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Connection (type) Screw Terminals

Connection (mm2) 2x0,5-2,5

Through Wiring No

Strain Relief Yes

Power Factor ʎ 0,9

Efficiency (%) 80

Constant Current (mA) 250

Operating Temperature -20…+125

Dimming secondary side AM

Protection Against Short Circuit, Overload

Fuse B10 (pcs) 30

Fuse B16 (pcs) 45

Fuse C10 (pcs) 45

Fuse C16 (pcs) 60
Color and material: Material Aluminium

Color Brushed Steel

Environmental Assessment SundaHus
Measurement and installation: Operating Environment Indoor / wet locations

IP Degree of Protection 65

Protection Class I

Installation Surface mounted

Mounting Installation Screw Mounting

Approval Marks CE

Impact Strength IK10

Filament Test IEC 695-2-1(°C) 650

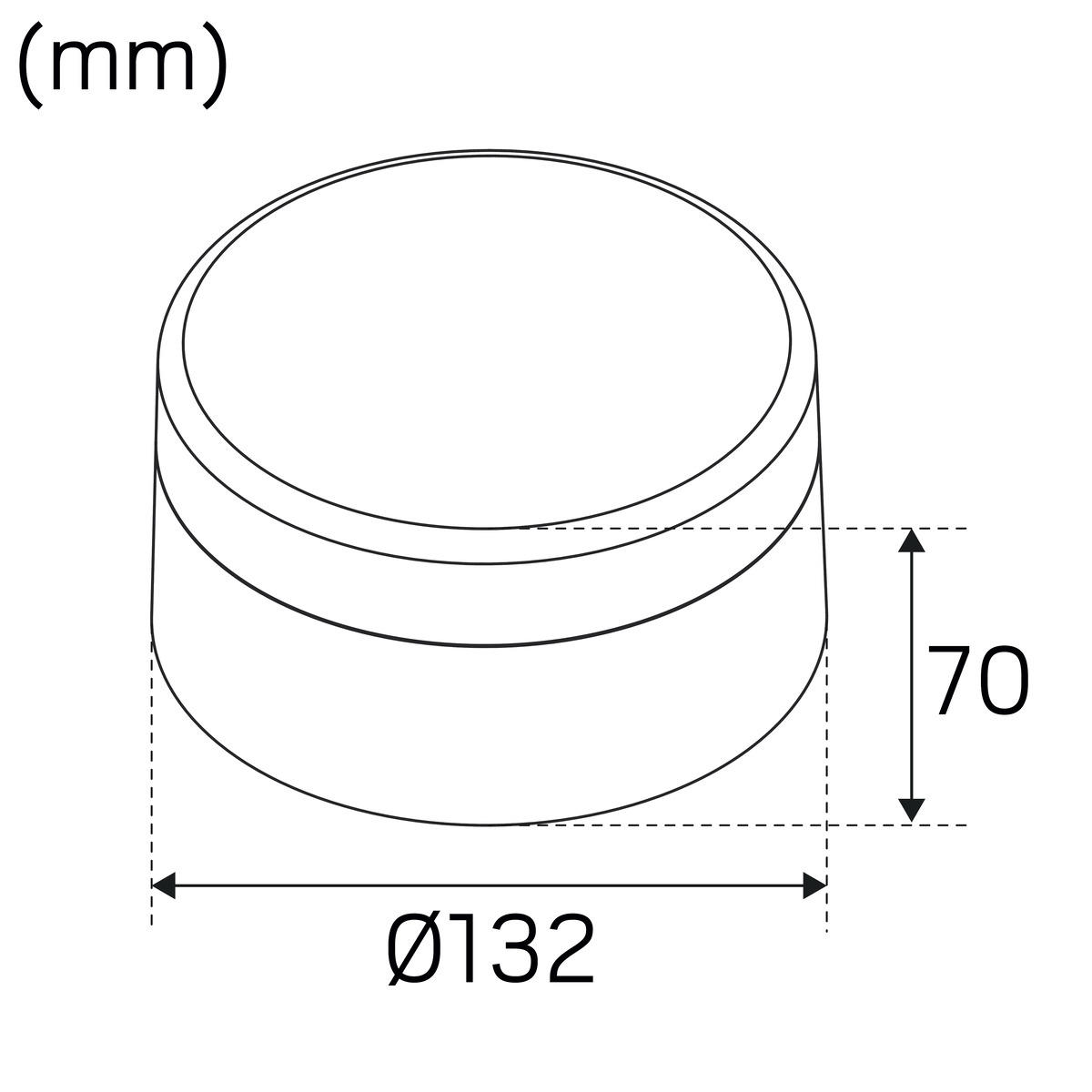

Height (mm) 70

Diameter (mm) 132

Weight (kg) 0,79
