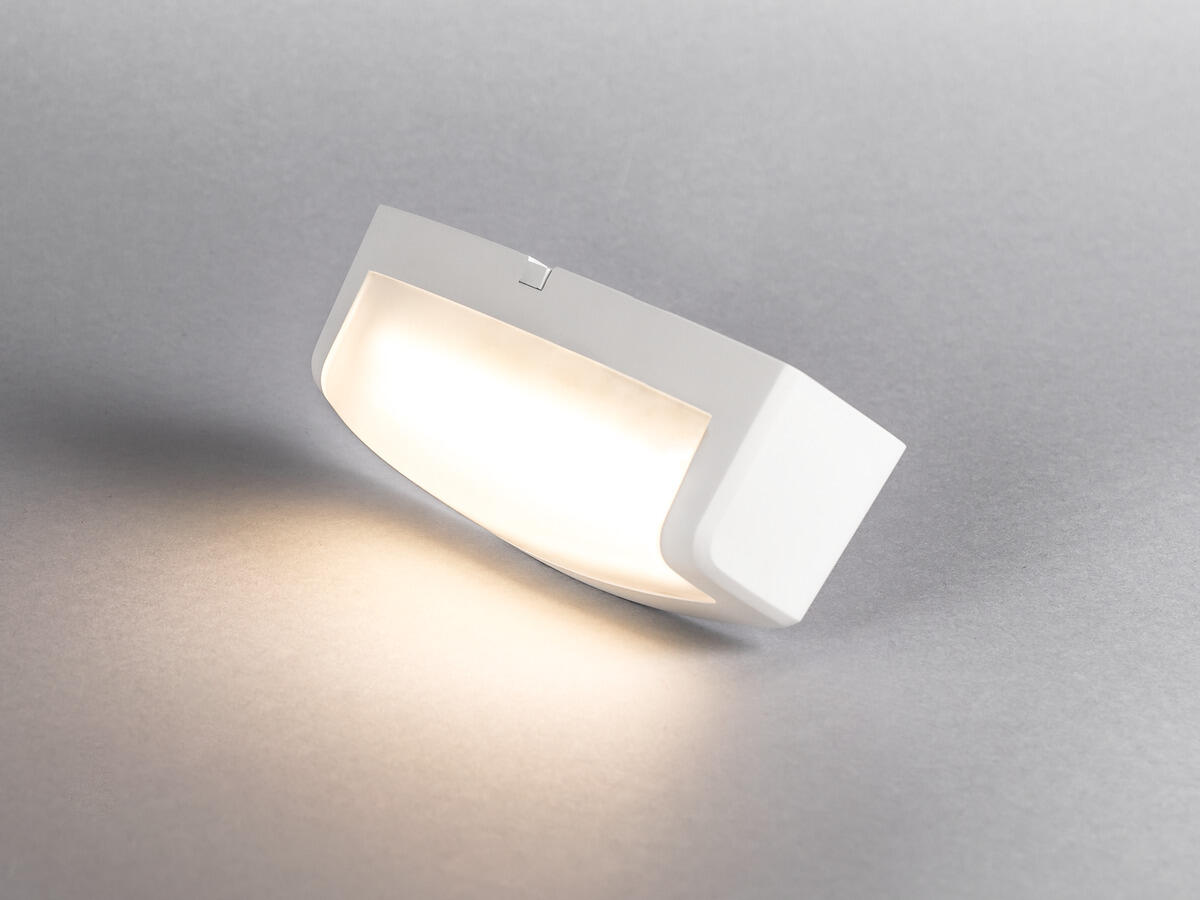

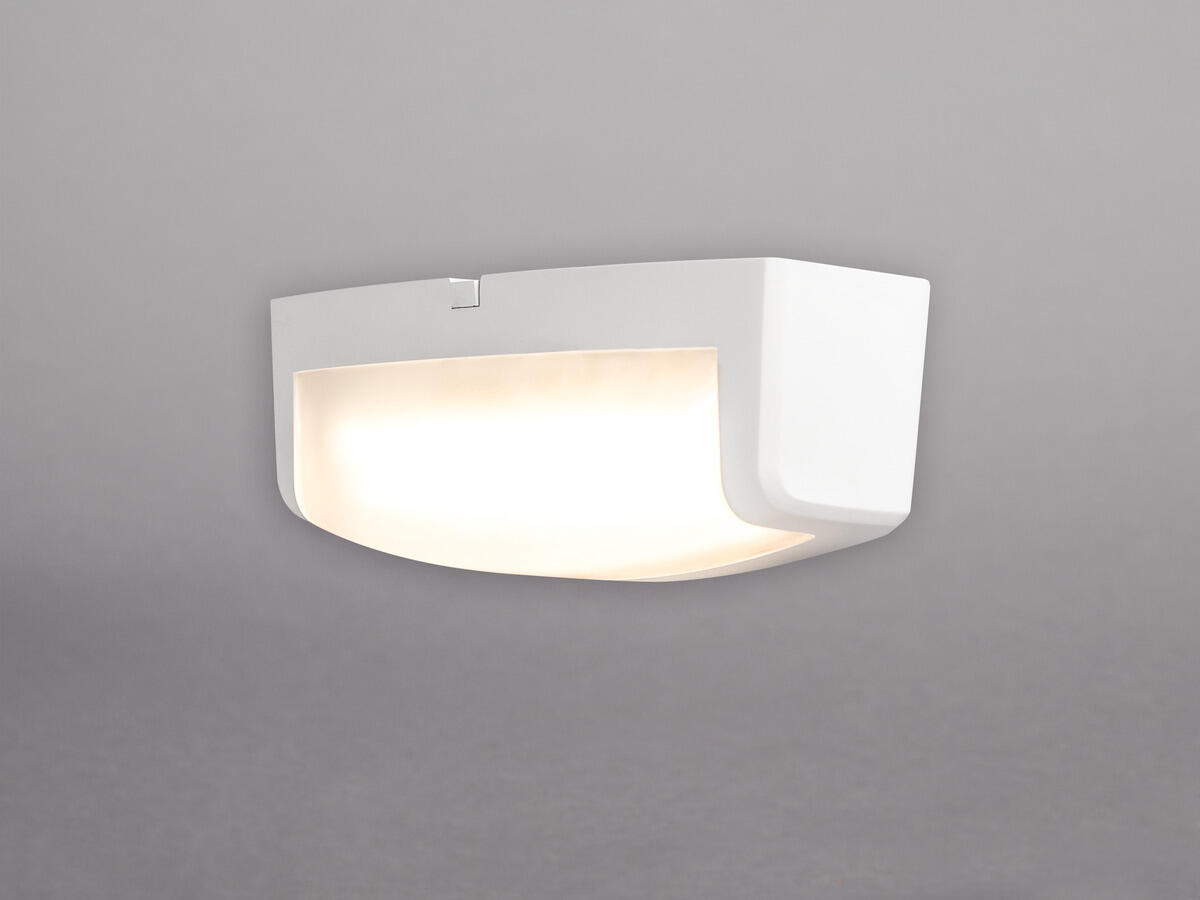

Kloss

Wardrobe luminaire for both sliding and hinged doors
Complete LED luminaire, connects directly to 230V
Separate rear element with double cable bushings for easy installation

Compact and versatile LED luminaire with On/Off switch for both sliding and hinged doors in wardrobes, store rooms, closets, etc. The wardrobe luminaire has been given new life with modern LED technology. Simple installation thanks to separate rear element with dual cable bushings and removable push-in, loop-in, loop-out terminal block. Knockouts for surface-mounted cable routing and flex hose. This luminaire has an integrated 230V LED module for simple installation.

Description: GTIN 7392971134321

Item Name Kloss

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 600

Light Source LED

Light Source Included Yes

Replaceability Non-replaceable LED and control gear

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 4

Luminous Intensity (cd) 160

Beam Angle (°) 120

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 30

Life Time L70 50 000h Ta 25°C

Nominel Life Time (h) 50000

Lumen maintenance 50 000h L73

LLMF @ 50 000h 0,73

Life Time Driver 50 000h/10%

Flicker (PstLM) 0,038

Stroboscopic effect (SVM) 0
Technical data: Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50

Voltage Forward (Vf) 9

Power LED (W) 5

Power Luminaire (W) 6,5

System Power (W) 6,5

Efficiency Luminaire (lm/W) 92

Efficiency System (lm/W) 92

Containing light source energy efficiency class (EU) 2019/2015 E
Operation and Connection: Dimmable No

Type of Dimming OnOff

Connection (type) Quick Terminal

Connection (mm2) 3x0,5-1,5

Through Wiring Yes

Strain Relief Yes

Standby Power 0

Operating Temperature -20…+40

Max. Tc (°C) 85

Protection Against Short Circuit, Overheating 130°C, Overload

Fuse B10 (pcs) 87

Fuse B16 (pcs) 133

Fuse C10 (pcs) 100

Fuse C16 (pcs) 153
Color and material: Material ABS plastic

Material Housing/Enclosure Polycarbonate

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class II

Installation Surface mounted

Mounting Installation Screw Mounting

Fire Safety Marks MM-mark

Approval Marks CE

Filament Test IEC 695-2-1(°C) 650

Length (mm) 140

Height (mm) 58

Depth (mm) 55

Weight (kg) 0,151
