Mirro IP44

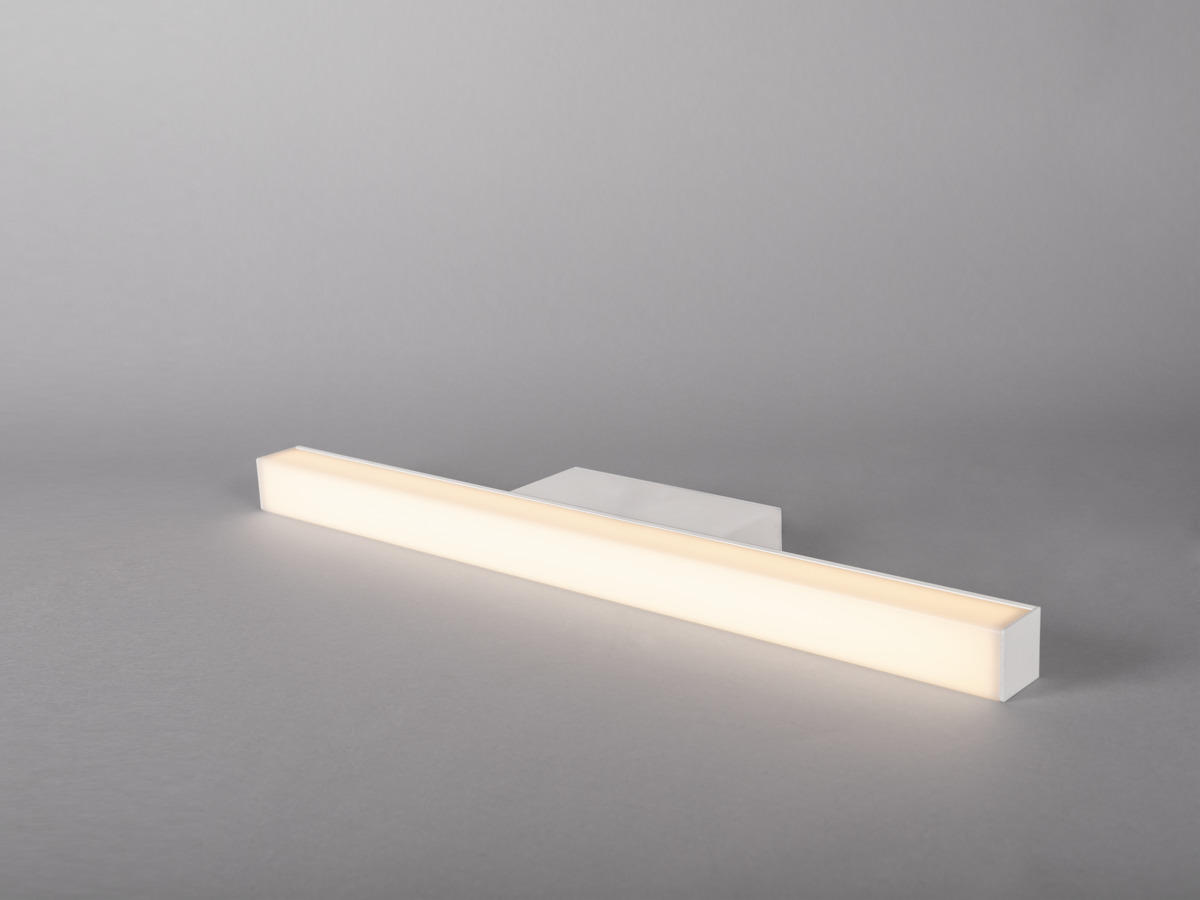

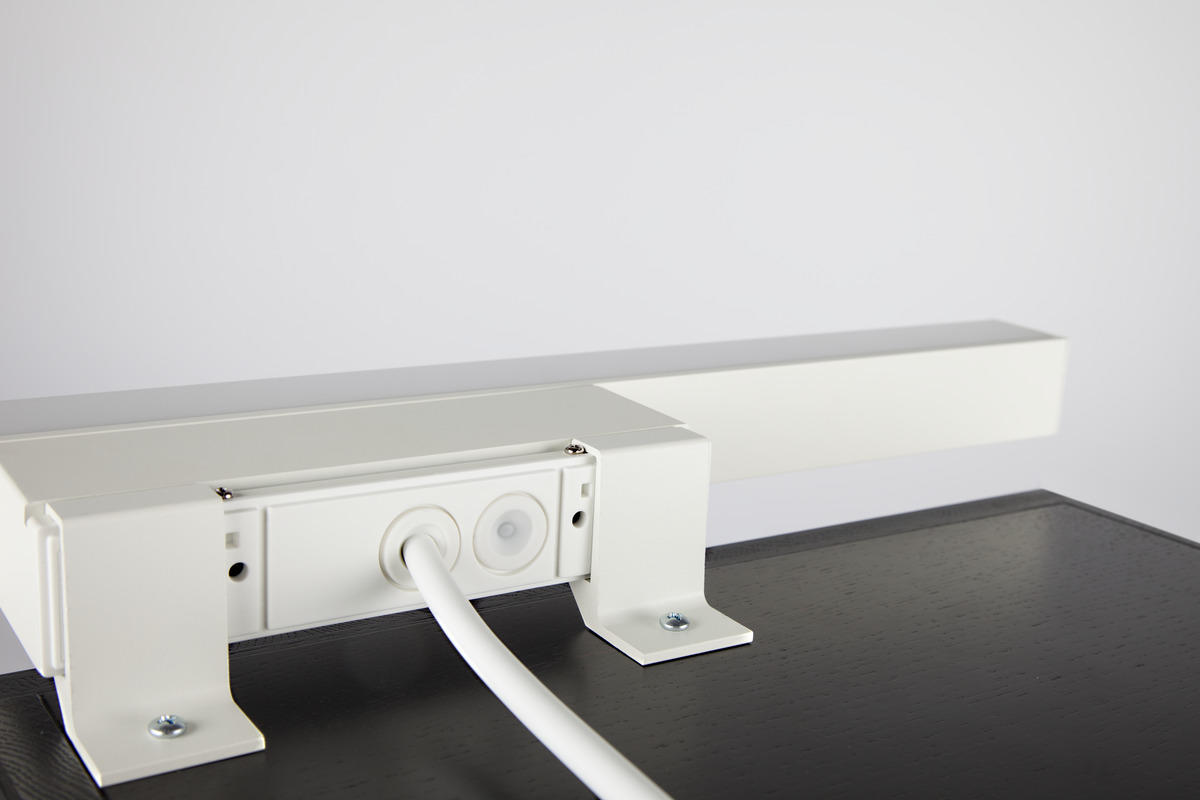

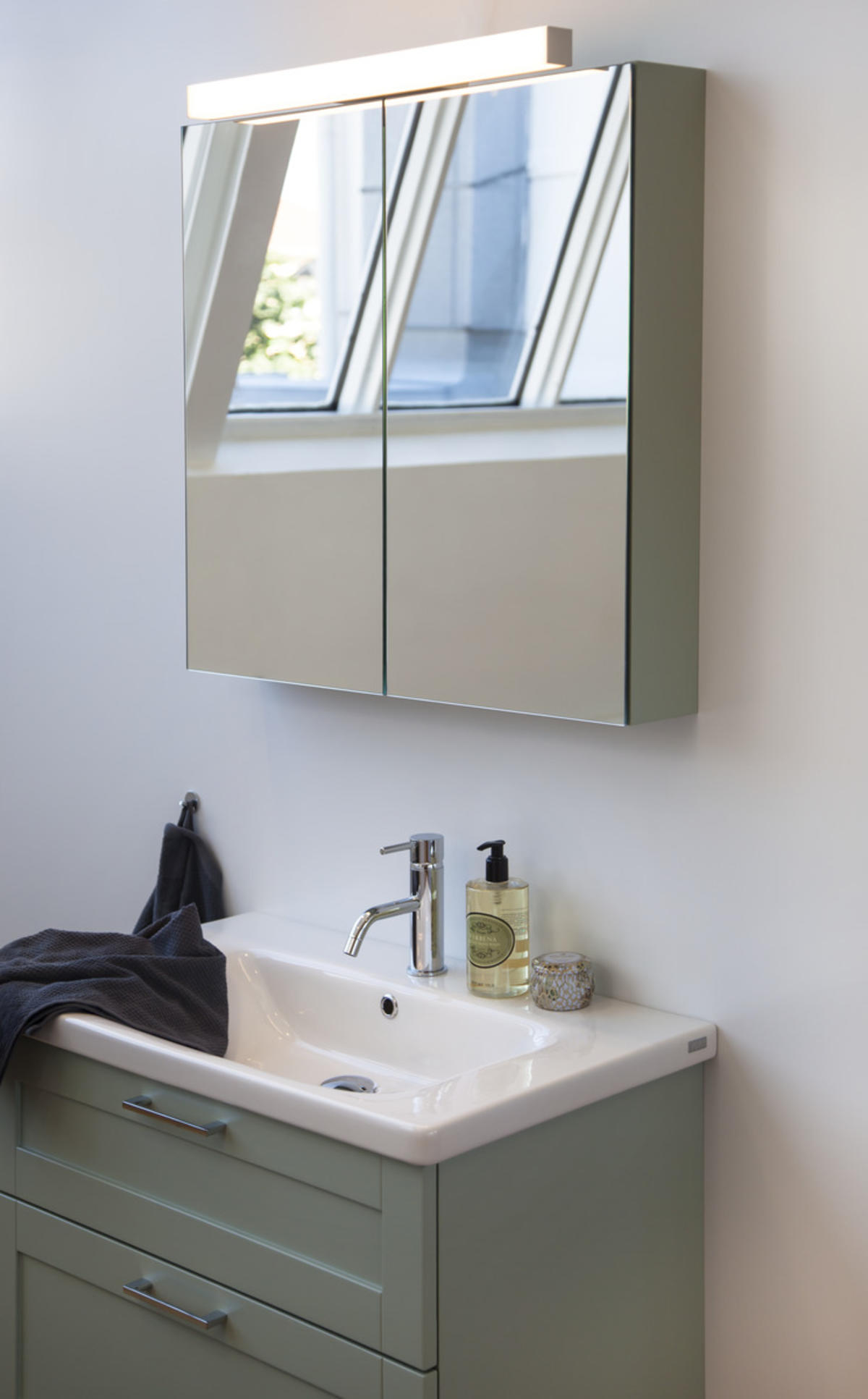

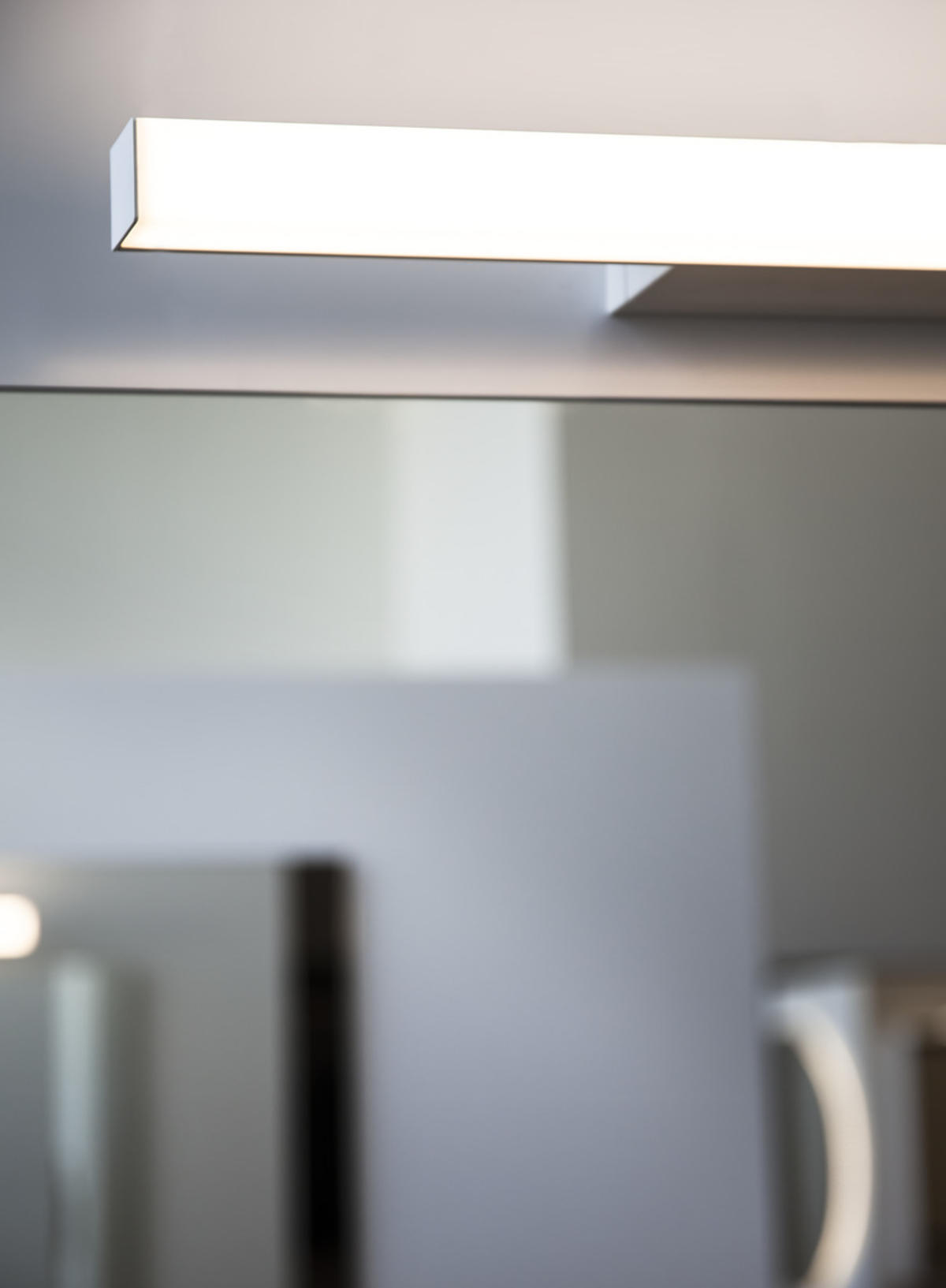

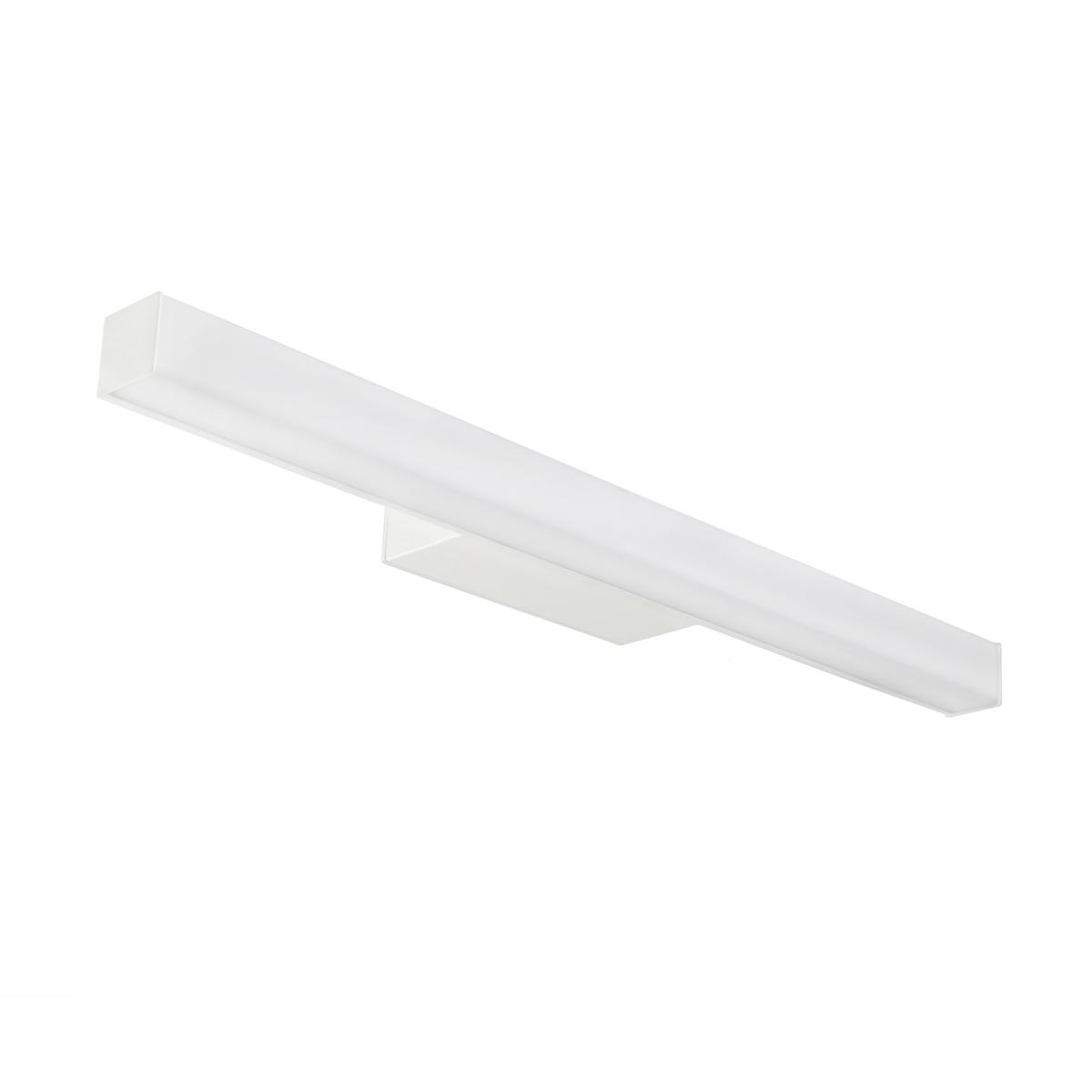

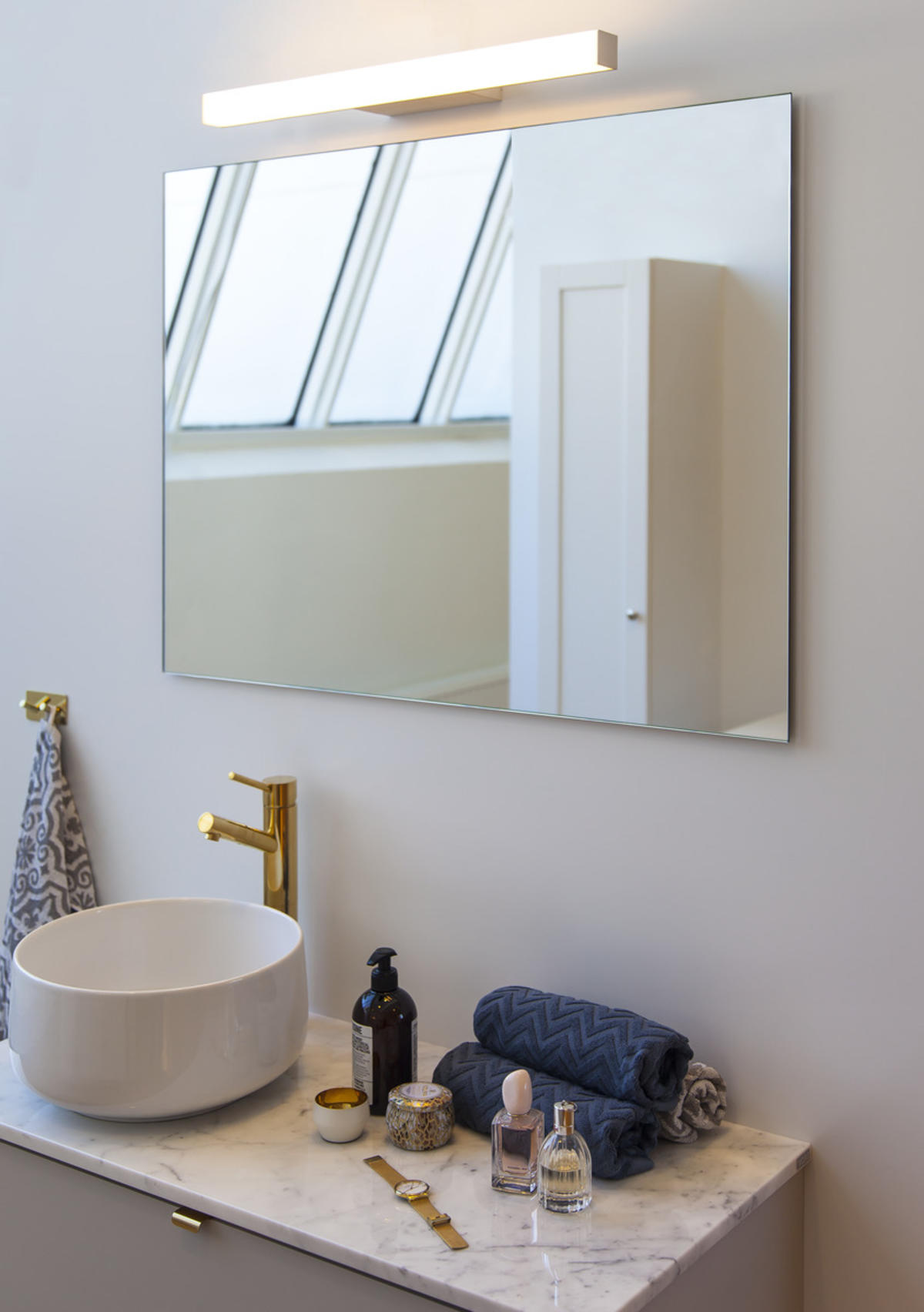

Timeless mirror luminaire in white enamelled aluminium (RAL 9016) with opal diffuser for an even and wide light distribution. Very good colour rendering, RA > 90. IP44 rated and adapted to meet the requirements for smaller bathrooms in public or private environments. Can be installed on wall with concealed or surface-mounted cable routing and on top of bathroom cabinets with accompanying brackets. Mains dimmable driver integrated in luminaire for direct 230V connection. Dual cable bushings, of which one is centred, and push-in, loop-in, loop-out terminals.

Variants	GTIN	Item Name	Colour Temperature (K)	Luminaire Lumen (lm)
	7392971129785	Mirro IP44 2700K	2700	1200
	7392971129792	Mirro IP44 3000K	3000	1250

Description: GTIN 7392971129785

Item Name Mirro IP44 2700K

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 1200

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Replaceable Control gear by professional

LED Colour Warm White

Colour Temperature (K) 2700

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

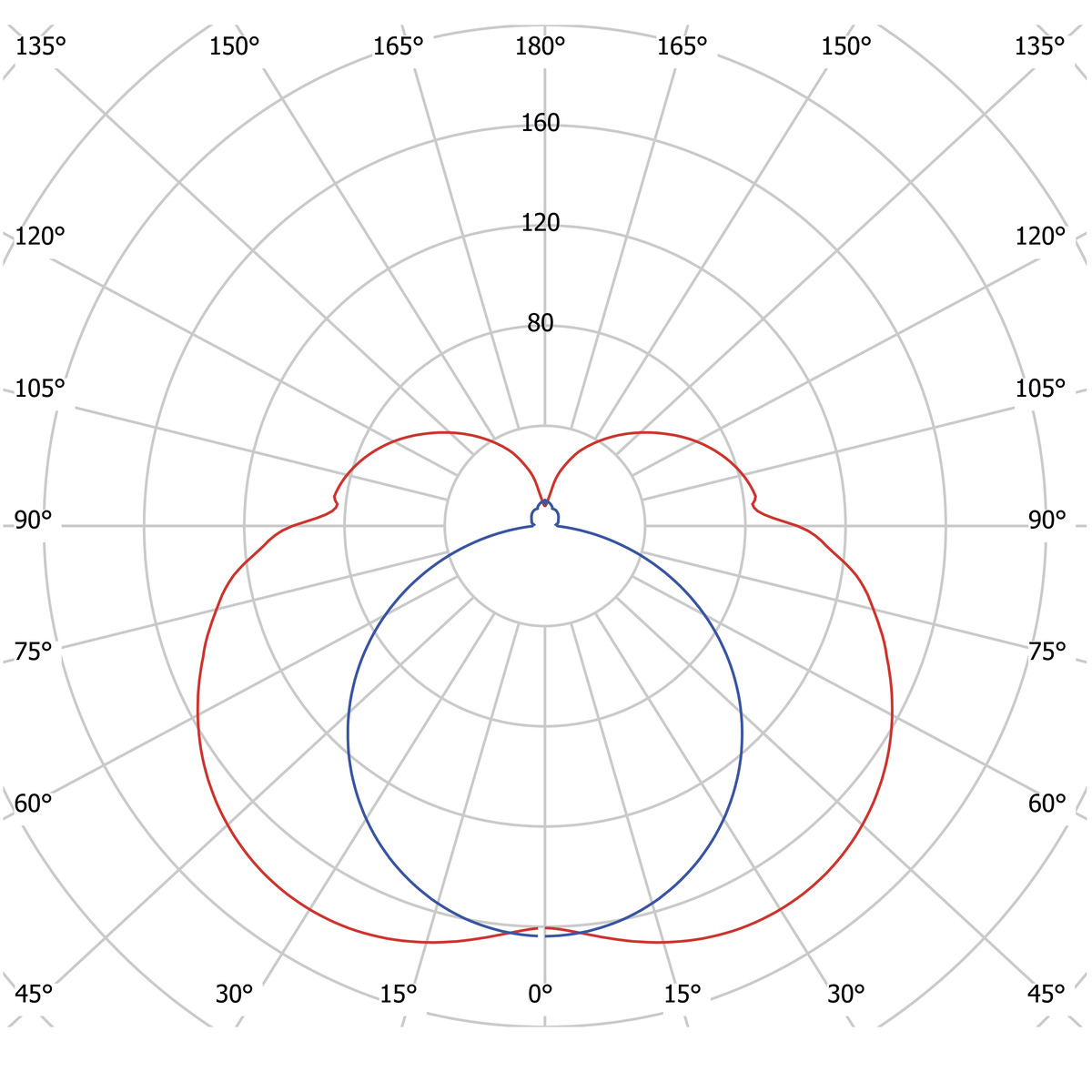

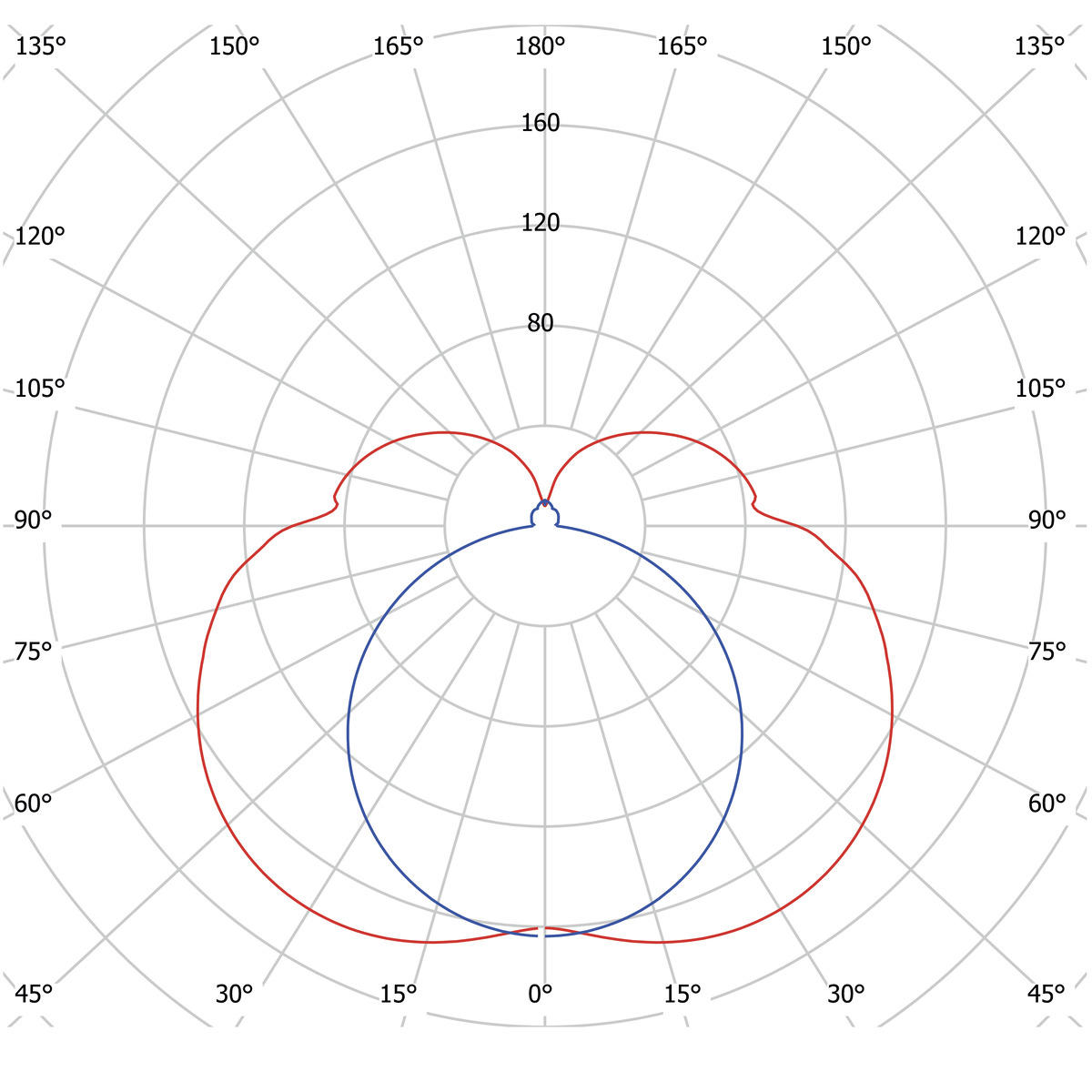

Luminous Intensity (cd) 215

Beam Angle (°) 180

Light sharing Symmetric

Light Outlet Direct, Indirect

Number of Lamps (pcs) 1

Number of LED (pcs) 98

Life Time L80 100 000h Ta 25°C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L90

Lumen maintenance 100 000h L84

LLMF @ 50 000h 0,9

LLMF @ 100 000h 0,84

Life Time Driver 50 000h/10%

Flicker (PstLM) 0,044

Stroboscopic effect (SVM) 0,004
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Voltage Forward (Vf) 12

Power LED (W) 9,5

Power Luminaire (W) 12,5

System Power (W) 12,5

Efficiency Luminaire (lm/W) 96

Efficiency System (lm/W) 96

Containing light source energy efficiency class (EU) 2019/2015 E
Operation and Connection: Dimmable Yes

Type of Dimming Trailing Edge

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Connection (type) Quick Terminal

Through Wiring Yes

Strain Relief No

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,1

Standby Power 1

Constant Current (mA) 500

Operating Temperature -20…+50

Max. Tc (°C) 80

Dimming secondary side AM
Color and material: Material Diecasted, Extruded, Aluminium, Plastic

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / wet locations

IP Degree of Protection 44

Protection Class I

Installation Surface mounted

Mounting Installation Screw Mounting

Approval Marks CE

Filament Test IEC 695-2-1(°C) 650

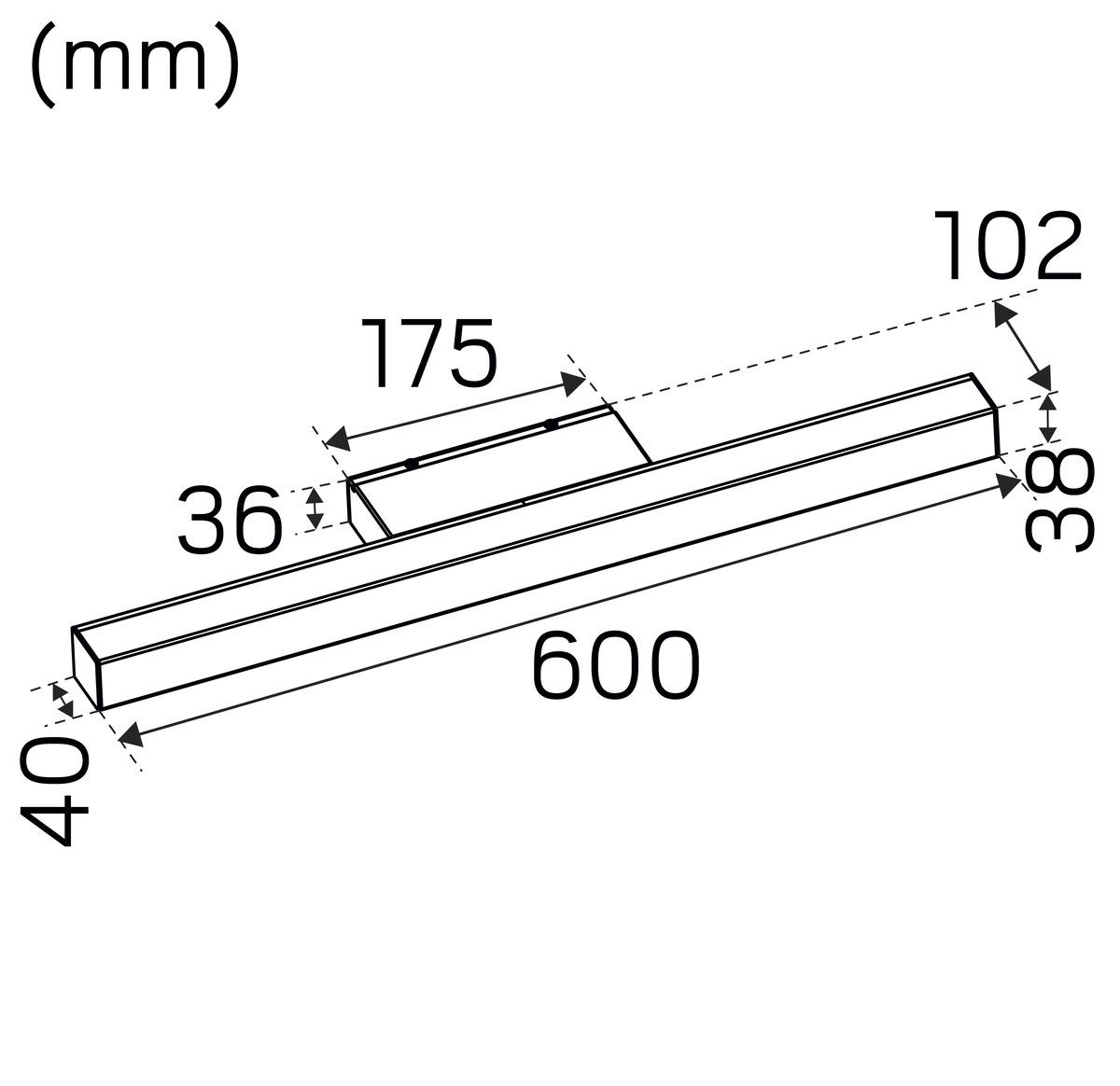

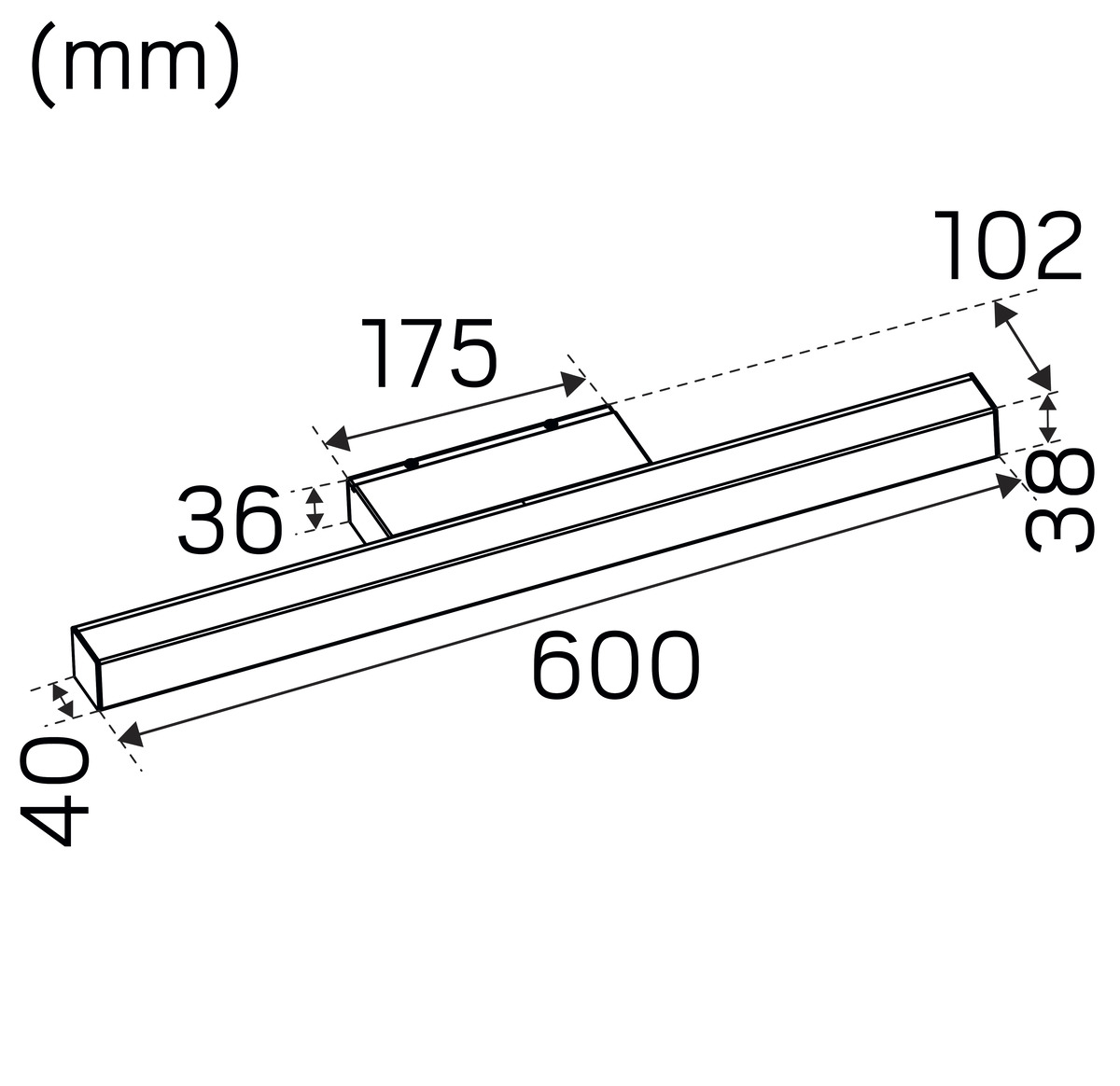

Length (mm) 600

Height (mm) 38

Depth (mm) 102

Weight (kg) 0,9
