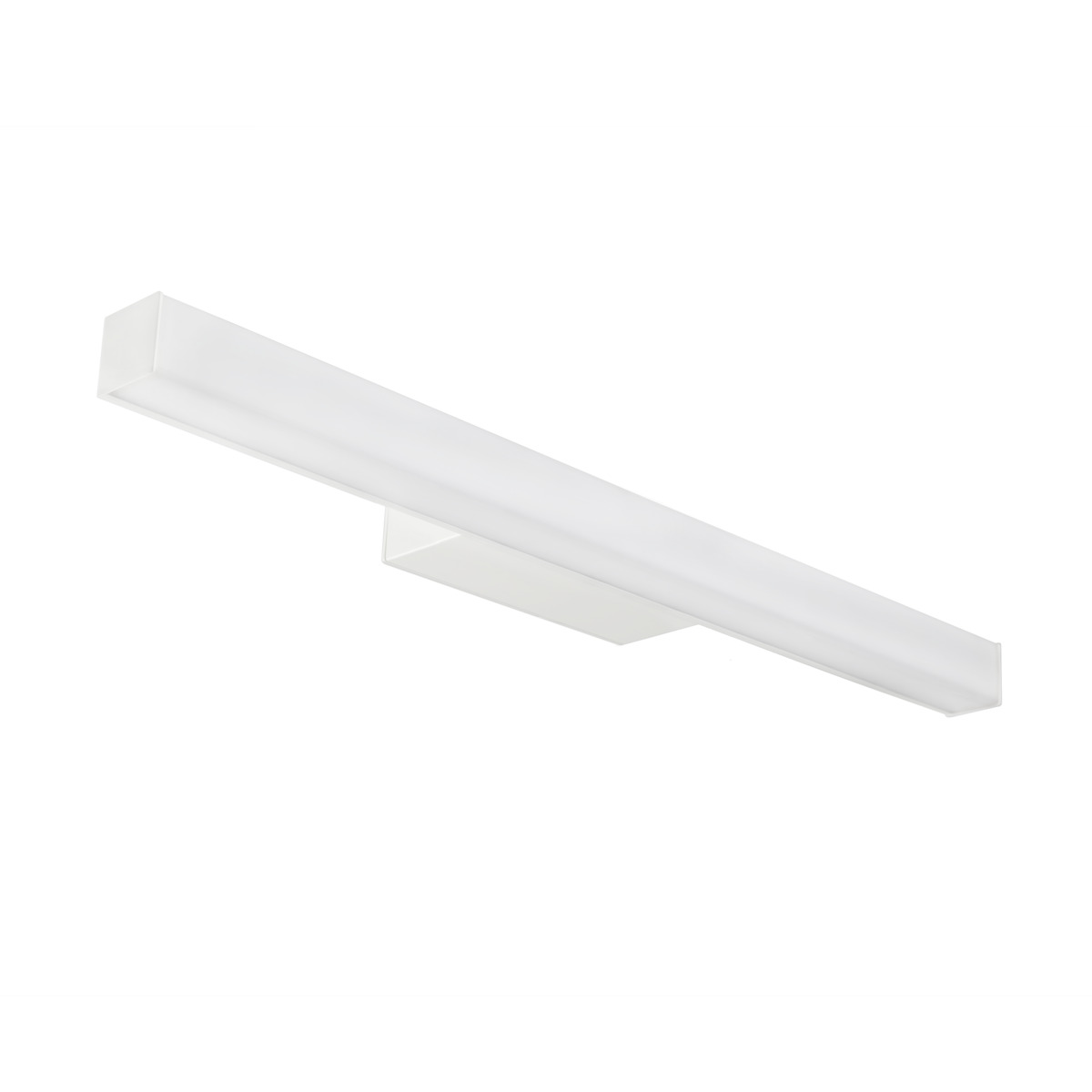

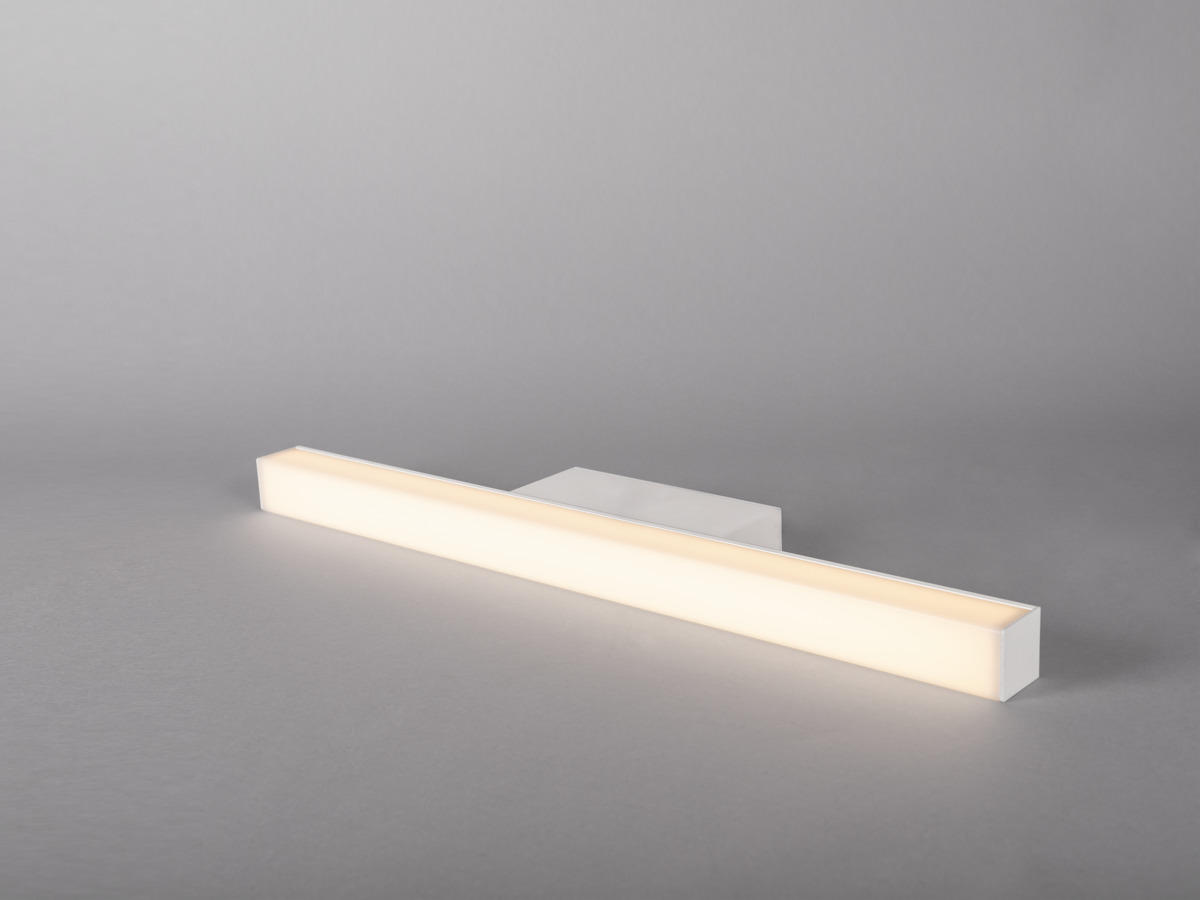

Mirro IP44

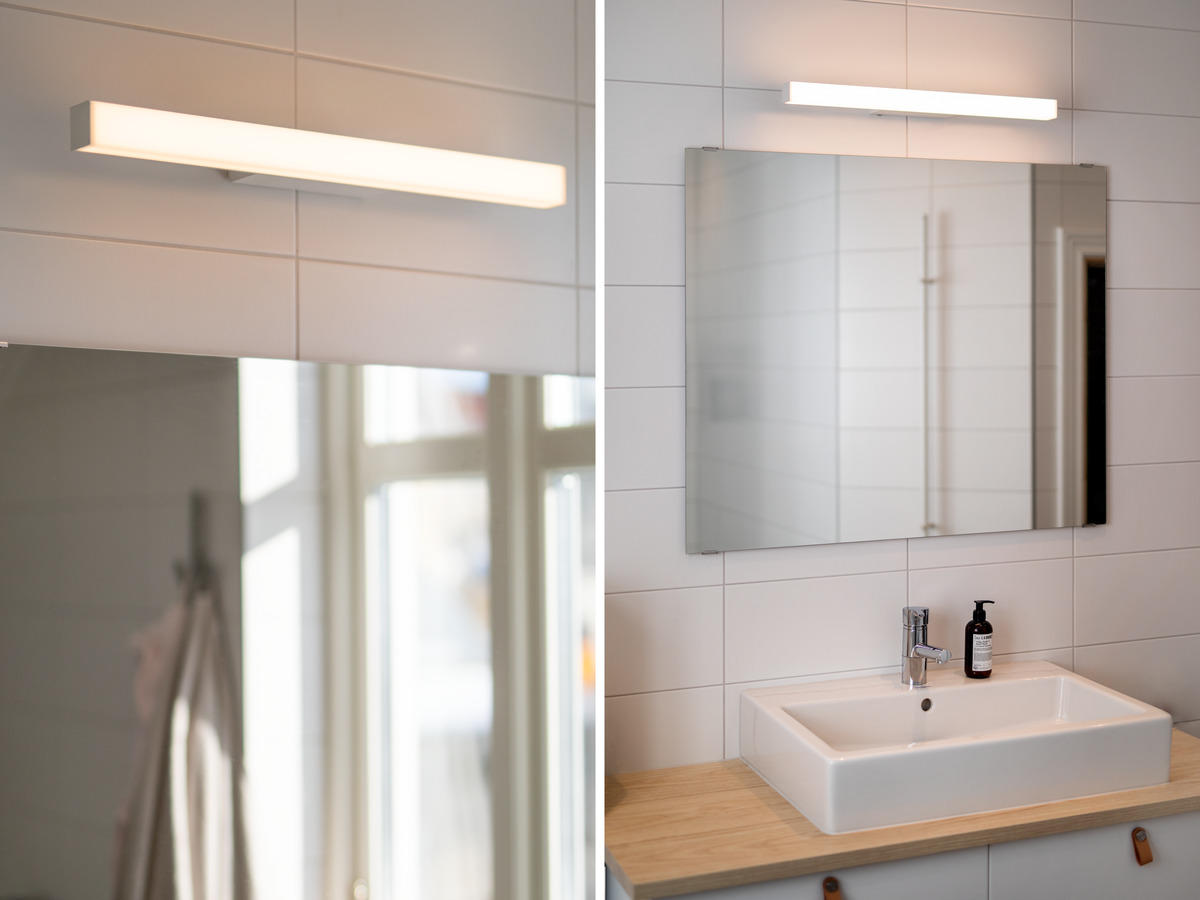

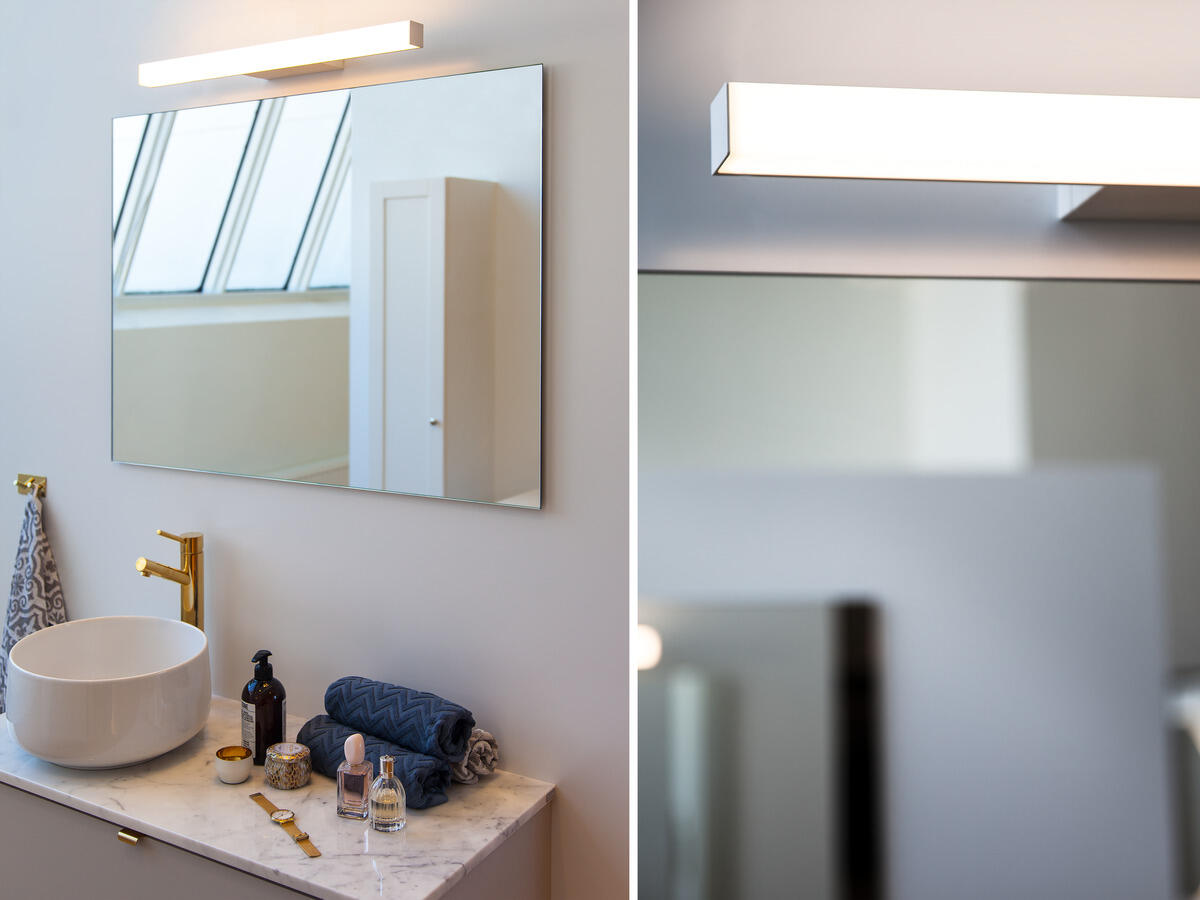

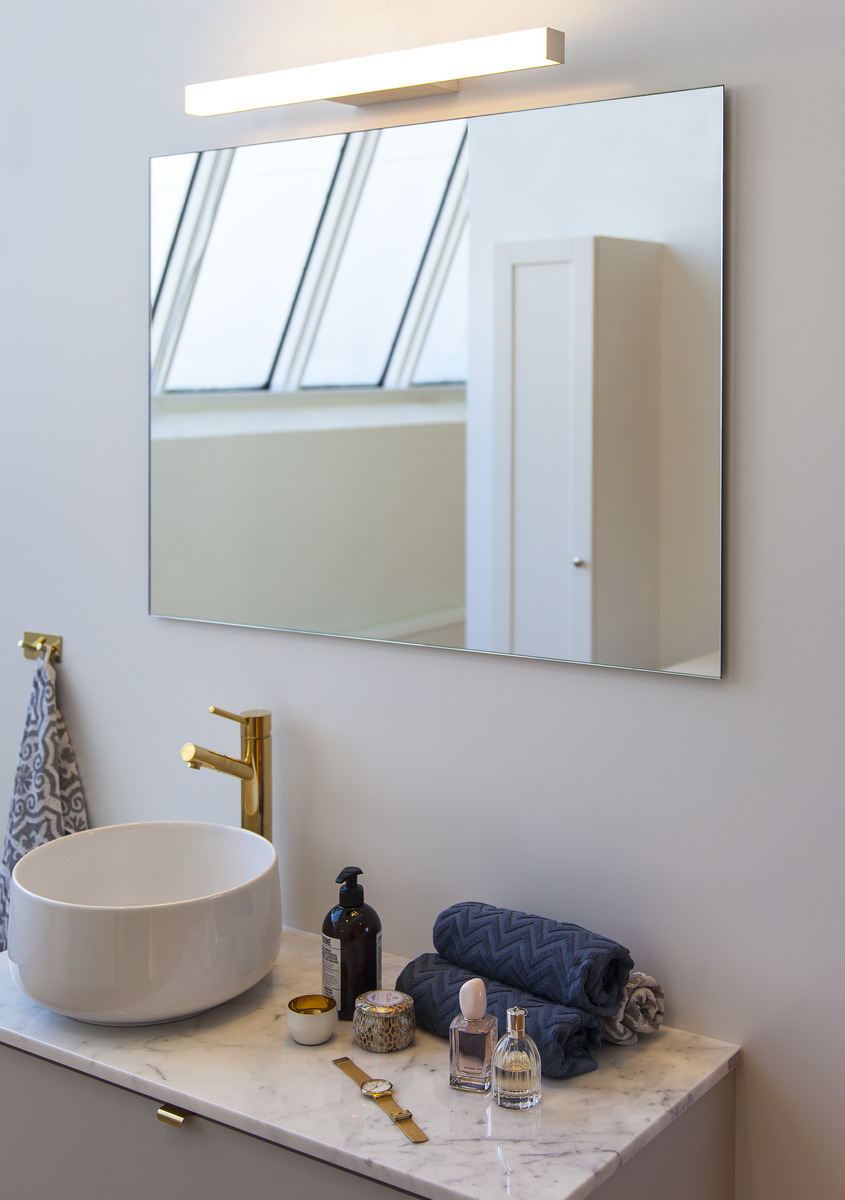

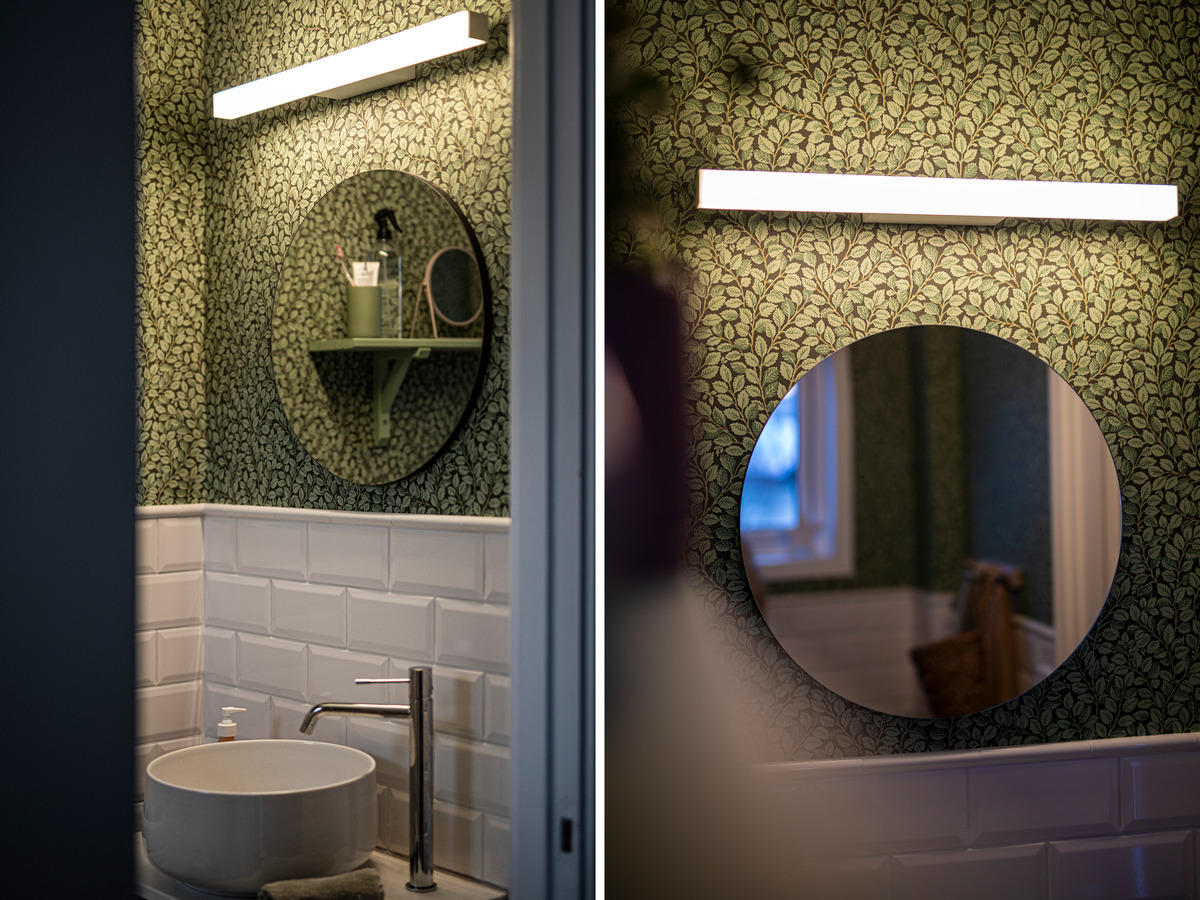

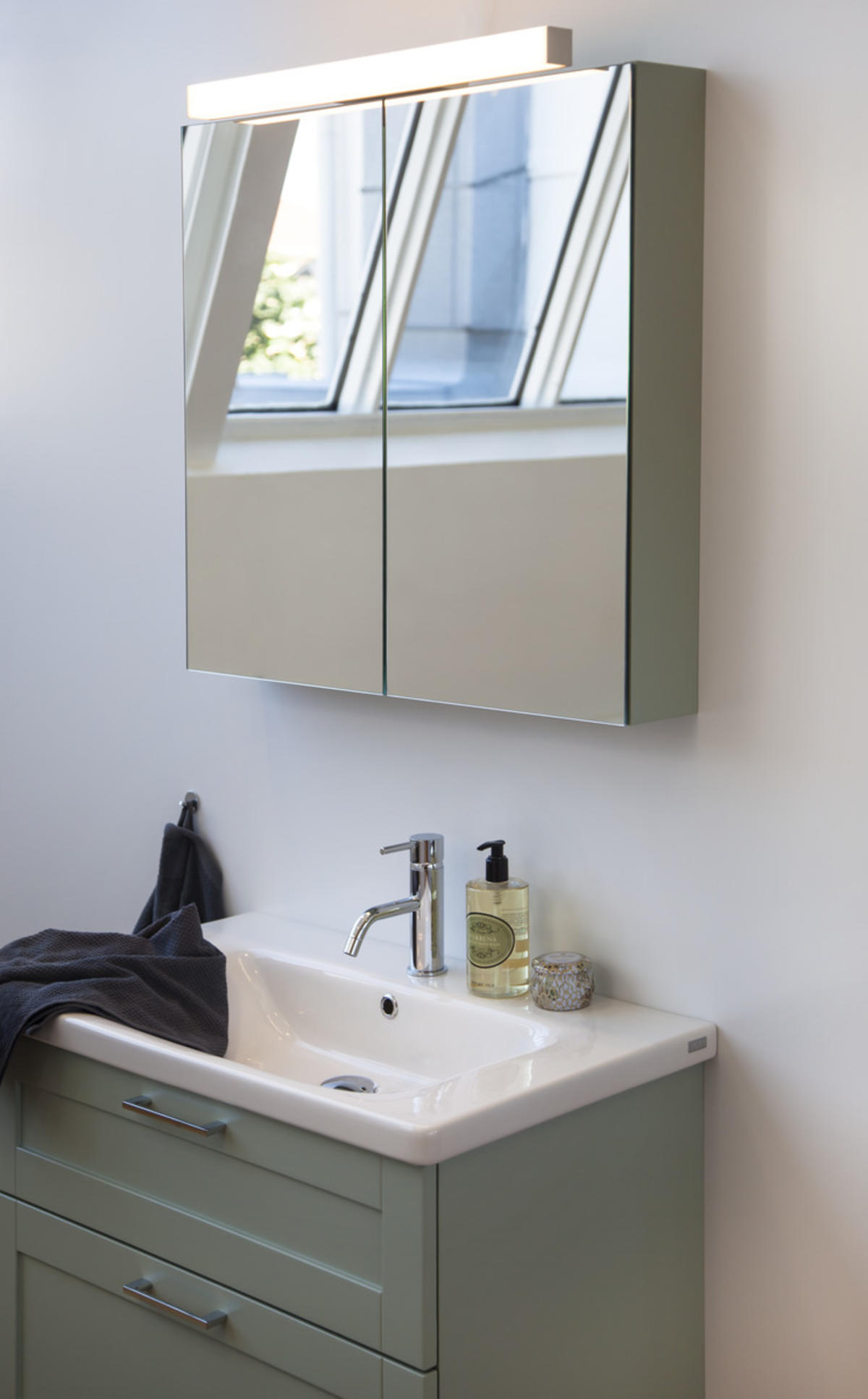

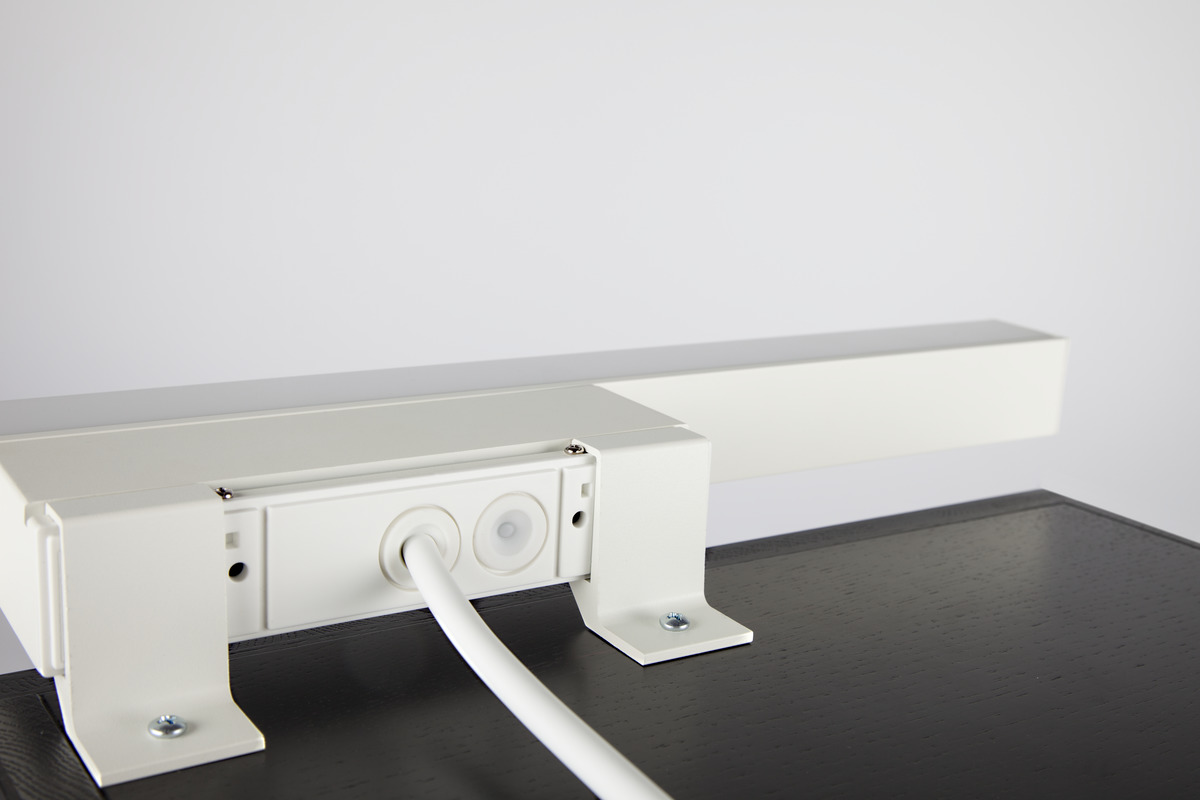

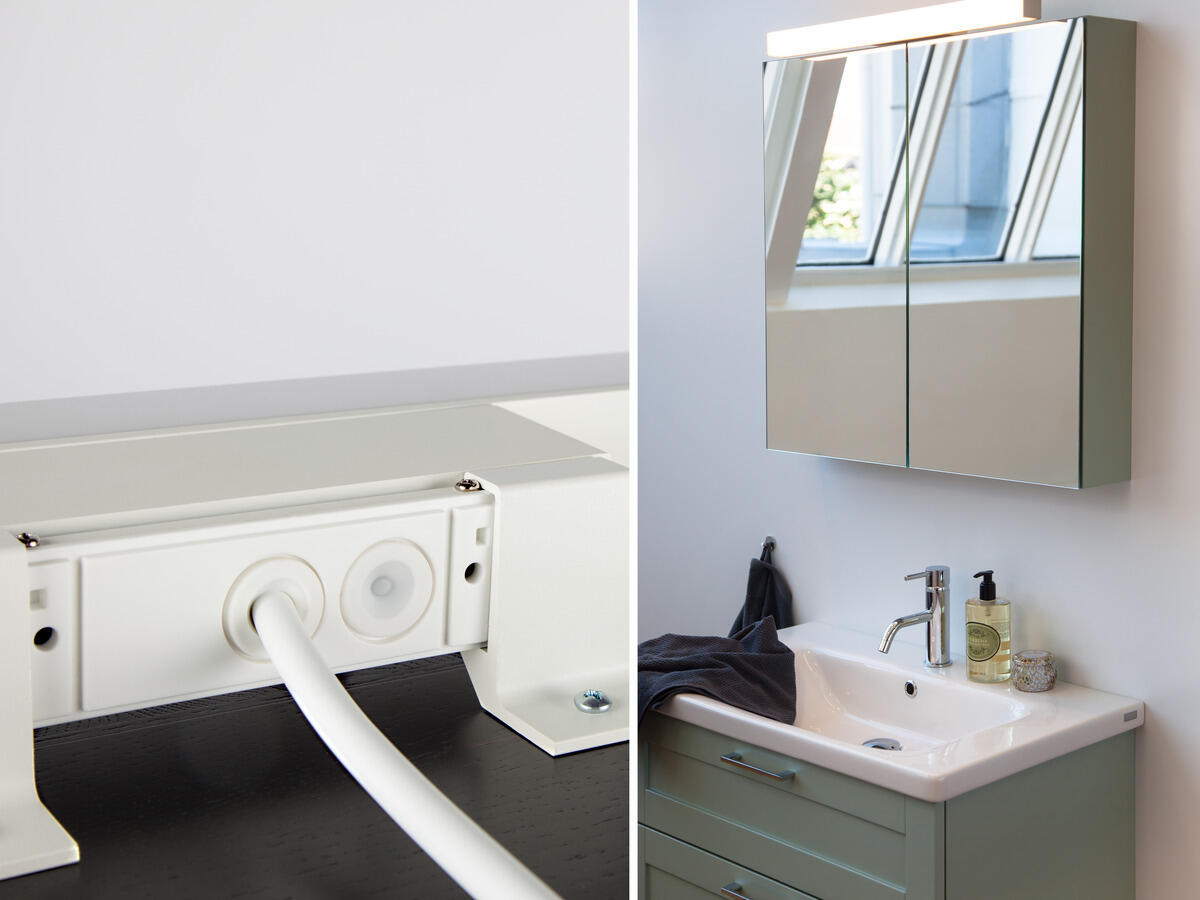

Timeless mirror luminaire in white enamelled aluminium (RAL 9016) with opal diffuser for an even and wide light distribution. Very good colour rendering, RA > 90. IP44 rated and adapted to meet the requirements for smaller bathrooms in public or private environments. Can be installed on wall with concealed or surface-mounted cable routing and on top of bathroom cabinets with accompanying brackets. Mains dimmable driver integrated in luminaire for direct 230V connection. Dual cable bushings, of which one is centred, and push-in, loop-in, loop-out terminals.
Exists in one color


GTIN Item Name Colour Temperature (K) Luminaire Lumen (lm)
Mirro IP44 3000K 7392971129792 Mirro IP44 3000K 3000 1250
Mirro IP44 2700K 7392971129785 Mirro IP44 2700K 2700 1200

Mirro IP44 3000K A+

GTIN 7392971129792
Item Name Mirro IP44 3000K
Warranty 5 years
Lighting Data
Light Source LED
Light Source Included (type) LED not exchangeable
LED Colour Warm White
Colour Temperature (K) 3000
Colour Rendering Index (Ra) >90
Colour Consistency (SDCM) 3

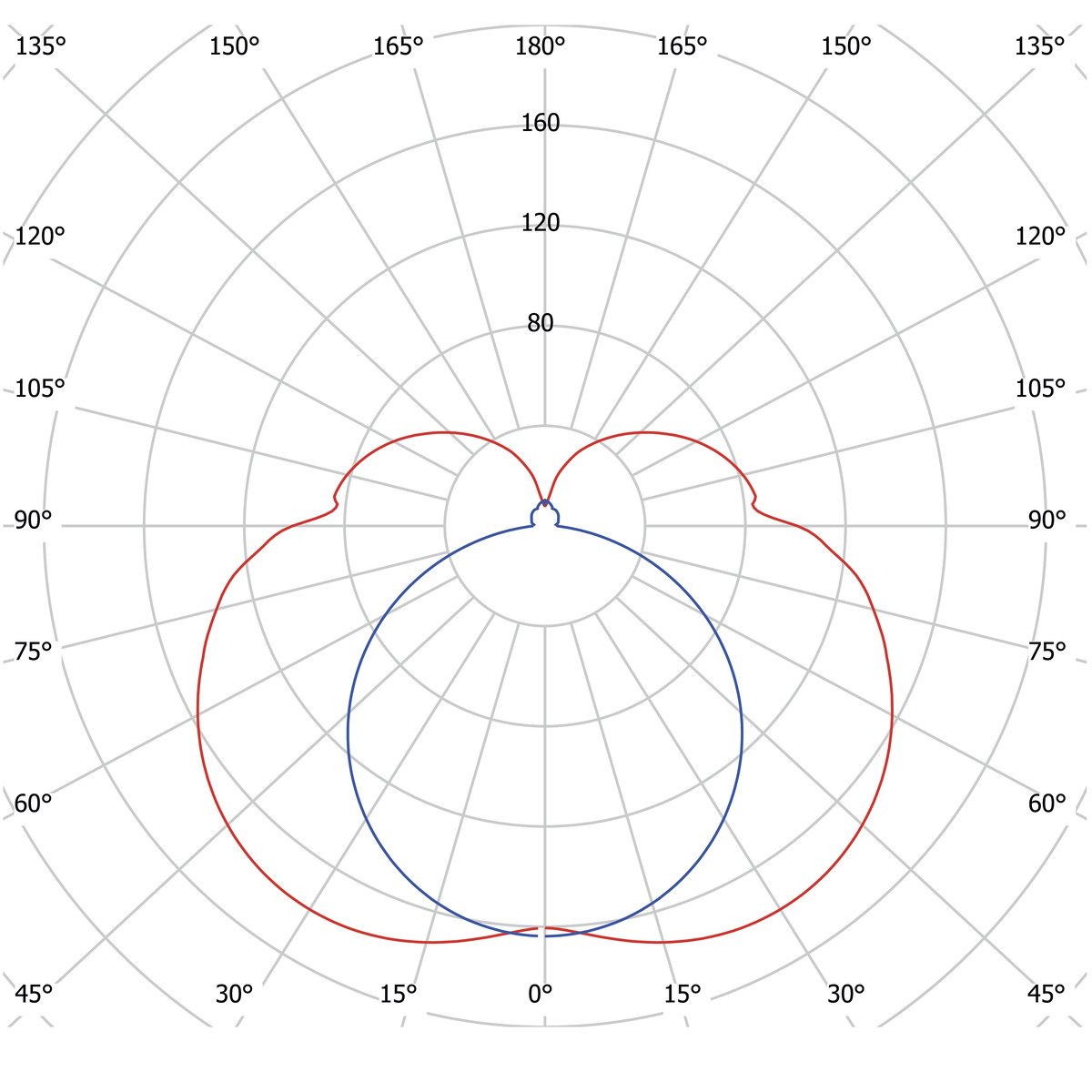

Luminous Intensity (cd) 215
Luminaire Lumen (lm) 1250

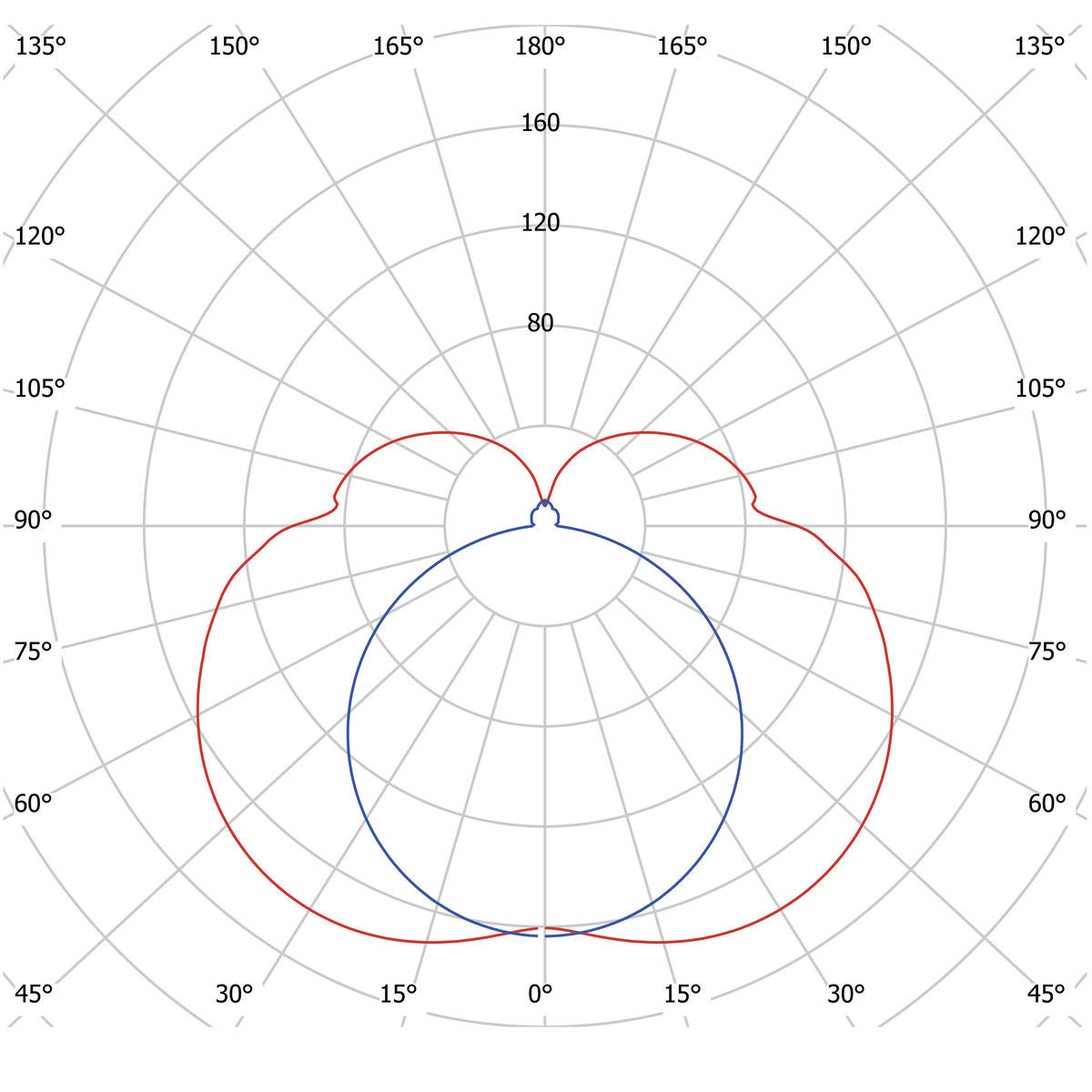

Beam Angle (°) 180
Light sharing Symmetric
Light Outlet Direct, Indirect
Number of Lamps (pcs) 1
Number of LED (pcs) 98
Technical data
Adjustable No
Life Time L80 50 000h Ta 25°C
Nominel Life Time (h) 50000
Life Time Driver 50 000h/10%
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50, 60
Voltage Forward (Vf) 12
Power LED (W) 9,5
Power Luminaire (W) 12,5
System Power (W) 12,5
Efficiency LED (lm/W) 150
Efficiency Luminaire (lm/W) 100
Efficiency System (lm/W) 100
Energy Efficiency Class A+
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Built-in
Connection (type) Quick Terminal
Through Wiring Yes
Strain Relief No
Operating Temperature -20…+50
Max. Tc (°C) 80
Dimmable Yes
Type of Dimming Trailing Edge
Standby Power 1
Color and material
Material Diecasted, Extruded, Aluminium, Plastic
Color White
Color Code (RAL) 9016
Halogen free Yes
Measurement and installation
Operation Environment Indoor
IP Degree of Protection 44
Installation Surface mounted
Mounting Installation Screw Mounting
Approval Marks CE
Filament Test IEC 695-2-1(°C) 650
Protection Class I

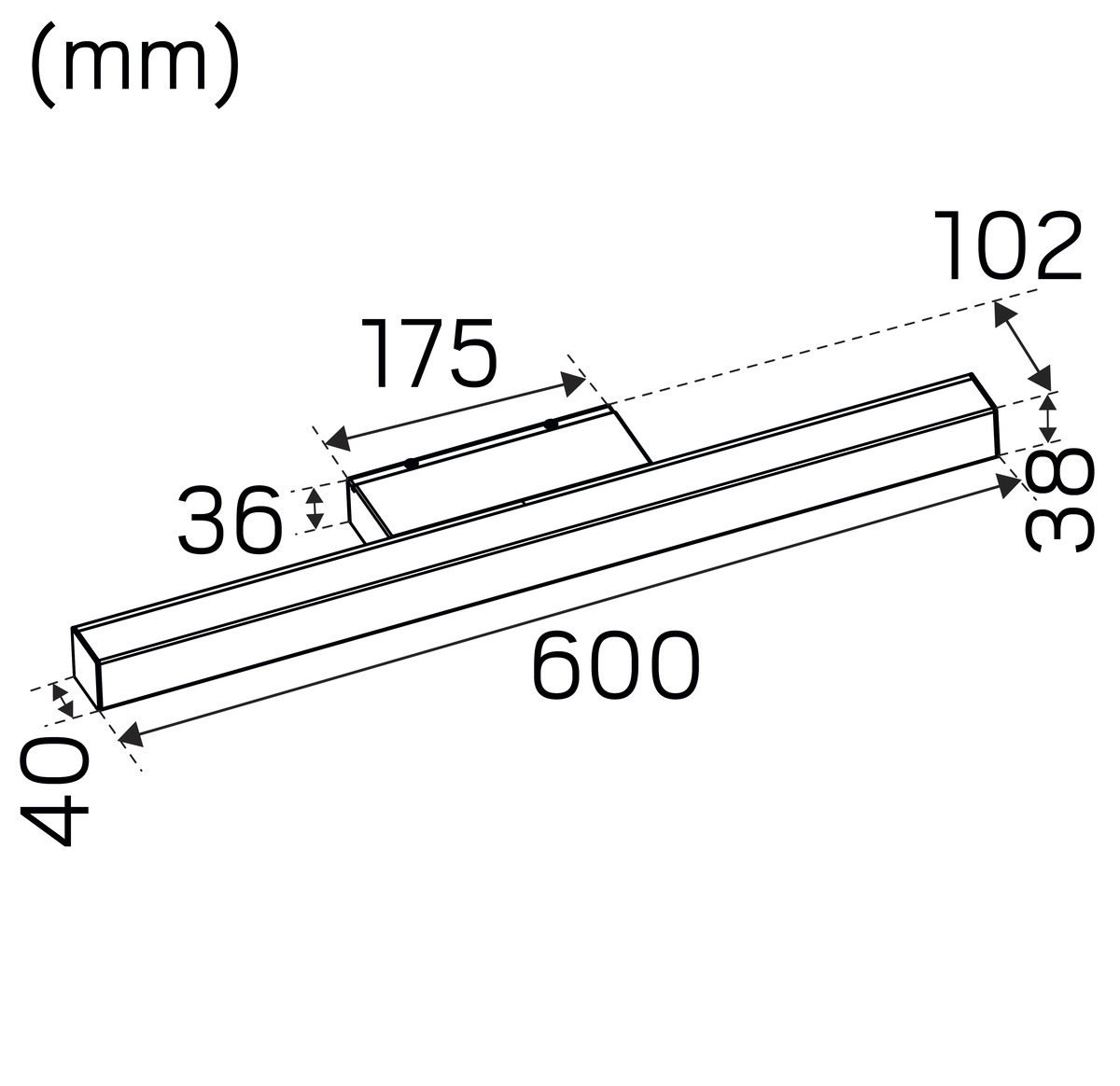

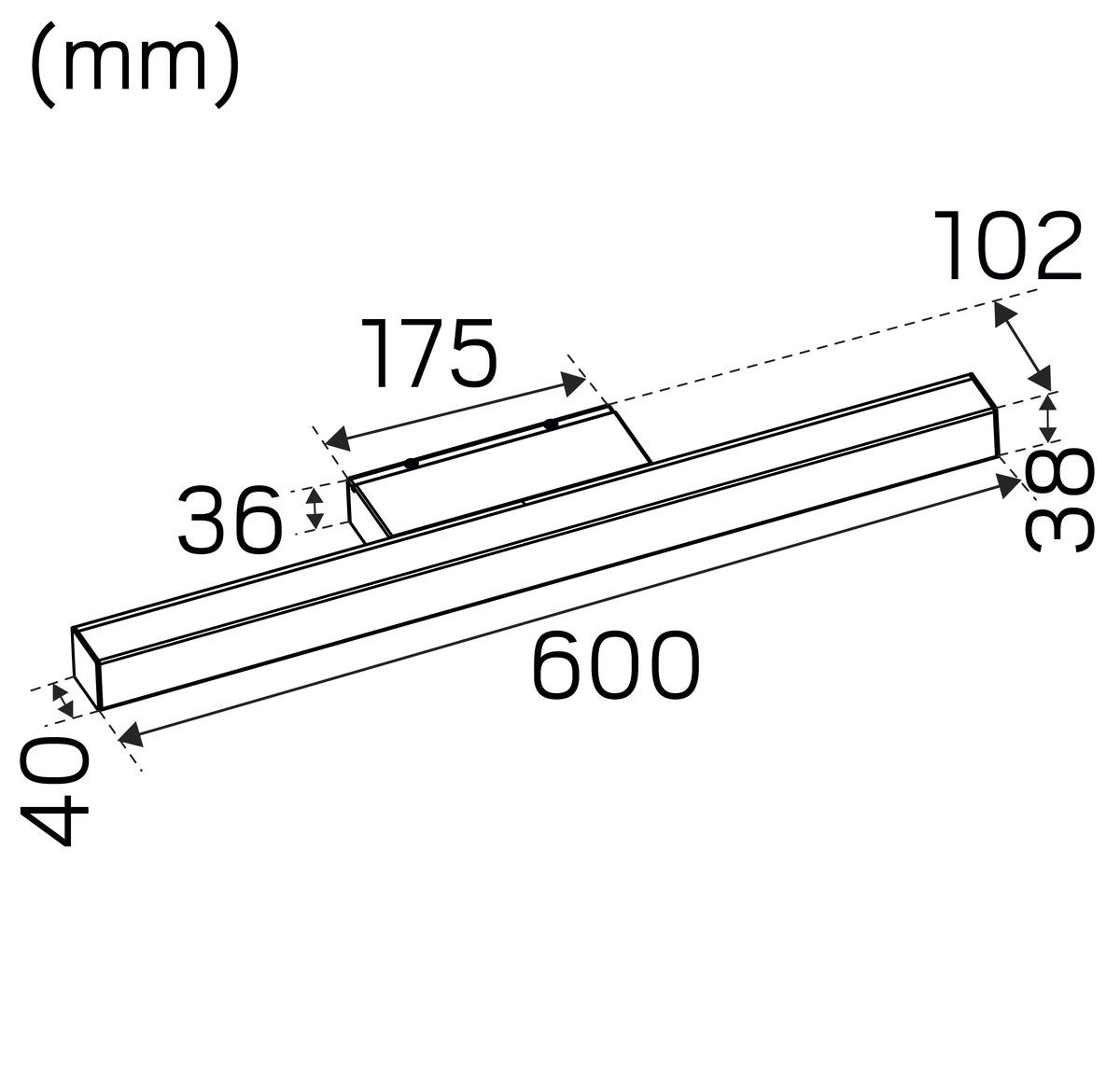

Length (mm) 600
Height (mm) 38
Depth (mm) 102
Weight (kg) 0,9
