Mirro IP44 PIR

Meets requirement for small bathrooms in public environments Installed on wall or above bathroom cabinet
PIR sensor for presence control, settings via DIP-switch for dusk control and time delay
Slaves several luminaires, e.g. Moon Slim in an RWC
Double cable bushings of which one is centred

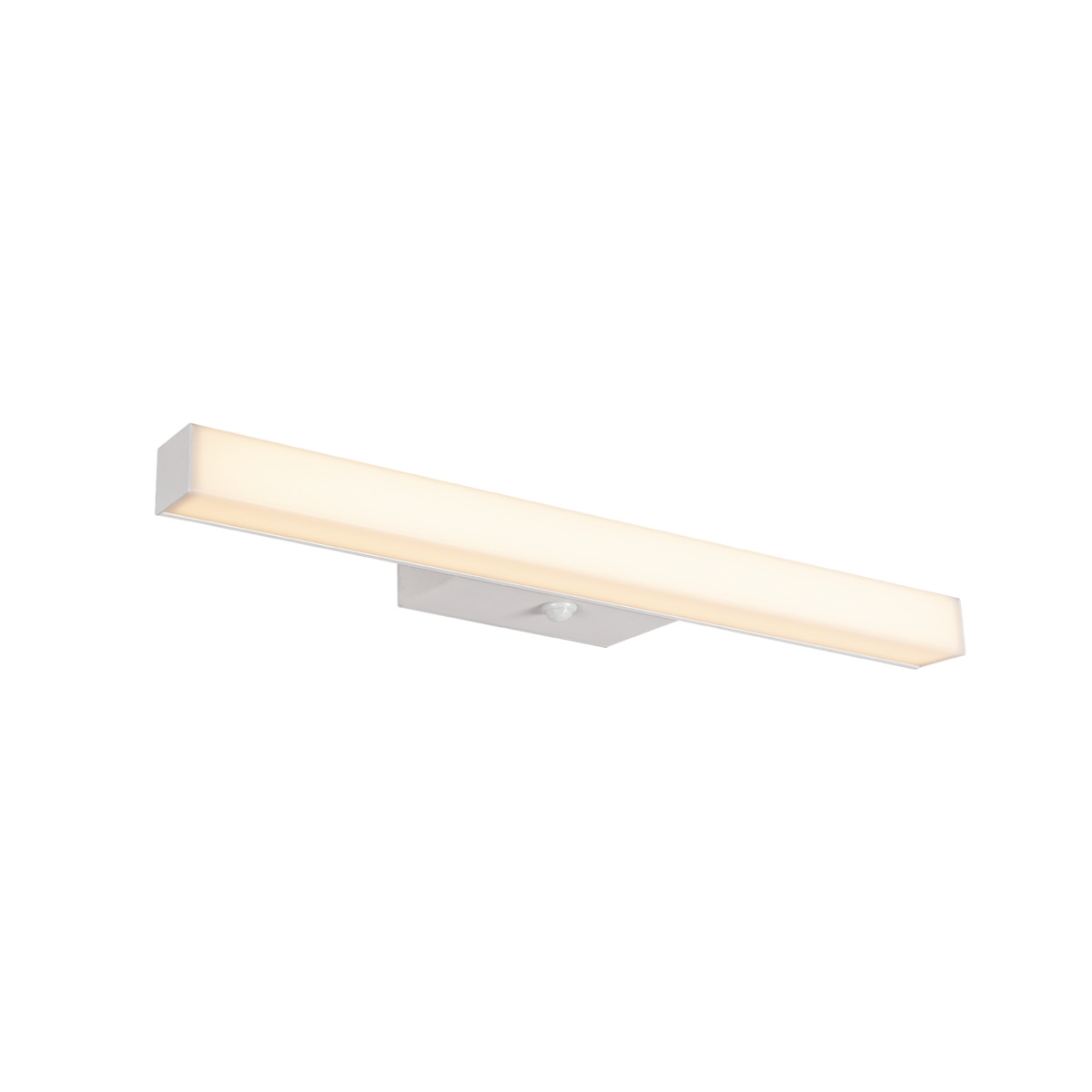

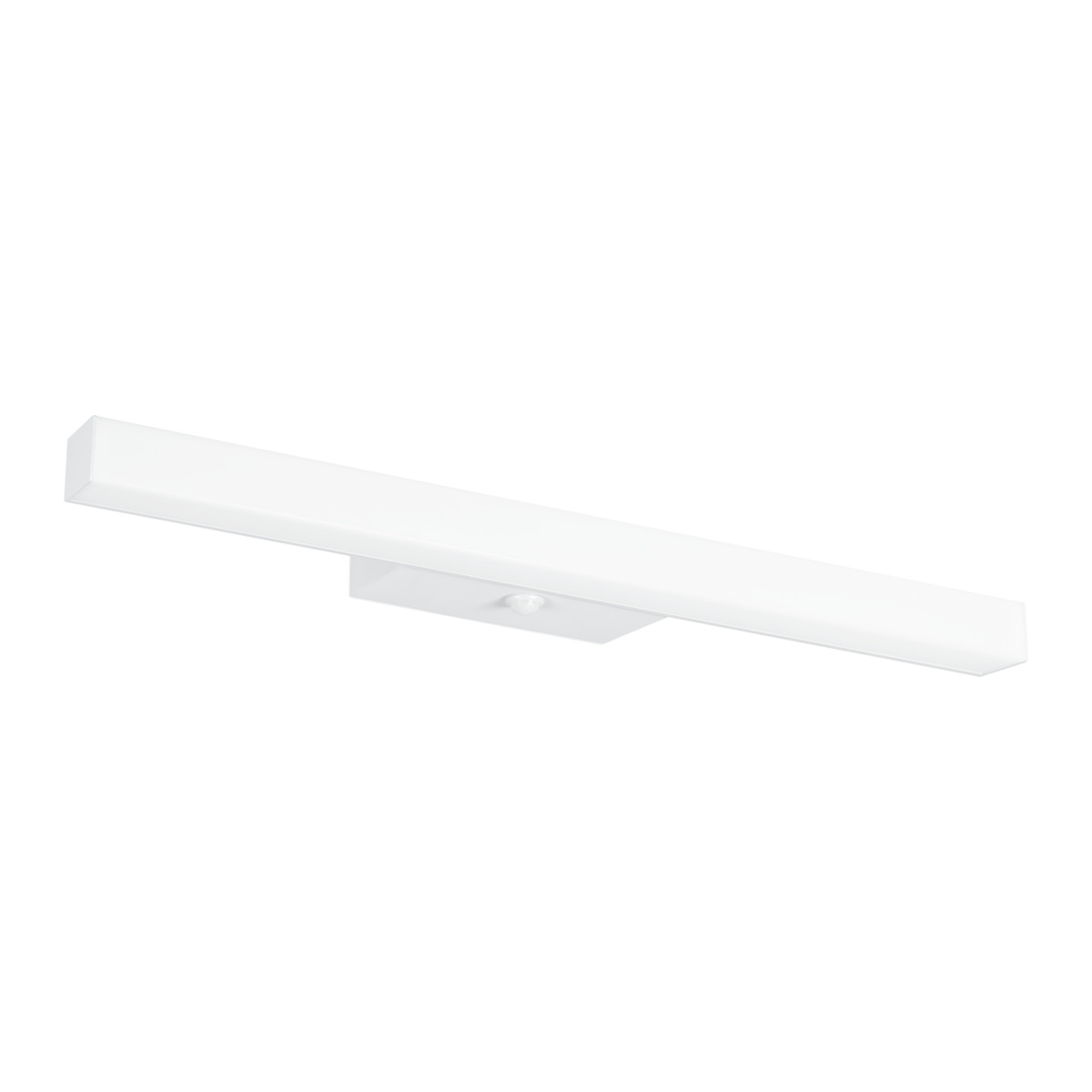

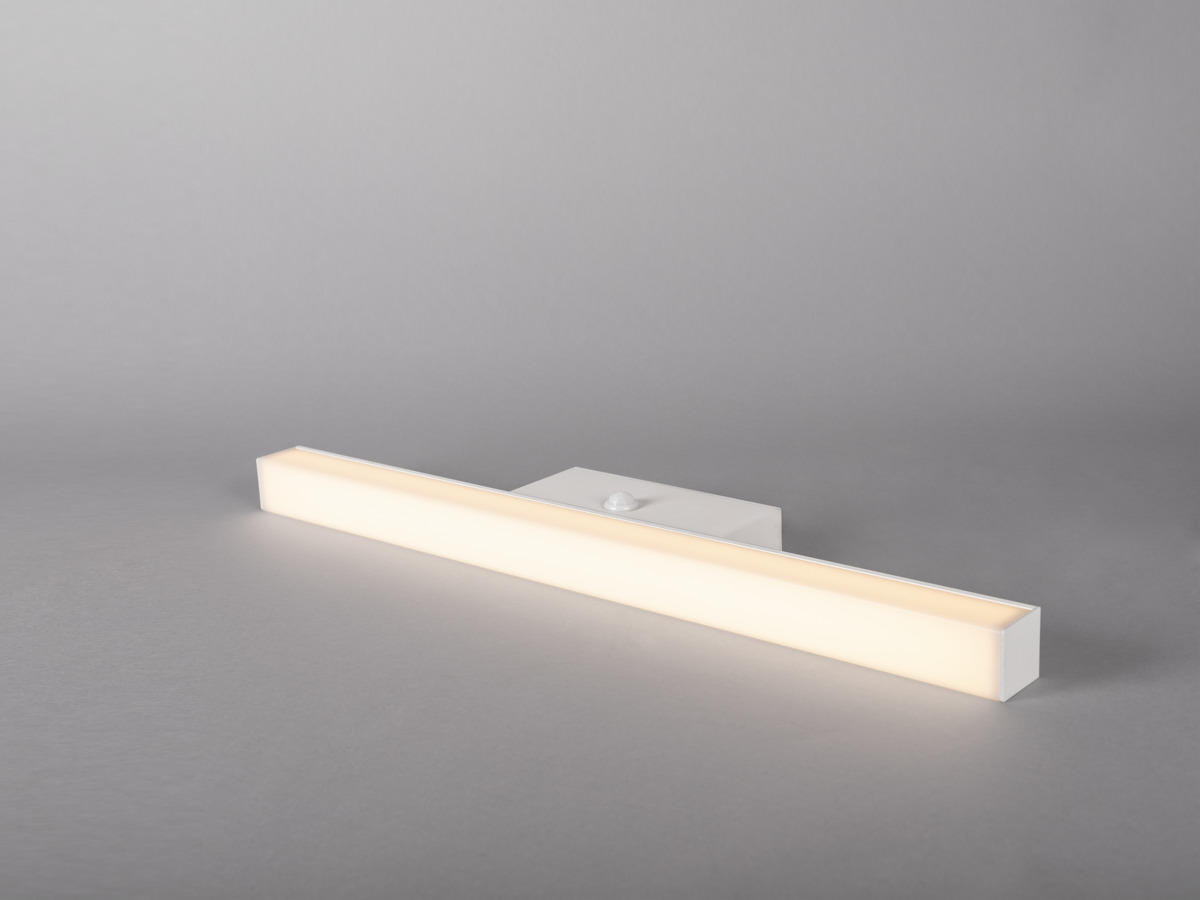

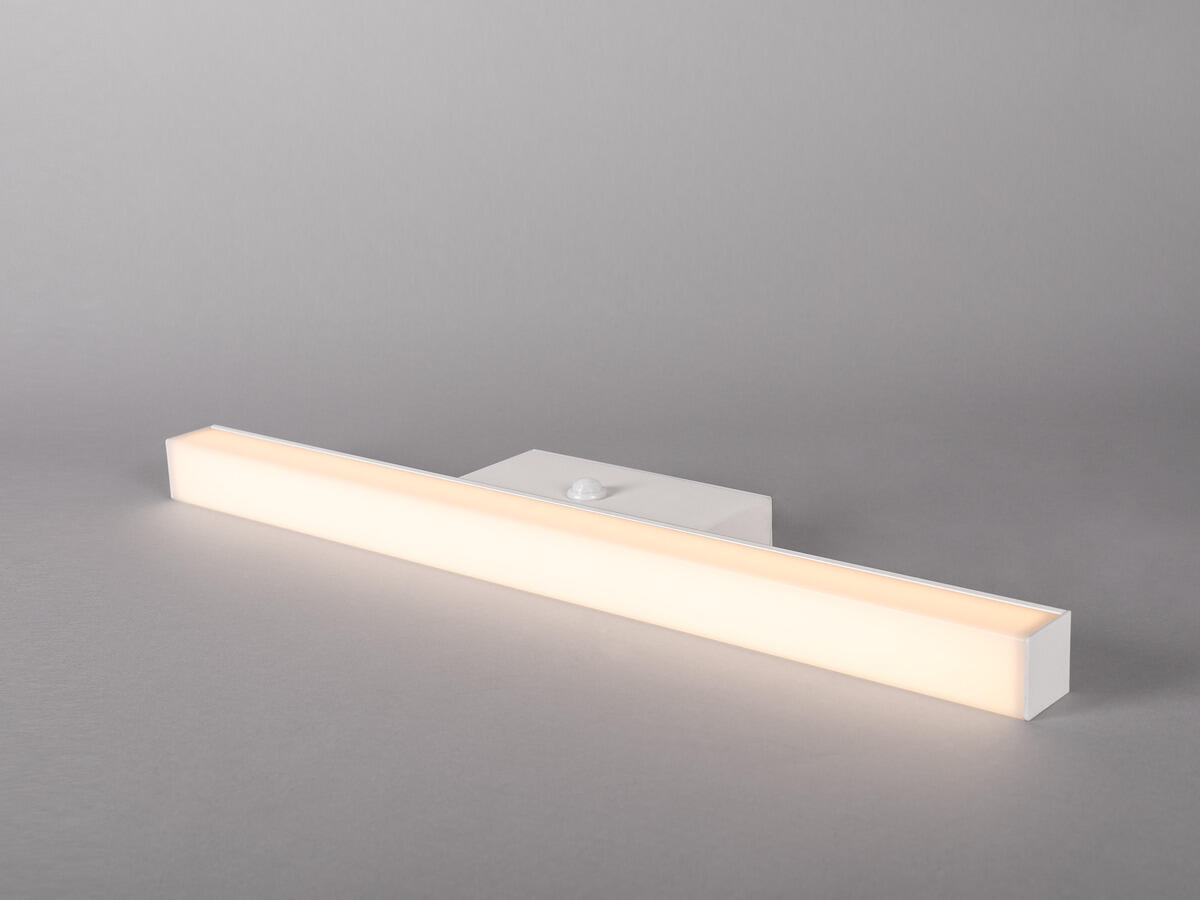

Mirror luminaire with PIR-sensor for control with timer setting. IP44 rated and adapted to meet the requirements for smaller bathrooms in public environment. Driver (On/Off) integrated in the luminaire for 230V connection. Luminaire in white enamelled aluminium (RAL 9016) with opal diffuser for an even light distribution. Installed on wall with or on top of bathroom cabinets with accompanying brackets, spacers for surface-mounted cable routing included. Dual cable bushings, of which one is centred, and push-in, loop-in, loop-out terminals for through wiring.

Description: GTIN 7392971136431

Item Name Mirro IP44 PIR White 3000K

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 1325

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Replaceable Control gear by professional

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

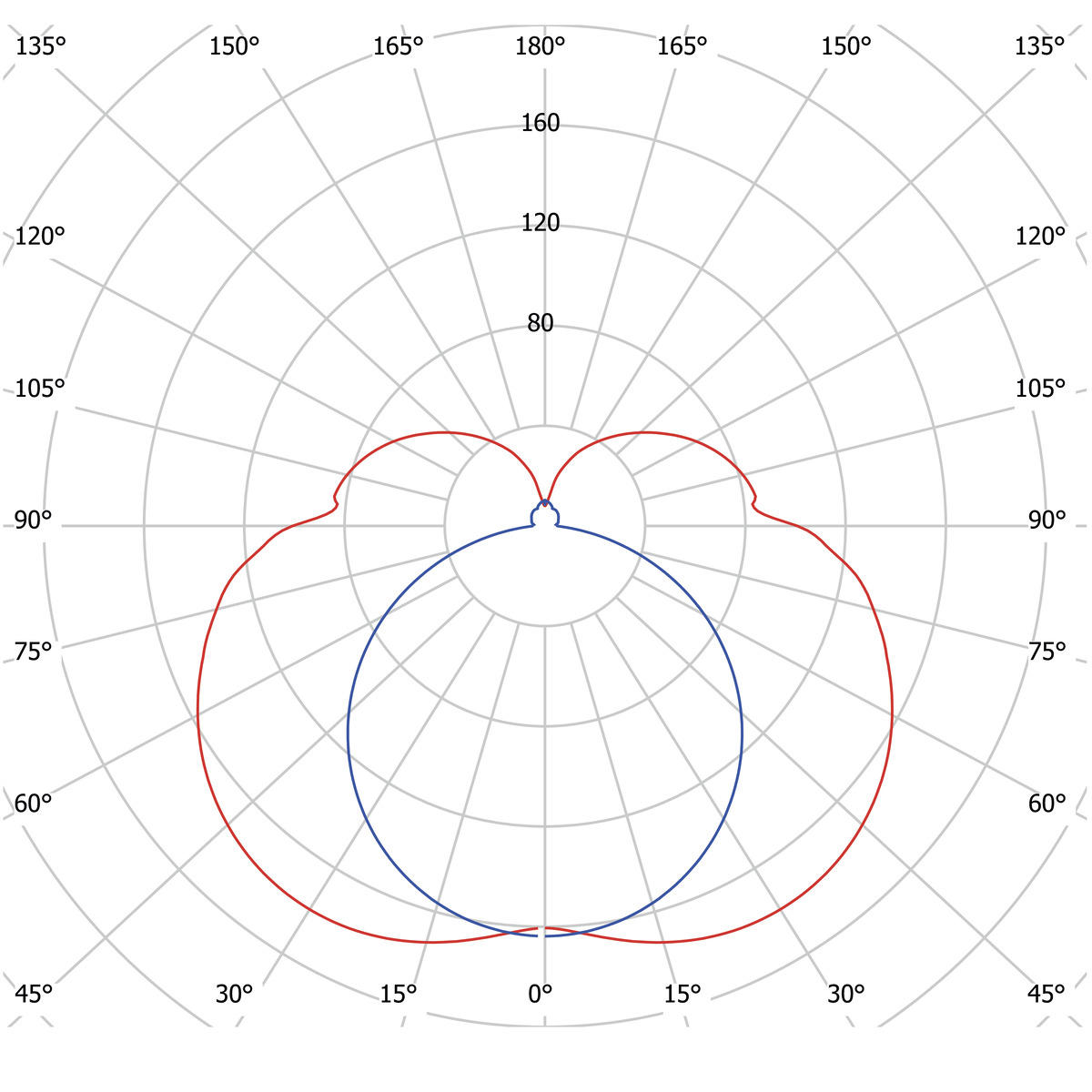

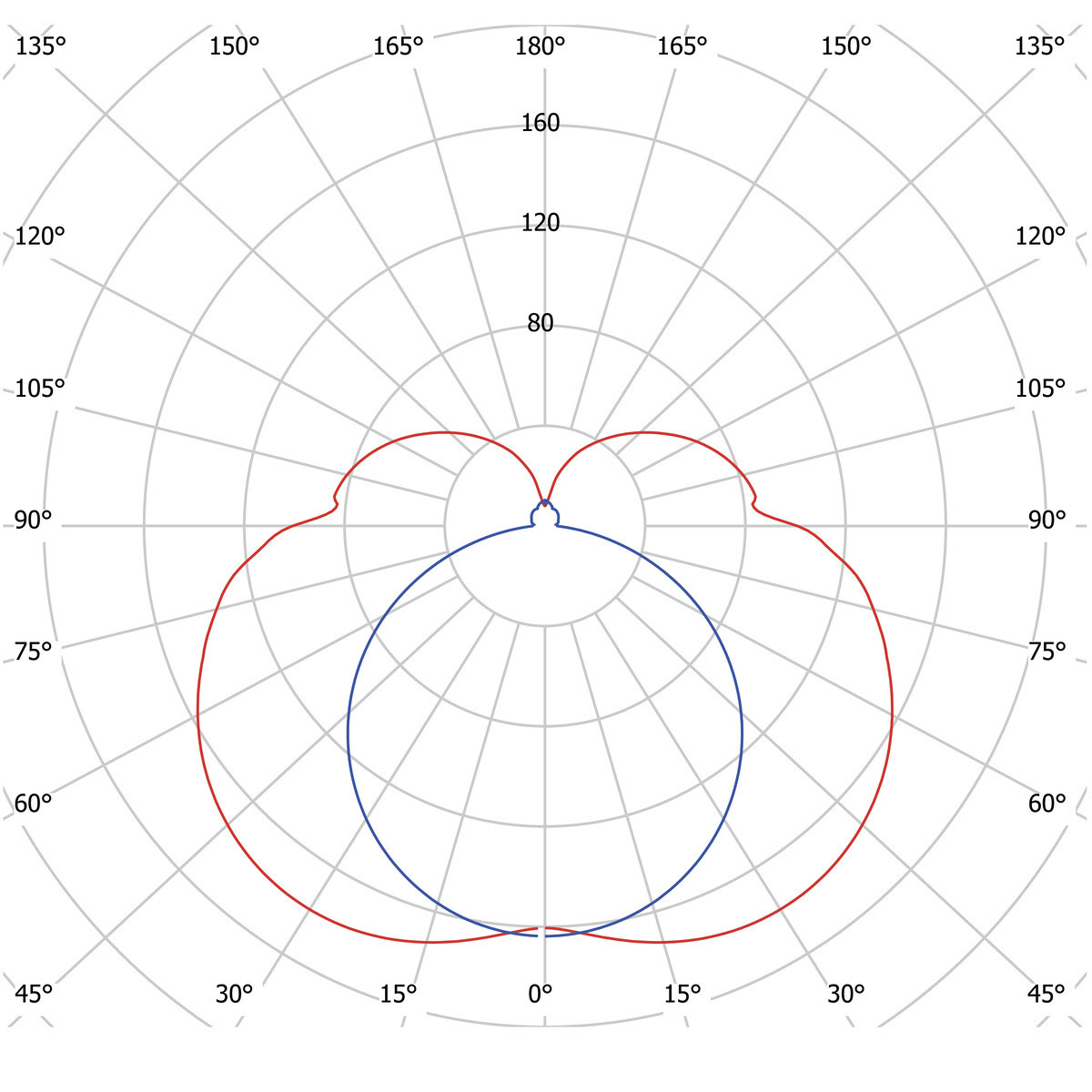

Luminous Intensity (cd) 230

Beam Angle (°) 180

Light sharing Symmetric

Light Outlet Direct, Indirect

Number of Lamps (pcs) 1

Number of LED (pcs) 98

Life Time L80 100 000h Ta 25°C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L90

Lumen maintenance 100 000h L84

LLMF @ 50 000h 0,9

LLMF @ 100 000h 0,84

Life Time Driver 50 000h/10%

Flicker (PstLM) 0,272

Stroboscopic effect (SVM) 0,123
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50

Voltage Forward (Vf) 60

Power LED (W) 10

Power Luminaire (W) 11,5

System Power (W) 11,5

Efficiency Luminaire (lm/W) 115

Efficiency System (lm/W) 115

Containing light source energy efficiency class (EU) 2019/2015 E
Operation and Connection: Dimmable No

Type of Dimming PIR Sensor

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Connection (type) Quick Terminal

Connection (mm2) 4x0,5-1,5

Through Wiring Yes

Strain Relief No

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,1

Standby Power 0,5

Constant Current (mA) 150

Operating Temperature -20…+40

Max. Tc (°C) 80

Fuse B10 (pcs) 45

Fuse B16 (pcs) 65

Fuse C10 (pcs) 65

Fuse C16 (pcs) 80
Color and material: Material Diecasted, Extruded, Aluminium, Plastic

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / wet locations

IP Degree of Protection 44

Protection Class I

Installation Surface mounted

Mounting Installation Screw Mounting

Approval Marks CE

Filament Test IEC 695-2-1(°C) 650

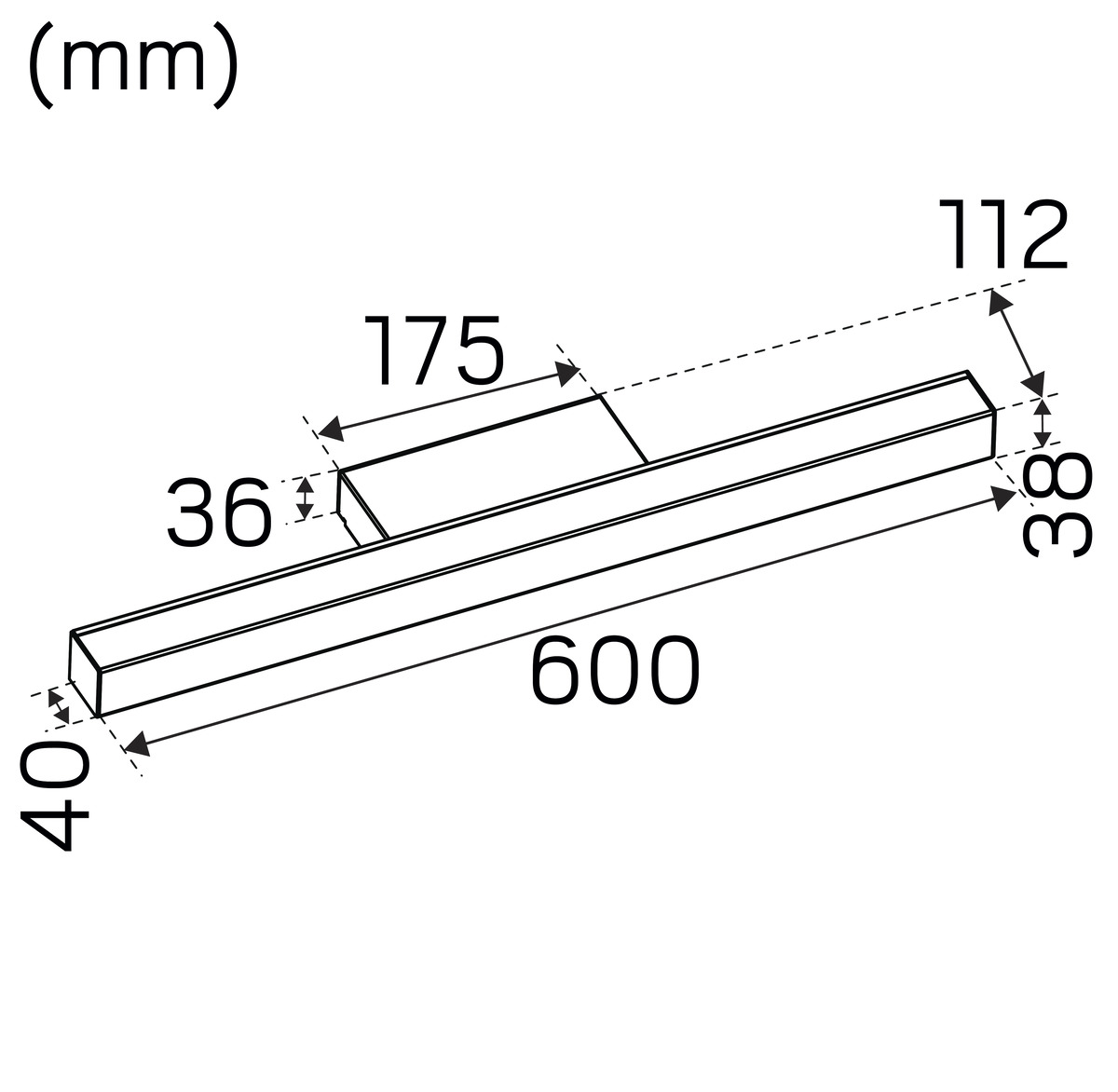

Length (mm) 600

Height (mm) 38

Depth (mm) 112

Weight (kg) 0,94
