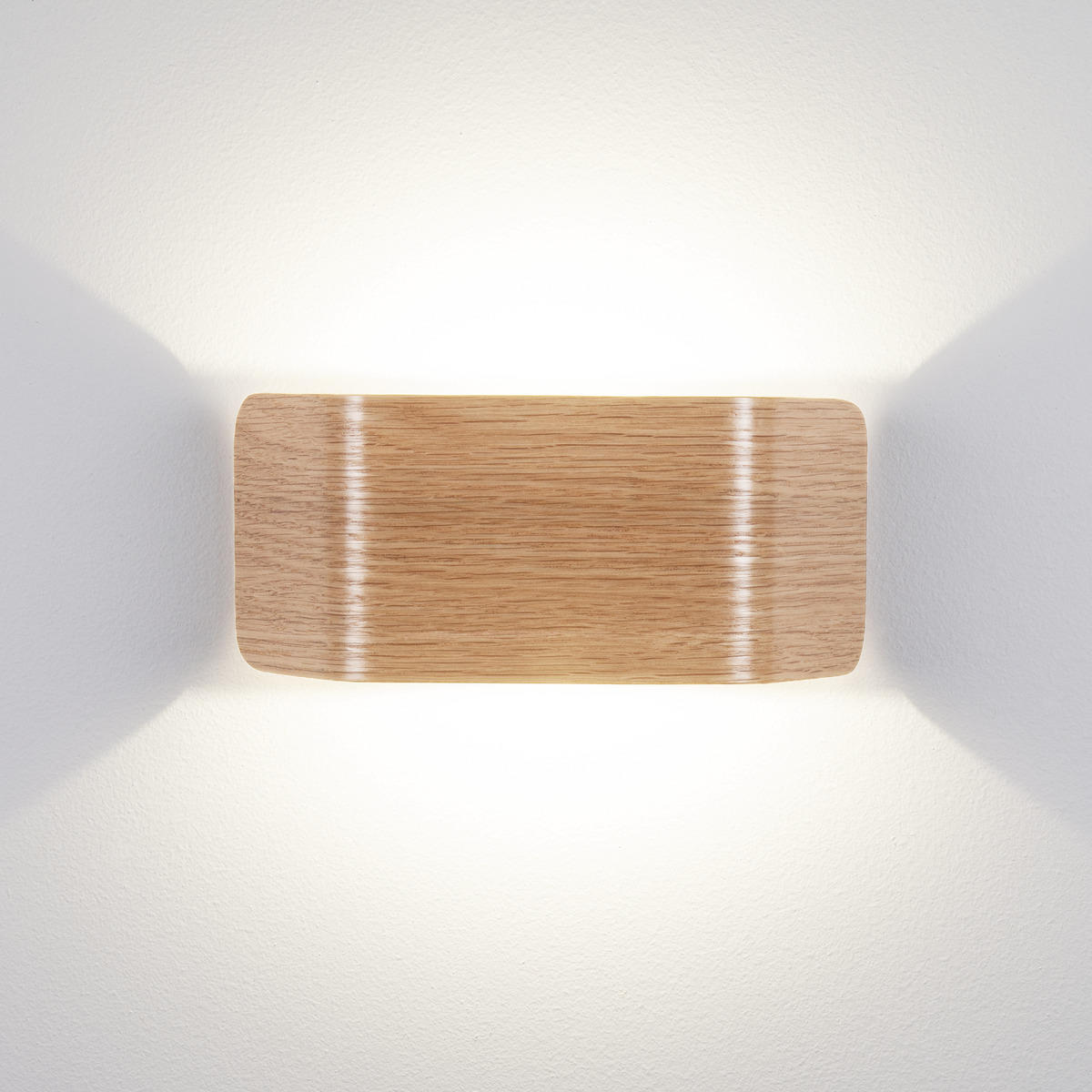

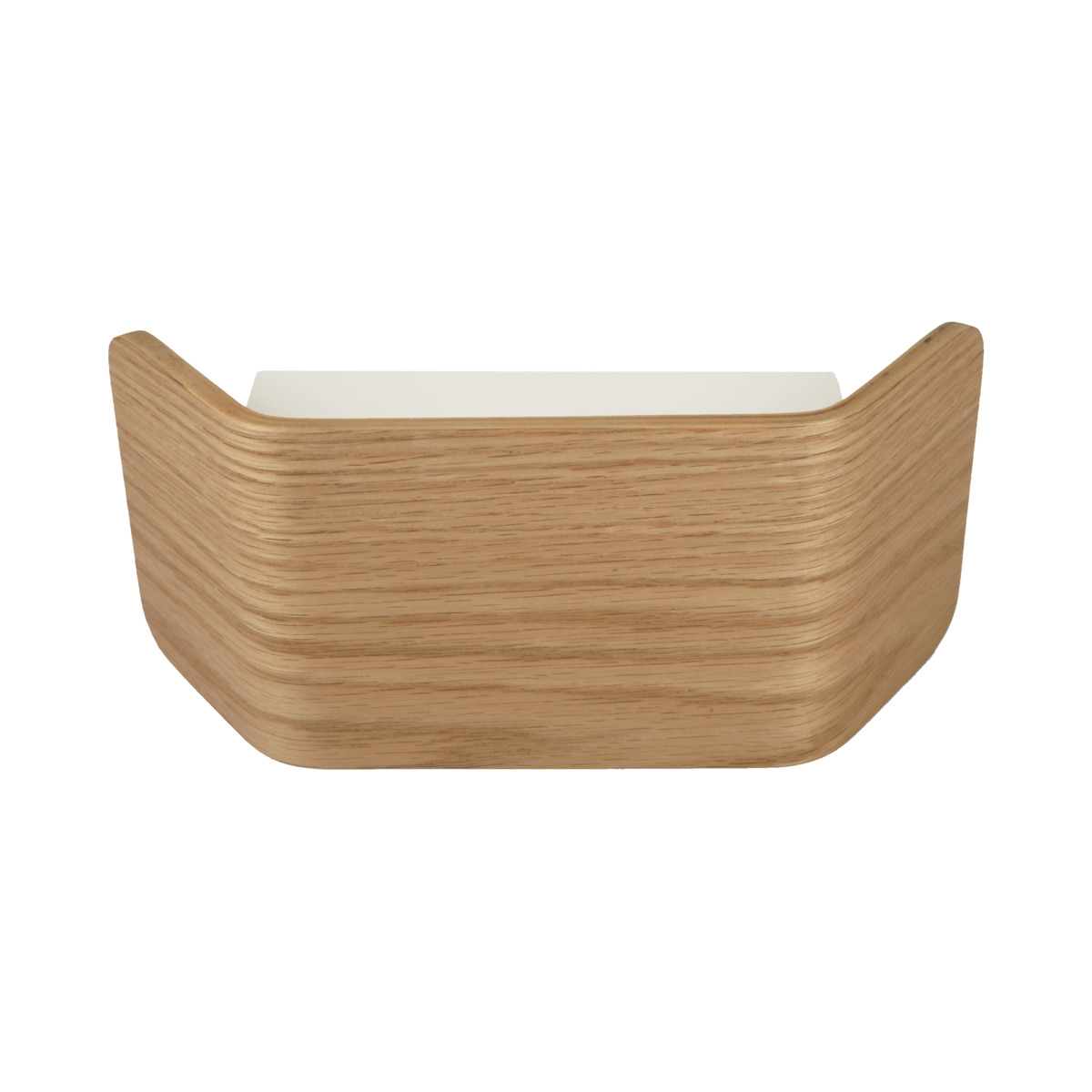

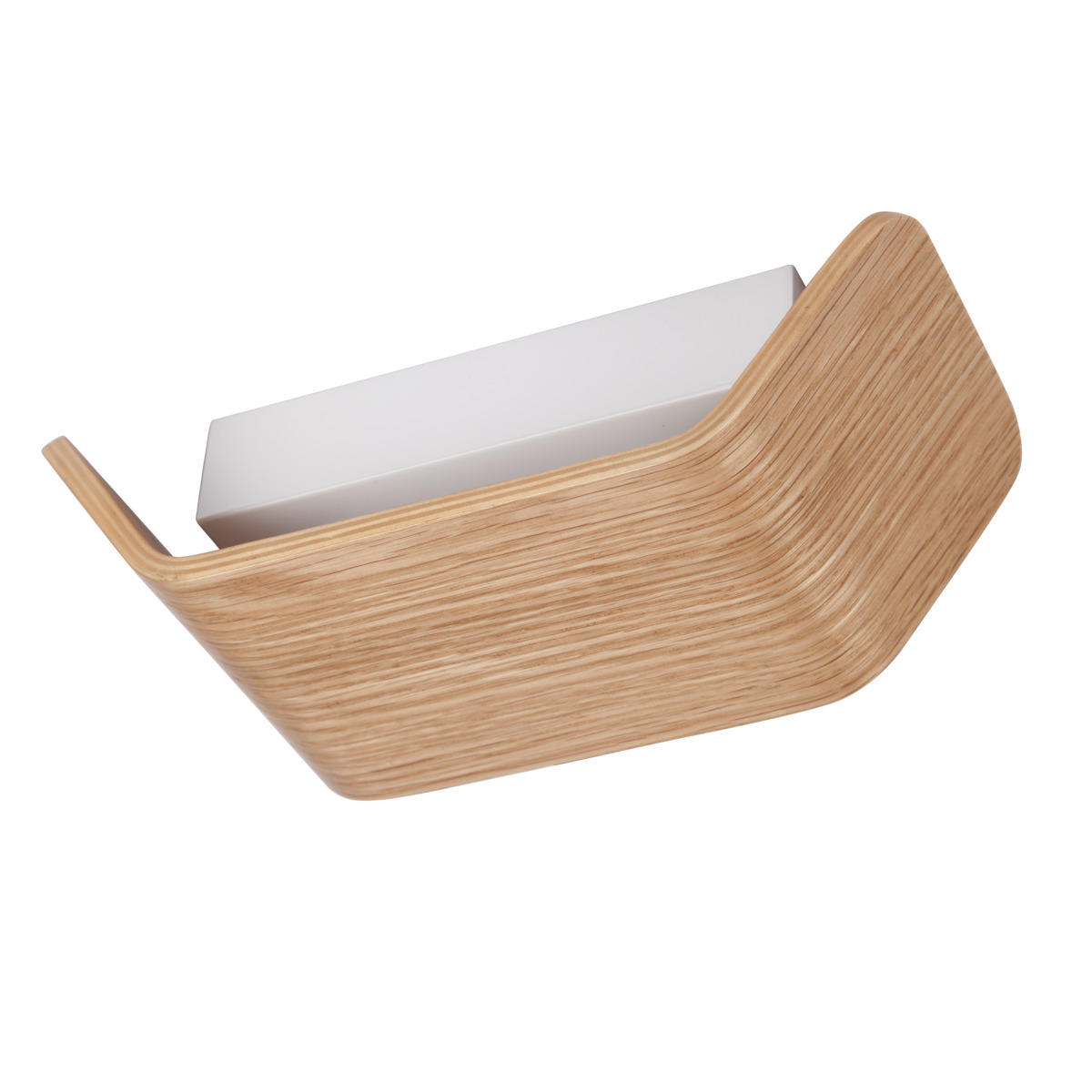

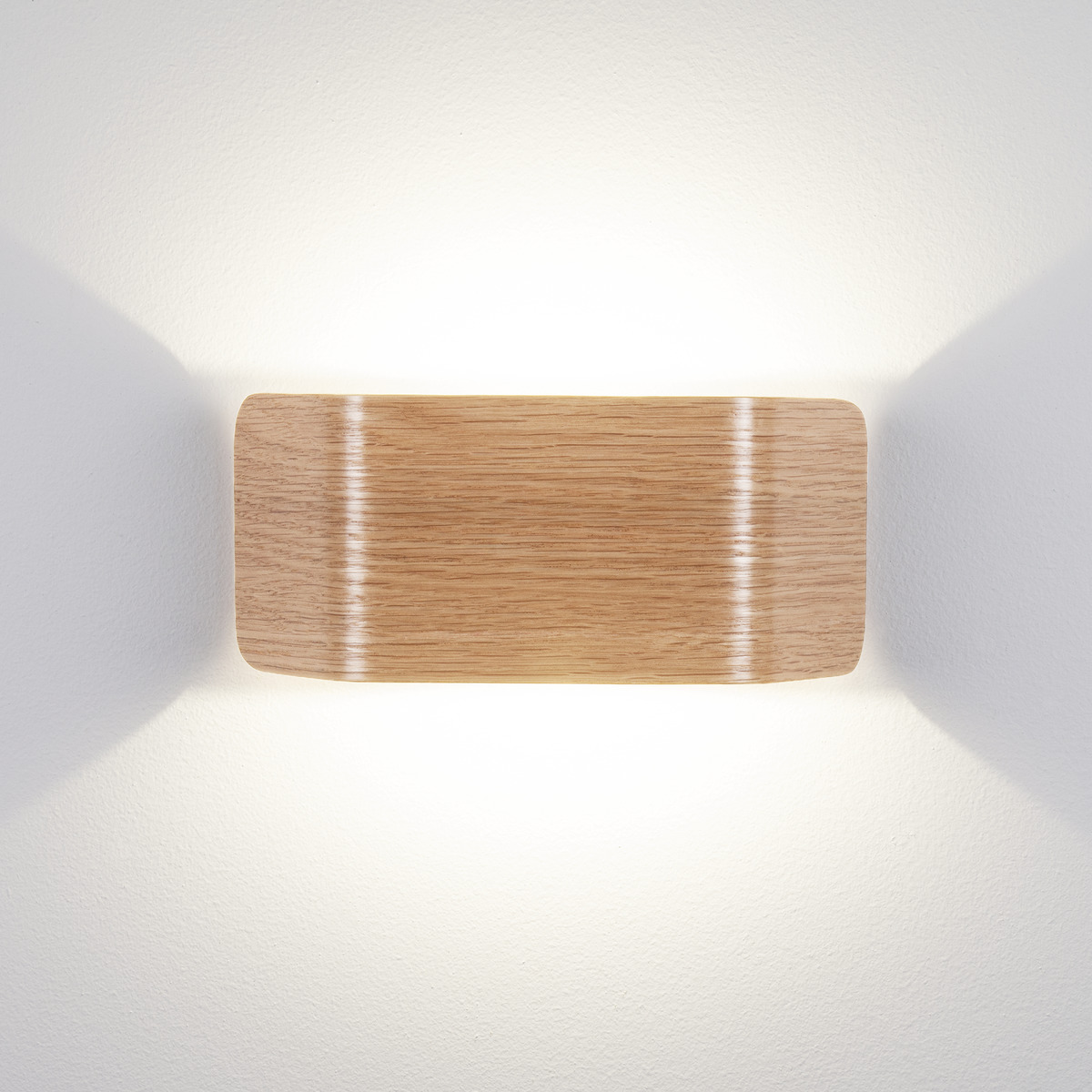

Shade
Modern LED luminaire with retro-look and pleasant indirect up and downlight, giving a decorative light pattern on the wall. Perfect as decorative lighting in both private and public areas. Versions available in wood veneer or white enamel aluminium. Comes complete with integrated dimmable driver. Dimmable with the most commonly available dimmers on the market.
| Variants | GTIN | Item Name | Color | Luminaire Lumen (lm) |
|---|---|---|---|---|
|
7392971129433 | Shade Oak 3000K | Oak | 470 |
|
7392971129426 | Shade White 3000K | White | 530 |
Shade Oak 3000K
-
GTIN 7392971129433Item Name Shade Oak 3000KWarranty 5 years
- Light Technical Data
-
Luminaire Lumen (lm) 470Light Source LEDLight Source Included YesReplaceability Replaceable LED by professional, Replaceable Control gear by professionalLED Colour Warm WhiteColour Temperature (K) 3000Colour Rendering Index (Ra) >90Colour Consistency (SDCM) 3Beam Angle (°) 150Light sharing SymmetricLight Outlet IndirectNumber of Lamps (pcs) 1Number of LED (pcs) 1Life Time L70 50 000h Ta 25°CNominel Life Time (h) 50000
- Technical data
-
Adjustable NoVoltage (type) ACVoltage Interval (V) 220...240Voltage Nominal (V) 230Line Frequency (Hz) 50Power Luminaire (W) 9System Power (W) 9Efficiency Luminaire (lm/W) 52Efficiency System (lm/W) 52Containing light source energy efficiency class (EU) 2019/2015 E
- Operation and Connection
-
Dimmable YesType of Dimming Trailing EdgeDriver Included YesDriver Model Constant CurrentConnection (type) Screw TerminalsConstant Current (mA) 500Operating TemperatureMax. Tc (°C) 80Fuse B10 (pcs) 140Fuse B16 (pcs) 224Fuse C10 (pcs) 280Fuse C16 (pcs) 448
- Color and material
-
Material AluminiumColor Oak

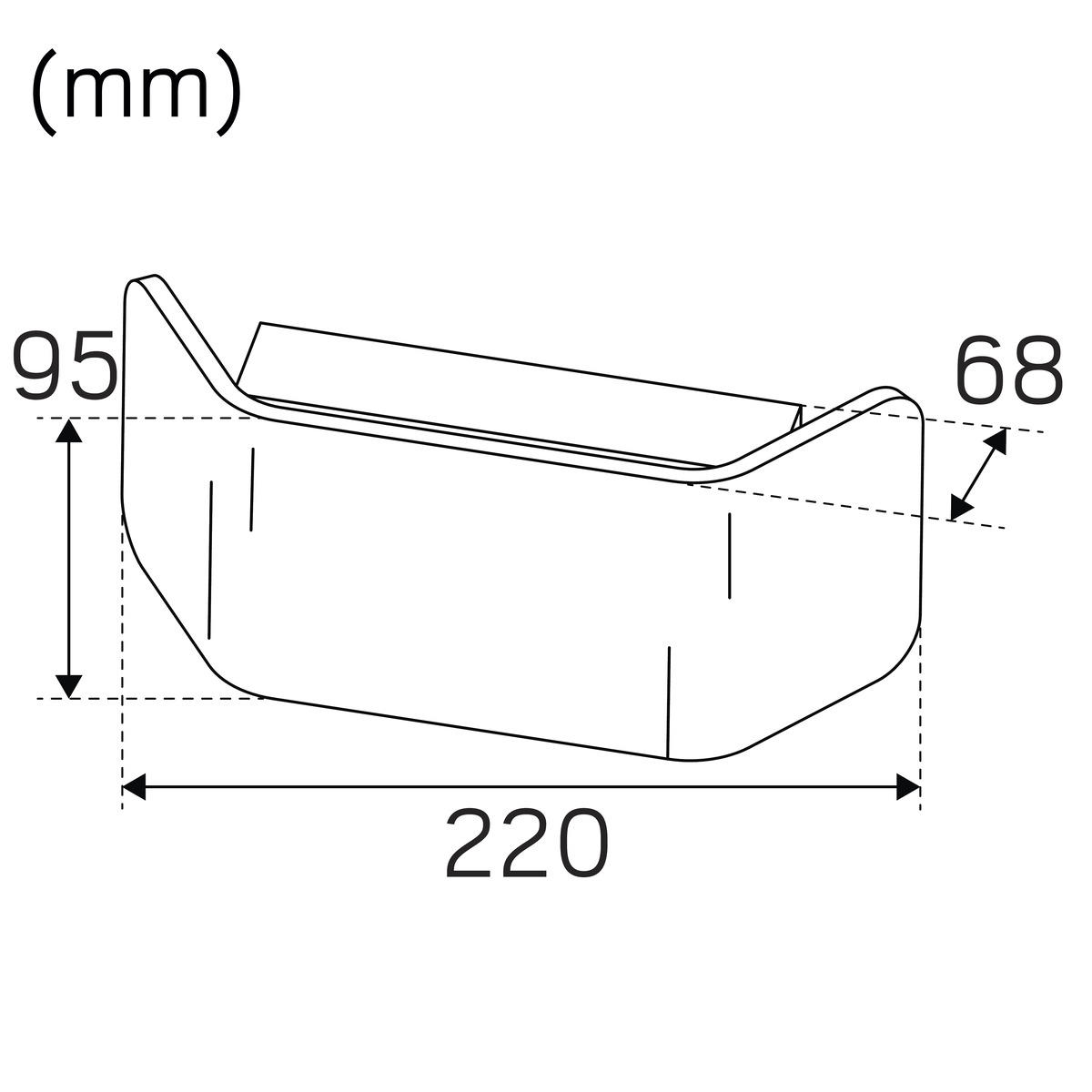

- Measurement and installation
-
Operating EnvironmentIP Degree of Protection 20Protection Class IInstallation Surface mountedMounting Installation Screw MountingApproval Marks CEWidth (mm) 220Height (mm) 95Depth (mm) 68Weight (kg) 0,57
