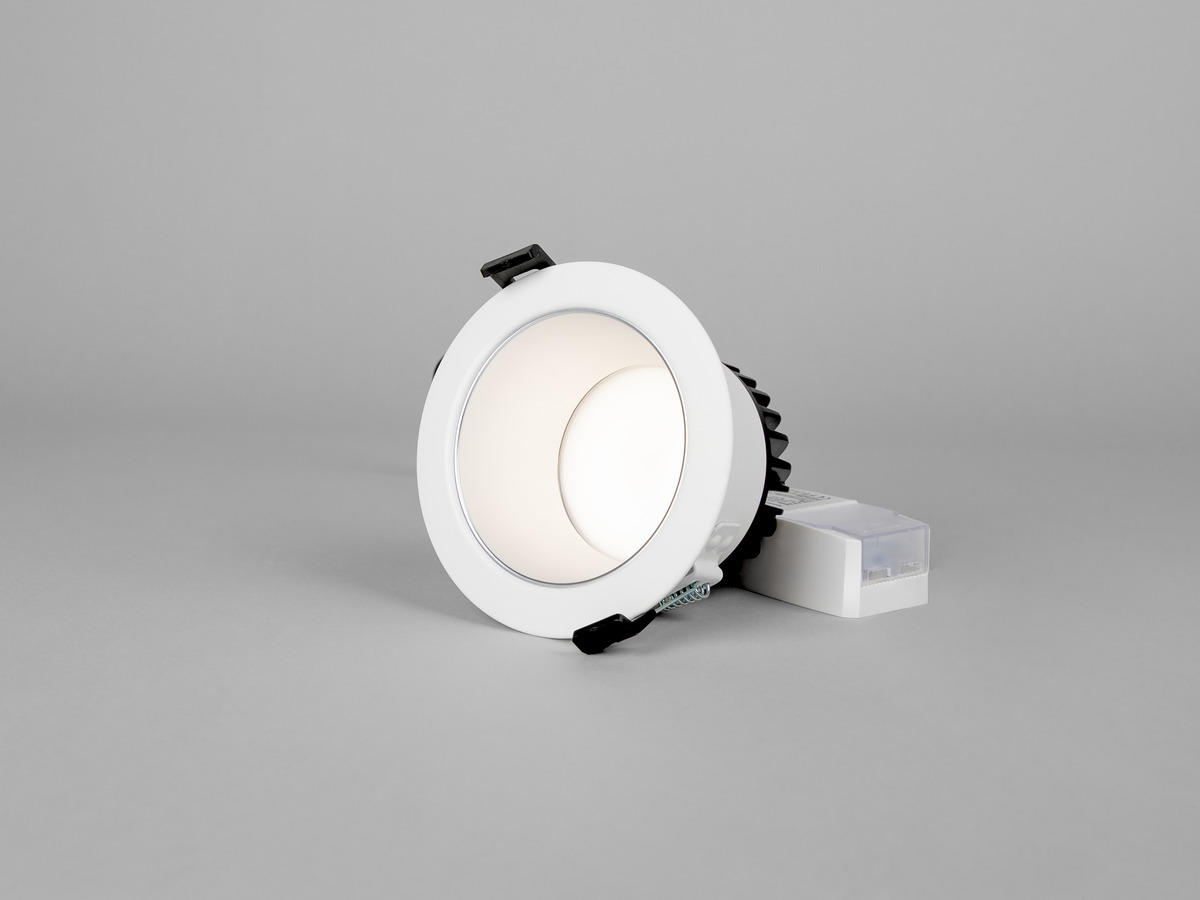

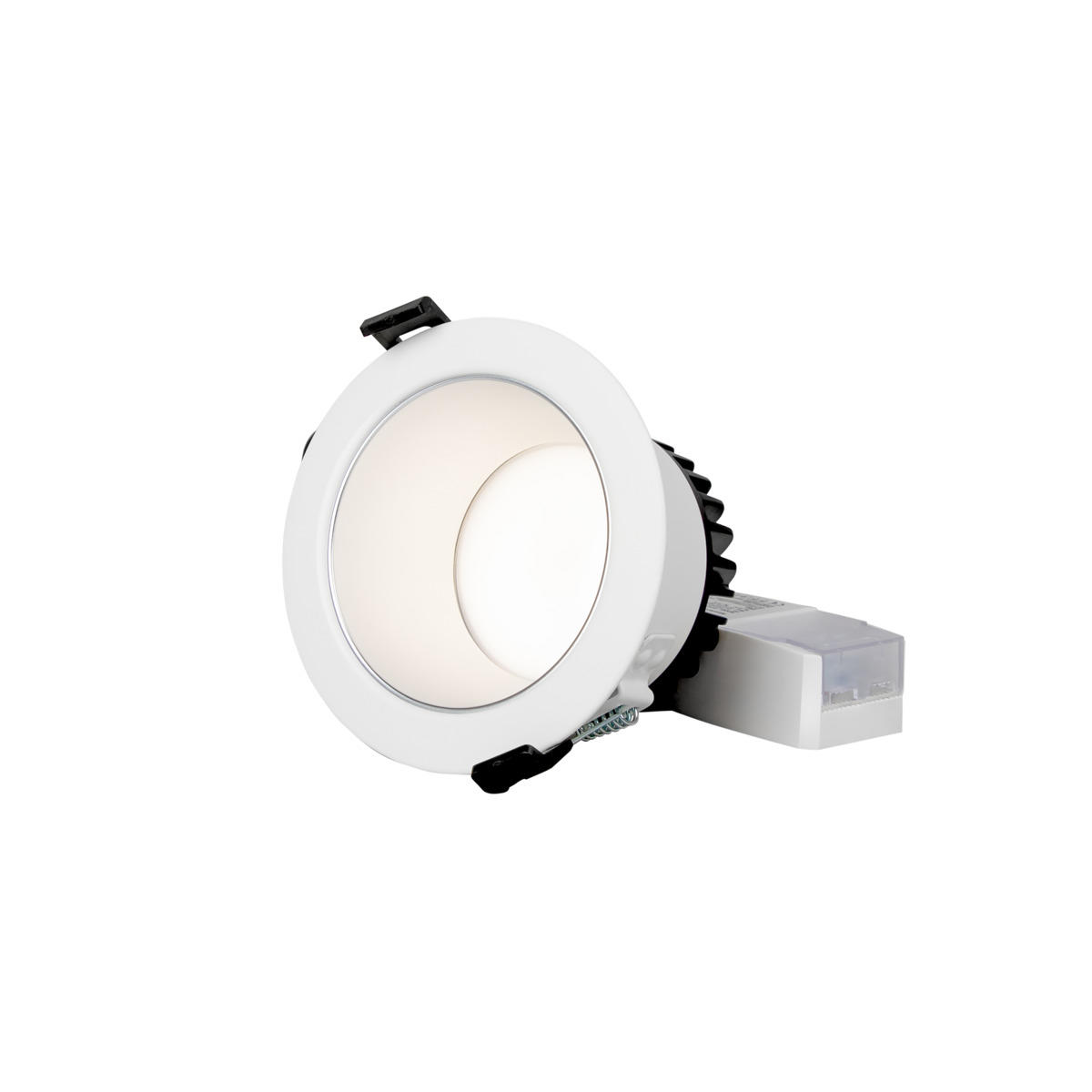

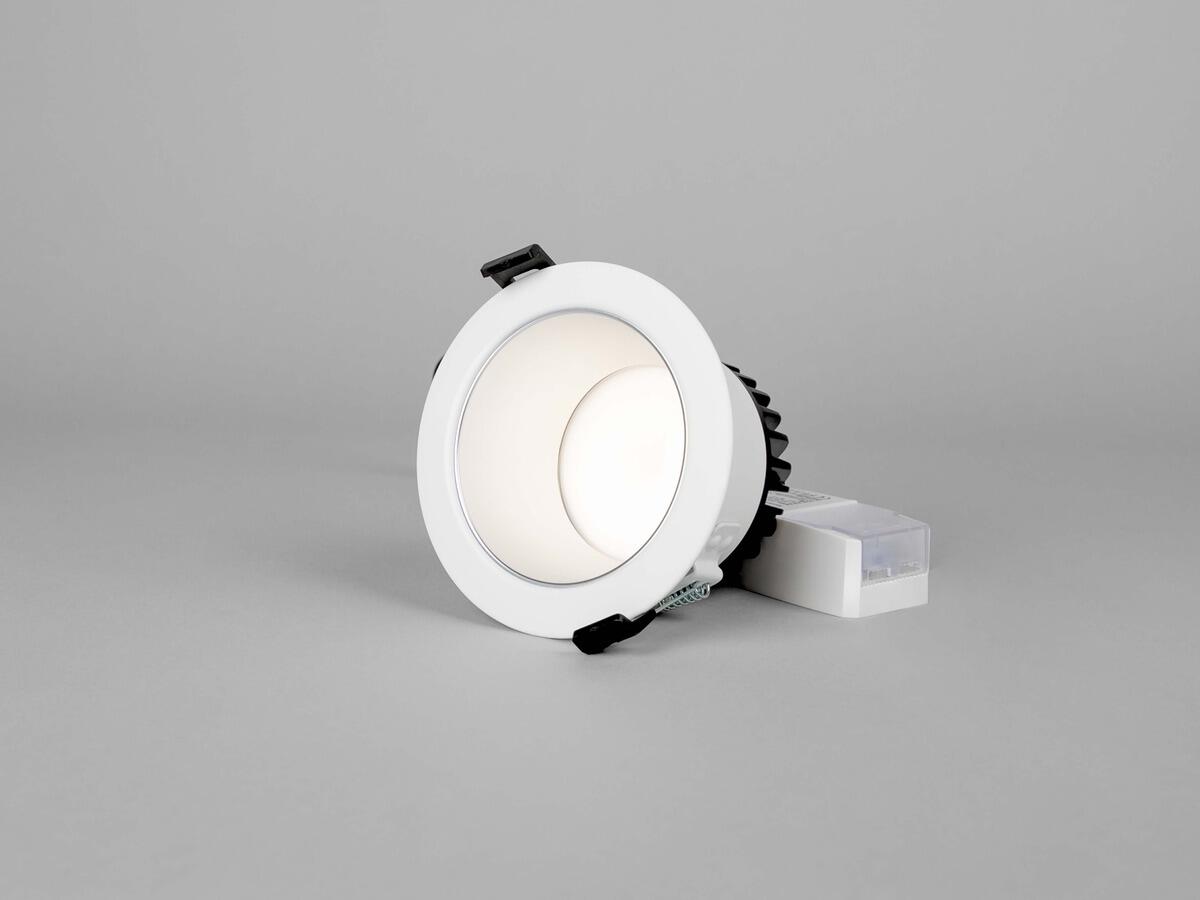

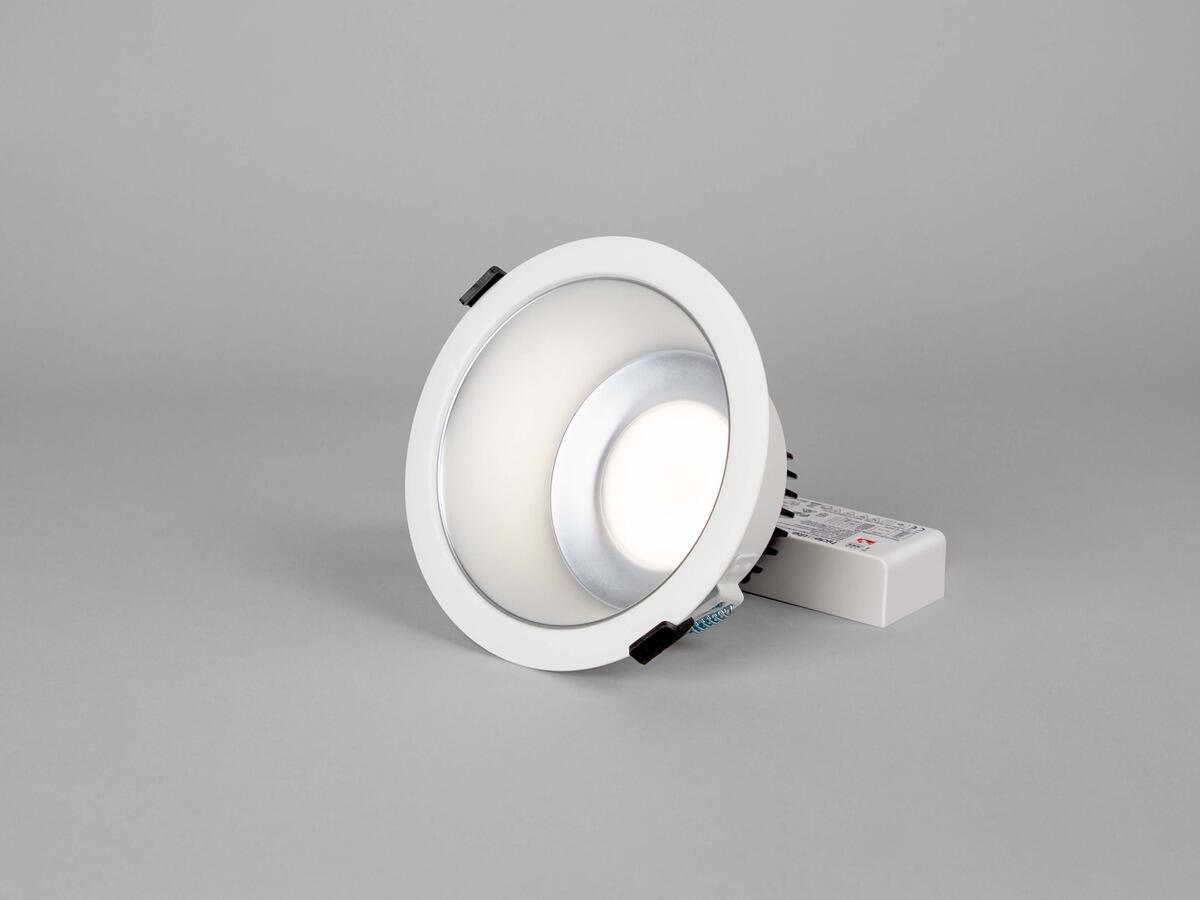

Echo S Echo S 125 White

Selectable colour temperature via DIP-Switch ColourTemp

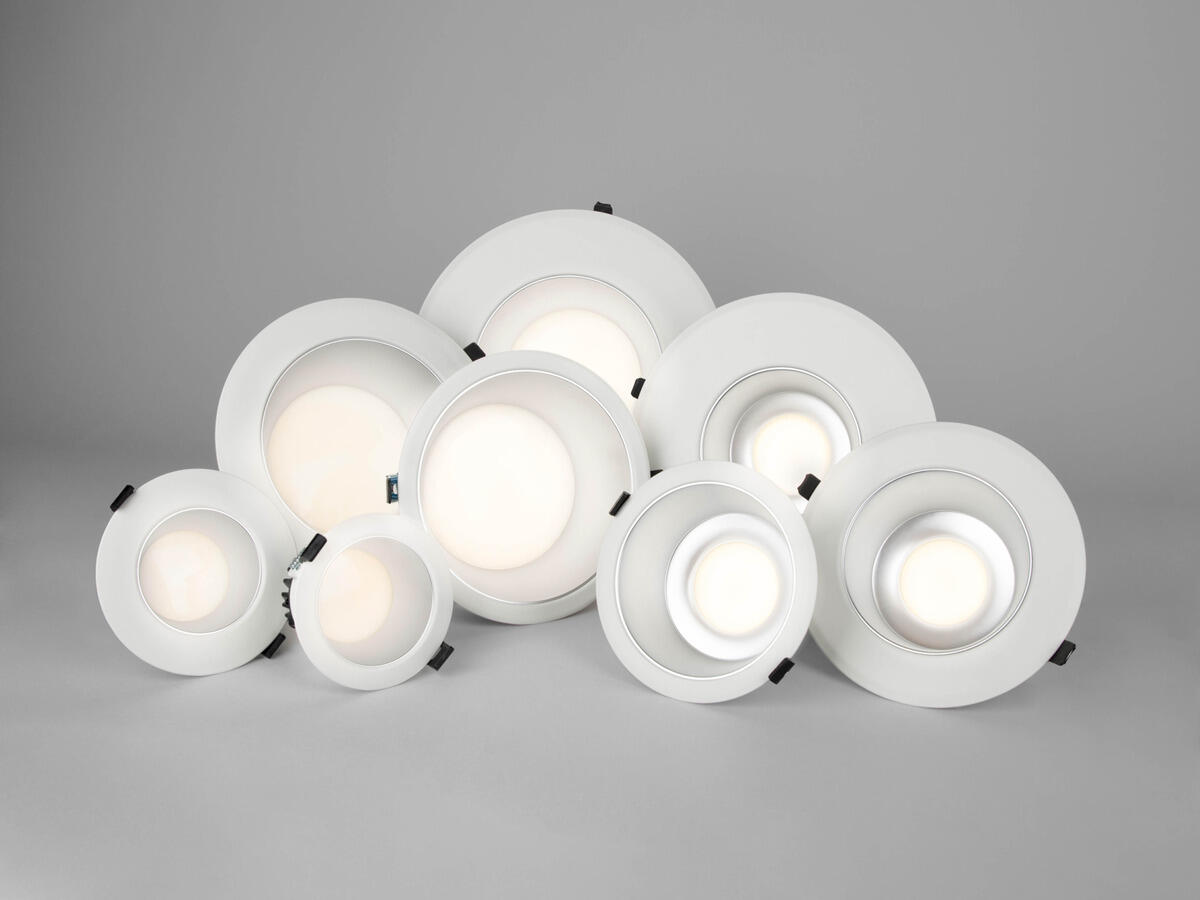

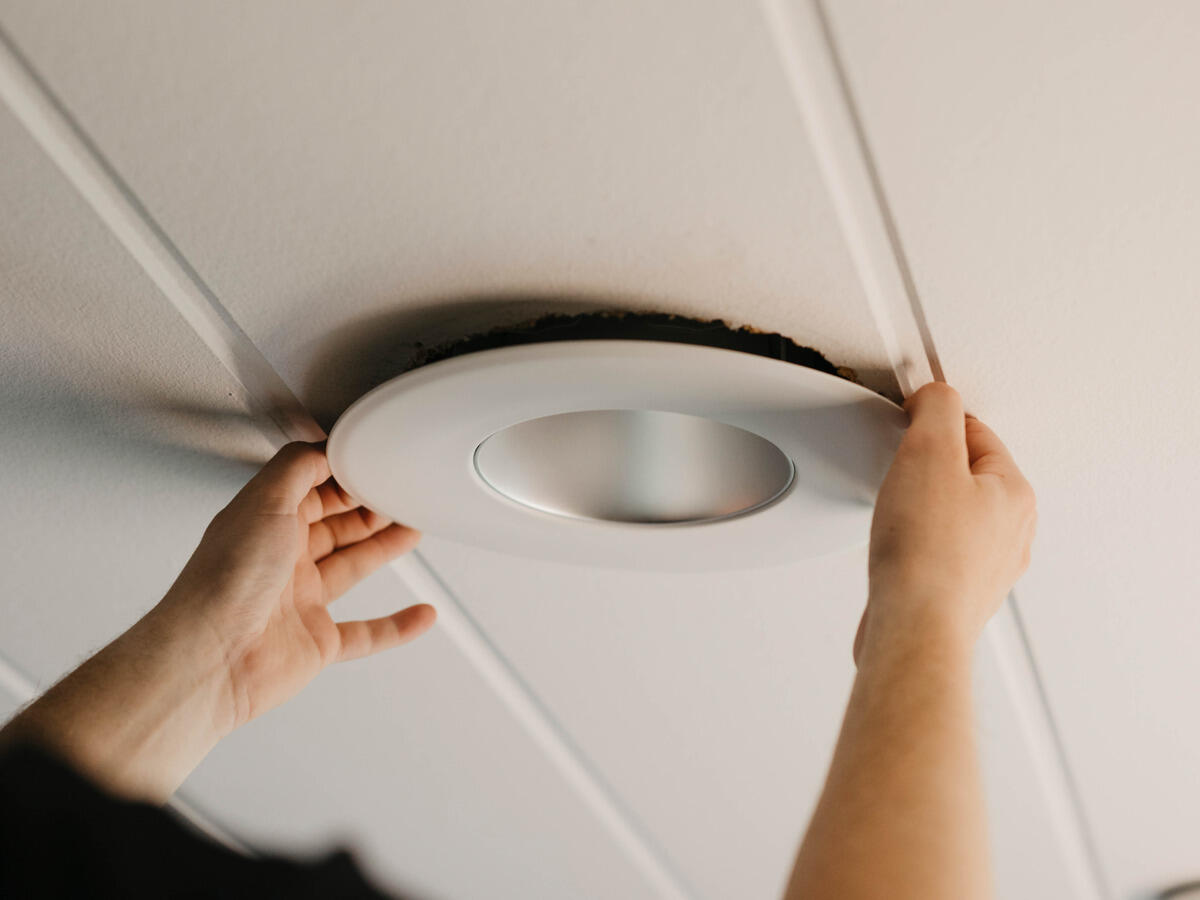

Instead of replacing with cover rings, choose a complete luminaire in the size you need. Echo is a large product family for holes from 103-300mm. Dimmable all-round luminaire for public environments.that need a lot of light, such as in rooms with high ceilings, corridors or shops. Perfect for new installations and to replace compact fluorescent tube luminaires. Selectable colour temperature via DIP switch. Echo M and Echo L have adjustable lumen output via DIP-switch. Comes complete with driver for phase dimming or DALI-2. DALI-2 comes with Q-box Micro, push-in terminals and screwless strain relief. Dimmable with most common dimmers on the market.

GTIN	Item Name	Type of Dimming
7392971141282	Echo S 125 White	Trailing Edge, Leading Edge
7392971141299	Echo S 125 White DALI	Push 230V, DALI 2
7392971148151	Echo S 150 White	Trailing Edge, Leading Edge
7392971148168	Echo S 150 White DALI	Push 230V, DALI 2
7392971148175	Echo S 170 White	Trailing Edge, Leading Edge
7392971148182	Echo S 170 White DALI	Push 230V, DALI 2
7392971148199	Echo S 215 White	Trailing Edge, Leading Edge
7392971148205	Echo S 215 White DALI	Push 230V, DALI 2
7392971148212	Echo S 270 White	Trailing Edge, Leading Edge
7392971148229	Echo S 270 White DALI	Push 230V, DALI 2

Description: GTIN 7392971141282

Item Name Echo S 125 White

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 1150

Light Source LED

Light Source Included Yes

Replaceability Replaceable LED by professional, Replaceable Control gear by professional

LED Colour White

Colour Temperature (K) 3000, 4000, 5700

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

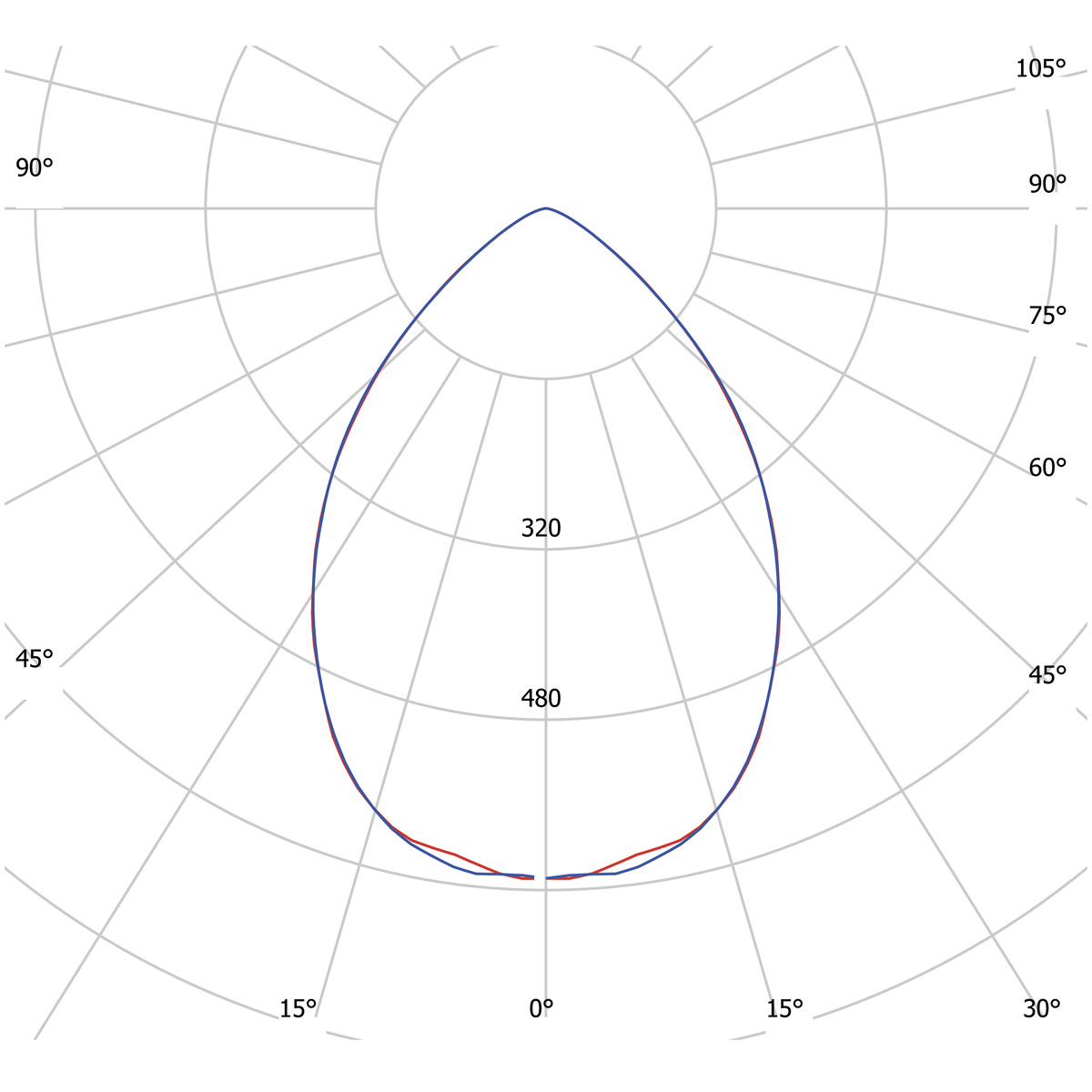

Luminous Intensity (cd) 720

Beam Angle (°) 80

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 96

Life Time L80 50 000h Ta 25°C

Nominel Life Time (h) 50000

Lumen maintenance 50 000h L81

Lumen maintenance 75 000h L73

LLMF @ 50 000h 0,81

Life Time Driver 50 000h/10%

Flicker (PstLM) 0,003

Stroboscopic effect (SVM) 0,004
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Power LED (W) 12

Power Luminaire (W) 14

System Power (W) 14

Efficiency Luminaire (lm/W) 82

Efficiency System (lm/W) 82

Containing light source energy efficiency class (EU) 2019/2015 E
Operation and Connection: Dimmable Yes

Type of Dimming Trailing Edge, Leading Edge

Driver Included Yes

Driver Model Constant Current

Driver Type Stand Alone

Driver Manufacturer Hide-a-lite

Connection (type) Quick Terminal

Connection (mm2) 3x0,5-2,5

Through Wiring Yes

Strain Relief Yes

Power Factor ʎ 0,9

Efficiency (%) 82

Power loss (W) 2,5

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,5

Constant Current (mA) 350

Operating Temperature -20…+40

Max. Tc (°C) 85

Dimming secondary side AM

Suitable for random switching Yes

Memory Function Power Failure No

Inrush current (max/time) 2,88A 102µs

Mains surge protection DM (kV) 0,5

Mains surge protection CM (kV) 1

Fuse B10 (pcs) 40

Fuse B16 (pcs) 64

Fuse C10 (pcs) 68

Fuse C16 (pcs) 108
Color and material: Material Aluminium

Color White

Environmental Assessment Byggvarubedömningen

Available in special color Yes
Measurement and installation: Operating Environment Indoor / wet locations, Outdoor

IP Degree of Protection 44

Protection Class II

Installation Built-in

Mounting Installation Mounting Spring

Ceiling Thickness Interval (mm) 5-40

Fire Safety Marks Not in insulation without protection cover

Approval Marks CE, a Hide-a-lite Choice

Filament Test IEC 695-2-1(°C) 650

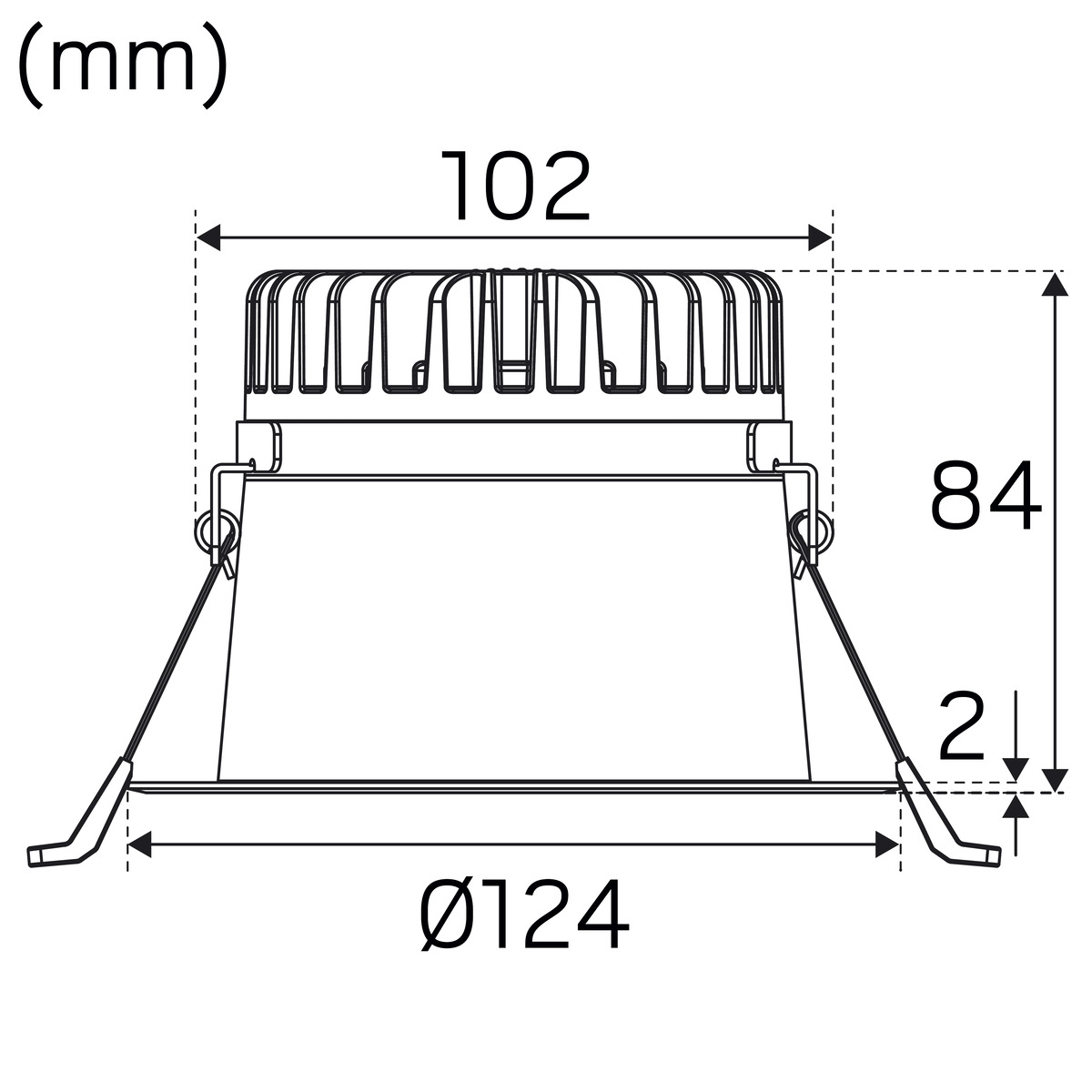

Height (mm) 84

Diameter (mm) 124

Weight (kg) 0,53

Min. Built-in (mm) 300x200x95

Height Recessed Part (mm) 82

Height Exterior Part (mm) 2

Built-in Ø (mm) 102-113

Spare parts

If you need spare parts, contact our customer support

LED-Module Echo S X238

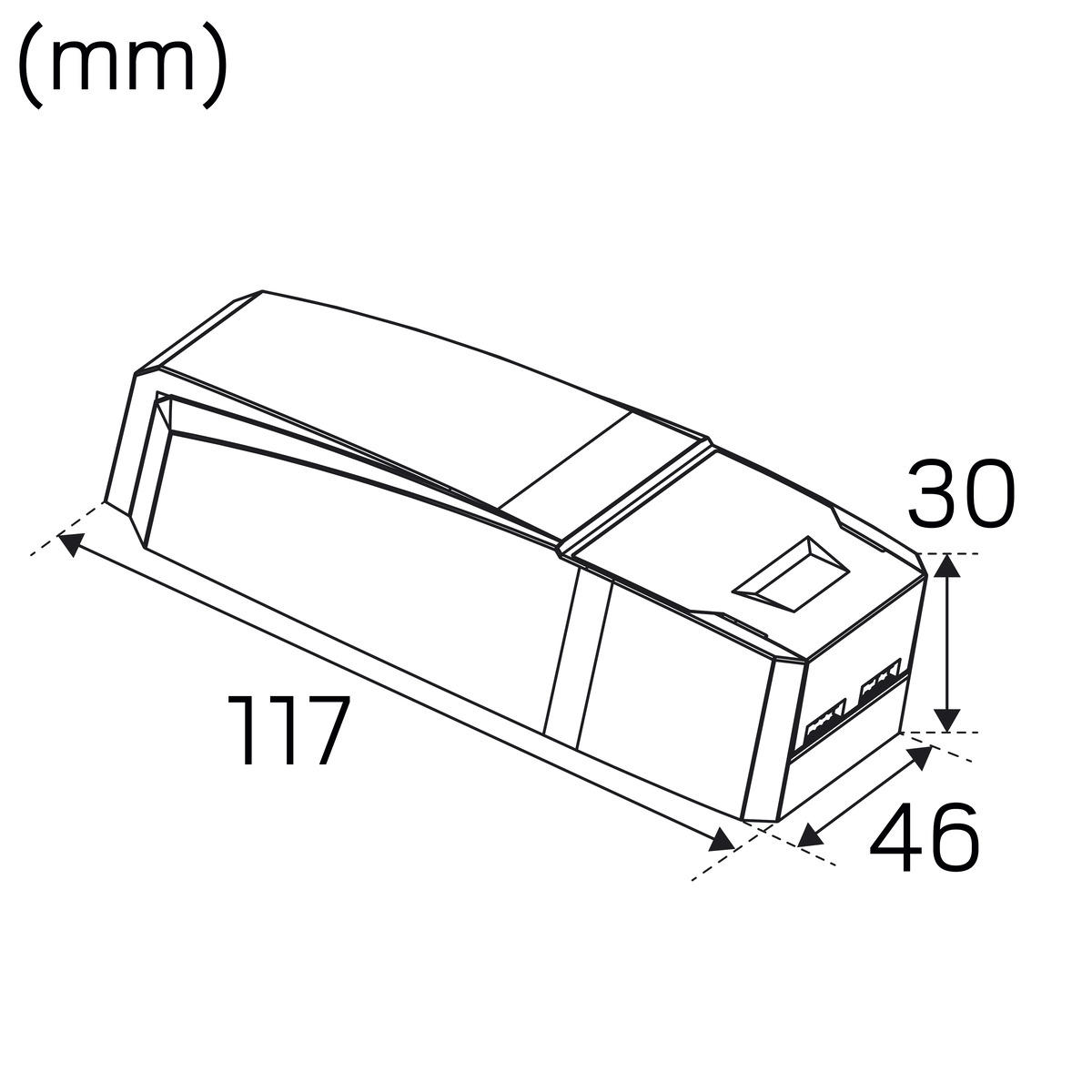

Driver Echo S FDIM 350mA X173
