Plano Basic

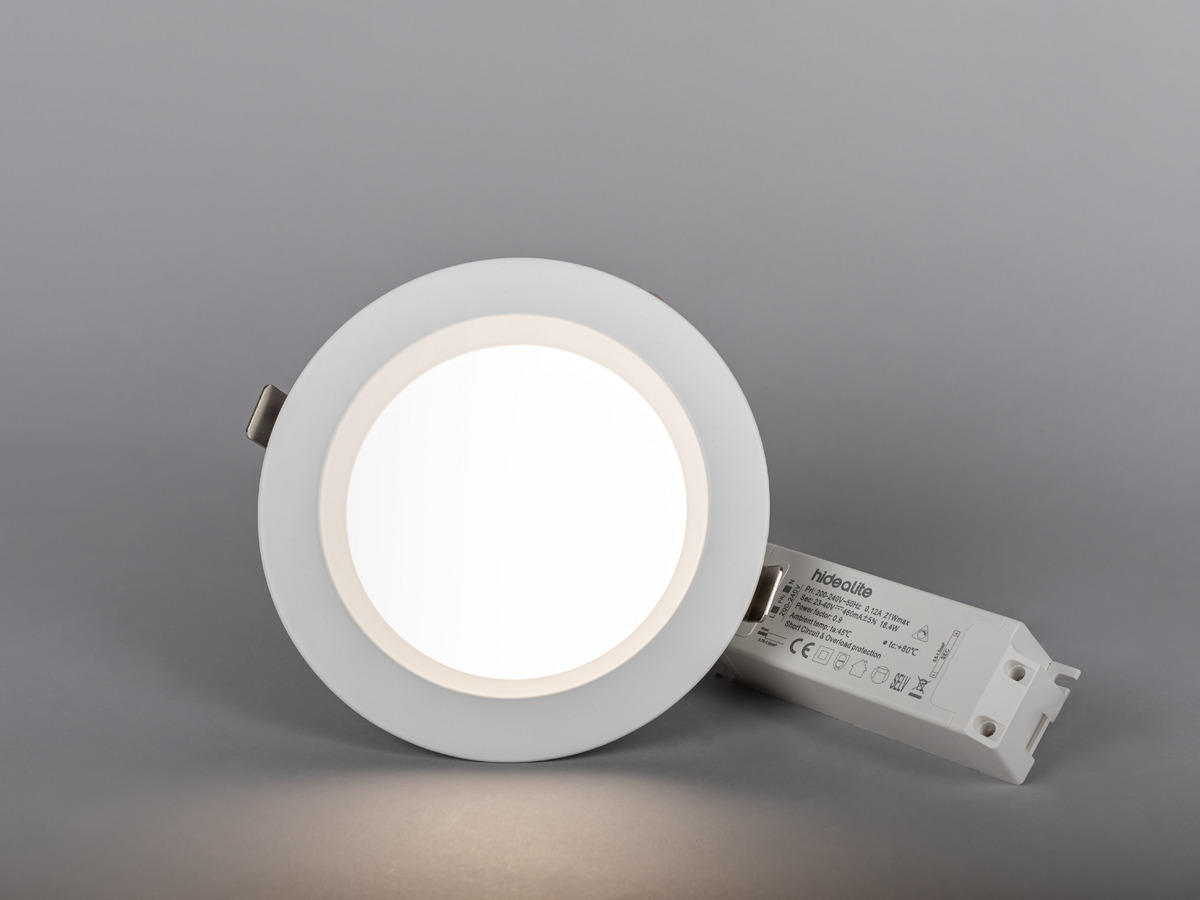

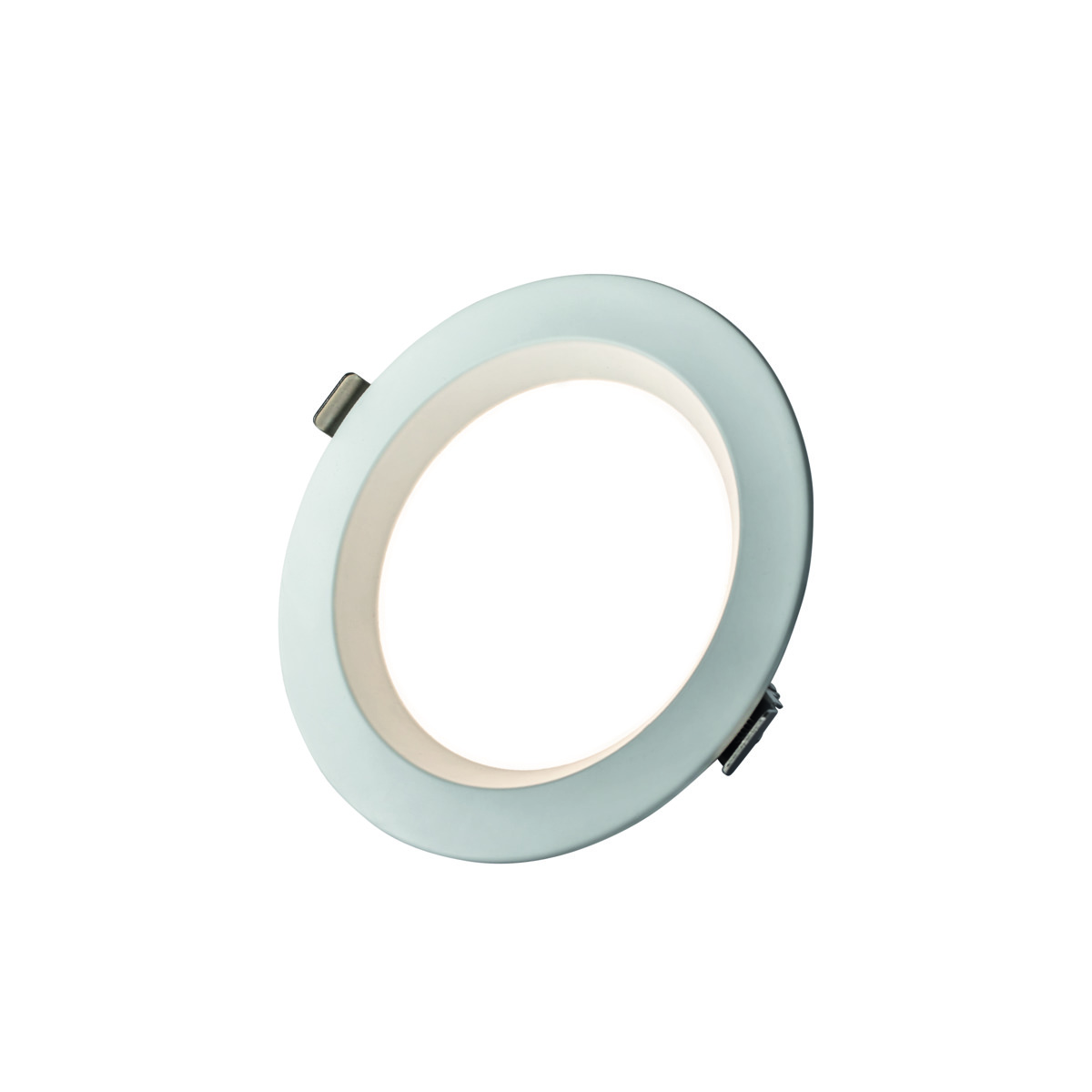

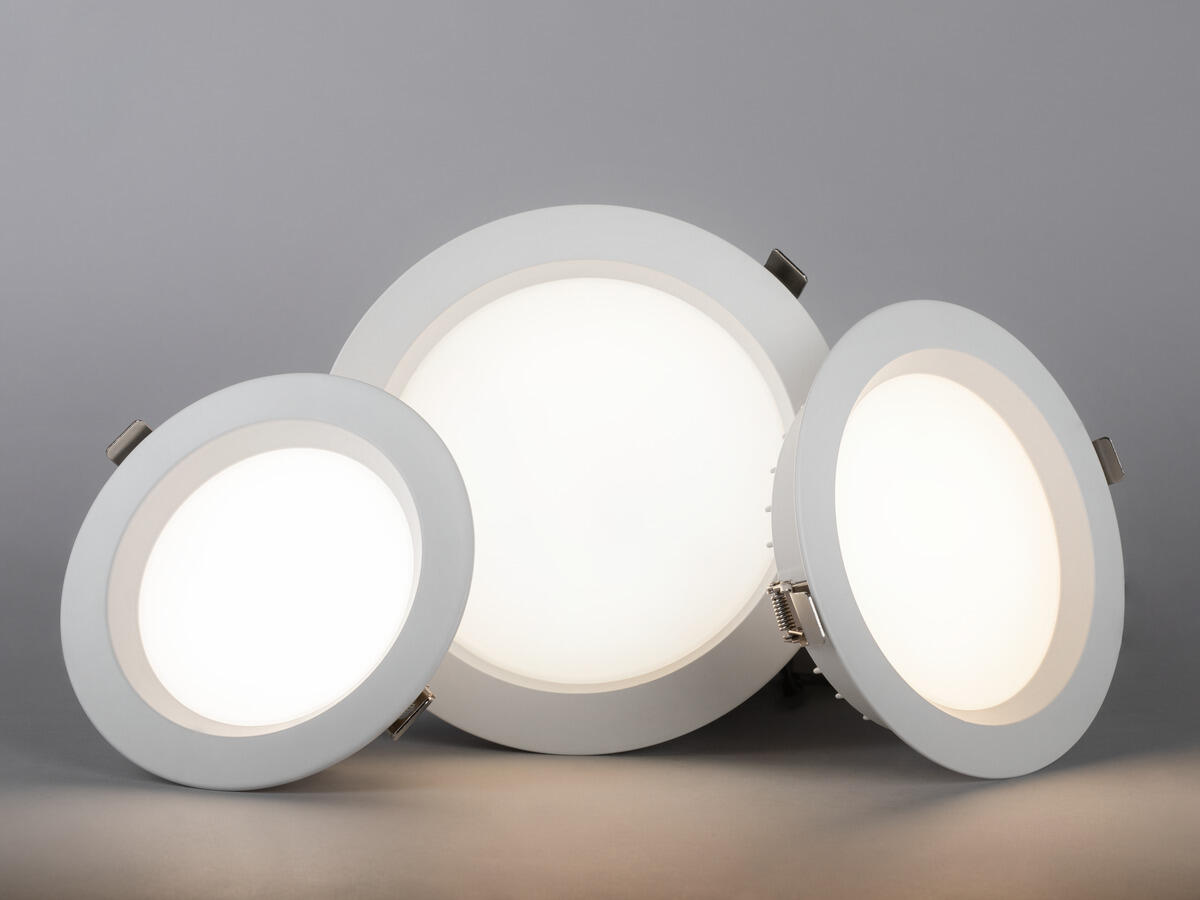

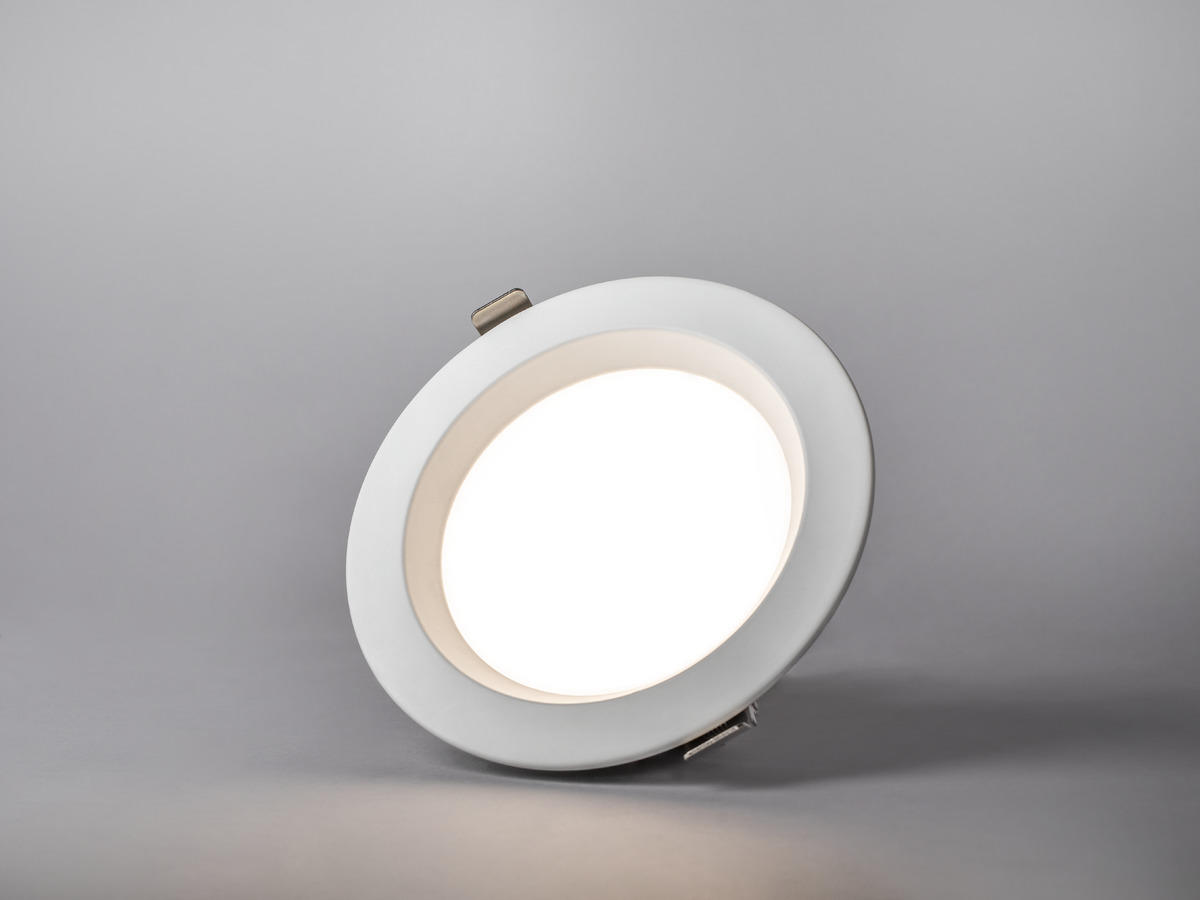

Low-build, energy-saving downlight for general lighting in large premises - perfect replacement for old compact fluorescent luminaires. Selectable colour temperature via DIP switch. Available in three sizes suitable for most cut out dimensions from 140mm to 218mm. Extremely efficient with broad beam angle together with opal diffuser, it creates an even general lighting in corridors, schools, canteens and waiting rooms, etc. Comes complete with phase dimmable driver and 2m cord set with earthed plug.
Exists in one color

Variants

GTIN Item Name Luminaire Lumen (lm)
Plano Basic 170 White 7392971139005 Plano Basic 170 White 1850

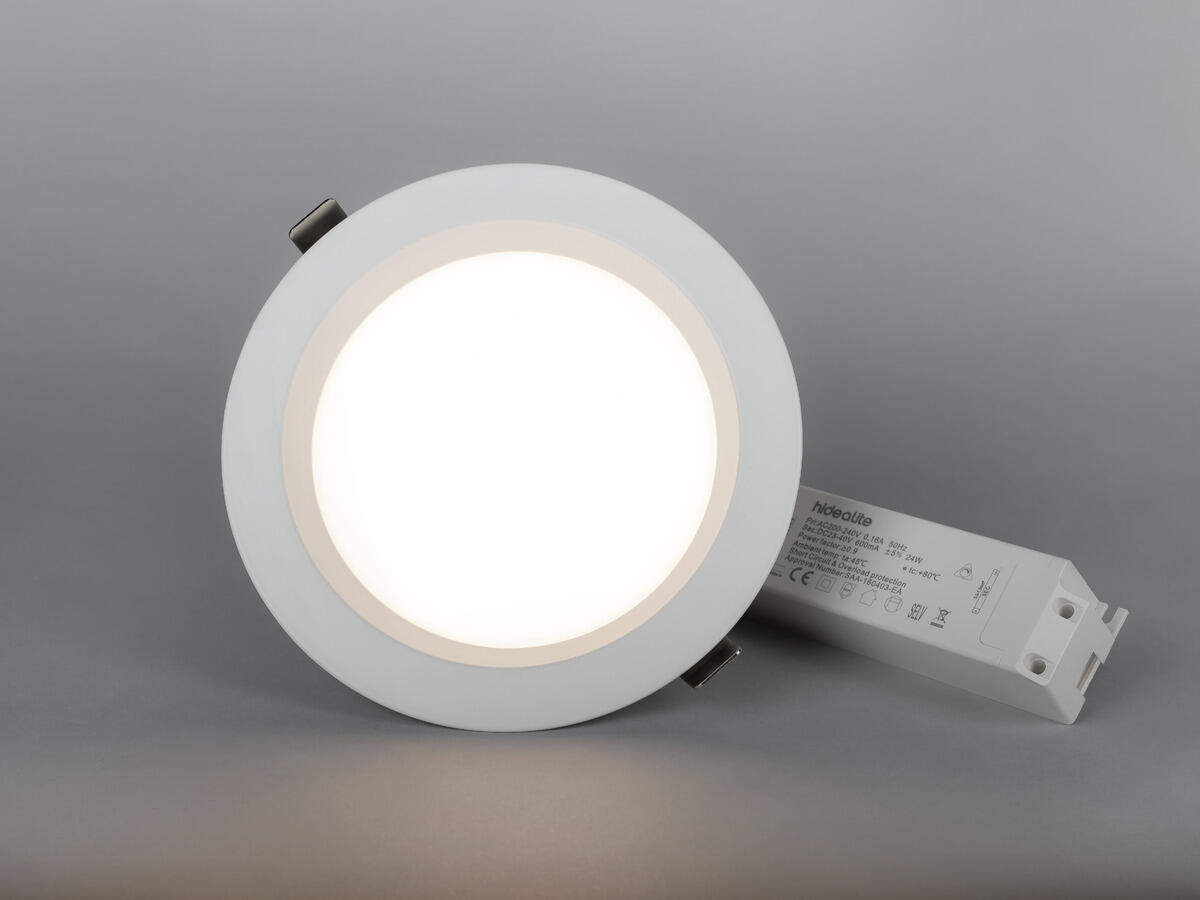

Plano Basic 190 White 7392971139012 Plano Basic 190 White 2680

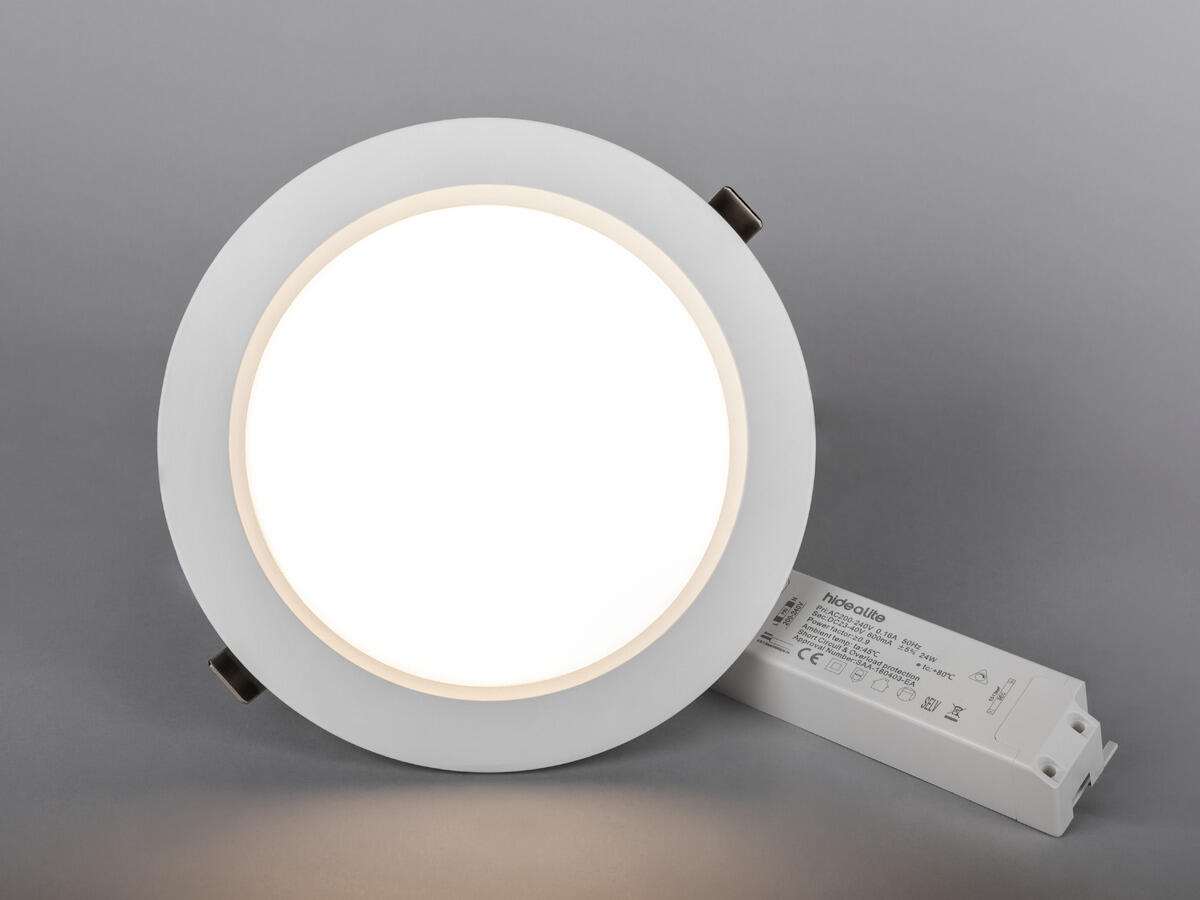

Plano Basic 230 White 7392971139029 Plano Basic 230 White 3840

Plano Basic 170 White A+

Description
GTIN 7392971139005
Item Name Plano Basic 170 White
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
Light Source Included (type) LED not exchangeable
LED Colour White
Colour Temperature (K) 3000, 4000, 5700
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 3

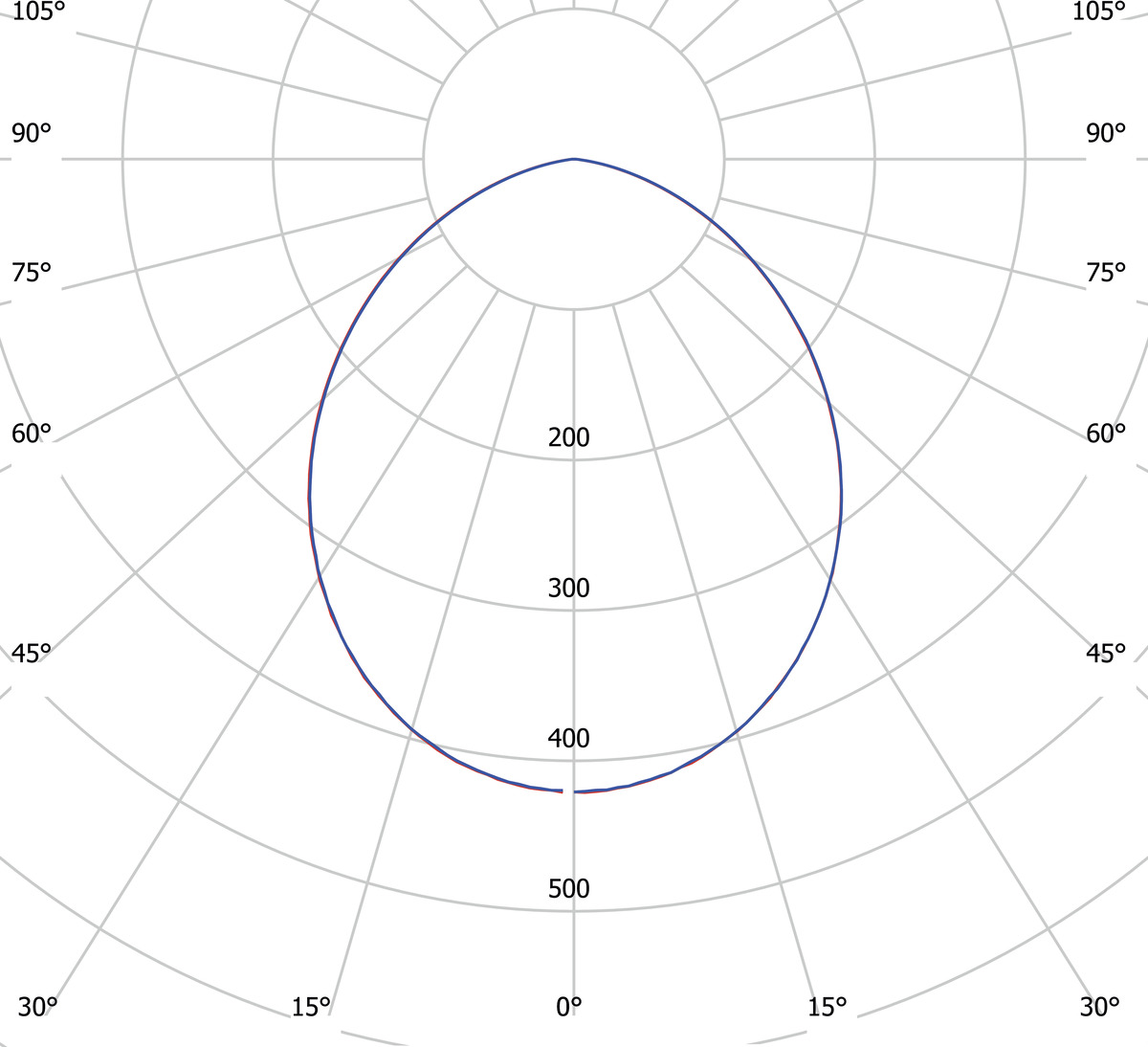

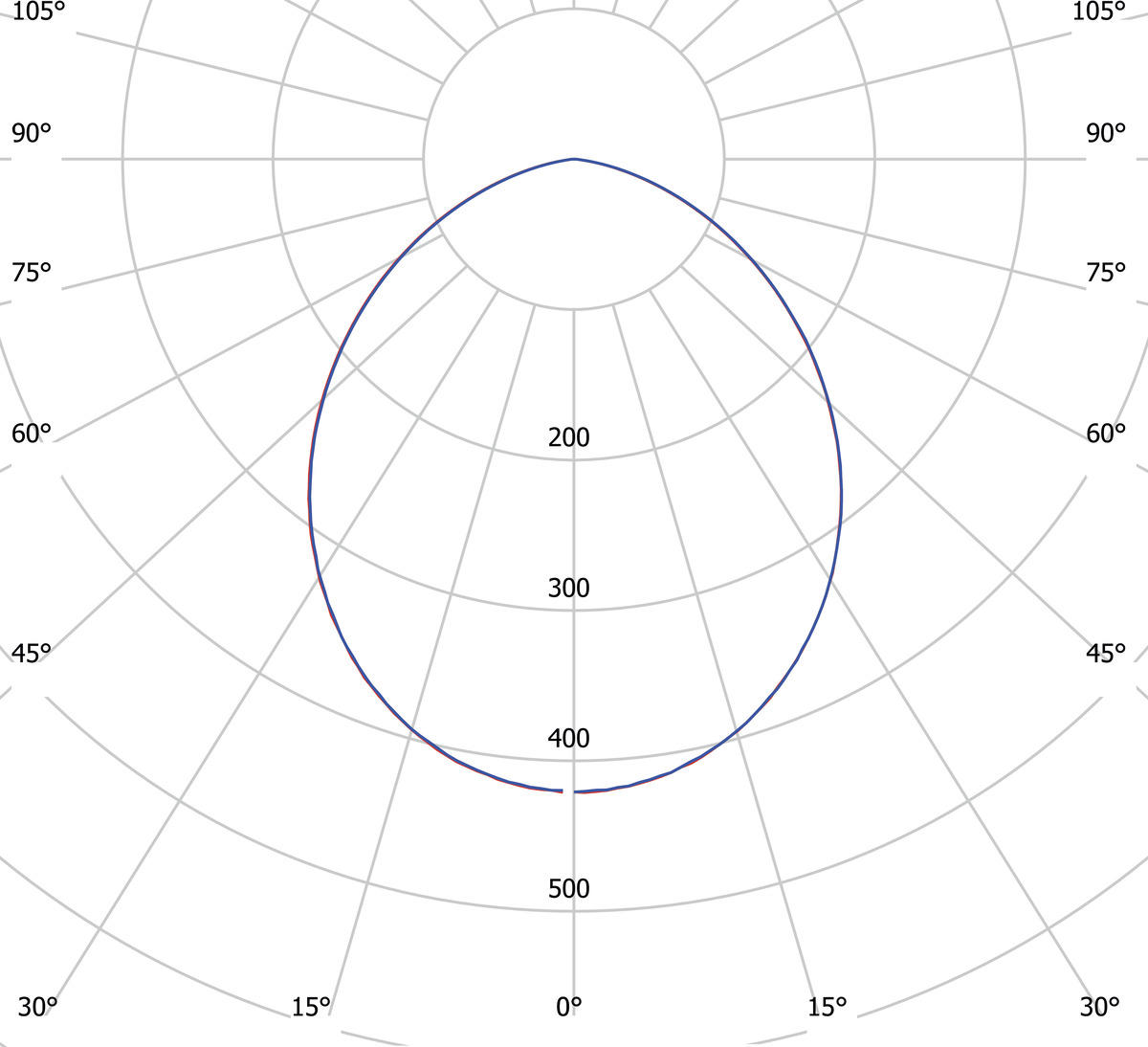

Luminous Intensity (cd) 780
Luminaire Lumen (lm) 1850
Beam Angle (°) 100
Light sharing Symmetric
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 144
Life Time L70 50 000h Ta 25°C
Nominel Life Time (h) 50000
Lumen maintenance 50 000h L70
LLMF @ 50 000h 0,7
Life Time Driver 50 000h/5%
Technical data
Adjustable No
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50
Power Luminaire (W) 18
System Power (W) 18
Efficiency Luminaire (lm/W) 103
Efficiency System (lm/W) 103
Energy Efficiency Class A+
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Stand Alone

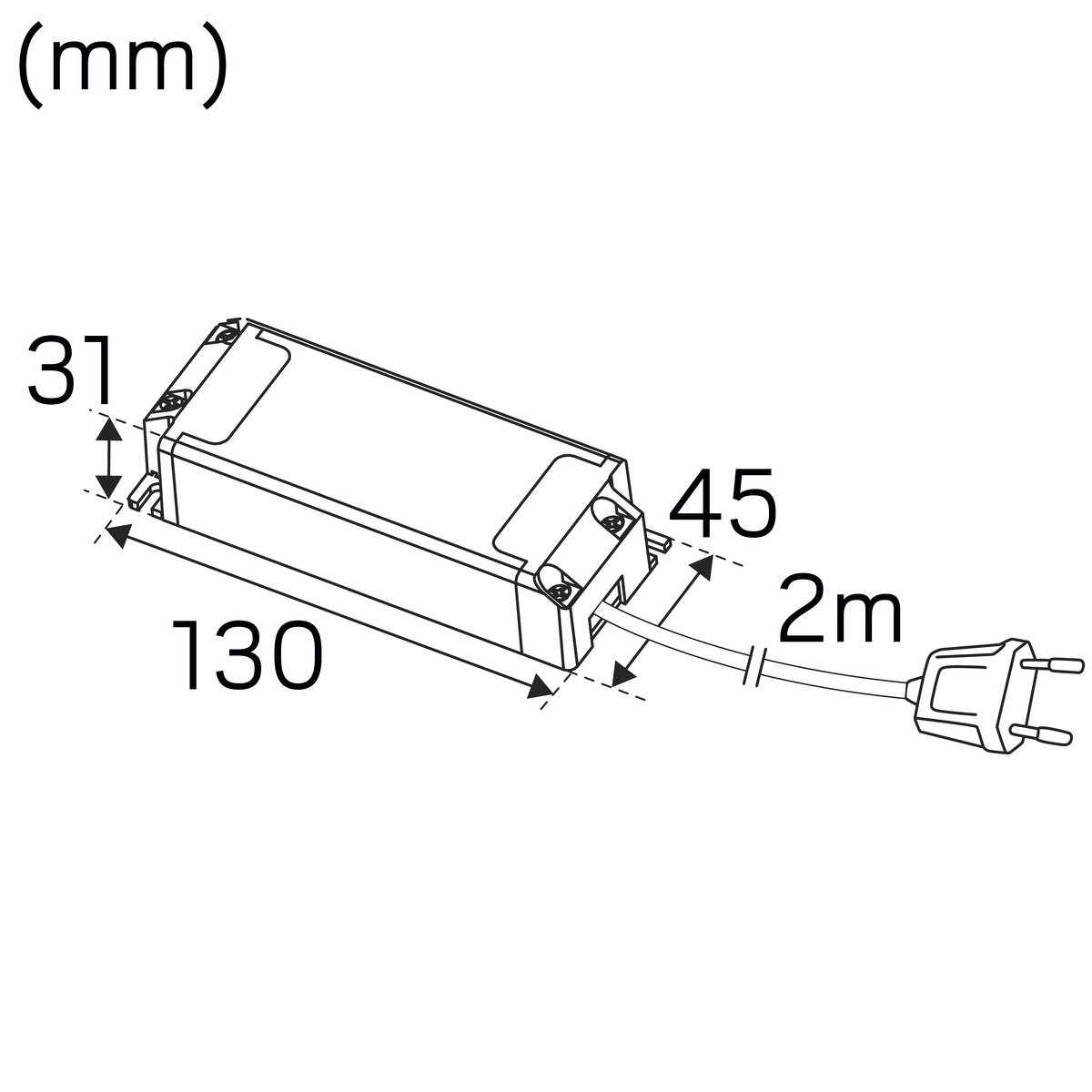

Connection (type) Cord Set
Length Connection (cm) 200
Connection (mm2) 2x0,75
Through Wiring No
Strain Relief Yes
Power Factor ʎ 0,9
Efficiency (%) 83
Operating Temperature -20…+45
Max. Tc (°C) 80
Dimmable Yes
Type of Dimming Trailing Edge, Leading Edge
Fuse B10 (pcs) 60
Fuse B16 (pcs) 96
Fuse C10 (pcs) 60
Fuse C16 (pcs) 96
Color and material
Material Aluminium, Plastic
Color White
Measurement and installation
Operating Environment Indoor / wet locations
IP Degree of Protection 54
Protection Class II
Installation Built-in
Mounting Installation Mounting Spring
Ceiling Thickness Interval (mm) 3-25
Fire Safety Marks Not in insulation without protection cover
Approval Marks CE
Impact Strength IK06
Filament Test IEC 695-2-1(°C) 650

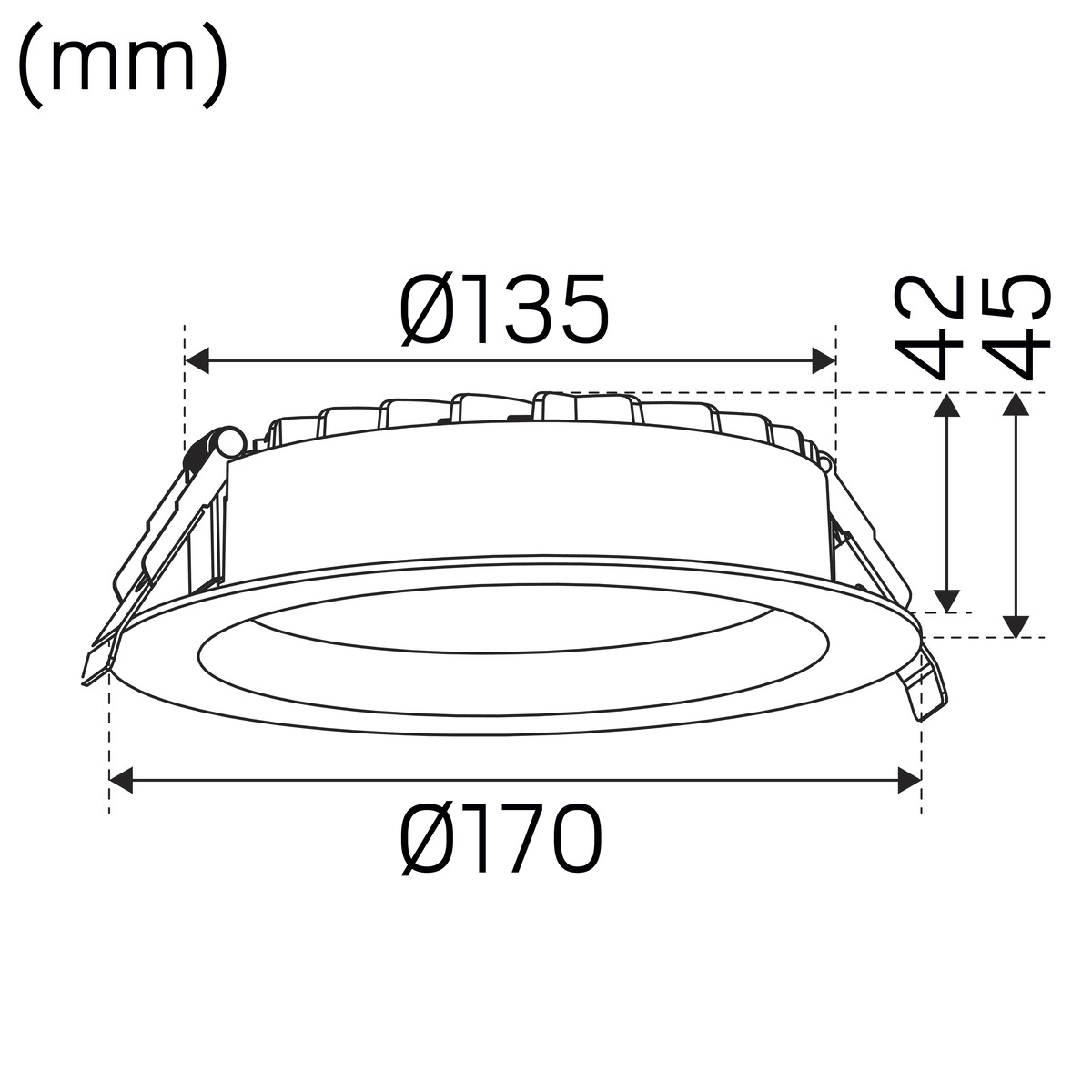

Height (mm) 45
Diameter (mm) 170
Weight (kg) 0,52
Height Recessed Part (mm) 42
Height Exterior Part (mm) 3
Built-in Ø (mm) 140-160
