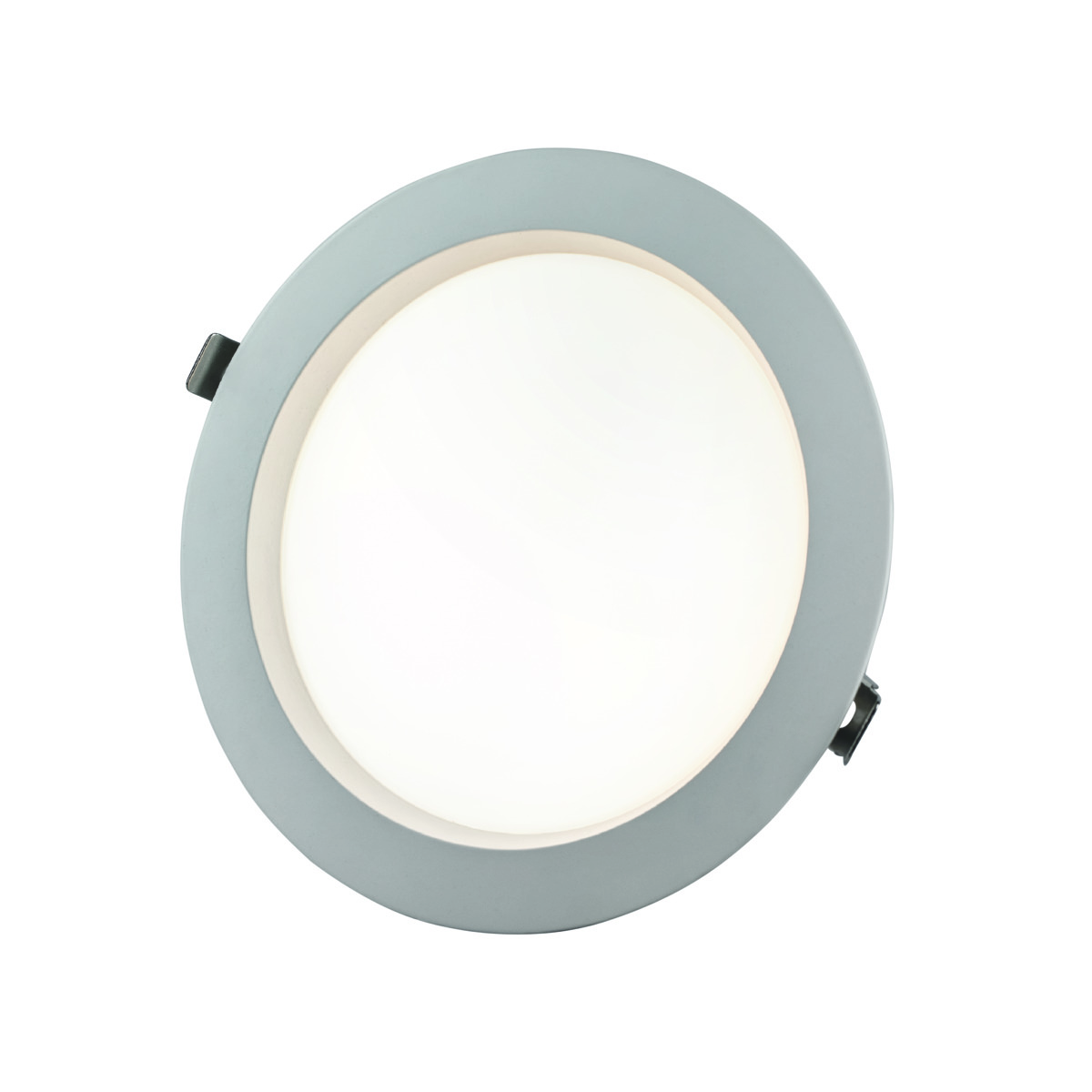

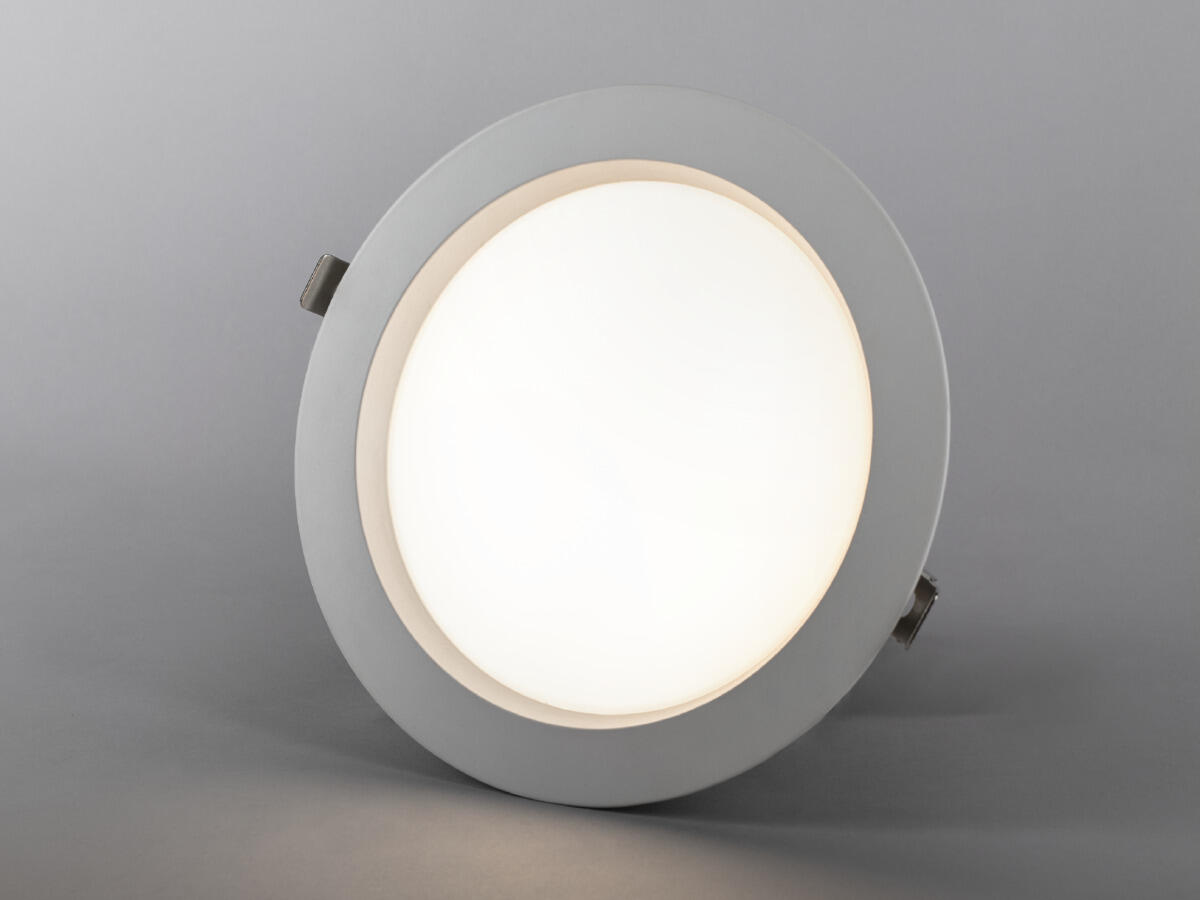

Plano Basic

  • Selectable colour temperature via DIP-Switch ColourTemp
  • Low-build and wide beam
  • Replaces older compact fluorescent lamp fixtures with the same aperture

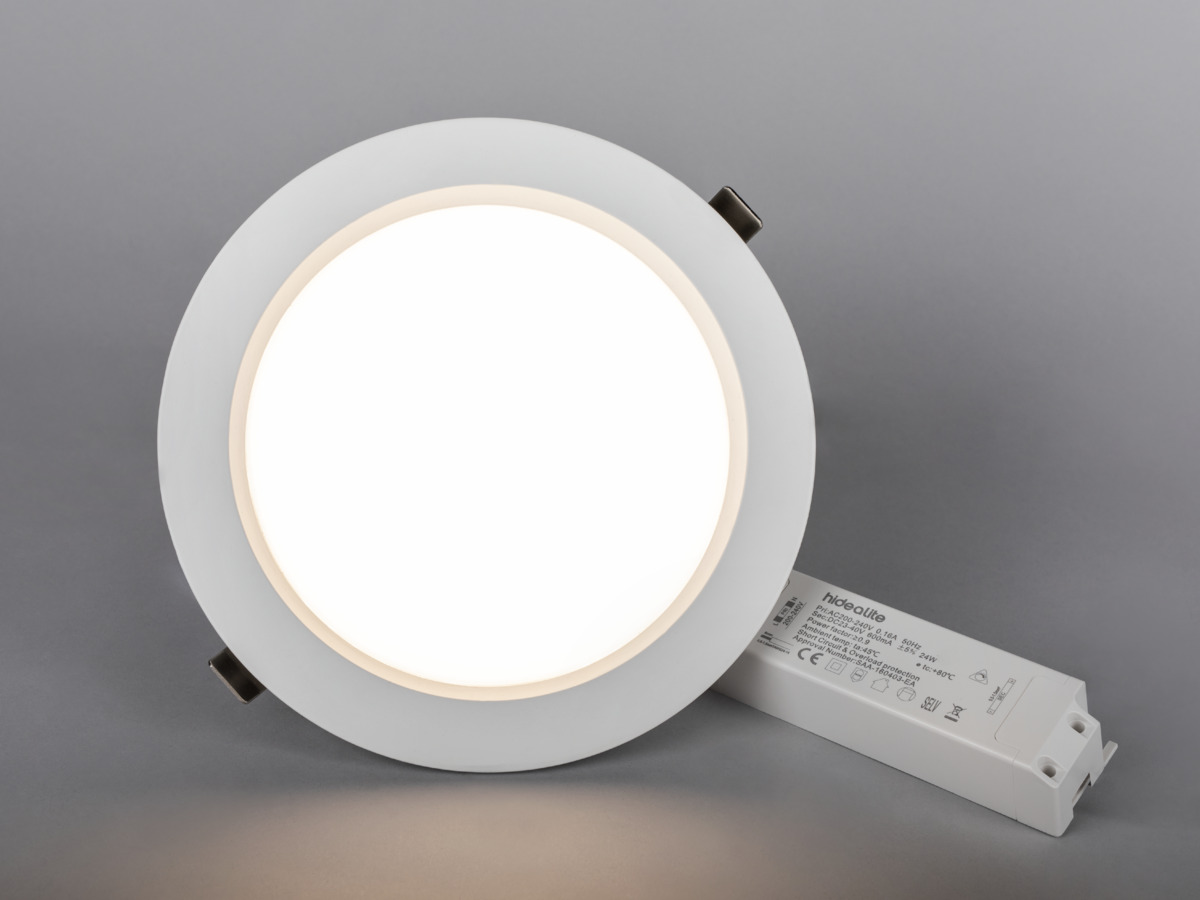

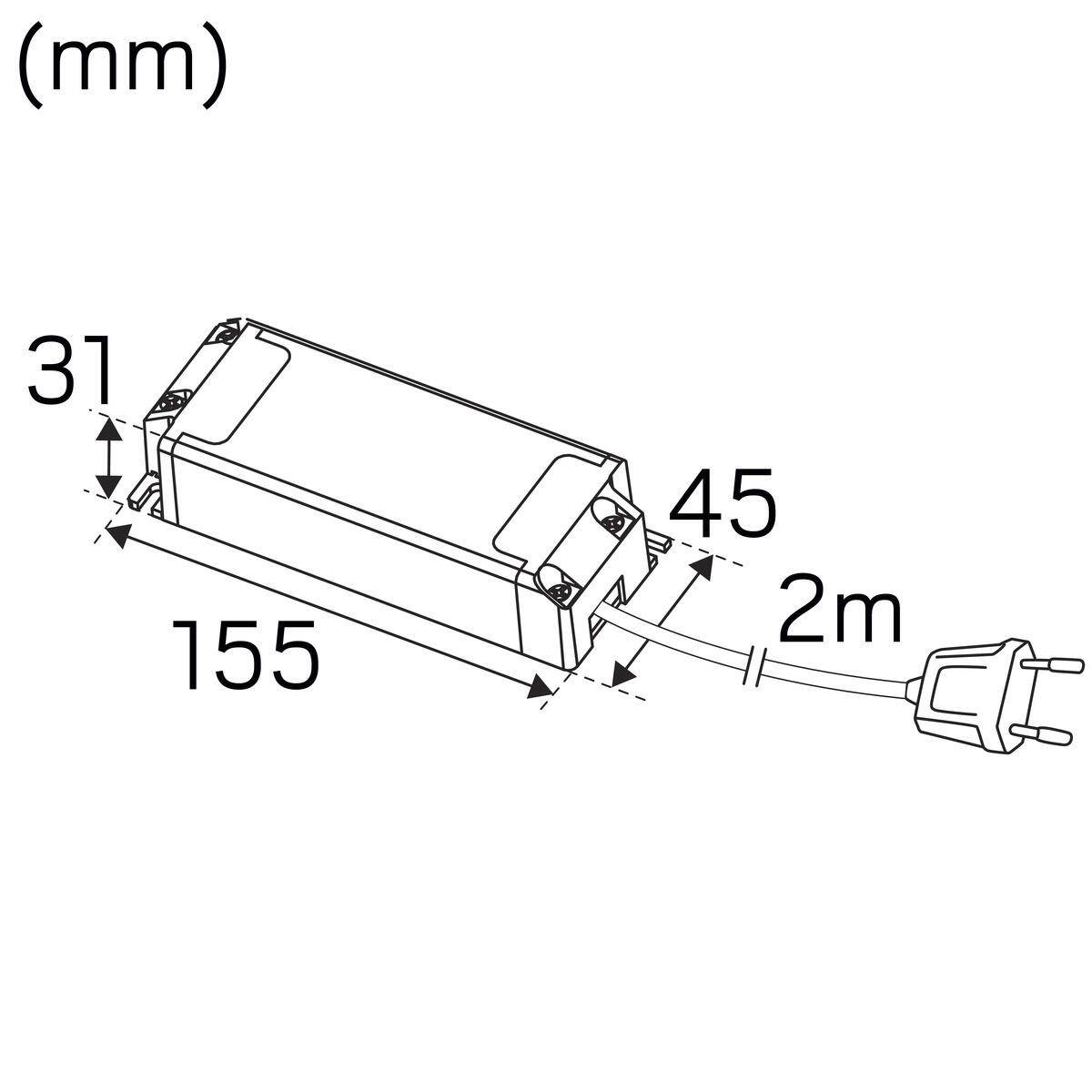

  • Complete with phase dimmable driver and 2m cord set with unearthed plug
Low-build, energy-saving downlight for general lighting in large premises - perfect replacement for old compact fluorescent luminaires. Selectable colour temperature via DIP switch ColourTemp. Available in three sizes suitable for most cut out dimensions from 140mm to 218mm. Extremely efficient with broad beam angle together with opal diffuser, it creates an even general lighting in corridors, schools, canteens and waiting rooms, etc. Comes complete with phase dimmable driver and 2m cord set with earthed plug. Can be supplied with Q-Box Mini or Linect.
Exists in one color
Variants GTIN Item Name Max. Luminaire Lumen (lm)
Plano Basic 230 White 7392971139029 Plano Basic 230 White 3840
Plano Basic 170 White 7392971139005 Plano Basic 170 White 1850
Plano Basic 190 White 7392971139012 Plano Basic 190 White 2680
Show more articles

Plano Basic 230 White

Save as favourite Save as pdf
Description
GTIN 7392971139029
Item Name Plano Basic 230 White
Warranty 5 years

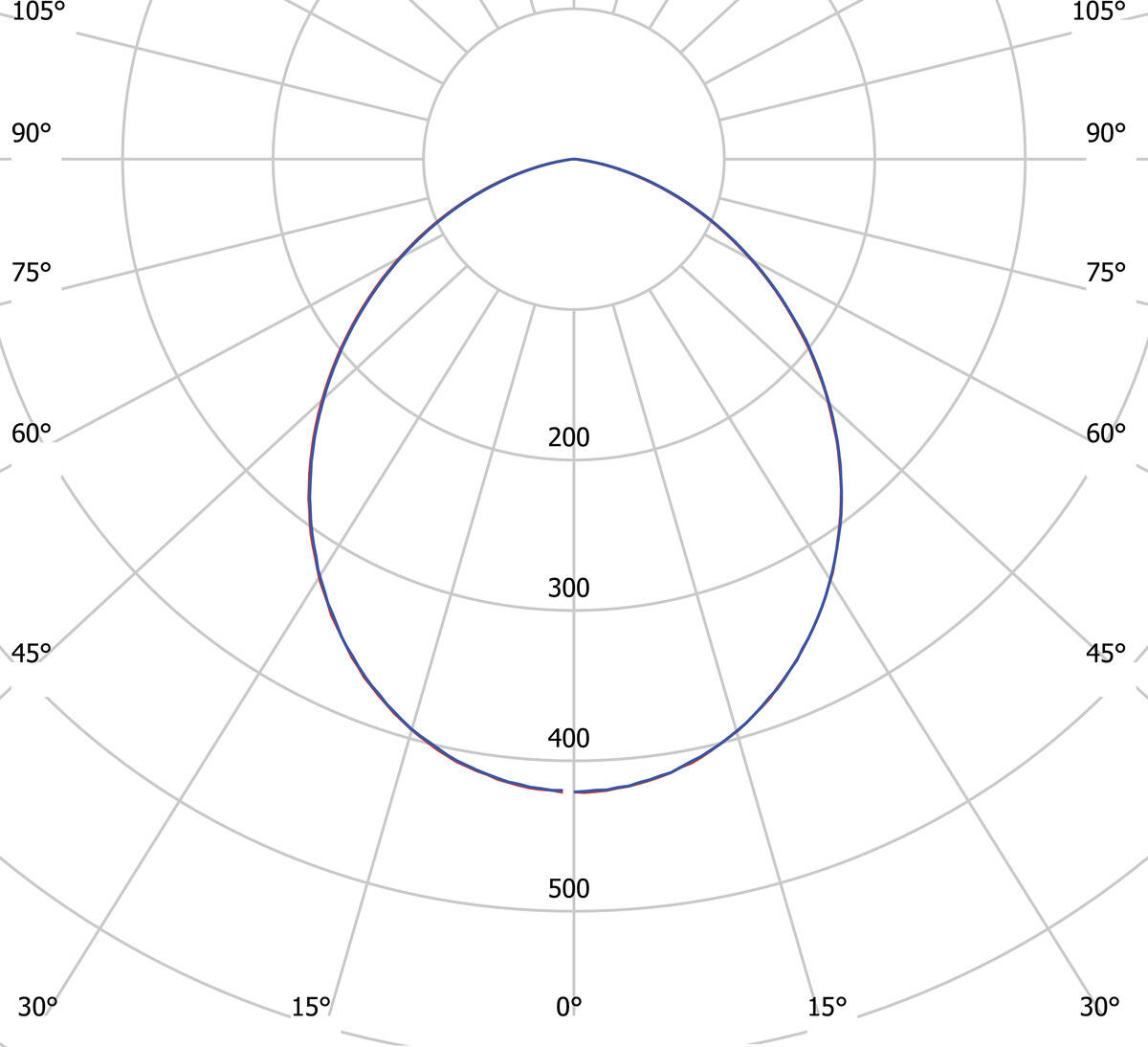

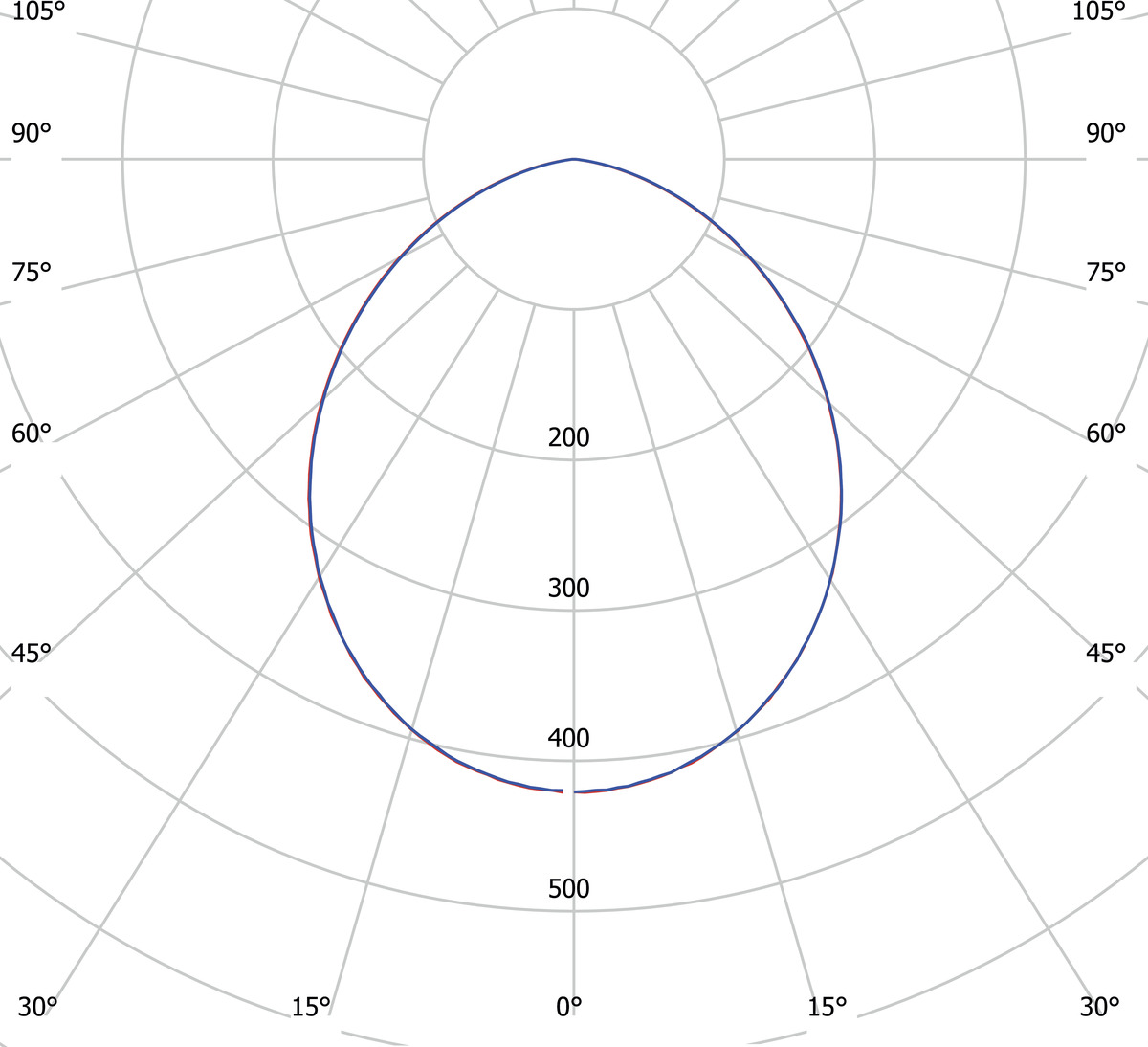

Light Technical Data
Technical data
Operation and Connection
Color and material

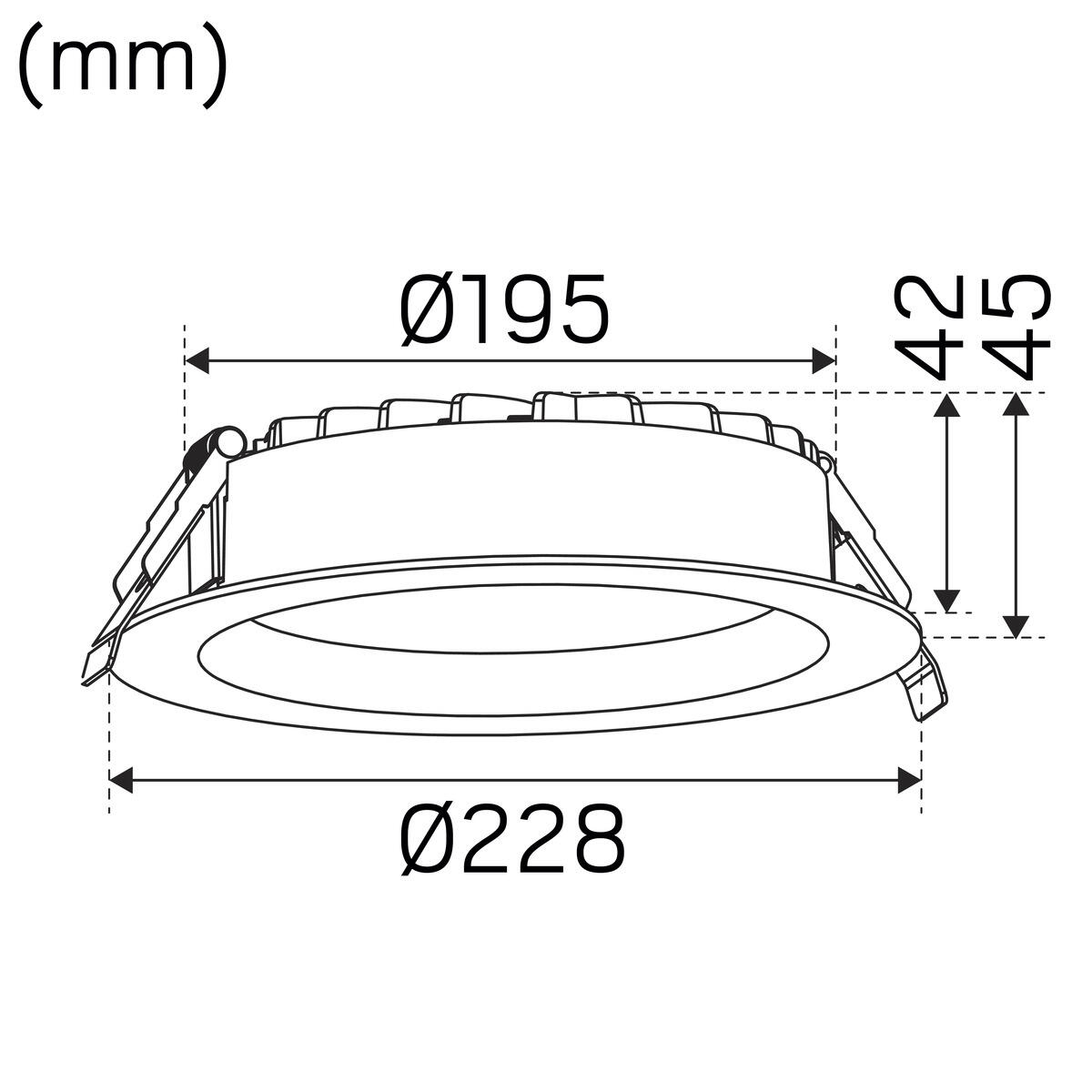

Measurement and installation

Accessories

Q-Box Mini 3-pole/Linect

Q-Box Mini 3-pole/Linect

Q-Box Mini is a connection box with a 2-in-1 function in plastic, for traditional through …
Mounting Plate 400x400

Mounting Plate 400x400

Mounting plate in treated cardboard to facilitate installation of downlights in soft suspe…
